OPERATION MANUAL
GATOR®EK6IDL
Battery-powered
Dieless Crimping Tool
52066203 © 2014 Greenlee Textron Inc. 2/14
Serial Number
Read and understand all of the instructions and
safety information in this manual before operating
or servicing this tool.
Register this product at www.greenlee.com

EK6IDL Battery-powered Dieless Crimping Tool
Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070
2
Description
The EK6IDL Battery-powered, High-speed Dieless
Crimping Tool is a hand-held, self-contained crimping
tool intended to crimp copper cable.
This tool is protected by U.S. Patent No. 6,276,186,
6,401,515, 6,718,870, 7,086,979, 7,216,523, and
7,254,982.
Safety
Safety is essential in the use and maintenance of
Greenlee tools and equipment. This manual and any
markings on the tool provide information for avoiding
hazards and unsafe practices related to the use of this
tool. Observe all of the safety information provided.
Purpose of this Manual
This manual is intended to familiarize all personnel with
the safe operation and maintenance procedures for the
following Greenlee tool:
EK6IDL Battery-powered Dieless Crimping Tool
Keep this manual available to all personnel.
Replacement manuals are available upon request
at no charge at www.greenlee.com.
Do not discard this product or throw away!
For recycling information, go to www.greenlee.com.
All specications are nominal and may change as design improve-
ments occur. Greenlee Textron Inc. shall not be liable for damages
resulting from misapplication or misuse of its products.
GATOR is a registered trademark of Textron Innovations Inc.
Blackburn is a registered trademark of Thomas & Betts.
KEEP THIS MANUAL
Table of Contents
Description ..................................................................... 2
Safety ............................................................................. 2
Purpose of this Manual .................................................. 2
Important Safety Information ..................................... 3–4
Identication................................................................... 5
Specications................................................................. 5
Operation.................................................................... 6–7
cUL and UL Classied Crimps ....................................... 8
Connector Table.......................................................... 8
Maintenance................................................................... 9
Troubleshooting............................................................ 10

EK6IDL Battery-powered Dieless Crimping Tool
Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070
3
IMPORTANT SAFETY INFORMATION
SAFETY
ALERT
SYMBOL
This symbol is used to call your attention to hazards
or unsafe practices which could result in an injury or
property damage. The signal word, dened below,
indicates the severity of the hazard. The message
after the signal word provides information for pre-
venting or avoiding the hazard.
Immediate hazards which, if not avoided, WILL result
in severe injury or death.
Hazards which, if not avoided, COULD result in
severe injury or death.
Hazards or unsafe practices which, if not avoided,
MAY result in injury or property damage.
Read and understand all of the
instructions and safety information
in this manual before operating or
servicing this tool.
Failure to observe this warning
could result in severe injury or death.
Electric shock hazard:
This tool is not insulated. When
using this unit on or near energized
electrical lines, use proper personal
protective equipment.
Failure to observe this warning
could result in severe injury or death.
Wear eye protection when operating
or servicing this tool.
Failure to wear eye protection could
result in serious eye injury from
ying debris or hydraulic oil.
Skin injection hazard:
Do not use hands to check for oil
leaks. Oil under pressure easily
punctures skin. If injured, seek
medical attention immediately to
remove oil.
Failure to observe this warning
could result in serious injury, gan-
grene, or death.
Do not use solvents or ammable
liquids to clean the tool body.
Solvents or ammable liquids could
ignite and cause serious injury or
property damage.
An incomplete crimp can cause a re.
• Use proper connector and cable combinations.
Improper combinations can result in an incomplete
crimp.
• The relief valve sounds and the ram automatically
retracts to indicate a completed crimp. If you do
not hear the sound of the relieve valve or the ram
does not automatically retract, the crimp is not
complete.
Failure to observe these warnings could result in
severe injury or death.

EK6IDL Battery-powered Dieless Crimping Tool
Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070
4
Pinch points:
• Remove battery before changing
adapters or jaws.
• Keep hands away from the crimp-
ing tool head when crimping.
Failure to observe these warnings
could result in severe injury or death.
Do not dispose of batteries in a re. They will vent
fumes and may explode.
Failure to observe this warning could result in severe
injury from harmful fumes or burns from ying
debris.
Inspect tool before use. Replace any worn or
damaged parts. A damaged or improperly assembled
tool can break and strike nearby personnel.
Failure to observe this warning could result in severe
injury or death.
• Do not use this tool for continuous use. After 30 to
40 cycles, allow the tool to cool for 15 minutes.
• Do not secure this tool in a vise. This tool is
designed for hand-held operation.
• This tool may be used in damp or wet environ-
ments; however, air-drying is recommended before
use if the tool becomes soaked. Damage may
result when the tool is operated prior to thorough
drying when electrical components are soaked.
• Use this tool for the manufacturer’s intended
purpose only.
Failure to observe these precautions may result in
injury or property damage.
Do not allow anything to contact the battery
terminals.
• Do not immerse the batteries in liquid. Liquid may
create a short circuit and damage the battery.
If batteries are immersed, contact your service
center for proper handling.
• Do not place the battery into a pocket, tool pouch,
or tool box with conductive objects. Conductive
objects may create a short circuit and damage the
battery.
• Do not place a battery on moist ground or grass.
Moisture may create a short circuit and damage
the battery.
Failure to observe these precautions may result in
injury or property damage.
• Do not store the battery at more than 122 °F
(50°C) or less than –4 °F (–20 °C). Damage to the
battery can result.
• Do not use another manufacturer’s charger. Other
manufacturers’ chargers may overcharge and
damage the battery.
• Do not attempt to open the battery. It contains no
user-serviceable parts.
Failure to observe these precautions may result in
injury or property damage.
Do not perform any service or maintenance other
than as described in this manual. Injury or damage
to the tool may result.
Failure to observe this precaution may result in injury
and property damage.
Note: Keep all decals clean and legible, and replace
when necessary.
IMPORTANT SAFETY INFORMATION

EK6IDL Battery-powered Dieless Crimping Tool
Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070
5

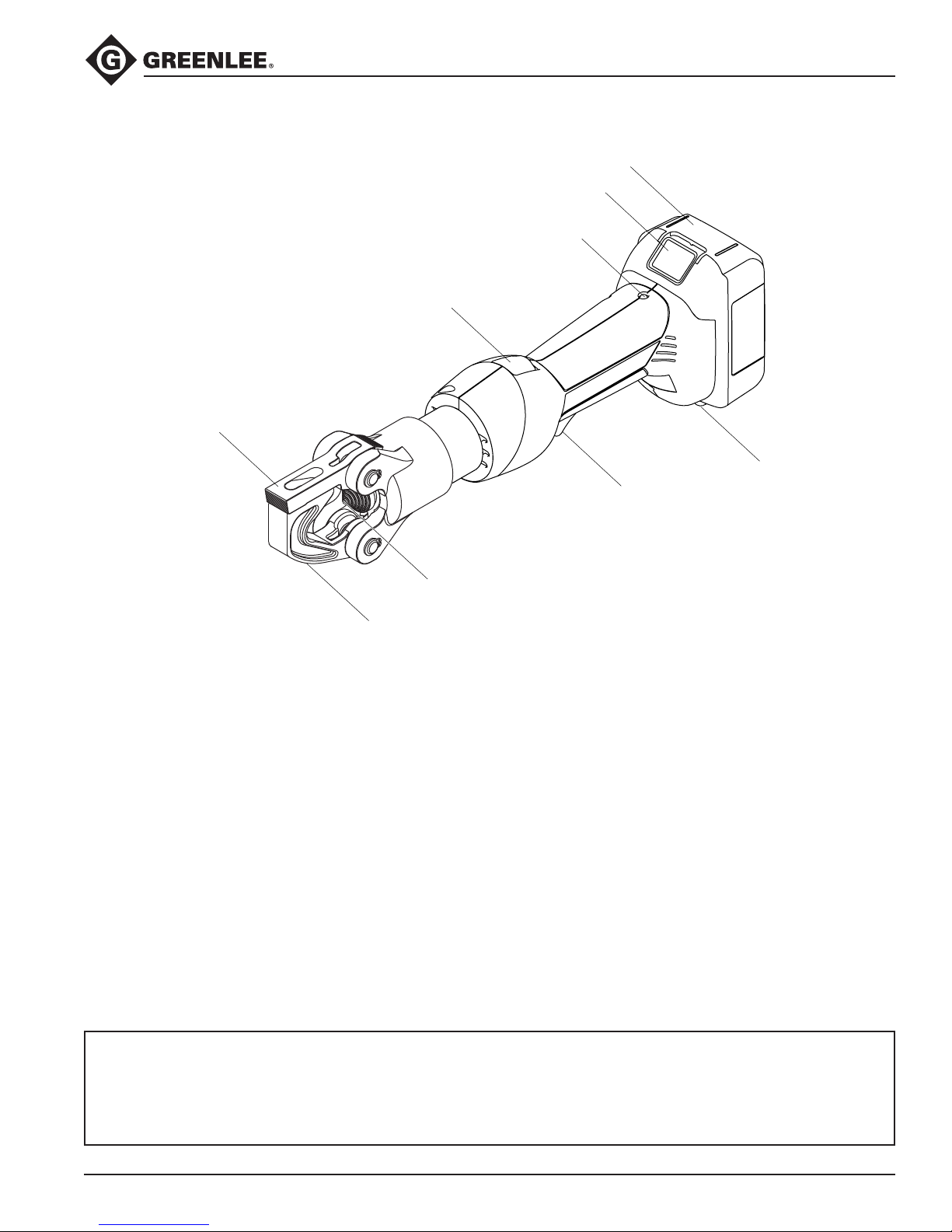

Identification
Specifications
Crimping Tool
Length........................................................................................................ 15.75" (400 mm)
Width .......................................................................................................... 2.87" (72.9 mm)
Depth........................................................................................................... 4.50" (114 mm)
Weight................................................................................................................ 6.6 lb (3 kg)
Crimping Force...............................................................................................6 tons (53 kN)
Hydraulic Oil ......................................................... 52057878 biodegradable hydraulic uid
Recommended Operating Temperature Range...................5 °F to 122 °F (–15 °C to 50°C)
Crimping Capacities
Maximum Cable Size
Copper......................................................................................................... 600 kcmil
Aluminum..................................................................................................... 350 kcmil
Battery Charger........................................................................ Read the instructions supplied
with the battery charger
1. Indenter
2. Head
3. Latch
4. Retract Button
5. LED Indicator (red)
6. Battery Lock
7. Battery Cartridge
8. LED Work Light (white)
9. Trigger
5
4
7
9
2
1
6
8
3
52047087 120 VAC corded adapter
52047088 230 VAC corded adapter
52049190 18 V, 1.5 Ah lithium-ion battery
52049189 18 V, 3.0 Ah lithium-ion battery
52054992 Li (18 V) to NiCd, NiMH (12 V) charger adapter
52049201 120 VAC, 18 V charger
52049202 230 VAC, 18 V charger
52049204 12 VDC, 18 V charger

EK6IDL Battery-powered Dieless Crimping Tool
Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070
6
Operation
Inspect tool before use. Replace any worn or
damaged parts. A damaged or improperly assembled
tool can break and strike nearby personnel.
Failure to observe this warning could result in severe
injury or death.
Electric shock hazard:
This tool is not insulated. When
using this unit on or near energized
electrical lines, use proper personal
protective equipment.
Failure to observe this warning
could result in severe injury or death.
Wear eye protection when operating
or servicing this tool.
Failure to wear eye protection could
result in serious eye injury from
ying debris or hydraulic oil.
Pinch points:
• Remove battery before changing
adapters or jaws.
• Keep hands away from the crimp-
ing tool head when crimping.
Failure to observe these warnings
could result in severe injury or death.
• Do not use this tool for continuous use. After 30 to
40 cycles, allow the tool to cool for 15 minutes.
• Do not secure this tool in a vise. This tool is
designed for hand-held operation.
• This tool may be used in damp or wet environ-
ments; however, air-drying is recommended before
use if the tool becomes soaked. Damage may
result when the tool is operated prior to thorough
drying when electrical components are soaked.
• Use this tool for the manufacturer’s intended
purpose only.
Failure to observe these precautions may result in
injury or property damage.
Charging the Battery
Read the instructions supplied with the battery charger.
LED Work Light (white)
This LED automatically turns on when the trigger is
pulled. It remains on for 10 seconds after the trigger is
released.
LED Indicator (red)
This tool is equipped with a special circuit board incor-
porating several important features to inform the user
about the current status of the unit. The LED signals in
the following cases:
What happens Signal What it means
Flashing light for 2seconds Battery is inserted in tool
Constant light for 20seconds
at end of cycle
Battery charge is below
17V at beginning of cycle
Tool will not start, and
constant light for 20seconds
when trigger is released
Battery charge is below
16V at beginning of cycle
Tool will stop, and constant
light for 20seconds after
trigger is released
Battery voltage drops
below 13V during cycle
Tool will stop, and flashing
light for 20seconds when
trigger is released
Motor current exceeds
20A during cycle
Circuit has become too hot
Pressure Sensor
This tool is equipped with a pressure sensor that alerts
the user of an incomplete crimp.
• If the tool is manually retracted before completion of a
crimp, the red LED and an audible beep will be active
for 2 seconds.
• If the tool is unable to reach the required crimp force,
the red LED, work light, and an audible beep will pulse
until after the trigger is released.

EK6IDL Battery-powered Dieless Crimping Tool
Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070
7
Preparation
For a cUL or UL classied crimp, refer to the
“Connector Table” in this instruction manual.
1. Select a proper size and type of connector to
correspond with the wire or cable.
2. Strip the cable to an appropriate length. Follow the
connector manufacturer’s instructions.
Note: Apply an oxide inhibitor, if required.
Refer to the connector manufacturer’s instructions.
Crimping
1. Insert the cable fully into the connector.

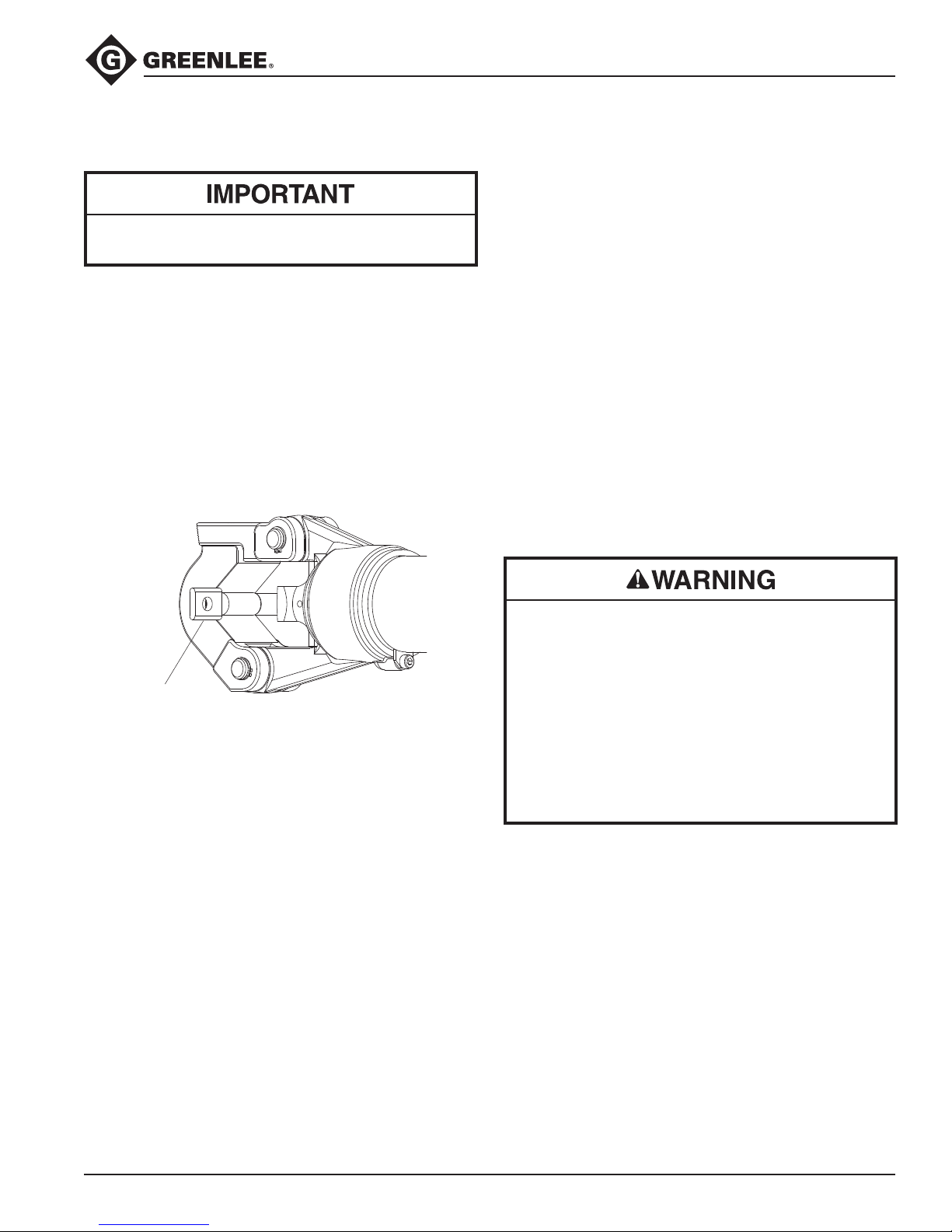

2. Place the connector into the V of the crimping head,
as shown below.
Connector
3. If open, close the crimping head. Make sure the
head and latch are fully engaged.
4. For a cUL or UL classied crimp, complete the
number of crimps specied in the “Connector Table”
in this manual.
5. For a single crimp, position the connector so the
crimp will be located at the center of the barrel.
6. Depress the trigger to advance the indenter. Hold
the trigger down until the indenter automatically
begins to retract.
Note: If the crimping tool does not automatically
retract, the crimp is incomplete.
It is normal for the battery load display to light at
both the beginning and near the end of the crimping
cycle.
7. Release the trigger until the indenter retracts
completely.
8. To stop the ram from returning fully, activate the
trigger for a brief moment. This activation will close
the retraction valve and stop the retraction motion.
9. Lift the latch to open the crimping head and remove
the connector.
Note: If it is necessary to retract the indenter before
a crimp cycle is complete, push the retract button.
Pushing the retract button will result in complete
retraction of the indenter.
An incomplete crimp can cause a re.
• Use proper connector and cable combinations.
Improper combinations can result in an incomplete
crimp.
• The relief valve sounds and the ram automatically
retracts to indicate a completed crimp. If you do
not hear the sound of the relieve valve or the ram
does not automatically retract, the crimp is not
complete.
Failure to observe these warnings could result in
severe injury or death.
Operation (cont’d)

EK6IDL Battery-powered Dieless Crimping Tool
Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070
8
cUL and UL Classified Crimps
Crimps made with the Greenlee EK6IDL Dieless Crimping
Tool are cUL and UL classied on standard concentric,
compressed, or compact stranded copper cable with the
connectors listed here.
Refer to the “Connector Table” for the brand names
and model numbers of appropriate connectors and the
number of crimps required.
Connector Table
(NOT for use with flex, navy or welding wire)
Copper Connector Type **
Anderson Blackburn®Burndy ILSCO Panduit T & B
Penn-
Union
**
Tyco (AMP)
Copper Splices VHSS
VHS
CSP
CU
YS-L
YS
CT
CTL
SCSS
SCS
SCL, SCH
54506 to 54528
54806 to 54828
BCU
BBCU —
Copper Lugs VHCS
VHCL
CTL
CTL-L
LCN
YA, YA-L, YA-2L
YA-2LN, YA-2N
YA-L-TC, YA-L-2TC
YA-2TC, YAZ
YAZ-2N, YAZ-2TC
CLN, CLW, CSW
CRA, CRB, CRC
CRA-L, CRB-L
CRA-2L
CRB-2L
CRC-2L
LCAS
LCA
LCB
LCD, LCC
LCAN
54106 to 54128
54206 to 54228
54906BE to
54928BE
54854BE to
54882BE
BLU
BBLU
1099898-2 to
1-1099898-5
1099899-2 to
1-1099899-9
1099939-1 to
1-1099939-5
* Number of
Crimps
Copper Cable Size:
8 AWG–600 kcmil 1 1 1 1 1 1 1 1
* When crimping with the EK6IDL crimping tool, use the number of crimps listed in this table
instead of the number provided with the connector.
** 6 AWG to 600 kcmil

EK6IDL Battery-powered Dieless Crimping Tool
Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070
9

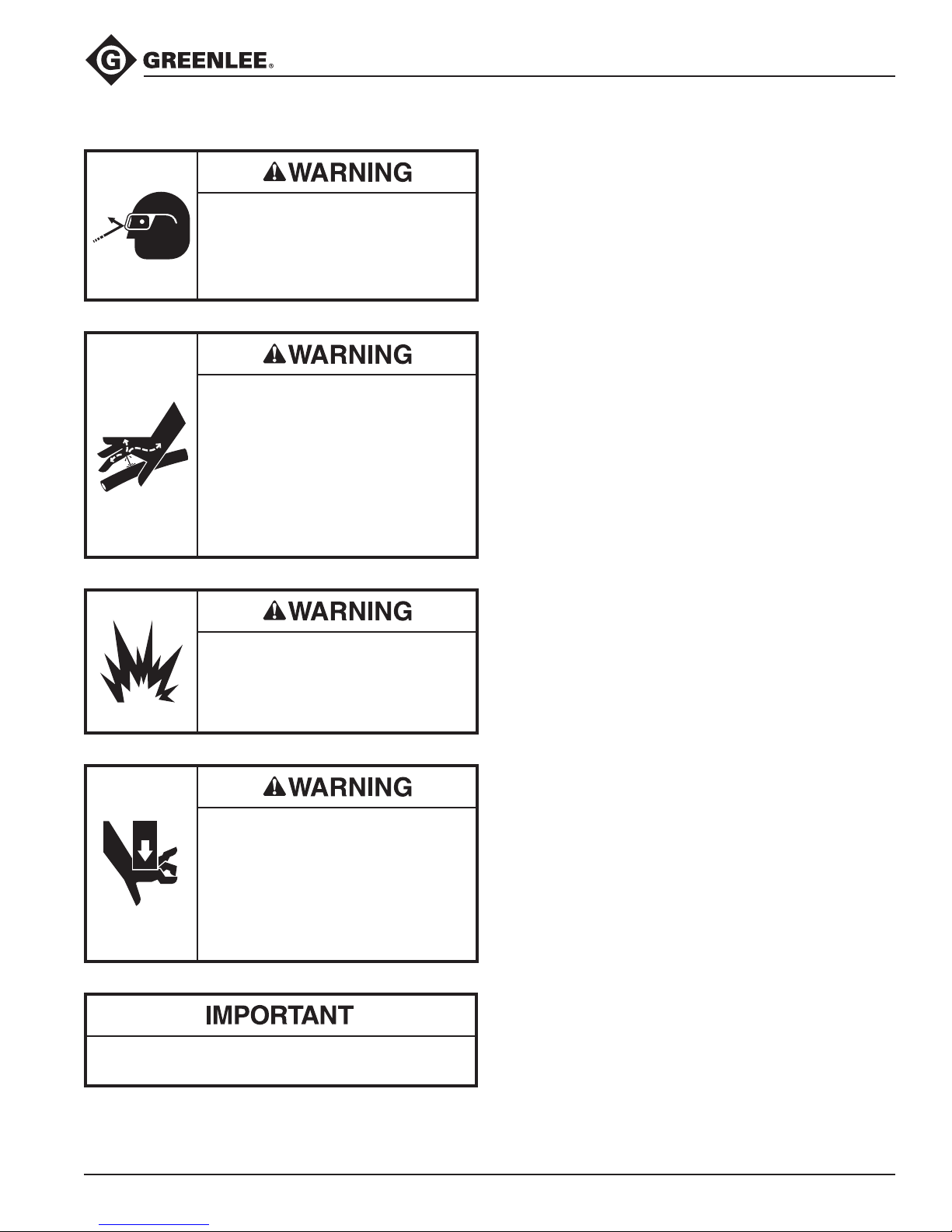

Maintenance
Wear eye protection when operating
or servicing this tool.
Failure to wear eye protection could
result in serious eye injury from
ying debris or hydraulic oil.
Skin injection hazard:
Do not use hands to check for oil
leaks. Oil under pressure easily
punctures skin. If injured, seek
medical attention immediately to
remove oil.
Failure to observe this warning
could result in serious injury, gan-
grene, or death.
Do not use solvents or ammable
liquids to clean the tool body.
Solvents or ammable liquids could
ignite and cause serious injury or
property damage.
Pinch points:
• Remove battery before changing
adapters or jaws.
• Keep hands away from the crimp-
ing tool head when crimping.
Failure to observe these warnings
could result in severe injury or death.
Relief valve adjustments must be done by an
authorized service center.
Daily
Before use:
1. Inspect the tool for wear or damage, such as cracks,
gouges, or chips.
2. Inspect the tool for damage or leaks.
3. Inspect the rotation of the head assembly. Fully
retract the ram. The head should rotate no more
than 360°. If damage is detected, send the tool to a
Greenlee Authorized Service Center for inspection.
After use:
1. Use a damp cloth and mild detergent to clean the
housing. Allow the housing to dry.
2. Fully retract the ram. Place the tool in the carrying
case and store in a cool, dry place.
3. If necessary, recharge the batteries. Refer to the
instructions supplied with the battery charger.
Monthly
1. Thoroughly clean all surfaces.
2. Check the oil level.
Annually or After 10,000 Crimps
1. Replace the hydraulic oil.
2. Send the tool to a Greenlee Authorized Service
Center for inspection.
Checking the Oil Level
1. Remove the screws holding the housing cover
together.
2. Point the crimping head downward and remove the
oil reservoir plug. Fill reservoir if necessary.
3. Replace the oil plug and housing cover.
Warranty Claims
Send tool to Greenlee CTSC Service Center.

EK6IDL Battery-powered Dieless Crimping Tool
Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070
10
Problem Possible Cause Probable Remedy
Tool is inoperative. Dirt, contaminants, etc.,
in ram area oftool.
Clean tool.
Tool battery contacts damaged. Reform contacts.
Tool components worn or
damaged.
Return tool to a Greenlee Authorized Service
Center.
Motor is inoperative. Low or uncharged battery. Try known charged battery. Inoperative battery
may be discharged or may have reached life
expectancy.
Broken switch components. Return tool to a Greenlee Authorized Service
Center.
Motor runs but tool will not
complete a cycle.
Oil level low. Return tool to a Greenlee Authorized Service
Center.
Air in hydraulic system. Pull trigger and hold retract button simultane-
ously. Run for approximately 10 seconds, and
then attempt to crimp. If unsuccessful, return
tool to a Greenlee Authorized Service Center.
Cold oil. Pull trigger and hold retract button simultane-
ously to warm oil. Store tool in warm area.
LED glows for 20 seconds. Battery charge low. Charge or replace battery.
Tool loses oil. Damaged internal seal. Return tool to a Greenlee Authorized Service
Center.
Note: For warranty claims, send tool to Greenlee CTSC Service Center.
Troubleshooting
Before You Begin
1. Make sure that the battery is charged. Recheck
the battery after several minutes to make sure the
battery is holding its charge.
2. Use a nonflammable contact cleaner or pencil
eraser to clean the electrical contacts on the battery
and tool.
3. Reinstall the battery and check the tool again.
