Greentouch 1371SB-28-208 Quickspecs

Français p. 16
Español p. 31
1
ASSEMBLY, CARE & USE INSTRUCTIONS
MODEL # 1371SB-28-208; 1371SB-28-227;
1371SB-28-254
56" Fireplace Media
Console with Built in
Bluetooth®Speakers and 28"
Modern Infrared Electric Insert
Questions, problems, missing parts? Before returning to your retailer, call our customer service
department at 1-704-461-2414 8:30 a.m. - 5 p.m., EST, Monday - Friday.
www.greentouchhome.com
Date Purchased _______________________
A separate Instruction Manual for the
Insert (Model 2803-FG-M2) and Remote
Control is included with this unit.

2

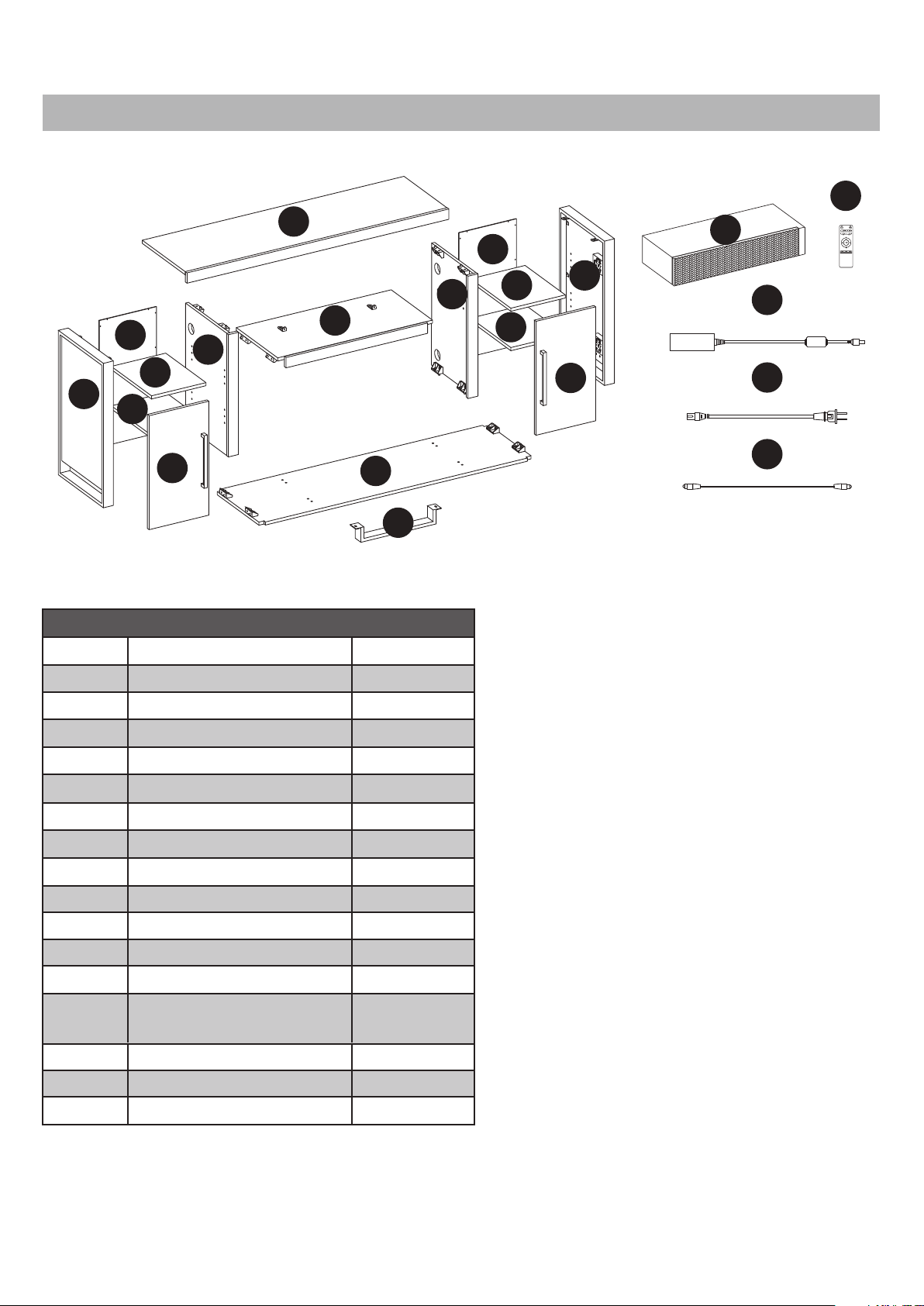

PACKAGE CONTENTS
PAIR
EQ
R
S
T
U
V
A
B
C
E
GK
L
I
I
I
I
J
J
H
DF
PART DESCRIPTION QUANTITY
A Top 1
B Center Shelf 1
C Left Middle Wall 1
D Right Middle Wall 1
E Left Outer Wall 1
F Right Outer Wall 1
G Left Door 1
H Right Door 1
I Shelf 4
J Back Panel 2
K Base 1
L Mid Leg 1
R Sound System 1
V Optical Cable 1
U Power Cable 1
T DC Adaptor 1
SSound System
Remote Control 1

3

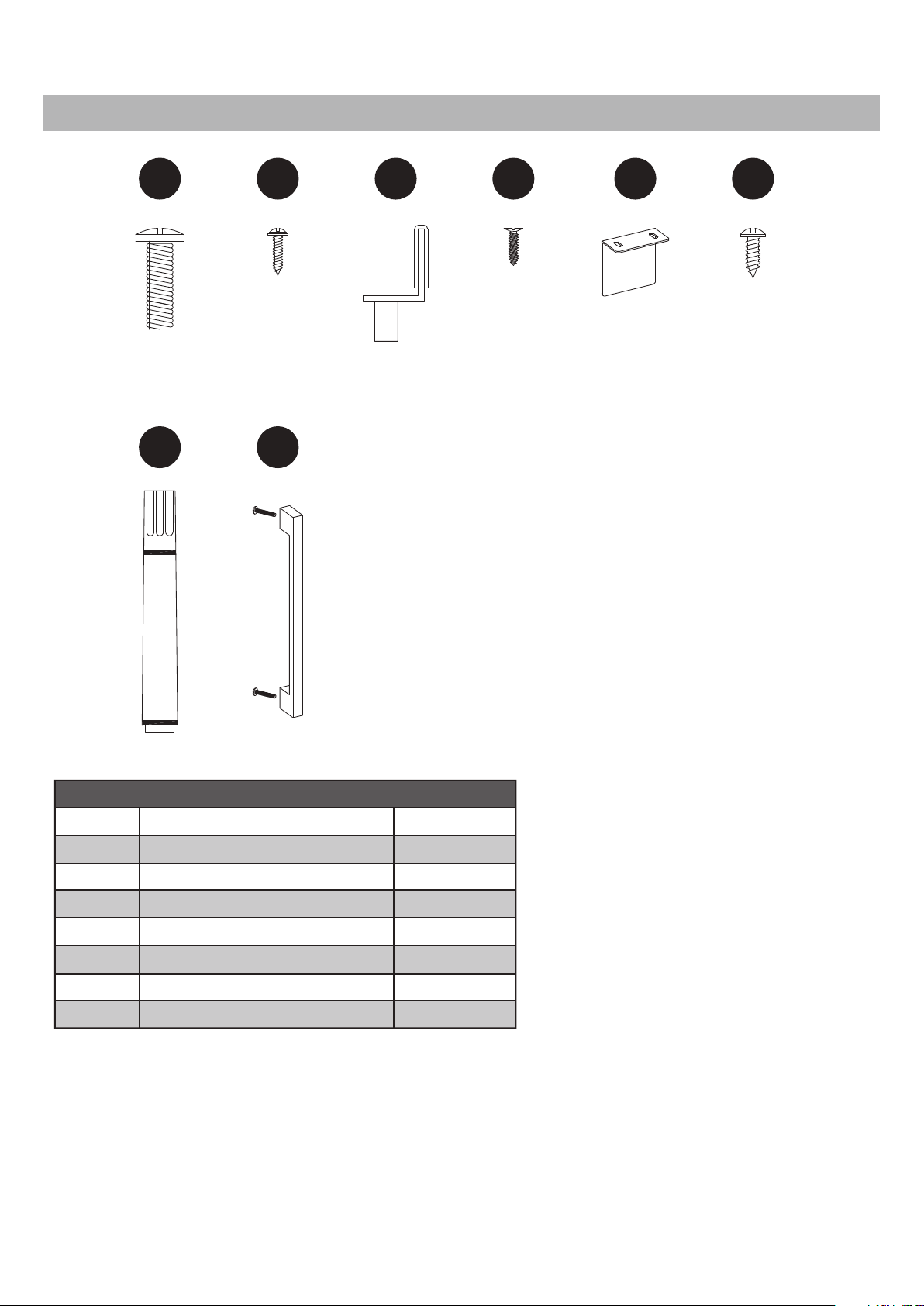

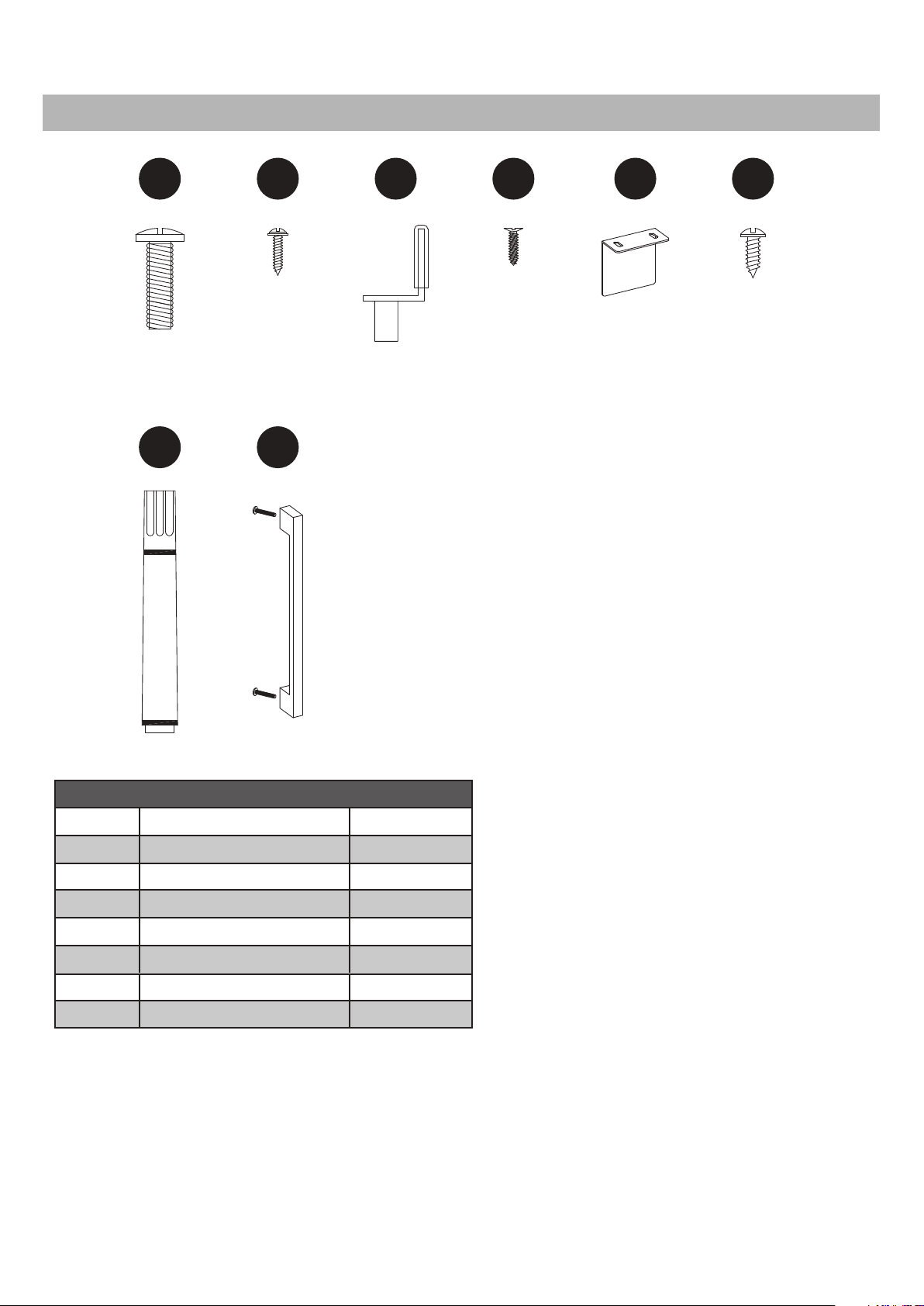

HARDWARE CONTENTS (NOT SHOWN ACTUAL SIZE)
PART DESCRIPTION QUANTITY
AA Bolt 22
BB Back Panel Screw 24
CC Shelf Pin 16
DD Screw 2
EE Insert Bracket 2
FF Bracket Screw 4
GG 1
HH
Touch-up Pen
2
Door Pull (with screw)
AA BB CC DD EE FF
GG HH

4
PREPARATION
Before beginning assembly of product, make sure
all parts are present. Compare parts with
package contents list and hardware contents list.
If any part is missing or damaged, do not attempt
to assemble the product.
Estimated Assembly Time: 45 minutes
Tools Required for Assembly (not included):
Phillips screwdriver
WARNING
WARNING
Adaptor Input AC100-240V, 50/60Hz
Adaptor Output DC15V 4A
Power Consumption 60 Watts
SAFETY INFORMATION
PRODUCT SPECIFICATIONS
• Read and keep all instructions.
• To reduce the risk of electric shock do not remove cover or back panel. No user-serviceable parts
inside. Refer servicing to qualified service personnel.
• For Indoor use only. DO NOT expose this product to rain, moisture, dripping or splashing.
• DO NOT try to bypass the safety function of the polarized plug. A polarized plug has two blades with
one wider than the other. The wideblade is a safety feature. When the provided plug does not fit
into your outlet, consult an electrician for replacement of the obsolete outlet.
• Use this product as described in the manual only. Any other use may cause fire, electric shock, or injury.
• Refer all servicing to qualified service personnel. Servicing is required when the product has been
damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or
objects have fallen into the product, the product has been exposed to rain or moisture, does not
operate normally, or has been dropped.
Changes or modifications to this unit not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
Note: This equipment has been tested and found the comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and receiver.
•
Connect the equipment into an outlet on a circuit different for that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician

Hardware Used
ASSEMBLY INSTRUCTIONS

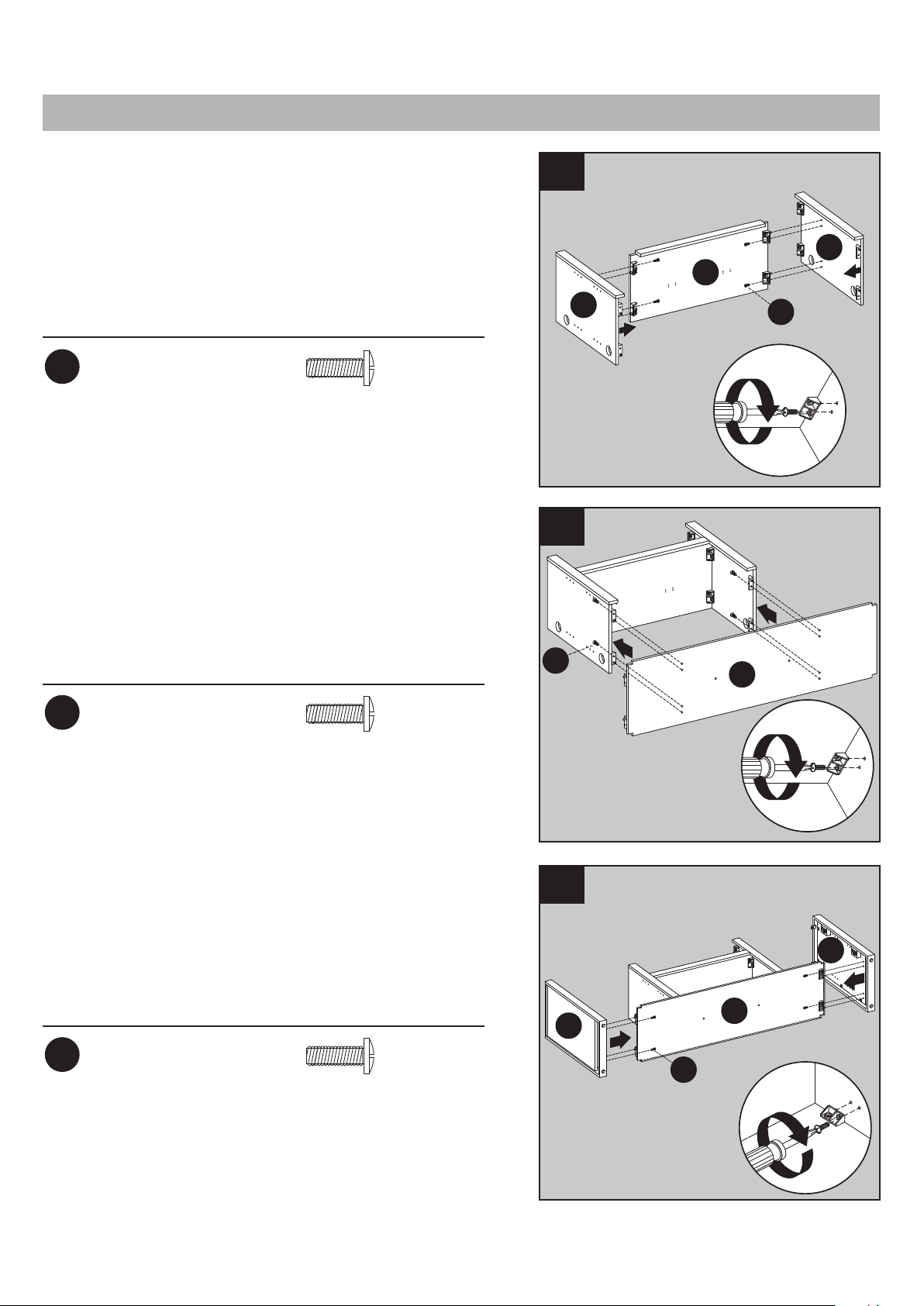

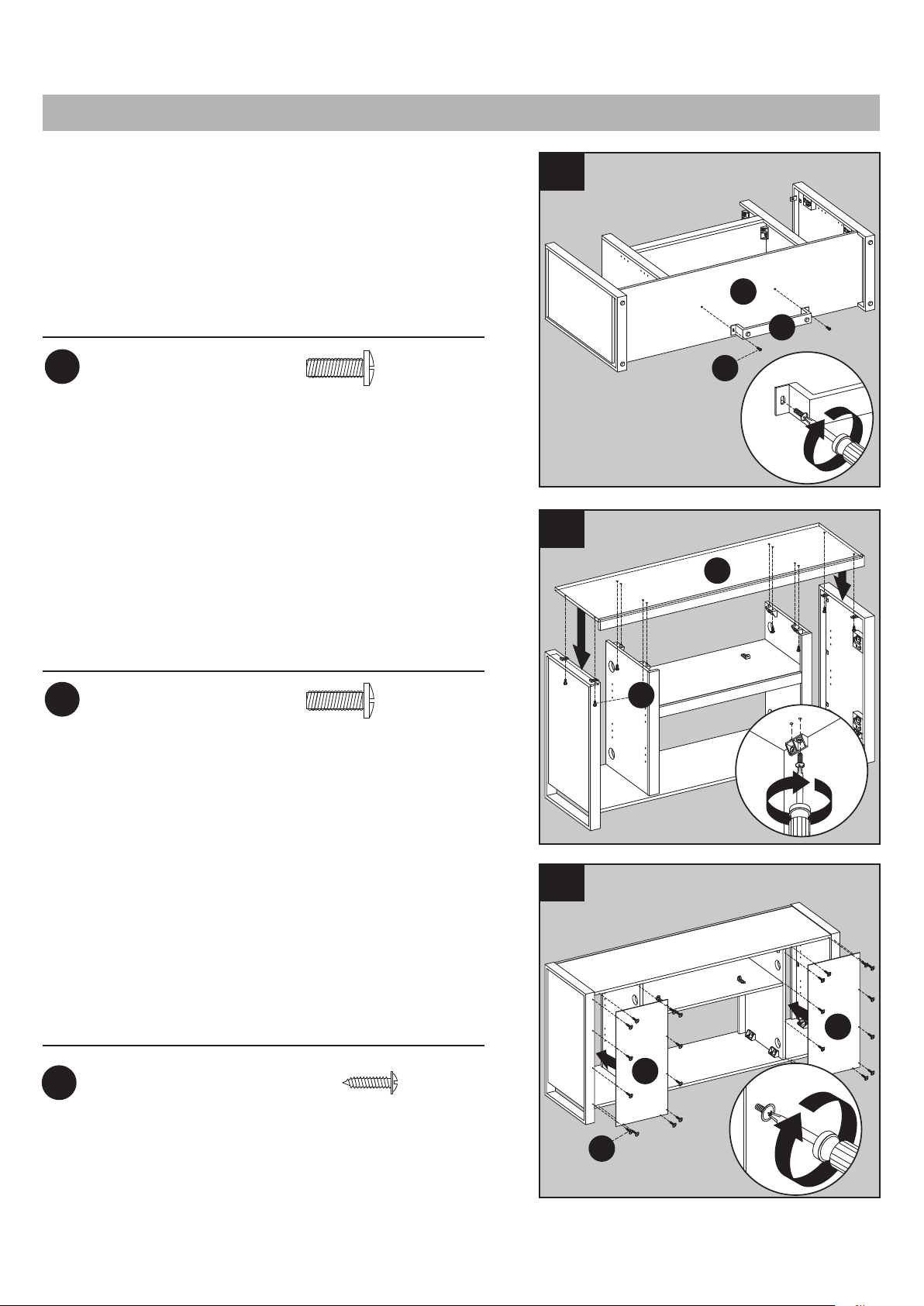

1. Attach center shelf (B) to right middle wall (D),
Securing with two bolts (AA).
Repeat for left middle wall (C).
2. Place assembly from step 1 onto base (K), and secure
with four bolts (AA).
5
AA Bolt x 4
Hardware Used
AA Bolt x 4
3. Attach right outer wall (F) to the right side of base (K),
and secure with two bolts (AA).
Repeat for left outer wall (E).
Hardware Used
AA Bolt x 4
1
2
1
1
AA
B
C
D
2
2
AA K
1
1
3
2
EK
F
AA
11

ASSEMBLY INSTRUCTIONS (CONT’D)
5. Attach top (A), and secure from underneath using
(8) bolts (AA), as shown in diagram 5.
6
Hardware Used
BB x 24Back Panel Screws
Hardware Used
AA Bolt x 8
6. Secure the two back panels (J) to the product using
the back panel screws (BB). For each back panel (J),
attach two (BB) across the top and bottom, and
four (BB) along the left and right sides (As shown
in diagram 6).
Hardware Used
AA Bolt x 2
5
A
AA
1
1
2
6
J
J
BB
1
1
2
4. Attach mid leg (L) to bottom of base (K) using two
bolts (AA), as shown in diagram 4. 4
L
K
AA

ASSEMBLY INSTRUCTIONS (CONT’D)
7
CC x 16Shelf Pin
Hardware Used

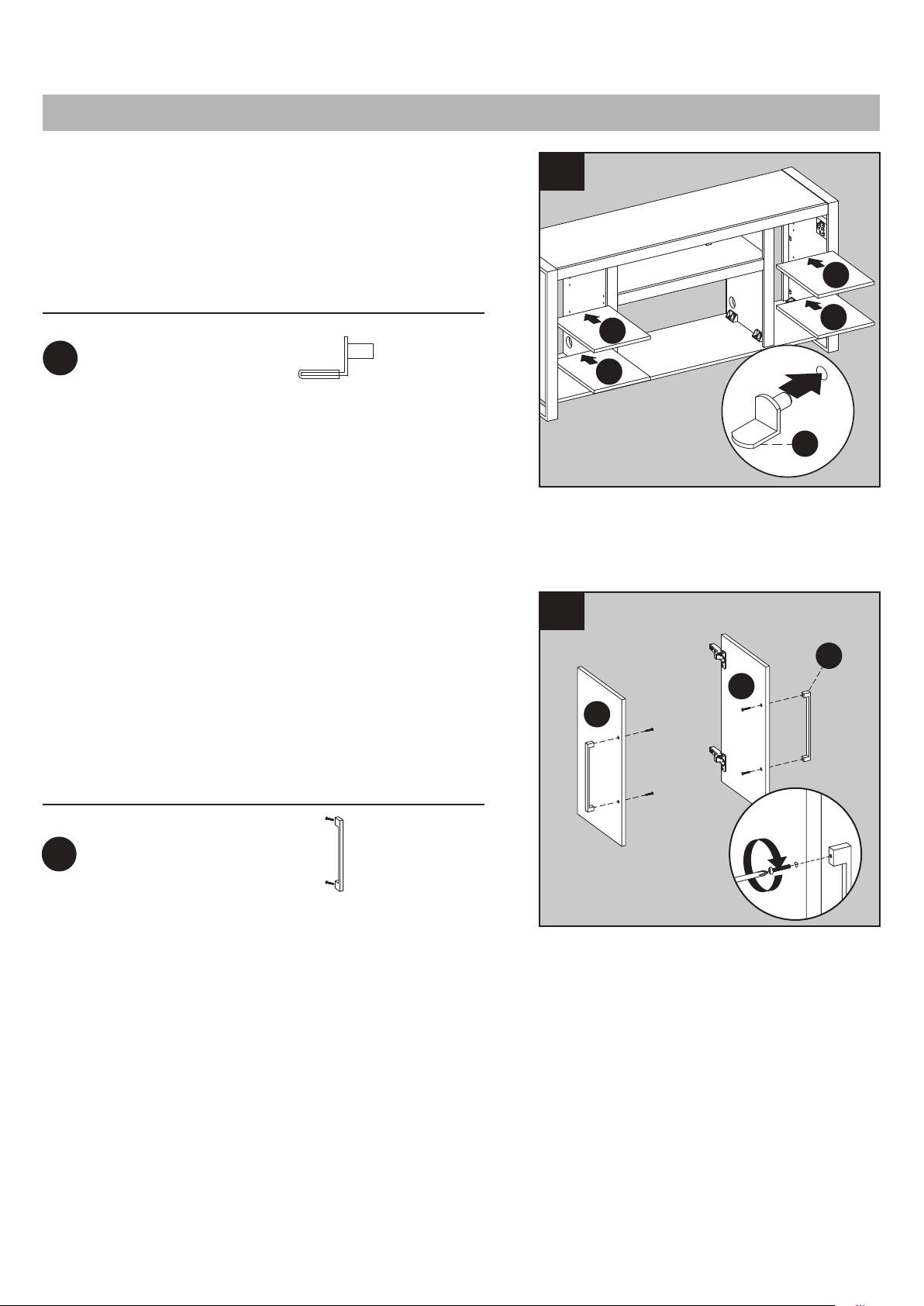

7. Insert shelf pins (CC) at desired height, ensuring they
are level. Place shelf (I) on top of shelf pins (CC).
Repeat for remaining the shelves (I).
Hardware Used
HH x 2Door Pull
8. Place door pull (HH) into predrilled hole on right door,
and secure with two door pull screws.
Repeat for remaining door pull (HH).
2
I
2
I
2
I
2
I
7
CC
1
8
HH
G
H

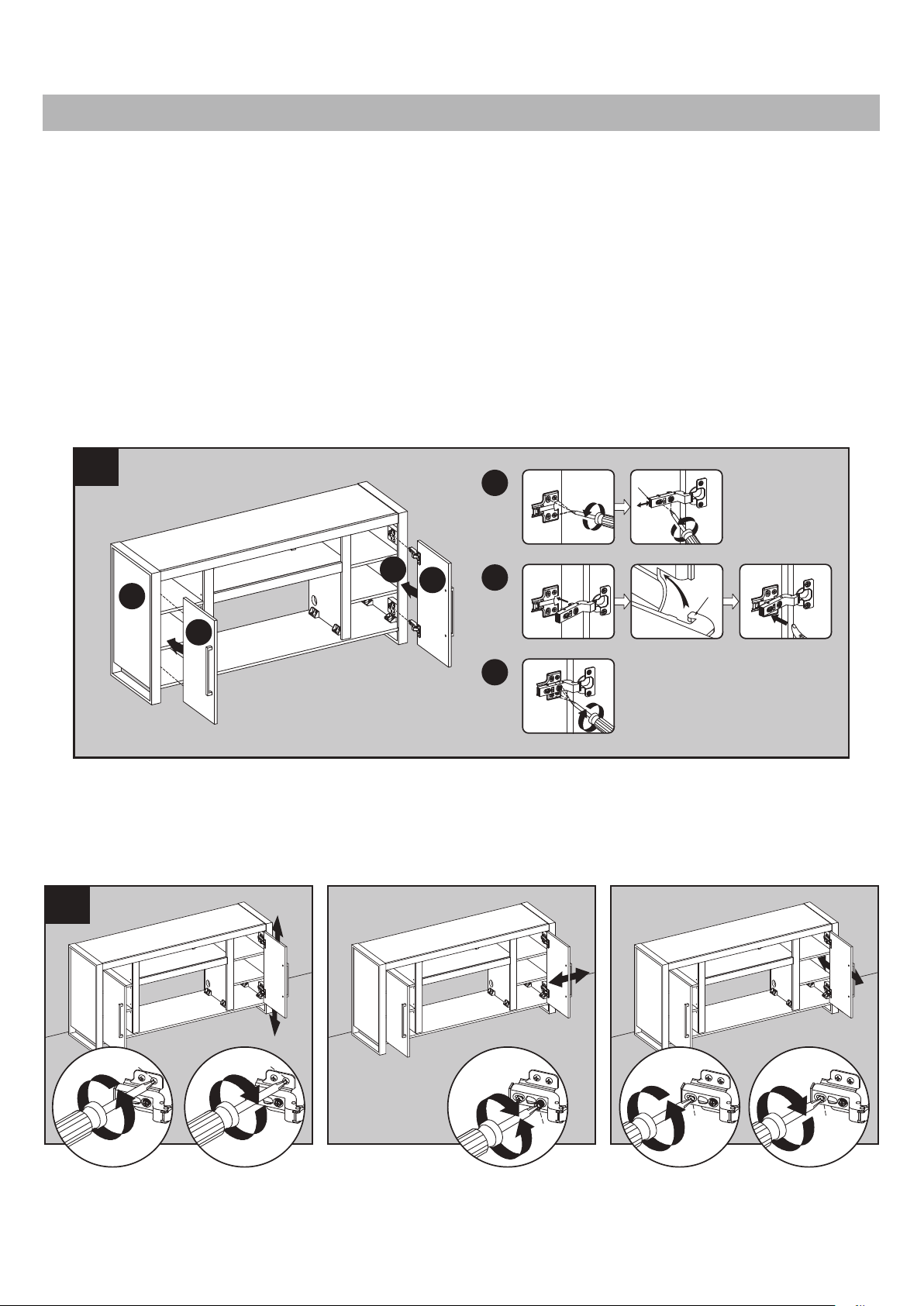

9. I. Loosen the screws on the hinge arms and plates pre-attached on the walls (E and F).
II. Pick up left door (G) and attach it to left outer wall (E) by engaging both door hinges
simultaneously. Please follow the steps below to combine the door hinges together.
i. Extend both hinge arms on the left door (G) to open position.
ii. Insert the “J” hooks beneath the hinge arms into the lugs on mounting plates pre-attached on
left outer wall (E).
iii. Press lightly on the end of both hinge arms to engage the catch.
iv. To remove the hinge arms from the mounting plates, press gently on the release lever on the
back of hinge arms.
III. Once assembled, go back and fully tighten all screws.
IV. Repeat the same procedure to attach the right door (H).
V. Open and close the doors to make sure they are aligned and shut correctly. If necessary,
adjust the screws for a good fit.
10. If you need to adjust the doors, do so in the following manner.
To adjust door up or down, loosen screws (a) on both hinges, adjust door, and retighten screws.
To adjust door left or right, turn screws (b) on both hinges, in or out.
To adjust door in or out, loosen screws (c) on both hinges, adjust door, and retighten screws.
ASSEMBLY INSTRUCTIONS (CONT’D)
8
I
II
III
9Release lever
I/F
(i)
“J” hook
(ii) (iii)
E
G
H
F
10
2
2
22
2
2
a
1
a
3
b
1
1
c
1
c
3

ASSEMBLY INSTRUCTIONS (CONT’D)
9

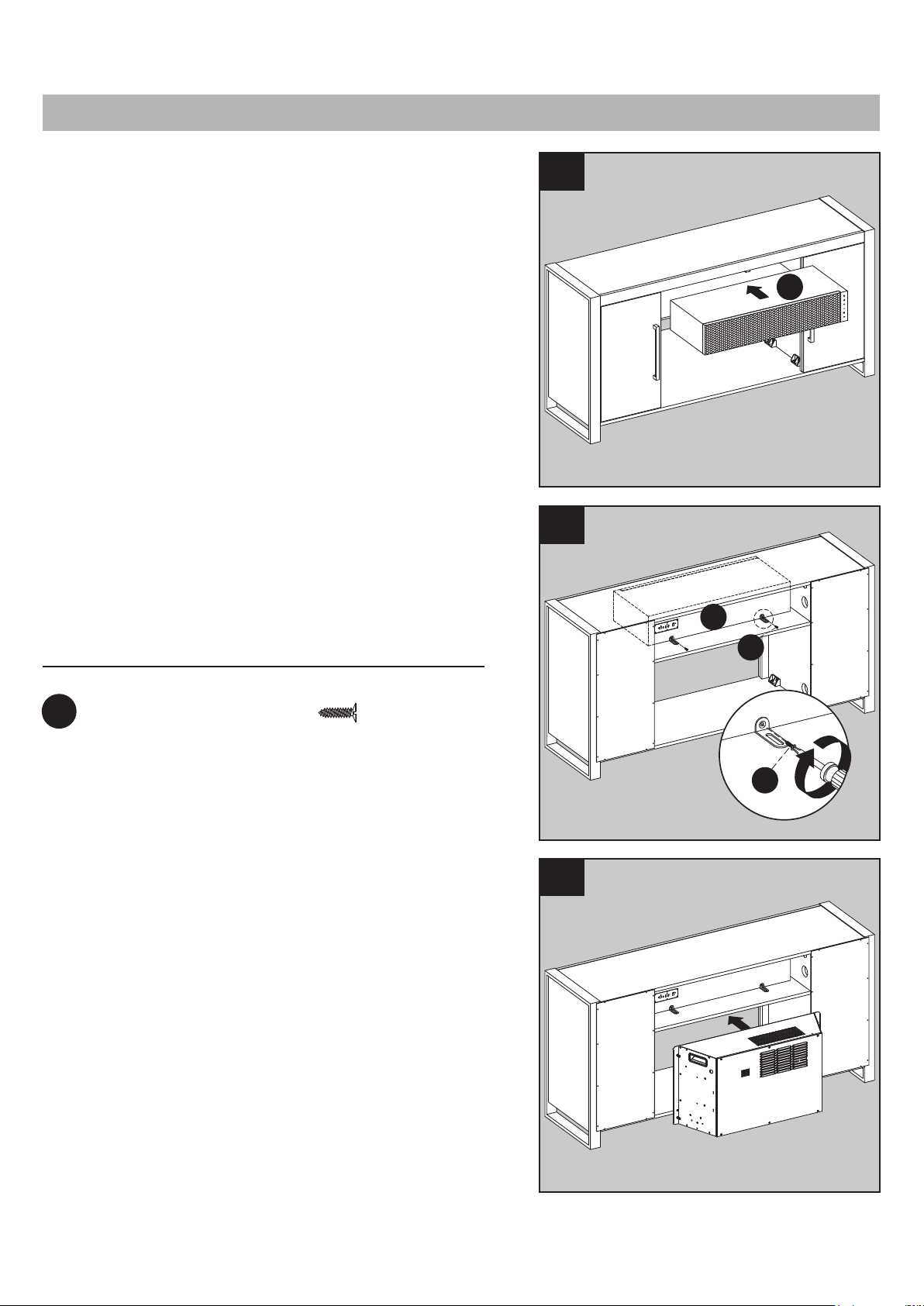

11. Position sound system (R) into the top middle
opening of mantel assembly and align it with the
front of opening.
CAUTION: DO NOT slide sound system (R) on top
of wood to avoid scratching wood surface.
Hardware Used
12. From behind the assembly, secure the sound
system (R) with two screws (DD).
DD Screw x 2
13. With the help of another person, position insert
into middle opening of mantel assembly.
Note: DO NOT plug insert into power outlet
yet.
CAUTION: DO NOT slide insert on top of wood to
avoid scratching wood surface.
Note: Before proceeding to the next step, with the
help of another person, move the mantel close to
the final desired location.
11
R
12
DD
R
DD
13

10
ASSEMBLY INSTRUCTIONS (CONT’D)

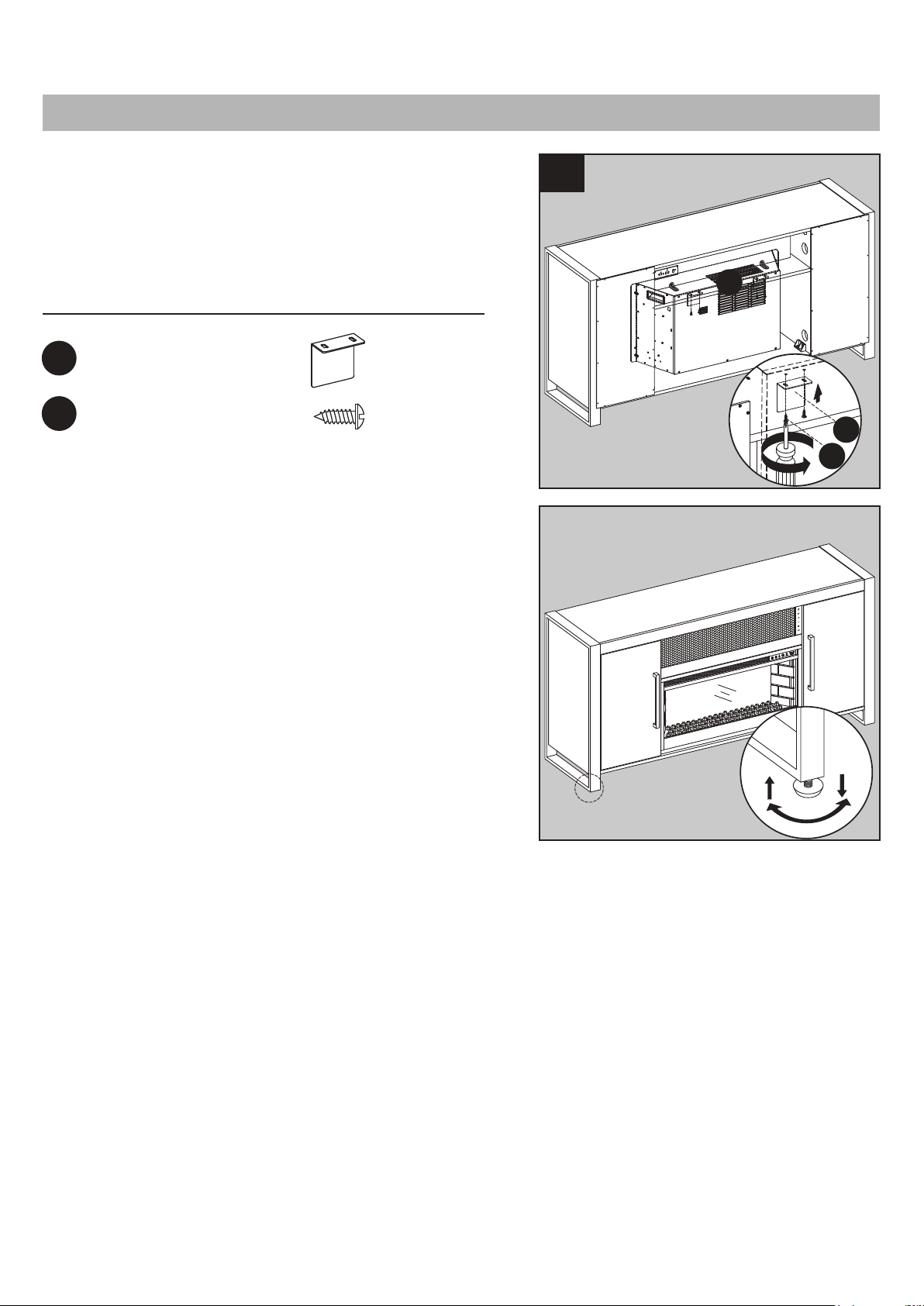

NOTE: Use the pre-assembled levelers on the base
of the fireplace to level the unit. Twist the levelers
counter clockwise to increase the height, and/or
clockwise to decrease the height.
Hardware Used
14. Secure the insert by using two insert brackets (EE).
Align the hole on the insert brackets (EE) with the
hole on the center shelf (B), and tighten using four
bracket screws (FF).
EE
FF
Insert Bracket x 2
x 4Bracket Screw
14
B
FF
EE
Note: Operating instructions for the Insert
(Model 2803-FG-M2) and the Remote Control
(PU16-262833-RC) are available in the separate
Instruction Manual packaged with this unit.

11
ASSEMBLY INSTRUCTIONS (CONT’D)
DISPLAY
When scrolling through source options, selections will be indicated as follows:
When scrolling through EQ options, selections will be indicated as follows:

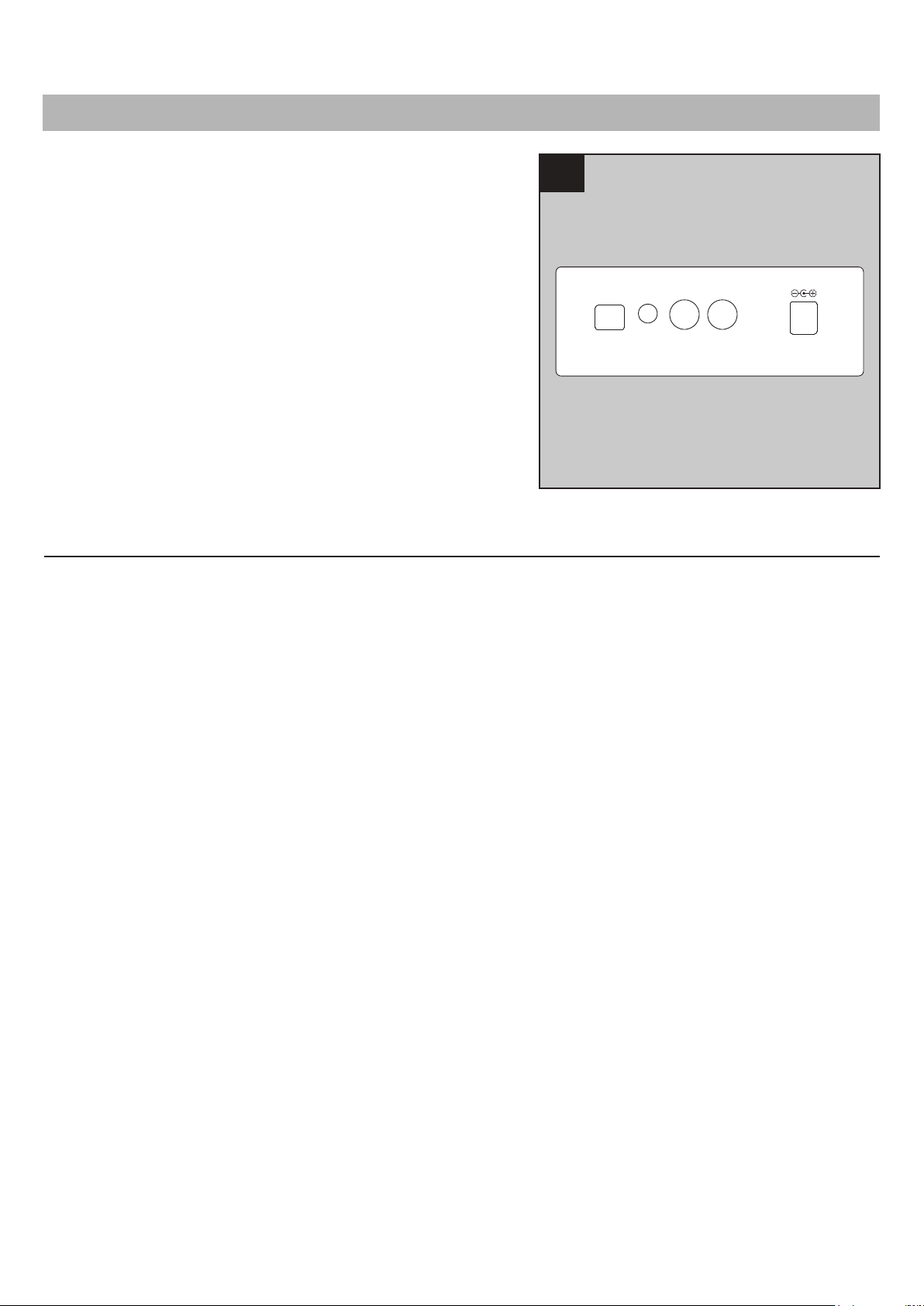

15. Multiple sources can be wired to the sound system
using the inputs located at the back of the unit.
An optical cable is provided and we recommend using
this option to wire your television to the system for
best digital sound.
To supply power to the system:
1. Connect the small end of the Power Cable into the
DC Adaptor.
2. Connect the DC Adaptor into the DC 15V IN input
located on the back panel.
Assembly is now complete, with the help of another
person, move the assembly to the final desired location.
Once in final position you plug the insert and the
sound system (R) into the power outlet.
A numerical display will illuminate on the front mesh to indicate the settings
(Volume Level, Bass Level, Treble Level, EQ and Source Selection).
OP: OPTICAL : Optical Cable Input (Included)
L1: LINE IN : 3.5 mm Audio Cable Input (Not Included)
AU: R AUX IN L: RCA Cable Input Left and Right (Not Included)
BL: Device pairing
1: EQ optimized for music
2: EQ optimized for movies
3: EQ optimized for dialogue
15
OPTICAL LINE IN R AUX IN L DC 15V IN

12
PAIR
EQ
OPERATING INSTRUCTIONS

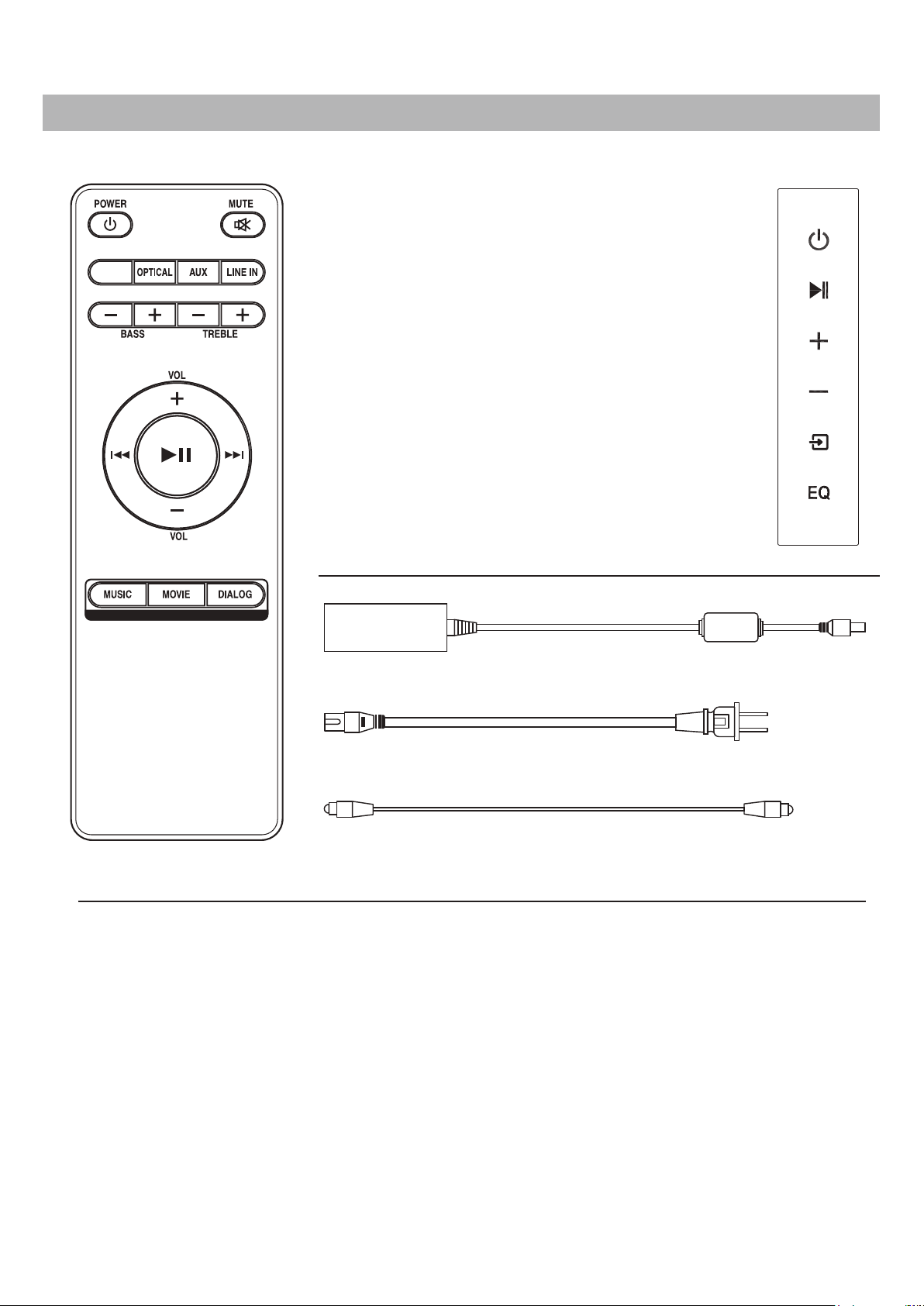

Control Panel
ON/OFF
PLAY/PAUSE
VOLUME UP
VOLUME DOWN
DC Adaptor
Power Cable
Optical Cable
ACCESSORIES
PAIRING YOUR DEVICE FOR THE FIRST TIME
SCROLL SOURCE OPTIONS
SCROLL EQ SETTINGS
CONTROL PANEL
AND REMOTE CONTROL:
The sound system settings
can be adjusted with the
control panel and/or the
sound system remote control:
1. Power on the unit by pressing the Power button.
2. Set the indicator to BL by either scrolling the source selection button on the panel or pressing the PAIR
button on the remote control.
The pairing indicator will flash blue quickly. When pairing, remain within 3 feet of the unit.
3. Use the controls of your device to select "Fireplace" bluetooth name to pair the devices.
4. If your device requests a password, enter the default password 0 0 0 0.
5. When successfully paired and connected, a beep will issue from the sound system and the Pairing
Indicator will display a solid blue light.
After initial pairing, the unit will stay paired unless unpaired manually by the user or erased due to a
reset of the device. The devices may also unpair if devices are too far apart.
6. If your device should become unpaired or you find it is unable to connect, repeat the above steps.
Sound system
Remote Control

13

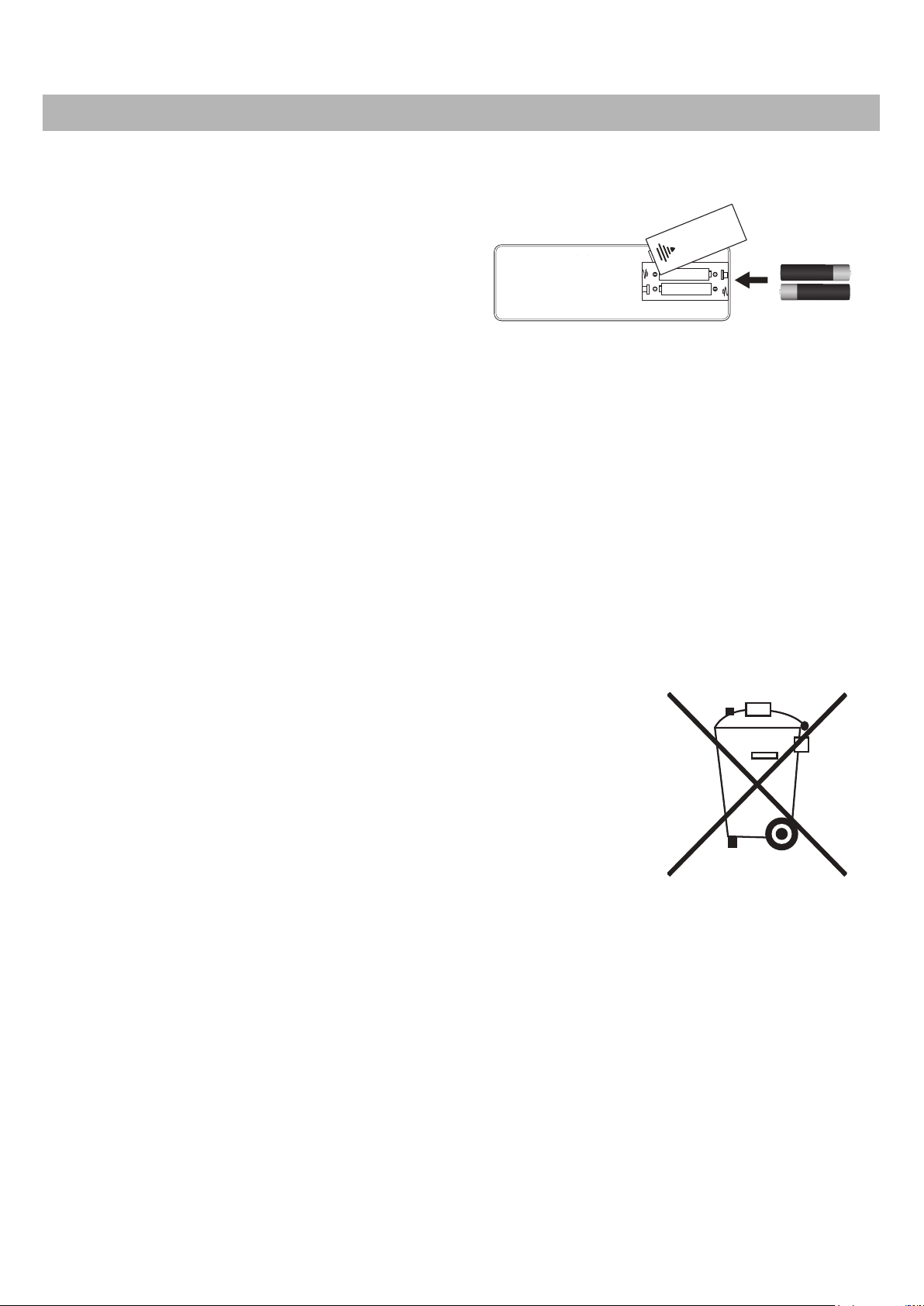

Replacing the Remote Control Batteries
AAA 1.5V
AAA 1.5V
Disposal of Used Batteries
A battery may contain hazardous substances that could be
endangering the environment and human health.
CARE AND MAINTENANCE
When the sound system remote control (S) stops
operating or its range seems reduced, it is time to replace
the batteries. Note:The batteries should be removed if
the product is to be left unused for a long time.
1. The battery compartment is located on the back
of the sound system remote control (S).
2. Remove battery cover from the back of sound system
remote control (S) and remove the old batteries.
3. Insert 2pcs AAA batteries, ensuring the polarities of
the battery match the inside of the battery
compartment.
4. Re-insert the battery door.
Note: Do not mix old and new batteries.
Do not mix alkaline, standard (carbon zinc), or rechargeable (nicad, nimh, etc) batteries.
Non-rechargeable batteries are not to be recharged. Exhausted batteries are to be removed from
the product.
Harmful if swallowed.
• This symbol marked on the battery and/or packaging indicates that
used battery shall not be treated as municipal waste. Instead it shall
be left at the appropriate collection point for recycling.
• By ensuring the used battery is disposed of correctly, you will help
prevent potential negative consequences for the environment and
human health. The recycling of materials will help to conserve
natural resources.
• Do not dispose of batteries in fire. batteries may explode or leak.
For more information about collection and recycling of used batteries,
please contact your local municipality, your waste disposal service or
the point-of-sale where you purchased this battery.

14
ONE-YEAR LIMITED WARRANTY
The manufacturer warrants that your new Electric fireplace is free from manufacturing and material
defects for a period of one year from date of purchase, subject to the following conditions and
limitations.
Install and operate this Electric fireplace in accordance with the installation and operating instructions
furnished with the product at all times. Any unauthorized repair, alteration, willful abuse, accident, or
misuse of the product shall nullify this warranty.
This warranty is void if:
1. The fireplace is subjected to prolonged periods of dampness or condensation.
2. Any unauthorized alteration, willful abuse, accident, or misuse of the product.
3. You do not have the original receipt of purchase.
The warranties as outlined within this document do not apply to non accessories used in conjunction
with the installation of this product.
The manufacturer neither assumes, nor authorizes any third party to assume on its behalf, any other
liabilities with respect to the sale of the product.
All other warranties-expressed or implied-with respect to the product, its components and
accessories, or any obligations/liabilities on the part of the manufacturer are hereby expressly
excluded.
The owner/user assumes all other risks, if any, including the risk of any direct, indirect or
consequential loss or damage arising out of the use, or inability to use the product, except as
provided by law.
Any installation, labor, construction, transportation, or other related costs/expenses arising from
defective part(s), repair, replacement, or otherwise of same, will not be covered by this warranty, nor
shall the manufacturer assume responsibility for same.
The manufacturer may, at its discretion, fully discharge all obligations with respect to this warranty by
refunding the wholesale price of the defective part(s).
The warranty is limited to the repair or replacement of part(s) found to be defective in material or
workmanship, provided that such part(s) have been subjected to normal conditions of use and
service, after said defect is confirmed by the manufacturer’s inspection.
This warranty is non-transferable, and is made to the original owner, provided that the purchase was
made through an authorized supplier of the product.

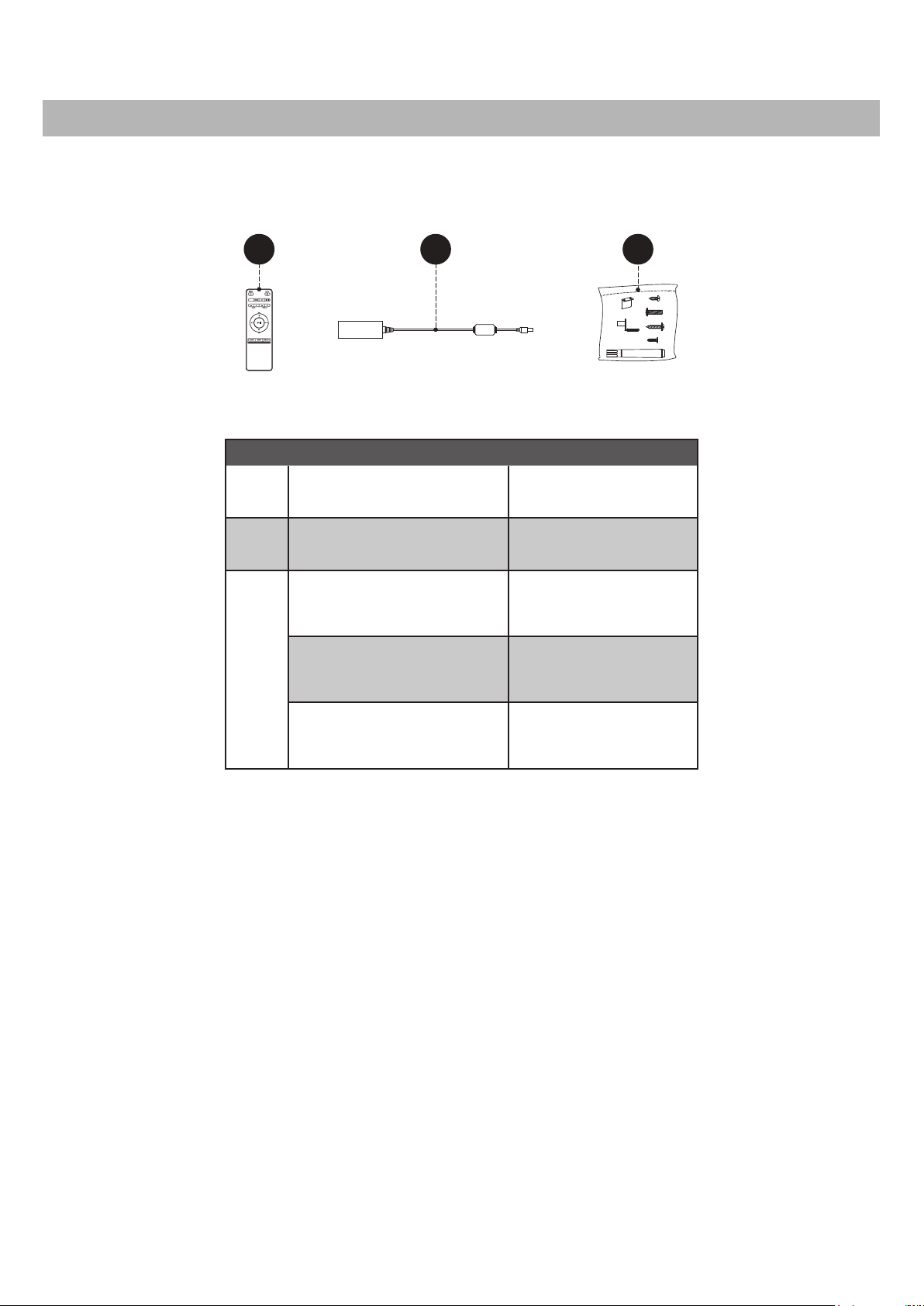

REPLACEMENT PARTS
For replacement parts, call our customer service department at 1-704-461-2414, 8:30 a.m. - 5 p.m., EST,
Monday - Friday.
15
PART DESCRIPTION PART #
TPH-SOUNDSYS-
CABLE KIT
DC Adaptor
PH-1371SB-28-208
HARDWARE PACK
Hardware Pack
(AA, BB, CC, DD, EE, FF,
and GG (OX-0520))
II PH-1371SB-28-227
HARDWARE PACK
Hardware Pack
(AA, BB, CC, DD, EE, FF,
and GG (OX-0950))
PH-1371SB-28-254
HARDWARE PACK
Hardware Pack
(AA, BB, CC, DD, EE, FF,
and GG (OF-0010))
SPH-SOUNDSYS-
REMOTE
Sound System
Remote Control
PAIR
EQ
S T II
Replacement information for the Remote Control (Part # PU16-262833-RC)
is listed in the Replacement Parts section of the Insert
(Model 2803-FG-M2) Instruction Manual.

English p. 1
Español p. 31
16
Console multimédia de
cheminée de 56 po avec
haut-parleurs Bluetooth®
intégrés et insert électrique
infrarouge moderne de 28 po
Des questions, des problèmes, des pièces manquantes? Avant de retourner l’article au détaillant,
appelez notre service à la clientèle au 1-704-461-2414, entre 8h30 et 17 h (HNE), du lundi au vendredi.
www.greentouchhome.com
INSTRUCTIONS D’UTILISATION, D’ASSEMBLAGE
ET DE MAINTENANCE
MODÈLE # 1371SB-28-208; 1371SB-28-227;
1371SB-28-254
Date d’achat _______________________
Un manuel d’instructions distinct pour l’insert
(modèle 2803-FG-M2) et la télécommande
est inclus dans cette unité.

17
CONTENU DE L’EMBALLAGE
R Système Audio 1
V Câble Optique 1
U Câble D’alimentation 1
T Adaptateur CC 1
STélécommande Du
Système Audio 1
PIÈCE DESCRIPTION QUANTITÉ
A Dessus 1
B Tablette Centrale 1
C Cloison Centrale Gauche 1
D Cloison Centrale Droite 1
E Paroi Extérieure Gauche 1
F Paroi Extérieure Droite 1
G Porte Gauche 1
H Porte Droite 1
I Tablette 4
J Panneau Arrière 2
K Base 1
L Pied médian 1
PAIR
EQ
R
S
T
U
V
A
B
C
E
GK
L
I
I
I
I
J
J
H
DF

18
CONTENUS MATÉRIELS (NON REPRÉSENTÉS EN TAILLE RÉELLE)
PIÈCE DESCRIPTION QUANTITÉ
AA Boulon 22
BB Vis Pour Le Panneau Arrière 24
CC Goupille à Tablette 16
DD Vis 2
EE Insérer un Support 2
FF Vis de Support 4
GG 1
HH
Crayon à Retouche
2
Tirette de Porte (avec vis)
AA BB CC DD EE FF
GG HH

19
PRÉPARATION
Avant de commencer l’assemblage de l’article,
assurez-vous d’avoir toutes les pièces. Comparez
le contenu de l’emballage avec la liste des pièces
et celle de la quincaillerie incluse. S’il y a des
pièces manquantes ou endommagées, ne tentez
pas d’assembler l’article.
Temps d’assemblage approximatif :
45 minutes.
Outil nécessaire pour l’assemblage
(non inclus) : tournevis cruciforme.
AVERTISSEMENT :
AVERTISSEMENT :
Adaptateur Entrée AC100-240V, 50/60Hz
Adaptateur Sortie DC15V 4A
Consommation électrique 60 Watts
CONSIGNES DE SÉCURITÉFETY
SPÉCIFICATIONS DU PRODUIT
• Lisez et respectez toutes les instructions.
•
Pour éviter tout risque d’électrocution, ne retirez pas le capot ou le panneau arrière. Il n’y a aucune
pièce utile d’utilisateur à l’intérieur. Toute réparation doit être uniquement confiée à du personnel
qualifi é.
• À usage interne uniquement. N’exposez pas ce produit à la pluie, l’humidité, aux éclaboussures
ou à des gouttes d’eau.
• NE PAS nuire au bon fonctionnement de la sécurité de la fiche polarisée. Une fiche polarisée
possède deux broches dont l’une plus large que l’autre. La fiche large est installée pour des raisons
de sécurité. Si la fiche fournie ne s’adapte pas à la prise électrique, demandez à un électricien pour
remplacer la prise obsolète.
• Le produit est utilisé uniquement selon les conditions décrites dans ce manuel. Toute autre utilisation non
recommandée peut entraîner un incendie, un choc électrique ou des blessures corporelles.
• Toute réparation doit être uniquement confiée à du personnel qualifié. L’intervention d’un
technicien est nécessaire dans les cas suivants: le cordon d’alimentation ou la prise secteur sont
endommagés, du liquide a été renversé ou des objets sont tombés àl’intérieur du produit, le produit
a été exposé à la pluie ou à l’humidité, montre des signes de dysfonctionnement ou est tombé.
Tout changement ou modification apporté à cet appareil sans l’approbation expresse de la partie
responsable de l’appareil pourraient faire perdre à l’utilisateur son droit à utiliser cet équipement.
Note: Cet équipement a été testé et déclaré conforme aux limites pour appareils numériques de
classe B, selon la section 15 des règlements de la FCC. Ces limites sont destinées à assurer
une protection raisonnable contre les interférences nuisibles dans une installation résidentielle.
Cet équipement produit, utilise et peut émettre de l’énergie radio électrique et, s’il n’est pas
installé et utilisé conformément aux instructions, peut causer des interférences nuisibles aux
communications radio. Cependant, il se peut que des interférences se produisent dans une
installation particulière. Si ce matériel occasionne des interférences nuisibles aux réceptions
radio ou télévisuelle, ce qui peut être déterminé en allumant et en éteignant l’appareil, on
encourage l’utilisateur d’essayer de corriger ces interférences par l’un des moyens suivants:
• Réorienter ou repositionner l’antenne de réception.
• Augmenter la distance séparant l’équipement du récepteur.
•
Brancher l’appareil sur un circuit électrique différent de celui où le récepteur est branché.
• Consulter le fournisseur ou un technicien radio/TV expérimenté.

Quincallerie Utilisée
INSTRUCTIONS POUR L’ASSEMBLAGE
1. Attachez la tablette centrale (B) à la cloison centrale
droite (D), fixez avec deux boulon (AA).
Répétez l'opération précédente pour la
cloison centrale gauche (C).
2. Placez l'assemblage de l'étape 1 sur la base (K),
fixez avec quatre boulons (AA).
20
3. Fixez la paroi extérieure droite (F) au côté droit de
la base (K), à l'aide de deux boulons (AA).
Répétez l'opération précédente pour la paroi
extérieure gauche (E).
AA Boulon x 4
Quincallerie Utilisée
AA Boulon x 4
Quincallerie Utilisée
AA Boulon x 4
1
2
1
1
AA
B
C
D
2
2
AA K
1
1
3
2
EK
F
AA
11
