ASSEMBLY, CARE & USE INSTRUCTIONS
MODEL # 1498FSO-26-267; 1498WSB-26-267
Français p. 18
Español p. 35
66” Fireplace Media
Console
Date Purchased _______________________
Questions, problems, missing parts?
Before returning to your retailer,
call our customer service department at
1-704-461-2414 8:30 a.m. - 5 p.m., EST, Monday - Friday.
www.greentouchhome.com
A separate Instruction Manual for the
Insert (Model 2622-FG-BB) and Remote
Control is included with this unit.

2

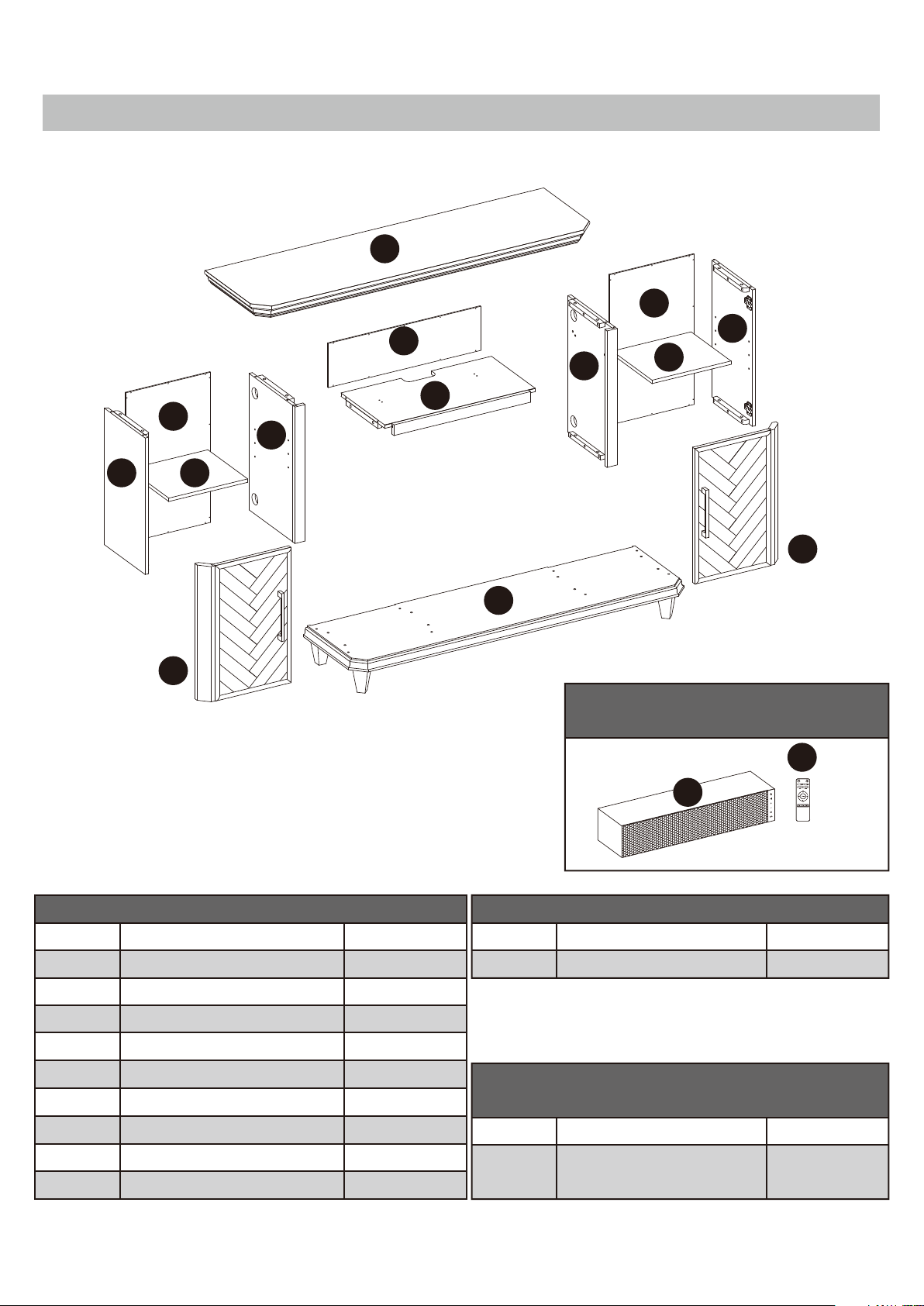

PACKAGE CONTENTS
PART DESCRIPTION QUANTITY
A Top 1
B Center Shelf 1
C Left Middle Wall 1
D Right Middle Wall 1
E Left Outer Wall 1
F Right Outer Wall 1
G Back Panel 2
H Center Back Panel 1
I Shelf 2
J Left Door 1
PART DESCRIPTION QUANTITY
K Right Door 1
L Base 1
A
B
C
E
G
G
H
I
J
K
L
I
F
D
OPTIONAL SOUND SYSTEM
(SOLD SEPARATELY)
R Sound System 1
SSound System
Remote Control 1
See page 10
OPTIONAL SOUND SYSTEM
(SOLD SEPARATELY)
PAIR
EQ
R
S

3

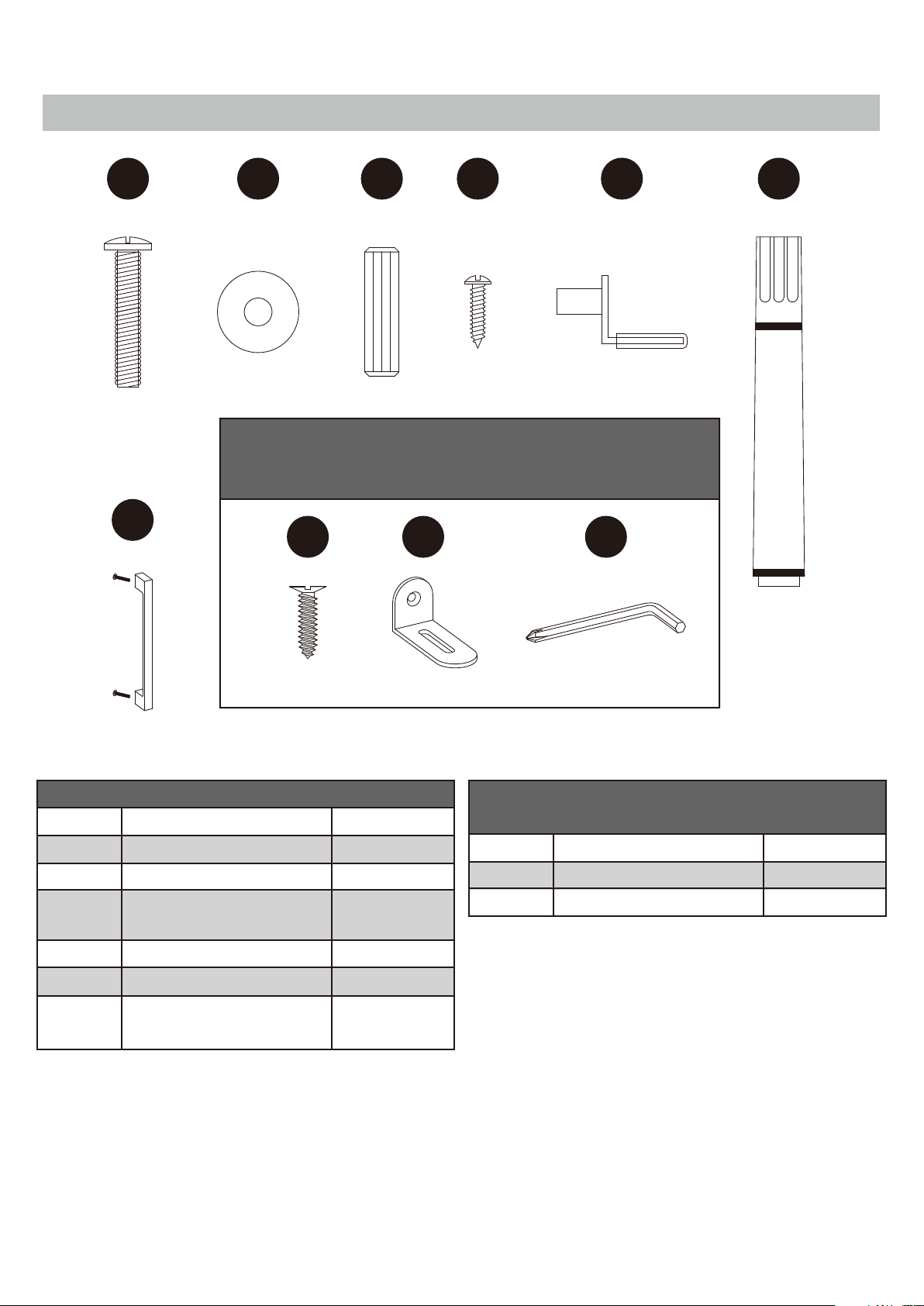

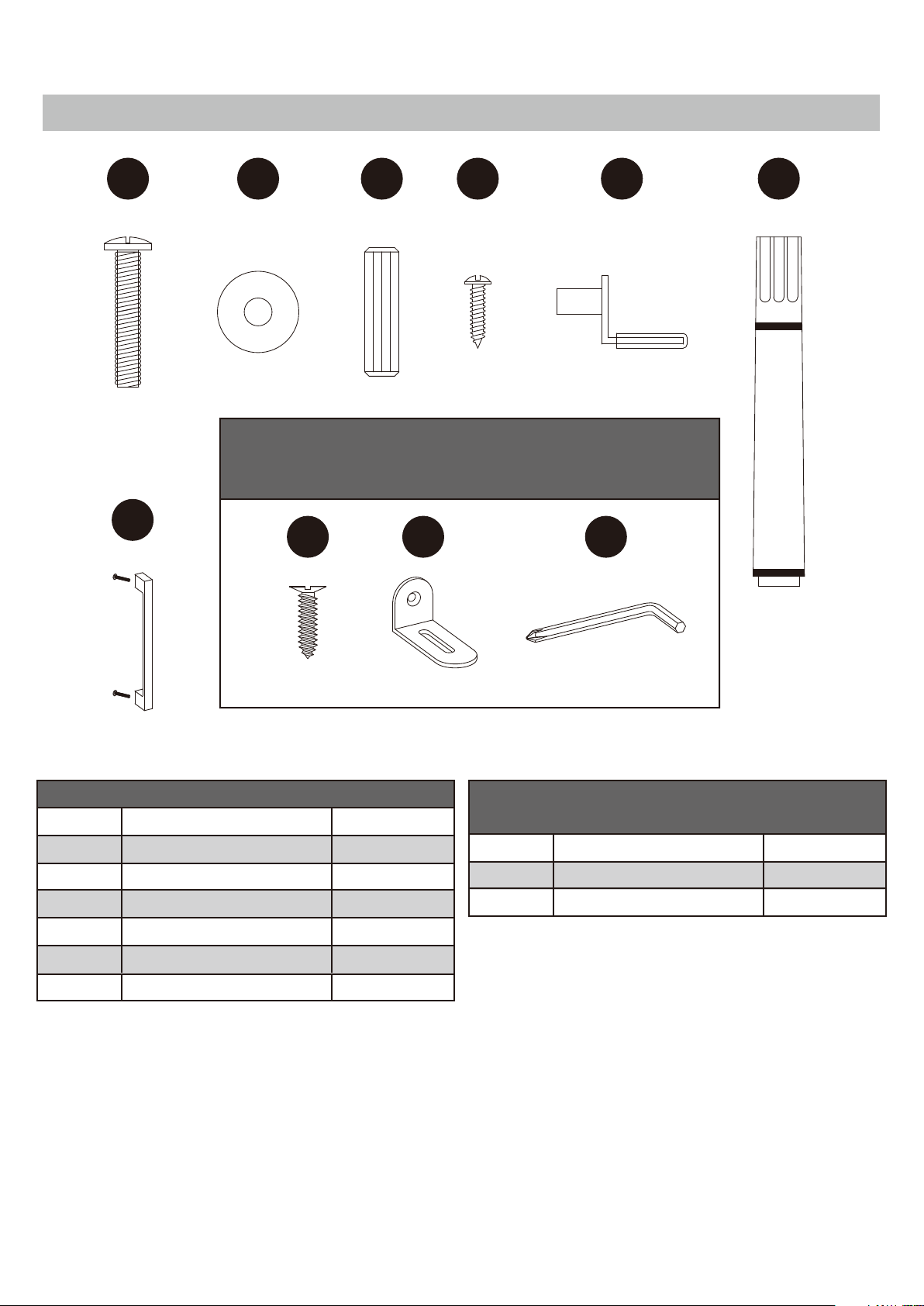

HARDWARE CONTENTS (NOT SHOWN ACTUAL SIZE)
PART DESCRIPTION QUANTITY
AA Long Bolt
Washer
20
BB
Wooden Dowel
20
CC
Back Panel Screw
20
DD
Shelf Pin
37
EE
Touch-up Pen
8
FF
Door Pull (with screw)
1
GG 2
OPTIONAL SOUND SYSTEM HARDWARE
(SOLD SEPARATELY)
HH Screw 6
II Speaker Bracket 2
JJ Wrench 1
AA BB CC DD EE FF
GG HH II JJ
See page 10
OPTIONAL SOUND SYSTEM
HARDWARE
(SOLD SEPARATELY)

4
PREPARATION
Before beginning assembly of product, make sure
all parts are present. Compare parts with
package contents list and hardware contents list.
If any part is missing or damaged, do not attempt
to assemble the product.
Estimated Assembly Time: 45 minutes
Tools Required for Assembly (not included):
Phillips screwdriver
ELECTRICAL FIREPLACE ASSEMBLY INSTRUCTIONS

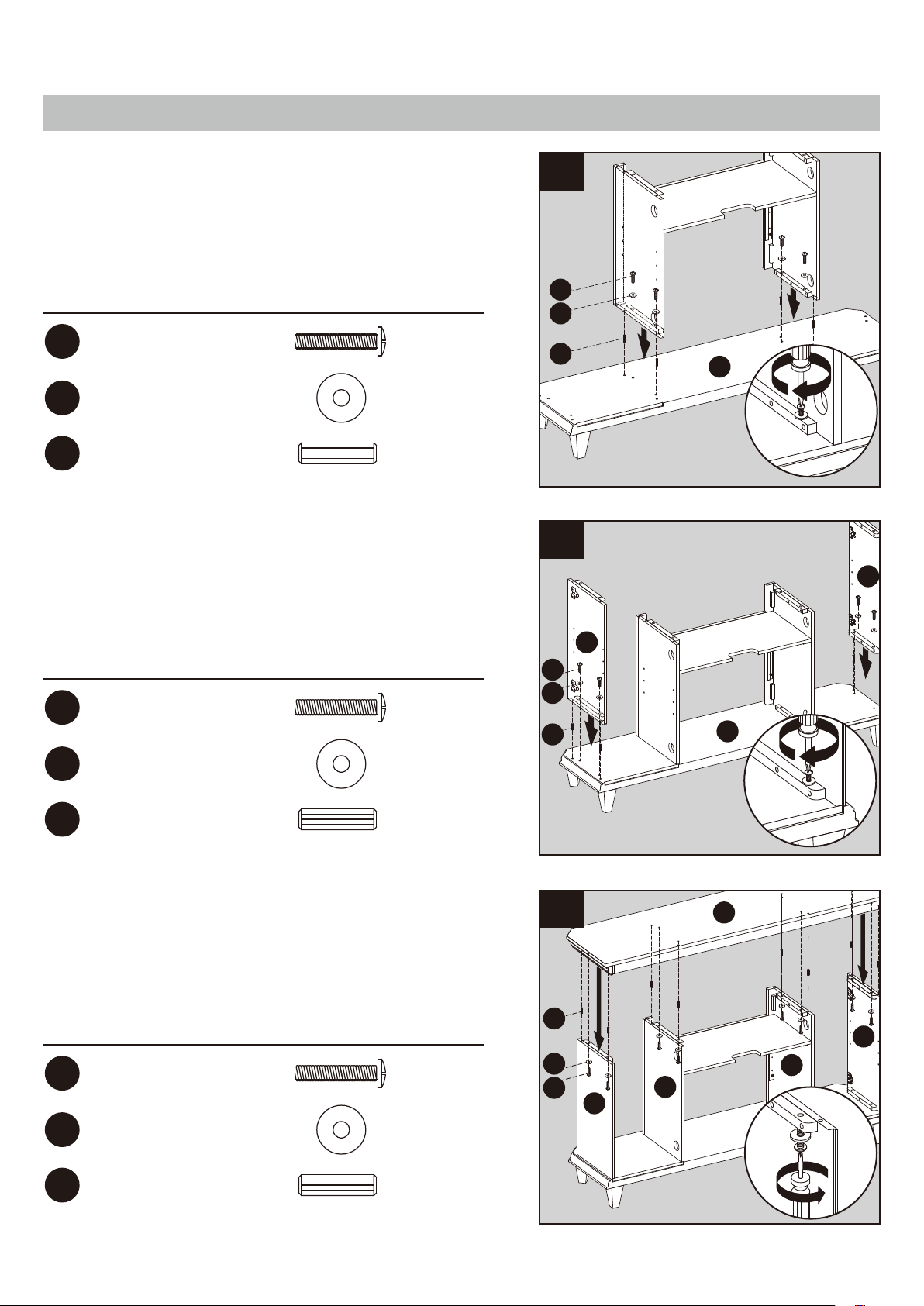

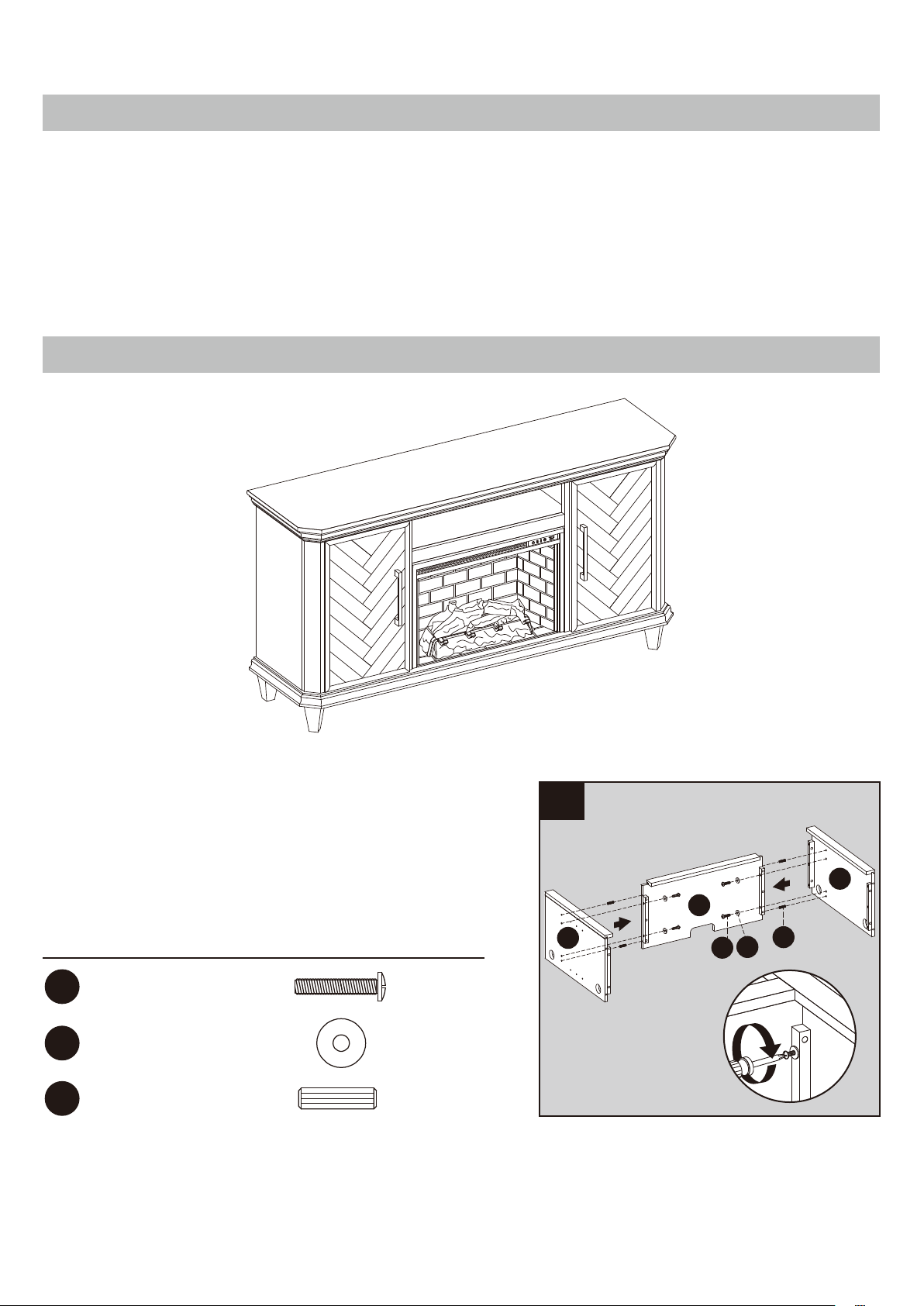

1. Insert two wooden dowels (CC) into the holes on
right middle wall (D). Attach center shelf (B) to right
middle wall (D), Securing with two washers (BB) and
two long bolts (AA).
Repeat for left middle wall (C).
Hardware Used
BB
CC
Long Bolt
x 4
x 4
Washer
AA x 4
Wooden Dowel
1
B
CAA BB CC
D
2
11

5
ELECTRICAL FIREPLACE ASSEMBLY INSTRUCTIONS (CONT’D)
2. Insert four wooden dowels (CC) into holes on
base (L). Place assembly from step 1 onto base (L),
securing with four washers (BB) and four long
bolts (AA).
Hardware Used
BB
CC
Long Bolt
x 4
x 4
Washer
AA x 4
Wooden Dowel
4. Insert eight wooden dowels (CC) into the top
outer holes on left outer wall (E), left middle
wall (C), right middle wall (D) and right outer
wall (F). Attach top (A), securing from underneath
with eight washers (BB) and long bolts (AA).
3. Insert two wooden dowels (CC) into outer holes on right
side of base (L). Attach right outer wall (F), securing
with two washers (BB) and two long bolts (AA).
Repeat for left outer wall (E).
Hardware Used
BB
CC
Long Bolt
x 4
x 4
Washer
AA x 4
Wooden Dowel
1
1
L
AA
BB
CC
2
2
1
1
F
E
L
AA
BB
CC
3
2
Hardware Used
BB
CC
Long Bolt
x 8
x 8
Washer
AA x 8
Wooden Dowel
A
C
D
F
E
CC
BB
AA
1
1
4
2

6
ELECTRICAL FIREPLACE ASSEMBLY INSTRUCTIONS (CONT’D)

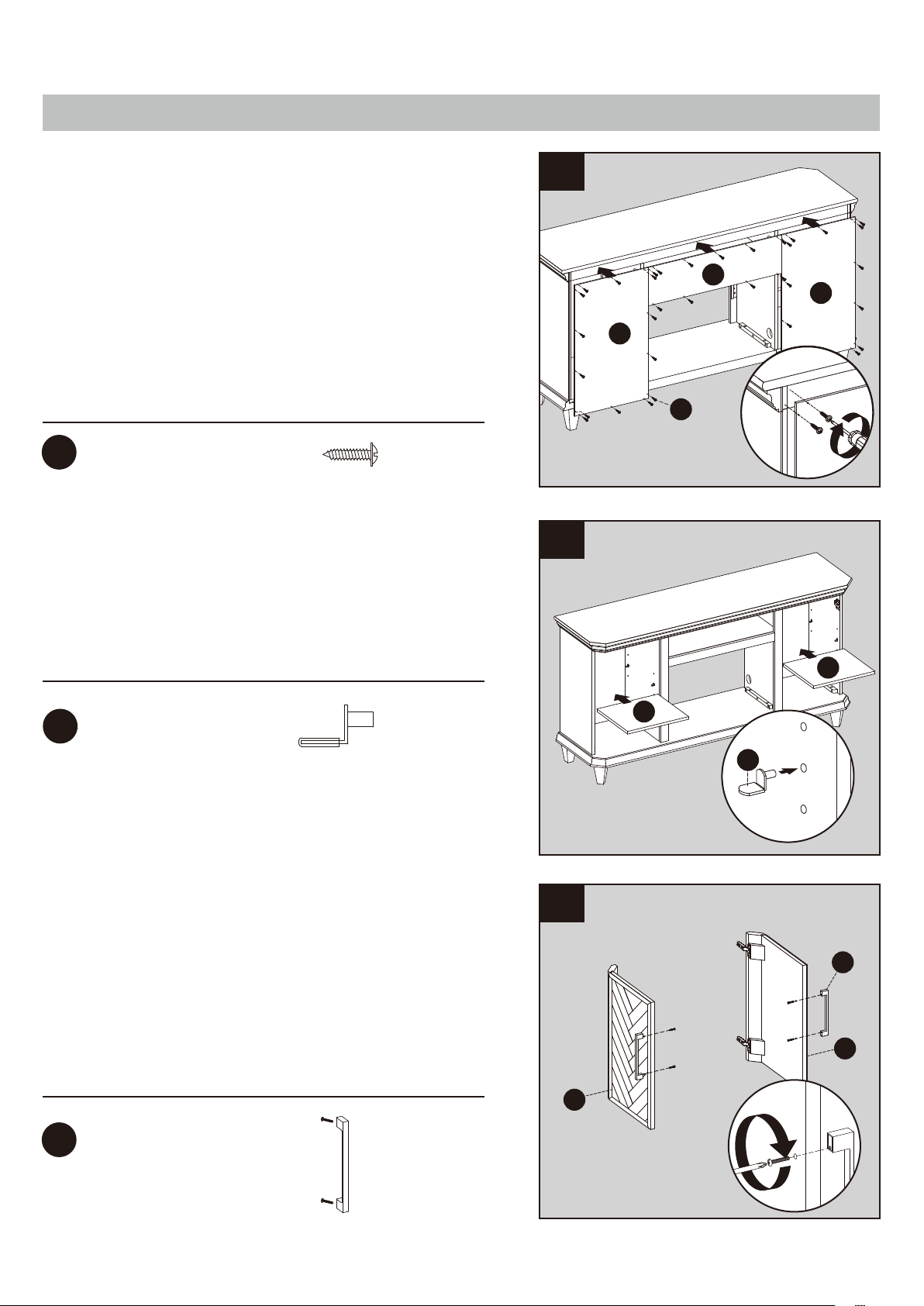

5. From behind the assembly, attach back panel (G)
to shelving areas using back panel screws (DD).
Repeat for remaining back panel (G),center back
panel (H).
Note: Do not install center back panel (H) if you
plan to install a sound system (sold separately) For
more information see page 10.
Hardware Used
DD x 37Back Panel Screws
EE x 8Shelf Pin
Hardware Used
6. Insert shelf pins (EE) at desired height, ensuring they
are level. Place shelf (I) on top of shelf pins (EE).
Repeat for remaining shelf (I).
Hardware Used
GG x 2Door Pull
7. Place door pull (GG) into predrilled hole on right door,
Securing with two door pull screws.
Repeat for remaining door pull (GG).
11
1
H
G
G
DD
5
2
2
6
22
I
I
1
EE
7
J
K
GG

ELECTRICAL FIREPLACE ASSEMBLY INSTRUCTIONS (CONT’D)
7

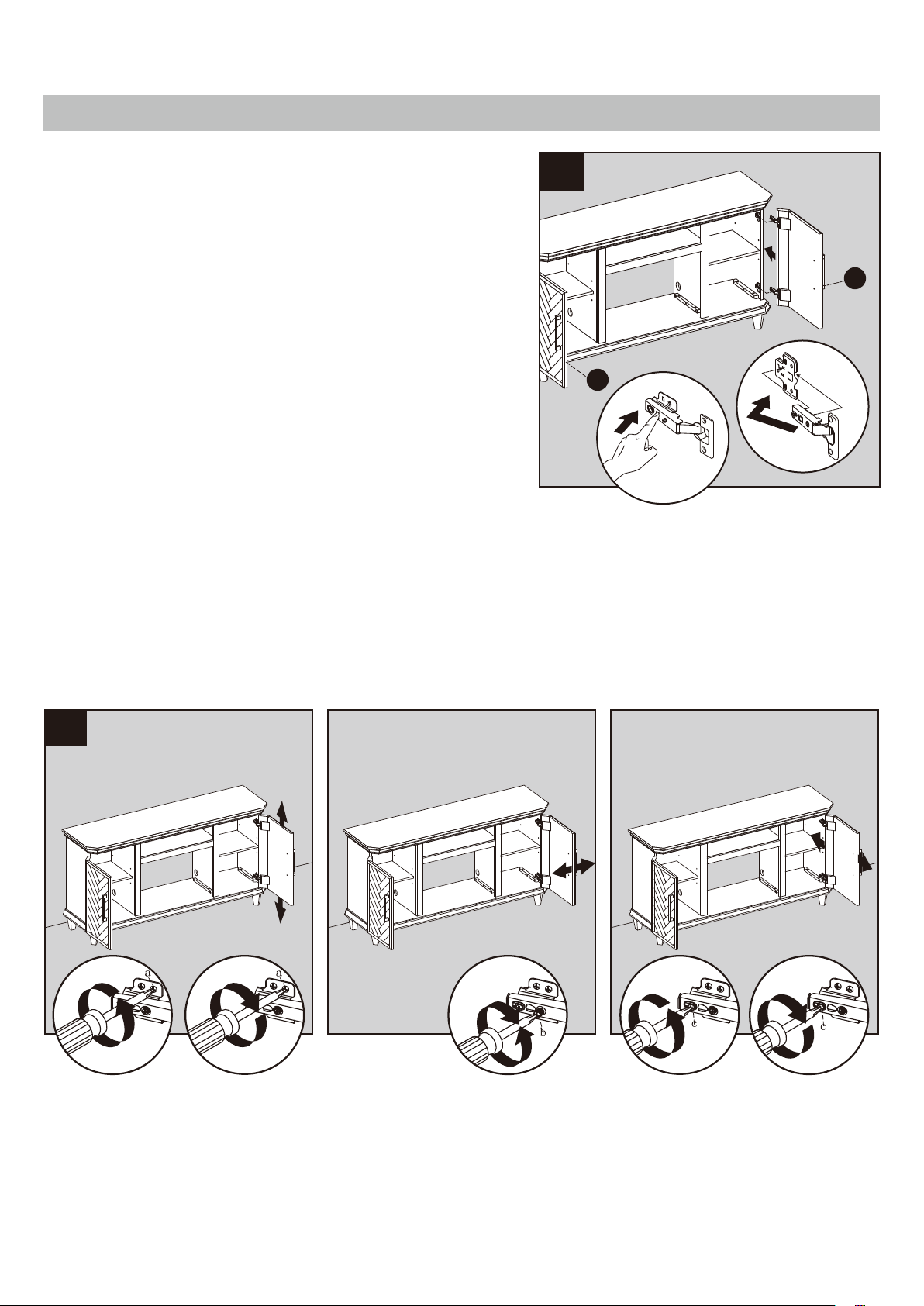

8. Hold the door (K) and align with the inside of the
side wall of the main body. Align and slide the
hooks/catches on the hinge body attached to
door (K) into the recesses in the hinge mounting
plates attached to the inside wall of the main body.
Then press on the back part of the hinge body until
it clicks into place, Repeat for other hinges.
To remove press the square button at the back
of the hinge body to release the hinge from the
mounting bracket. Unlock both hinges and pull
the door away from the fireplace body.
9. If you need to adjust the doors, do so in the following manner.
To adjust door up or down, loosen screws (a) on both hinges, adjust door, and retighten screws.
To adjust door left or right, turn screws (b) on both hinges, in or out.
To adjust door in or out, loosen screws (c) on both hinges, adjust door, and retighten screws.
1
J
K
8
3
2
9
1
1
3
1
1
3
2
2
22
2
2

GG
ELECTRICAL FIREPLACE ASSEMBLY INSTRUCTIONS (CONT’D)
8

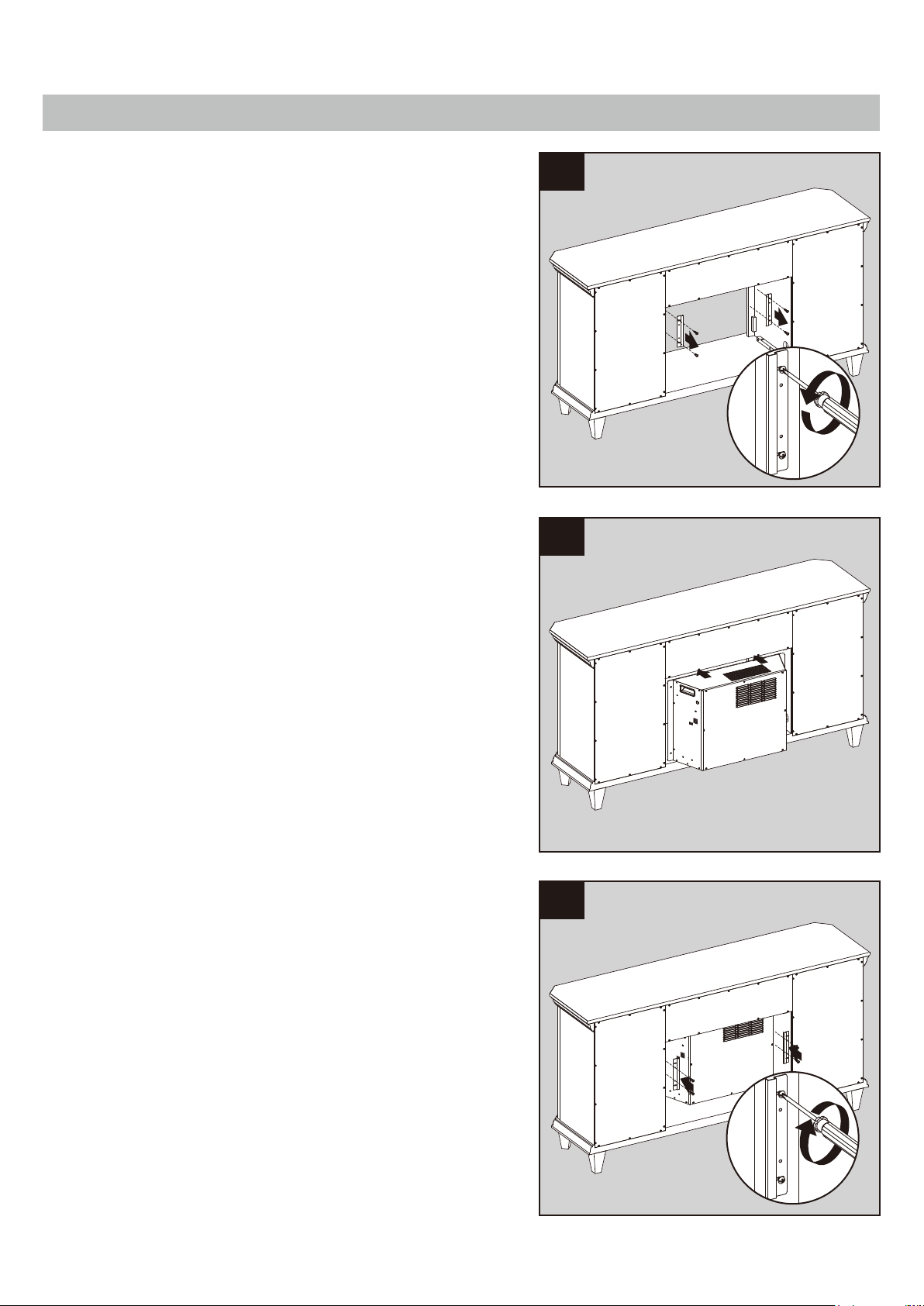

10. From behind the assembly, remove the preassembled
insert brackets from the middle area. Save brackets
and screws for future use.
12. Re-attach insert brackets with previously
removed screws to secure insert.
Note: Before proceeding to the next step, with the
help of another person, move the mantel close to
the final desired location.
11. With the help of another person, position insert
into opening of mantel assembly.
CAUTION: DO NOT slide insert on top of wood
to avoid scratching wood surface.
Note: DO NOT plug insert into power outlet
yet.
11
10
2
2
1
1
1
12
2

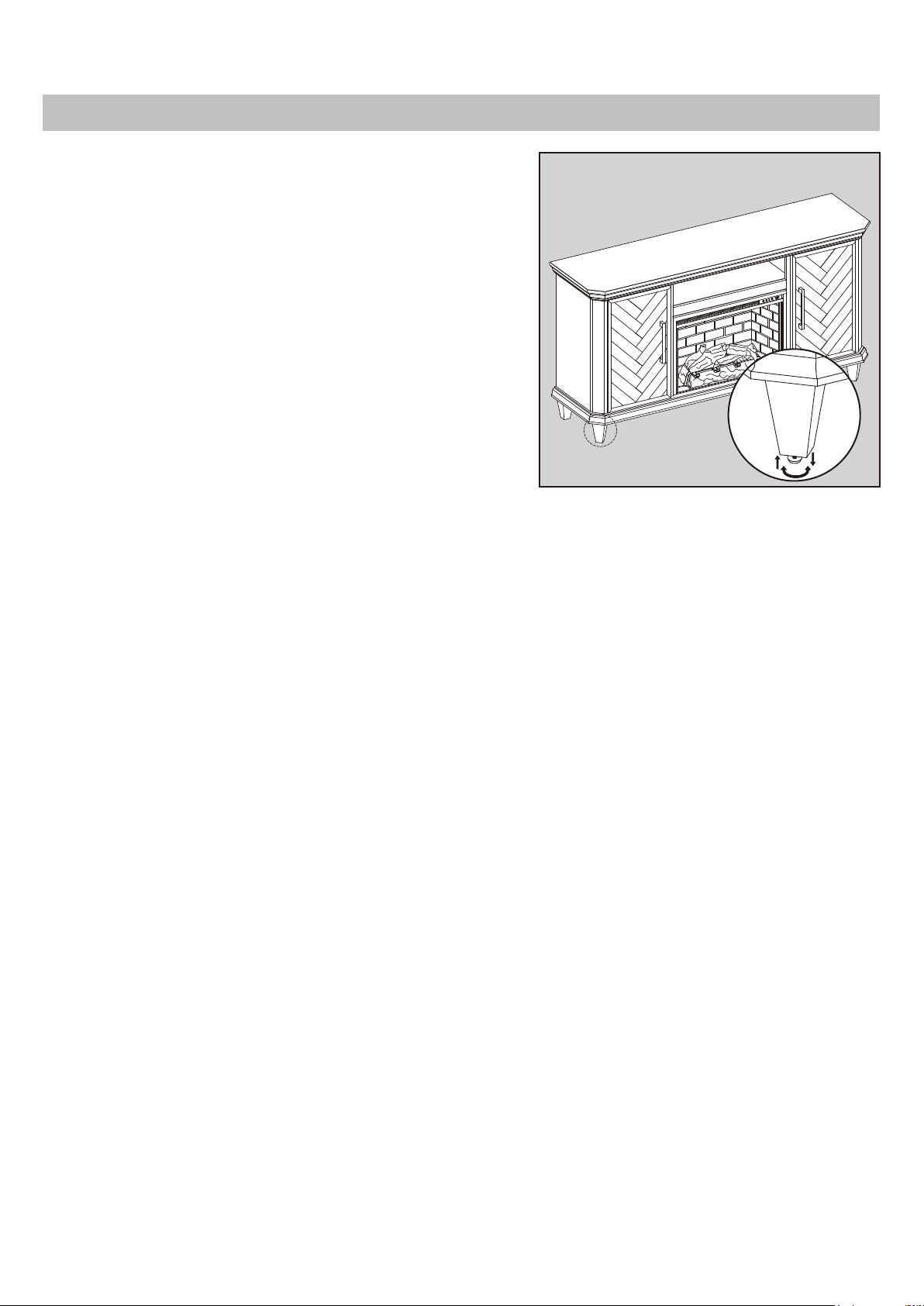

NOTE: Use the pre-assembled levelers on the base
of the fireplace to level the unit. Twist the levelers
counter clockwise to increase the height, and/or
clockwise to decrease the height.
Note: Operating instructions for the Insert
(Model 2622-FG-BB) and the Remote Control
(PU17-23-RC) are available in the separate Instruction
Manual packaged with this unit.
Assembly is now complete. With the help of
another person, move the assembly to the final
desired location. Once in final position you may
plug the insert into the power outlet.
ELECTRICAL FIREPLACE ASSEMBLY INSTRUCTIONS (CONT’D)
9

10

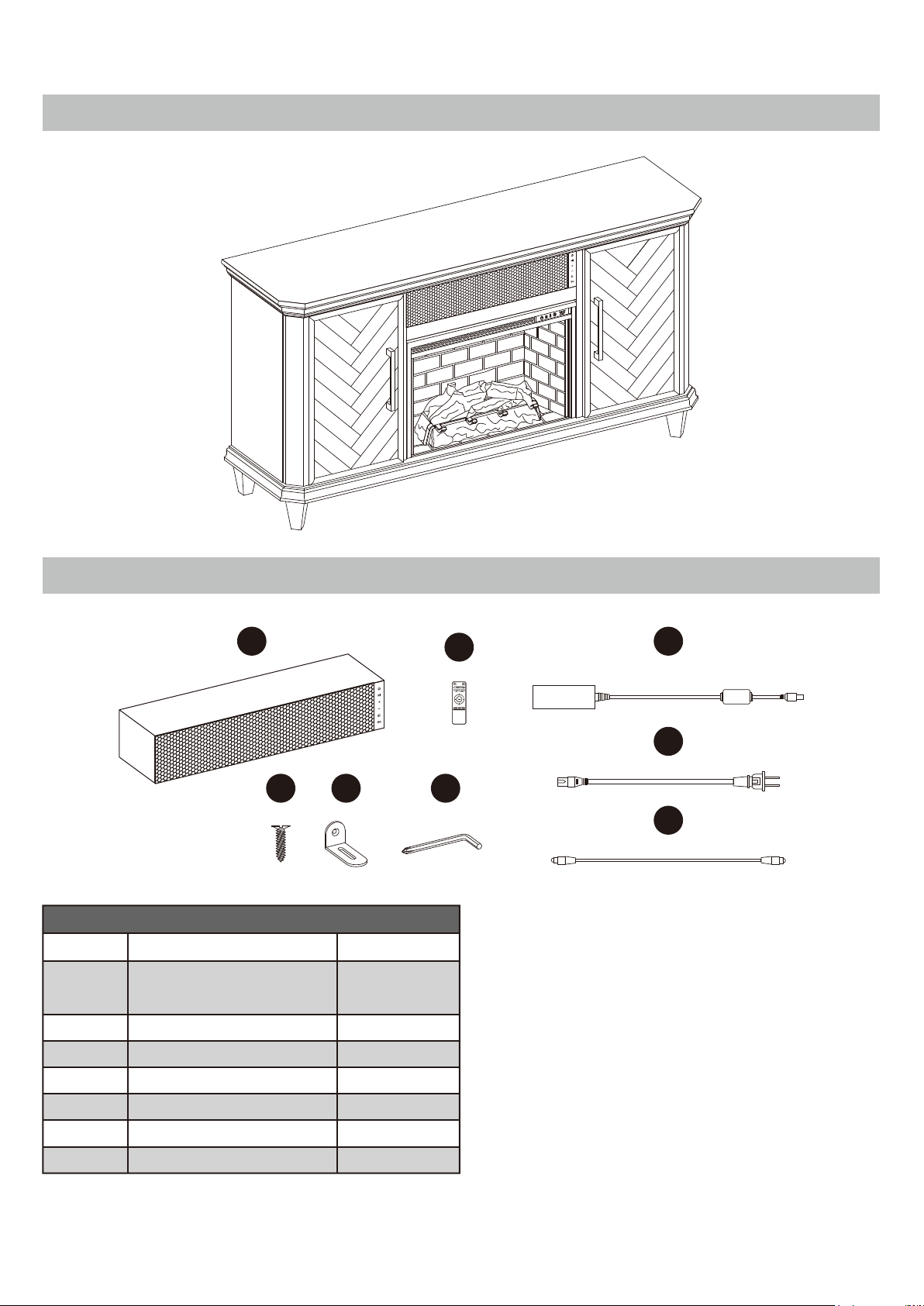

PACKAGE CONTENTS
PAIR
EQ
RS
HH II
T
JJ
U
V
OPTIONAL SOUND SYSTEM (SOUND SYSTEM SOLD SEPARATELY)
R Sound System 1
HH Screw 6
II Speaker Bracket 2
JJ Wrench 1
T DC Adaptor 1
U Power Cable 1
V Optical Cable 1
SSound System
Remote Control 1
PART DESCRIPTION QUANTITY

11
PREPARATION
Before beginning assembly of product, make sure
all parts are present. Compare parts with
package contents list and hardware contents list.
If any part is missing or damaged, do not attempt
to assemble the product.
Estimated Assembly Time: 5 minutes
Tools Required for Assembly (not included):
Phillips screwdriver
WARNING
WARNING
Adaptor Input AC100-240V, 50/60Hz
Adaptor Output DC15V 4A
Power Consumption 60 Watts
SAFETY INFORMATION
PRODUCT SPECIFICATIONS
• Read and keep all instructions.
• To reduce the risk of electric shock do not remove cover or back panel. No user-serviceable parts
inside. Refer servicing to qualified service personnel.
• For Indoor use only. DO NOT expose this product to rain, moisture, dripping or splashing.
• DO NOT try to bypass the safety function of the polarized plug. A polarized plug has two blades with
one wider than the other. The wideblade is a safety feature. When the provided plug does not fit
into your outlet, consult an electrician for replacement of the obsolete outlet.
• Use this product as described in the manual only. Any other use may cause fire, electric shock, or injury.
• Refer all servicing to qualified service personnel. Servicing is required when the product has been
damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or
objects have fallen into the product, the product has been exposed to rain or moisture, does not
operate normally, or has been dropped.
Changes or modifications to this unit not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
Note: This equipment has been tested and found the comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and receiver.
•
Connect the equipment into an outlet on a circuit different for that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician

12

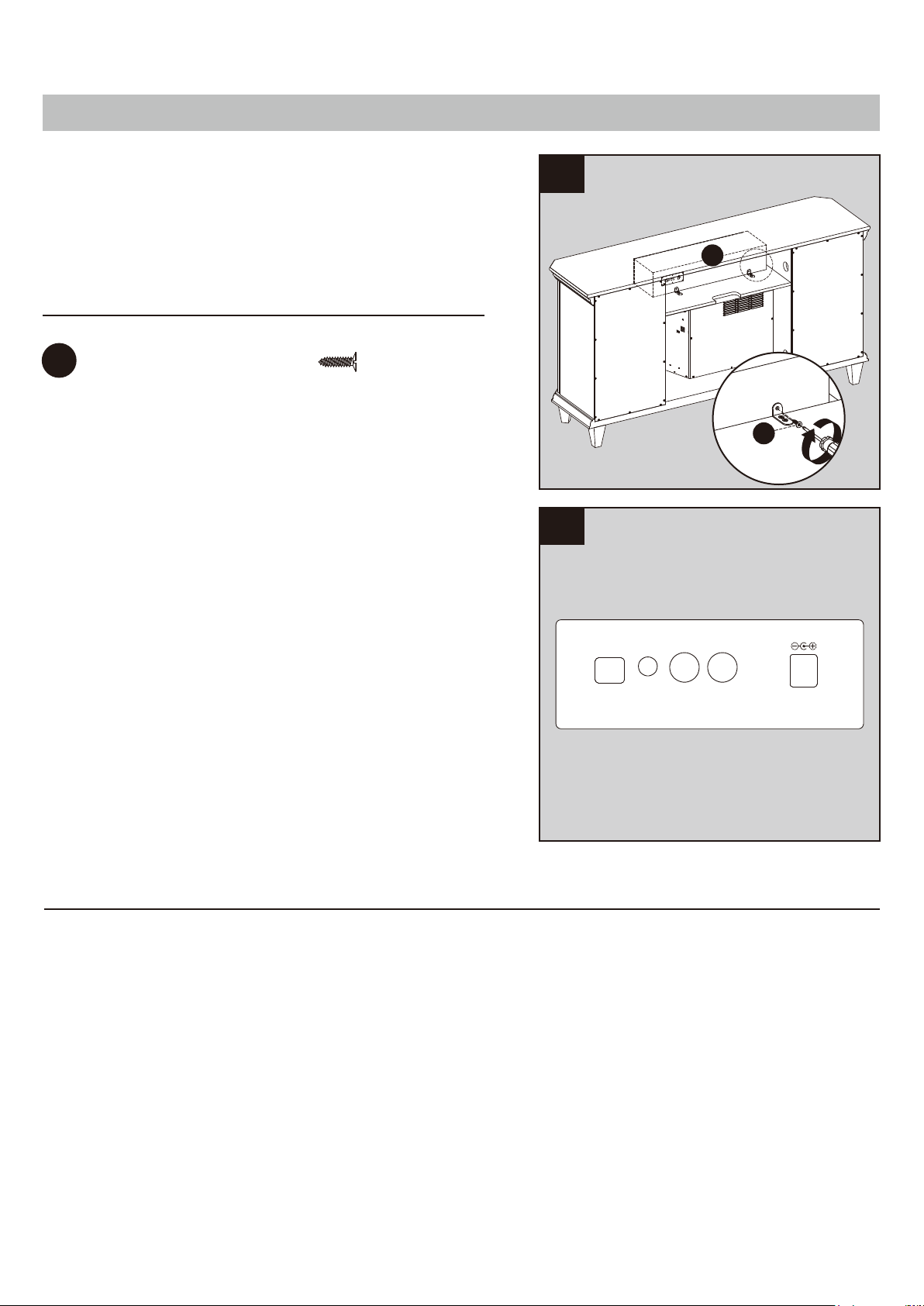

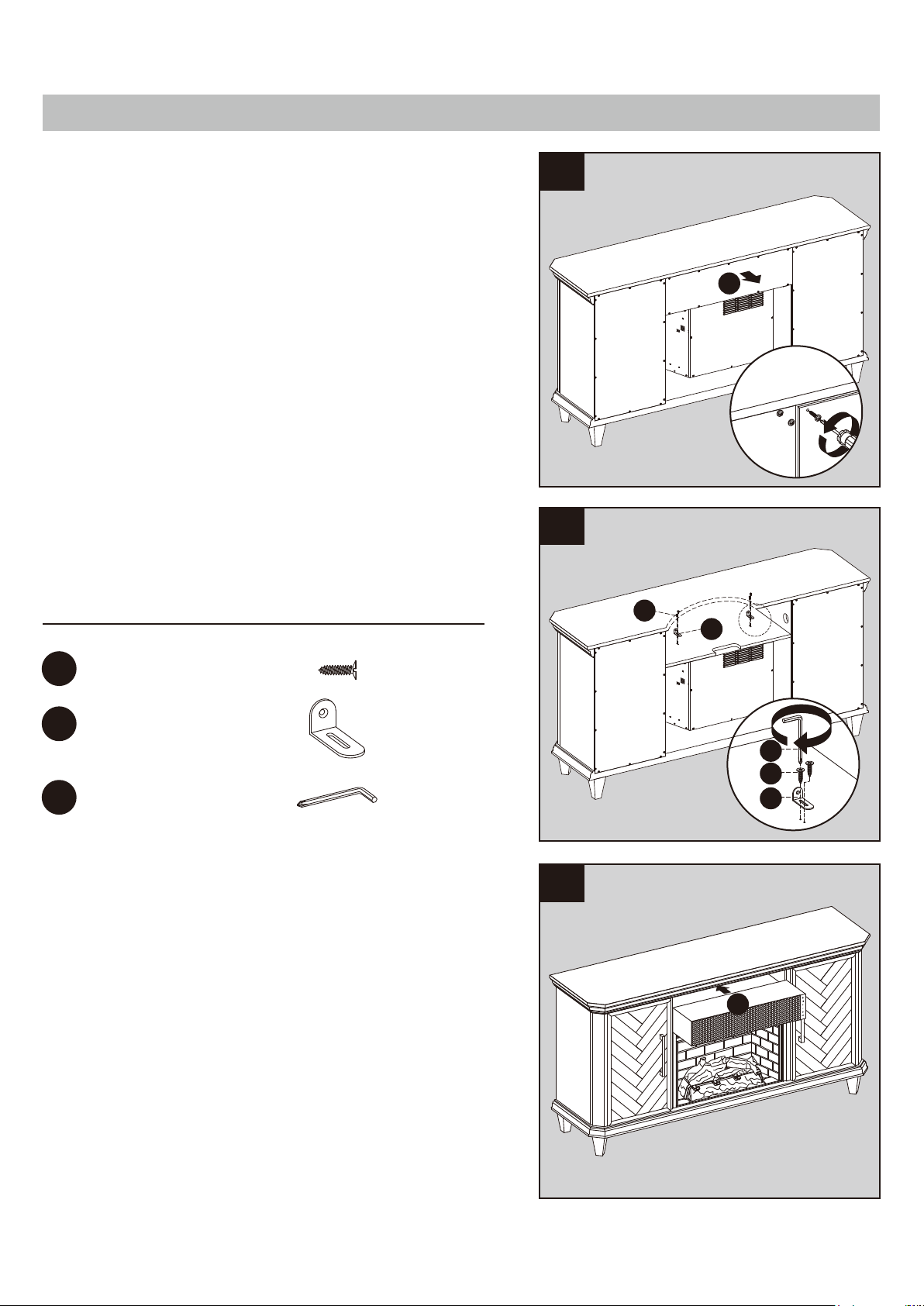

If you have installed the center back panel (H) to the
mantel, please follow these steps to remove it.
1. From behind the assembled mantel, remove the
Center Back Panel (H) by unscrewing the screws
on the back panel.
Hardware Used
2. From behind the assembly, to secure the
speaker bracket (II) to the pre drilled holes on the
middle shelf with four screws (HH).
HH Screw x 4
II Speaker Bracket x 2
JJ Wrench x 1
3. Position sound system (R) into the top middle
opening of mantel assembly and align it with the
front of opening.
CAUTION: DO NOT slide sound system (R) on top
of wood to avoid scratching wood surface.
Do not re-attach the center back panel (H) after
the speaker is installed. You can keep it aside for
future use.
SOUND SYSTEM ASSEMBLY INSTRUCTIONS
1
2
H
1
3
R
HH
II
2
HH
II
JJ

13

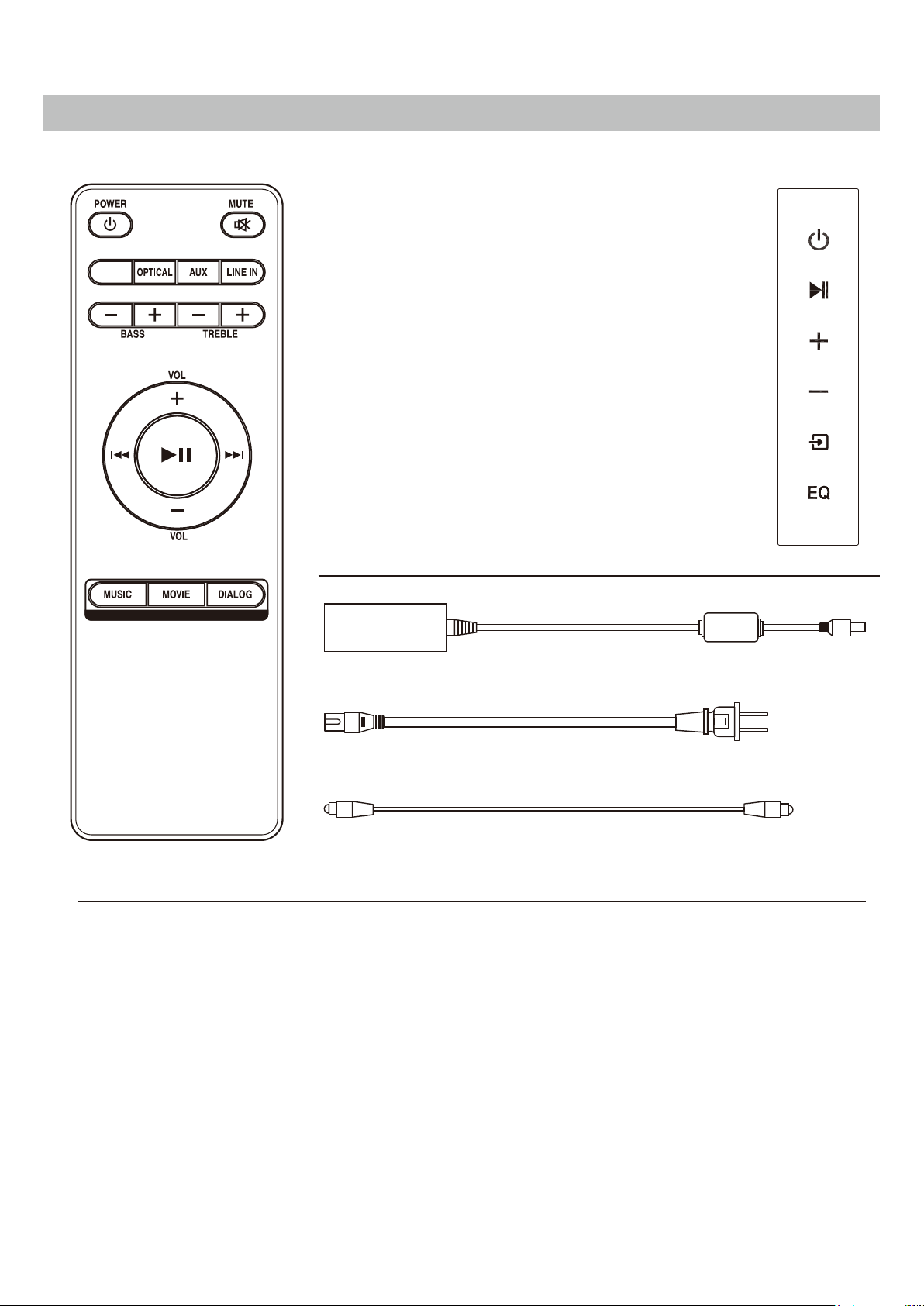

DISPLAY
When scrolling through source options, selections will be indicated as follows:
When scrolling through EQ options, selections will be indicated as follows:
A numerical display will illuminate on the front mesh to indicate the settings
(Volume Level, Bass Level, Treble Level, EQ and Source Selection).
OP: OPTICAL : Optical Cable Input (Included)
L1: LINE IN : 3.5 mm Audio Cable Input (Not Included)
AU: R AUX IN L: RCA Cable Input Left and Right (Not Included)
BL: Device pairing
1: EQ optimized for music
2: EQ optimized for movies
3: EQ optimized for dialogue
Hardware Used
HH Screw x 2
5
OPTICAL LINE IN R AUX IN L DC 15V IN
SOUND SYSTEM ASSEMBLY INSTRUCTIONS (CONT’D)
5. Multiple sources can be wired to the sound system
using the inputs located at the back of the unit.
An optical cable is provided and we recommend using
this option to wire your television to the system for
best digital sound.
To supply power to the system:
1. Connect the small end of the Power Cable into the
DC Adaptor.
2. Connect the DC Adaptor into the DC 15V IN input
located on the back panel.
Assembly is now complete, with the help of another
person, move the assembly to the final desired location.
Once in final position you plug the sound system (R) into
the power outlet.
4. From behind the assembly, to secure the sound
system (R) with two screws (HH).
R
4
HH

14
PAIR
EQ
OPERATING INSTRUCTIONS
Control Panel
ON/OFF
PLAY/PAUSE
VOLUME UP
VOLUME DOWN
DC Adaptor
Power Cable
Optical Cable
ACCESSORIES
PAIRING YOUR DEVICE FOR THE FIRST TIME
CONTROL PANEL
AND REMOTE CONTROL:
The sound system settings
can be adjusted with the
control panel and/or the
sound system remote control:
1. Power on the unit by pressing the Power button.
2. Set the indicator to BL by either scrolling the source selection button on the panel or pressing the PAIR
button on the remote control.
The pairing indicator will flash blue quickly. When pairing, remain within 3 feet of the unit.
3. Use the controls of your device to select "Fireplace" bluetooth name to pair the devices.
4. If your device requests a password, enter the default password 0 0 0 0.
5. When successfully paired and connected, a beep will issue from the sound system and the Pairing
Indicator will display a solid blue light.
After initial pairing, the unit will stay paired unless unpaired manually by the user or erased due to a
reset of the device. The devices may also unpair if devices are too far apart.
6. If your device should become unpaired or you find it is unable to connect, repeat the above steps.
Sound system
Remote Control
SCROLL SOURCE OPTIONS
SCROLL EQ SETTINGS

15
Replacing the Remote Control Batteries
AAA 1.5V
AAA 1.5V
Disposal of Used Batteries
A battery may contain hazardous substances that could be
endangering the environment and human health.
CARE AND MAINTENANCE
When the sound system remote control (S) stops
operating or its range seems reduced, it is time to replace
the batteries. Note:The batteries should be removed if
the product is to be left unused for a long time.
1. The battery compartment is located on the back
of the sound system remote control (S).
2. Remove battery cover from the back of sound system
remote control (S) and remove the old batteries.
3. Insert 2pcs AAA batteries, ensuring the polarities of
the battery match the inside of the battery
compartment.
4. Re-insert the battery door.
Note: Do not mix old and new batteries.
Do not mix alkaline, standard (carbon zinc), or rechargeable (nicad, nimh, etc) batteries.
Non-rechargeable batteries are not to be recharged. Exhausted batteries are to be removed from
the product.
Harmful if swallowed.
• This symbol marked on the battery and/or packaging indicates that
used battery shall not be treated as municipal waste. Instead it shall
be left at the appropriate collection point for recycling.
• By ensuring the used battery is disposed of correctly, you will help
prevent potential negative consequences for the environment and
human health. The recycling of materials will help to conserve
natural resources.
• Do not dispose of batteries in fire. batteries may explode or leak.
For more information about collection and recycling of used batteries,
please contact your local municipality, your waste disposal service or
the point-of-sale where you purchased this battery.

16
ONE-YEAR LIMITED WARRANTY
The manufacturer warrants that your new Electric fireplace is free from manufacturing and material
defects for a period of one year from date of purchase, subject to the following conditions and
limitations.
Install and operate this Electric fireplace in accordance with the installation and operating instructions
furnished with the product at all times. Any unauthorized repair, alteration, willful abuse, accident, or
misuse of the product shall nullify this warranty.
This warranty is void if:
1. The fireplace is subjected to prolonged periods of dampness or condensation.
2. Any unauthorized alteration, willful abuse, accident, or misuse of the product.
3. You do not have the original receipt of purchase.
The warranties as outlined within this document do not apply to non accessories used in conjunction
with the installation of this product.
The manufacturer neither assumes, nor authorizes any third party to assume on its behalf, any other
liabilities with respect to the sale of the product.
All other warranties-expressed or implied-with respect to the product, its components and
accessories, or any obligations/liabilities on the part of the manufacturer are hereby expressly
excluded.
The owner/user assumes all other risks, if any, including the risk of any direct, indirect or
consequential loss or damage arising out of the use, or inability to use the product, except as
provided by law.
Any installation, labor, construction, transportation, or other related costs/expenses arising from
defective part(s), repair, replacement, or otherwise of same, will not be covered by this warranty, nor
shall the manufacturer assume responsibility for same.
The manufacturer may, at its discretion, fully discharge all obligations with respect to this warranty by
refunding the wholesale price of the defective part(s).
The warranty is limited to the repair or replacement of part(s) found to be defective in material or
workmanship, provided that such part(s) have been subjected to normal conditions of use and
service, after said defect is confirmed by the manufacturer’s inspection.
This warranty is non-transferable, and is made to the original owner, provided that the purchase was
made through an authorized supplier of the product.

REPLACEMENT PARTS
For replacement parts, call our customer service department at 1-704-461-2414, 8:30 a.m. - 5 p.m., EST,
Monday - Friday.
17

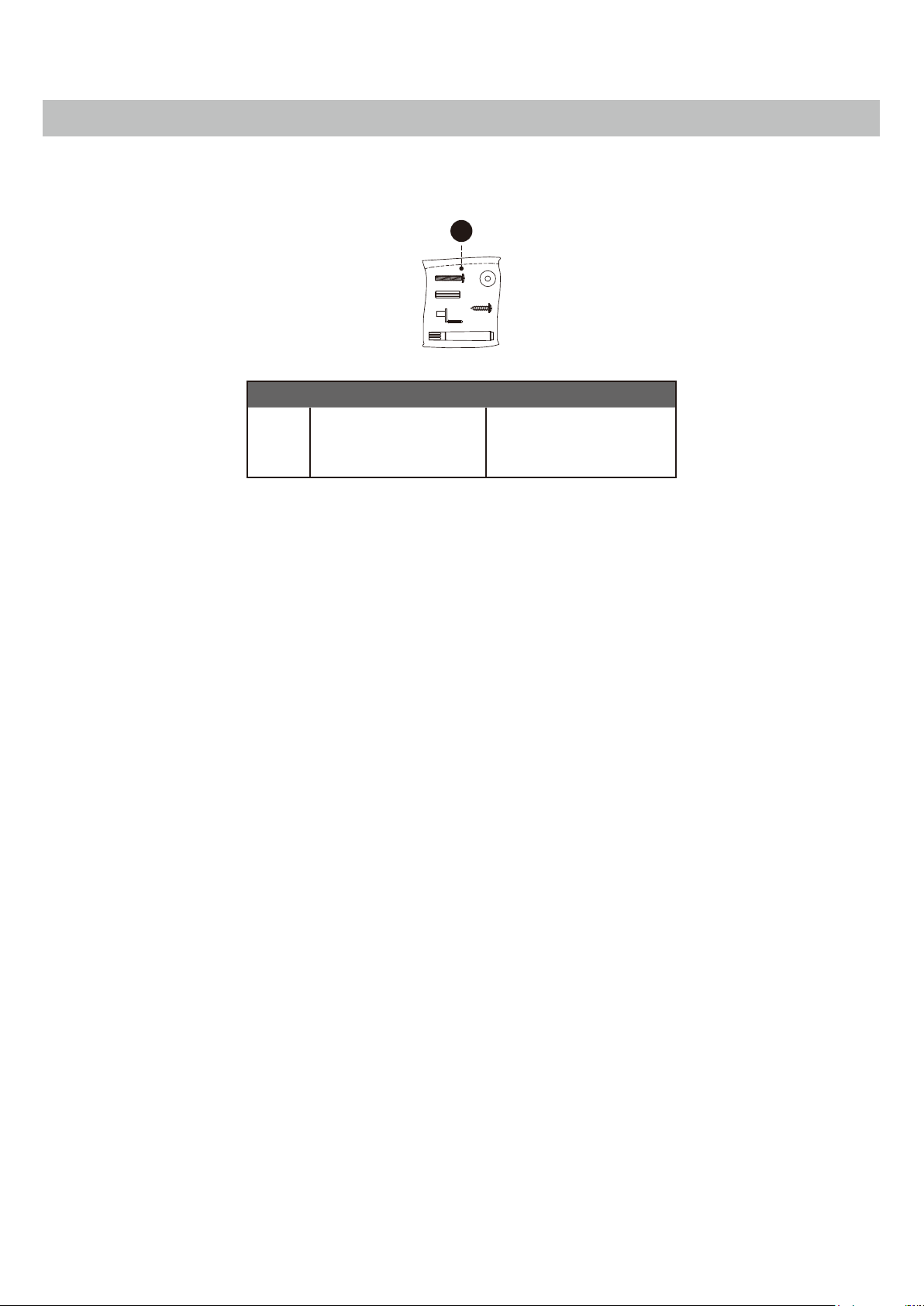

PART DESCRIPTION PART #
NN PH-1498FSO-26-
HARDWARE PACK
Hardware Pack
(AA, BB, CC, DD, EE
and FF (M-1108))
Replacement information for the Remote Control (Part # PU17-23-RC)
is listed in the Replacement Parts section of the Insert
(Model 2622-FG-BB) Instruction Manual.
NN

MODÈLE # 1498FSO-26-267; 1498WSB-26-267
Console média de 66 po
pour foyer
English p. 1
Español p. 35
INSTRUCTIONS D’UTILISATION, D’ASSEMBLAGE
ET DE MAINTENANCE
Date d’achat _______________________
18
Des questions, des problèmes, des pièces manquantes?
Avant de retourner l’article au détaillant,
appelez notre service à la clientèle au
1-704-461-2414, entre 8h30 et 17 h (HNE), du lundi au vendredi.
www.greentouchhome.com
Un manuel d’instructions distinct pour l’insert
(modèle 2622-FG-BB) et la télécommande
est inclus dans cette unité.

19
CONTENU DE L’EMBALLAGE
PIÈCE DESCRIPTION QUANTITÉ
A Dessus 1
B Tablette Centrale 1
C Cloison Centrale Gauche 1
D Cloison Centrale Droite 1
E Paroi Extérieure Gauche 1
F Paroi Extérieure Droite 1
G Panneau Arrière 2
H Panneau Arrière Central 1
I Tablette 2
J Porte Gauche 1
PIÈCE DESCRIPTION QUANTITÉ
K Porte Droite 1
L Base 1
SYSTÈME AUDIO EN OPTION
(VENDU SÉPARÉMENT)
R
Système Audio 1
STélécommande Du
Système Audio 1
A
B
C
E
G
G
H
I
J
K
L
I
F
D
Voir la page 27
SYSTÈME AUDIO EN OPTION
(VENDU SÉPARÉMENT)
PAIR
EQ
R
S

20
CONTENUS MATÉRIELS (NON REPRÉSENTÉS EN TAILLE RÉELLE)
PIÈCE DESCRIPTION QUANTITÉ
AA Boulon Long
Rondelle
20
BB
Groujon en Bois
20
CC
Vis Pour Le Panneau
Arrière
20
DD
Goupille à Tablette
37
EE
Crayon à Retouche
8
FF
Tirette de Porte
(avec vis)
1
GG 2
MATÉRIEL OPTIONNEL POUR LA
SYSTÈME AUDIO (VENDU SÉPARÉMENT)
HH Vis 6
II Support de haut-parleur 2
JJ Clé 1
AA BB CC DD EE FF
GG HH II JJ
Voir la page 27
MATÉRIEL OPTIONNEL POUR LA
SYSTÈME AUDIO
(VENDU SÉPARÉMENT)
