Greenwood Elite EL100 User manual

Elite EL100, EL100 SELV, EL150 Axial Fans
Bathroom, Toilets, Utility Rooms and Kitchens
Installation Instructions

Page
1.0 Installation Instructions 3
2.0 Operation 4
2.2 Window Mounting 5
2.3 Wall Mounting 6
2.4 Ceiling Mounting 7
2.5 Wiring Details for Isolator 8
2.6 Wiring Diagrams for EL100/EL150 9
2.7 Wiring Diagrams for EL100 SELV 10
3.0 Sensor / Timer Adjustments 11
4.0 To Clean or Service Fan 11
2
Contents

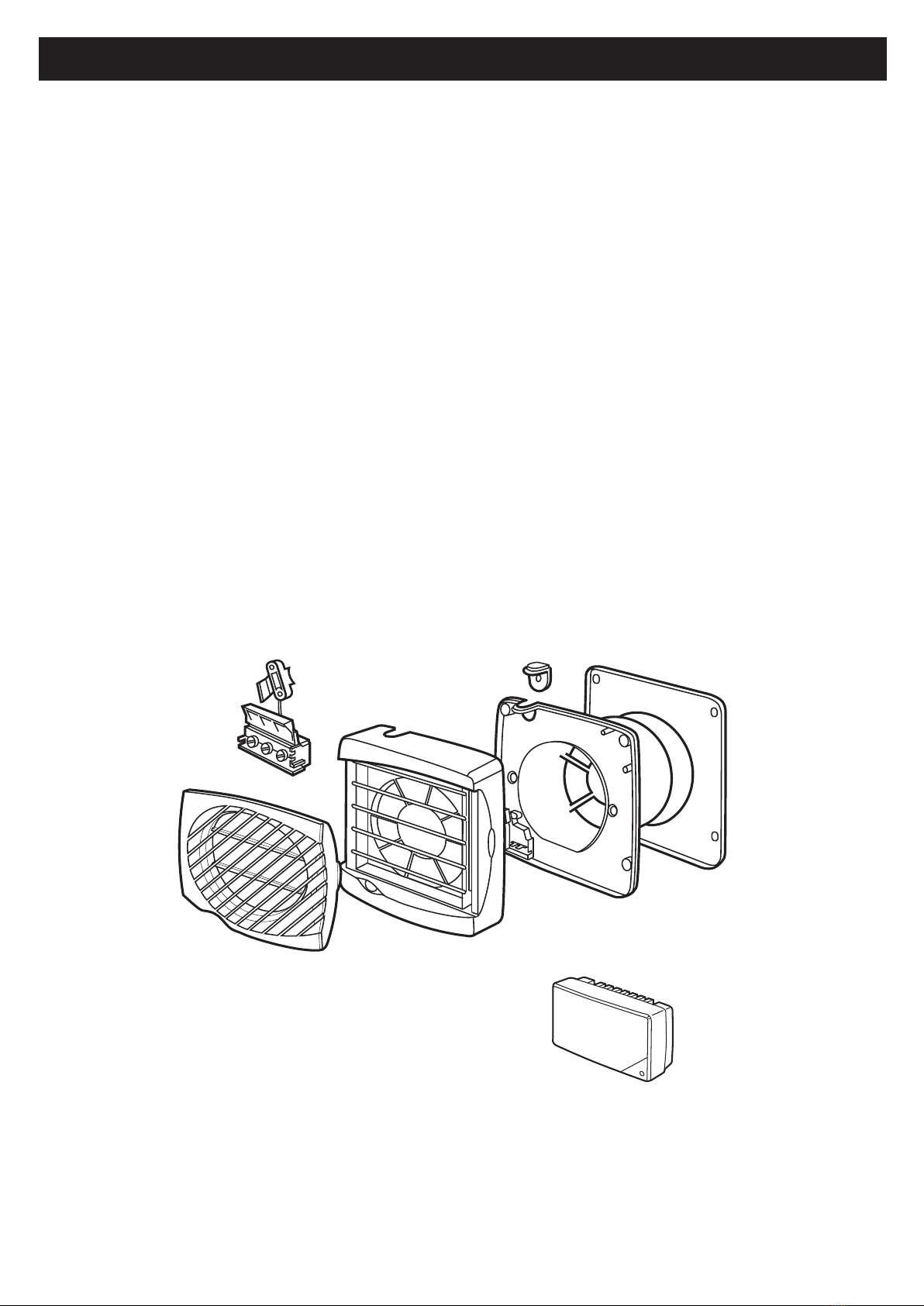

SELV box for EL100 SELV

3
Read a instructions before commencing insta ations.
Warning: This appliance can be used by children aged from 8 years and above
and persons with reduced physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given supervision or instruction
concerning use of the appliance in a safe way and understand the hazards
involved. Children shall not play with the appliance.
Where an open-flued oil or gas-fuelled appliance is installed, precautions must be
taken to avoid a back-flow of gases into the room.
When installing wall mounted fans, ensure that there are no buried cables or pipes
in the way. It is recommended that this fan is mounted >1.8m above floor level.
The fan should not be sited where it would be subject to a direct source of heat in
excess of 40°C.
Observe appropriate safety precautions if working on steps or ladders. Wear eye
protection when breaking out wall or window materials, etc.
Always isolate fan from mains supply before cleaning. Do not use solvents to
clean this fan.
Cleaning and user maintenance shall not be made by children without supervision.
EL100 SELV fans shall only be installed by using the supplied Safety Extra Low
Voltage (SELV) controller.
WEEE Statement
This product may not be treated as household waste. Instead it
should be handed to an appropriate collection point for the recycling
of electrical and Electronic equipment.
For more detailed information about the recycling of this product, please contact
your local council office or your household waste disposal service.
For window mounting do not install fans in opening windows. Use the
correct thickness of glass for the size of windoww (at least 4mm thick) if in
doubt, contact a glazier.
A clearance of 75mm to be allowed on both sides of fan for the removal of
the internal grille.
1.0 Installation Instructions
1.1
1.1.1
1.1.2
1.1.3
1.1.4
1.1.5
1.1.6
1.1.7
1.1.8
1.1.9
1.1.10
1.1.11

4
The Elite range of fans are single and dual speed axial flow extract fans and
single speed SELV 12V axial flow fans, designed to exceed Building Regulation
requirements for bathroom, toilet, kitchen or utility room ventilation.
Types of contro s and operation as fo ows:
TYPE EL100, EL100 SELV, EL150
Operation by light switch, remote switch or remote sensor.
TYPE ‘PC’
Operation by pull cord.
TYPE ‘T’
Operation by pull cord, light switch or remote switch.
Integral pull cord will activate the fan for pre-set overrun timer operation. If wired
into room light or remote switch the fan will operate whilst the switch is on.
Switching off will activate the overrun timer.
TYPE ‘TR’
Operation by light switch or remote switch.
When wired into room light or remote swich the fan will operate whilst the switch
is on. Switching off will activate the overrun timer.
TYPE ‘HTR’
Automatic operation by light switch or remote switch.
The fans integral humidity sensor will operate the fan whilst the RH exceeds the
pre-set activation point, when the RH is reduced back to the activation point the
linked overrun timer continues to operate the fan for the pre-set time period to
ensure the RH level is further reduced within the room to prevent ‘hunting’.
When wired into room light or remote switch the fan will oprate whilst the switch is
on. Switching off will activate the overrun timer.
See Sensor / Timer Adjustments section for further details.
The Elite range of fans are fitted with electrical operated anti-backdraught
shutters which have a time delay to open or close.
2.1
2.1.1
2.1.2
2.1.3
2.1.4
2.1.5
2.1.6
2.1.7
2.0 Operation

5
2.2
2.2.1
2.2.2

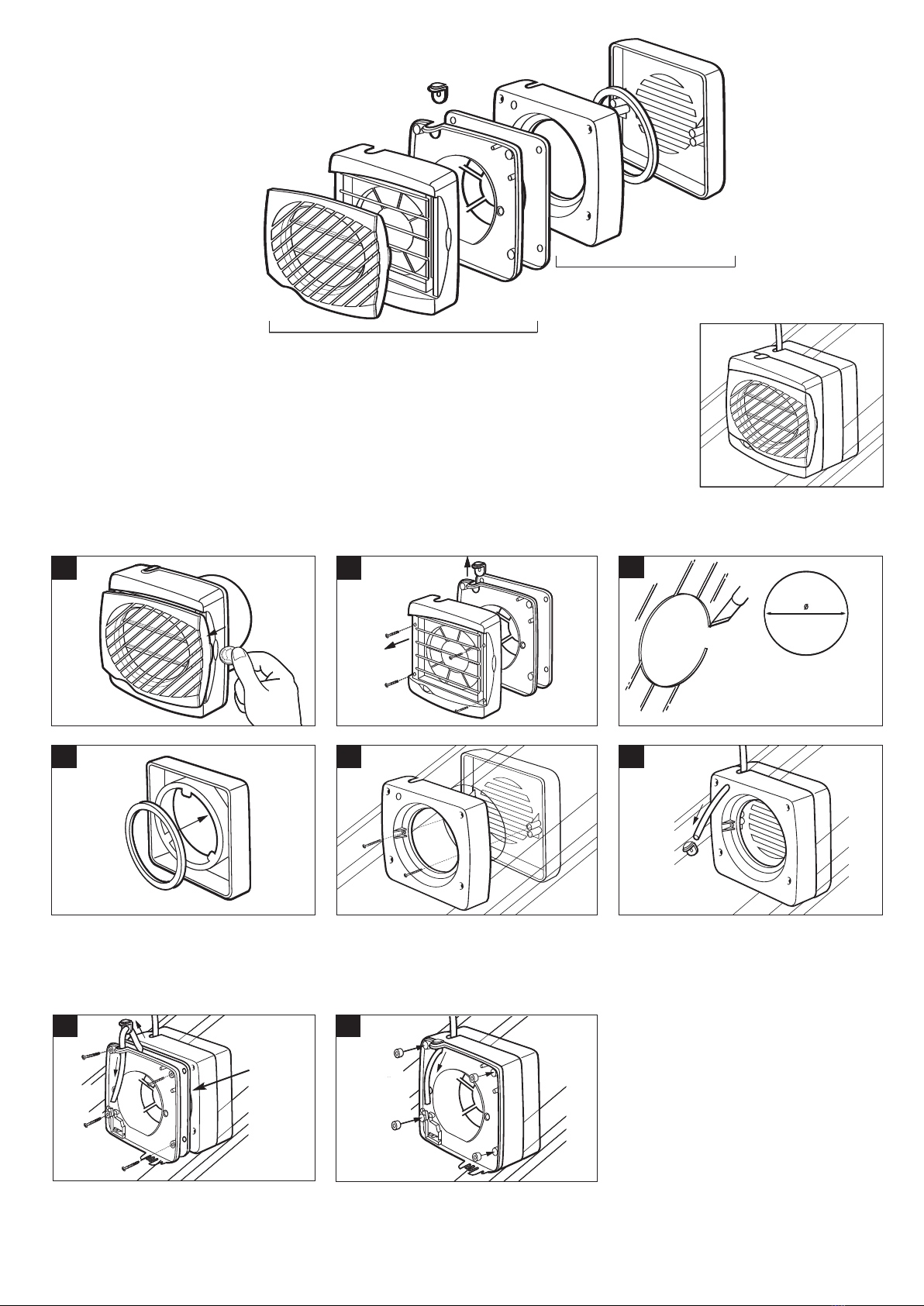

Window Mounting
For window mounting do not install fans in opening windows.
Use the correct thickness of glass for the size of window
(at least 4mm thick) if in doubt, contact a glazier.
The components supplied are suitable for the installation of
fans in windows from 4mm single glaze to 28mm thick double-glazing.
EL100 / EL100 SELV / EL150
EW100 / EW150
23
4
5 6
25mm long screws - Single glazing.
38mm long screws - 20mm & 24mm
double glazing.
50mm long screws - 28mm double glazing.
1
8
7
Make sure rubber cable grommet is
fitted onto cable before threading cable
through fan back plate.
To aid assembly, smear the spigot of the
fan or lip of seal with silicone lubricant or
silicone polish.
Push fit the four screw cover plugs
provided, with hollow end facing
outwards.
EL100 Ø = 118mm ±1mm
EL150 Ø = 167mm ±1mm
EL100 SELV Ø = 118mm ±1mm
Gasket
SEE PAGE 8 FOR WIRING
INSTRUCTIONS

6

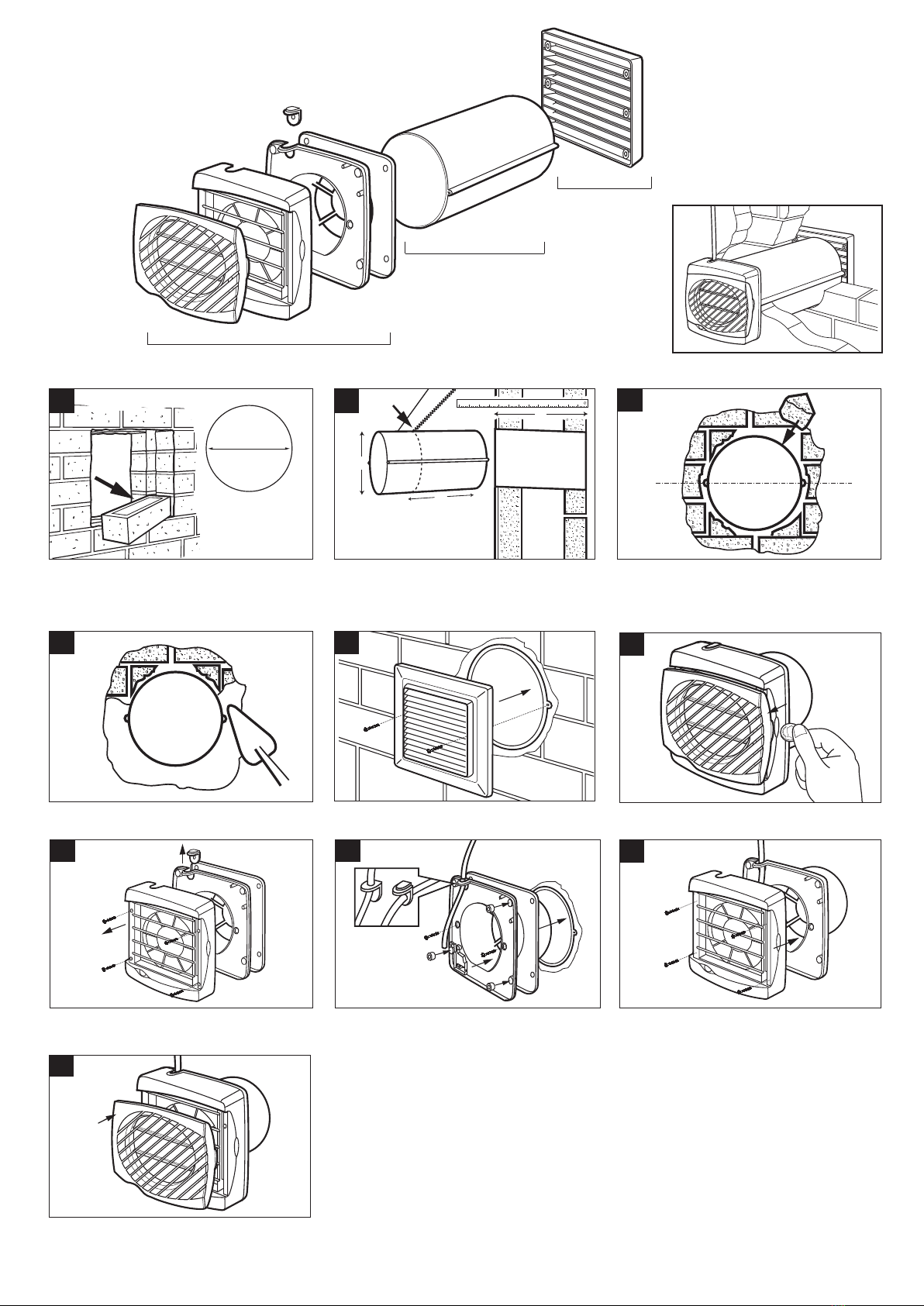

2.3 Wall Mounting
EL100 / EL100 SELV / EL150
Ducting
External
Grille
A
Ø
A
2
23
4
56
Ø
1
7
78
Remove front cover for wiring.
EL100 Ø = 125mm
EL150 Ø = 180mm
EL100 SELV Ø = 125mm
EL100 Ø = 125mm
EL150 Ø = 180mm
EL100 SELV Ø = 125mm
Make sure rubber cable grommet is fitted
onto cable before threading cable through
fan backplate.
Push fit the four screw cover plugs
provided, with hollow end facing outwards
if fixing to wall using outer mounting
points.
SEE PAGE 8 FOR WIRING
INSTRUCTIONS
Remove fascia grille using a coin.
9
10
Clip fascia grille into place.
Refit front cover securely.

7
2.4
2.4.1
2.4.2
2.4.3

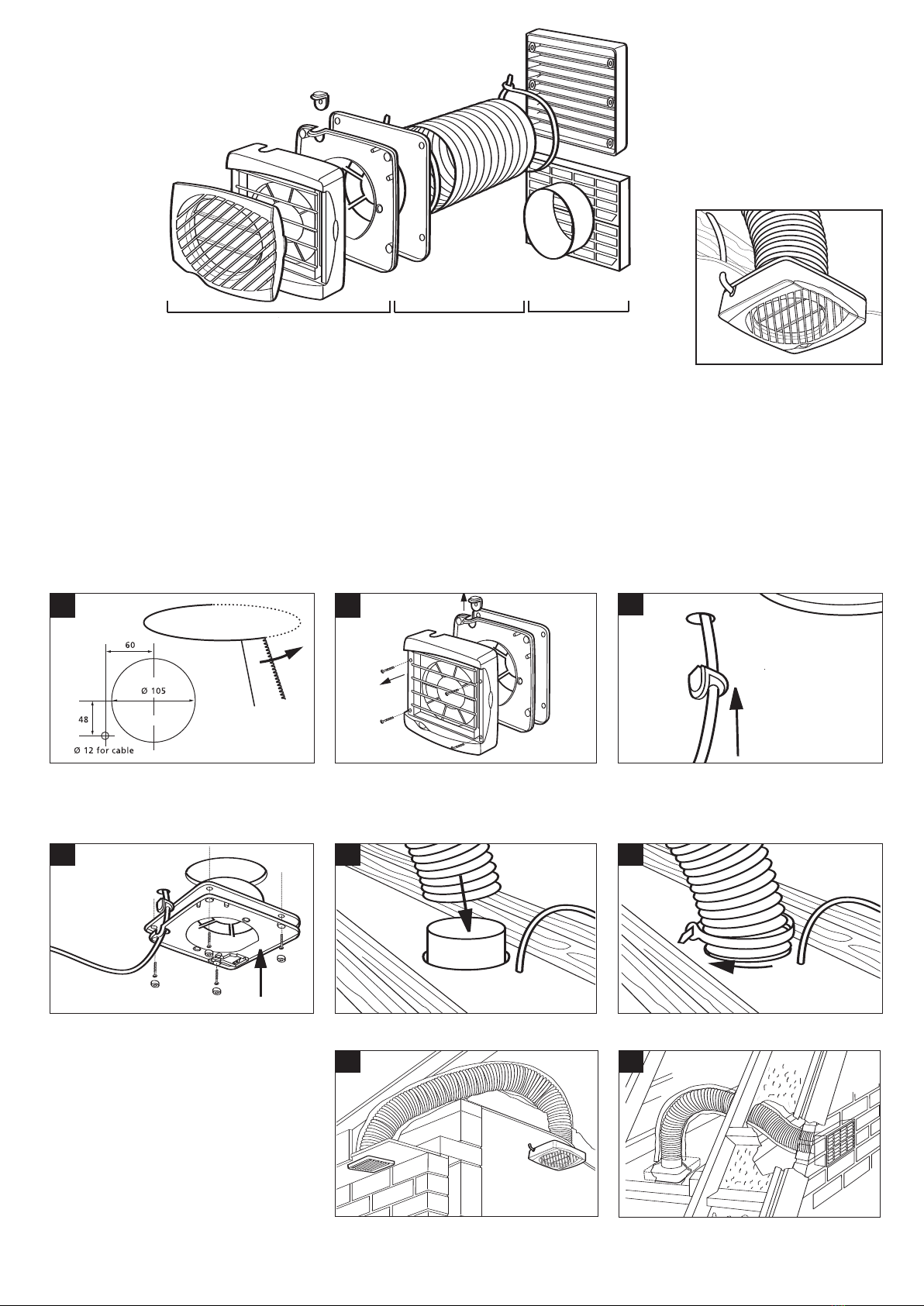

Ceiling Mounting
(EL100 only)
EL100 Flexible Ducting External
Grille or Airbrick
EG1/RAB
Cut an opening through the ceiling for the fan and electrical cable.
Feed cable through ceiling then through back face of rubber sealing grommet in
fan back plate. Screw back plate to ceiling using No. 6 screws.
Fit duct (max length 2.5m) and external grille / baffle for soffit or wall application,
making sure duct has a slight fall to exterior.
23
4
5 6
1
8
7
Screw back plate to ceiling. Push fit the
four screw cover plugs provided, with
hollow end facing outwards if fixing to
wall using outer mounting points.
SEE PAGE 8 FOR WIRING
INSTRUCTIONS
Make sure rubber cable grommet is
fitted onto cable before threading cable
through fan back plate.
Do not terminate via a tile vent. Do not terminate via a tile vent.

8
2.5 Wiring Details for Fan Isolator Only
L1 N L
L
2
31 2
3
4
35mm
25 mm
25 mm
3–Wire Connection
2–Wire Connection
1
2
1
2
3
1
5
EL100/EL150 EL100 SELV
6
7
Tighten screws and close protective
cover.
Put the wiring connector into its
location, fix into place with screw
and secure cable using the supplied
cable clamp & screws.
Refit front cover securely.
Clip fascia grille into place.

9
Installation or disconnection must be
carried out by a qualified Electrician
and all wiring must conform to IEE
Wiring or local regulations.
Isolate electricity supply before
starting work.
The fans are double insulated and do
not require an earth connection.
for single units use 3 amp fuse.
When supplied from a 6 amp lighting
circuit no local fuse is required.
Specification:
230 V ~ 50Hz
Refer to fan rating label for watts
consumption.
Cable sizes: 2 or 3 core.
0.75 mm2and 1.00 mm2 flexible.
INSTALLATION IN AREAS
RE UIRING IPX4 PROTECTION:
Mains cable section should be round,
with an outside diameter between
5.5 mm to 8.5 mm. This will ensure
sealing at the cable entry grommet.

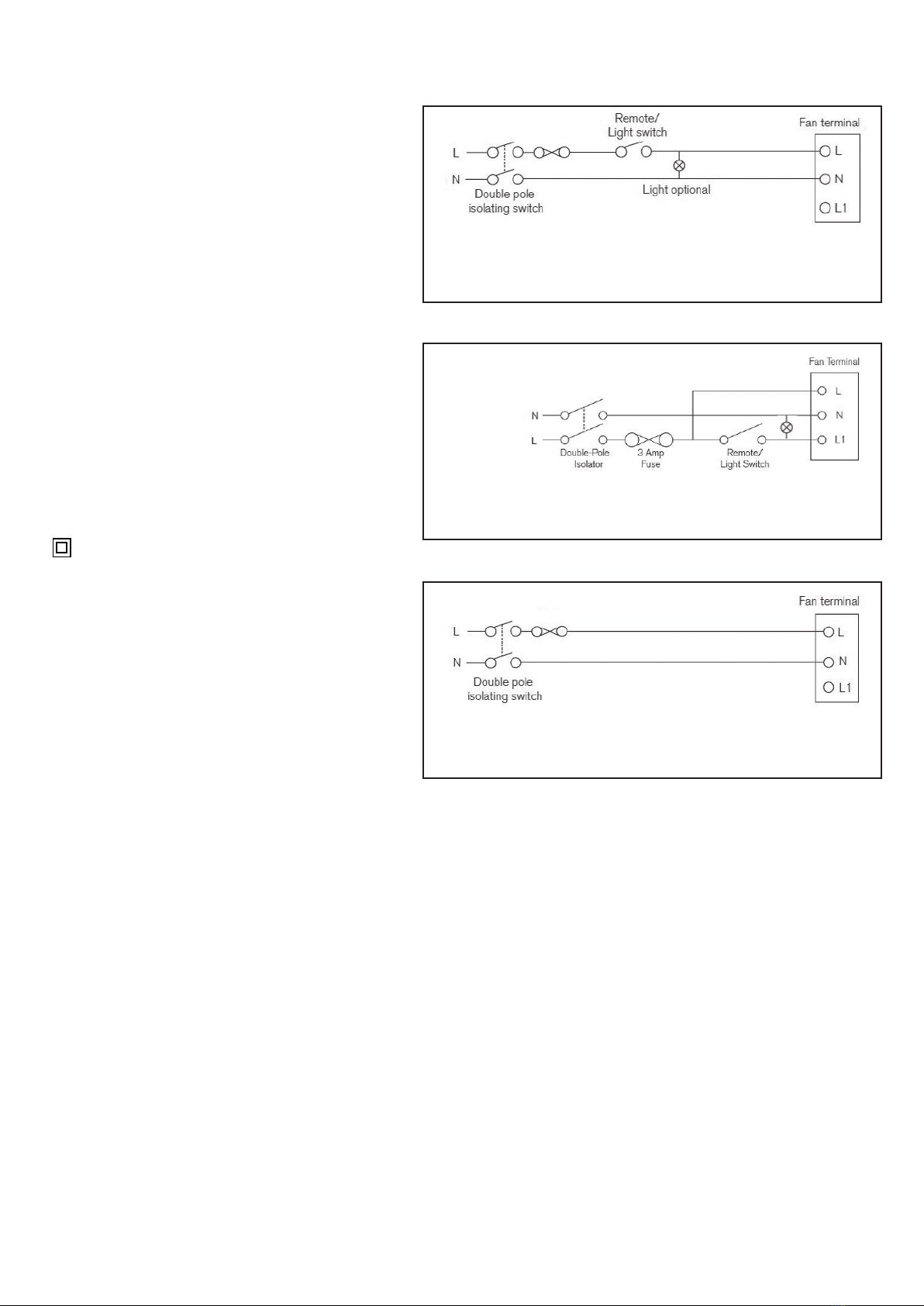

2.6 Wiring Diagrams for EL100/EL150
3 Amp Fuse
L
N
N
LL1
X
External wiring for pull cord operation in parallel
Fan
Terminals
Light
Switch
Light
Light
optional
L
N
N
LL1
Fan
Terminals
Operating
Switch
Light
L
N
N
LL1
X
Fan
Terminals
Operating
Switch
Light
3 Amp Fuse
External wiring for remote switch / light switch:
Mode s: EL100 & EL150
External wiring for opeartion with room light:
Mode s: TR & HTR
External wiring: Mode s: PC

10

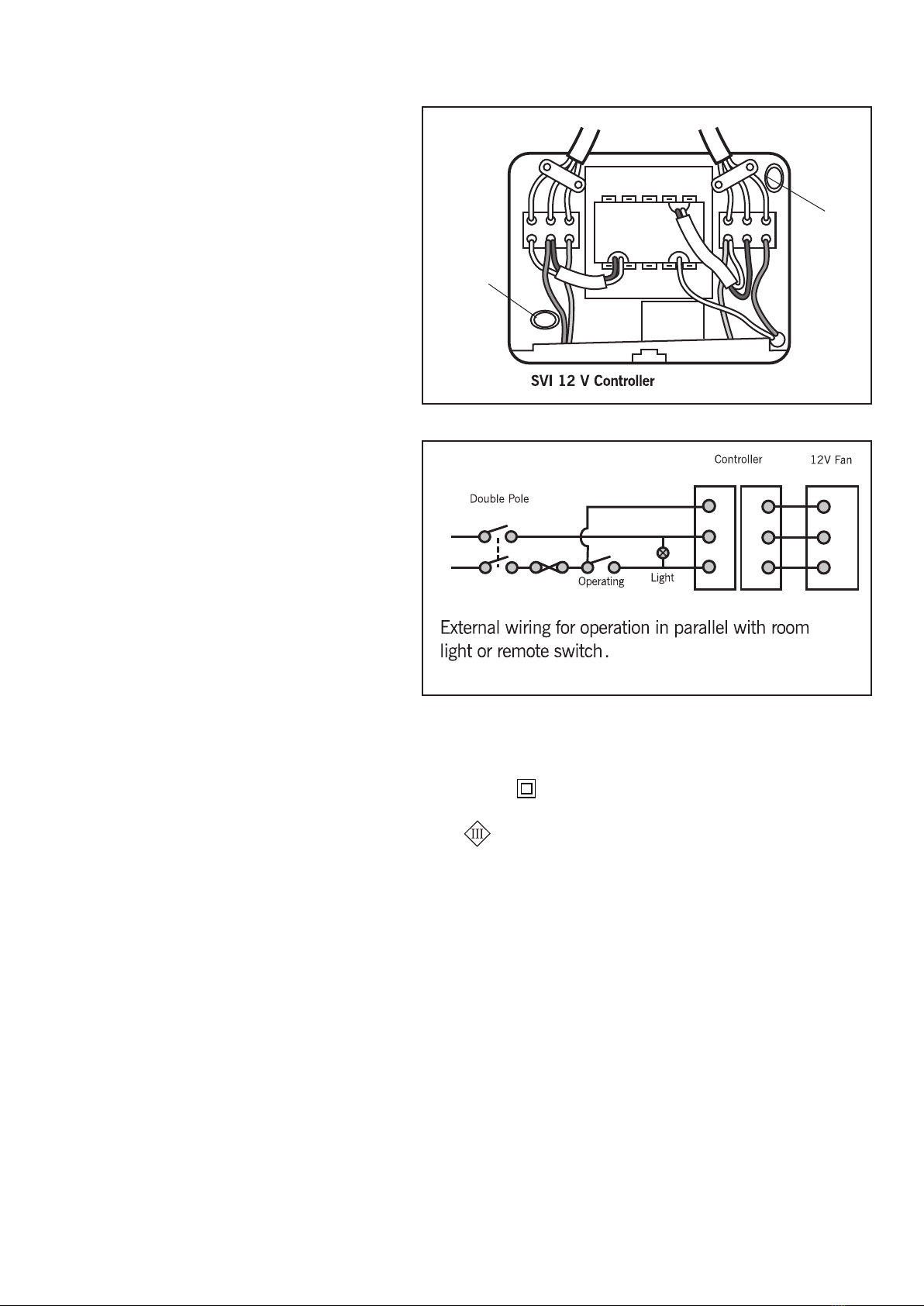

2.7 Wiring Diagrams for EL100 SELV
Models: ‘TR’ & ‘HTR’.
Fuse
Isolating Switch
Switch (Optional)
Terminals Terminals
L
N
SL
1
2
3
1
2
3
L
N
Mains
230 V ~ 50 Hz
LNSL 12 3
(with switch line)
To Fan 12 V
Installation or disconnection must be
carried out by a qualified Electrician and
all wiring must conform to IEE Wiring or
local regulations.
Isolate electricity supply before starting
work.
The fans are double insulated and do not
require an earth connection.
SVI 12V CONTROLLER
Install SELV controller, using the two
fixing holes, in a suitable location outside
of the room where the EL100 SELV fan is
installed.
The location should be as such that air
can circulate around the SELV controller
and it should never be covered.
The distance between the fan and SELV
controller should be kept to a minimum
and ideally not greater than 3.0 m.
A double pole isolating switch with a
minimum contact gap of 3 mm should
be used in series with each fan.
For single units use 3 amp fuse.
When supplied from a 6 amp lighting
circuit no local fuse is required.
TO WIRE THE CONTROLLER:
Remove the electrical cover.
Make all connections to connector
blocks.
NOTE: Mains cable must be fixed back
to the wall using appropriate cable cleats.
Replace electrical cover.
NOTE: Do not fit more than one fan to
the controller or connect with any other
product.
Specification:
SELV box 230 V~50Hz
Fan 12 V~50Hz
Refer to fan rating label for watts consumption.
Mains Cable sizes: 2 or 3 core.
0.75 mm2and 1.00 mm2 flexible only.
Maximum cable length between fan and controller:
Conductor Size Maximum Length
0.75 mm2
2.3 m
1.00 mm2
3.0 m
Fixing
Hole
Fixing
Hole

11
2
3
1
6
90%50%
4
3.0 Sensor / Timer Adjustments
4.0 To Clean or Service Fan
Always isolate fan from mains supply before cleaning. Do not use solvents to
clean this fan.
Cleaning and user maintenance shall not be made by children without
supervision.
To clean front grille, lever off at side using a coin or screwdriver, clean grille and
ensure it is dry before locating back into position.
To clean or service the main body, remove grille, under screws exposed by
removal of grille and pull the fan away from its back plate, clean and ensure it is
dry before reassembly. For EL150 models, cleaning or servicing must be carried
out by a suitably qualified/technically competent person.
The fan may now be cleaned using a brush or damp cloth. do not immerse in water.
WARNING: On no account should the interior of the fan be cleaned until
the unit has been removed from its back plate or isolated from the mains.
4.1.1
4.1.2
4.1.3
4.1.4
4.1.5
4.1.6
To be carried out by a suitably qualified/technically competent person.
Model: HTR only
To adjust sensor controls, rotate clockwise
to increase and anti-clockwise to decrease
time or humidity sensor sensitivity.
Remove fascia grille using a coin. Remove front cover to access the
respective timer or humidity sensor
controls.
Model: T only
Clip fascia grille into place.
5
Refit front cover securely.
To adjust timer, rotate clockwise to
increase and anti-clockwise to
decrease time.

Zehnder Group UK Limited
Watchmoor Point, Camberley,
Surrey, GU15 3AD
Customer Services: [phone]
Technical Services: [phone]
Email: [e-mail]
Web: www.greenwood.co.uk
05.10.155 Issue 6 January 2018
All information is believed correct at time of going to press. All dimensions referred to are in
millimetres unless otherwise shown. E&OE.
All goods are sold according to Zehnder Group UK Ltd's Standard Conditions of Sale which
are available on request. See website for warranty period details.
Zehnder Group UK Ltd reserves the right to change specifications and prices without prior
notice. Copyright Zehnder Group UK Ltd 2018.
