Greenwood Samika LE100 User manual

Samika LE100, LE100SV, LE150
for Bathroom, Toilets, Utility Rooms and Kitchens
Installation Instructions

Contents
Page
General Preparation 3
Overview 4
Wall Mounting 5
Ceiling Mounting 6
Window Mounting 7
Wiring Appliance 8
Fan Specications 8
Wiring Specications 9
SELV Box Installation 10
Commissioning/Setup 11
Servicing/Maintenance 12
2
To disassemble the unit, disconnect from mains supply and use a screwdriver to segregate
the electronic components and motor from the plastic housing. Dispose items in accordance
with WEEE.
WEEE Statement
This product may not be treated as household waste. Instead it should be
handed to an appropriate collection point for the recycling of electrical and
electronic equipment.
For more detailed information about the recycling of this product,
please contact your local council ofce or your household waste
disposal service.

1.0 General Preparation - read all instructions before commencing
1.1.0 Warning: This appliance can be used by children aged from
8 years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way
and understand the hazards involved. Children shall not
play with the appliance.
Cleaning and user maintenance shall not be made by
children without supervision.
1.1.1 Observe appropriate safety precautions if working on steps or
ladders. Wear eye protection when breaking out wall or window
materials, etc.
1.1.2 Where an open-ued oil or gas-fuelled appliance
is installed, precautions must be taken to avoid a back-ow of
gases into the room.
1.1.3 When installing wall mounted fans, ensure that there are no
buried cables or pipes in the way. It is recommended that this fan
is mounted >1.8m above oor level.
1.1.4 The fan should not be sited where it would be subject to a direct
source of heat in excess of 40°C.
1.1.5 A clearance of 50mm to be allowed on all sides of the fan for the
removal of the discreet front cover.
1.1.6 The LE100SVT and LE100SVHT fans shall only be installed by
using the supplied safety extra low voltage (SELV) controller.
1.1.7 Always isolate fan from mains supply before cleaning. Do not use
solvents to clean this fan.
3

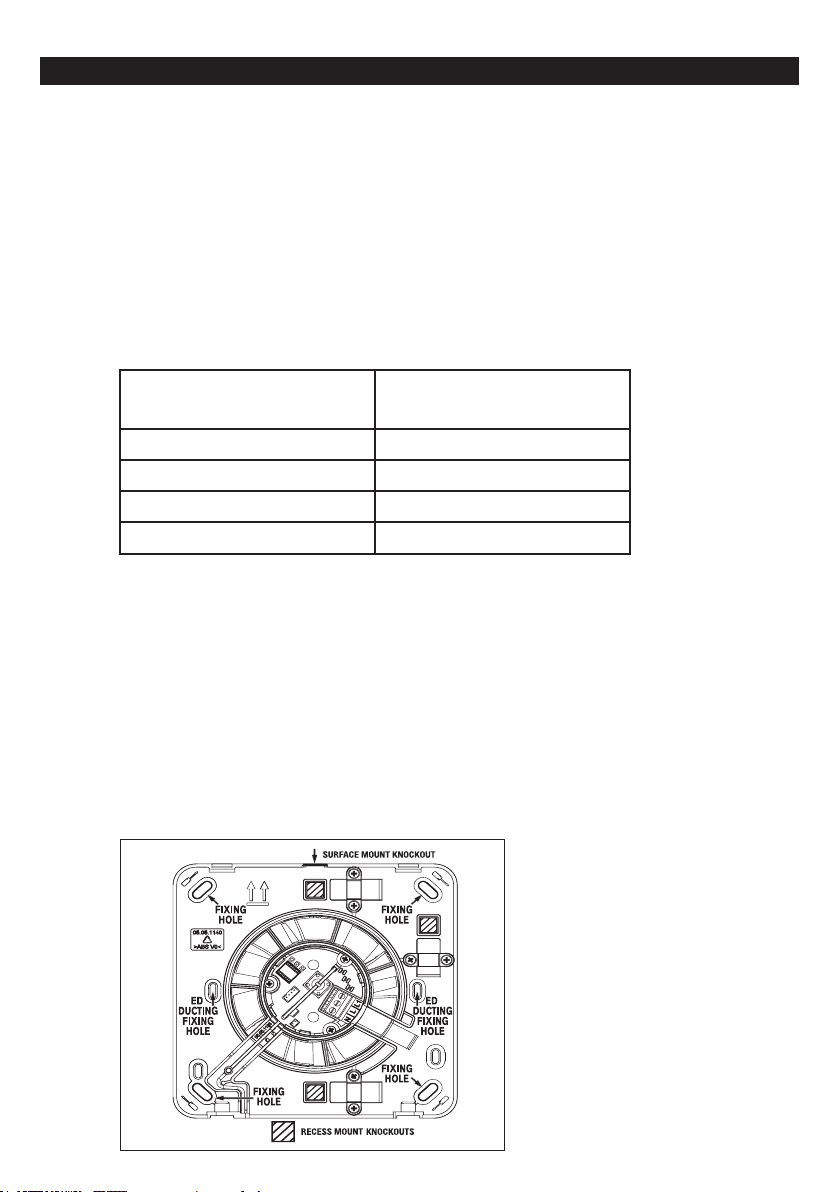

2.0 Overview
2.1.0 Greenwood’s Samika fan range has been designed to offer a simplistic approach to meet
Building Regulations and provide an energy efcient domestic ventilation solution to improve
indoor air quality in dwellings. The fan may incorporate fully automated integral controls which
monitors the homeowners’ environment.
2.1.1 Greenwood TimerSMARTTM monitors the length of time that there is an occupant present
within a wet room (via the ‘switch-live’) and provides a xed over-run time period to
best match the length of time that the ‘switch live’ is active (as shown in the table below).
This removes nuisance running noise and unnecessary energy wastage typically associated
with traditional timers.
Note: The rst 5 minutes will not activate an over-run.
Time ‘Switch Live’
or Pullcord is Active
‘Switch Live’
Over-run Period
0 – 5 minutes No over-run
5 – 10 minutes 5 minutes
10 – 15 minutes 10 minutes
15 – 20 minutes 15 minutes
To comply with Building Regulation requirements for intermittent ventilation within
windowless rooms, an over-run timer of 15 minutes can be achieved by pulling the pullcord
only.
(Manual override available by re-pulling the pullcord)
2.1.2 Greenwood HumidiSMARTTM monitors the ambient humidity within the wet room environment
and looks for short peaks of humidity made by either cooking, showering or bathing. This smart
technology ensures that your fan is only running when required, removing nuisance running
noise and unnecessary energy wastage typically associated with increases to background
humidity which naturally occurs with the changing seasons and during the night.
2.1.3 Fixing and Mounting Diagram
4

3.0 Wall Mounting - Using ED wall duct and EG external grille
3.1.0 Rotate discreet front cover to the left and pull off.
Loosen retaining screws at the bottom of the internal
grille and lift off.
3.1.1 Cut the duct to width of the plasterboard (A)
or tiled wall with slight fall to exterior.
(Make provisions for cable).
LE100 Ø = 125mm
LE150 Ø = 170mm
3.1.2 Fill in any gaps with mortar or foam and make good
internal and external walls. Make sure that ducting
remains circular and screw holes are horizontal.
3.1.3 Remove 3 screws within the control section and wire fan
(see wiring details in sections 6.0 to 9.0).
Fix fan body to ED ducting or wall, using the respective
xing points (as per 2.1.3) and align.
Re-secure control section with the 3 screws.
3.1.4 Replace internal grille ensuring no wires are trapped.
Secure with retaining screws at the bottom.
3.1.5 Commission fan to the respective installed speed by
using the + and – buttons (see commissioning set-up
section on page 11 for details on all installation settings).
3.1.6 Push on discreet front cover and rotate to the right
until secure.
3.1.7 Fix the protective wall grille to the ED ducting or external
wall using the respective xing points.
LE 100 Ø = 125
LE 150 Ø = 170
Ø
A
A
5

4.0 Ceiling Mounting
4.1.0 Rotate discreet front cover to the left and pull off.
Loosen retaining screws at the bottom of the internal
grille and lift off.
4.1.1 Cut an opening through the ceiling for the fan and
electric cable.
Ø = 105mm for LE100 x = 68mm for LE100
Ø = 155mm for LE150 x = 90mm for LE150
Ø = 12mm for cable
x
Ø
Ø 12 for cable
4.1.2 Cut and remove pullcord, just below the link, remove
backdraught shutters and discard.
4.1.3 Remove 3 screws within the control section and wire fan
(see wiring details in sections 6.0 to 9.0).
Fix fan body to ceiling and re-secure control section with
the 3 screws.
4.1.5 Place ducting (either exible or rigid) over the
spigot of the fan ensuring the impeller rotates freely.
Secure in place with ties/non hardening sealant. Do not
terminate via a tile vent.
4.1.6 Commission fan to the respective installed speed by
using the + and – buttons (see commissioning set-up
section on page 11 for details on all installation settings).
4.1.7 Push on discreet front cover and rotate to the right
until secure.
4.1.4 Replace internal grille ensuring no wires are trapped.
Secure with retaining screws at the bottom.
6
Backdraught
Shutters

5.0 Window Mounting
5.1.0 Rotate discreet front cover to the left and pull off.
Loosen retaining screws at the bottom of the internal
grille and lift off. Remove backdraught shutters and
discard.
5.1.1 Cut circular hole within window pane.
LE100 Ø = 118mm ± 1mm
LE150 Ø = 167mm ± 1mm
5.1.2 Secure window kit into position.
Screw lengths that can be used:
• 25mm – Single Glazing
• 38mm – 20mm/24mm Double Glazing
• 50mm – 28mm Double Glazing
5.1.3 Remove 3 screws within the middle control section and
wire fan. (see wiring details in sections 6.0 to 9.0).
Fix fan body to window kit and re-secure control section.
5.1.4 Replace internal grille ensuring no wires are trapped.
Secure with retaining screws at the bottom.
5.1.5 Commission fan to respective installed speed by
using the + and – buttons (see commissioning set-up
section on page 11 for details on all installation settings).
5.1.6 Push on discreet front cover and rotate to the right
until secure.
5.1.7 Note:
• Do not install fan in an opening window/roof light.
• Use the correct thickness of glass for the size of window (at least 4mm thick), if in doubt contact a glazier.
• The components supplied with the window kit are suitable for installation of fans in windows from 4mm
• single glaze to 28mm double glazing.
LE100 Ø = 118mm ± 1mm
LE150 Ø = 167mm ± 1mm
Ø
7
Backdraught
Shutters
Backdraught
Shutters

6.0 Wiring Appliance
6.1.0 WARNING: Installation or disconnection must be carried out
by a qualied Electrician and all wiring must conform to
IEE Wiring or local regulations.
The appliance must be isolated from the mains supply
before removing the electronics cover.
6.1.1 Strip cable to correct lengths as shown.
6.1.2 Insert cable through cable entry point, and then secure cable
using the cable clamp.
6.1.3 Push the wires into the terminal block
(as per either the 230V or SELV wiring diagram on page 9).
Tighten the terminal block screws and ensure a good connection.
Note: Window installation cable entry point via knock out points within the window kit.
6.1.4 For surface mounting utilise respective knockouts and cable clamps as shown below.
100mm 100mm
6mm
115mm 115mm
6mm
LE100 LE150
 7.0 FanSpecications
7.1.0 230V Model: IPX4 220-240V ~ 50Hz / 1 Ph
230V Model: 100mm: 9 Watts max 150mm: 12 Watts max
7.1.1 SELV Model: IPX4 24DC: between controller and fan
230V Model: 220-240V ~ 50Hz / 1 Ph 100mm: 9 Watts max
7.1.2 Cable Sizes: Mains: Fixed at wiring - 2 core 1mm2,
Cable Sizes: 3 core 1/1.5mm2
7.1.2 Cable Sizes: SELV Output: Circular wiring - 3 core 0.75mm2
8

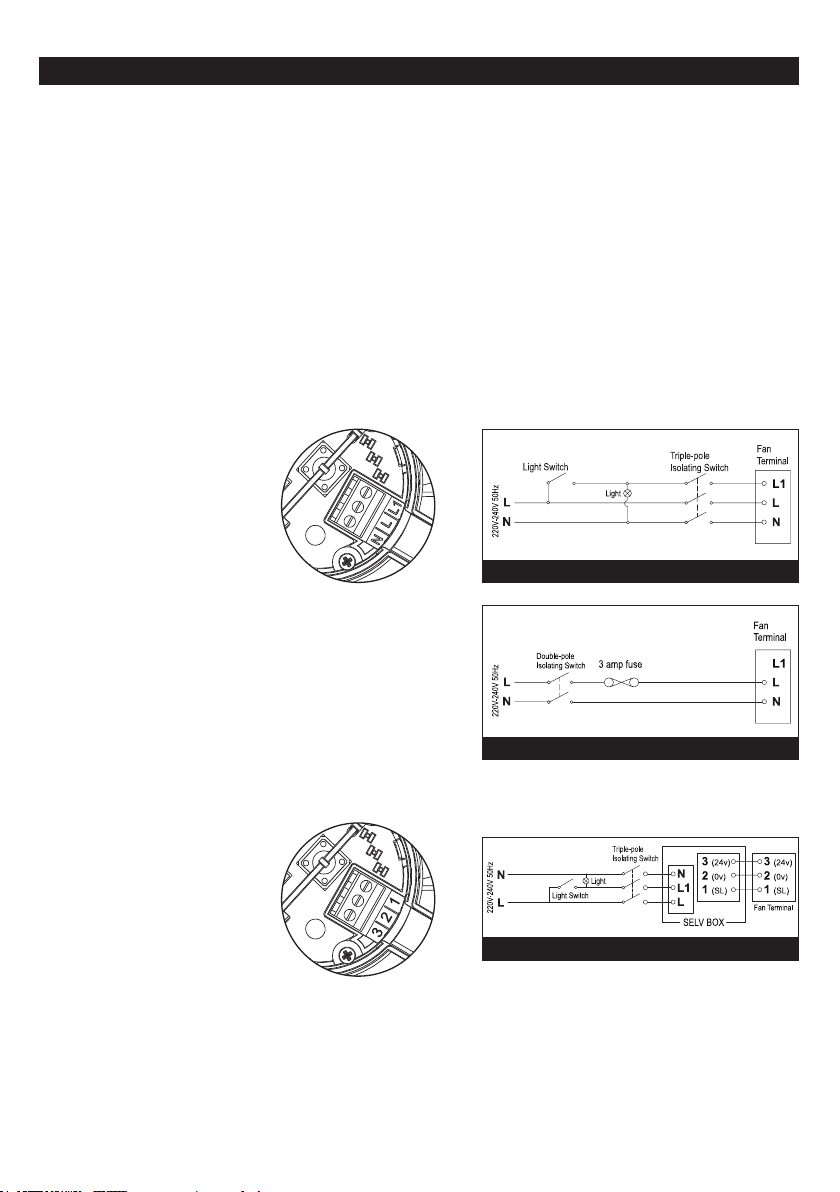

 8.0 WiringSpecication
9
8.1.0 WARNING: Isolate electricity supply before starting work.
The electrical connections must be carried out by a qualied
Electrician in accordance with IEE or local regulations.
8.1.1 The 230V fan is double insulated and does not require an earth.
8.1.2 The SELV fan is Class III and does not require an earth.
8.1.3 An isolator switch having a minimum contact separation of 3mm must be used to
provide isolation.
8.1.4 When supplied from a 6 amp lighting circuit no local fuse is required.
If electricity is not supplied via the lighting circuit, a localised 3 amp fuse must be used.
8.1.5 230V Wiring Diagrams
• LE100T
• LE100HT
• LE150PC
• LE150HT
8.1.6 SELV Wiring Diagrams
• LE100SVT
• LE100SVHT
Maximum permissible distance between controller and fan for the circular 0.75mm2 cable is 6m.
T/HT MODEL
SVT/SVHT MODEL
PC MODEL

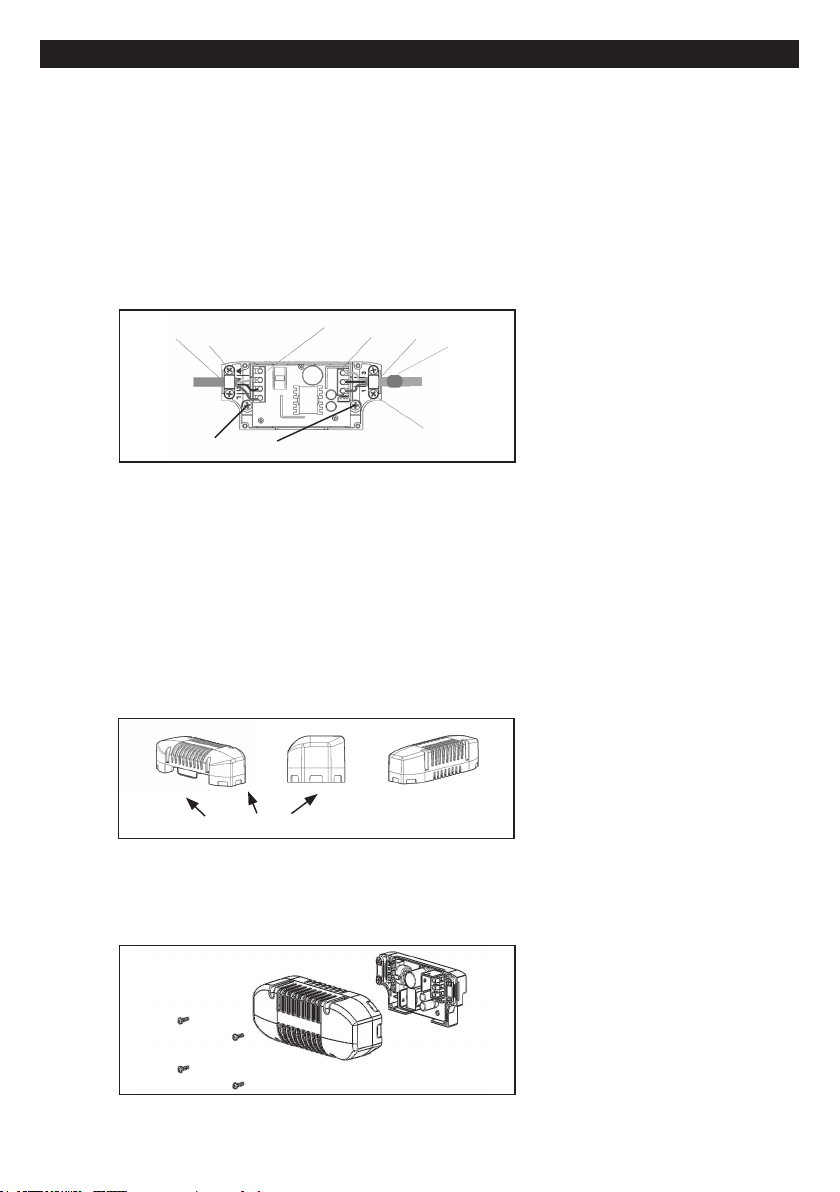

9.1.0 Install SELV Back Plate and Power Supply, using the two xing holes, in a suitable location
outside of the room where the Samika SELV fan (LE100SVT/LE100SVHT) is installed. The
location should be as such that air can circulate around the Power Supply unit and it should
never be covered.
9.1.1 The distance between the fan and the SELV Back Plate and Power Supply should be kept
to a minimum and ideally not be greater than 3.0m.
9.1.2 Strip cable to correct lengths (as shown in section 6.0) for both fans and SELV Back Plate.
9.1.3 Insert mains cable (A) and clamp using cable clamp provided (B).
9.1.4 Push the wires into the terminal block (C) as per the wiring diagram (see section 8.1.6).
Tighten the terminal block screws and ensure a good connection.
9.1.5 Push circular low voltage cable through ferrite (in loose item set) and insert through cable entry
point (D) and then secure cable using the cable clamp (E).
9.1.6 Push the wires into the terminal block (F) as per the wiring diagram (see section 8.1.6).
Tighten the terminal block screws and ensure a good connection.
9.1.7 Before tting the SELV Box Top remove suitable cable knock outs that best suit the entry
position of both the mains and low voltage cables, ensure that they are dressed and that all
sharp edges are removed to ensure cable insulation is not damaged.
9.1.8 Fit SELV Cover to SELV Back Plate and Power Supply and secure using the 4 screws provided.
9.1.9 Insert low voltage cable through the Samika fan’s cable entry point and then secure cable
using the cable clamp.
9.1.10 Push the wires into the fan’s terminal block as per the wiring diagram (see section 8.1.6).
Tighten the terminal block screws and ensure a good connection.
9.0 SELV Box Installation
From
Mains
Supply
AB
CFD
E
To LE100SV
Fan Terminal
FERRITE
Cable entry knock outs
10
Fixing Holes

10.0 Commissioning / Set-up
10.1.0 Press the + or – button to identify speed that the fan
has been set to.
10.1.1 Press + or - button to increase/decrease fan to desired
installed airow requirement.
10.1.2 The 3 LED lights on the right hand side of the control panel
will change to indicate speed setting.
10.1.3 Lights will remain on for approximately 5 seconds to enable the set up and status of the fan
to be observed.
10.1.4 Airow setting will be locked after 30 minutes.
10.1.5 To reactivate the commission set up mode, press and hold the + / - buttons simultaneously
for approximately 3 seconds until the lights go out and come back on again. Fan can now
be set to required speed.
Setting Room Installation Setting Room Installation
uWC Through Wall or <3m Ducting uUtility Through Wall
vBathroom <1.5m Ducting vUtility <1.5m Ducting
wWC Window Kit wUtility Window Kit
xBathroom Through Wall xUtility <3m Ducting
yBathroom Window Kit yKitchen Window Kit
zBathroom <3m Ducting zKitchen Through Wall
WC: 6 L/S Bathroom: 15 L/S Utility: 30 L/S Kitchen: 60 L/S
Note: The Samika fan has the ability to be set at a “maximum airow” capacity (in excess of
installed speed setting 6). To achieve this, whilst in commissioning mode, press the + button for
3 seconds, all 3 LED lights will ash to indicate that the fan is now at the maximum airow setting.
100mm Fan 150mm Fan
Indicative
LED
on positions
11

15.10.046 Issue 5 July 2018
Zehnder Group UK Limited
Watchmoor Point, Camberley,
Surrey, GU15 3AD
Customer Services: 01276 408404
Technical Services: 01276 408402
Email: [email protected]
Web: www.greenwood.co.uk
All information is believed correct at time of going to press. E&OE.
All goods are sold according to Zehnder Group UK Ltd's Standard Conditions
of Sale which are available on request. All dimensions referred to are in
millimetres unless otherwise shown. Zehnder Group UK Ltd reserves the right
to change specications and prices without prior notice.
© Copyright Zehnder Group UK Ltd 2018.
11.0 Servicing/Maintenance
11.1.0 Warning: Always isolate fan from mains supply before
cleaning. Do not use solvents to clean this fan.
11.1.1 Rotate discreet grille to the left and pull off – wash with a damp cloth and dry.
11.1.2 The fan’s impeller and internal grille may now be cleaned using a brush, cotton bud or damp
cloth (do not immerse in water).
11.1.3 After cleaning, push on discreet grille and rotate to the right until secure.
11.1.4 Please note that your stored fan setting will not be lost during any interruptions to your
fan’s power supply.
