Grizzly G5954 User manual
MODEL G5954
5 HP DUST COLLECTOR
OWNER'S MANUAL
COPYRIGHT © MAY, 2006 BY GRIZZLY INDUSTRIAL, INC.
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
#JK8167 PRINTED IN TAIWAN
Table of Contents
INTRODUCTION ............................................................................................................................... 2
Foreword .................................................................................................................................... 2
Contact Info ................................................................................................................................ 2
Machine Data Sheet ................................................................................................................... 3
SECTION 1: SAFETY ....................................................................................................................... 6
Safety Instructions for Machinery ............................................................................................... 6
Additional Safety for Dust Collectors ......................................................................................... 8
SECTION 2: CIRCUIT REQUIREMENTS ........................................................................................ 9
220V Single-Phase .................................................................................................................... 9
SECTION 3: SET UP ...................................................................................................................... 10
Inventory ................................................................................................................................... 10
Cleaning ................................................................................................................................... 11
Site Considerations .................................................................................................................. 11
Base and Motor/Fan ................................................................................................................. 12
Collector ................................................................................................................................... 12
Collection Bags ........................................................................................................................ 13
SECTION 4: OPERATIONS ........................................................................................................... 14
Operation Safety ...................................................................................................................... 14
General ..................................................................................................................................... 14
Duct Material ............................................................................................................................ 14
System Design ......................................................................................................................... 16
System Grounding ................................................................................................................... 20
SECTION 5: ACCESSORIES ......................................................................................................... 21
Electrical Components ............................................................................................................. 22
Wiring Diagram ........................................................................................................................ 23
G5954 Parts Breakdown .......................................................................................................... 24
G5954 Parts List ...................................................................................................................... 25
WARRANTY AND RETURNS ........................................................................................................ 26
-2- G5954 5HP Dust Collector
If you have any comments regarding this manual,
please write to us at the address below:
Grizzly Industrial, Inc.
C/O Technical Documentation Manager
P.O. Box 2069
Bellingham, WA 98227-2069
We stand behind our machines. If you have any
service questions or parts requests, please call or
write us at the location listed below.
Grizzly Industrial, Inc.
1203 Lycoming Mall Circle
Muncy, PA 17756
Phone: (570) 546-9663
Fax: (800) 438-5901
E-Mail: [email protected]
Web Site: http://www.grizzly.com
Foreword
INTRODUCTION
Contact Info
We are proud to offer the Model G5954 5HP
Dust Collector. This machine is part of a growing
Grizzly family of fine woodworking machinery.
When used according to the guidelines set forth in
this manual, you can expect years of trouble-free,
enjoyable operation and proof of Grizzly’s com-
mitment to customer satisfaction.
We are pleased to provide this manual with
the Model G5954. It was written to guide you
through assembly, review safety considerations,
and cover general operating procedures. It repre-
sents our effort to produce the best documenta-
tion possible.
The specifications, drawings, and photographs
illustrated in this manual represent the Model
G5954 as supplied when the manual was pre-
pared. However, owing to Grizzly’s policy of con-
tinuous improvement, changes may be made at
any time with no obligation on the part of Grizzly.
For your convenience, we always keep current
Grizzly manuals available on our website at www.
grizzly.com. Any updates to your machine will be
reflected in these manuals as soon as they are
complete. Visit our site often to check for the lat-
est updates to this manual!
G5954 5HP Dust Collector -3-
Customer Service #: (570) 546-9663 · To Order Call: (800) 523-4777 · Fax #: (800) 438-5901
Weight.............................................................................................................................................................. 320 lbs.
Length/Width/Height..................................................................................................................... 51-3/8 x 48 x 136 in.
Foot Print (Length/Width)............................................................................................................................. 29 x 23 in.
Type....................................................................................................................................... Cardboard/Wood Frame
Content............................................................................................................................................................ Machine
Weight.............................................................................................................................................................. 366 lbs.
Length/Width/Height............................................................................................................................. 30 x 55 x 31 in.
Switch........................................................................................................ Magnetic with Thermal Overload Protector
Switch Voltage...................................................................................................................................................... 220V
Cord Length.......................................................................................................................................................... 10 ft.
Cord Gauge....................................................................................................................................................12 gauge
Recommended Breaker Size............................................................................................................................ 40 amp
Plug.......................................................................................................................................................................... No
Type.................................................................................................................. TEFC Capacitor Start Induction
Horsepower.................................................................................................................................................5 HP
Voltage........................................................................................................................................................220V
Prewired......................................................................................................................................................220V
Phase........................................................................................................................................................ Single
Amps.............................................................................................................................................................34A
Speed.................................................................................................................................................3450 RPM
Cycle..........................................................................................................................................................60 Hz
Number Of Speeds........................................................................................................................................... 1
Power Transfer ................................................................................................................................Direct Drive
Bearings.................................................................................................. Shielded and Permanently Lubricated
Air Suction Cap.................................................................................................................................. 3184 CFM
Static Pressure at Rated CFM....................................................................................................................17 in.
Main Inlet Size..............................................................................................................................................9 in.
Manifold Included..........................................................................................................................................Yes
Manifold Inlets................................................................................................................................................... 4
Manifold Inlet Size........................................................................................................................................ 4 in.
Machine Collection Cap.................................................................................................... Minimum 4 Machines
Maximum Material Collection Cap......................................................................................................29.5 cu. ft.
Upper Bag Filtration........................................................................................................................... 2.5 micron
Machine Data Sheet
-4- G5954 5HP Dust Collector
No Of Upper Bags.............................................................................................................................................2
Upper Bag Cap...................................................................................................................................21.9 cu. ft.
Lower Bag Cap...................................................................................................................................14.8 cu. ft.
No Of Lower Bags.............................................................................................................................................2
Upper Bags Total Area.......................................................................................................................43.7 cu. ft.
Lower Bags Total Area.......................................................................................................................29.5 cu. ft.
Upper Bag Diameter...................................................................................................................................25 in.
Upper Bag Length...................................................................................................................................... 77 in.
Lower Bag Diameter...................................................................................................................................25 in.
Lower Bag Length...................................................................................................................................... 52 in.
Impeller Type...................................................................................................................................... Radial Fin
Impeller Size...............................................................................................................................................13 in.
Impeller Blade Thickness........................................................................................................................ 3/32 in.
Upper Bag Material................................................................................................................................... Fabric
Lower Bag Material...................................................................................................................................Plastic
Base Construction................................................................................................ Pre-Formed Steel on Casters
Frame Construction....................................................................................................................... Formed Steel
Caster Construction......................................................................................................................... Four Plastic
Impeller Construction.....................................................................................................................Welded Steel
Paint........................................................................................................................................... Powder Coated
Height With Bags Inflated.........................................................................................................................136 in.
ISO Factory ...................................................................................................................................................ISO 9001
Country Of Origin ..............................................................................................................................................Taiwan
Warranty ............................................................................................................................................................ 1 Year
Serial Number Location ...................................................................... Machine Label Above Magnetic On/Off Switch
Assembly Time .................................................................................................................................................. 1 hour
Sound Rating ...............................................................................................................................................80 - 90 dB
Handles Four Machines Simultaneously
Detachable Base
Includes Steel Base with Casters
G5954 5HP Dust Collector -5-
Customer Service #: (570) 546-9663 · To Order Call: (800) 523-4777 · Fax #: (800) 438-5901
CFM
STATIC PRESSURE (Inch/H2O)
PERFORMANCE CURVE
5 HP GRIZZLY DUST COLLECTOR PERFORMANCE RESULTS
Max CFM Max SP HP Volts Amps Inlet Dia. Impeller Dia.
3184 11.2 5 220 34 9" 13"
Restrictor Plate (Inches) ø 9" ø 8" ø 7" ø 6" ø 5" ø 4" ø 3" ø 2" ø 1" ø 0"
Static Pressure (Inch/H2O) 5.5 6.4 7.8 8.8 10.0 10.6 10.7 10.8 10.9 11.2
CFM 3184 2848 2415 1815 1284 827 617 503 450 0
The airflow test probe is located 1.5x duct diameter upstream from the air inlet.
Test pipe length is a minimum of 10x duct diameter.
-6- G5954 5HP Dust Collector

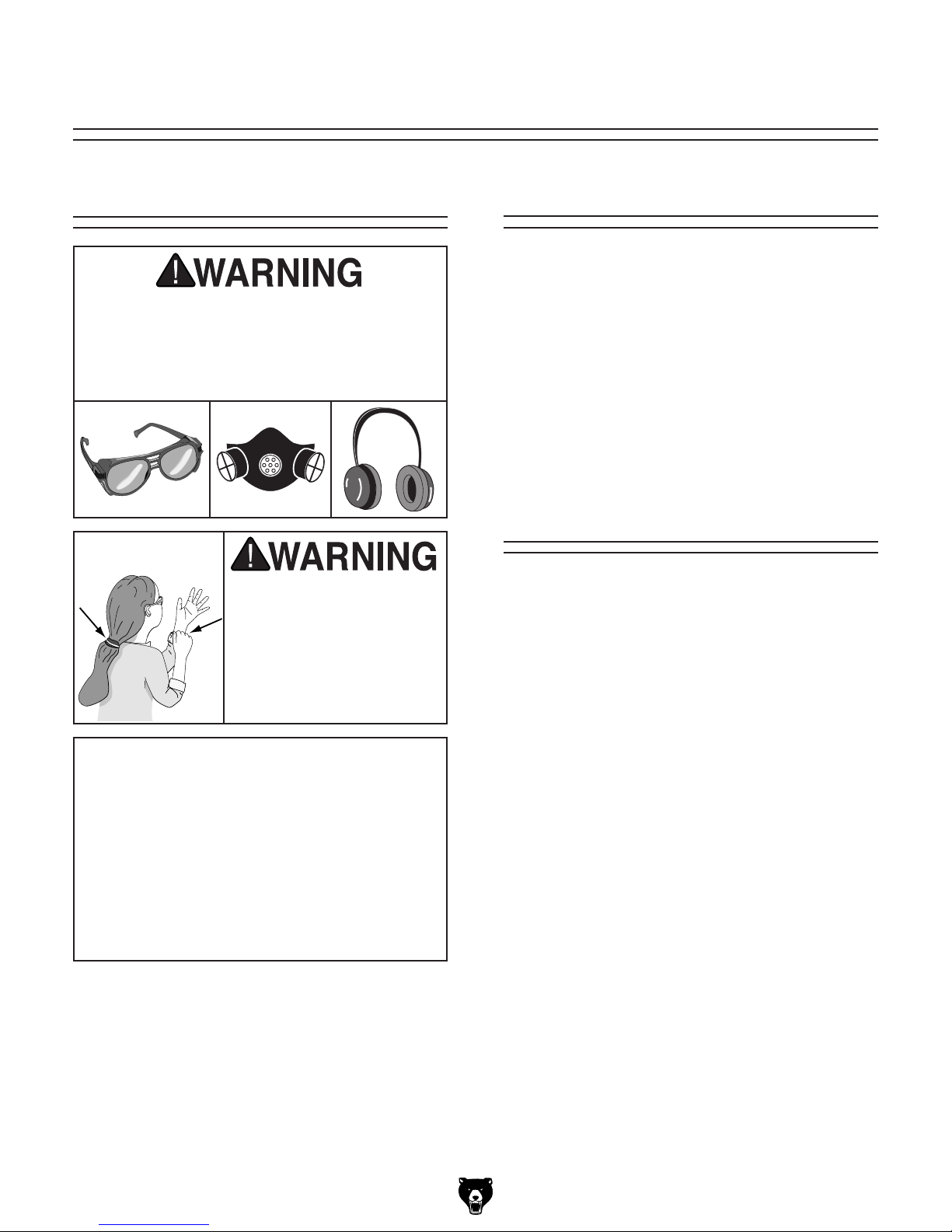

4. ALWAYS USE HEARING PROTECTION
WHEN OPERATING MACHINERY.
Machinery noise can cause permanent
hearing damage.
5. WEAR PROPER APPAREL. DO NOT
wear loose clothing, gloves, neckties, rings,
or jewelry which may get caught in moving
parts. Wear protective hair covering to con-
tain long hair and wear non-slip footwear.
6. NEVER OPERATE MACHINERY WHEN
TIRED, OR UNDER THE INFLUENCE OF
DRUGS OR ALCOHOL. Be mentally alert
at all times when running machinery.
1. READ THROUGH THE ENTIRE MANUAL
BEFORE STARTING MACHINERY.
Machinery presents serious injury hazards
to untrained users.
2. ALWAYS USE ANSI APPROVED
SAFETY GLASSES WHEN OPERATING
MACHINERY. Everyday eyeglasses only
have impact resistant lenses—they are
NOT safety glasses.
3. ALWAYS WEAR A NIOSH APPROVED
RESPIRATOR WHEN OPERATING
MACHINERY THAT PRODUCES DUST.
Wood dust is a carcinogen and can cause
cancer and severe respiratory illnesses.
For Your Own Safety, Read Instruction
Manual Before Operating this Machine
The purpose of safety symbols is to attract your attention to possible hazardous conditions. This
manual uses a series of symbols and signal words which are intended to convey the level of
importance of the safety messages. The progression of symbols is described below. Remember
that safety messages by themselves do not eliminate danger and are not a substitute for proper
accident prevention measures.
Indicates a potentially hazardous situation which, if not avoided,
MAY result in minor or moderate injury. It may also be used to alert
against unsafe practices.
Indicates a potentially hazardous situation which, if not avoided,
COULD result in death or serious injury.
Indicates an imminently hazardous situation which, if not avoided,
WILL result in death or serious injury.
This symbol is used to alert the user to useful information about
proper operation of the machine.
NOTICE
Safety Instructions for Machinery
SECTION 1: SAFETY
G5954 5HP Dust Collector -7-
7. ONLY ALLOW TRAINED AND PROP-
ERLY SUPERVISED PERSONNEL TO
OPERATE MACHINERY. Make sure
operation instructions are safe and clearly
understood.
8. KEEP CHILDREN AND VISITORS AWAY.
Keep all children and visitors a safe dis-
tance from the work area.
9. MAKE WORKSHOP CHILD PROOF. Use
padlocks, master switches, and remove
start switch keys.
10. NEVER LEAVE WHEN MACHINE IS
RUNNING. Turn power OFF and allow all
moving parts to come to a complete stop
before leaving machine unattended.
11. DO NOT USE IN DANGEROUS
ENVIRONMENTS. DO NOT use machin-
ery in damp, wet locations, or where any
flammable or noxious fumes may exist.
12. KEEP WORK AREA CLEAN AND WELL
LIT. Clutter and dark shadows may cause
accidents.
13. USE A GROUNDED EXTENSION CORD
RATED FOR THE MACHINE AMPERAGE.
Undersized cords overheat and lose power.
Replace extension cords if they become
damaged. DO NOT use extension cords
for 220V machinery.
14.
ALWAYS DISCONNECT FROM POWER
SOURCE BEFORE SERVICING
MACHINERY. Make sure switch is in
OFF
position before reconnecting.
15. MAINTAIN MACHINERY WITH CARE.
Keep blades sharp and clean for best and
safest performance. Follow instructions for
lubricating and changing accessories.
16. MAKE SURE GUARDS ARE IN PLACE
AND WORK CORRECTLY BEFORE
USING MACHINERY.
Safety Instructions for Machinery
17. REMOVE ADJUSTING KEYS AND
WRENCHES. Make a habit of checking for
keys and adjusting wrenches before turn-
ing machinery ON.
18. CHECK FOR DAMAGED PARTS
BEFORE USING MACHINERY. Check
for binding and alignment of parts, broken
parts, part mounting, loose bolts, and any
other conditions that may affect machine
operation. Repair or replace damaged
parts.
19. USE RECOMMENDED ACCESSORIES.
Refer to the instruction manual for recom-
mended accessories. The use of improper
accessories may cause risk of injury.
20. DO NOT FORCE MACHINERY. Work at
the speed for which the machine or acces-
sory was designed.
21. SECURE WORKPIECE. Use clamps or
a vise to hold the workpiece when practi-
cal. A secured workpiece protects your
hands and frees both hands to operate the
machine.
22. DO NOT OVERREACH. Keep proper foot-
ing and balance at all times.
23. MANY MACHINES WILL EJECT THE
WORKPIECE TOWARD THE OPERATOR.
Know and avoid conditions that cause the
workpiece to "kickback."
24. ALWAYS LOCK MOBILE BASES
(IF USED) BEFORE OPERATING
MACHINERY.
25. BE AWARE THAT CERTAIN DUST MAY
BE HAZARDOUS to the respiratory sys-
tems of people and animals, especially
fine dust. Make sure you know the hazards
associated with the type of dust you will be
exposed to and always wear a respirator
approved for that type of dust.
-8- G5954 5HP Dust Collector
Like all machines there is danger associated
with this machine. Accidents are frequently
caused by lack of familiarity or failure to pay
attention. Use this machine with respect
and caution to lessen the possibility of
operator injury. If normal safety precautions
are overlooked or ignored, serious personal
injury may occur.
No list of safety guidelines can be complete.
Every shop environment is different. Always
consider safety first, as it applies to your
individual working conditions. Use this and
other machinery with caution and respect.
Failure to do so could result in serious per-
sonal injury, damage to equipment, or poor
work results.
Additional Safety for Dust Collectors
5. AVOIDING FIRES. Do not allow steel to
strike against impeller—this may produce
a spark. Sparks can smolder in wood dust
for a long time before fire or flame is detect-
ed. If metal contacts metal during opera-
tion, immediately turn off the dust collector,
unplug the power cord from the outlet or flip
the disconnect switch and wait for all moving
parts to stop. Remove collection bags and
empty the dust into an approved air tight
metal container in case of spark. Remedy
the metal to metal contact problem before
resuming operation. Locate the dust collec-
tor within view of operation or near a smoke
detector, and keep away from combustible
materials.
6. EMPTYING DUST. When emptying dust
from the collection bags or drum, wear a
respirator and safety glasses. Empty dust
into an approved container and dispose of
properly.
7. CLEANING AIR. Do not confuse this dust
collector with an air cleaner. This dust col-
lector is only designed to collect dust from
a machine, not clean dust suspended in the
air.
1. MACHINE USE. Do not use this dust col-
lector to pick up liquids and metal scrap
including, but not limited to, nails and filings.
Also, do not pick up material which cannot
safely pass through the impeller such as
solid wood scraps.
2. KEEPING FINGERS SAFE. Do not place
your hands or tools near the open inlet dur-
ing operation for any reason including, but
not limited to, unclogging material and test-
ing suction. The impeller could cause seri-
ous damage to body parts if touched while
spinning.
3. SAFE SERVICING. Disconnect power and
allow impeller to come to a complete stop
before servicing or working on the dust col-
lector ducting system.
4. SUSPENDED DUST PARTICLES AND
IGNITION SOURCES. Do not operate the
dust collector in areas where explosion risks
would be high if dust were dispersed into the
area. Areas of high risk include, but are not
limited to, areas near pilot lights and/or open
flames.
G5954 5HP Dust Collector -9-
Serious personal injury could occur if you
connect the machine to the power source
before you have completed the set up pro-
cess. DO NOT connect the machine to the
power source until instructed to do so.
220V Single-Phase
Grounding
In the event of an electrical short, grounding
reduces the risk of electric shock. The grounding
wire in the power cord must be properly connect-
ed to the grounding pole in the locking shut-off
switch; likewise, the locking shut-off switch must
be properly installed and grounded. All electrical
connections must be made in accordance with
local codes and ordinances.
Amperage Draw
The Model G5954 motor draws the following
amps under maximum load:
Motor Draw at 220V ..............................34 Amps
Circuit Requirements
We recommend using a dedicated circuit for this
machine. You MUST connect your machine to a
grounded circuit that is rated for the amperage
given below. Never replace a circuit breaker on
an existing circuit with one of higher amper-
age without consulting a qualified electrician to
ensure compliance with wiring codes. If you are
unsure about the wiring codes in your area or
you plan to connect your machine to a shared
circuit, consult a qualified electrician.
220V Circuit ...........................................50 Amps
Connection Type (Figure 1)
220V ............................. Locking Shut-off Switch
SECTION 2: CIRCUIT REQUIREMENTS
Electrocution or fire could
result if this machine is
not grounded correctly
or if your electrical con-
figuration does not com-
ply with local and state
codes. Ensure compliance
by checking with a quali-
fied electrician!
Figure 1. Locking shut-off switch.
-10- G5954 5HP Dust Collector

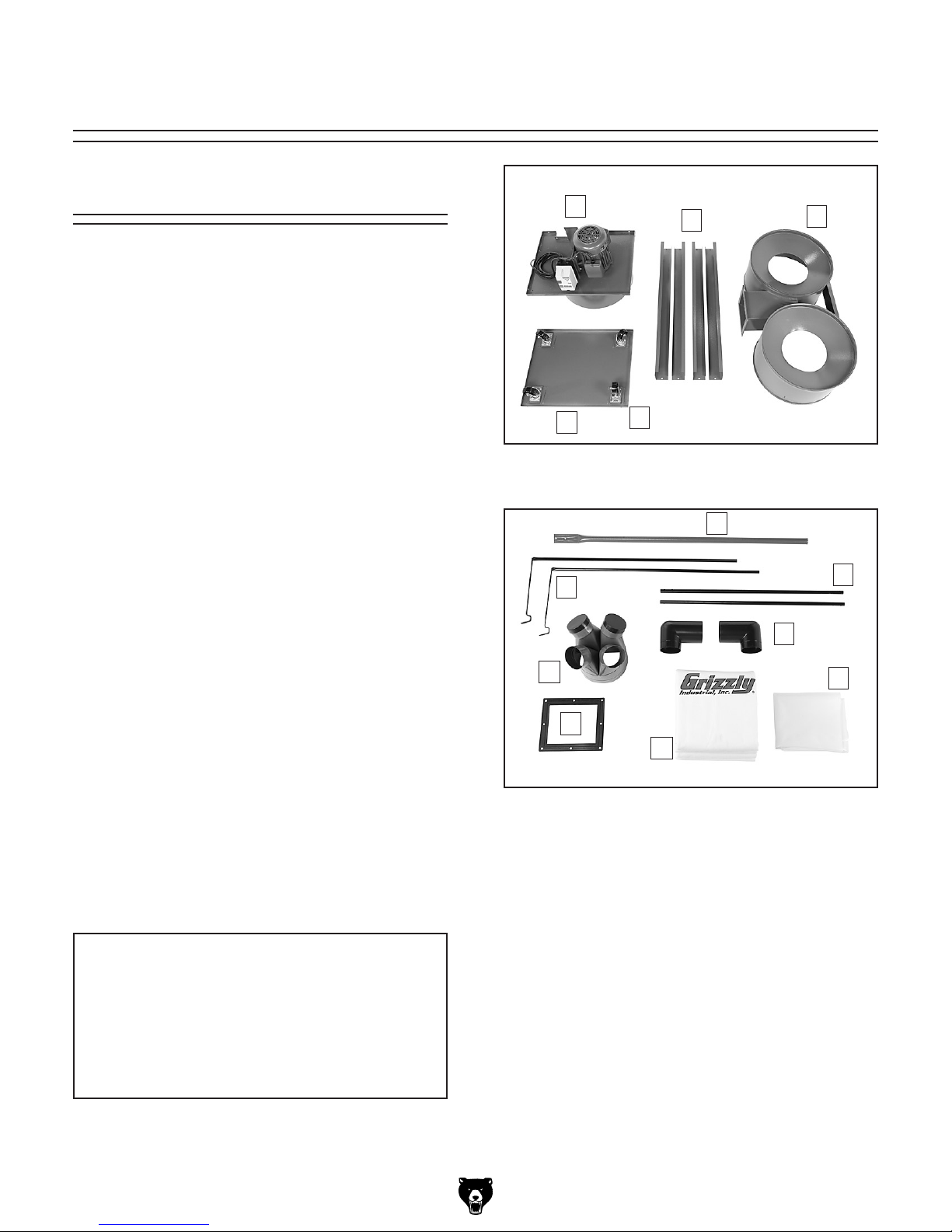

Inventory
After all the parts have been removed from the
two boxes, you should have the following items:
Large Component Inventory (Figure 2) Qty
A. Casters (shown attached to base plate) .... 4
B. Base Plate .................................................. 1
C. Motor/Fan Assembly .................................. 1
D. Stand Legs ................................................. 4
E. Collector ..................................................... 1
Small Component Inventory (Figure 3) Qty
F. Gasket ........................................................ 1
G. 4-in-1 Inlet Adapter and Inlet Caps ............ 1
H. Upper Bag Support Extenders ................... 2
I. Lower Support ............................................ 1
J. Upper Bag Supports ................................... 2
K. Plastic Elbows 4" 90º ................................. 2
L. Lower Bags ................................................ 2
M. Upper Bags ................................................ 2
Other Components and Hardware Qty
• Flange Bolts 3⁄8-16 x 1⁄2" (A, B, C, D) ........ 32
• Washers 3⁄8" (D, E) ................................... 16
• Hex Nuts 3⁄8-16 (C, E, F) ............................ 8
• Hex Bolts 3⁄8-16 x 11⁄4" C, E, F) ................... 8
• Flange Bolts 5⁄16-18 x 3⁄4" (I, J) ................... 6
• Hex Nut 5⁄8-11 (I) ......................................... 1
• Flange Bolts 1⁄4-20 x 1⁄2" (H, J) ................... 4
• Lower Support Foot Pad 5⁄8-11 ................... 1
• Open-End Wrench 10/12mm ...................... 1
• Bag Clamps ................................................ 4In the event that any nonproprietary parts are
missing (e.g. a nut or a washer), we would be
glad to replace them, or for the sake of expedi-
ency, replacements can be obtained at your local
hardware store.
NOTICE
Some hardware/fasteners on the inventory
list may arrive pre-installed on the machine.
Check these locations before assuming that
any items from the inventory list are miss-
ing.
SECTION 3: SET UP
Figure 2. G5954 Large Component Inventory.
D
C
A
B
E
Figure 3. G5954 Small Component Inventory.
F
G
H
I
J
K
M
L
G5954 5HP Dust Collector -11-
Working Clearances
Consider existing and anticipated service/main-
enance needs, size of material to be processed
through each machine, and space for auxiliary
stands, work tables or other machinery when
establishing a location for your new machine. See
Figure 4 for the minimum working clearances.
Unsupervised children and
visitors inside your shop
could cause serious per-
sonal injury to themselves.
Lock all entrances to the
shop when you are away and
DO NOT allow unsupervised
children or visitors in your
shop at any time!
When cleaning, avoid chlorine-based solvents,
such as acetone or brake parts cleaner, as they
may damage painted surfaces should they come
in contact. Always follow the manufacturer’s
instructions when using any type of cleaning
product.
Site ConsiderationsCleaning
Figure 4. Minimum working clearances.
Gasoline and petroleum
products have low flash
points and could cause
an explosion or fire if
used to clean machinery.
DO NOT use gasoline or
petroleum products to
clean the machinery.
Many of the solvents
commonly used to clean
machinery can be toxic
when inhaled or ingest-
ed. Lack of ventilation
while using these sol-
vents could cause seri-
ous personal health risks
or fire. Take precautions
from this hazard by only
using cleaning solvents
in a well ventilated area.
-12- G5954 5HP Dust Collector
Base and Motor/Fan
Components and Hardware Needed: Qty
Base .................................................................. 1
Casters .............................................................. 4
Flange Bolts 5⁄16-18 x 1⁄2" ................................. 32
Stand Legs ........................................................ 4
Motor/Fan Assembly ......................................... 1

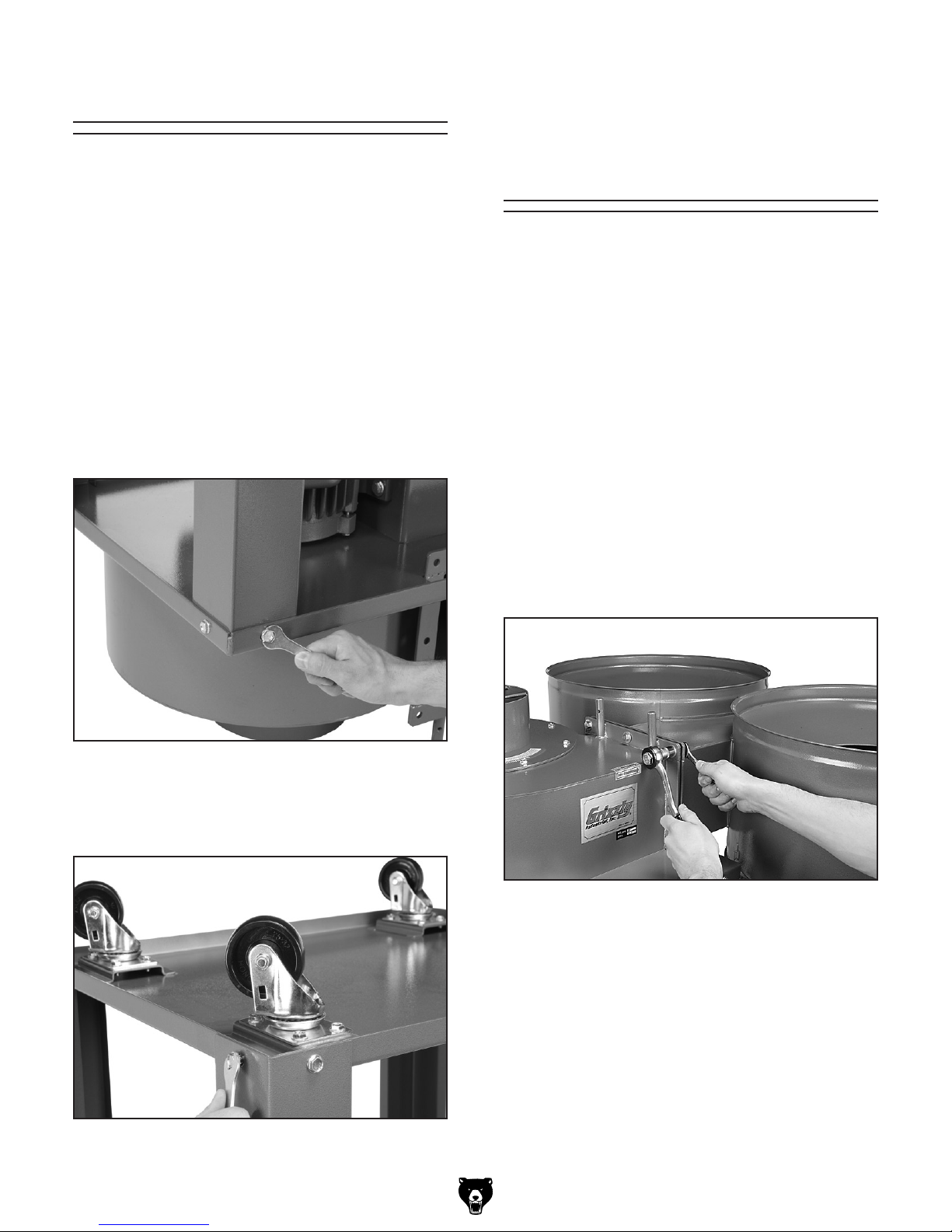

To assemble the base:
1. Attach each caster to the underside of the
base using four 5⁄16-18 x 1⁄2" hex bolts.
2. Attach each leg to the underside of the fan/
motor assembly using two 5⁄16-18 x 1⁄2" flange
bolts, as shown in Figure 5.
Figure 5. Attaching legs to motor/fan assembly.
3. Attach the base to the legs using eight 5⁄16-18
x 1⁄2" flange bolts, as shown in Figure 6.
Figure 7. Mounting collectors to motor/fan
assembly.
Components and Hardware Needed: Qty
Gasket ............................................................... 1
Collector ............................................................ 1
Flange Bolts 3⁄8-16 x 11⁄4" ................................... 8
Hex Nuts 3⁄8-16 .................................................. 8
Flat Washers 3⁄8 ............................................... 16
4-in-1 Inlet Adapter ............................................ 1
Base/Motor/Fan Assembly ................................ 1
To attach the collectors to the motor/fan
assembly:
1. Fit the gasket onto the outtake of the motor/
fan assembly.
2. Mount the collector to the motor/fan assem-
bly using the flange bolts, flat washers and
hex nuts, as shown in Figure 7.
Collector
Figure 6. Attaching base to legs.
4. Turn the motor/base assembly right-side up
and place carefully onto the floor.
G5954 5HP Dust Collector -13-
Collection Bags
Components and Hardware Needed: Qty
Upper Bag Supports .......................................... 2
Upper Bag Support Extenders .......................... 2
Lower Support ................................................... 1
Lower Support Foot Pad ................................... 1
Upper Collection Bags ...................................... 2
Lower Collection Bags ....................................... 2
Flange Bolts 5⁄16-18 x 3⁄4 ..................................... 6
Flange Bolts 1⁄4-20 x 1⁄2 ...................................... 4
To set up the collecton bags:
1. Screw the lower support foot pad onto the
bottom of the lower support.
2. Attach the lower support to the Collector
using two 5⁄16-18 x 3⁄4 hex bolts.
Figure 9. Fitting bag onto collector.
7. Repeat Steps 4 & 5 for the other upper bag.
8. Fit a lower bag over the bottom lip of the
collector, and fasten it in place with a bag
clamp.
9. Repeat Step 6 for the other lower bag.

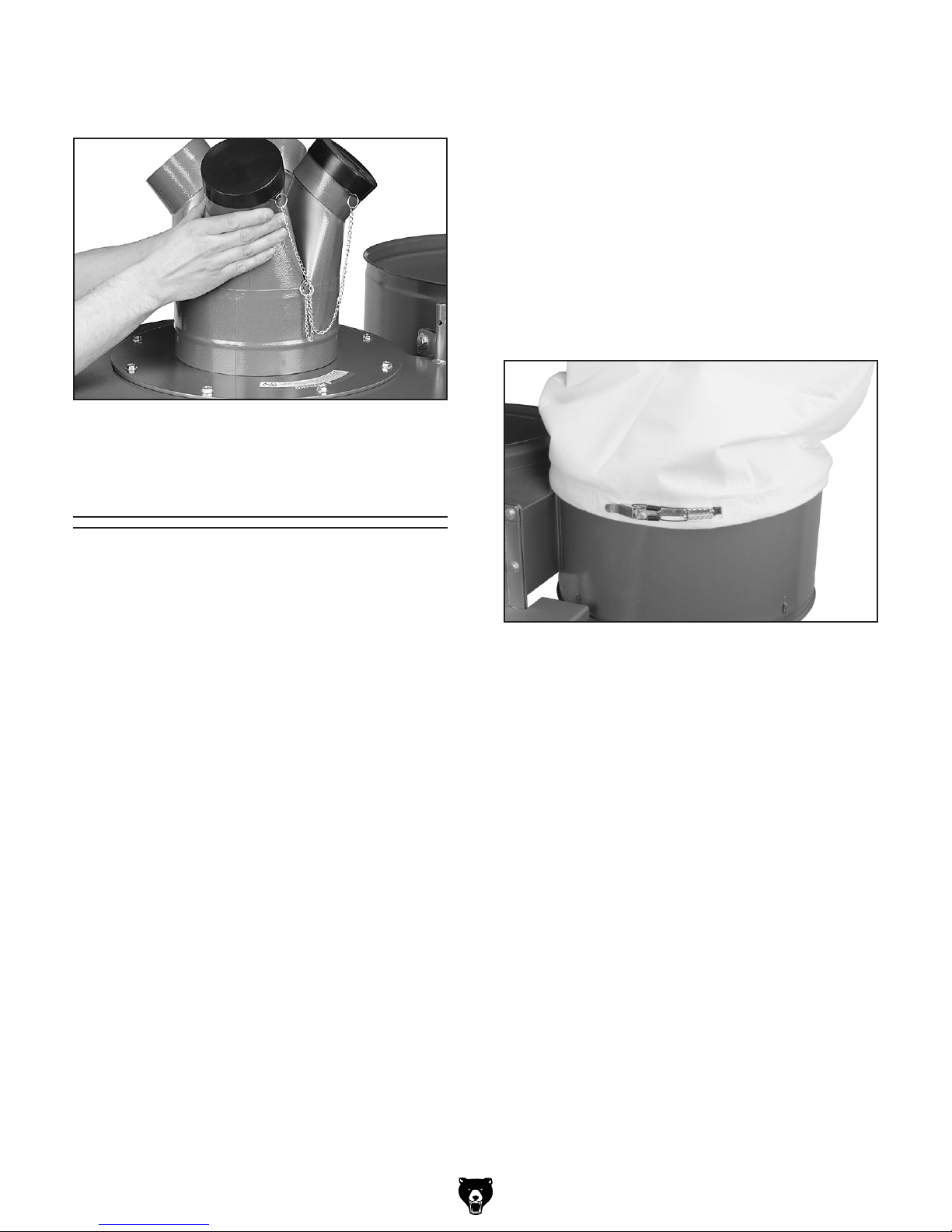

3. Press-fit the 4-in-1 inlet adapter onto the col-
lector inlet, as shown in Figure 8.
Figure 8. Installing 4-in-1 inlet adapter.
3. Attach each upper bag support to an upper
bag support extender using the 1⁄4-20 x 1⁄2 hex
bolts.
4. Attach each upper bag support to the Collector
using two 5⁄16-18 x 3⁄4 hex bolts.
5. Hang an upper bag from an upper bag sup-
port extender.
6. Pull the bottom of the upper bag over the lip
of the collector below it, and fasten it in place
with a bag clamp, as shown in Figure 9.
-14- G5954 5HP Dust Collector
Damage to your eyes, lungs, and ears could
result from using this machine without
proper protective gear. Always wear safety
glasses, a respirator, and hearing protection
when operating this machine.
Loose hair and cloth-
ing could get caught in
machinery and cause seri-
ous personal injury. Keep
loose clothing and long
hair away from moving
machinery.
Operation Safety
SECTION 4: OPERATIONS
NOTICE
If you ultimately plan to design and build
your own dust collection system, WE
STRONGLY RECOMMEND that you do as
much research as you can. Regardless of
the content in this section, Grizzly Industrial
will not be held liable for any accidents or
workmanship related to the dust collection
system you build.
General
The Model G5954 is designed to be a central dust
collector system, and is capable of collecting dust
from multiple machines running simultaneously.
Grizzly offers a complete line of dust collection
accessories for setting up a stationary system.
However you choose to build your dust collection
system, always make sure there are no open
flames or pilot lights in the same room as the
dust collector. There is a risk of explosion if dust
is dispersed into the air.
Duct Material
You have many choices regarding main line and
branch line duct material. For best results, use
metal duct for the main line and branch lines,
then use a short length of flexible hose to connect
each machine to the branch lines.
Metal Duct
Advantages of metal duct is its conductivity and
that it does not contribute to static electrical
charge build-up. However, static charges are still
produced when dust particles strike other dust
particles as they move through the duct. Since
metal duct is a conductor, it can be grounded
quite easily to dissipate any static electrical
charges. There are quite a number of options
when it comes to metal duct, but metal duct
that is specially manufactured for dust collection
is the best choice. When selecting your metal
duct, choose high quality metal duct with smooth
welded internal seams that will minimize airflow
resistance. This type of duct usually connects to
other ducts or elbows with a simple, self-seal-
ing clamp, is very quick and easy to assemble,
and can be dismantled and re-installed with no
problems. This is especially important if you ever
need to change things around in your shop or add
more tools. See Page 21 for examples.
G5954 5HP Dust Collector -15-
Flexible Duct
Flexible hose is generally used for short runs,
small shops and at rigid duct-to-tool connections.
There are many different types of flex hose on
the market today. These are manufactured from
materials such as polyethylene, PVC, cloth hose
dipped in rubber and even metal, including steel
and aluminum.
Figure 11. Plastic duct and components.
Avoid inferior metal duct that requires you to cut it
to length and snap it together. This type of duct is
time consuming to install because it requires you
to seal all the seams with silicone and screw the
components on the ends with sheet metal screws.
Another disadvantage is the rough internal seams
and crimped ends that unavoidably increase
static pressure.
Figure 10. Examples of metal pipe and
components.
Figure 12. Example of flexible metal duct.
Plastic Duct
Plastic duct is also a popular material for home
shops. One problem with using plastic is that it is
less efficient per foot than metal. The popularity of
plastic duct is due to the fact that it is an economi-
cal and readily available product. It is also simple
to assemble and easily sealed against air loss.
The primary disadvantage of plastic duct for dust
collection is the inherent danger of static electrical
build-up, which can lead to fire or explosion if not
correctly grounded.
The superior choice here is metal flex hose that
is designed to be flexible, yet be as smooth as
possible to reduce static pressure loss. There are
also many kinds of plastic flexible hose, such as
non-perforated drainage type hose and dryer vent
hose. Drainage type hose, while being economi-
cal, does not quite have the flexibility required
for dust collection. The inside of the duct is also
deeply corrugated and can increase the static
pressure loss by as much as 50% over smooth
wall duct. Dryer vent hose, while being completely
flexible, is non-resistant to abrasion and has a
tendency to collapse in a negative pressure sys-
tem. We DO NOT recommend using dryer vent
hose in your dust collection system.
If using flex-hose, you should choose one of the
many types that are designed specifically for
the movement of solid particles, i.e. dust, grains
and plastics. However, the cost of specifically
designed flexible duct can vary greatly. Grizzly
offers polyethylene hose, which is well suited for
the removal of particulate matter, especially saw-
dust, since it is durable and completely flexible.
Polyethylene is also very economical and avail-
able in a wide variety of diameters and lengths for
most applications.
-16- G5954 5HP Dust Collector
Step 1. Decide Who Will Design
For most small-to-medium sized shops, you can
design and build the dust collection system your-
self without hiring engineers or consultants. We
have included some basic information here to get
you started on a simple design.
If you have a large shop or end up designing a
complicated system, then we recommend addi-
tional research beyond this manual, and that you
seek the help of an expert.
Step 2. Sketch Your Shop Layout
When designing a successful dust collection
system, planning is the most important step. In
this step, you must sketch a basic layout of your
shop.
Before you get out your pencil and paper, we rec-
ommend you visit our FREE Workshop Planner
available on our website at www.grizzly.com.
Our Workshop Planner will allow you to quickly
and easily draw and print a basic shop layout.
Don't worry, non-Grizzly brand machines can be
substituted with Grizzly machines for layout pur-
poses. After you're finished, make sure to save
your layout for later modification.
Your sketch only needs the basic details of the
shop layout, similar to Figure 13, including all
your current/planned machines and your planned
placement of the dust collector.
System Design
Figure 13. Initial sketch of shop layout.
Step 3. Sketch a Basic Duct Layout
For the next step, sketch how you will connect
your machines to the dust collector. Consider
these general guidelines for an efficient system:
1. Machines that produce the most sawdust
should be placed nearest to the dust collector
(i.e. planers and sanders).
2. Ideally, you should design the duct system
to have the shortest possible main line and
secondary branch ducts. See Figures 14 &
15 for ideas of good duct layouts vs. bad duct
layouts.
Figure 14. Good duct layout.
Figure 15. Bad duct layout.
G5954 5HP Dust Collector -17-
3. Directional changes should be kept to a mini-
mum. The more directional change fittings
you use directly increases the overall resis-
tance to airflow.
4. Gradual directional changes are more effi-
cient than sudden directional changes (i.e.
use the largest corner radius possible when
changing hose or pipe direction).
5. Each individual branch line should have a
blast gate immediately after the branch to
control suction from one machine to another.
6. The simpler the system, the more efficient
and less costly it will be.
Step 4. Determine Required CFM of
Each Machine
Since each machine produces a different amount
of sawdust, the requirements for the minimum
amount of CFM to move that sawdust is unique
to the machine (for example, a planer produces
more sawdust than a table saw). Knowing this
required CFM is important to gauging which size
of duct to use.
Figure 16 will give you a close estimation of the
airflow your machine requires. Keep in mind that
machines that generate the most sawdust should
be placed closest to the dust collector. If the
machine has multiple dust ports, the total CFM
required is the sum of all ports.
Figure 16. Approximate required airflow for
machines, based on dust port size.
Machine
Dust Port Size
Approximate
Required CFM
2" 98
2.5" 150
3" 220
4" 395
5" 614
6" 884
7" 1203
8" 1570
9" 1990
10" 2456
If your machine doesn't have a built in dust port,
use Figure 17 to determine which size of dust
port to install on your machine.
Machine Average Dust Port Size
Table Saw .....................................................4"
Miter/Radial-Arm Saw ...................................2"
Jointer (6" and smaller) .................................4"
Jointer (8"-12") ..............................................5"
Thickness Planer (13" and smaller) ..............4"
Thickness Planer (14"-20") ............................6"
Shaper ...........................................................4"
Router (mounted to table) .............................2"
Bandsaw ........................................................4"
Lathe..............................................................4"
Disc Sander (12" and smaller) ......................2"
Disc Sander (13-18") .....................................4"
Belt Sander (6" and smaller) .........................2"
Belt Sander (7"-9") ........................................3"
Edge Sander (6" x 80" and smaller) ..............4"
Edge Sander (6" x 80" and larger) ................5"
Drum Sander (24" and smaller) ..............2 x 4"
Drum Sander (24" and larger) .................4 x 4"
Widebelt Sander (18" and smaller) ...............5"
Widebelt Sander (24"–37" single head) ..2 x 6"
Widebelt Sander (24"–51" double head) .5 x 4"
Figure 17. Dust port size and quantity per
average machine.
Figure 18. CFM requirements labeled for each
machine.
Write the required CFM for each machine on your
sketch, as shown in Figure 18.
-18- G5954 5HP Dust Collector
Determining Main Line Duct Size
The general rule of thumb for a main line duct is
that the velocity of the airflow must not fall below
3500 FPM.
For small/medium sized shops, using the inlet
size of the dust collector as the main line duct
size will usually keep the air velocity above 3500
FPM and, depending on your system, will allow
you to keep multiple branches open at one time.
Mark your drawing as in Figure 19, but using the
inlet size for your dust collector as the main line.
Figure 19. Main line size labeled on sketch.
Determining Branch Line Duct Size
The general rule of thumb for a branch line duct is
that the velocity of the airflow must not fall below
4000 FPM.
For small/medium sized shops, using the dust
port size from the machine as the branch line duct
size will achieve the correct velocity in most appli-
cations. However, if the dust port on the machine
is smaller than 4", make the branch line 4" and
neck the line down right before the dust port.
Note: Systems with powerful dust collectors work
better if multiple blast gates are left open. This
also allows you to run two machines at once.
Experiment with different combinations of blast
gates open/closed to find the best results for your
system.
Write your determined branch line sizes on your
drawing, as shown in Figure 20.
Figure 20. Branch line sizes labeled on sketch.
Here are some frequently asked questions
when determining branch line sizes:
How do I figure which size of branch line to
use if the machine has two dust ports?
Simply add the total CFM given for each size from
Figure 16 and refer to that CFM number in Figure
21. Then, split the branch line just before the dust
ports with matching duct sizes.
What about two machines on the same branch
line?
You have two options:
1. If both machines will be running at the
same time, add the total CFM given for
each size from Figure 16 and match the
branch line given in Figure 21.
2. If both the machines will never be run at
the same time, reference the machine
with the biggest dust port to Figure 21
and add blast gates after the Y-branch to
open/close the line to each machine.
Total CFM Branch Line Size
600 5"
700 5"
800 6"
1000 6"
1200 7"
1400 8"
1600 8"
Figure 21. Branch line sizing chart by total CFM
(for use when multiple machines share line).
