MODEL T1234
125W GLUE GUN KIT
INSTRUCTIONS
(For models manufactured since 8/17)
COPYRIGHT © AUGUST, 2017 BY GRIZZLY INDUSTRIAL, INC.
NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
#ES19034 PRINTED IN CHINA
Introduction
The Model T1234 125W Glue Gun Kit is for pro-
fessional use. It includes a fast-heating, variable
temperature, pistol-grip glue gun that is comfort-
able, portable, and easy to use.
Specifications
Power Requirement . . 120V, Single-Phase, 60 Hz
Operating Temperature Range .......100ºC–215ºC
Time to Maximum Temperature .......1–2 minutes
Cord ............................................................... 5 ft.
Weight ........................................................15 oz.
Glue Stick Size ....................7⁄16" (0.44" Standard)
Inventory
Description Qty
A. 125W Glue Gun .......................................... 1
B. Power Cord ................................................. 1
C. Wire Stand .................................................. 1
D. Flat Stand ................................................... 1
E. Glue Sticks ................................................. 8
F. Case (Not Shown) ...................................... 1
To reduce risk of serious personal injury:
• Avoid inhaling toxic fumes. Toxic chemi-
cals in some glues can cause respira-
tory illness when inhaled. To reduce your
risk, work in well ventilated area with fan
to move air, and wear NIOSH-approved
respirator.
• Bandage cuts or sores before gluing.
Toxins can be absorbed through cuts,
sores, eyes, mouth and nostrils, increas-
ing risk of developing certain diseas-
es. DO NOT eat, drink, or smoke while
gluing. Wash your hands with soap and
water when finished.
• Wear eye protection, gloves, long pants,
and a long sleeve shirt to protect eyes and
hands from burns and skin rashes. The
glue gun nozzle will reach temperatures
up to 215ºC (419ºF). DO NOT touch nozzle
until it has completely cooled.
• DO NOT touch glue until it has completely
cooled. If hot glue contacts skin, imme-
diately run cold water over affected area.
DO NOT attempt to remove glue from skin
while hot.
• DO NOT leave glue gun unattended while
connected to power or allow nozzle to rest
against anything while hot. Tool can ignite
nearby explosive or flammable materials.
Keep away from these materials. Always
keep fire extinguisher on hand.
• Use tool for intended purpose. Never
modify, alter, or use tool for a purpose not
intended or serious injury or death may
result!
• Keep out of reach of children.
Figure 1. Model T1234 125W Glue Gun Kit.
E
D
A
B
C
V1.08.17

-2- T1234 125W Glue Gun Kit (Mfd. 08/17)
To use glue gun:
1. Make sure working surface is clear of any
combustible materials.
2. Insert cord into glue gun, and insert plug into
matching 120V power receptacle. Rest glue
gun upright using wire stand or flat stand (see
Figure 2). Magnets in glue gun base hold it in
place on flat stand.
Operation
Some materials are heat sensitive and may
become damaged either by heated nozzle
or hot glue. Test temperature on a scrap
piece of material first.
3. Press button to turn glue gun ON.
4. Press buttons to set temperature, and
then allow glue gun to heat up for approxi-
mately 1–2 minutes.
5. Insert glue stick into back of glue gun (see
Figure 3).
6. Once glue gun has fully heated, slowly
squeeze trigger until melted material begins
to flow from nozzle.
Important: When hot, rest glue gun upright
with nozzle facing down to prevent melted
glue from escaping chamber and increasing
risk of fire or personal injury.
7. After gluing operation is complete, release
trigger and press button to turn glue gun
OFF. Allow it to fully cool before storing. Glue
sticks may remain in glue gun when not in
use and be re-melted when used again.
Tip: Never pull glue stick out through back
of glue gun. Doing so may damage feed
mechanism. Cut off extra portion of glue stick
and feed remainder through glue gun.
Note: Never pour water over glue gun, put
glue gun into water, or expose to rain. Only
use a damp cloth to clean glue gun.
To change glue gun nozzle:
1. DISCONNECT GLUE GUN FROM POWER!
2. Allow nozzle to completely cool.
3. Turn nozzle counterclockwise to remove.
4. Insert new nozzle and turn clockwise to
tighten. DO NOT over-tighten.

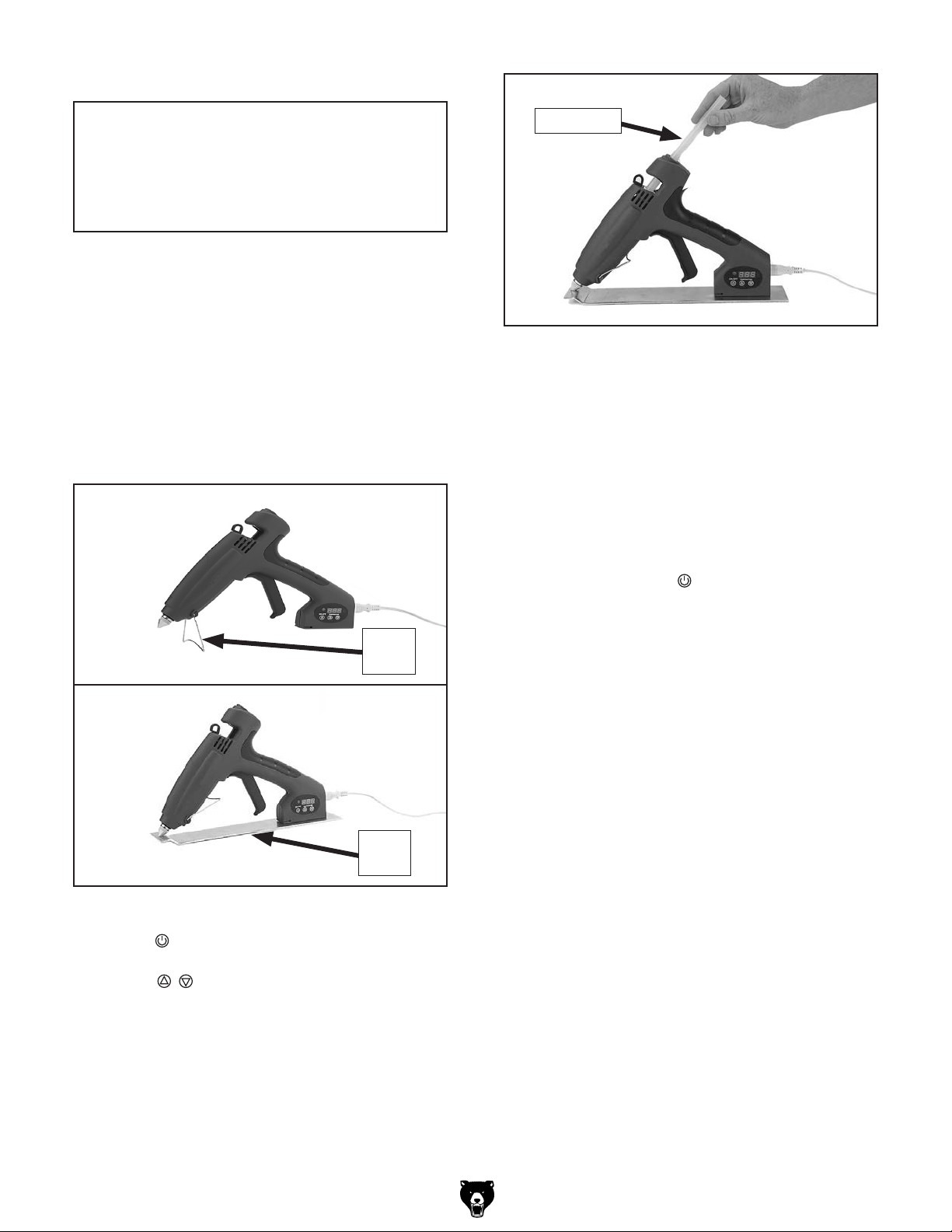

Figure 3. Inserting glue stick into glue gun.
Glue Stick
Figure 2. Glue gun resting upright.
Flat
Stand
Wire
Stand
NOTICE

T1234 125W Glue Gun Kit (Mfd. 08/17) -3-
BUY PARTS ONLINE AT GRIZZLY.COM!
Scan QR code to visit our Parts Store.
Parts Breakdown & List
8
1
2
3
4
5
6
7
10
9
12
13
15
14 16
17
18
19
20
21
22
23
26
11
20
21
22
24
25
27
28
36
37
38
29
31
30
3233
34
35
35
11
T12 34
125W GLUE GUN
120V,Single-Phase, 60 Hz, 100º–215ºC
39
1
13
REF PART # DESCRIPTION REF PART # DESCRIPTION
1 PT1234001 GLUE GUN HOUSING (LEFT) 21 PT1234021 METAL PLATE
2 PT1234002 GLUE GUN HOUSING (RIGHT) 22 PT1234022 MAGNET
3 PT1234003 HANDLE 23 PT1234023 INSULATION CLOTH
4 PT1234004 DETENT RING (REAR) 24 PT1234024 INSULATION FILM
5 PT1234005 PLASTIC SLEEVE 25 PT1234025 ALLOY TUBE
6 PT1234006 SILICON SLEEVE 26 PT1234026 TRIGGER SPRING
7 PT1234007 HOSE CLAMP 27 PT1234027 POWER CORD 2W 18G 60"
8 PT1234008 HEATER 28 PT1234028 FLAT STAND
9 PT1234009 DETENT RING (FRONT) 29 PT1234029 O-RING 14.8 X 1.6 P15
10 PT1234010 THERMAL PROTECTOR 30 PT1234030 WIRE 24G RED
11 PT1234011 NOZZLE 31 PT1234031 WIRE 24G BLACK
12 PT1234012 O-RING 11.8 X 1.2 P12 32 PT1234032 WIRE 22G BLUE
13 PT1234013 WIRE BLUE 24G 33 PT1234033 WIRE 22G BROWN
14 PT1234014 CIRCUIT BOARD 34 PT1234034 HEAT SHRINK TUBE
15 PT1234015 POWER CORD SOCKET 35 PT1234035 TAP SCREW M2.9 x 10
16 PT1234016 PLASTIC HOOK 36 PT1234036 WIRE STAND
17 PT1234017 FEEDER 37 PT1234037 CASE
18 PT1234018 TRIGGER 38 PT1234038 GLUE STICK 0.44" STANDARD
19 PT1234019 TEMPERATURE SWITCH 39 PT1234039 TOOL ID LABEL
20 PT1234020 MAGNET FRAME PLASTIC
