G4003G Gunsmith's Lathe -47-
SECTION 8: PARTS
Components
REF PART # DESCRIPTION REF PART # DESCRIPTION
1 P4003G0001 4-JAW UNIVERSAL CHUCK 8" 24 P4003G0024 CARBIDE TIP DEAD CENTER MT#3
2 P4003G0002 FACEPLATE 10" 25 P4003G0025 STANDARD DEAD CENTER MT#3
3 P4003G0003 OIL BOTTLE 26 P4003G0026 ARBOR B16-MT#3
4 P4003G0004 TOOL BOX 27 P4003G0027 DEAD CENTER SPINDLE SLEEVE
5 P4003G0005 SQUARE SOCKET T-WRENCH 28 P4003G0028 QUICK CHANGE TOOL HOLDER
6 P4003G0006 4-JAW CHUCK WRENCH 29 P4003G0029 GEAR 45T
7 P4003G0007 3-JAW CHUCK WRENCH 30 P4003G0030 GEAR 27T
9 PWR1214 COMBO WRENCH 12/14MM 31 P4003G0031 GEAR 50T
10 PWR1012 COMBO WRENCH 10/12MM 32 P4003G0032 GEAR 26T
11 P4003G0011 COMBO WRENCH 9/11MM 33 P4003G0033 GEAR 35T
12 P4003G0012 DRILL CHUCK B16 1.5-13MM 34 P4003G0034 GEAR 60T
13 P4003G0013 DRILL CHUCK KEY 35 P4003G0035 TAILSTOCK WRENCH
14 P4003G0014 PHILLIPS HD SCREWDRIVER #2 36 P4003G0036 3-JAW CHUCK
15 P4003G0015 STANDARD SCREWDRIVER 36-1 P4003G0036-1 3-JAW CHUCK TOP JAW SET
16 PAW10M HEX WRENCH 10MM 36-2 P4003G0036-2 3-JAW CHUCK BOTTOM JAW SET
17 PAW08M HEX WRENCH 8MM 37 P4003G0037 QUICK CHANGE TOOL POST
18 PAW06M HEX WRENCH 6MM 38 P4003G0038 STEADY REST
19 PAW05M HEX WRENCH 5MM 39 P4003G0039 FOLLOW REST
20 PAW04M HEX WRENCH 4MM 135 PSB27M CAP SCREW M6-1 X 14
21 PAW02M HEX WRENCH 2MM 138 P4003G0138 CAM LOCK
22 P4003G0022 SPIDER SCREW 401 P4003G0401 HANDLE
23 P4003G0023 LIVE CENTER MT#3
-48- G4003G Gunsmith's Lathe
Gearbox Gearing
G4003G Gunsmith's Lathe -49-
Gearbox Gearing Parts List
REF PART # DESCRIPTION REF PART # DESCRIPTION
101 PR56M EXT RETAINING RING 45MM 138 P4003G0138 CAM LOCK
102 P4003G0102 GEAR 36T 139 P4003G0139 KEY 8 X 8 X 80
103 P4003G0103 GEAR 55T 140 PK43M KEY 8 X 8 X 45
104 PK14M KEY 5 X 5 X 18 141 PSB80M CAP SCREW M3-.5 X 8
105 P4003G0105 GEAR 142 P4003G0142 SPINDLE
106 PR30M EXT RETAINING RING 36MM 143 P4003G0143 KEY 8 X 8 X 210
107 P4003G0107 GEAR 45T 144 PSB02M CAP SCREW M6-1 X 20
108 P4003G0108 GEAR 58T 145 P4003G0145 COVER
109 P4003G0109 GEAR 21T 146 P4003G0146 GASKET
110 P4003G0110 GEAR 45T 147 P4003G0147 TAPER ROLLER BEARING D7212
111 PR82M EXT RETAINING RING 58MM 148 P4003G0148 HEADSTOCK
112 P4003G0112 GEAR 59T 149 P4003G0149 GASKET
113 P4003G0113 GEAR 46T 150 P4003G0150 COVER
114 PSB27M CAP SCREW M6-1 X 14 151 PR24M INT RETAINING RING 42MM
115 P4003G0115 COVER 152 P4003G0152 SHAFT
116 P4003G0116 GASKET 153 P4003G0153 OIL SEAL
117 P6004 BALL BEARING 6004ZZ 154 P4003G0154 GEAR
118 PSB35M CAP SCREW M8-1.25 X 6 155 P4003G0155 TAPER ROLLER BEARING E7211
119 P4003G0119 GEAR 83T 156 P4003G0156 THREADED COLLAR
120 P4003G0120 O-RING 17 X 2.65 157 PK94M KEY 5 X 5 X 8
121 P4003G0121 SHAFT 158 P4003G0158 GASKET
122 PR25M INT RETAINING RING 47MM 159 PK94M KEY 5 X 5 X 8
123 P4003G0123 GEAR 40/45T 160 P4003G0160 COVER
124 P6004 BALL BEARING 6004ZZ 161 PSB58M CAP SCREW M8-1.25 X 12
125 PR09M EXT RETAINING RING 20MM 162 P4003G0162 OIL SEAL
126 P4003G0126 COLLAR 163 P4003G0163 PULLEY
127 P4003G0127 COLLAR 164 PW03M FLAT WASHER 6MM
128 P4003G0128 GEAR 45/40T 165 P4003G0165 COVER
129 PW03M FLAT WASHER 6MM 166 P4003G0166 GASKET
130 PSB01M CAP SCREW M6-1 X 16 167 P4003G0167 SPECIAL WASHER
131 P4003G0131 SHAFT 168 PK12M KEY 5 X 5 X 30
132 P6004 BALL BEARING 6004ZZ 169 PK17M KEY 5 X 5 X 80
133 P4003G0133 GASKET 170 P4003G0170 SHAFT
134 P4003G0134 COVER 171 P4003G0171 GEAR 42T
135 PSB27M CAP SCREW M6-1 X 14 172 P4003G0172 GEAR 23T
136 P4003G0136 COMPRESSION SPRING 173 P4003G0173 GEAR 47T
137 PSB84M CAP SCREW M10-1.5 X 35 174 PN02M HEX NUT M10-1.5
-50- G4003G Gunsmith's Lathe
Gearbox Shifters
G4003G Gunsmith's Lathe -51-
Gearbox Shifters Parts List
REF PART # DESCRIPTION REF PART # DESCRIPTION
175 P4003G0175 OIL PLUG 206 P4003G0206 SPECIAL WASHER
176 P4003G0176 COVER 207 P4003G0207 STEP GEAR
177 PSB06M CAP SCREW M6-1 X 25 208 P6202 BALL BEARING 6202ZZ
178 P4003G0178 GASKET 209 P4003G0209 BUSHING
179 PRP05M ROLL PIN 5 X 30 210 P4003G0210 SHIFTING ARM
180 PR03M EXT RETAINING RING 12MM 211 P4003G0211 SHAFT
181 P4003G0181 SHIFTING ARM 212 P4003G0212 GEAR 40T
182 P4003G0182 SHIFTING FORK 213 PK12M KEY 5 X 5 X 30
183 PSS06M SET SCREW M8-1.25 X 16 1100 PSB77M CAP SCREW M12-1.75 X 30
184 PN03M HEX NUT M8-1.25 1101 PS12M PHLP HD SCR M3-.5 X 6
185 PRP49M ROLL PIN 5 X 25 1102 P4003G1102 FRONT CONTROL PLATE
186 P4003G0186 GEAR 38T 1103 PSS04M SET SCREW M6-1 X 12
187 P4003G0187 O-RING 11.2 X 2.65 1104 P4003G1104 HANDLE KNOB
188 P4003G0188 PINION SHAFT 1105 P4003G1105 HANDLE STUD
189 PK94M KEY 5 X 5 X 8 1106 P4003G1106 HANDLE HUB
190 P4003G0190 SHAFT 1107 P4003G1107 INFORMATION PLATE
191 P4003G0191 COLLAR 1108 P4003G1108 STEEL BALL 6MM
192 P4003G0192 SHIFTING ARM 1109 P4003G1109 COMPRESSION SPRING
193 P4003G0193 SHIFTING FORK 1110 PSS20M SET SCREW M8-1.25 X 8
194 P4003G0194 SHAFT 1111 P4003G1111 TAPER PIN
195 PSB04M CAP SCREW M6-1 X 10 1112 P4003G1112 HANDLE
196 PSB13M CAP SCREW M8-1.25 X 30 1113 P4003G1113 INFORMATION PLATE
198 P4003G0198 OIL SIGHT GLASS 1114 P4003G1114 COMPRESSION SPRING
199 PW06M FLAT WASHER 12MM 1115 P4003G1115 HANDLE HUB
201 PSB26M CAP SCREW M6-1 X 12 1116 P4003G1116 OIL PLUG
202 P4003G0202 SPECIAL WASHER 1117 PSS01M SET SCREW M6-1 X 10
203 P4003G0203 GEAR 40T 1118 PSS02M SET SCREW M6-1 X 6
204 PK12M KEY 5 X 5 X 30 1119 P4003G1119 COVER
205 PSB26M CAP SCREW M6-1 X 12 1119-1 P4003G1119-1 SPIDER SAFETY COVER
-52- G4003G Gunsmith's Lathe

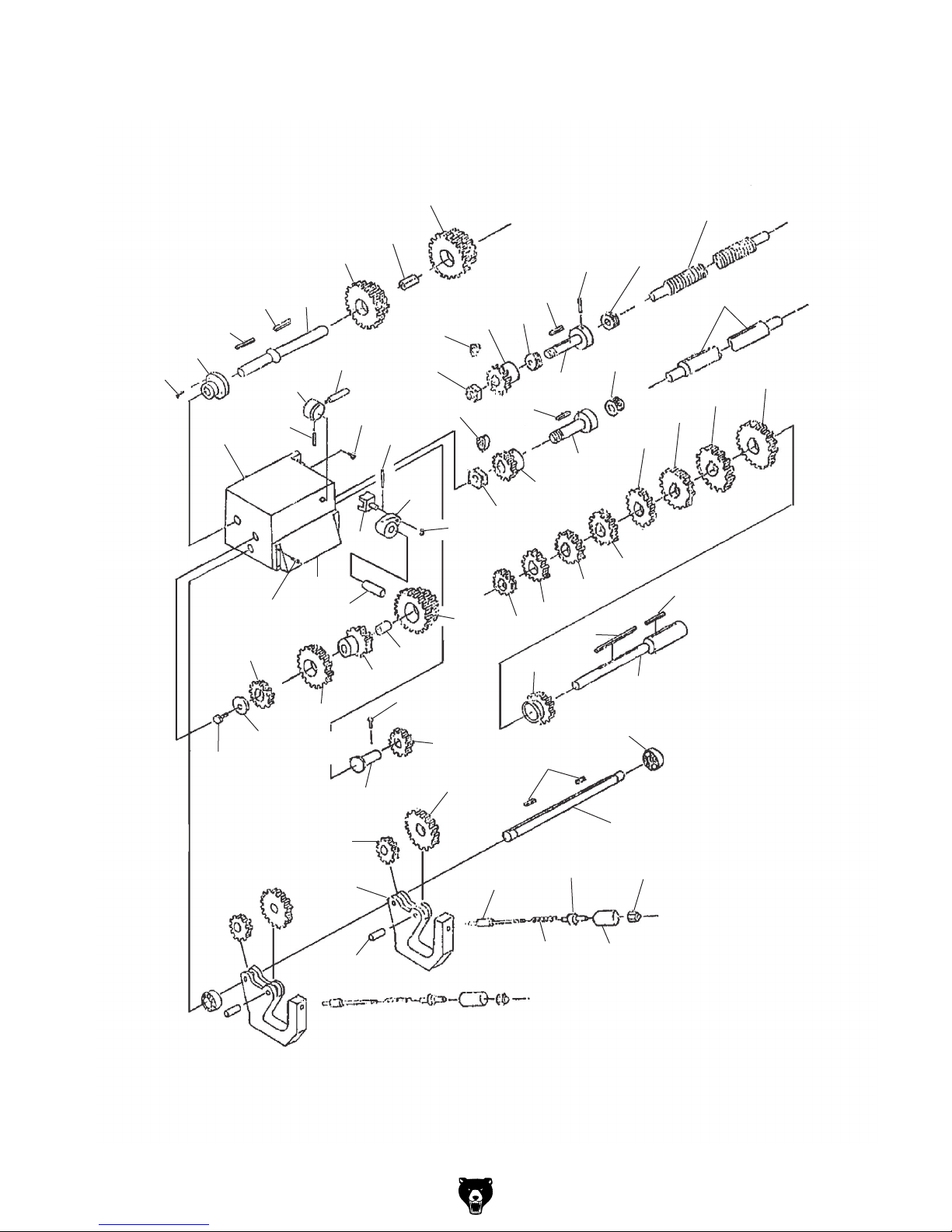

Quick Change System
G4003G Gunsmith's Lathe -53-
Quick Change System Parts List
REF PART # DESCRIPTION REF PART # DESCRIPTION
301 P4003G0301 LEAD SCREW 341 P4003G0341 GEAR 16T
302 PRP10M ROLL PIN 5 X 36 342 P4003G0342 GEAR 32T
304 P8103 THRUST BEARING 8103 343 P4003G0343 GEAR 16T
305 P4003G0305 SHAFT 344 P4003G0344 GEAR 16T
306 PK19M KEY 5 X 5 X 14 345 P4003G0345 GEAR 18T
308 P4003G0308 GEAR 346 P4003G0346 GEAR 19T
309 PN09M HEX NUT M12-1.75 347 P4003G0347 GEAR 20T
310 P4003G0310 SPECIAL WASHER 348 P4003G0348 GEAR 22T
311 PSB01M CAP SCREW M6-1 X 16 349 P4003G0349 GEAR 24T
312 P4003G0312 COVER 350 P4003G0350 GEAR 26T
313 PK12M KEY 5 X 5 X 30 351 P4003G0351 GEAR 28T
314 PK06M KEY 5 X 5 X 10 352 P4003G0352 GEAR 24T
315 P4003G0315 SHAFT 353 P4003G0353 SHAFT
316 P4003G0316 BUSHING 354 PK120M KEY 5 X 5 X 75
318 P4003G0318 GEAR 32/16T 355 PK02M KEY 5 X 5 X 40
320 P4003G0320 GEAR 32/16T 356 P4003G0356 ANG CONTACT BEARING 7000
322 P4003G0322 LEVER 357 P4003G0357 GEAR 16T
324 PB01M HEX BOLT M10-1.5 X 30 358 P4003G0358 GEAR 32T
325 P4003G0325 BOSS 359 P4003G0359 SHIFT LEVER
326 PRP28M ROLL PIN 5 X 40 362 P4003G0362 SHIFT ROD KEY
327 P4003G0327 GEARBOX 363 P4003G0363 SHIFT ROD
327A P4003G0327A GEARBOX ASSEMBLY 364 PN01M HEX NUT M6-1
328 P4003G0328 PLATE 365 P4003G0365 SHAFT
329 PSB01M CAP SCREW M6-1 X 16 366 P4003G0366 SHAFT
330 P4003G0330 SHAFT 367 P4003G0367 SPRING
331 PEC04M E-CLIP 13MM 368 P4003G0368 SLEEVE
332 P4003G0332 SHIFT PIVOT 369 P4003G0369 HOUSING
333 PRP73M ROLL PIN 4 X 30 370 P4003G0370 SHAFT
334 P4003G0334 SHIFT FORK 371 PSS20M SET SCREW M8-1.25 X 8
335 PSB26M CAP SCREW M6-1 X 12 372 P4003G0372 GEAR 15T
336 P4003G0336 SPECIAL WASHER 373 P4003G0373 GEAR 24T
337 P4003G0337 GEAR 16T 374 P4003G0374 SHAFT
340 P4003G0340 GEAR 32T
-54- G4003G Gunsmith's Lathe
Apron
G4003G Gunsmith's Lathe -55-
Apron Parts List
REF PART # DESCRIPTION REF PART # DESCRIPTION
401 P4003G0401 HANDLE 434 PW03M FLAT WASHER 6MM
402 P4003G0402 HANDWHEEL 435 PSB29M CAP SCREW M6-1 X 40
403 P4003G0403 GRADUATED DIAL 436 P4003G0436 SHAFT
404 PRP28M ROLL PIN 5 X 40 437 P4003G0437 SAFETY SHIFTER
405 PSS25M SET SCREW M6-1 X 20 438 PSS17M SET SCREW M8-1.25 X 6
406 P4003G0406 BRACKET 439 P4003G0439 COMPRESSION SPRING
407 P4003G0407 GEAR SHAFT 440 P4003G0440 STEEL BALL 6MM
408 P4003G0408 KNOB 441 P4003G0441 BOSS
409 PRP05M ROLL PIN 5 X 30 442 PRP32M ROLL PIN 6 X 40
410 P4003G0410 GEAR 443 P4003G0443 DOG
411 PR08M EXT RETAINING RING 19MM 444 PSS19M SET SCREW M8-1.25 X 30
412 P4003G0412 GEAR SHAFT 11T 445 P4003G0445 LEVER
413 P4003G0413 GEAR 48T 447 P4003G0447 SHAFT
414 P4003G0414 GEAR 51T 448 PSB127M CAP SCREW M6-1X 65
415 PRP05M ROLL PIN 5 X 30 449 PSB28M CAP SCREW M6-1 X 15
417 P4003G0417 SHAFT 450 P4003G0450 GEAR
418 P4003G0418 BUSHING 451 PSB49M CAP SCREW M6-1 X 60
419 P4003G0419 GEAR 25T 451-1 P4003G0451-1 SPACER
419-1 P4003G0419-1 SPACER 452 P4003G0452 HOUSING
420 P4003G0420 SHAFT 453 P4003G0453 THREAD DIAL
420-1 P4003G0420-1 GEAR 24T 454 PN01M HEX NUT M6-1
421 P4003G0421 WORM GEAR 455 PSS11M SET SCREW M6-1 X 16
422 PK33M KEY 5 X 5 X 45 456 P4003G0456 HALF NUT
423 PRP06M ROLL PIN 5 X 24 457 P4003G0457 HALF NUT HOUSING
424 P4003G0424 GEAR 14T 458 PSS12M SET SCREW M6-1 X 25
425 P4003G0425 KNOB 459 P4003G0459 GIB
426 P4003G0426 GEAR SHAFT 10T 461 P4003G0461 SHAFT
427 P4003G0427 LEVER 463 P4003G0463 GEAR 25T
428 PRP06M ROLL PIN 5 X 24 464 PSS02M SET SCREW M6-1 X 6
429 P4003G0429 STEEL BALL 6MM 465 P4003G0465 APRON CASE
430 P4003G0430 COMPRESSION SPRING 466 P4003G0466 WORM BRACKET
431 PSS03M SET SCREW M6-1 X 8 467 P4003G0467 LIMIT BLOCK
432 PSB30M CAP SCREW M6-1 X 45 468 PSB61M CAP SCREW M10-1.5 X 20
433 P4003G0433 BOSS
-56- G4003G Gunsmith's Lathe
Saddle
G4003G Gunsmith's Lathe -57-
Saddle Parts List
REF PART # DESCRIPTION REF PART # DESCRIPTION
501 P4003G0501 SADDLE 521 PS57M PHLP HD SCR M5-.8 X 14
502 PS59M PHLP HD SCR M3-.5 X 14 522 P4003G0522 SLIDE PLATE
503 P4003G0503 WIPER 523 P4003G0523 SLIDE PLATE
504 PS24 PHLP HD SCR 8-32 x 3/8 524 P4003G0524 SLIDE PLATE
505 P4003G0505 COVER 525 PB19M HEX BOLT M8-1.25 X 24
506 PS57M PHLP HD SCR M5-.8 X 14 526 P4003G0526 WIPER
507 P4003G0507 WIPER 528 P4003G0528 HANDLE
508 PRP29M ROLL PIN 5 X 45 529 P4003G0529 BRACKET
509 PSB40M CAP SCREW M8-1.25 X 35 530 P4003G0530 SPECIAL SCREW
510 P4003G0510 SPECIAL SCREW 531 P4003G0531 SPANNER NUT
511 P4003G0511 SPECIAL SCREW 533 P4003G0533 INDICATOR PLATE
512 P4003G0512 CROSS SLIDE 534 P4003G0534 SPECIAL SCREW
513 P4003G0513 GIB 535 P8102 THRUST BEARING 8102
514 P4003G0514 BUSHING 536 P4003G0536 BRACKET
515 P4003G0515 BRASS CROSS SLIDE NUT M8 X 12 537 PSB06M CAP SCREW M6-1 X 25
518 P4003G0518 SLIDE PLATE 539 P4003G0539 LEAD SCREW
519 PFH21M FLAT HD SCR M8-1.25 X 25 540 P4003G0540 GEAR 13T
520 P4003G0520 WIPER 541 PSS20M SET SCREW M8-1.25 X 8
-58- G4003G Gunsmith's Lathe
Compound Slide
REF PART # DESCRIPTION REF PART # DESCRIPTION
601 P4003G0601 SPECIAL SCREW 612 P4003G0612 BRACKET
602 P4003G0602 GIB 613 P8101 THRUST BEARING 8101
603 P4003G0603 COMPOUND SLIDE 614 P4003G0614 GRADUATED DIAL
604 PN02M HEX NUT M10-1.5 615 P4003G0615 SPANNER NUT
605 P4003G0605 SPECIAL SCREW 616 P4003G0616 BRACKET
606 P4003G0606 SPECIAL SCREW 617 P4003G0617 HANDLE LARGE
607 P4003G0607 LEAD SCREW NUT 617A P4003G0617A HANDLE SMALL
608 PSS03M SET SCREW M6-1 X 8 618 PSS07M SET SCREW M5-.8 X 5
609 PN01M HEX NUT M6-1 619 PSB28M CAP SCREW M6-1 X 15
610 P4003G0610 LEAD SCREW 640 P4003G0640 PIN
611 P8101 THRUST BEARING 8101 641 P4003G0641 SPECIAL SCREW
G4003G Gunsmith's Lathe -59-
Tailstock
REF PART # DESCRIPTION REF PART # DESCRIPTION
702 PK136M KEY 8 X 8 X 30 717 P4003G0717 LOCK SCREW
703 P4003G0703 QUILL 718 P4003G0718 LOCK SHAFT
704 P4003G0704 TAILSTOCK 719 P4003G0719 HANDLE
705 P4003G0705 BASE 720 P4003G0720 SHAFT
706 PSS39M SET SCREW M10-1.5 X 50 721 PRP05M ROLL PIN 5 X 30
707 P4003G0707 SPECIAL SCREW 722 P4003G0722 COLLAR
708 P4003G0708 PIN 723 P4003G0723 SHAFT
709 P4003G0709 BALL BEARING 8101 724 P4003G0724 BASE SHOE BLOCK
710 P4003G0710 BRACKET 725 PW06M FLAT WASHER 12MM
711 P4003G0711 GRADUATED DIAL 726 PN09M HEX NUT M12-1.75
712 PSB02M CAP SCREW M6-1 X 20 727 P4003G0727 SPECIAL NUT
713 P4003G0713 HANDWHEEL 728 PSB17M CAP SCREW M4-.7 X 10
714 P4003G0714 HANDLE 729 PSS28M SET SCREW M6-1 X 30
715 PN09M HEX NUT M12-1.75 731 PSS42M SET SCREW M8-1.25 X 50
716 P4003G0716 HANDLE 732 P4003G0732 HANDLE BASE
-60- G4003G Gunsmith's Lathe
Lathe Bed & Motor
lath bed & motor breakdown
G4003G Gunsmith's Lathe -61-
Base
base breakdown
-62- G4003G Gunsmith's Lathe
Lathe Bed, Motor & Base Parts List
REF PART # DESCRIPTION REF PART # DESCRIPTION
801 PVA32 V-BELT A-32 4L320 816 PSB70M CAP SCREW M10-1.5 X 45
802 PSS05M SET SCREW M5-.8 X 10 817 P4003G0817 THREADED TAPER PIN
803 P4003G0803 HEAD KEY 818 PS68M PHLP HD SCR M6-1 X 10
804 PW04M FLAT WASHER 10MM 819 PW03M FLAT WASHER 6MM
805 PB32M HEX BOLT M10-1.5 X 25 820 P4003G0820 LATHE BED
806 P4003G0806 MOTOR 2HP/220V/1-PH 821 P4003G0821 CHIP PAN
806-1 P4003G0806-1 MOTOR FAN COVER 822 P4003G0822 RACK GEAR
806-2 P4003G0806-2 MOTOR FAN 823 P4003G0823 RIVET 2 X 5
806-3 P4003G0806-3 MOTOR JUNCTION BOX 824 P4003G0824 INFORMATION PLATE
806-4 P4003G0806-4 MOTOR TERMINAL BLOCK 825 PN02M HEX NUT M10-1.5
806-5 P4003G0806-5 MOTOR CAPACITOR COVER 826 P4003G0826 SPECIAL STUD
806-6 P4003G0806-6 CAPACITOR 150MFD/250VAC 827 P4003G0827 SPECIAL NUT
807 P4003G0807 SPLASH GUARD 828 P4003G0828 SPACER BLOCK
808 P4003G0808 PULLEY 829 P4003G0829 RIGHT STAND BASE
809 P4003G0809 BRACKET 830 P4003G0830 RIGHT BRACKET
810 PB01M HEX BOLT M10-2.5 X 30 833 P4003G0833 FRONT PLATE
811 PRP49M ROLL PIN 5 X 25 834 P4003G0834 LEFT BRACKET
812 PW04M FLAT WASHER 10MM 835 PN01M HEX NUT M6-1
813 PSB06M CAP SCREW M6-1 X 25 836 P4003G0836 LEFT STAND BASE
814 P4003G0814 RACK GEAR 837 PW10M FLAT WASHER 14MM
815 P4003G0815 GAP PIECE 838 PB129M HEX BOLT M14-2 X 45
G4003G Gunsmith's Lathe -63-

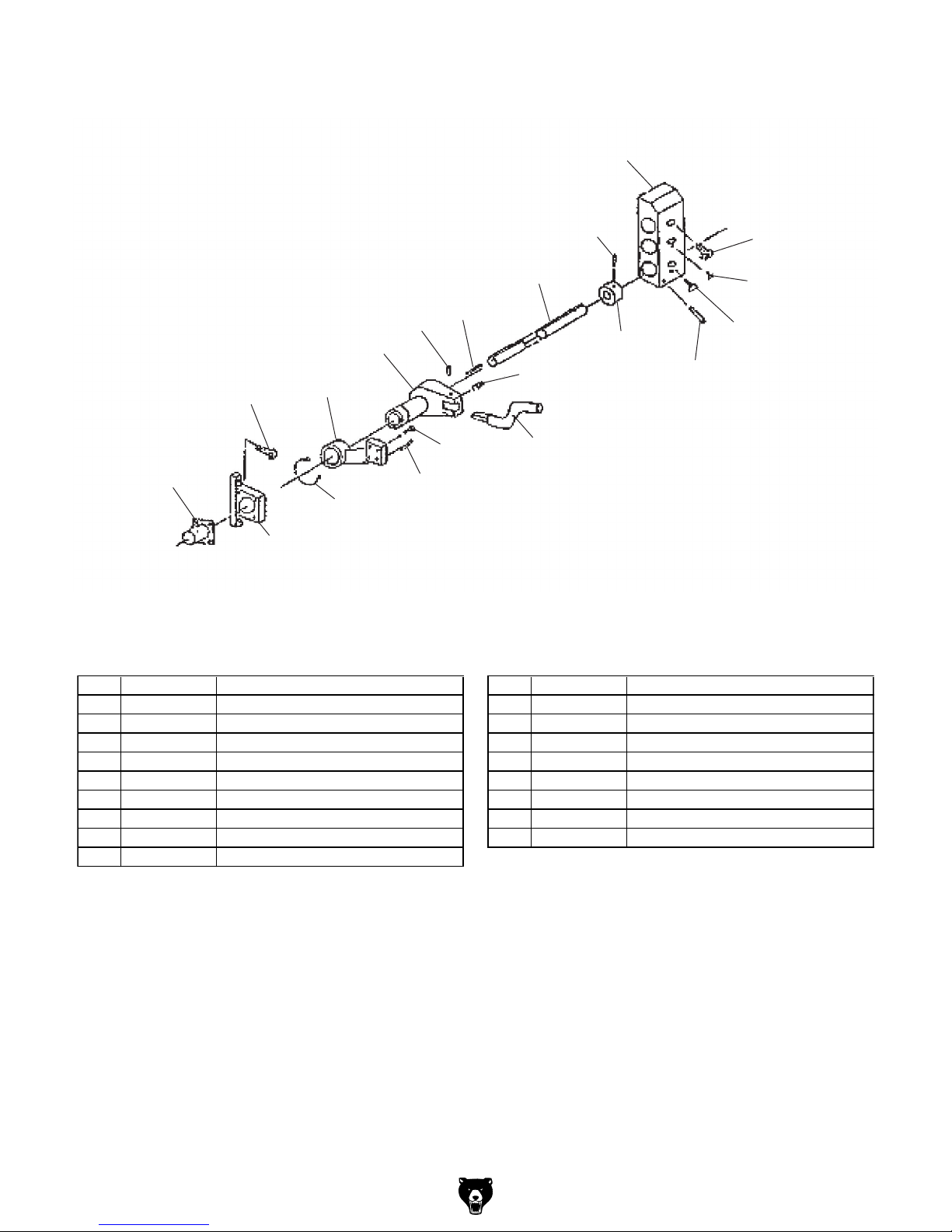

Feed Rod
Feed Rod Parts List
REF PART # DESCRIPTION REF PART # DESCRIPTION
901 P4003G0901 BRACKET 911 P4003G0911 HANDLE
902 PSB25M CAP SCREW M6-1 X 11 912 P4003G0912 BRACKET
903 P4003G0903 OIL CAP 913 PSB27M CAP SCREW M6-1 X 14
904 PRP34M ROLL PIN 6 X 55 914 PRP49M ROLL PIN 5 X 25
905 PSS02M SET SCREW M6-1 X 6 915 P4003G0915 BRACKET
906 P4003G0906 COLLAR 916 PR15M EXT RETAINING RING 30MM
907 P4003G0907 FEED ROD 917 PSB31M CAP SCREW M8-1.25 X 25
908 P4003G0908 KEY 918 P4003G0918 BRACKET
909 PRP39M ROLL PIN 4 X 20 919 P4003G0919 SWITCH
910 P4003G0910 SPRING 7020
-64- G4003G Gunsmith's Lathe
Machine Labels
Safety labels warn about machine hazards and ways to prevent injury. The owner of this machine
MUST maintain the original location and readability of the labels on the machine. If any label is
removed or becomes unreadable, REPLACE that label before using the machine again. Contact
Grizzly at (800) 523-4777 or www.grizzly.com to order new labels.
REF PART # DESCRIPTION REF PART # DESCRIPTION
1000 P4003G1000 MODEL NUMBER LABEL 1004 PLABEL-12 READ MANUAL LABEL
1001 G9987 GRIZZLY NAMEPLATE 1005 P4003G1005 ENTANGLEMENT HAZARD LABEL
1002 PLABEL-14 ELECTRICITY LABEL 1006 PLABEL-11 SAFETY GLASSES LABEL
1003 P4003G1003 DISCONNECT LABEL 1007 P4003G1007 MACHINE ID LABEL
(Place on door
of electrical box)
(Place on top of
motor junction box)
10021007
1006
1005
1004
1003
1002
1001 1000
G4003G Gunsmith's Lathe -65-
Electrical Components
REF PART # DESCRIPTION REF PART # DESCRIPTION
1201 P4003G1201 TRANSFORMER 1209 P4003G1209 TERMINAL BLOCK 20-POLE
1202 P4003G1202 FUSE HOLDER 2A 1210 P4003G1210 STOP RESET BUTTON
1203 P4003G1203 CIRCUIT BREAKER 230V/400V 1211 P4003G1211 POWER ON BUTTON
1204 P4003G1204 THERMAL RELAY 1212 P4003G1212 JOG BUTTON
1205 P4003G1205 CONTACTOR GSC1-1801 1213 P4003G1213 POWER INDICATOR LIGHT
1206 P4003G1206 CONTACTOR JZC3 40D 1214 P4003G1214 WORK LIGHT TERMINAL BLOCK
1207 P4003G1207 GROUND TERMINAL BLOCK 1215 P4003G1215 HALOGEN WORK LIGHT
1208 P4003G1208 TERMINAL BLOCK 12-POLE
-66- G4003G Gunsmith's Lathe

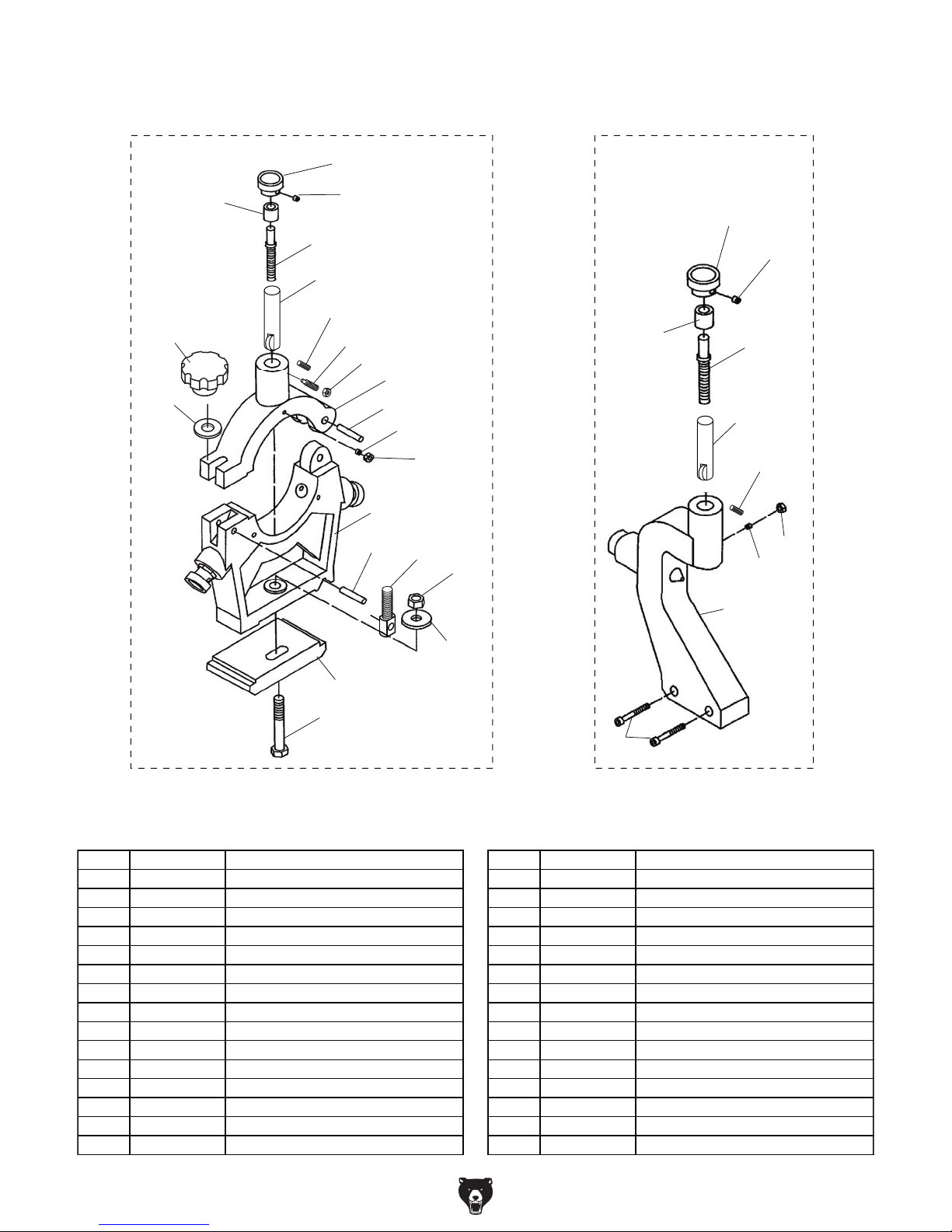

Steady & Follow Rest Assemblies
REF PART # DESCRIPTION REF PART # DESCRIPTION
1300 P4003G1300 COMPLETE STEADY REST ASSY 1315 PW06M FLAT WASHER 12MM
1301 P4003G1301 HANDLE 1316 P4003G1316 CLAMP PLATE
1302 PSS02M SET SCREW M6-1 X 6 1317 PB43M HEX BOLT M12-1.75 X 75
1303 P4003G1303 BUSHING 1318 PW01M FLAT WASHER 8MM
1304 P4003G1304 SPECIAL SCREW 1319 P4003G1319 KNOB M8-1.25
1305 P4003G1305 FINGER BEARING W/ SLEEVE 1400 P4003G1400 COMPLETE FOLLOW REST ASSY
1306 PSS03M SET SCREW M6-1 X 8 1401 P4003G1401 HANDLE
1306-1 PSS25M SET SCREW M6-1 X 20 1402 PSS02M SET SCREW M6-1 X 6
1306-2 PN01M HEX NUT M6-1 1403 P4003G1403 BUSHING
1307 P4003G1307 UPPER BODY CASTING 1404 P4003G1404 SPECIAL SCREW
1309 PSS25M SET SCREW M6-1 X 20 1405 P4003G1405 FINGER BEARING W/ SLEEVE
1310 PN01M HEX NUT M6-1 1406 PSS03M SET SCREW M6-1 X 8
1311 P4003G1311 LOWER BODY CASTING 1407 PN01M HEX NUT M6-1
1312 P4003G1312 LOCK PIN 1408 PSS25M SET SCREW M6-1 X 20
1313 P4003G1313 LOCK BOLT M8-1.25 1409 P4003G1409 BODY CASTING
1314 PN09M HEX NUT M12-1.75 1410 PSB35M CAP SCREW M8-1.25 x 60
Other manuals for G4003G
3
Table of contents
Other Grizzly Lathe manuals
Grizzly
Grizzly G0698 User manual
Grizzly
Grizzly G4015Z User manual
Grizzly
Grizzly G0516 User manual
Grizzly
Grizzly G0579 User manual
Grizzly
Grizzly G0625 User manual
Grizzly
Grizzly G2891 User manual
Grizzly
Grizzly G5979 User manual
Grizzly
Grizzly G0709 User manual
Grizzly
Grizzly G0733 User manual
Grizzly
Grizzly G0632 User manual
Grizzly
Grizzly G4002 User manual
Grizzly
Grizzly G0509 User manual
Grizzly
Grizzly G4000 User manual
Grizzly
Grizzly G0949G User manual
Grizzly
Grizzly G4002 User manual
Grizzly
Grizzly G0750GV User manual
Grizzly
Grizzly T28522 User manual
Grizzly
Grizzly T10501 User manual
Grizzly
Grizzly G0632 User manual
Grizzly
Grizzly G9972Z User manual
Popular Lathe manuals by other brands
King Industrial
King Industrial KWL-1016C instruction manual
Indutherm
Indutherm Mini Casting MC16 Technical documentation
Craftex
Craftex CX series user manual
Holzstar
Holzstar DB 305 VARIO operating instructions
WABECO
WABECO D2000 operating instructions
Axminster
Axminster WORKSHOP AW205WL Original instructions
CNC-Step
CNC-Step High-Z S-400T operating instructions
Jet
Jet ZH Series Operation and maintenance instructions
Axminster
Axminster SIEG Model Engineer Series Original instructions
IGM
IGM LAGUNA Revo 1836 operating instructions
CHESTER
CHESTER CONQUEST SUPER LATHE manual
Jet
Jet GH-2040 ZH operating instructions
