MODEL H6332
11⁄4" BRAD NAILER
OWNER'S MANUAL

Safety Instructions For Pneumatic Tools
1. KEEP ALL SAFETY DEVICES IN
PLACE and in working order.
2. REMOVE ADJUSTING KEYS AND
WRENCHES. Form habit of check-
ing to see that keys and adjusting
wrenches are removed from tool
before operation.
3. KEEP WORK AREA CLEAN.
Cluttered areas and benches invite
accidents.
4. DO NOT USE IN DANGEROUS
ENVIRONMENT. Do not use pneu-
matic tools in damp or wet loca-
tions, or where any flammable or
noxious fumes may exist. Keep
work area well lighted.
5. KEEP CHILDREN AND VISITORS
AWAY. All children and visitors
should be kept at a safe distance
from work area.
6. MAKE WORKSHOP CHILD
PROOF by locking your shop and
shutting off air valves.
7. DO NOT FORCE TOOL. It will do
the job better and safer at the rate
for which it was designed.
8. USE THE RIGHT TOOL. Do not
force tool or attachment to do a job
for which it was not designed.
9. DO NOT USE UNDER THE
INFLUENCE OF DRUGS OR
ALCOHOL.
For Your Own Safety Read Instruction Manual
Before Operating This Equipment
The purpose of safety symbols is to attract your attention to possible hazard-
ous conditions. This manual uses a series of symbols and signal words which
are intended to convey the level of importance of the safety messages. The
progression of symbols is described below. Remember that safety messages by
themselves do not eliminate danger and are not a substitute for proper accident
prevention measures.
Indicates a potentially hazardous situation which, if
not avoided, MAY result in minor or moderate injury.
It may also be used to alert against unsafe practices.
Indicates a potentially hazardous situation which, if
not avoided, COULD result in death or serious injury.
Indicates an imminently hazardous situation which, if
not avoided, WILL result in death or serious injury.
This symbol is used to alert the user to useful infor-
mation about proper operation of the equipment.
SAFETY
NOTICE

H6332 11⁄4" Brad Nailer -1-
10. USE PROPER AIR HOSE for the
tool. Make sure your air hose is in
good condition and is long enough to
reach your work without stretching.
11. WEAR PROPER APPAREL. Do not
wear loose clothing, gloves, neck-
ties, rings, bracelets, or other jew-
elry which may get caught in moving
parts. Non-slip footwear is recom-
mended. Wear a protective hair cov-
ering to contain long hair.
12. ALWAYS USE SAFETY GLASSES.
Also use a face or dust mask if oper-
ation is dusty. Everyday eyeglasses
only have impact resistant lenses,
they are NOT safety glasses.
13. WEAR APPROVED HEARING
PROTECTION. Air escaping from
pneumatic tools can exceed safe
exposure limits and may cause
hearing damage with prolonged
exposure.
14. SECURE WORK. Use clamps or a
vise to hold work when practical. It is
safer than using your hand and frees
both hands to operate tool.
15. MAINTAIN TOOLS WITH CARE.
Keep tools lubricated and clean
for best and safest performance.
Follow instructions for lubricating
and changing accessories.
16. REDUCE THE RISK OF
UNINTENTIONAL FIRING. Do not
carry tool with hand on trigger and
always disconnect from air when not
in use.
17. DISCONNECT TOOLS before ser-
vicing, changing accessories, or
moving to another location.
18. DO NOT OVERREACH. Keep
proper footing/balance at all times.
19. USE THE RECOMMENDED
ACCESSORIES. Consult owner’s
manual for recommended acces-
sories. The use of improper acces-
sories may cause risk of injury.
20. CHECK FOR DAMAGED PARTS
BEFORE USING. Check for bind-
ing and alignment of parts, broken
parts, part mounting, loose bolts,
and any other conditions that may-
affect machine operation. Repair or
replace damaged parts.
21. NEVER LEAVE UNATTENDED
TOOL CONNECTED TO AIR.
Disconnect the air hose and do not
leave tool until it is relieved of any
built up pressure.
22. NEVER ALLOW UNTRAINED
USERS TO USE THIS TOOL
WHILE UNSUPERVISED.
23. IF YOU ARE UNSURE OF THE
INTENDED OPERATION, STOP
USING TOOL. Seek formal training
or research books or magazines
that specialize in pneumatic tools.
24. BE AWARE OF HOSE LOCATION
WHEN USING PNEUMATIC
TOOLS. Hoses can easily become
a tripping hazard when laid across
the floor or spread out in a disorga-
nized fashion.
Safety Instructions For Pneumatic Tools

H6332 11⁄4" Brad Nailer
-2-
1. HAND INJURIES: Do not place your
hands near the nail point of entry. A
nail can deflect and tear through the
surface of the workpiece, puncturing
your hand or fingers.
2. COMBUSTIBLE GASES: Never
connect the nailer to pressurized
oxygen or other combustible gases
as a power source. Only use fil-
tered, lubricated, and regulated
compressed air.
3. SAFE HANDLING: Never point the
nailer at others! Do not keep the
trigger pulled when loading fasten-
ers, carrying, or holding tool. Carry
the nailer only by the handle, never
by any other part. Do not carry the
nailer by the air hose. Disconnect
the nailer from the air hose when
going up and down ladders.
4. CLEANING: Never use gasoline or
other flammable liquids to clean the
nailer; vapors in the nailer will ignite
by a spark and cause it to explode.
Additional Safety Instructions for Nailers
5. HOSE USAGE: Make sure your air
hose is designed for the tool in use,
is in good condition, and is long
enough to reach your work without
stretching. However, an overly long
air hose in the work area may be a
tripping hazard.
6. OPERATING QUESTIONS: If you
are not sure about the intended
operation, stop using the nailer.
Seek formal training or research
books or magazines that specialize
in pneumatic tools.
7. MAINTENANCE: Always disconnect
air from the nailer when servicing or
installing nails. During maintenance,
a nailer connected to air may fire
accidentally, causing serious per-
sonal injury.
8. COMPRESSED AIR RATING: Do
not connect the nailer to compressed
air that exceeds 120 PSI.
9. CHECK VALVE: Do not use a check
valve or any other fitting that allows
air to remain in the tool.

H6332 11⁄4" Brad Nailer -3-
Operating this nailer can propel
objects into the air, causing imme-
diate eye damage. To protect your-
self, always wear American National
Standards Institute (ANSI) approved
safety glasses or goggles when oper-
ating this equipment. In addition, this
nailer discharges at up to 85-90 deci-
bels. To protect your hearing, always
wear ANSI approved ear protection
when operating this nailer.
Never point this nailer at yourself or
another person! Always pay attention
to the direction this nailer is pointed.
Use this tool with respect and caution
to lessen the possibility of operator or
bystander injury. Ignoring this warning
may result in serious personal injury.
Nailer/stapler accidents routinely hap-
pen while moving the gun to another
location, such as up ladders, to anoth-
er room, or even another job site.
Always disconnect the gun immedi-
ately after use and never transport the
gun while connected to the air—even
if the air compressor is disconnected
from its power source!
No list of safety guidelines can be
complete. Every shop environment is
different. Always consider safety first,
as it applies to your individual working
conditions. Use this and other tools
with caution and respect. Failure to
do so could result in serious personal
injury, damage to equipment or poor
work results.

H6332 11⁄4" Brad Nailer
-4-
INTRODUCTION
If you have any comments regarding this
manual, please write to us at the following
address:
Grizzly Industrial, Inc.
C/O Technical Documentation Manager
P.O. Box 2069
Bellingham, WA 98227-2069
Most importantly, we stand behind our
tools. If you have any service questions or
parts requests, please call or write us at
the location listed below.
Grizzly Industrial, Inc.
1203 Lycoming Mall Circle
Muncy, PA 17756
Phone: [phone]
Fax: [phone]
E-Mail: [email protected]
Web Site: http://www.grizzly.com
We are proud to offer the Grizzly Model
H6332 11⁄4" Brad Nailer. This model is
part of a growing Grizzly family of fine
pneumatic tools. When used according to
the guidelines set forth in this manual, you
can expect years of trouble-free, enjoy-
able operation and proof of Grizzly’s com-
mitment to customer satisfaction.
The specifications, details, and photo-
graphs in this manual represent the Model
H6332 as supplied when the manual was
prepared. However, owing to Grizzly’s pol-
icy of continuous improvement, changes
may be made at any time with no obliga-
tion on the part of Grizzly.
Foreword Contact Info
Machine Data
Nail Size ..................................... 18 Gauge
Nail Length .................................... 3/8"–1¼"
Magazine Capacity ...................... 100 Nails
Air Inlet ...........................................¼" NPT
Weight .............................................3¼ lbs.
Operating Pressure .................. 60-100 PSI
Read the manual before operation.
Become familiar with this nailer, its
safety instructions, and its operation
before beginning any work. Serious
personal injury may result if safety or
operational information is not under-
stood or followed.

H6332 11⁄4" Brad Nailer -5-
SET UP
Figure 1. Model H6332 inventory.
Unpacking
Your Model H6332 left our warehouse in
a carefully packed box. If you discover
the nailer is damaged after you have
signed for delivery, please immediately
call Customer Service at [phone]
for advice.
Save the containers and all packing mate-
rials for possible inspection by the car-
rier or its agent. Otherwise, filing a freight
claim can be difficult.
When you are completely satisfied with
the condition of the shipment, you should
inventory the equipment.
Inventory
After you open the nailer box, you should
find the following.

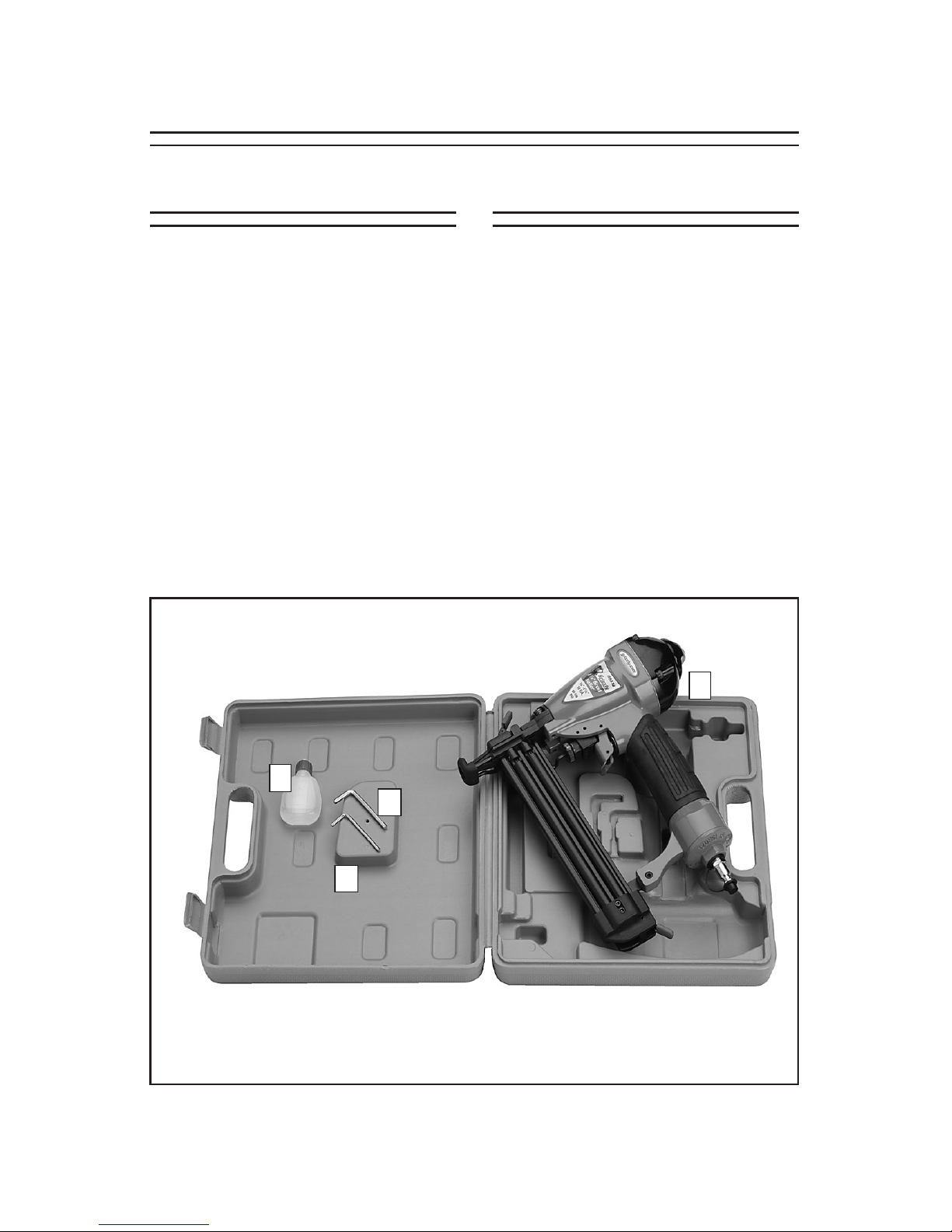

Model H6332 Inventory (Figure 1)
A. Nailer .................................................. 1
B. Pneumatic Tool Oil ............................ 1
C. Hex Wrench 3mm .............................. 1
D. Hex Wrench 4mm .............................. 1
B
C
D
A

H6332 11⁄4" Brad Nailer
-6-
Compressed Air
System
The Model H6332 is designed to be oper-
ated at 60-100 PSI using clean, dry, regu-
lated, compressed air. DO NOT exceed
the 120 PSI maximum operating pres-
sure for your model.
Before using your new nailer, regulate the
air pressure on your air compressor to the
minimum PSI for your model.
An in-line filter/lubricator/regulator unit,
depicted in Figure 2, can be installed and
should be located as close to the nailer
as possible.
The filter/lubricator/regulator unit will pro-
tect your tool from damaging water build-
up, allow you to adjust and maintain
constant air pressure to your tool, and
save you the inconvenience of having to
manually lubricate your tool every time
you use it.
Quick
Connector
Quick
Coupler
Air Hose Quick
Coupler
Quick
Connector
Lubricator
Filter
Regulator
Air
Compressor
Your
Tool
Figure 2. Typical filter/lubricator/regulator installation order.
Check the current Grizzly catalog for avail-
ability of this unit. If you plan on install-
ing a filter/lubricator/regulator unit in your
compressed air system, always follow the
connection instructions that come with
the unit.
Exceeding the maximum permissible
operating pressure may cause the
nailer to explode, blowing metal frag-
ments in all directions. To protect
yourself from serious personal injury,
DO NOT allow your air compressor to
exceed the recommended pressure
when connected to this nailer!

H6332 11⁄4" Brad Nailer -7-
Safety Nose
Mechanism
A safety mechanism on the nose of the
nailer protects against accidental firing.
When the trigger is pressed, the nailer will
not fire until the safety nose mechanism
is depressed.
Before you use your nailer for the first
time, check the safety nose mechanism to
ensure proper function. To do this:
1. DISCONNECT NAILER FROM THE
AIR SUPPLY!
2. Make sure the magazine is empty and
contains no nails.
3. Make sure the trigger and the safety
nose mechanism move up and down
without sticking.
4. Connect the nailer to the air supply.
5. Without pressing the trigger, depress
the safety nose mechanism against a
scrap piece of wood that is clean and
free of any knots, nails, or other foreign
objects.
— If the nailer does not fire, then the
safety nose mechanism is working
correctly.
— If the nailer does fire when you
do this, immediately disconnect the
nailer from the air supply and call
Grizzly Technical Support at (570)
546-9663 for help.
— If the nailer fires when the trigger
is pulled, without the safety nose
mechanism being depressed, then
the nailer is not working properly.
If this occurs, call Grizzly Technical
Support at [phone] for help.
— If you find that the safety nose
mechanism is not working properly,
check the lubrication of its sliding
components.
The safety mechanism is a mechanical
device that could fail. Never rely on
this mechanism as an excuse to point
the nailer at yourself or any bystand-
ers. Serious injury may occur.

H6332 11⁄4" Brad Nailer
-8-
OPERATIONS
Loading

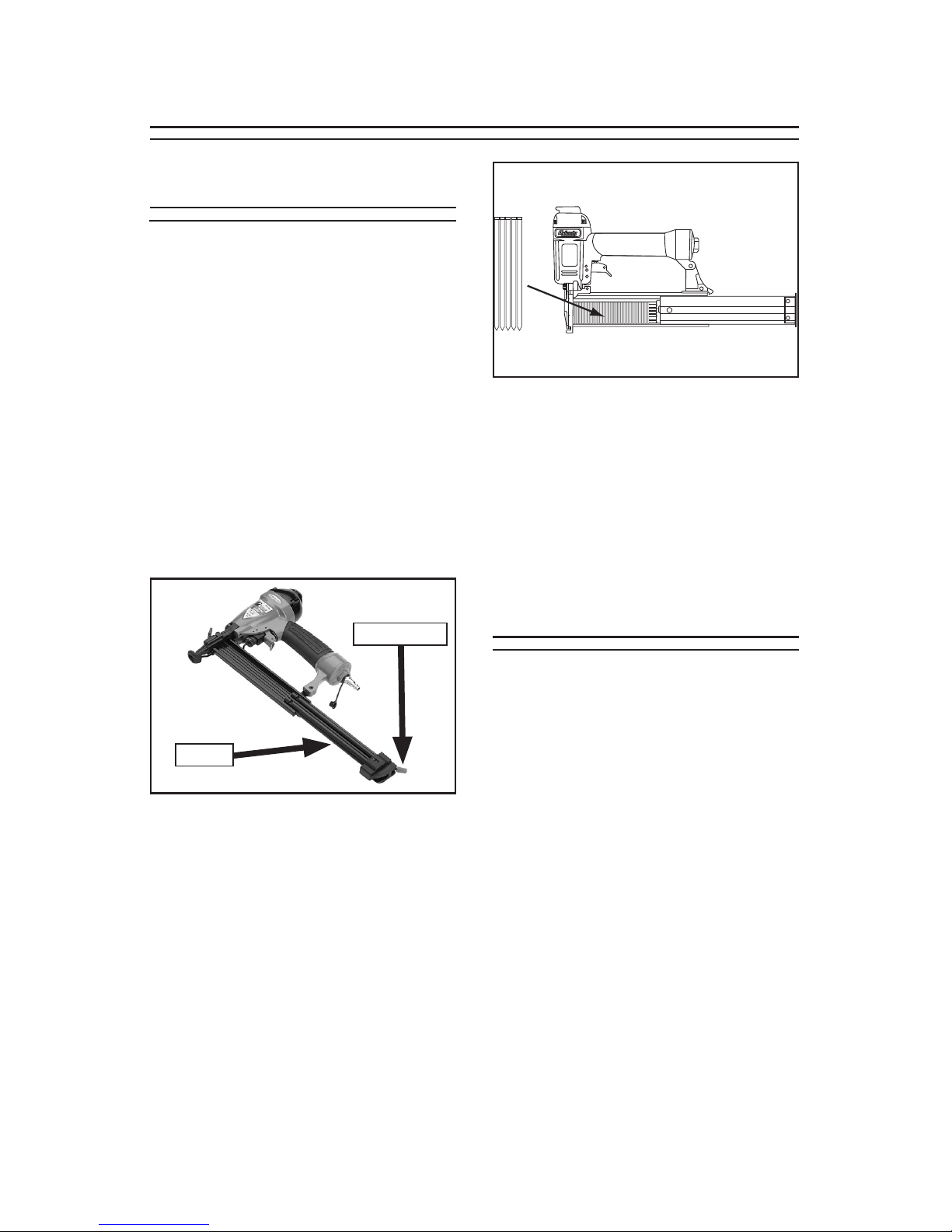

Figure 3. Releasing catch lever and
sliding magazine pusher back.
When replacing nails in your Model
H6332, follow these guidelines:
Gauge: 18
Length: 3/8" – 11⁄4"
Capacity: 100
To load your nailer:
1. DISCONNECT NAILER FROM THE
AIR SUPPLY!
2. Grip the nailer firmly, release the catch
lever and slide the magazine pusher
open, as shown in Figure 3.
Figure 4. Loading nails into magazine.
3. Insert a strip of nails, pointed-end
down, into the magazine as shown in
Figure 4.
Operating
If you have not read the safety instruc-
tions in this manual, do not operate
the nailer.
Before you operate your nailer, place five
to six drops of the included oil into the
quick connect fitting where the nailer con-
nects to the air supply.
To operate your nailer:
1. Connect the air supply to the quick
connect fitting.
2. To test for proper nail penetration, hold
the nailer perpendicular to the surface
of a piece of clean scrap wood that is
thick enough for the length of nails you
have loaded.
4. Slide the nails all the way down to the
nose of the nailer.
5. Slide the pusher back until the catch
lever locks.
Pusher
Catch Lever

H6332 11⁄4" Brad Nailer -9-
5. Pull the trigger.
— If the nail drove into the wood far
enough, continue with your intended
operations.
— If the nail either went too far or not
far enough, then go to the Adjusting
Depth section on this page.
3. Depress the safety nose mechanism
against your workpiece.
4. Before pulling the trigger, make sure
your free hand and other body parts
are positioned out of the way of a
potential path of a nail in case of
deflection.
Deflection is caused when grain
irregularities, knots or foreign objects
inside the wood cause the nail to
change its path, resulting in the
nail puncturing the surface of the
workpiece, as shown in Figure 5.
Besides damaging your workpiece,
deflection can cause injury if your free
hand is securing the workpiece in the
location that the nail deflects.
Figure 5. Example of nail deflection.

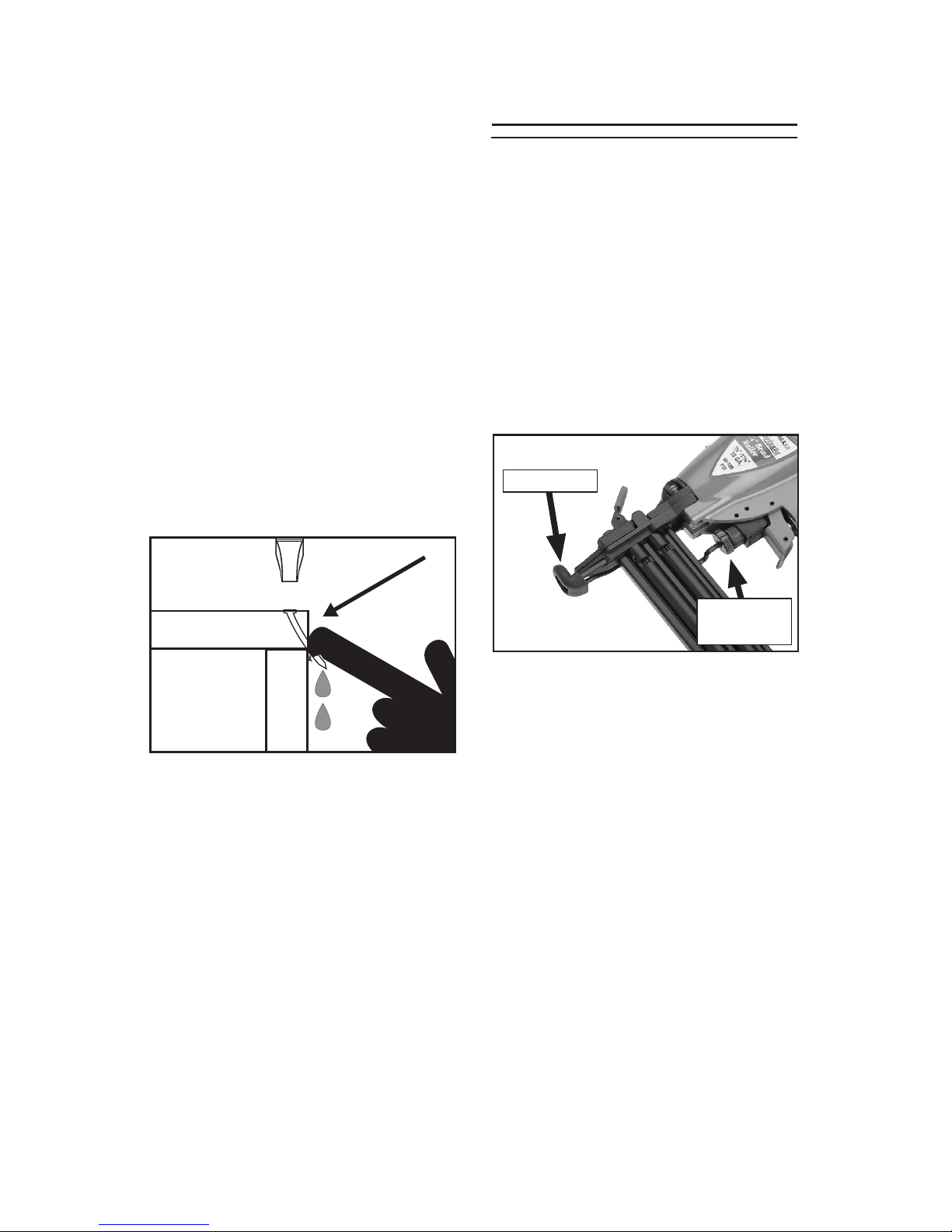

Figure 6. Depth adjustment controls.
A depth adjustment knob is attached to the
nose for setting the nail depth.
To adjust the depth:
1. DISCONNECT NAILER FROM THE
AIR SUPPLY!
2. Rotate the adjustment knob (Figure
6) clockwise to drive the nails deeper
or counterclockwise to drive the nails
shallower.
Adjusting Depth
3. Connect the nailer to the air supply, test
the nail depth, and repeat this proce-
dure until the nail depth is satisfactory.
Safety Nose
Adjustment
Knob

H6332 11⁄4" Brad Nailer
-10-
4. Open the nailer nose by removing the
rubber nose tip, depressing the nose
release mechanism, and opening the
nose cover as shown in Figure 7.
Clearing Jammed
Nails
5. Dislodge the jammed nail with a tool
that will fit in the slot on the underside
of the nose.
6. Throw the damaged nail away and
insert a new nail stick that only contains
clean, undamaged nails. DO NOT use
dirty or damaged nails!
7. Slide the pusher back until it locks into
position.
A jammed nail must be cleared before using
the nailer again.
To clear a jammed nail from the dis-
charge area:
1. DISCONNECT NAILER FROM THE
AIR SUPPLY!
2. Release the catch lever and slide back
the magazine pusher.
3. Remove the nail stick from the maga-
zine.

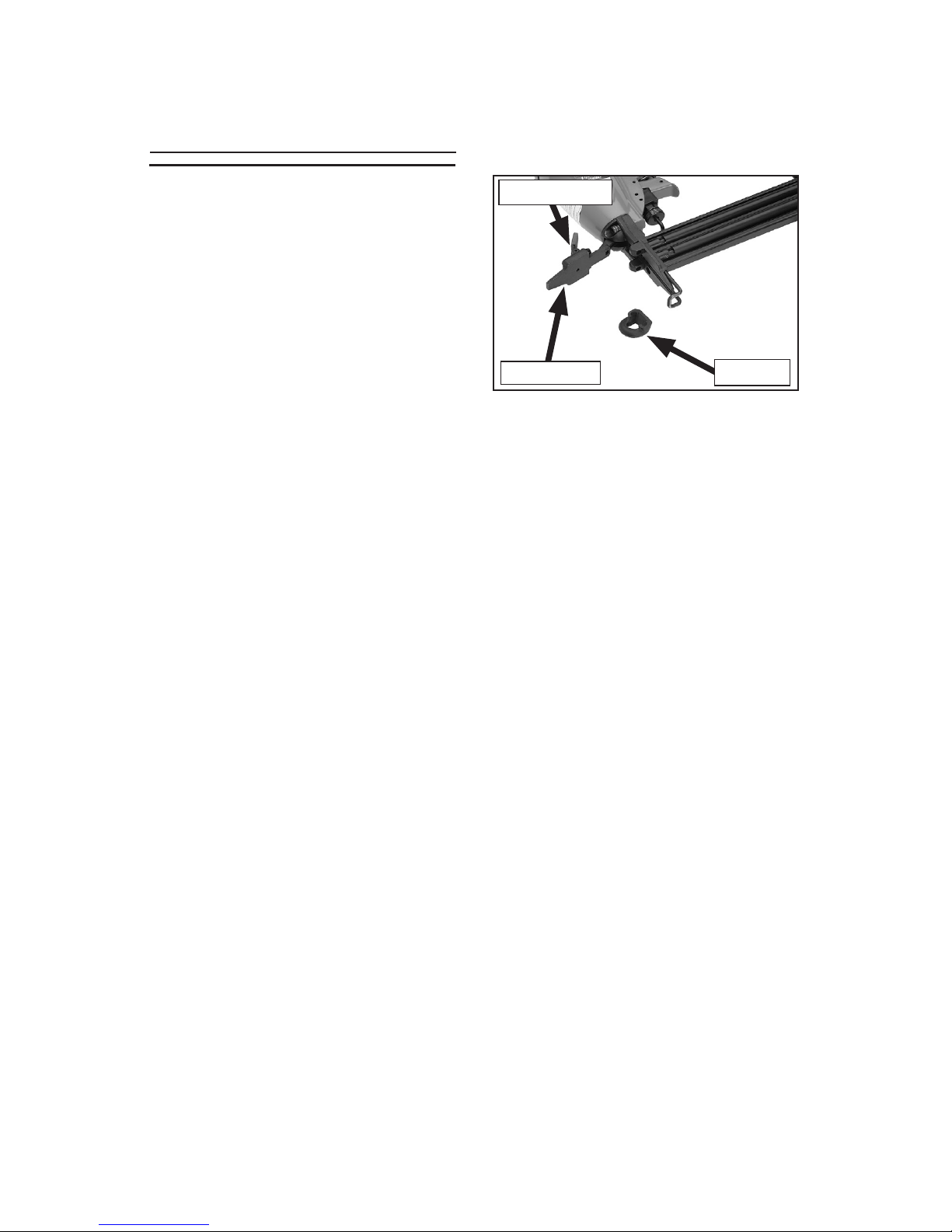

Figure 7. Nose opened to clear a jam.
Nose Cover Nose Tip
Nose Release

H6332 11⁄4" Brad Nailer -11-
Replacing Pistons/O-
Rings
If you use your nailer day in and day
out, repair pistons are cheap insurance
against wasted down time and lost profits,
in the event that a piston or piston shaft
becomes worn out. A replacement piston
and O-ring kit, part PH6332082, may be
purchased for the Model H6332.
4. Open the nose cover as if to clear a
jammed nail.
5. Watch the discharge area and push
the top of the piston with your finger.
You will see the piston shaft slide
down the discharge area.
6. With a long flathead screwdriver or
similarly shaped tool, push the piston
shaft back inside the nailer until you
can grip the piston head and remove
it from the cylinder. (Be careful not to
scratch the discharge area when push-
ing the piston shaft with the screw-
driver.)
7. Place a new O-ring on the new piston
and apply a thin film of the nailer lubri-
cating oil on the O-ring.
8. Insert the new piston in the cylinder.
Make sure that the grooves on the
piston shaft line up with those on the
guide at the bottom of the cylinder.
The new piston should easily slide
into the cylinder. DO NOT force the
piston into the cylinder! If the piston
is not easily inserted, double-check the
alignment of the piston shaft with the
grooves on the guide.
9. After the piston is inserted correctly,
close the magazine. Replace the top
cap assembly and tighten the four cap
screws.
10. For more assistance, or to install a
complete O-ring set, refer to the break-

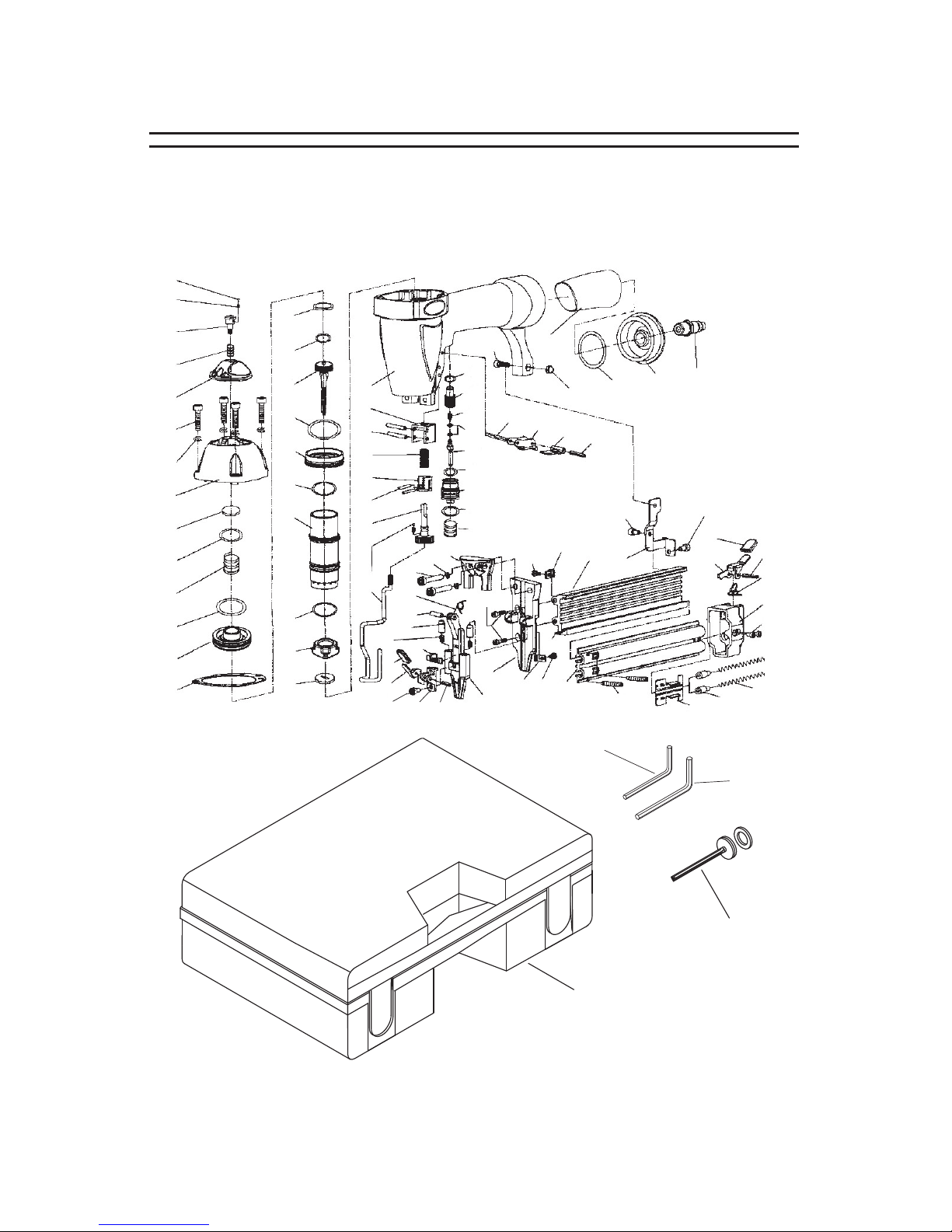

down diagram in the back of this
manual for component locations.
To replace a piston:
1. DISCONNECT NAILER FROM THE
AIR SUPPLY!
2. Remove all nails from the magazine
cartridge.
3. Remove the four cap screws on the
top of the nailer, near the exhaust
port, and remove the cap. The top of
the piston should now be visible inside
the cylinder, which is housed in the
head of the nailer.
Always disconnect air from nailer
whenever servicing! During mainte-
nance, a nailer connected to air may
fire accidentally, causing serious
personal injury!

H6332 11⁄4" Brad Nailer
-12-

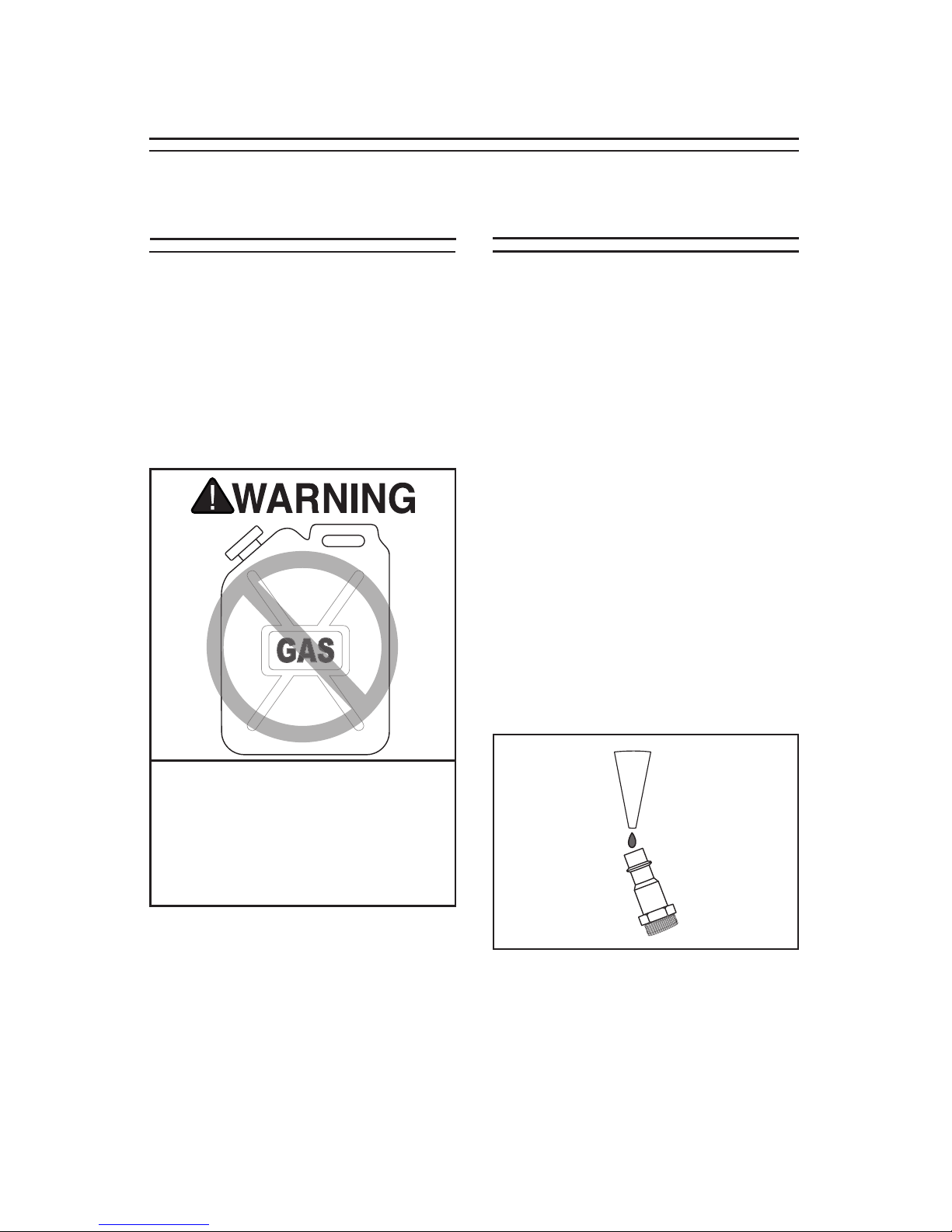

CLEANING & LUBRICATION
Cleaning
Use a good solvent to clean the nose
assembly of the nailer. Always be sure
that the nailer is dry before using it again.
Do not allow dust, chips, sand, etc. into
the air connectors or into the body of the
nailer; this may result in leaks and dam-
age to the nailer and the air couplings.
Lubricating
Pneumatic tool oil has been included with
your new Grizzly nailer to help maintain
its useful life. Place two to six drops of oil
in the nailer air inlet (as shown in Figure
8) before every use, or after 2 hours of
continuous use.
Wipe off any excess oil near the nailer
exhaust to avoid dust build-up. When
the oil that was included with the nailer
has been completely used, replace with
Grizzly Model G2820 Pneumatic Tool Oil.
Another option to manual oiling would be
to install a lubricator in your air compres-
sor line. If your air compressor line already
has a lubricator, then regular lubrication
of your nailer will not be necessary. Just
make sure there is always oil in the lubri-
cator.
Figure 8. Lubricating nailer via air inlet.
Never use gasoline or other flamma-
ble liquids to clean this tool. Vapors
in the tool may ignite, causing the
tool to explode. Ignoring this warning
may lead to serious personal injury or
even death!

H6332 11⁄4" Brad Nailer -13-
TROUBLESHOOTING
Symptom Possible Cause Solution
Air leaking at
trigger valve
area.
1. O-rings in trigger valve hous-
ing are damaged.
1. O-rings must be replaced &
operation of safety nose must
be checked.
Air leaking
between hous-
ing and hose.
1. Loose screws in housing.
2. Damaged O-ring.
3. Loose air fitting.
1. Tighten screws.
2. Replace O-ring.
3. Tighten air fitting & use teflon
tape.
Air leaking
between hous-
ing and cap
assembly.
1. Damaged seal. 1. Replace damaged seals.
Tool skips nails
while discharg-
ing.
1. Air leaks.
2. Dirt in nose.
3. Dirt or damage prevents
nails from moving freely.
4. Inadequate air flow to tool.
5. Worn piston O-ring or lack of
lubrication.
6. Damaged trigger valve O-
rings.
7. Worn bumper.
8. Cap seal leaking.
1. Tighten screws and fittings.
2. Clean nose.
3. Clean magazine and inspect/
repair damage.
4. Check fittings, hose, compres-
sor & air pressure.
5. Replace O-ring and lubricate.
6. Replace trigger valve O-rings.
7. Replace bumper.
8. Replace cap seal.
Tool runs slowly
or has a loss of
power.
1. Nailer is not lubricated.
2. Broken spring in cap assem-
bly.
3. Exhaust port in cap is
blocked.
1. Lubricate nailer.
2. Replace spring.
3. Clean or replace damaged inter-
nal parts.
Fasteners fre-
quently jam the
nailer.
1. Nails are the wrong size.
2. Nails are bent or dirty.
3. Magazine or nose screws
are loose.
4. Driver or driver guide are
worn or damaged.
5. Nails are wrong angle.
1. Use correct nails.
2. Use undamaged, clean nails.
3. Tighten magazine.
4. Replace worn or damaged
parts.
5. Use correct angle nails.
Nailer does not
fire.
1. Nailer is not lubricated.
2. Nail is jammed in magazine
or discharge area.
3. Piston shaft is damaged.
4. Air pressure too low.
1. Follow lubricating instructions.
2. Clear nailer magazine or dis-
charge area.
3. Replace piston shaft.
4. Check/increase air pressure.
Air blows out
of exhaust cap;
nailer will not
fire.
1. O-ring slipped out of groove
or damaged inside nailer.
1. Reinstall/replace suspect O-ring;
turn down the air pressure to
prevent.

H6332 11⁄4" Brad Nailer
-14-
H6332 PARTS BREAKDOWN



































 


   


 

   
 
 


 














  


    










H6332 11⁄4" Brad Nailer -15-
H6332 PARTS LIST
REF PART # DESCRIPTION REF PART # DESCRIPTION
1 PH6332001 STEEL BALL 44 PH6332044 FIXED COVER
2 PH6332002 ORIENTATION SPRING 45 PSB15M CAP SCREW M5-.8 X 20
3 PH6332003 SHOULDER BOLT M4-.7 X 16 46 PH6332046 TORSION SPRING
4 PH6332004 DIRECTION SPRING 47 PRP18M ROLL PIN 4 X 12
5 PH6332005 AIR DEFLECTOR 48 PH6332048 NOSE COVER LOCKING PIN
6 PSB15M CAP SCREW M5-.8 X 20 49 PH6332049 COMPRESSION SPRING
7 PLW01M LOCK WASHER 5MM 50 PH6332050 SLIDE BLOCK
8 PH6332008 CYLINDER CAP 51 PH6332051 HANDLE COVER
9 PH6332009 SEALING WASHER 18MM 52 PH6332052 HANDLE
10 PH6332010 O-RING 17 X 2.65 53 PSB110M CAP SCREW M4-.7 X 6
11 PH6332011 COMPRESSION SPRING 54 PH6332054 NOSE COVER
12 PH6332012 O-RING 33.6 X 2 55 PRP61M ROLL PIN 3 X 12
13 PH6332013 SWITCH PISTON 56 PH6332056 MOVABLE NOSE COVER
14 PH6332014 GASKET 57 PH6332057 DRIVER GUIDE
15 PH6332015 O-RING 30 X 3 58 PSB16M CAP SCREW M4-.7 X 16
16 PH6332016 O-RING 23.5 X 2 59 PH6332059 SAFETY GUARD CLAMP B
17 PH6332017 MAIN PISTON 60 PSB145M CAP SCREW M3-.5 X 16
18 PH6332018 O-RING 48.7 X 2.65 61 PH6332061 INLAY STRIP
19 PH6332019 COLLAR 62 PH6332062 MOVABLE MAGAZINE
20 PH6332020 CYLINDER 63 PSS23M SET SCREW M4-.7 X 10
21 PH6332021 BUMPER 64 PH6332064 MAGAZINE SLIDE PLATE
22 PH6332022 PISTON SLOT WASHER 65 PH6332065 SPRING CAP
23 PH6332023 GUN BODY 66 PH6332066 COMPRESSION SPRING
24 PH6332024 DIRECTION SEAT 67 PSB56M CAP SCREW M3-.5 X 10
25 PRP55M ROLL PIN 3 X 27 68 PH6332068 FIX SEAT
26 PH6332026 COMPRESSION SPRING 69 PH6332069 TORSION SPRING
27 PH6332027 ADJUSTMENT SEAT 70 PRP42M ROLL PIN 3 X 20
28 PH6332028 ROLL PIN 1.5 X 8 71 PH6332071 CATCH LEVER
29 PH6332029 ADJUSTMENT BOLT 72 PSB18M CAP SCREW M4-.7 X 8
30 PH6332030 COMPRESSION SPRING 73 PH6332073 MAG. CONNECTOR PLATE
31 PH6332031 SAFETY GUARD 74 PH6332074 MAGAZINE HOUSING
32 PH6332032 O-RING 7 X 1.5 75 PH6332075 SAFETY GUARD CLAMP A
33 PH6332033 TRIGGER VALVE GUIDE 76 PSB23M CAP SCREW M4-.7 X 12
34 PH6332034 COMPRESSION SPRING 77 PH6332077 RUBBER HANDGRIP
35 PH6332035 O-RING 1.9 X 1.1 78 PLN08M LOCK NUT M3-.5
36 PH6332036 SWITCH PIPE 79 PH6332079 O-RING 40 X 2.65
37 PH6332037 O-RING 11.2 X 1.6 80 PH6332080 END CAP
38 PH6332038 SWITCH SEAT 81 PH6332081 AIR PLUG 1/4 NPT
39 PH6332039 O-RING 13.2 X 1.9 82 PH6332082 PISTON REPAIR KIT
40 PH6332040 COMPRESSION SPRING 83 PH6332083 CARRYING CASE
41 PH6332041 TRIGGER 84 PAW03M HEX WRENCH 3MM
42 PH6332042 SAFETY PLATE 85 PAW04M HEX WRENCH 4MM
43 PRP64M ROLL PIN 3 X 18

Grizzly Industrial, Inc. warrants every product it sells for a period of 1 year to the original
purchaser from the date of purchase. This warranty does not apply to defects due directly
or indirectly to misuse, abuse, negligence, accidents, repairs or alterations or lack of
maintenance. This is Grizzly’s sole written warranty and any and all warranties that may
be implied by law, including any merchantability or fitness, for any particular purpose, are
hereby limited to the duration of this written warranty. We do not warrant or represent that
the merchandise complies with the provisions of any law or acts unless the manufacturer so
warrants. In no event shall Grizzly’s liability under this warranty exceed the purchase price
paid for the product and any legal actions brought against Grizzly shall be tried in the State
of Washington, County of Whatcom.
We shall in no event be liable for death, injuries to persons or property or for incidental,
contingent, special, or consequential damages arising from the use of our products.
To take advantage of this warranty, contact us by mail or phone and give us all the details.
We will then issue you a “Return Authorization Number,” which must be clearly posted on
the outside as well as the inside of the carton. We will not accept any item back without this
number. Proof of purchase must accompany the merchandise.
The manufacturers reserve the right to change specifications at any time because they
constantly strive to achieve better quality equipment. We make every effort to ensure that
our products meet high quality and durability standards and we hope you never need to
use this warranty.
Please feel free to write or call us if you have any questions about the machine or the
manual.
Grizzly Industrial, Inc.
1203 Lycoming Mall Circle
Muncy, PA 17756
Phone: [phone]
Fax: [phone]
E-Mail:
[email protected]
Web Site: http://www.grizzly.com
Thank you again for your business and continued support. We hope to serve you again
soon!
WARRANTY AND RETURNS

WARRANTY CARD
Name _________________________________________________________________
Street _________________________________________________________________
City _______________________ State _________________________ Zip _________
Phone # ____________________ Email ________________________ Invoice # _____
Model # ____________________ Order # _______________________ Serial # ______
The following information is given on a voluntary basis. It will be used for marketing purposes to
help us develop better products and services. All information is strictly confidential.
1. How did you learn about us?
____Advertisement ____Friend ____Catalog
____Card Deck ____Website Other:________________________
2. Which of the following magazines do you subscribe to?
3. What is your annual household income?
____$20,000-$29,000 ____$30,000-$39,000 ____$40,000-$49,000
____$50,000-$59,000 ____$60,000-$69,000 ____$70,000+
4. What is your age group?
____20-29 ____30-39 ____40-49
____50-59 ____60-69 ____70+
5. How long have you been a woodworker/metalworker?
____0-2 Years ____2-8 Years ____8-20 Years ____20+ Years
6. How many of your machines or tools are Grizzly?
____0-2 ____3-5 ____6-9 ____10+
7. Do you think your machine represents a good value? ____Yes ____No
8. Would you recommend Grizzly Industrial to a friend? ____Yes ____No
9. Would you allow us to use your name as a reference for our customers in your area?
Note: We never use names more than 3 times. ____Yes ____No
10. Comments: _________________________________________________________
______________________________________________________________________
______________________________________________________________________
______________________________________________________________________
____ Cabinet Maker
____ Family Handyman
____ Hand Loader
____ Handy
____ Home Shop Machinist
____ Journal of Light Cont.
____ Live Steam
____ Model Airplane News
____ Modeltec
____ Old House Journal
____ Popular Mechanics
____ Popular Science
____ Popular Woodworking
____ Practical Homeowner
____ Precision Shooter
____ Projects in Metal
____ RC Modeler
____ Rifle
____ Shop Notes
____ Shotgun News
____ Today’s Homeowner
____ Wood
____ Wooden Boat
____ Woodshop News
____ Woodsmith
____ Woodwork
____ Woodworker West
____ Woodworker’s Journal
____ Other:

FOLD ALONG DOTTED LINE
GRIZZLY INDUSTRIAL, INC.
P.O. BOX 2069
BELLINGHAM, WA 98227-2069
TAPE ALONG EDGES--PLEASE DO NOT STAPLE
Name________________________________
Street________________________________
City______________State______Zip_______
Send a Grizzly Catalog to a friend:
Place
Stamp
Here
