2" NAILER KIT
MODEL H7679
INSTRUCTION MANUAL

Safety Instructions For Pneumatic Tools
1. KEEP ALL SAFETY DEVICES IN
PLACE and in working order.
2. REMOVE ADJUSTING KEYS AND
WRENCHES. Form habit of check-
ing to see that keys and adjusting
wrenches are removed from tool
before operation.
3. KEEP WORK AREA CLEAN.
Cluttered areas and benches invite
accidents.
4. DO NOT USE IN DANGEROUS
ENVIRONMENT. Do not use pneu-
matic tools in damp or wet loca-
tions, or where any flammable or
noxious fumes may exist. Keep
work area well lighted.
5. KEEP CHILDREN AND VISITORS
AWAY. All children and visitors
should be kept at a safe distance
from work area.
6. MAKE WORKSHOP CHILD
PROOF by locking your shop and
shutting off air valves.
7. DO NOT FORCE TOOL. It will do
the job better and safer at the rate
for which it was designed.
8. USE THE RIGHT TOOL. Do not
force tool or attachment to do a job
for which it was not designed.
9. DO NOT USE UNDER THE
INFLUENCE OF DRUGS OR
ALCOHOL.
For Your Own Safety Read Instruction Manual
Before Operating This Equipment
The purpose of safety symbols is to attract your attention to possible hazard-
ous conditions. This manual uses a series of symbols and signal words which
are intended to convey the level of importance of the safety messages. The
progression of symbols is described below. Remember that safety messages by
themselves do not eliminate danger and are not a substitute for proper accident
prevention measures.
Indicates a potentially hazardous situation which, if
not avoided, MAY result in minor or moderate injury.
It may also be used to alert against unsafe practices.
Indicates a potentially hazardous situation which, if
not avoided, COULD result in death or serious injury.
Indicates an imminently hazardous situation which, if
not avoided, WILL result in death or serious injury.
This symbol is used to alert the user to useful infor-
mation about proper operation of the equipment.
SAFETY
NOTICE

H7679 2" Nailer Kit -1-
10. USE PROPER AIR HOSE for the
tool. Make sure your air hose is in
good condition and is long enough to
reach your work without stretching.
11. WEAR PROPER APPAREL. Do not
wear loose clothing, gloves, neck-
ties, rings, bracelets, or other jew-
elry which may get caught in moving
parts. Non-slip footwear is recom-
mended. Wear a protective hair cov-
ering to contain long hair.
12. ALWAYS USE ANSI APPROVED
SAFETY GLASSES. Also use a
face or dust mask if cutting operation
is dusty. Everyday eyeglasses only
have impact resistant lenses, they
are NOT safety glasses.
13. WEAR APPROVED HEARING
PROTECTION.
14. SECURE WORK. Use clamps or a
vise to hold work when practical. It is
safer than using your hand and frees
both hands to operate tool.
15. MAINTAIN TOOLS WITH CARE.
Keep tools lubricated and clean
for best and safest performance.
Follow instructions for lubricating
and changing accessories.
16. REDUCE THE RISK OF
UNINTENTIONAL STARTING. Do
not carry tool with hand on trig-
ger and always disconnect from air
when not in use.
17. DISCONNECT TOOLS before ser-
vicing, changing accessories, or
moving to another location.
18. DO NOT OVERREACH. Keep
proper footing and balance at all
times.
19. USE THE RECOMMENDED
ACCESSORIES. Consult owner’s
manual for recommended acces-
sories. The use of improper acces-
sories may cause risk of injury.
20. CHECK FOR DAMAGED PARTS
BEFORE USING. Check for bind-
ing and alignment of parts, broken
parts, part mounting, loose bolts,
and any other conditions that may
affect machine operation. Repair or
replace damaged parts.
21. NEVER LEAVE UNATTENDED
TOOL CONNECTED TO AIR.
Disconnect the air hose and do not
leave tool until it is relieved of any
built up pressure.
22. NEVER ALLOW UNTRAINED
USERS TO USE THIS TOOL
WHILE UNSUPERVISED.
23. IF YOU ARE UNSURE OF THE
INTENDED OPERATION, STOP
USING THE TOOL. Seek formal
training or research books or maga-
zines that specialize in pneumatic
tools.
Safety Instructions For Pneumatic Tools

H7679 2" Nailer Kit
-2-
1. HAND INJURIES: Do not place your
hands near the nail point of entry. A
nail can deflect and tear through the
surface of the workpiece, puncturing
your hand or fingers.
2. COMBUSTIBLE GASES: Never
connect the nailer to pressurized
oxygen or other combustible gases
as a power source. Only use fil-
tered, lubricated, and regulated
compressed air.
3. SAFE HANDLING: Never point the
nailer at others! Do not keep the
trigger pulled when loading fasten-
ers, carrying, or holding tool. Carry
the nailer only by the handle, never
by any other part. Do not carry the
nailer by the air hose. Disconnect
the nailer from the air hose when
going up and down ladders.
4. CLEANING: Never use gasoline or
other flammable liquids to clean the
nailer; vapors in the nailer will ignite
by a spark and cause it to explode.
Additional Safety Instructions for Nailers
5. HOSE: Make sure your air hose
is designed for the tool in use,
is in good condition, and is long
enough to reach your work with-
out stretching. However, an overly
long air hose in the work area may
be a tripping hazard.
6. OPERATING QUESTIONS: If you
are not sure about the intended
operation, stop using the nailer.
Seek formal training or research
books or magazines that special-
ize in pneumatic tools.
7. MAINTENANCE: Always discon-
nect air from the nailer when ser-
vicing or installing nails. During
maintenance, a nailer connected
to air may fire accidentally, caus-
ing serious personal injury.
8. COMPRESSED AIR RATING: Do
not connect the nailer to com-
pressed air that exceeds 120 PSI.
9. CHECK VALVE: Do not use a
check valve or any other fitting that
allows air to remain in the tool.

H7679 2" Nailer Kit -3-
Operating this nailer can propel
objects into the air, causing imme-
diate eye damage. To protect your-
self, always wear American National
Standards Institute (ANSI) approved
safety glasses or goggles when oper-
ating this equipment. In addition, this
nailer discharges at up to 90 deci-
bels. To protect your hearing, always
wear ANSI approved ear protection
when operating this nailer.
Never point this nailer at yourself or
another person! Always pay attention
to the direction this nailer is pointed.
Use this tool with respect and caution
to lessen the possibility of operator or
bystander injury. Ignoring this warning
may result in serious personal injury.
Nailer/stapler accidents routinely hap-
pen while moving the gun to another
location, such as up ladders, to anoth-
er room, or even another job site.
Always disconnect the gun immedi-
ately after use and never transport the
gun while connected to the air—even
if the air compressor is disconnected
from its power source!
No list of safety guidelines can be
complete. Every shop environment is
different. Always consider safety first,
as it applies to your individual working
conditions. Use this and other tools
with caution and respect. Failure to
do so could result in serious personal
injury, damage to equipment or poor
work results.

H7679 2" Nailer Kit
-4-
INTRODUCTION
If you have any comments regarding this
manual, please write to us at the following
address:
Grizzly Industrial, Inc.
C/O Technical Documentation Manager
P.O. Box 2069
Bellingham, WA 98227-2069
Most importantly, we stand behind our
tools. If you have any service questions or
parts requests, please call or write us at
the location listed below.
Grizzly Industrial, Inc.
1203 Lycoming Mall Circle
Muncy, PA 17756
Phone: [phone]
Fax: [phone]
E-Mail: [email protected]
Web Site: http://www.grizzly.com
We are proud to offer the Grizzly Model
H7679 2" Nailer Kit. This model is part of
a growing Grizzly family of fine pneumatic
tools. When used according to the guide-
lines set forth in this manual, you can
expect years of trouble-free, enjoyable
operation and proof of Grizzly’s commit-
ment to customer satisfaction.
The Model H7679 features a 360° exhaust
port, comfort grip rubber handle, and eco-
nomical air consumption with low noise.
The specifications, details, and photo-
graphs in this manual represent the Model
H7679 as supplied when the manual was
prepared. However, owing to Grizzly’s pol-
icy of continuous improvement, changes
may be made at any time with no obliga-
tion on the part of Grizzly.
Foreword Contact Info
Specifications
Nail Size ..................................... 18 Gauge
Nail Length ........................................3⁄8"–2"
Magazine Capacity ...................... 100 Nails
Air Inlet ...........................................¼" NPT
Weight .............................................3.8 lbs.
Operating Pressure ................. 60–100 PSI
Read the manual before operation.
Become familiar with this nailer, its
safety instructions, and its operation
before beginning any work. Serious
personal injury may result if safety or
operational information is not under-
stood or followed.

H7679 2" Nailer Kit -5-
SET UP

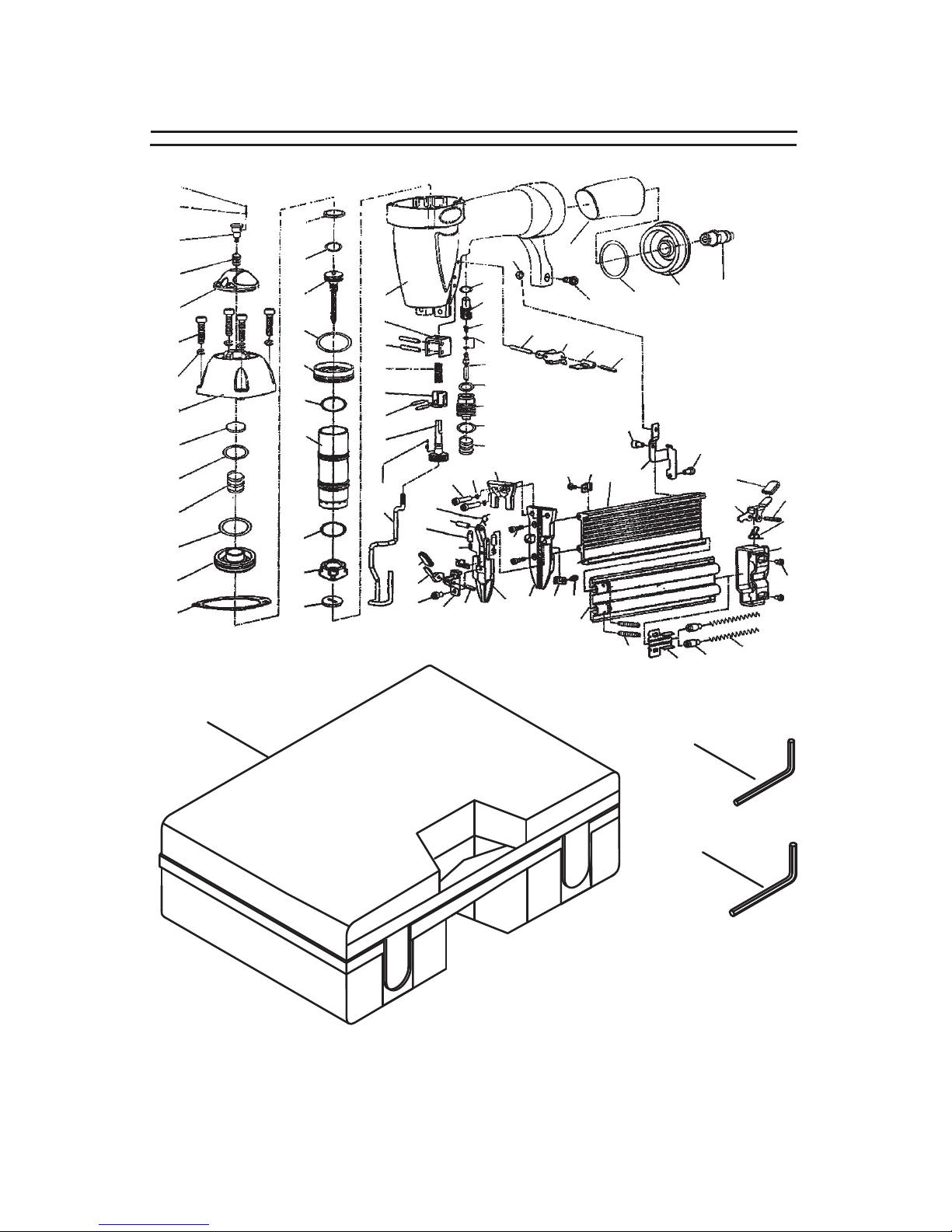

Figure 1. Model H7679 inventory.
Unpacking
Your Model H7679 left our warehouse in
a carefully packed box. If you discover
the nailer is damaged after you have
signed for delivery, please immediately
call Customer Service at [phone]
for advice.
Save the containers and all packing mate-
rials for possible inspection by the car-
rier or its agent. Otherwise, filing a freight
claim can be difficult.
When you are completely satisfied with
the condition of the shipment, you should
inventory the equipment.
Inventory
After you open the nailer box, you should
find the following.
Model H7679 Inventory (Figure 1)
A. Nailer .................................................. 1
B. Safety Goggles ................................. 1
C. Pneumatic Tool Oil ............................ 1
D. Hex Wrench 3MM .............................. 1
E. Hex Wrench 4MM .............................. 1
F. Carrying Case .................................... 1
B
C
D
F
E
A

H7679 2" Nailer Kit
-6-
Compressed Air
System
The Model H7679 is designed to be oper-
ated at 60–100 PSI using clean, dry, regu-
lated, compressed air. DO NOT exceed
the maximum operating pressure for
your model.
Before using your new nailer, regulate the
air pressure on your air compressor to the
minimum PSI for your model.

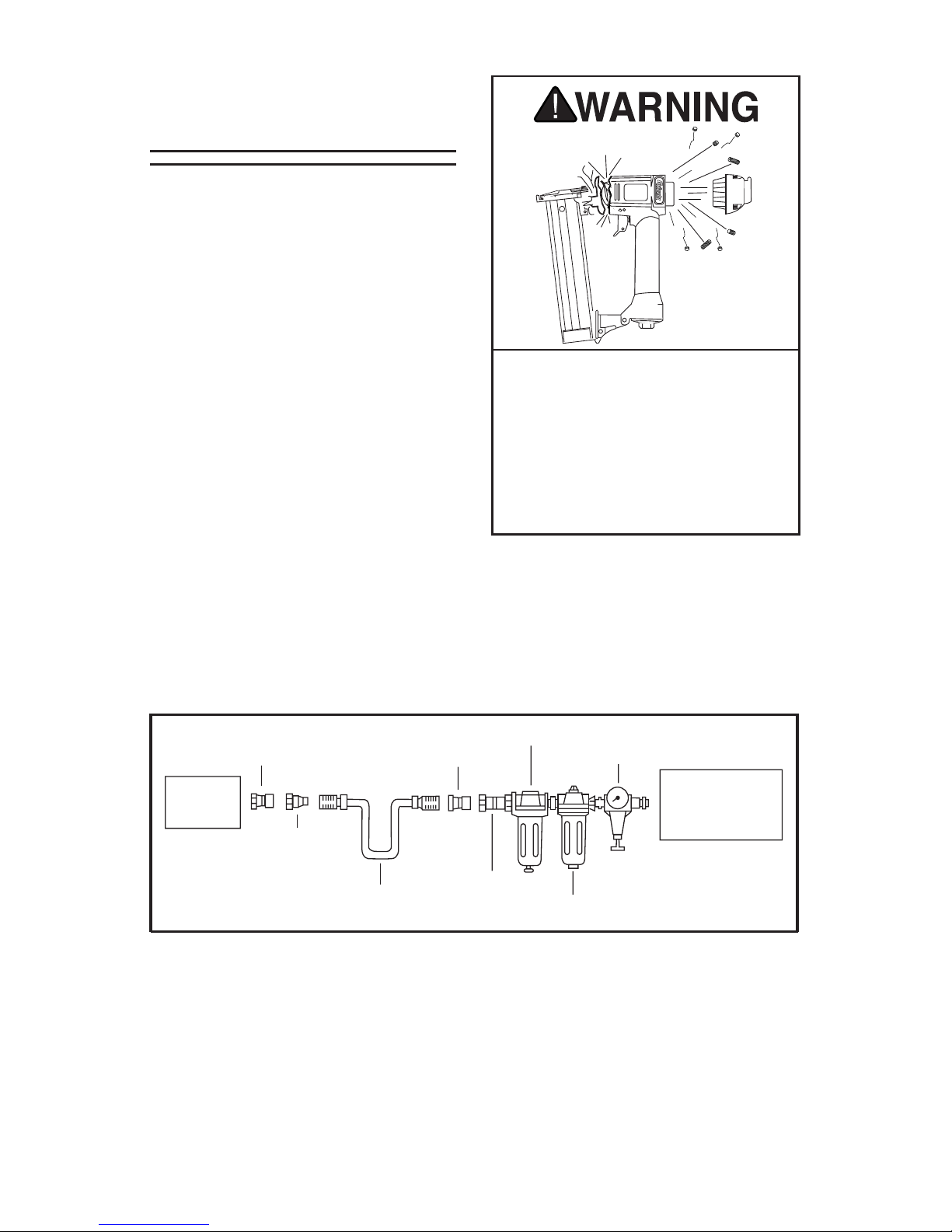

An in-line filter/lubricator/regulator unit,
depicted in Figure 2, can be installed and
should be located as close to the nailer
as possible.
This filter/lubricator/regulator unit will
protect your tool from damaging water
build-up, allow you to adjust and maintain
constant air pressure to your tool, and
save you the inconvenience of having to
manually lubricate your tool every time
you use it.
Quick
Connector
Quick
Coupler
Air Hose Quick
Coupler
Quick
Connector
Lubricator
Filter
Regulator
Air
Compressor
Your
Tool
Figure 2. Typical filter/lubricator/regulator installation order.
Check the current Grizzly catalog for avail-
ability of this unit. If you plan on install-
ing a filter/lubricator/regulator unit in your
compressed air system, always follow the
connection instructions that come with
the unit.
Exceeding the maximum permissible
operating pressure may cause the
nailer to explode, blowing metal frag-
ments in all directions. To protect
yourself from serious personal injury,
DO NOT allow your air compressor to
exceed the recommended pressure
when connected to this nailer!

H7679 2" Nailer Kit -7-
Safety Nose
Mechanism
A safety mechanism on the nose of the
nailer protects against accidental firing.
When the trigger is pressed, the nailer will
not fire until the safety nose mechanism is
depressed.
Before you use your nailer for the first
time, check the safety nose mechanism to
ensure proper function. To do this:
1. DISCONNECT NAILER FROM THE
AIR SUPPLY!
2. Make sure the magazine is empty and
contains no nails.
3. Make sure the trigger and the safety
nose mechanism move up and down
without sticking.
4. Connect the nailer to the air supply.
5. Without pressing the trigger, depress
the safety nose mechanism against a
scrap piece of wood that is clean and
free of any knots, nails, or other foreign
objects.
— If the nailer does not fire, then the
safety nose mechanism is working
correctly.
— If the nailer does fire when you
do this, immediately disconnect the
nailer from the air supply and call
Grizzly Technical Support at (570)
546-9663 for help.
— If the nailer fires when the trigger
is pulled, without the safety nose
mechanism being depressed, then
immediately disconnect the nailer
from the air supply and call Grizzly
Technical Support at (570) 546-
9663 for help.
— If you find that the safety nose
mechanism is not working properly,
check the lubrication of its sliding
components.
The safety mechanism is a mechanical
device that can fail. Never rely on this
mechanism as an excuse to point the
nailer at yourself or any bystanders.
Serious injury may occur.

H7679 2" Nailer Kit
-8-
OPERATIONS
Loading

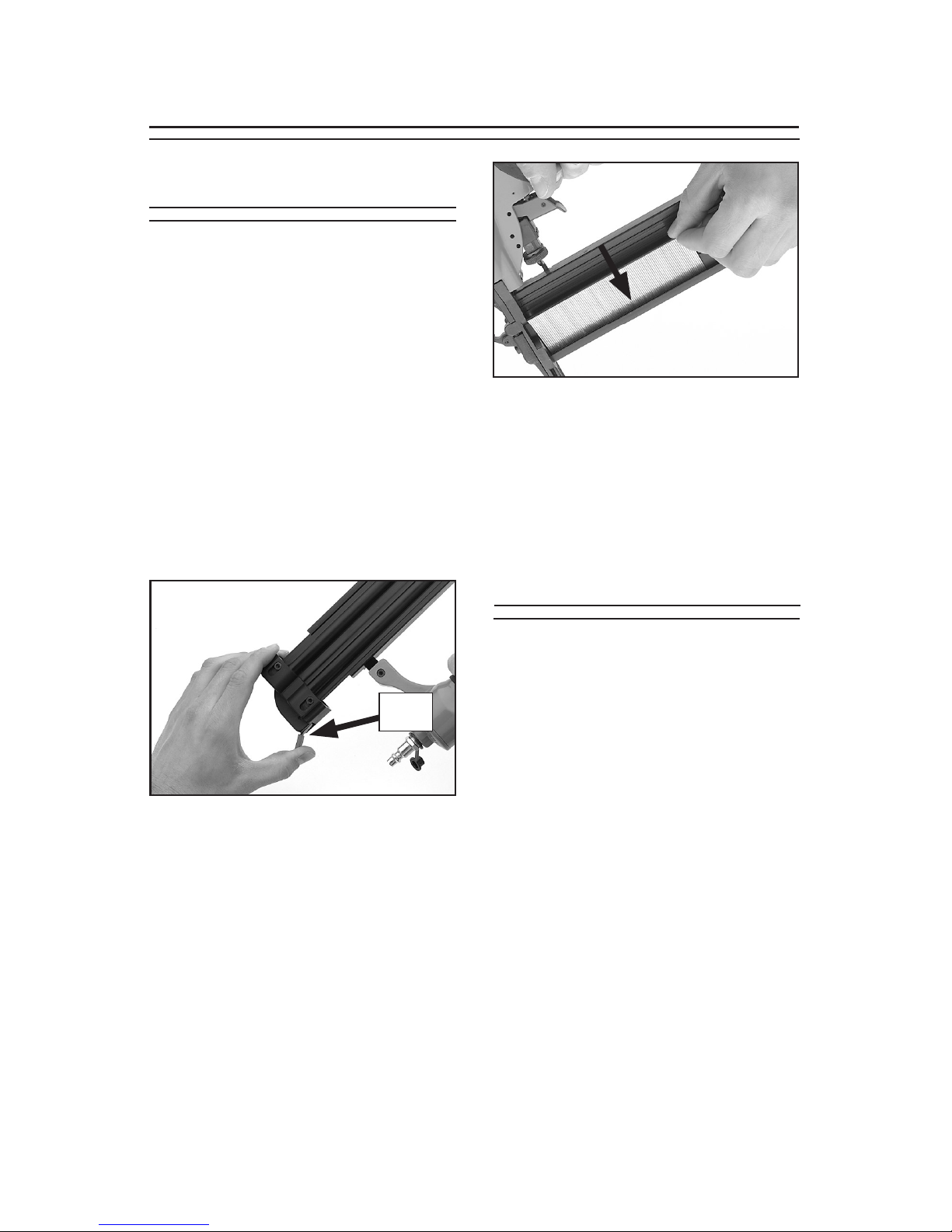

Figure 3. Sliding magazine pusher back
and locking catch lever in place.
When replacing nails in your Model
H7679, follow these guidelines:
Gauge: 18
Length: 3⁄8" – 2"
Capacity: 100
To load your nailer:
1. DISCONNECT NAILER FROM THE
AIR SUPPLY!
2. Sliding magazine pusher back, as
shown in Figure 3, to lock the catch
lever in place.
Figure 4. Loading nails into magazine.
3. Insert a strip of nails, pointed-end
down, into the magazine as shown in
Figure 4.
Operating
If you have not read the safety instruc-
tions in this manual, do not operate
the nailer.
Before you operate your nailer, place five
to six drops of the included oil into the
quick connect fitting where the nailer con-
nects to the air supply.
To operate your nailer:
1. Connect the air supply to the quick
connect fitting.
2. To test for proper nail penetration, hold
the nailer perpendicular to the surface
of a piece of clean scrap wood that is
thick enough for the length of nails you
have loaded.
4. Slide the nails all the way down to the
nose of the nailer.
5. Push the magazine pusher all the way
in until the catch lever locks.
Catch
Lever

H7679 2" Nailer Kit -9-
Figure 6. Depth adjustment controls.
A depth adjustment knob is attached to the
nose for setting the nail depth.
To adjust the depth:
1. DISCONNECT NAILER FROM THE
AIR SUPPLY!
2. Rotate the adjustment knob (Figure
6) clockwise to drive the nails deeper
or counterclockwise to drive the nails
shallower.
5. Pull the trigger.
— If the nail drove into the wood far
enough, continue with your intended
operations.
— If the nail either went too far or not
far enough, then go to the Adjusting
Depth subsection on this page.
3. Depress the safety nose mechanism
against your workpiece.
4. Before pulling the trigger, make sure
your free hand and other body parts
are positioned out of the way of a
potential path of a nail in case of
deflection.
Deflection is caused when grain
irregularities, knots or foreign objects
inside the wood cause the nail to
change its path, resulting in the
nail puncturing the surface of the
workpiece, as shown in Figure 5.
Besides damaging your workpiece,
deflection can cause injury if your free
hand is securing the workpiece in the
location that the nail deflects.
Figure 5. Example of nail deflection.
Adjusting Depth
3. Connect nailer to the air supply and
test the nail depth, and repeat this
entire procedure if necessary until the
nail depth is satisfactory.
Safety Nose
Adjustment
Knob

H7679 2" Nailer Kit
-10-
A jammed nail must be cleared before using
the nailer again.
To clear a jammed nail from the dis-
charge area:
1. DISCONNECT NAILER FROM THE
AIR SUPPLY!
2. Unlatch and pull the magazine all the
way back.
3. Remove the nail stick from the maga-
zine.
Clearing Jammed
Nails
Figure 7. Nose opened to clear a jam.
Nose Cover
Nose Release
Lever
Nose Tip
4. Open the nailer nose with the nose
release lever (Figure 7).
5. Dislodge the jammed nail with a tool
that will fit in the slot on the underside
of the nose, like needle nose pliers.
6. Throw the damaged nail away and
insert a new nail stick that only contains
clean, undamaged nails. DO NOT use
dirty or damaged nails!
7. Push the magazine all the way in until
the catch lever locks.

H7679 2" Nailer Kit -11-
Replacing Pistons/O-
Rings
If you use your nailer day in and day
out, repair pistons are cheap insurance
against wasted down time and lost profits,
in the event that a piston or piston shaft
becomes worn out.
The piston repair kit part number for the
Model H7679 is #PH7679085. For your
convenience, refer to the parts breakdown
during this procedure to identify parts and
their locations inside the nailer.
4. The top of the piston should now be
visible inside the cylinder, which is
housed in the head of the nailer.
5. Open the nose cover as if to clear a
jammed nail.
6. Watch the discharge area and push
the top of the piston with your finger.
You will see the piston shaft slide
down the discharge area.
7. With a long flathead screwdriver or
similarly shaped tool, push the piston
shaft back inside the nailer until you
can grip the piston head and remove
it from the cylinder. (Be careful not to
scratch the discharge area when push-
ing the piston shaft with the screw-
driver.)
8. Place a new O-ring on the new piston
and apply a thin film of the nailer lubri-
cating oil on the O-ring.
9. Insert the new piston in the cylinder.
Make sure that the grooves on the
piston shaft line up with those on the
guide at the bottom of the cylinder.
The new piston should easily slide
into the cylinder. DO NOT force the
piston into the cylinder! If the piston
is not easily inserted, double-check the
alignment of the piston shaft with the
grooves on the guide.
10. After the piston is inserted correctly,
close the magazine. Replace the rear
cap assembly and tighten the 4 cap
screws.
11. For more assistance, or to install a
complete O-ring set, refer to the appro-
priate breakdown diagram in the back
of this manual for component loca-
tions.
To replace a piston and O-ring(s):
1. DISCONNECT NAILER FROM THE
AIR SUPPLY!
2. Remove all nails from the magazine
cartridge.
3. Remove the four cap screws on the
head of the nailer, near the exhaust
port, and remove the cylinder cover.
Always disconnect air from nailer
whenever servicing! During mainte-
nance, a nailer connected to air may
fire accidentally, causing serious
personal injury!

H7679 2" Nailer Kit
-12-
CLEANING & LUBRICATION
Cleaning
Use a good solvent to clean the nose
assembly of the nailer. Always be sure
that the nailer is dry before using it again.
Do not allow dust, chips, sand, etc. into
the air connectors or into the body of the
nailer; this may result in leaks and dam-
age to the nailer and the air couplings.
Lubricating
Special oil has been included with your
new Grizzly nailer to help maintain its
useful life. Place two to six drops of oil in
the nailer air inlet (as shown in Figure 8)
every 2 hours of continuous use.
Wipe off any excess oil near the nailer
exhaust to avoid dust build-up. When
the oil that was included with the nailer
has been completely used, replace with
Grizzly Model G2820 Pneumatic Tool Oil.
Another option to manual oiling would be
to simply install a lubricator in your air
compressor line. If your air compressor
line already has a lubricator, then regular
lubrication of your nailer will not be neces-
sary. Just make sure there is always oil in
the lubricator.
Figure 8. Lubricating nailer via air inlet.
Never use gasoline or other flamma-
ble liquids to clean this tool. Vapors
in the tool may ignite, causing the
tool to explode. Ignoring this warning
may lead to serious personal injury or
even death!

H7679 2" Nailer Kit -13-
H7679 PARTS BREAKDOWN


























 















  









    





   









 

 
  




H7679 2" Nailer Kit
-14-
H7679 PARTS LIST
REF PART # DESCRIPTION REF PART # DESCRIPTION
1 PH7679001 BALL (DW=2.5) 44 PH7679044 SEAL COVER
2 PH7679002 COMPRESSED SPRING A 45 PSB38M CAP SCREW M5-.8 X 25
3 PH7679003 SPECIAL BOLT 46 PH7679046 TORSION SPRING
4 PH7679004 COMPRESSED SPRING 47 PH7679047 PIN C4 X 12
5 PH7679005 AIR DEFLECTOR 48 PH7679048 LOCK PIN
6 PSB15M CAP SCREW M5-.8 X 20 49 PH7679049 COMPRESSED SPRING
7 PLW01M LOCK WASHER 5MM 50 PH7679050 SLIP BLOCK
8 PH7679008 CYLINDER COVER 51 PH7679051 SAFETY COVER
9 PH7679009 SEALING WASHER 52 PH7679052 PULL HANDLE
10 PH7679010 O-RING 17 X 2.65 53 PSB110M CAP SCREW M4-.7 X 6
11 PH7679011 COMPRESSED SPRING 54 PH7679054 GUIDE COVER
12 PH7679012 O-RING 33.6 X 2 55 PRP61M ROLL PIN 3 X 12
13 PH7679013 SWITCH VALVE 56 PH7679056 FUNCTION COVER
14 PH7679014 GASKET 57 PH7679057 PLATE HEAD
15 PH7679015 SEALING WASHER 58 PSB16M CAP SCREW M4-.7 X 16
16 PH7679016 O-RING 23.5 X 2 59 PH7679059 GUIDE BLOCK B
17 PH7679017 MAIN PISTON 60 PSB57M CAP SCREW M3-.5 X 6
18 PH7679018 O-RING 48.7 X 2.65 61 PH7679061 CARBON STRIP
19 PH7679019 COLLAR 62 PH7679062 MOVABLE MAGAZINE
20 PH7679020 CYLINDER 63 PSS23M SET SCREW M4-.7 X 10
21 PH7679021 BUMPER 64 PH7679064 PUSHER
22 PH7679022 SEALING WASHER 65 PH7679065 PUSHER PIPE
23 PH7679023 GUN BODY 66 PH7679066 PUSHER SPRING
24 PH7679024 STAND 67 PSB56M CAP SCREW M3-.5 X 10
25 PRP55M ROLL PIN 3 X 27 68 PH7679068 FIXED SEAT
26 PH7679026 COMPRESSED SPRING 69 PH7679069 COMPRESSED SPRING
27 PH7679027 ADJUSTABLE STAND 70 PRP42M ROLL PIN 3 X 20
28 PH7679028 PIN 1.5 X 8 71 PH7679071 FIXED LEVER
29 PH7679029 ADJUSTMENT NUT 72 PSB18M CAP SCREW M4-.7 X 8
30 PH7679030 COMPRESSED SPRING B 73 PH7679073 SUPPORT SEAT
31 PH7679031 SAFETY NOZZLE 74 PH7679074 FIXED MAGAZINE
32 PH7679032 O-RING 7 X 1.5 75 PH7679075 GUIDE BLOCK A
33 PH7679033 VALVE COVER 76 PLN01M LOCK NUT M4-.7
34 PH7679034 SCREW SPRING 77 PSB41M CAP SCREW M4-.7 X 14
35 PH7679035 O-RING 1.9 X 1.1 78 PH7679078 RUBBER HANDLE CASE
36 PH7679036 SWITCH LEVER 79 PH7679079 O-RING 40 X 2.65
37 PH7679037 O-RING 11.2 X 1.6 80 PH7679080 END CAP
38 PH7679038 TRIGGER VALVE SEAT 81 PH7679081 AIR INLET PLUG 1/4" NPT
39 PH7679039 O-RING 13.2 X 1.9 82 PH7679082 CARRYING CASE
40 PH7679040 COMPRESSED SPRING 83 PAW03M HEX WRENCH 3MM
41 PH7679041 TRIGGER 84 PAW04M HEX WRENCH 4MM
42 PH7679042 SAFETY SPACER 85 PH7679085 PISTON REPAIR KIT*
43 PRP64M ROLL PIN 3 X 18
* ITEM NOT SHOWN IN BREAKDOWN

H7679 2" Nailer Kit -15-
TROUBLESHOOTING
Symptom Possible Cause Solution
Air leaking at trig-
ger valve area.
1. O-rings in trigger valve hous-
ing are damaged.
1. O-rings must be replaced
& operation of safety nose
must be checked.
Air leaking between
housing and hose.
1. Loose screws in housing.
2. Damaged O-ring.
3. Loose air fitting.
1. Tighten screws.
2. Replace O-ring.
3. Tighten air fitting & use tef-
lon tape.
Air leaking between
housing and cap
assembly.
1. Damaged seal. 1. Replace damaged seals.
Tool skips nails
while discharging.
1. Air leaks.
2. Dirt in nose.
3. Dirt or damage prevents nails
from moving freely in maga-
zine.
4. Inadequate air flow to tool.
5. Worn O-ring on piston or lack
of lubrication.
6. Damaged O-rings on trigger
valve.
7. Worn bumper.
8. Cap seal leaking.
1. Tighten screws and fittings.
2. Clean nose.
3. Clean magazine and
inspect/repair damage.
4. Check fitting, hose, com-
pressor & air pressure.
5. Replace piston O-ring.
Lubricate.
6. Replace trigger valve O-
rings.
7. Replace bumper.
8. Replace cap seal.
Tool runs slowly
or has a loss of
power.
1. Nailer is not sufficiently lubri-
cated.
2. Broken spring in cap assem-
bly.
3. Exhaust port in cap is blocked.
1. Lubricate nailer.
2. Replace spring.
3. Clean or replace damaged
internal parts.
Fasteners frequent-
ly jam the nailer.
1. Nails are the wrong size.
2. Nails are bent or dirty.
3. Magazine or nose screws are
loose.
4. Driver or driver guide are worn
or damaged.
1. Use correct nails.
2. Use undamaged, clean
nails.
3. Tighten magazine.
4. Replace worn or damaged
parts.
Nailer does not fire. 1. Nail is jammed in magazine or
discharge area.
2. Piston shaft is damaged.
3. Air pressure too low.
1. Clear nailer magazine or
discharge area.
2. Replace piston shaft.
3. Check/increase air pres-
sure.

Grizzly Industrial, Inc. warrants every product it sells for a period of 1 year to the original
purchaser from the date of purchase. This warranty does not apply to defects due directly
or indirectly to misuse, abuse, negligence, accidents, repairs or alterations or lack of
maintenance. This is Grizzly’s sole written warranty and any and all warranties that may
be implied by law, including any merchantability or fitness, for any particular purpose, are
hereby limited to the duration of this written warranty. We do not warrant or represent that
the merchandise complies with the provisions of any law or acts unless the manufacturer so
warrants. In no event shall Grizzly’s liability under this warranty exceed the purchase price
paid for the product and any legal actions brought against Grizzly shall be tried in the State
of Washington, County of Whatcom.
We shall in no event be liable for death, injuries to persons or property or for incidental,
contingent, special, or consequential damages arising from the use of our products.
To take advantage of this warranty, contact us by mail or phone and give us all the details.
We will then issue you a “Return Authorization Number,” which must be clearly posted on
the outside as well as the inside of the carton. We will not accept any item back without this
number. Proof of purchase must accompany the merchandise.
The manufacturers reserve the right to change specifications at any time because they
constantly strive to achieve better quality equipment. We make every effort to ensure that
our products meet high quality and durability standards and we hope you never need to
use this warranty.
Please feel free to write or call us if you have any questions about the machine or the
manual.
Grizzly Industrial, Inc.
1203 Lycoming Mall Circle
Muncy, PA 17756
Phone: [phone]
Fax: [phone]
E-Mail:
[email protected]
Web Site: http://www.grizzly.com
Thank you again for your business and continued support. We hope to serve you again
soon!
WARRANTY AND RETURNS

WARRANTY CARD
Name _________________________________________________________________
Street _________________________________________________________________
City _______________________ State _________________________ Zip _________
Phone # ____________________ Email ________________________ Invoice # _____
Model # ____________________ Order # _______________________ Serial # ______
The following information is given on a voluntary basis. It will be used for marketing purposes to
help us develop better products and services. All information is strictly confidential.
1. How did you learn about us?
____Advertisement ____Friend ____Catalog
____Card Deck ____Website Other:________________________
2. Which of the following magazines do you subscribe to?
3. What is your annual household income?
____$20,000-$29,000 ____$30,000-$39,000 ____$40,000-$49,000
____$50,000-$59,000 ____$60,000-$69,000 ____$70,000+
4. What is your age group?
____20-29 ____30-39 ____40-49
____50-59 ____60-69 ____70+
5. How long have you been a woodworker/metalworker?
____0-2 Years ____2-8 Years ____8-20 Years ____20+ Years
6. How many of your machines or tools are Grizzly?
____0-2 ____3-5 ____6-9 ____10+
7. Do you think your machine represents a good value? ____Yes ____No
8. Would you recommend Grizzly Industrial to a friend? ____Yes ____No
9. Would you allow us to use your name as a reference for our customers in your area?
Note: We never use names more than 3 times. ____Yes ____No
10. Comments: _________________________________________________________
______________________________________________________________________
______________________________________________________________________
______________________________________________________________________
____ Cabinet Maker
____ Family Handyman
____ Hand Loader
____ Handy
____ Home Shop Machinist
____ Journal of Light Cont.
____ Live Steam
____ Model Airplane News
____ Modeltec
____ Old House Journal
____ Popular Mechanics
____ Popular Science
____ Popular Woodworking
____ Practical Homeowner
____ Precision Shooter
____ Projects in Metal
____ RC Modeler
____ Rifle
____ Shop Notes
____ Shotgun News
____ Today’s Homeowner
____ Wood
____ Wooden Boat
____ Woodshop News
____ Woodsmith
____ Woodwork
____ Woodworker West
____ Woodworker’s Journal
____ Other:

FOLD ALONG DOTTED LINE
GRIZZLY INDUSTRIAL, INC.
P.O. BOX 2069
BELLINGHAM, WA 98227-2069
TAPE ALONG EDGES--PLEASE DO NOT STAPLE
Name________________________________
Street________________________________
City______________State______Zip_______
Send a Grizzly Catalog to a friend:
Place
Stamp
Here
