Grizzly H7826 User manual

COPYRIGHT © OCTOBER, 2005 BY GRIZZLY INDUSTRIAL, INC. MAY, 2007 (TR)
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
#EW7635 PRINTED IN CHINA
MODEL H7826
Flooring Nailer
OWNER'S MANUAL

Table of Contents
INTRODUCTION ...............................................................................................................1
Foreword .....................................................................................................................1
Machine Data .............................................................................................................1
Contact Information ....................................................................................................1
Safety Instructions For Pneumatic Tools ....................................................................2
Additional Safety Instructions for Nailers ....................................................................4
SECTION 2: SETUP .........................................................................................................6
Unpacking ...................................................................................................................6
Inventory .....................................................................................................................6
Compressed Air System .............................................................................................7
Firing Mechanism .......................................................................................................8
SECTION 3: OPERATIONS .............................................................................................9
Oiling Nailer ................................................................................................................9
Loading Nailer ............................................................................................................9
Operating Nailer ........................................................................................................10
Clearing Jammed Nails ............................................................................................11
SECTION 4: MAINTENANCE ........................................................................................12
Cleaning ....................................................................................................................12
Replacing Pistons/O-Rings .......................................................................................12
Troubleshooting ........................................................................................................14
Parts .........................................................................................................................15
WARRANTY AND RETURNS ........................................................................................16

Model H7826 Flooring Nailer -1-
INTRODUCTION
If you have any comments regarding this
manual, please write to us at the following
address:
Grizzly Industrial, Inc.
C/O Technical Documentation
P.O. Box 2069
Bellingham, WA 98227-2069
Most importantly, we stand behind our
tools. If you have any service questions or
parts requests, please call or write us at
the location listed below.
Grizzly Industrial, Inc.
1203 Lycoming Mall Circle
Muncy, PA 17756
Phone: [phone]
Fax: [phone]
E-Mail: [email protected]
Web Site: http://www.grizzly.com
We are proud to offer the Grizzly Model
H7826 Flooring Nailer. This model is part
of a growing Grizzly family of fine pneu-
matic tools. When used according to the
guidelines set forth in this manual, you
can expect years of trouble-free, enjoyable
operation and proof of Grizzly’s commit-
ment to customer satisfaction.
It is our pleasure to provide this manual
with the Model H7826 Flooring Nailer. It
was written to encourage safety consid-
erations and guide you through general
operating procedures and maintenance.
The specifications, details, and photo-
graphs in this manual represent the Model
H7826 as supplied when the manual was
prepared. However, owing to Grizzly’s pol-
icy of continuous improvement, changes
may be made at any time with no obliga-
tion on the part of Grizzly.
Read the manual before operation.
Become familiar with this tool, its
safety instructions, and its operation
before beginning any work. Serious
personal injury may result if safety or
operational information is not under-
stood or followed.
Foreword Contact Information
Machine Data
Nail Length .......................................11⁄2"-2"
Magazine Capacity ...................... 100 Nails
Air Inlet ...........................................3⁄8" NPT
Flooring Nailer Weight ...................111⁄3 lbs.
Hammer Weight ...............................21⁄2 lbs.
Operating Pressure .................. 70-110 PSI

Model H7826 Flooring Nailer-2-
Safety Instructions For Pneumatic Tools
1. KEEP ALL SAFETY DEVICES IN
PLACE and in working order.
2. REMOVE ADJUSTING KEYS AND
WRENCHES. Form habit of check-
ing to see that keys and adjusting
wrenches are removed from tool
before operation.
3. KEEP WORK AREA CLEAN.
Cluttered areas and benches invite
accidents.
4. DO NOT USE IN DANGEROUS
ENVIRONMENT. Do not use pneu-
matic tools in damp or wet loca-
tions, or where any flammable or
noxious fumes may exist. Keep
work area well lighted.
5. KEEP CHILDREN AND VISITORS
AWAY. All children and visitors
should be kept at a safe distance
from work area.
6. MAKE WORKSHOP CHILD
PROOF by locking your shop and
shutting off air valves.
7. DO NOT FORCE TOOL. It will do
the job better and safer at the rate
for which it was designed.
8. USE THE RIGHT TOOL. Do not
force tool or attachment to do a job
for which it was not designed.
9. DO NOT USE UNDER THE
INFLUENCE OF DRUGS OR
ALCOHOL.
For Your Own Safety Read Instruction Manual
Before Operating This Equipment
The purpose of safety symbols is to attract your attention to possible hazard-
ous conditions. This manual uses a series of symbols and signal words which
are intended to convey the level of importance of the safety messages. The
progression of symbols is described below. Remember that safety messages by
themselves do not eliminate danger and are not a substitute for proper accident
prevention measures.
Indicates a potentially hazardous situation which, if
not avoided, MAY result in minor or moderate injury.
It may also be used to alert against unsafe practices.
Indicates a potentially hazardous situation which, if
not avoided, COULD result in death or serious injury.
Indicates an imminently hazardous situation which, if
not avoided, WILL result in death or serious injury.
This symbol is used to alert the user to useful infor-
mation about proper operation of the equipment.
SECTION 1: SAFETY
NOTICE

Model H7826 Flooring Nailer -3-
10. USE PROPER AIR HOSE for the
tool. Make sure your air hose is in
good condition and is long enough to
reach your work without stretching.
11. WEAR PROPER APPAREL. Do not
wear loose clothing, gloves, neck-
ties, rings, bracelets, or other jew-
elry which may get caught in moving
parts. Non-slip footwear is recom-
mended. Wear a protective hair cov-
ering to contain long hair.
12. ALWAYS USE SAFETY GLASSES.
Also use a face or dust mask if cut-
ting operation is dusty. Everyday
eyeglasses only have impact resis-
tant lenses, they are NOT safety
glasses.
13. WEAR APPROVED HEARING
PROTECTION. Air escaping from
pneumatic tools can exceed safe
exposure limits and may cause
hearing damage with prolonged
exposure.
14. SECURE WORK. Use clamps or a
vise to hold work when practical. It is
safer than using your hand and frees
both hands to operate tool.
15. MAINTAIN TOOLS WITH CARE.
Keep tools lubricated and clean
for best and safest performance.
Follow instructions for lubricating
and changing accessories.
16. REDUCE THE RISK OF
UNINTENTIONAL FIRING. Do not
carry tool with hand on trigger and
always disconnect from air when not
in use.
17. DISCONNECT TOOLS before ser-
vicing, changing accessories, or
moving to another location.
18. DO NOT OVERREACH. Keep
proper footing/balance at all times.
19. USE THE RECOMMENDED
ACCESSORIES. Consult owner’s
manual for recommended acces-
sories. The use of improper acces-
sories may cause risk of injury.
20. CHECK FOR DAMAGED PARTS
BEFORE USING. Check for bind-
ing and alignment of parts, broken
parts, part mounting, loose bolts,
and any other conditions that may
affect machine operation. Repair or
replace damaged parts.
21. NEVER LEAVE UNATTENDED
TOOL CONNECTED TO AIR.
Disconnect the air hose and do not
leave tool until it is relieved of any
built up pressure.
22. NEVER ALLOW UNTRAINED
USERS TO USE THIS TOOL
WHILE UNSUPERVISED.
23. IF YOU ARE UNSURE OF THE
INTENDED OPERATION, STOP
USING TOOL. Seek formal training
or research books or magazines
that specialize in pneumatic tools.
24. BE AWARE OF HOSE LOCATION
WHEN USING PNEUMATIC
TOOLS. Hoses can easily become
a tripping hazard when laid across
the floor or spread out in a disorga-
nized fashion.
Safety Instructions For Pneumatic Tools

Model H7826 Flooring Nailer-4-
1. HAND AND FOOT INJURIES: Do
not place your hands or feet near the
nail point of entry. A nail can deflect
and tear through the surface of the
workpiece, puncturing your hand or
foot.
2. COMPRESSED AIR RATING: Do
not connect the nailer to compressed
air that exceeds 120 PSI.
3. ACTUATING MECHANISM: Be
careful not to bump the actuating
mechanism when carrying or hold-
ing the tool while connected to air.
If bumped, the tool may accidentally
shoot in a dangerous direction.
4. SAFE HANDLING: Never point the
nailer at others! Carry the nailer only
by the handle, never by any other
part. Do not carry the nailer by the air
hose.
5. HOSE USAGE: Make sure your air
hose is designed for the tool in use, is
in good condition, and is long enough
to reach your work without stretching.
However, an overly long air hose in
the work area may be a tripping haz-
ard.
6. HAMMER SAFETY: DO NOT use a
hammer with a damaged handle or
a loose head. Make sure nobody is
standing close enough to be hit when
you swing the hammer.
Additional Safety Instructions for Nailers
7. NAILING: Avoid driving one nail on
top of another. The nail may deflect
and cause injury.
8. AIR SUPPLY: Disconnect the air
supply before installing nails, clearing
a jam, moving to another work area,
performing maintenance, or when the
tool is not in use. A nailer connected
to air may fire accidentally, causing
serious personal injury. DO NOT use
a check valve or any other fitting that
allows air to remain in the tool.
9. COMBUSTIBLE GASES: Never con-
nect the nailer to pressurized oxy-
gen or other combustible gases as
a power source. Only use regulated
compressed air.
10. CLEANING: Never use gasoline or
other flammable liquids to clean the
nailer; vapors in the nailer will ignite
by a spark and cause it to explode.
11. TOOL SERVICE: If the nailer is leak-
ing air, damaged, or not working cor-
rectly, DO NOT use before repairing.
12. OPERATING QUESTIONS: If you
are not sure about the intended oper-
ation, stop using the nailer. Seek
formal training or research books or
magazines that specialize in pneu-
matic tools.

Model H7826 Flooring Nailer -5-
Operating this nailer can pro-
pel objects into the air, causing
immediate eye damage. To protect
yourself, always wear American
National Standards Institute (ANSI)
approved safety glasses or goggles
when operating this equipment. In
addition, this nailer discharges at
up to 85-90 decibels. To protect
your hearing, always wear ANSI
approved ear protection when oper-
ating this nailer.
Nailer accidents routinely happen
while moving the gun to another loca-
tion, to another room, or even another
job site. Always disconnect the nail-
er immediately after use and never
transport the nailer while connected
to the air—even if the air compres-
sor is disconnected from its power
source!
No list of safety guidelines can be
complete. Every shop environment
is different. Always consider safety
first, as it applies to your individu-
al working conditions. Use this and
other tools with caution and respect.
Failure to do so could result in seri-
ous personal injury, damage to equip-
ment or poor work results.

Model H7826 Flooring Nailer-6-
SECTION 2: SETUP
Figure 1. Model H7826 inventory.
Unpacking
Your Model H7826 left our warehouse in
a carefully packed box. If you discover
the nailer is damaged after you have
signed for delivery, please immediately
call Customer Service at [phone]
for advice.
Save the containers and all packing mate-
rials for possible inspection by the car-
rier or its agent. Otherwise, filing a freight
claim can be difficult.
When you are completely satisfied with
the condition of the shipment, you should
inventory the equipment.
Inventory
After you open the nailer box, you should
find the following.
Model H7826 Inventory (Figure 1)
A. Flooring Nailer .................................... 1
B. Safety Goggles ................................. 1
C. Oil ....................................................... 1
D. Base Plate .......................................... 1
E. Hammer ............................................. 1
F. Hex Wrench 4mm .............................. 1
G. Hex Wrench 5mm .............................. 1
B
C
DF
E
A
G

Model H7826 Flooring Nailer -7-
Compressed Air
System
The Model H7826 is designed to be oper-
ated at 70-110 PSI using clean, dry, regu-
lated, compressed air. DO NOT exceed
the 120 PSI maximum operating pres-
sure for your model. Before using, regu-
late the air pressure on your air compres-
sor to 70 psi.
An in-line filter/lubricator/regulator unit,
depicted in Figure 2, can be installed and
should be located as close to the nailer
as possible.
The filter/lubricator/regulator unit will pro-
tect your tool from damaging water build-
up, allow you to adjust and maintain
constant air pressure to your tool, and
save you the inconvenience of having to
manually lubricate your tool every time
you use it.
Quick
Connector
Quick
Coupler
Air Hose Quick
Coupler
Quick
Connector
Lubricator
Filter
Regulator
Air
Compressor
Your
Tool
Figure 2. Typical filter/lubricator/regulator installation order.
Check the current Grizzly catalog for avail-
ability of this unit. If you plan on install-
ing a filter/lubricator/regulator unit in your
compressed air system, always follow the
connection instructions that come with
the unit.
Exceeding the maximum permissible
operating pressure may cause the
nailer to explode, blowing metal frag-
ments in all directions. To protect
yourself from serious personal injury,
DO NOT allow your air compressor to
exceed the recommended pressure
when connected to this nailer!

Model H7826 Flooring Nailer-8-
Firing Mechanism
NOTICE
Continually firing the nailer when
empty will cause internal damage. Only
fire the empty nailer once or twice to
ensure it is functioning properly.
The nailer should not fire when connected
to the air supply unless it is fired by hitting
the "whack cap" with the mallet. If the fir-
ing mechanism is not working properly,
the nailer could fire immediately when
connected to the air supply.
Before you load your nailer for the first
time, check the firing mechanism to
ensure safe use.
To check the firing mechanism:
1. Make sure the nailer is disconnect-
ed from the air supply!
2. Make sure the magazine is empty and
contains no nails.
3. Place the flooring nailer on the ground
with the nail aperture facing down,
then connect the air hose. The nailer
should not fire.
— If it does not fire, read step 4.
— If the nailer does fire, immediately
disconnect the nailer from the air
supply and call [phone] for
technical support.
4. Place the base of the nailer on a scrap
piece of wood that is clean and free
of any knots, nails, or other foreign
objects.
5. Hit the whack cap with the mallet using
moderate force. The nailer should fire.
— If it does fire, then the firing mecha-
nism is working properly. Continue
to the next section.
— If the does not fire, then the fir-
ing mechanism may not be work-
ing correctly or may need service.
Disconnect the nailer from the air
supply and please call (570) 546-
9663 for technical support.
Point the nailer at the ground when
connecting to the air supply. DO NOT
aim in the direction of another person
or a body part.

Model H7826 Flooring Nailer -9-
SECTION 3: OPERATIONS
Oiling Nailer
Pneumatic oil has been included with this
Grizzly nailer to help maintain its useful
life. Place several drops of oil in the nailer
air inlet (as shown in Figure 3) before
every use and several times a day if used
continuously. Wipe off any excess oil near
the nailer exhaust to avoid dust build-up.
When the oil that was included with the
nailer has been completely used, replace
with Grizzly Model G2820 Pneumatic Tool
Oil.
Figure 3. Lubricating nailer via air inlet.
Another option to manual oiling would be
to install a lubricator, or a filter/lubricator/
regulator unit, in your air compressor line.
If your air compressor line already has a
lubricator, then regular lubrication of your
nailer will not be necessary. Just make
sure there is always pneumatic tool oil in
the lubricator.
Loading Nailer
When replacing nails in your Model
H7826, follow these guidelines:
Nails: L-shaped cleat nails
Length: 11⁄2"–2"
Capacity: 100
Note: Use 11⁄2" nails to install 1⁄2" flooring.
Use 2" nails to install 3⁄4" flooring.
To load your nailer:
1. DISCONNECT NAILER FROM THE
AIR SUPPLY!
2. Slide a strip of nails, pointed-end
down, into the magazine as shown in
Figure 4.
3. Push the button inside the pusher (inset
photo in Figure 4), pull the pusher all
the way back, then allow the pusher to
slide forward against the nail strip.
Figure 4. Loading nails into nailer.

Model H7826 Flooring Nailer-10-
Operating Nailer

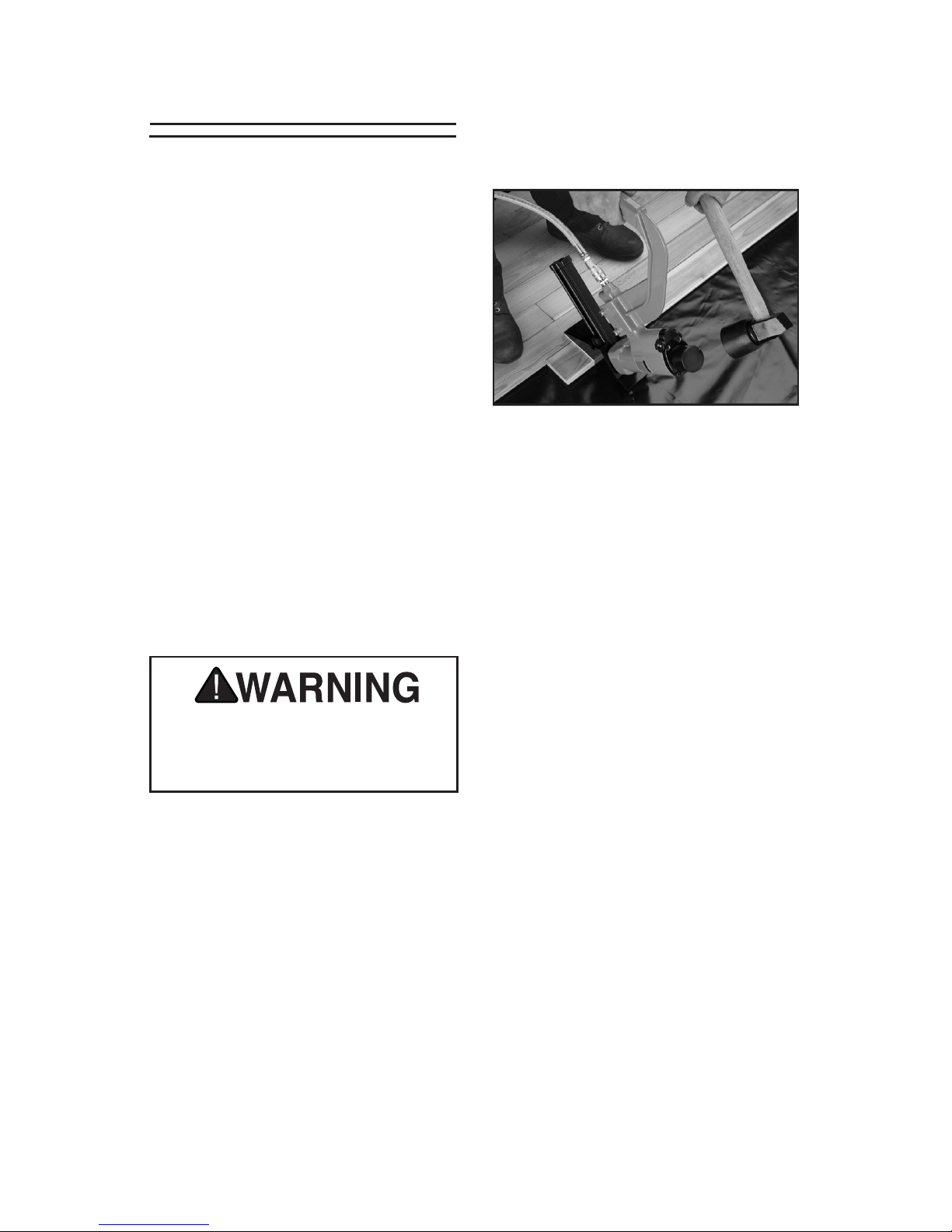

Figure 5. Operating nailer.
Read the safety instructions in this
manual before operating the nailer.
Before you operate your nailer, place sev-
eral drops of the included oil into the quick
connect fitting where the nailer connects
to the air supply.
The Model H7826 comes with two base
plates of different thicknesses. The thin-
nest base plate is for use with 3⁄4" flooring,
and the thickest base plate is for use with
1⁄2" flooring.
To operate your nailer:
1. Install the correct base plate for your
size of flooring material.
2. Place the flooring nailer on the ground
with the nail aperture facing down,
then connect the air supply to the quick
connect fitting.
5. Using the rubber end of the included
hammer, hit the whack cap with light/
medium force to shoot a nail into the
wood. DO NOT use multiple strikes to
force the nail into the wood. This will
cause a jam or a ricochet, and possible
injury.
6. Check the nail for proper depth and
placement.
— If the depth is satisfactory, then pro-
ceed with your project.
— If the depth is too shallow, then
slightly increase the air pressure
and repeat Steps 3–5.
— If the depth is too deep, then slight-
ly decrease the air pressure and
repeat Steps 3–5.
Note: Nailing depth is not always con-
sistent due to variations in the flooring
material. Sometimes it will be neces-
sary to tap a few nails flush with a ham-
mer and a nail punch.
4. Place the nailer with the guide plate on
the flooring as shown in Figure 5, mak-
ing sure the cleat on the bottom of the
nailer is lined up with the edge of the
groove in the flooring.
3. Position a flooring strip and tap it into
place with the metal side of the ham-
mer. DO NOT use the nailer to position
the flooring strips.
Note: Test the nailer on a sample floor-
ing strip when installing pre finished
flooring to make sure the nailer does
not damage the finish. Replace the
base plate if it is damaged and marring
the flooring finish.
Point the nailer at the ground when
connecting to the air supply. DO NOT
aim in the direction of another person
or a body part.

Model H7826 Flooring Nailer -11-
This nailer may accidentally fire if
you work on it without disconnecting
it from the air supply. Always discon-
nect air from nailer whenever clearing
a jammed nail!
A jammed nail must be cleared before
using the nailer again.
To clear a jammed nail from the dis-
charge area:
1. DISCONNECT NAILER FROM THE
AIR SUPPLY!
2. Pull the magazine loader all the way
back and remove the nail stick.
3. The jammed nail should now be vis-
ible; use needle nose pliers to remove
it from the discharge area.
—If the nail cannot be removed, con-
tinue to Step 4.
—Continue to Step 6, when the
jammed nail is removed.
Clearing Jammed
Nails
4. Remove the cap screws shown in
Figure 6 that secure the magazine.
6. Load a new nail stick that only contains
clean, undamaged nails. DO NOT use
dirty or damaged nails!
Figure 6. Cap screws securing the
magazine.
5. Remove the jammed nail (Figure 7)
with a pair of needle nose pliers, then
replace the magazine.
Figure 7. Jammed nail in discharge area.

Model H7826 Flooring Nailer-12-
SECTION 4: MAINTENANCE
Cleaning
DISCONNECT THE AIR SUPPLY! Use a
good solvent to clean the nose assembly
of the nailer. Always be sure that the nailer
is dry before using it again.
Do not allow dust, chips, sand, etc. into
the air connectors or into the body of the
nailer; this may result in leaks and dam-
age to the nailer and the air couplings.
Never use gasoline or other flamma-
ble liquids to clean this tool. Vapors
in the tool may ignite, causing the
tool to explode. Ignoring this warning
may lead to serious personal injury or
even death!
To replace a piston:
1. DISCONNECT NAILER FROM THE
AIR SUPPLY!
2. Remove all nails from the magazine
cartridge and remove the base plate.
3. Remove the cap screws shown in
Figure 8 that secure the base.
Replacing Pistons/O-
Rings
If you use your nailer day in and day
out, repair pistons are cheap insurance
against wasted down time and lost profits,
in the event that a piston or piston shaft
becomes worn out. Refer to the break-
down diagram in the back of the manual for
part numbers and ordering information.
Disconnect air from nailer whenev-
er servicing! During maintenance, a
nailer connected to air may fire acci-
dentally, causing serious personal
injury!
Figure 8. Removing the base.

Model H7826 Flooring Nailer -13-
6. Loosen the exhaust covers and
remove the cap screws from the cylin-
der cover. Slide the cylinder cover off
of the plunger.
Figure 10. Removing the whack cap.
4. Carefully slide the base off of the driver
and remove the large washer and rub-
ber bumper (see Figure 9).
Cylinder
Cover
Exhaust Cover
Whack Cap
5. Use a flat head screwdriver to pry off
the whack cap shown in Figure 10.
Figure 9. Bumper and washer.
Bumper
Washer
8. Grab onto the driver and pull the piston
assembly out from the bottom.
9. Unscrew the piston and driver from the
piston assembly (see Figure 12).
Figure 11. Removing the plunger.
Plunger
10. Apply a thin film of nailer lubricating oil
on the O-rings, then place the new O-
rings on the piston and the plunger.
11. Re-assemble the nailer in reverse
order.
Figure 12. Piston and driver.
Piston Assembly
7. Unscrew the cap screws and remove
the plunger (see Figure 11).
Piston and
Driver

Model H7826 Flooring Nailer-14-
Troubleshooting
Symptom Possible Cause Solution
Air leaking at
whack cap area.
1. Damaged seal.
2. O-rings on the plunger are
damaged.
1. Replace damaged seal.
2. O-rings must be replaced.
Air leaking between
body and hose.
1. Loose air fitting. 1. Tighten air fitting & use
teflon tape.
Air leaking around
driver.
1. Damaged O-ring on the pis-
ton.
2. Worn bumper.
1. Replace O-ring.
2. Replace bumper.
Nailer does not fire. 1. Nail is jammed in magazine
or discharge area.
2. Air pressure too low.
3. Lack of lubrication.
4. Worn or damaged O-rings.
5. Piston shaft is damaged.
1. Clear magazine or dis-
charge area.
2. Check for blockage/
increase air pressure.
3. Place several drops of oil
in the air inlet.
4. Replace O-rings. Make
sure air pressure does
not exceed the maximum
operating pressure.
5. Replace piston shaft.
Tool runs slowly
or has a loss of
power.
1. Air pressure too low.
2. Insufficient lubrication.
3. Dirt and oil buildup on driver.
4. Exhaust port in cap is
blocked.
5. Worn or damaged O-rings.
1. Check for blockage/
increase air pressure.
2. Lubricate nailer.
3. Disassemble and clean
driver.
4. Clean exhaust port.
5. Replace O-rings.
Tool skips nails
while discharging.
1. Air leaks.
2. Insufficient lubrication.
3. Dirt in nose.
4. Dirt or damage prevents nails
from moving in magazine.
5. Inadequate air flow to tool.
6. Worn or damaged O-rings.
7. Worn bumper.
8. Damaged pusher spring.
9. Bent, damaged, dirty, or
wrong size nails.
10. Damaged driver.
1. See above.
2. Lubricate nailer.
3. Clean nose.
4. Clean magazine and
inspect/repair damage.
5. Check for blockage/
increase air pressure.
6. Replace O-rings.
7. Replace bumper.
8. Replace pusher spring.
9. Use undamaged, correct
size, nails.
10. Replace driver.
Fasteners frequent-
ly jam the nailer.
1. Bent, damaged, dirty, or
wrong size nails.
2. Magazine screws are loose.
3. Driver or driver guide are
worn or damaged.
1. Use undamaged, correct
size, nails.
2. Tighten magazine.
3. Replace worn or damaged
parts.

Model H7826 Flooring Nailer -15-
Parts





 









































 


















REF PART # DESCRIPTION REF PART # DESCRIPTION
101 PH7826101 CYLINDER 133 PH7826133 WHACK CAP
102 PH7826102 HEAD GASKET 134 PW02M FLAT WASHER 5MM
103 PH7826103 BUMPER 135 PH7826135 BRACE
104 PH7826104 O-RING 50 X 3.55 136 PH7826136 RUBBER BRACE CASE
105 PH7826105 DRIVER 137 PLN04M LOCK NUT M8-1.25
106 PRP07M ROLL PIN 6 X 20 138 PW01M FLAT WASHER 8MM
107 PSS31M SET SCREW M5-.8 X 8 139 PH7826139 L-BOLT
108 PH7826108 PISTON POLE 140 PH7826140 STOPPER
109 PH7826109 COMPRESSION SPRING 141 PS38M PHLP HD SCR M4-.7 X 10
110 PH7826110 O-RING 12.8 X 2.5 142 PH7826142 MAGAZINE SEAT
111 PH7826111 O-RING 32 X 4.5 143 PH7826143 MAGAZINE END CAP
112 PH7826112 SEALING SLEEVE 144 PLN01M LOCK NUT M4-.7
113 PH7826113 O-RING 12.8 X 1.8 145 PH7826145 PUSHER SEAT
114 PH7826114 SEALING CAP 146 PRP42M ROLL PIN 3 X 20
115 PH7826115 O-RING 15.6 X 1.8 147 PH7826147 FLAT COIL SPRING
116 PH7826116 GUN BODY 148 PH7826148 SPRING BUSHING
117 PH7826117 WASHER 149 PH7826149 COMPRESSION SPRING
118 PH7826118 END CAP 150 PH7826150 PUSHER
119 PSB39M CAP SCREW M4-.7 X 20 151 PS07M PHLP HD SCR M4-.7 X 8
120 PH7826120 BODY SEALING RING 152 PH7826152 MAGAZINE
121 PH7826121 BODY SEALING WASHER 153 PH7826153 NAIL HEAD
122 PH7826122 CYLINDER GASKET 154 PH7826154 NAIL HEAD COVER BOARD
123 PH7826123 SLEEVE GASKET 155 PH7826155 CYLINDER HEAD SEAT
124 PH7826124 O-RING 46.2 X 3.55 156 PSB95M CAP SCREW M5-.8 X 30
125 PH7826125 PISTON SEAT 157 PH7826157 BASE PLATE
126 PLW02M LOCK WASHER 4MM 158 PSB95M CAP SCREW M5-.8 X 30
127 PSB16M CAP SCREW M4-.7 X 16 159 PH7826159 RUBBER BOTTOM
128 PS56M PHLP HD SCR M4-.7 X 16 160 PH7826160 BASE
129 PH7826129 EXHAUST COVER 161 PH7826161 WASHER
130 PH7826130 CYLINDER COVER 162 PFH03M FLAT HD SCR M6-1 X 40
131 PSB53M CAP SCREW M5-.8 X 18 163 PH7826163 MALLET
132 PH7826132 O-RING 25 X 3.55 164 PH7826164 1/4" NPT AIR PLUG

Model H7826 Flooring Nailer-16-
Grizzly Industrial, Inc. warrants every product it sells for a period of 1 year to the original
purchaser from the date of purchase. This warranty does not apply to defects due directly
or indirectly to misuse, abuse, negligence, accidents, repairs or alterations or lack of
maintenance. This is Grizzly’s sole written warranty and any and all warranties that may
be implied by law, including any merchantability or fitness, for any particular purpose, are
hereby limited to the duration of this written warranty. We do not warrant or represent that
the merchandise complies with the provisions of any law or acts unless the manufacturer so
warrants. In no event shall Grizzly’s liability under this warranty exceed the purchase price
paid for the product and any legal actions brought against Grizzly shall be tried in the State
of Washington, County of Whatcom.
We shall in no event be liable for death, injuries to persons or property or for incidental,
contingent, special, or consequential damages arising from the use of our products.
To take advantage of this warranty, contact us by mail or phone and give us all the details.
We will then issue you a “Return Authorization Number,” which must be clearly posted on
the outside as well as the inside of the carton. We will not accept any item back without this
number. Proof of purchase must accompany the merchandise.
The manufacturers reserve the right to change specifications at any time because they
constantly strive to achieve better quality equipment. We make every effort to ensure that
our products meet high quality and durability standards and we hope you never need to
use this warranty.
Please feel free to write or call us if you have any questions about the machine or the
manual.
Grizzly Industrial, Inc.
1203 Lycoming Mall Circle
Muncy, PA 17756
Phone: [phone]
Fax: [phone]
E-Mail:
[email protected]
Web Site: http://www.grizzly.com
Thank you again for your business and continued support. We hope to serve you again
soon!
WARRANTY AND RETURNS

WARRANTY CARD
Name _________________________________________________________________
Street _________________________________________________________________
City _______________________ State _________________________ Zip _________
Phone # ____________________ Email ________________________ Invoice # _____
Model # ____________________ Order # _______________________ Serial # ______
The following information is given on a voluntary basis. It will be used for marketing purposes to
help us develop better products and services. All information is strictly confidential.
1. How did you learn about us?
____Advertisement ____Friend ____Catalog
____Card Deck ____Website Other:________________________
2. Which of the following magazines do you subscribe to?
3. What is your annual household income?
____$20,000-$29,000 ____$30,000-$39,000 ____$40,000-$49,000
____$50,000-$59,000 ____$60,000-$69,000 ____$70,000+
4. What is your age group?
____20-29 ____30-39 ____40-49
____50-59 ____60-69 ____70+
5. How long have you been a woodworker/metalworker?
____0-2 Years ____2-8 Years ____8-20 Years ____20+ Years
6. How many of your machines or tools are Grizzly?
____0-2 ____3-5 ____6-9 ____10+
7. Do you think your machine represents a good value? ____Yes ____No
8. Would you recommend Grizzly Industrial to a friend? ____Yes ____No
9. Would you allow us to use your name as a reference for our customers in your area?
Note: We never use names more than 3 times. ____Yes ____No
10. Comments: _________________________________________________________
______________________________________________________________________
______________________________________________________________________
______________________________________________________________________
____ Cabinet Maker
____ Family Handyman
____ Hand Loader
____ Handy
____ Home Shop Machinist
____ Journal of Light Cont.
____ Live Steam
____ Model Airplane News
____ Modeltec
____ Old House Journal
____ Popular Mechanics
____ Popular Science
____ Popular Woodworking
____ Practical Homeowner
____ Precision Shooter
____ Projects in Metal
____ RC Modeler
____ Rifle
____ Shop Notes
____ Shotgun News
____ Today’s Homeowner
____ Wood
____ Wooden Boat
____ Woodshop News
____ Woodsmith
____ Woodwork
____ Woodworker West
____ Woodworker’s Journal
____ Other:

FOLD ALONG DOTTED LINE
GRIZZLY INDUSTRIAL, INC.
P.O. BOX 2069
BELLINGHAM, WA 98227-2069
TAPE ALONG EDGES--PLEASE DO NOT NAIL
Name________________________________
Street________________________________
City______________State______Zip_______
Send a Grizzly Catalog to a friend:
Place
Stamp
Here
