Grizzly H6141 User manual

COPYRIGHT © DECEMBER, 2005 BY GRIZZLY INDUSTRIAL, INC., REVISED DECEMBER, 2007 (TS)
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
#JK7796 PRINTED IN CHINA
MODEL H6141
AIR PALM NAILER
OWNER'S MANUAL

H6141 Air Palm Nailer
-2-
Safety Instructions For Pneumatic Tools
1. KEEP ALL SAFETY DEVICES IN
PLACE and in working order.
2. REMOVE ADJUSTING KEYS AND
WRENCHES. Form habit of check-
ing to see that keys and adjusting
wrenches are removed from tool
before operation.
3. DO NOT USE IN DANGEROUS
ENVIRONMENT. Do not use pneu-
matic tools in damp or wet loca-
tions, or where any flammable or
noxious fumes may exist. Keep
work area well lighted.
4. KEEP CHILDREN AND VISITORS
AWAY. All children and visitors
should be kept at a safe distance
from work area.
5. MAKE WORKSHOP CHILD
PROOF by locking your shop and
shutting off air valves.
6. DO NOT FORCE TOOL. It will do
the job better and safer at the rate
for which it was designed.
7. USE THE RIGHT TOOL. Do not
force tool or attachment to do a job
for which it was not designed.
For Your Own Safety Read Instruction Manual
Before Operating This Equipment
The purpose of safety symbols is to attract your attention to possible hazard-
ous conditions. This manual uses a series of symbols and signal words which
are intended to convey the level of importance of the safety messages. The
progression of symbols is described below. Remember that safety messages by
themselves do not eliminate danger and are not a substitute for proper accident
prevention measures.
Indicates a potentially hazardous situation which, if
not avoided, MAY result in minor or moderate injury.
It may also be used to alert against unsafe practices.
Indicates a potentially hazardous situation which, if
not avoided, COULD result in death or serious injury.
Indicates an imminently hazardous situation which, if
not avoided, WILL result in death or serious injury.
This symbol is used to alert the user to useful infor-
mation about proper operation of the equipment.
SAFETY
NOTICE

H6141 Air Palm Nailer -3-
8. DO NOT USE UNDER THE
INFLUENCE OF DRUGS OR
ALCOHOL.
9. USE PROPER AIR HOSE for the
tool. Make sure your air hose is in
good condition and is long enough
to reach your work without stretch-
ing.
10. WEAR PROPER APPAREL. Do
not wear loose clothing, gloves,
neckties, rings, bracelets, or other
jewelry which may get caught in
moving parts. Non-slip footwear is
recommended. Wear a protective
hair covering to contain long hair.
11. ALWAYS USE SAFETY
GLASSES. Also use a face or
dust mask if cutting operation is
dusty. Everyday eyeglasses only
have impact resistant lenses, they
are NOT safety glasses.
12. WEAR APPROVED HEARING
PROTECTION. Air escaping from
pneumatic tools can exceed safe
exposure limits and may cause
hearing damage with prolonged
exposure.
13. SECURE WORK. Use clamps or a
vise to hold work when practical. It
is safer than using your hand and
frees both hands to operate tool.
14. MAINTAIN TOOLS WITH CARE.
Keep tools lubricated and clean
for best and safest performance.
Follow instructions for lubricating
and changing accessories.
15. DISCONNECT TOOLS before ser-
vicing, changing accessories, or
moving to another location.
16. USE THE RECOMMENDED
ACCESSORIES. Consult owner’s
manual for recommended acces-
sories. The use of improper acces-
sories may cause risk of injury.
17. CHECK FOR DAMAGED PARTS
BEFORE USING. Check for bind-
ing and alignment of parts, broken
parts, part mounting, loose bolts,
and any other conditions that may-
affect machine operation. Repair or
replace damaged parts.
18. NEVER LEAVE UNATTENDED
TOOL CONNECTED TO AIR.
Disconnect the air hose and do not
leave tool until it is relieved of any
built up pressure.
19. NEVER ALLOW UNTRAINED
USERS TO USE THIS TOOL
WHILE UNSUPERVISED.
20. IF YOU ARE UNSURE OF THE
INTENDED OPERATION, STOP
USING TOOL. Seek formal training
or research books or magazines
that specialize in pneumatic tools.
21. BE AWARE OF HOSE LOCATION
WHEN USING PNEUMATIC
TOOLS. Hoses can easily become
a tripping hazard when laid across
the floor or spread out in a disorga-
nized fashion.
Safety Instructions For Pneumatic Tools

H6141 Air Palm Nailer
-4-
1. HAND INJURIES: Do not place
your hands near the nail point
of entry. A nail can deflect and
tear through the surface of the
workpiece, puncturing your hand or
fingers.
2. COMBUSTIBLE GASES: Never
connect the nailer to pressurized
oxygen or other combustible gases
as a power source. Only use fil-
tered, lubricated, and regulated
compressed air.

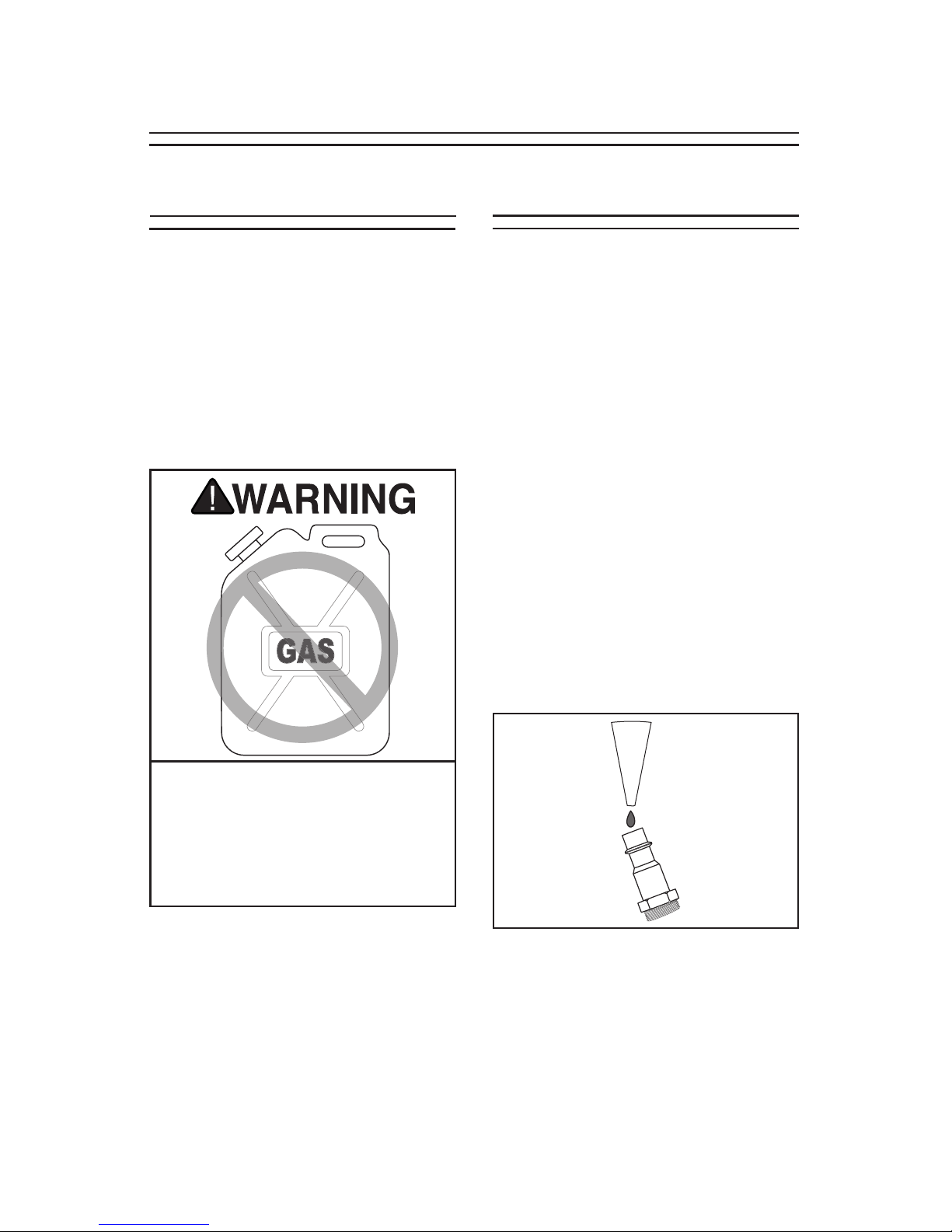

3. CLEANING: Never use gasoline or
other flammable liquids to clean the
nailer; vapors in the nailer will ignite
by a spark and cause it to explode.
4. OPERATING QUESTIONS: If you
are not sure about the intended
operation, stop using the nailer.
Seek formal training or research
books or magazines that specialize
in pneumatic tools.
Additional Safety Instructions for Nailers
5. HOSE USAGE: Make sure your air
hose is designed for the tool in use,
is in good condition, and is long
enough to reach your work without
stretching. However, an overly long
air hose in the work area may be a
tripping hazard.
6. MAINTENANCE: Always discon-
nect air from the nailer when servic-
ing. During maintenance, a nailer
connected to air may fire acci-
dentally, causing serious personal
injury.
7. COMPRESSED AIR RATING:
Do not connect the nailer to com-
pressed air that exceeds 120 PSI.
8. CHECK VALVE: Do not use a
check valve or any other fitting that
allows air to remain in the tool.
Operating this nailer can propel
objects into the air, causing imme-
diate eye damage. To protect your-
self, always wear American National
Standards Institute (ANSI) approved
safety glasses or goggles when oper-
ating this equipment. In addition, this
nailer discharges at up to 85-90 deci-
bels. To protect your hearing, always
wear ANSI approved ear protection
when operating this nailer.

H6141 Air Palm Nailer -5-
INTRODUCTION
If you have any comments regarding this
manual, please write to us at the following
address:
Grizzly Industrial, Inc.
C/O Technical Documentation Manager
P.O. Box 2069
Bellingham, WA 98227-2069
Most importantly, we stand behind our
tools. If you have any service questions or
parts requests, please call or write us at
the location listed below.
Grizzly Industrial, Inc.
1203 Lycoming Mall Circle
Muncy, PA 17756
Phone: [phone]
Fax: [phone]
E-Mail: [email protected]
Web Site: http://www.grizzly.com
We are proud to offer the Grizzly Model
H6141 Air Palm Nailer. This model is part
of a growing Grizzly family of fine pneu-
matic tools. When used according to the
guidelines set forth in this manual, you
can expect years of trouble-free, enjoy-
able operation and proof of Grizzly’s com-
mitment to customer satisfaction.
The specifications, details, and photo-
graphs in this manual represent the Model
H6141 as supplied when the manual was
prepared. However, owing to Grizzly’s pol-
icy of continuous improvement, changes
may be made at any time with no obliga-
tion on the part of Grizzly.
Foreword Contact Info
Machine Data
Nail Size ......................................... 6d–50d
Air Inlet ...........................................¼" NPT
Weight .............................................81⁄3 lbs.
Operating Pressure ................. 60–100 PSI
Read the manual before operation.
Become familiar with this nailer, its
safety instructions, and its operation
before beginning any work. Serious
personal injury may result if safety or
operational information is not under-
stood or followed.

H6141 Air Palm Nailer
-6-
SET UP

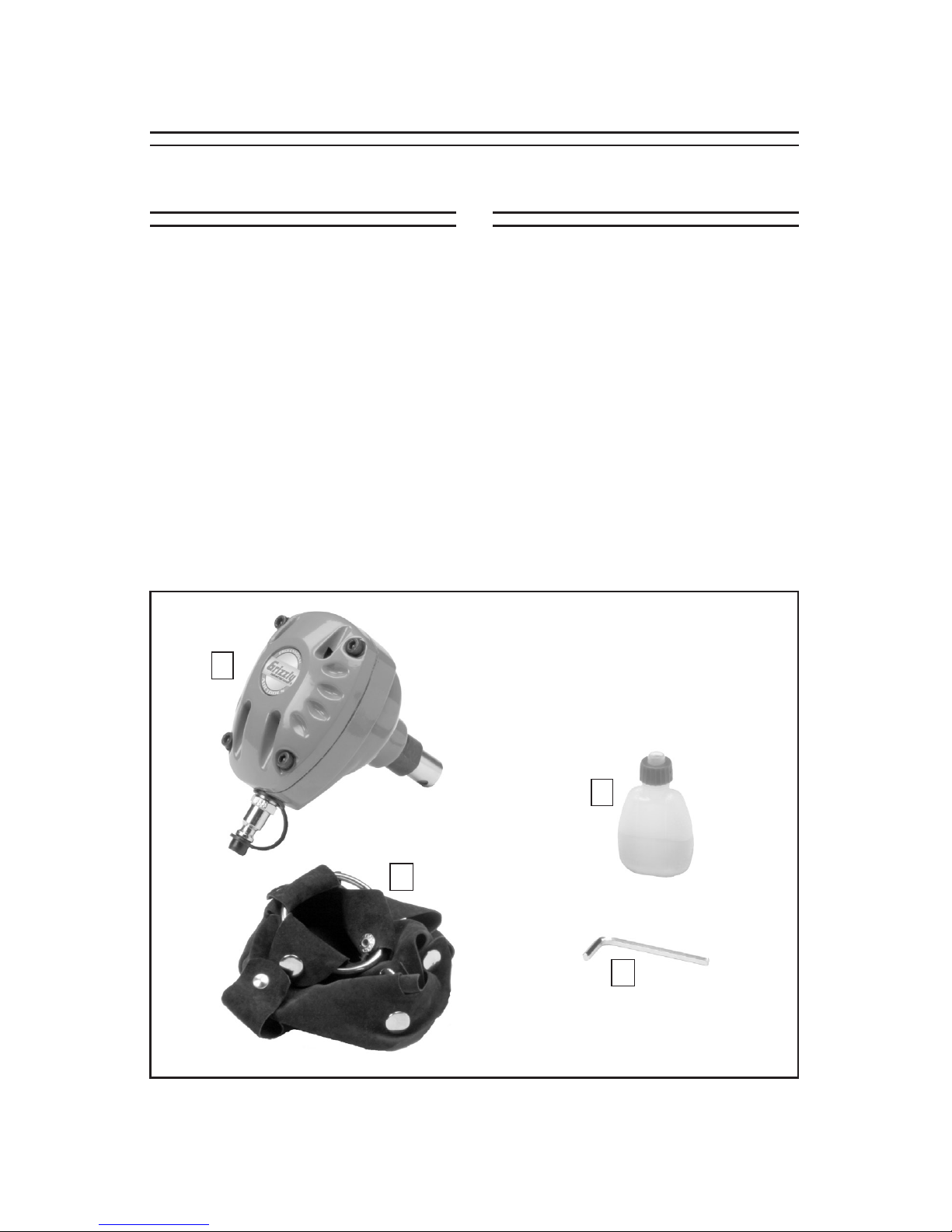

Figure 1. Model H6141 inventory.
Unpacking
Your Model H6141 left our warehouse in
a carefully packed box. If you discover
the nailer is damaged after you have
signed for delivery, please immediately
call Customer Service at [phone]
for advice.
Save the containers and all packing mate-
rials for possible inspection by the car-
rier or its agent. Otherwise, filing a freight
claim can be difficult.
When you are completely satisfied with
the condition of the shipment, you should
inventory the equipment.
Inventory
After you open the nailer box, you should
find the following.
Model H6141 Inventory (Figure 1)
A. Air Palm Nailer ................................... 1
B. Oil ....................................................... 1
C. Leather Nailer Cover ......................... 1
D. Hex Wrench 4MM .............................. 1
B
C
D
A

H6141 Air Palm Nailer -7-
Compressed Air
System
The Model H6141 is designed to be oper-
ated at 60-100 PSI using clean, dry, regu-
lated, compressed air. DO NOT exceed
the 120 PSI maximum operating pres-
sure for your model.
Before using your new nailer, regulate the
air pressure on your air compressor to the
minimum PSI for your model.
An in-line filter/lubricator/regulator unit,
depicted in Figure 2, can be installed and
should be located as close to the nailer
as possible.
This filter/lubricator/regulator unit will
protect your tool from damaging water
build-up, allow you to adjust and maintain
constant air pressure to your tool, and
save you the inconvenience of having to
manually lubricate your tool every time
you use it.
Quick
Connector
Quick
Coupler
Air Hose Quick
Coupler
Quick
Connector
Lubricator
Filter
Regulator
Air
Compressor
Your
Tool
Figure 2. Typical filter/lubricator/regulator installation order.
Check the current Grizzly catalog for avail-
ability of this unit. If you plan on install-
ing a filter/lubricator/regulator unit in your
compressed air system, always follow the
connection instructions that come with
the unit.
Exceeding the maximum permissible
operating pressure may cause the
nailer to explode, blowing metal frag-
ments in all directions. To protect
yourself from serious personal injury,
DO NOT allow your air compressor to
exceed the recommended pressure
when connected to this nailer!

H6141 Air Palm Nailer
-8-

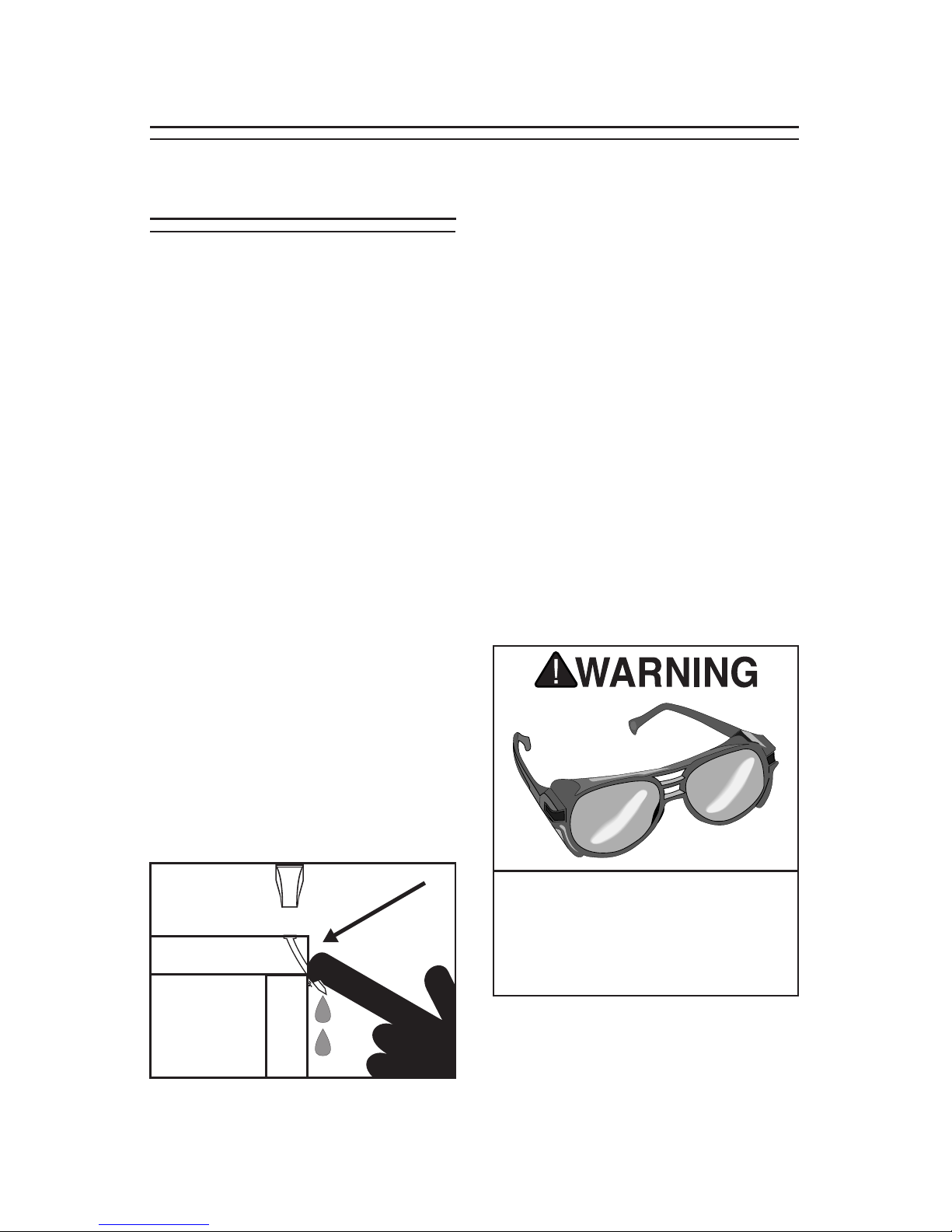

OPERATIONS
General Operations
If you have not read the safety instruc-
tions in this manual, do not operate
the nailer.
Before you operate your nailer, place five
to six drops of the included oil into the
quick connect fitting where the nailer con-
nects to the air supply.
To operate your nailer:
1. Connect the air supply to the quick
connect fitting.
2. Hold the nail firmly in place with one
hand as if using a regular hammer.
3. Make sure you are positioned out of
the way of a potential path of a nail in
case of deflection.
Deflection is caused when grain irreg-
ularities, knots or foreign objects inside
the wood cause the nail to change its
path, resulting in the nail puncturing
the surface of the workpiece, as shown
in Figure 3.
4. Place the tip of the palm nailer over
the end of the nail. When the ram pin
touches the nail head, it will automati-
cally begin to hammer the nail into the
workpiece. Hold the nailer in place
until the sliding depth guide is fully
depressed.
5. You can stop the nailer at any time by
simply lifting it away from the nail and
workpiece. This is useful if you do not
wish for the nail to be countersunk into
the workpiece.
5. When the nail is fully hammered into
the workpiece, the nailer will automati-
cally stop.
Note: The air palm nailer will automati-
cally countersink all nails to a depth of
around 2mm or 5⁄64".
Figure 3. Example of nail deflection.
Operation of this nailer has the poten-
tial to propel debris into the air which
can cause eye injury. Always wear
ANSI-approved safety glasses or gog-
gles when operating equipment.

H6141 Air Palm Nailer -9-
Replacing Pistons/O-
Rings
If you use your nailer day in and day out,
replacement pistons are cheap insurance
against wasted down time and lost profits,
in the event that a piston or piston shaft
becomes worn out.
6. Push the ram pin towards the inside of
the nailer. This will push the cylinder
free of the housing.
7. Remove the piston from the cylinder
by pulling it free by the ram pin.
8. Place a new O-ring on the new piston
and apply a thin film of the nailer lubri-
cating oil on the O-ring.
9. Insert the new piston in the cylinder.
The new piston should easily slide
into the cylinder. DO NOT force the
piston into the cylinder! If the piston
is not easily inserted, double-check
the alignment of the piston inside the
cylinder.
10. After the piston is inserted correctly,
place the cylinder back in the housing.
If seated correctly, the cylinder will
snap into place.
11. Push the cylinder collar down into
the housing as far as it will go. The
horizontal air slots on the side of the
cylinder should be visible.
12. Replace the rear cap assembly and
tighten the four cap screws.
13. Replace the flat washer, compression
spring, depth guide and nose piece
and tighten using a 19mm wrench.
14. For more assistance, or to install a
complete O-ring set, refer to the appro-
priate breakdown diagram in the back
of this manual for component loca-
tions.
To replace a piston:
1. DISCONNECT NAILER FROM THE
AIR SUPPLY!
2. Unscrew the nose piece with a 19mm
wrench.
3. Remove the nose piece, depth guide,
compression spring and flat washer.
4. Remove the four cap screws and
washers on the back of the nailer.
5. Remove the cap.
Always disconnect air from nailer
whenever servicing! During mainte-
nance, a nailer connected to air may
fire accidentally, causing serious
personal injury!

H6141 Air Palm Nailer
-10-
CLEANING & LUBRICATION
Cleaning
Use a good solvent to clean the nose
piece and depth guide of the nailer. Always
be sure that the nailer is dry before using
it again.
Do not allow dust, chips, sand, etc. into
the air connectors or into the body of the
nailer; this may result in leaks and dam-
age to the nailer and the air couplings.
Lubricating
Special oil has been included with your
new Grizzly nailer to help maintain its
useful life. Place two to six drops of oil
in the nailer air inlet (as shown in Figure
4) before every use, or after 2 hours of
continuous use.
Wipe off any excess oil near the nailer
exhaust to avoid dust build-up. When
the oil that was included with the nailer
has been completely used, replace with
Grizzly Model G2820 Pneumatic Tool Oil.
Another option to manual oiling would be
to install a lubricator in your air compres-
sor line. If your air compressor line already
has a lubricator, then regular manual lubri-
cation of your nailer will not be necessary.
Just make sure there is always oil in the
lubricator.
Figure 4. Lubricating nailer via air inlet.
Never use gasoline or other flamma-
ble liquids to clean this tool. Vapors
in the tool may ignite, causing the
tool to explode. Ignoring this warning
may lead to serious personal injury or
even death!

H6141 Air Palm Nailer -11-
H6141 PARTS BREAKDOWN

























REF PART # DESCRIPTION REF PART # DESCRIPTION
1 PSB15M CAP SCREW M5-.8 X 20 13 PH6141013 RAM PIN
2 PH6141002 CAP 14 PH6141014 O-RING 61.4 X 2.6
3 PH6141003 O-RING 53.5 X 2.6 15 PH6141015 BUMPER 16 X 40 X 8
4 PH6141004 RUBBER SEAL 54MM 16 PH6141016 AXLE SLEEVE 8MM
5 PH6141005 GASKET 17 PH6141017 HOUSING
6 PH6141006 O-RING 53.5 X 2.6 18 PH6141018 AIR INLET PLUG 1/4" NPT
7 PH6141007 CYLINDER COLLAR 19 PH6141019 FLAT WASHER 9 X 20 X 1
8 PH6141008 SEALING RING 20 PH6141020 COMPRESSION SPRING
9 PH6141009 CYLINDER 21 PH6141021 DEPTH GUIDE
10 PH6141010 CYLINDER COVER 22 PH6141022 MAGNET
11 PH6141011 O-RING 43 X 2.6 23 PH6141023 NOSE PIECE M20-1.5 X 37
12 PH6141012 PISTON 24 PW02M FLAT WASHER 5MM

H6141 Air Palm Nailer
-12-
TROUBLESHOOTING
Symptom Possible Cause Possible Solution
Air leaking between
housing and hose.
1. Loose screws in housing.
2. Damaged O-ring.
3. Loose air fitting.
1. Tighten screws.
2. Replace O-ring.
3. Tighten air fitting and use
teflon tape.
Air leaking between
housing and cap
assembly.
1. Damaged gasket. 1. Replace damaged gasket.
Tool skips on nail head
while discharging.
1. Air leaks.
2. Dirt in cylinder.
3. Inadequate air flow to
tool.
4. Worn O-ring on piston or
lack of lubrication.
5. Gasket leaking.
1. Tighten screws and fittings.
2. Clean cylinder and housing.
3. Check fitting, hose, compres-
sor and air pressure.
4. Replace piston O-ring.
Lubricate.
5. Replace gasket.
Tool drives nails too
far; depth guide is
loose.
1. Broken spring.
2. Loose nose piece.
1. Replace spring.
2. Tighten nose piece and use
teflon tape.
Nailer does not fire. 1. Piston shaft damaged.
2. Air pressure too low.
1. Replace piston shaft.
2. Check/increase air pressure.

Grizzly Industrial, Inc. warrants every product it sells for a period of 1 year to the original
purchaser from the date of purchase. This warranty does not apply to defects due directly
or indirectly to misuse, abuse, negligence, accidents, repairs or alterations or lack of
maintenance. This is Grizzly’s sole written warranty and any and all warranties that may
be implied by law, including any merchantability or fitness, for any particular purpose, are
hereby limited to the duration of this written warranty. We do not warrant or represent that
the merchandise complies with the provisions of any law or acts unless the manufacturer so
warrants. In no event shall Grizzly’s liability under this warranty exceed the purchase price
paid for the product and any legal actions brought against Grizzly shall be tried in the State
of Washington, County of Whatcom.
We shall in no event be liable for death, injuries to persons or property or for incidental,
contingent, special, or consequential damages arising from the use of our products.
To take advantage of this warranty, contact us by mail or phone and give us all the details.
We will then issue you a “Return Authorization Number,” which must be clearly posted on
the outside as well as the inside of the carton. We will not accept any item back without this
number. Proof of purchase must accompany the merchandise.
The manufacturers reserve the right to change specifications at any time because they
constantly strive to achieve better quality equipment. We make every effort to ensure that
our products meet high quality and durability standards and we hope you never need to
use this warranty.
Please feel free to write or call us if you have any questions about the machine or the
manual.
Grizzly Industrial, Inc.
1203 Lycoming Mall Circle
Muncy, PA 17756
Phone: [phone]
Fax: [phone]
E-Mail:
[email protected]
Web Site: http://www.grizzly.com
Thank you again for your business and continued support. We hope to serve you again
soon!
WARRANTY AND RETURNS

WARRANTY CARD
Name _________________________________________________________________
Street _________________________________________________________________
City _______________________ State _________________________ Zip _________
Phone # ____________________ Email ________________________ Invoice # _____
Model # ____________________ Order # _______________________ Serial # ______
The following information is given on a voluntary basis. It will be used for marketing purposes to
help us develop better products and services. All information is strictly confidential.
1. How did you learn about us?
____Advertisement ____Friend ____Catalog
____Card Deck ____Website Other:________________________
2. Which of the following magazines do you subscribe to?
3. What is your annual household income?
____$20,000-$29,000 ____$30,000-$39,000 ____$40,000-$49,000
____$50,000-$59,000 ____$60,000-$69,000 ____$70,000+
4. What is your age group?
____20-29 ____30-39 ____40-49
____50-59 ____60-69 ____70+
5. How long have you been a woodworker/metalworker?
____0-2 Years ____2-8 Years ____8-20 Years ____20+ Years
6. How many of your machines or tools are Grizzly?
____0-2 ____3-5 ____6-9 ____10+
7. Do you think your machine represents a good value? ____Yes ____No
8. Would you recommend Grizzly Industrial to a friend? ____Yes ____No
9. Would you allow us to use your name as a reference for our customers in your area?
Note: We never use names more than 3 times. ____Yes ____No
10. Comments: _________________________________________________________
______________________________________________________________________
______________________________________________________________________
______________________________________________________________________
____ Cabinet Maker
____ Family Handyman
____ Hand Loader
____ Handy
____ Home Shop Machinist
____ Journal of Light Cont.
____ Live Steam
____ Model Airplane News
____ Modeltec
____ Old House Journal
____ Popular Mechanics
____ Popular Science
____ Popular Woodworking
____ Practical Homeowner
____ Precision Shooter
____ Projects in Metal
____ RC Modeler
____ Rifle
____ Shop Notes
____ Shotgun News
____ Today’s Homeowner
____ Wood
____ Wooden Boat
____ Woodshop News
____ Woodsmith
____ Woodwork
____ Woodworker West
____ Woodworker’s Journal
____ Other:

FOLD ALONG DOTTED LINE
GRIZZLY INDUSTRIAL, INC.
P.O. BOX 2069
BELLINGHAM, WA 98227-2069
TAPE ALONG EDGES--PLEASE DO NOT STAPLE
Name________________________________
Street________________________________
City______________State______Zip_______
Send a Grizzly Catalog to a friend:
Place
Stamp
Here
