Grohe Avensys Parts list manual

Installation Instructions and Operating Guide
Please leave this document with the user after finishing installation!
95.578.131/ÄM 30 222/09.00
Avensys
Exposed Single Thermostat Mixing Valve
34 033 34 034
955781.book : t95578.fm Seite 1 Donnerstag, September 21, 2000 2:07 PM

I
Valve Body
Wallplugs Screws
Escutcheons
Filters
Threaded Rings
Flow Limiters
Handshower
Filter
Flexible Hose
Shower Rail
Outlet
Nipple
Plug
Backplate
Table Of Contents Installation Dimensions (mm)
1 2
34 033 34 034
kl955781.fm Seite 1 Donnerstag, September 21, 2000 2:04 PM

II
Spare Parts
3 4
kl955781.fm Seite 2 Donnerstag, September 21, 2000 2:04 PM

5
Index
Spare Parts
Table Of Contents . . . . . . . . . . . . . . . . . 1
Installation Dimensions . . . . . . . . . . . . 2
Spare Parts Drawing. . . . . . . . . . . . 3 + 4
Spare Parts List. . . . . . . . . . . . . . . . . . . 5
Technical Data. . . . . . . . . . . . . . . . . . . . 6
Installation. . . . . . . . . . . . . . . . . . . . . . . 7
Exposed Installation. . . . . . . . . . . . . . . 7
Pipe And Shower Hose Connection. . . 9
Adjustment. . . . . . . . . . . . . . . . . . . . . 10
Maintenance . . . . . . . . . . . . . . . . . . . . 11
Care . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Trouble Shooting . . . . . . . . . . . . . . . . 13
Guarantee . . . . . . . . . . . . . . . . . . . . . . 15
Dear Customer,
Thank you for choosing a GROHE product.
Please follow these instructions carefully
and you will enjoy many years of reliable
service from this fitting.
No. Description Cat.-No. Pack- ing
unit
9.4 Filter 06 768 5
9.5 Escutcheon 00 197 2
10 Handshower 28 216 1
10.1 Adjustment ring 45 794 1
10.2 Filter 07 002 2
11 Shower rail 28 666 1
11.1 Sliding shower holder 07 659 1
11.2 Shower rail holder 45 362 1
11.2.1 Cover cap 45 363 1
12 Flexible hose 28 161 1
Optional accessory
13 Compensation ring 45 406 1
No. Description Cat.-No. Pack- ing
unit
1 Handle complete 47 591 1
1.1 Cap 00 090 1
1.2 Fixing set 47 592 1
2 Cover ring 00 565 1
3 Stop ring 47 593 1
4 Control unit 47 600 1
5 Wax element 00 798 1
6 Slider 07 587 1
7 Seat with spring 47 594 1
7.1 O-ring seal 03 169 5
8 Set screw M5x12 02 125 5
9 Connection elbow 12 111 2
9.1 Flow limiter set 46 428 1
9.2 Non-return valve 06 544 2
9.3 O-ring seal 01 287 10
955781.book : i95578gb.fm Seite 5 Donnerstag, September 21, 2000 2:07 PM

6
Technical Data
Functioning Principle
This Avensys mixing valve is a thermostatic
mixer with wax cartridge. Turning the handle
in a counter-clockwise direction opens the
water flow from cold to hot.
This product is supplied with connectors to fit
ø15mm pipework. Connection should be hot
left, cold right as viewed from the operating
position. The product is preassembled.
Plumbing Systems
This thermostatic mixing valve is suitable for
installation with:
•Gravity-fed plumbing systems with an
open vented hot water cylinder
•Cold water storage cistern
•Mains pressure unvented and instantan-
eous thermal hot water storage systems
•Multi-point gas water heaters
•Combination boilers with a modulating hot
water output
Supply Pipework
Ensure the supply pipework is thoroughly
flushed before installing the mixing valve.
GROHE recommends installing isolating
valves upstream of the mixing valve for
servicing purposes.
New Water Regulations
This GROHE-product should be installed to
comply with the New Water Regulations
covering backflow prevention. It must also
be installed in accordance with local bye-law
requirements.
Specification
•Exposed thermostatic shower mixing
valve, concealed or exposed supplies
•Flow pressure
- Low pressure 0.1 - 1 bar
- High pressure 1 - 10 bar
•Avoid major pressure differences between
hot and cold water supply:
For different supply pressures use
enclosed flow limiters, see chapter
“Exposed Installation” on page 7.
•Max. operating pressure 10 bar
•Max. test pressure 16 bar
•Mixed water flow rate without downstream
resistance:
•Temperature
- Max. (hot water inlet) 80 °C
- Recommended (for economy) 60 °C
- Maximum temperature is reached when
the handle is rotated 270°in a counter-
clockwise direction.
•Water connection hot - LH
cold - RH
Pressure 0.1 0.2 0.3 0.4 0.5 0.6 bar
Flow rate 7.5 10.5 14 17 18.5 21 l/min
955781.book : i95578gb.fm Seite 6 Donnerstag, September 21, 2000 2:07 PM

7
Installation
Exposed Installation
The thermostatic shower mixing valve can
be installed in two different ways. The mixing
outlet can be at the bottom for use with a
handshower or at the top for use with a
headshower.
If there is a pressure differences between
the hot and cold water supply install
attached flow limiters in the water
connection elbows, see table below.

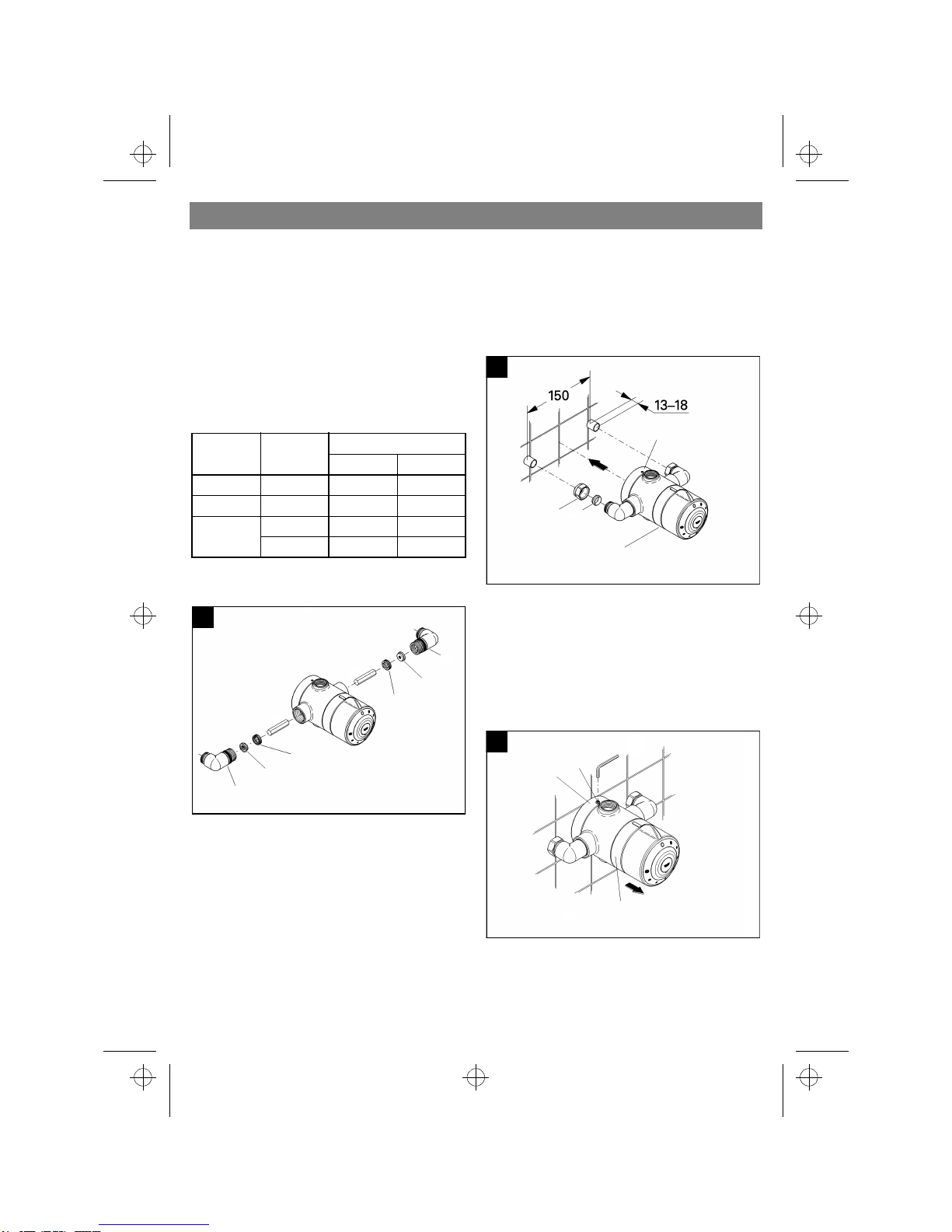

•Screw out connection elbows (A), see
Fig. [1].
•Install flow limiters (B) in accordance to
table above with threaded rings (C) by
using a 12mm socket spanner.
The thermostatic mixing valve is fixed to the
wall via the backplate and connected to the
supply pipes by a pair of elbows. The elbows
are preassembled to the valve body. The
valve body is fixed to the backplate by a set
screw.
In case of exposed installation with supply
pipes from above or below rotate inlet
elbows 90°and connect to 15mm supply
pipes.
1.Loosely screw on nuts (A1) with com-
pression rings (A2), see Fig. [2].
2.Ensure that the projections of the supply
pipes, (i.e. exposed beyond the wall sur-
face) have the correct length (13 - 18mm)
and distance (150mm).
3.Place the valve body (E) with the elbows
and backplate (D) to the supply pipes.
4.Loosen set screw (D1), see Fig. [3].
5.Remove valve body (E) from supply pipes
and hold backplate (D) in position.
Cold Water
Inlet Warm Wa- ter Inlet Connection
Cold Warm
0.1 - 1 bar 0.1 - 1 bar without without
1 - 5 bar 1 - 5 bar 7 l (green) 5 l (yellow)
1.5 - 10 bar 0.1 - 0.5 bar 7 l (green) without
> 0.5 bar 7 l (green) 5 l (yellow)
1
B
C
12mm
A
BC
12mm
A
2
D
E
A1 A2
3
D
E
D1
2.5mm
955781.book : i95578gb.fm Seite 7 Donnerstag, September 21, 2000 2:07 PM

8
Installation

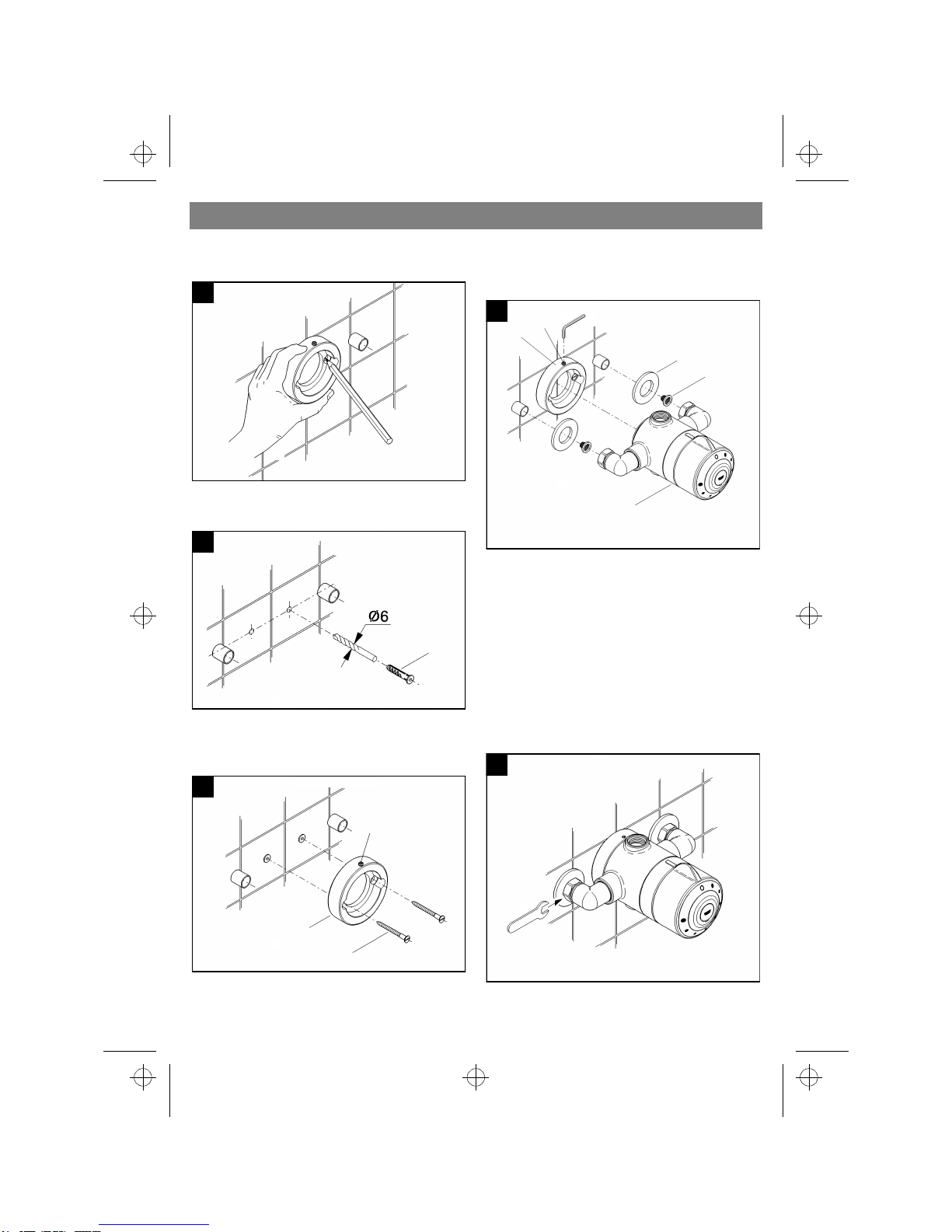

6.Mark the holes in the backplate for wall-
plugs, see Fig. [4].
7.Drill the holes (6mm) for the wallplugs (F)
and fit them into the wall, see Fig. [5].
8.Fix the backplate (D) with set screw (D1)
on top or bottom to the wall with
screws (G), see Fig. [6].
9.Slide the escutcheons (H) over the
supply pipes and install filters (J), see
Fig. [7].
10.Slide the valve body (E) with elbows and
compression nuts loosely over the
supply pipes.
The body must touch the backplate. If
not, check pipes for length again.
11.Fix the valve body (E) to the back-
plate (D) by tightening set screw (D1).
Do not use excessive force to tighten
the set screw (D1).
12.Tighten the compression nuts (torque
min. 20 Nm), see Fig. [8].
4
5
F
6
G
D
D1
7
E
2.5mm
D1
HJ
D
8
24mm
955781.book : i95578gb.fm Seite 8 Donnerstag, September 21, 2000 2:07 PM

9
Installation
Pipe Connection

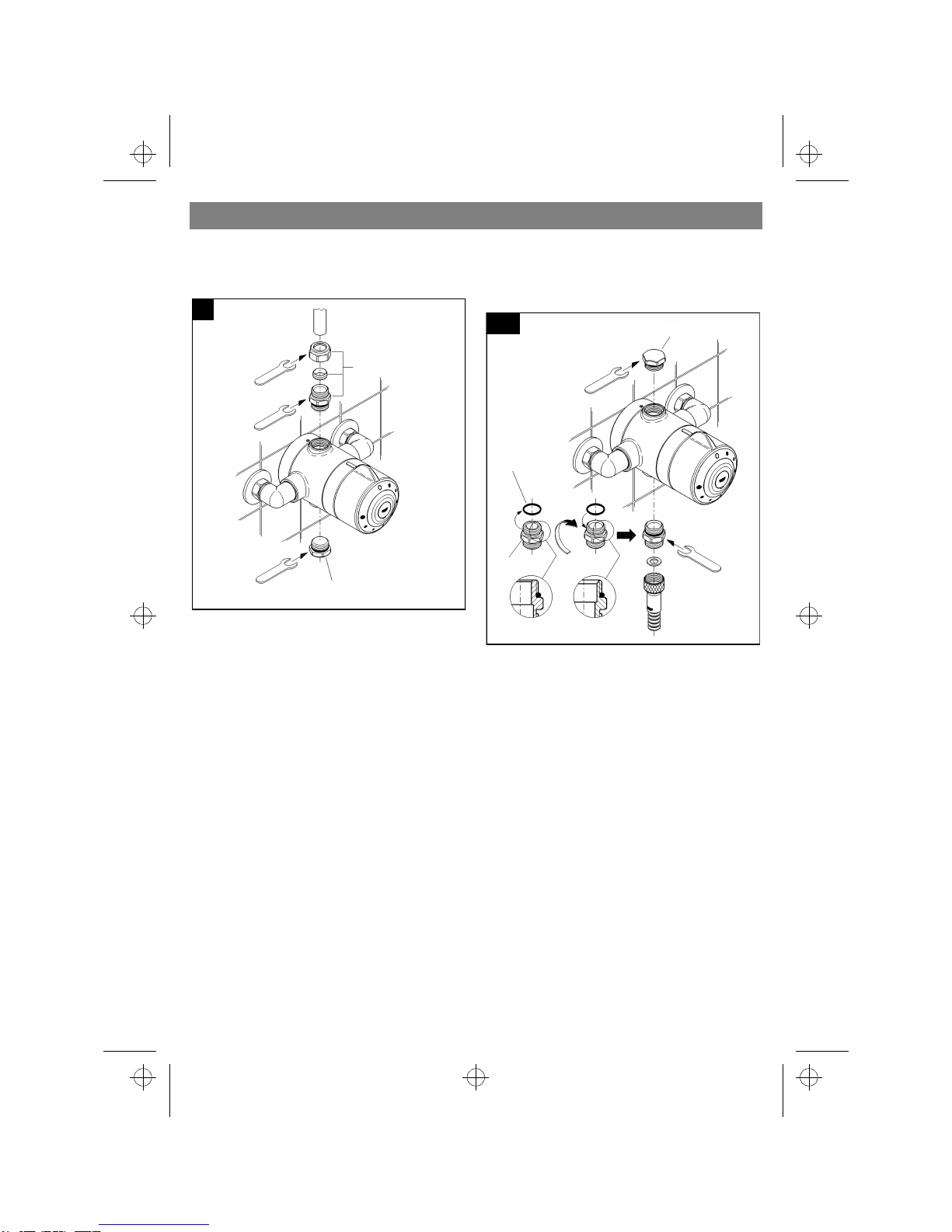

1.Close free outlet with plug (K), see Fig. [9].
2.Thread the outlet nipple (L) with the O-ring
seal into the valve body outlet.
3.Insert pipe and tighten outlet nipple (L).
Open hot and cold water supply.
Check the pipework and connections to the
thermostat mixing valve for leaks.
For reversed supplies installation the
complete mixing valve must be rotated 180°.
Therefore handle, cover ring and stop ring
must be dismounted, rotated 180°and
reinstalled.
Shower Hose Connection
1.Close free outlet with plug (K), see
Fig. [10].
2.Remove O-ring seal (L1).
3.Turn outlet nipple (L) 180°and fit O-ring
seal (L1).
4.Thread the outlet nipple with the O-ring
seal into the valve body outlet.
5.Connect flexible shower hose.
Open hot and cold water supply.
Check the pipework and connections to the
thermostat mixing valve for leaks.
For reversed supplies installation the
complete mixing valve must be rotated 180°.
Therefore handle, cover ring and stop ring
must be dismounted, rotated 180°and
reinstalled.
9
K
L
24mm
24mm
24mm
L
24mm
L1
K
24mm
10
1. 2. 3.
180°
955781.book : i95578gb.fm Seite 9 Donnerstag, September 21, 2000 2:07 PM

10
Installation
Adjustment
The temperature of the outflowing water is
factory set to 43 °C. A temperature adjust-
ment is necessary if:
•The maximum water temperature
measured at the outlet varies from
the factory set temperature.
•After any maintenance operation on the
thermostatic cartridge.
For temperature adjustment please
proceed as follows:
1.Turn the handle counter-clockwise to fully
open position and open water flow.

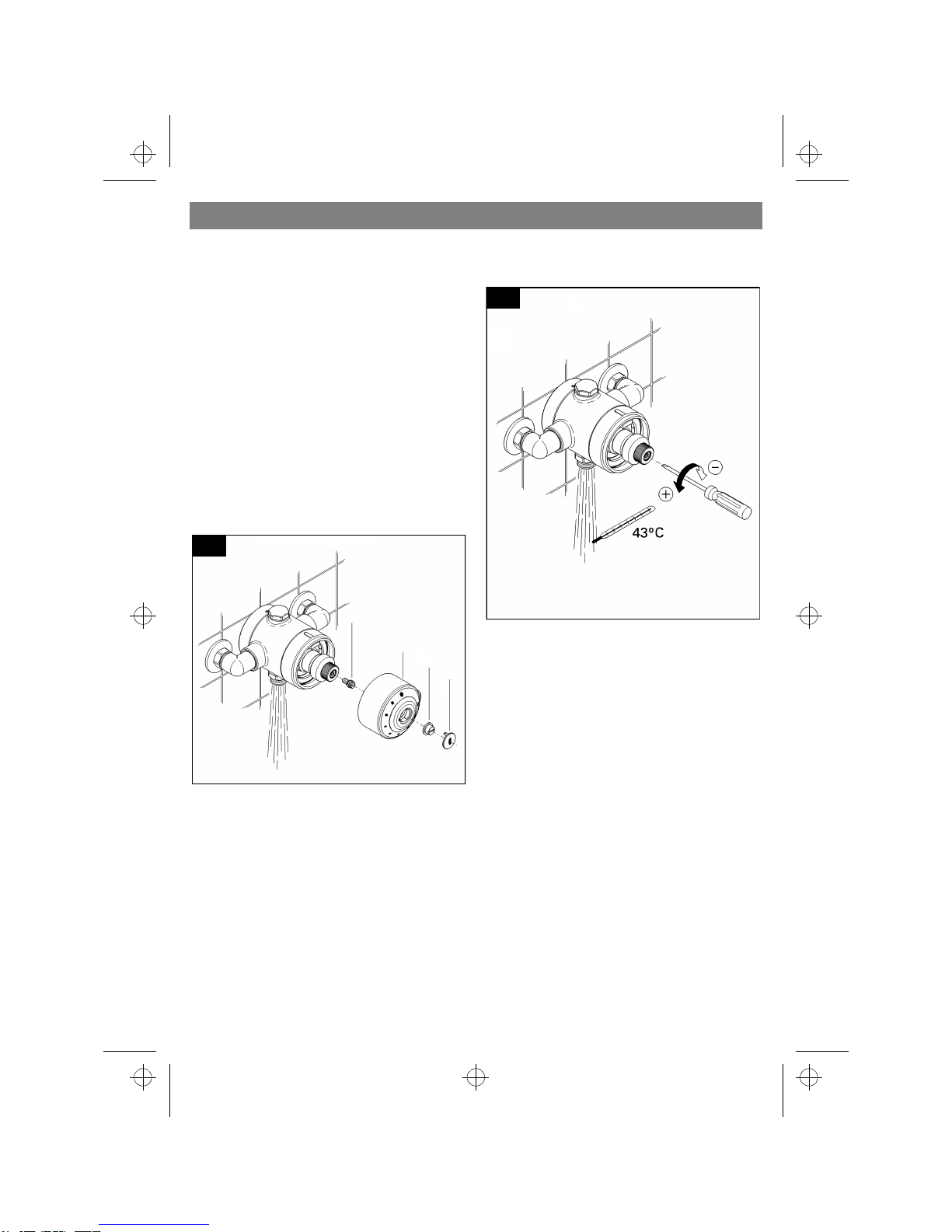

2.Lever out cap (M), see fig. [11].
3.Unscrew screw nut (N).
4.Pull off handle (O).
5.Remove screw (P).
A small rinse of water drops out.
6.Check the temperature of the outflowing
water with a thermometer, see Fig. [12].
7.With a small screw driver adjust tempera-
ture to 43 °C.
Turn clockwise (to reduce temperature) or
counter-clockwise (to increase
temperature).
8.Reinstall handle (O) in fully open position
as described in Fig. [11] in reversed
direction.
11
O
M
P
N
12
955781.book : i95578gb.fm Seite 10 Donnerstag, September 21, 2000 2:07 PM

11
Maintenance
I. Control Unit
1.Shut off hot and cold water supply!
2.Turn the handle counter-clockwise to
fully open position.

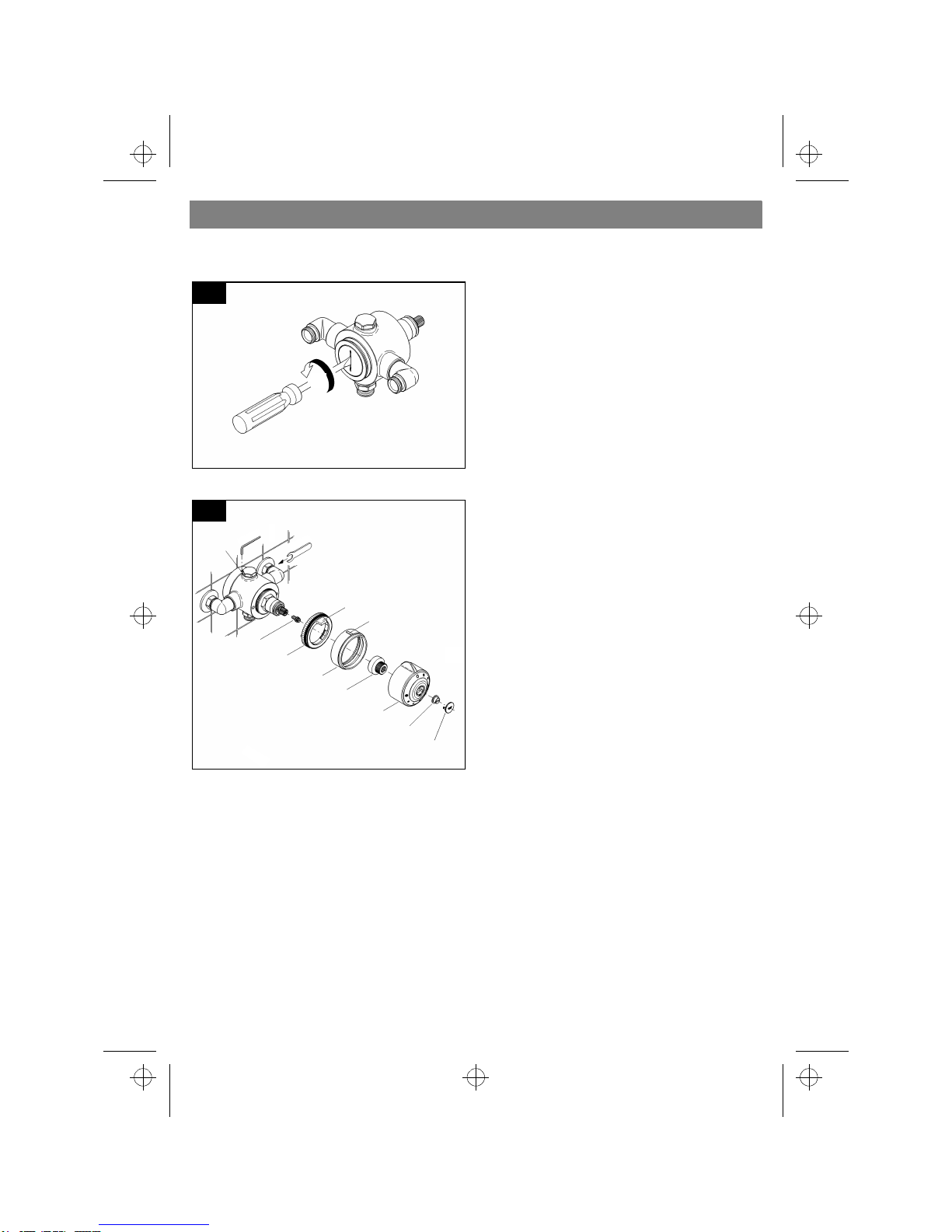

3.Lever out cap (M), see Fig. [13].
4.Unscrew screw nut (N).
5.Pull off handle (O).
6.Remove adapter (R).
7.Pull off cover ring (S) and stop ring (T).
8.Loosen set screw (D1).
9.Unscrew connections and take valve
from the supplies.
10.Screw out control unit (U), see Fig. [14].
11.Take out O-ring seal (U1).
12.Screw out screw nut (P) if replacing
control unit (U).
13.Take out wax element (V), slider (W) and
spring (X).
Inspect and clean all parts, replace if
necessary and grease with special valve
grease (ref. No. 18 012).
Reinstall control unit
1.Unscrew seat (Y) with O-ring, see
Fig. [15].
2.Reinstall O-ring seal (U1).
3.Screw in control unit (U).
4.Reinstall wax element (V), slider (W) and
spring (X) from behind, see Fig. [16].
5.Tighten seat (Y) in the valve body.
13
M
N
R
S
T
O
24mm
2.5mm
D1
14
XWVU1
30mm
P
U
15
U
30mm
Y
U1
16
XWV
Y
