1. GENERAL DESCRIPTION
The DGF100 is a microprocessor based ground fault unit for use on solidly grounded or resistance
grounded systems. This innovative digital electronic unit measures ground fault current using a built-in
46 mm zero sequence Current Sensor (CS), or an external Current Sensor. External Current Sensors with
different cable windows, round or square, and various current ratios are available. The external current
sensors must be connected to terminals T1 & T2.
The system will react to alternating current (ac) only and will reject direct current (dc) signals. Accuracy
will be maintained over a frequency range of 40-65 or 400 Hz, making it suitable for variable frequency
drive applications. The DGF100 is a Class A device as defined in the IEC 60755 standard; it is therefore
fully characterized for operation with sinusoidal ac and pulsating dc currents.
The DGF100 houses an isolated universal power supply from 24-240 V ac or dc and is equipped with form
‘Z’ (4-wire) isolated N.O and N.C. contacts. The Ground Fault (G/ F) Current Trip level (30mA-9A, 14
steps), Trip Delay Time (20ms–5s, 8 steps) and the Relay Operating Mode (F/S, non-F/S, pulsed auto
reset and pulsed Non-FS) are set on a front accessible dipswitch array.
A single press of the RESET button, or an external, voltage free, momentary pushbutton connected to
terminals R1 and T2/R2, resets the relay after a trip. A functional test of the DGF100 is started by either
double clicking the cover mounted or external button, or by invoking a test on the DGF100 Display.
A green RUN LED flashes, alternating one second on and off, to indicate that sufficient control power is
applied to terminals L+ and N- (Power OK).
A red TRIP LED indicates that the DGF100 has sensed a Ground Fault and that the output contacts have
operated.
7 point and 3 point pull-apart terminal blocks simplifies connection of field wiring. A captive screw
secures the 7 point block to the relay, safe from the effects of shock and vibration.

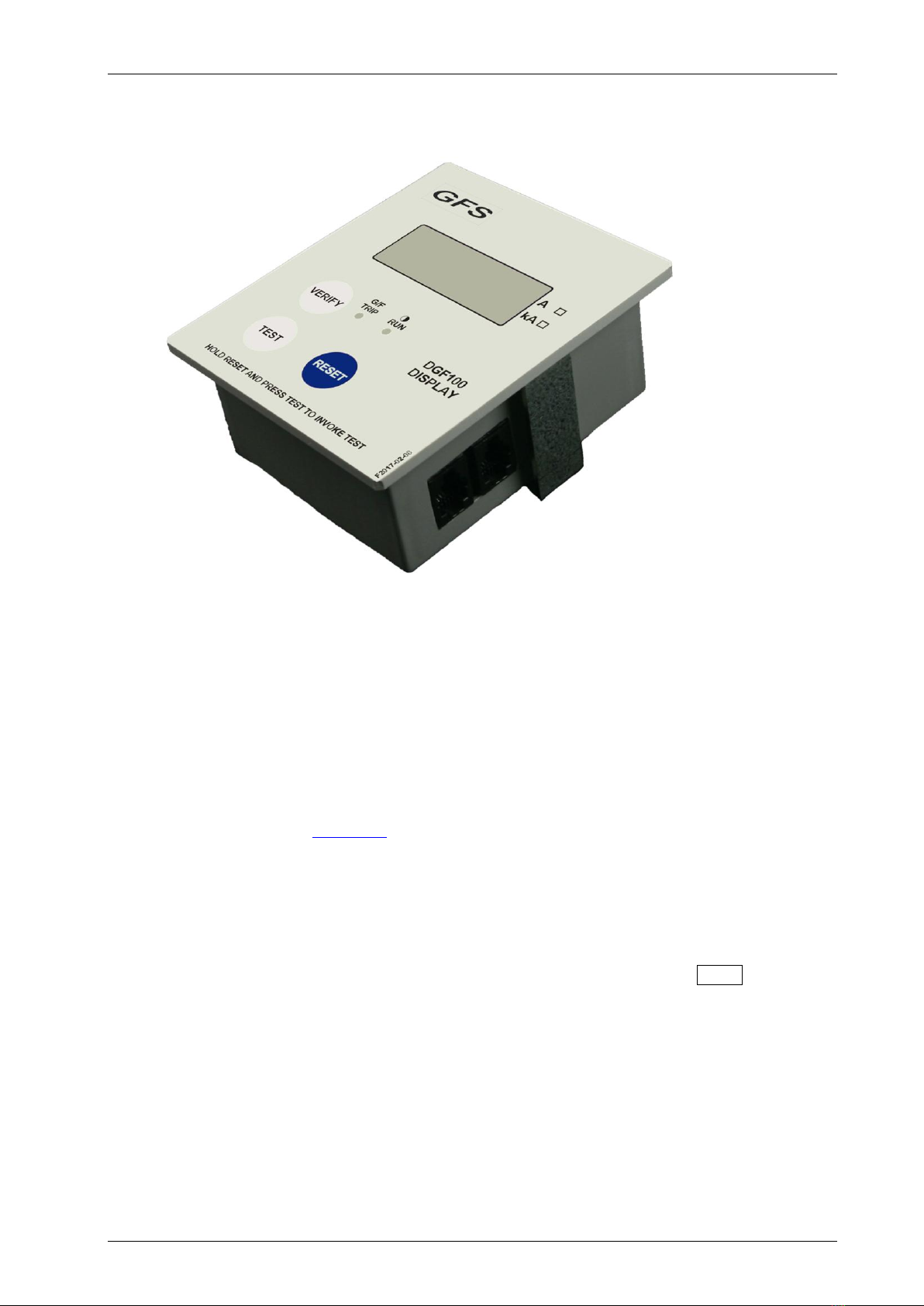

A communications port provides access for a remote display. The remote DGF100 Display shows the
actual ground fault current during normal running of the systems. After a trip the ground fault current
just prior to the trip is displayed. If the DGF100 Display was connected to the DGF100 at the moment of
a trip and the DGF100’s Control Voltage is turned off, pressing the VERIFY button will show a red LED
indicating a ground fault. If no fault was present the green LED will light.
For all features, see the Instruction Manual for the DGF100 Display.
To ensure that the DGF100 will function in all circumstances, it is encapsulated in polyurethane (PUR) to
make sure it is not vulnerable to mechanical shock, vibration nor weather.
The maximum system operating voltage for the DGF100 is 660 V, when passing the system power
conductors through the built-in CS. However, by using any GFS external CS and insulating the busbars, or
by using any suitably rated, commercially available, interposing CT and passing the secondary lead
through the built-in CS, the relay can be used on any system voltage.
PAGE 4OF 26
DGF100 reference manual, rev 1, Feb 22, 2022 Ground Fault Systems B.V.
2. FUNCTIONALITY
2.1 Dipswitch settings
FOR MAXIMUM SAFETY OF PERSONNEL AND EQUIPMENT, THE SETTINGS SHOULD BE MADE
WITH THE SYSTEM POWER SWITCHED OFF.
Inadvertent changes in settings can cause unexpected trips and unforeseen reactions.
The DGF100 has dipswitches to set the desired Trip Current level, Trip Delay time, Relay Operating Mode
and CS configuration. Below is a summary of the different options. See table 1 for the setting values.
2.1.1 CS configuration /Dipswitch 1
The DGF100 is capable of measuring primary ground fault currents from 10 mA - 10000 A with trip level
settings in different ranges:
30 mA - 9.0 A with the system power conductors passing through the built-in 46 mm CS.
30 mA - 9.0 A with the system power conductors passing through an external CS with a
current ratio of 500:1 with its secondary terminals connected to terminals T1 & T2.
60 mA –18,0 A with the system power conductors passing through an external CS with a
current ratio of 1000:1 with its secondary terminals connected to terminals T1 & T2.
120 mA –36,0 A with the system power conductors passing through an external CS with a
current ratio of 2000:1 with its secondary terminals connected to terminals T1 & T2.
600 mA –180 A with the system power conductors passing through an external CS with a
current ratio of 10.000:1 with its secondary terminals connected to terminals T1 & T2.
3.0 - 900 A by passing the 5 A secondary of an interposing CT with a
current ratio of 500:5 through the built-in 46 mm CS.
30 - 9000 A by passing the 5 A secondary of an interposing CT with a
current ratio of 5000:5 through the built-in 46 mm CS.
See Table 1.
2.1.2 Ground Fault Trip Current level –dipswitches 2, 3, 4&5
The Ground Fault Trip Current level is 30 mA - 9000 A in different ranges. Table 1 provides a list of the
fourteen Trip Current level settings in each of three ranges, which can be made on dipswitches 2, 3, 4, &
5, depending on the CS configuration selected as described in the above paragraph, 2.1.1.
It is recommended that the Ground Fault Trip level be kept as close to the charging current as possible.
This will provide maximum safety for operating personnel and equipment.
On resistance grounded systems, the Trip Current level should be set lower than 20% of the Neutral
Grounding Resistor let-through current.
2.1.3 Ground Fault Trip Delay Time –dipswitches 6, 7&8
The ground fault Trip Delay time range is 20 ms - 5.0 s. Table 1 provides a list of the eight Trip Delay
time settings, which can be made with dipswitches 6, 7 and 8.
Set the Ground Fault Trip Delay time to provide the desired delay before the output relay changes state
when the ground fault Trip Delay level is reached or exceeded and the Trip Delay time has expired.
The setting should be selected to co-ordinate with other ground-fault devices connected on the same
power transformer secondary: set shorter than upstream devices; set longer than downstream devices. If
no other ground-fault devices are connected, set for the shortest possible time.
PAGE 5OF 26
DGF100 reference manual, rev 1, Feb 22, 2022 Ground Fault Systems B.V.
2.1.4 Operating mode –dipswitches 9&10
(N.O. = Normally Open, N.C. = Normally Closed)
The DGF100 user can select four distinct Operating Modes for the device.
All modes have in common:
In the ‘reset state’ of the relay the N.O. contact is open and the N.C. contact is closed.
In the ‘tripped state’ of the relay the N.O. contact is closed and the N.C. contact is open.
See table 1 for the dipswitch-settings.
The different modes are listed below:
1. Non-Failsafe operation
The output relay does not change state when Control Voltage is applied.
With Control Voltage on (Green RUN LED flashing), when the measured value reaches or exceeds
the settings for current and time, the output relay changes state (trips) and the red TRIP LED lights.
If Control Voltage is maintained after a ground fault trip, the reset button must be pushed to reset
the relay after clearing the ground fault.
If Control Voltage is removed while a ground fault is detected, the output relay resets and the red
TRIP LED is turned off.
If the ground fault has not been cleared when Control Voltage is restored, the relay will trip and the
red TRIP LED will light after 500 milliseconds, regardless of the Trip Delay time.
If the ground fault has been cleared when Control Voltage is restored, the relay will remain reset
and the green RUN LED flashes.
The Non-Failsafe mode can be used when the output relay is operating under-voltage devices. This
includes: contactor coils; starter coils and circuit breakers equipped with UV trip coils.
2. Failsafe operation
The output relay contacts change state 500 ms after Control Voltage is applied.
The output relay trips when either or both of the following conditions occur:
The measured values reach or exceed the settings for current during the delay time. In this
condition the red TRIP LED lights.
Control Voltage is removed. In this condition the red TRIP LED does not light.
If Control Voltage is maintained after a ground fault trip, the reset button must be pushed to reset
the relay after clearing the ground fault.
If Control Voltage is removed after a ground fault is detected, the output relay remains tripped.
If the ground fault has not been cleared when Control Voltage is restored, the relay remains tripped.
If the ground fault has been cleared when Control Voltage is restored, the relay contacts will change
state 500 ms after Control Voltage is applied.
The Failsafe mode can be used to trip the DGF100 upon loss of Control Voltage.
The Failsafe mode can be used when the output relay is operating undervoltage (UV) devices. This
includes: contactor coils; starter coils; and circuit breakers equipped with UV trip coils provided that
the Control Voltage to the DGF100 is not interrupted by the action of the UV trip.
3. Auto Reset operation
The output relay does not change state when Control Voltage is applied.
With Control Voltage on (green RUN LED flashing), when the measured value reaches or exceeds
the settings for current during the delay time, the output relay changes state (trips) and the red
TRIP LED lights. The output relay will remain tripped until one of the following conditions is met:
Three seconds after the ground fault current drops below the trip current set point the relay will
reset and the red TRIP LED is turned off.
If the Control Voltage is removed by the trip action of the output relay (i.e. it operates the
shunt trip of the breaker that is providing the Control Voltage), the relay will reset with a short
delay and the red TRIP LED is turned off.
If the ground fault has not been cleared when Control Voltage is restored, the unit will trip after 500
milliseconds, regardless of the Trip Delay time, the above cycle will be repeated.
If the ground fault has been cleared when Control Voltage is restored, the unit will remain in reset
state.
The Auto Reset mode is designed for applications where the output relay is operating a shunt trip
PAGE 6OF 26
DGF100 reference manual, rev 1, Feb 22, 2022 Ground Fault Systems B.V.
device. The DGF100 resets automatically 3 seconds after the ground fault current is interrupted by
the tripping action of the circuit breaker. The output contact to the shunt trip coil opens. This
prevents damage to the internal mechanism of the circuit breaker in the event that the operator tries
to reset the circuit breaker. When the Control Voltage to the DGF100 is interrupted by action of the
shunt trip, the DGF100 resets with a short delay.
4. Pulsed Non-failsafe Operation
The output relay does not change state when Control Voltage is applied or removed.
With Control Voltage on (green RUN LED alternating flashing one second on and off), when the
measured value reaches or exceeds the settings for current and time, the relay goes to the tripped
state for 0.5 seconds, then resets. The red TRIP LED will light.
Should the measured current remain or go above the set G/F trip level, this 0,5 second pulse is
repeated every 3 seconds. The red TRIP LED remains on until a RESET is activated. This allows the
user to verify which DGF100 tripped its associated breaker. If a RESET is not activated the red TRIP
LED remains on showing the cause of trip. However, the functionality of the trip circuit is not
compromised. That is, in case of a trip condition the relay will correctly issue a pulse, even if the red
TRIP LED is on.
If the Control Voltage is removed by the trip action of the output relay (i.e. it operates the shunt trip
of the breaker that is providing the Control Voltage) the red TRIP LED is turned off.
If the ground fault has not been cleared when Control Voltage is restored, regardless of the Trip
Delay time, after 500 milliseconds the relay goes to the tripped state for 0,5 seconds, then resets.
The red TRIP LED will turn on.
If the ground fault has been cleared when Control Voltage is restored, the unit will remain in reset
state and the green LED will flash.
If the DGF100 is to be used for alarm only purposes (rather than to interrupt ongoing processes), and the
alarm has to have an auto-resetting nature, then one has to use one of the Pulsed modes. The pulses will
be repeated as long as current is above the set G/F level.
Back to Control Voltage. Back to Reset/Test pushbutton
2.2 LED Indicators
There are two LEDs on the front of the DGF100:
A green LED showing sufficient Control Voltage by slowly flashing (1 s on / 1 s off).
A red LED, if steady on, indicating a trip.
2.3 Reset/Test pushbutton
Either the built-in or an external, normally open, momentary pushbutton, connected to terminals R1 and
T2/R2, is used to reset the internal relay and/or the red LED (depending on the Operating Mode, see
section 2.1.4). The external reset button must be a momentary normally open voltage-free contact; no
external power supply is required. See section 6.2.
A reset will only be granted if the cause of the trip is cleared. Otherwise the relay will remain activated
without glitches.
Double-clicking the built-in or external reset button invokes a test which switches an AC test-voltage onto
the built-in processor’s CS input. The voltage is scaled to simulate a residual current of 1,5 - 3 times the
G/F trip level. The unit will trip on G/F after the set delay (plus 0,4 s). The red LED turns on solidly. The
button needs to be pressed again to reset the device.
It is NOT necessary to press the RESET button after the ground fault has been cleared when the DGF100
is set in the Pulsed Auto Reset mode. In this mode the relay will reset in 3 seconds.
Back to DGF100 Display.
PAGE 7OF 26
DGF100 reference manual, rev 1, Feb 22, 2022 Ground Fault Systems B.V.
2.4 External Current Sensor
The DGF100 can work with an external CS, which is useful in the situation where the cables together are
bigger than the 46 mm of the internal CS opening allows, or when higher than 660V system voltages are
needed.
See Catalog Numbers for the available options and Table 2 for the various trip values.
2.5 Frame Bonding/Chassis Ground
Chassis ground is the ground to which all of the non-current carrying metal equipment is
connected/bonded.
In order to meet the Electromagnetic Compatibility (EMC) requirements a firm and short connection is
required between terminal FB and the chassis ground point. The chassis ground must not be more than
50 mm away from the unit.
If the DGF100 is mounted on a 35 mm DIN rail, a ‘DIN rail ground terminal block’ can be installed beside
the unit to act as the chassis ground point. Use a 2-2,5 mm2(14 AWG) stranded conductor.
See the figures 1, 2 and 3 on typical field connections.
Back to Connections and precautions.
PAGE 8OF 26
DGF100 reference manual, rev 1, Feb 22, 2022 Ground Fault Systems B.V.
2.6 DGF100 Display
The door mounted DGF100 Display is connected to the DGF100 by up to 10 m of RJ-10 type, 4-wire
telephone type cable. It provides the following remote indications and functions:
Continuous reading of actual ground fault current, employing auto ranging.
‘RESET’ pushbutton. To reset the unit after a trip.
‘VERIFY’ pushbutton. By pushing the ‘VERIFY’ button on the DGF100 Display, it will show if the
DGF100, to which it was connected at the time of trip, tripped due to a ground fault prior to loss of
its Control Voltage by lighting the red ‘G/ F TRIP’LED. If there was no ground fault trip prior to loss
of Control Voltage the green ‘RUN’LED will light. This feature is especially useful when pulse tripping
a breaker that also supplies Control Voltage to the DGF100. This indication will remain available for
at least ten hours. The DGF100 Display will reset automatically when Control Voltage is restored.
‘TEST’ pushbutton. (See section 2.3 Ground Fault Test for a description of the test procedure).
The ‘RESET’ button must be held pressed before the ‘TEST’ is pressed to invoke the test procedure.
The function of this button can be enabled/ disabled by inserting the interconnecting cable from the
DGF100 base unit into one of two sockets, TEST ON or TEST OFF, on the right side of the display. If
the feature is disabled and the ‘RESET’ and ‘TEST’ buttons are pressed, the display shows ‘OFF’ for 1
second, and the red ‘G/F TRIP’ LED on the display flashes twice.
Display of the pre-trip ground fault current, after a trip has occurred (flashing display).
When the G/F current exceeds the system’s measuring range, the display shows
Out
, meaning
‘Out of range’.
Power over datalink, no external power supply needed
There are two LEDs present, green and red, showing which state the DGF100 base unit is in.
-Green ‘RUN’LED Flashing: Okay
Off: No Control Voltage, Control Voltage too low
-Red ‘G/F TRIP’LED Off: No trip
Steady on: Trip
After loss of Control Voltage the DGF100 base unit will show if it tripped because of a ground fault,
by lighting the red LED, or if it was a loss of Control Voltage without a trip, by lighting the green
LED.
PAGE 9OF 26
DGF100 reference manual, rev 1, Feb 22, 2022 Ground Fault Systems B.V.
The Numerical LCD window displays actual ground fault current in A. When a 5000:5 ratio interposing CT
is used, all displayed values are to be interpreted as kA rather than A.
Two blank boxes to the right of the LCD display window are marked ‘A’ and ‘kA’. Use a permanent marker
to check the appropriate box as follows:
‘A’ - when using the built-in CS, an external CS, or a 500:5 ratio interposing CT.
‘kA’ - when using a 5000:5 ratio interposing CT.
PAGE 10 OF 26
DGF100 reference manual, rev 1, Feb 22, 2022 Ground Fault Systems B.V.
3. CONTROL VOLTAGE
The DGF100 has a universal, isolated power supply, accepting nominal voltages between 24 and 240 V ac
or dc with -20% / +10% tolerances. The total range of accepted voltages is therefore 19,2 to 264 V ac or
dc. Power consumption is a mere 1,2 VA maximum with ac voltages and 0,5 W maximum with dc
voltages.
For optimum EMC performance and safety, the FB (Frame Bond) terminal must be firmly connected to
the local frame or chassis ground. The chassis ground must not be more than 50 mm away from the unit.
If the DGF100 is mounted on a 35 mm DIN rail, a ‘DIN rail ground terminal block’ can be installed beside
the unit to act as the chassis ground point. Use a 2-2,5 mm2(14 AWG) stranded conductor.
Control Voltage is subsequently presented to the L+ and N- terminals.
For good EMC behaviour it is important (as in any installation) to run all wiring close along the chassis or
in metal ducts, avoiding excess lengths and coiled up wires.
PAGE 11 OF 26
DGF100 reference manual, rev 1, Feb 22, 2022 Ground Fault Systems B.V.
4. CONNECTIONS AND PRECAUTIONS
Please consult the following checklist when applying the DGF100.
1. Please review Figures 1, 2 and 3 for typical field connections.
2. If the DGF100 is used for alarming only purposes, or if the G/F Trip Delay Time is set to 1 s or
higher, verify that the DGF100 cannot be subjected to conditions exceeding its Thermal Withstand
Capability (see section 6.1).
3. Place the DGF100 in a clean dry enclosure. Locate the unit in the vicinity of the isolating device
(circuit breaker or contactor) that is protecting the circuit being monitored.
4. Provide maximum clearance between the DGF100 (plus the external CS if used) and any strong
magnetic flux producing devices such as power transformers, autotransformers, control
transformers, reactors, high power conductors, contactors and other buswork.
5. Lead the power conductors of the circuit being monitored, (including Neutral if any and excluding
the ground wire) through the internal OR external CS’s opening. WARNING: Never lead conductors
through both the internal and the external CS at the same time.
6. All connections to the DGF100 are by means of screw clamp pull-apart terminals rated 10 A, 300 V.
Terminals will accept 0,5-2,5 mm2, (20-14 AWG) solid or stranded conductors. The user may want to
identify the following terminals:
T1 and T2 for connecting an external CS, use 2-2,5 mm2, 14 AWG stranded wire.
R1 and R2 for connecting an external momentary, N.O., voltage free, pushbutton.
FB for providing an absolute ground reference to the system (refer to section 2.5), use
2-2,5 mm2, 14 AWG stranded wire.
L+ for connecting ac or dc Control Voltage’s ‘hot’ side.
N- for connecting ac or dc Control Voltage’s ‘cold’ side.
11 and 12 for access to the normally closed (N.C.) contact of the relay.
13 and 14 for access to the normally open (N.O.) contact of the relay.
7. In order to meet the Electromagnetic Compatibility (EMC) requirements a firm and short connection
is required between terminal FB and the chassis ground point. The chassis ground must not be more
than 50 mm away from the unit.
8. If the DGF100 is mounted on a 35 mm DIN rail, a ‘DIN rail ground terminal block’ can be installed
beside the unit to act as the chassis ground point.
9. For good EMC behaviour it is important (as in any installation) to run all wiring, especially if
unshielded, close along the chassis or in metal ducts, avoiding excess lengths and coiled up wires.
10. Integrate the relay contacts into the control circuit. Apply appropriate fusing to protect the contacts
(13 A maximum).
11. If an external CS is being used, connect the two secondary terminals of the CS to terminals T1 and
T2 of the DGF100 using 2 mm2(14 AWG) shielded twisted pair cable. Connect the shield to chassis
ground by means of a clamp, close to the DGF100 (where the FB terminal is bonded to chassis
ground as well). From the clamp to terminals T1 and T2 the wires can be left unshielded. Please
note that terminal T2/R2 is internally connected to terminal FB of the DGF100. Since terminal FB
must be grounded, it means that the external CS will be grounded automatically. If separate
grounding is required by electrical regulations, the external CS terminal connected to T2 should be
connected to the same grounding point as terminal FB of the DGF100. This will avoid ground loops
and nuisance tripping.
12. Secure the unit to the DIN rail ensuring the white release latch at the bottom of the unit engages
the rail. If the unit is to be mounted in any other position take appropriate steps to prevent the unit
from becoming disengaged from the DIN rail.
PAGE 12 OF 26
DGF100 reference manual, rev 1, Feb 22, 2022 Ground Fault Systems B.V.
13. If an external Reset pushbutton is being used, connect it to terminals R1 and T2/R2 of the DGF100
using twisted pair cable (of any gauge accepted by the terminals). If the distance between the
button and the DGF100 exceeds 1 m, shielded cable is recommended, the shield being connected to
chassis ground by means of a clamp, close to the DGF100 (where the FB terminal is bonded to
chassis ground as well). From the clamp to the terminals the wires can be left unshielded.
The external reset button must be a voltage-free N.O. contact; no external power supply is required.
See section 6.2.
14. Up to six DGF100 units in the same enclosure may share a common remote Reset/Test button.
Connect one terminal of the button to terminal T2/R2 of one of the units, and connect the other
terminal of the button to terminals R1 of all the units in parallel. See figure 5.
15. Position power cables in the centre of the current sensor opening. Keep cables and buswork clear of
the split on split core current sensors.
16. Verify that the polarity of the conductors is correct when they pass through the CS. Verify that
ground paths do not exist that would bypass the CS.
17. Phase Conductors must be insulated for the system voltage when it is higher than 660 V.
NOTE: Use the correct type of CS as specified in section 5.The use of standard type of core balance
current transformers, connected to the external CS input, may lead to catastrophic failure of the DGF100.
PAGE 13 OF 26
DGF100 reference manual, rev 1, Feb 22, 2022 Ground Fault Systems B.V.
5. CATALOG NUMBERS
DGF100 Ground Fault Protection unit with built-in 46 mm CS, 24 - 240 V ac or dc Control
Voltage, for use on 660 V maximum, 45-65 or 400 Hz power systems. Can be
expanded with external CS, remote Reset/Test pushbutton and DGF100 Display.
DGF100 Display Digital Display Unit with LCD display and interconnecting cable, for use with DGF100
CS5-50 Zero sequence current sensor, 50 mm window, 500:1 ratio
CS5-65 Zero sequence current sensor, 65 mm window, 500:1 ratio
CS5-90 Zero sequence current sensor, 90 mm window, 500:1 ratio
CS5-150 Zero sequence current sensor, 150 mm window, 500:1 ratio
CS5-240 Zero sequence current sensor, 240 mm window, 500:1 ratio
CS5-1517 Zero sequence current sensor, 150 x 170 mm window, 500:1 ratio *
CS5-1025 Zero sequence current sensor, 100 x 250 mm window, 500:1 ratio *
CS5-1035 Zero sequence current sensor, 100 x 350 mm window, 500:1 ratio *
CS5-3030 Zero sequence current sensor, 300 x 300 mm window, 500:1 ratio *
CS5-2028 Zero sequence current sensor, 200 x 280 mm window, 500:1 ratio
CS10-95 Zero sequence current sensor, 95 mm window, 1000:1 ratio
CS10-144 Zero sequence current sensor, 144 mm window, 1000:1 ratio
CS10-240 Zero sequence current sensor, 240 mm window, 1000:1 ratio
CS10-1025 Zero sequence current sensor, 100 x 250 mm window, 1000:1 ratio *
CS10-1035 Zero sequence current sensor, 100 x 350 mm window, 1000:1 ratio *
CS10-2028 Zero sequence current sensor, 200 x 280 mm window, 1000:1 ratio
CS20-95 Zero sequence current sensor, 95 mm window, 2000:1 ratio
CS20-144 Zero sequence current sensor, 144 mm window, 2000:1 ratio
CS20-240 Zero sequence current sensor, 240 mm window, 2000:1 ratio
CS20-1025 Zero sequence current sensor, 100 x 250 mm window, 2000:1 ratio *
CS20-1035 Zero sequence current sensor, 100 x 350 mm window, 2000:1 ratio *
CS20-2028 Zero sequence current sensor, 200 x 280 mm window, 2000:1 ratio
CS100-95 Zero sequence current sensor, 95 mm window, 10.000:1 ratio
CS100-144 Zero sequence current sensor, 145 mm window, 10.000:1 ratio
CS100-240 Zero sequence current sensor, 240 mm window, 10.000:1 ratio
CS100-2028 Zero sequence current sensor, 200 x 280 mm window, 10.000:1 ratio
* These current sensors are also available as a split core version, which adds /S to the name, e.g. when
ordered the name changes to CS5-1517/S.
Note: all the CS5, CS10, CS20 and CS100 type Current Sensors are for use with Ground Fault Systems
devices only.
Back to External Current Sensor. Back to Connections and precautions.
Back to Ground fault circuit
PAGE 14 OF 26
DGF100 reference manual, rev 1, Feb 22, 2022 Ground Fault Systems B.V.
6. TECHNICAL SPECIFICATIONS
6.1 Ground fault circuit
G/F Trip Level (settable)
30-40-60-90-150-250-400-600-900 mA
1,50-2,50-4,00-6,00-9,00 A
Accuracy of G/F trip point
-15% / +0% of Trip Level 1
G/F Trip Delay (settable)
20-50-100-200-500 ms and
1,00-2,00-5,00 s
Accuracy of G/F trip delay
See Tables 3 for correct trip delay values and
accuracy
Thermal withstand capability
300 A infinitely 1500 A 500 ms
500 A 2000 ms 2000 A 300 ms
1000 A 700 ms
Thermal withstand capability with
external CS Ratio 500:1
300 A infinitely 2000 A 125 ms
500 A 2000 ms 5000 A 20 ms
1000 A 500 ms
Thermal withstand capability with
external CS Ratio 10.000:1
10.000 A 3,00 s
50.000 A 1,00 s
200.000 A 0,05 s
Suitable external CS types
Different sizes with 500:1, 1000:1, 2000:1 and
10.000:1 ratio, including split rectangular
sensors. See section 5.
1The accuracy of the trip point refers to the value of the real world leakage current (assuming apurely
sinusoidal wave shape) that just causes atrip when slowly increased from zero.
Back to Connections and precautions.
6.2 External pushbutton circuit
Type of pushbutton
Single pole, normally open, momentary
Voltage across / current through contact
5 V dc, 1 mA
Maximum number of units that can be
controlled in parallel from one voltage-free
button
6, all in the same enclosure
Back to Reset/ Test pushbutton. Back to Connections and precautions.
PAGE 15 OF 26
DGF100 reference manual, rev 1, Feb 22, 2022 Ground Fault Systems B.V.
6.3 Control Voltage
Voltage range
Nominal: 24 –240 V ac/ dc
Operating voltage tolerance:
80 - 110% of rated voltage 24 - 32 V ac
55 - 110% of rated voltage 32 - 240 V ac
80 - 110% of rated voltage 24 - 240 V dc
Frequency range on AC
45 - 450 Hz
Power consumption
0,6 VA @ 24 V ac
1,1 VA @ 240 V ac
0,8 VA @ 120 V ac
0,5 W @ dc voltages
Isolation voltage
400V RMS. 50-60 Hz 1min, 2,5 kV impulse
Loss of supply tolerance
(no impaired operation)
50 ms @ 38 V dc
180 ms @ 80 V dc
400 ms @ 138 V dc
70 ms @ 38 V ac
250 ms @ 80 V ac
600 ms @ 138 V ac
Power-up time
500 ms for G/F detection
6.4 System power
Voltage and current range (internal CS)
0 - 660 V ac, 0 - 100 A
Voltage and current range (external CS)
Any, providing the power conductors are
insulated for the system voltage
Frequency range
45 –65 Hz or 400 Hz
Isolation voltage (internal CS)
2,5 kV RMS, 1 minute
6.5 Terminals
Type
Pull-apart
UL/CSA rating
300 V AC, 10 A
VDE rating
250 V AC, 12 A, pollution degree 3,
over-voltage category III
Insulation stripping length
7 mm
Torque
0,4 - 0,6 Nm
Field wiring
0,5 –2,5 mm2(VDE)
20 - 14 AWG (UL/CSA),
Cu, solid or stranded
PAGE 16 OF 26
DGF100 reference manual, rev 1, Feb 22, 2022 Ground Fault Systems B.V.
6.6 Relay contacts
Configuration
Voltage free, 1 N.O. and 1 N.C. contact,
4 terminals
UL/CSA rating
5 A @ 250 V ac, general use
5 A @ 30 V dc, resistive
1/6 hp, 250 V ac
2 A, 250 VA, @ 125 V ac, pilot duty
1 A, 250 VA, @ 250 V ac, pilot duty
0,88 A, 26,4 VA, @ 30 V dc, pilot duty
B300:
30 A, 3600 VA make, 3 A 360 VA break
@ 120 V AC
15 A, 3600 VA make, 1,5 A 360 VA break
@ 240 V AC
EN 60947 rating
5 A @ 250 V ac utilization category AC-12
4 A @ 250 V ac utilization category AC-13
3 A @ 250 V ac utilization category AC-14
3 A @ 250 V ac utilization category AC-15
5 A @ 30 V dc utilization category DC-12
3 A @ 24 V dc utilization category DC-13
Maximum fuse rating 13 A (EN 60947-5-1)
Isolation voltage between contacts and coil
3 kV RMS, 50 - 60 Hz, 1 minute
Breakdown voltage between open contacts
1 kV RMS, 50 - 60 Hz, 1 minute
6.7 Mechanical properties (installed)
Height
70 mm
Width
100 mm
Depth (not including terminal blocks)
102 mm
Depth (including terminal blocks)
123 mm
Internal CS opening diameter
46 mm
DIN rail if DIN rail mounted
35 mm
Screws if screw mounted
M4 x 20 (2 needed)
Weight (open)
0,67 kg
Weight (packaged)
0,70 kg
PAGE 17 OF 26
DGF100 reference manual, rev 1, Feb 22, 2022 Ground Fault Systems B.V.
6.8 Display datalink circuit
Display datalink voltage
Max. 10 V DC
Maximum total length
10 m, within one enclosure
Terminals
RJ-10 telephone connector
6.9 Environment
Operating temperature
-20 C to +50 C
Storage temperature
-40 C to +80 C
Humidity
85% max (no condensation)
Ingress protection
IP20
Shock resistance (no malfunction)
10 G
Vibration resistance (no malfunction)
10 G, 10 - 55 Hz at 1,5 mm double amplitude
The DGF100 is encapsulated in Poly Urethane (PUR) to keep the exposure to mechanical shock and
vibration to a minimum.
PAGE 18 OF 26
DGF100 reference manual, rev 1, Feb 22, 2022 Ground Fault Systems B.V.
7. APPLICABLE STANDARDS
EN 61000-6-3
Electromagnetic compatibility (EMC) –Part 6-3: Generic standards –Emission
standard for residential, commercial and light-industrial environments (=lowest
levels)
30- 230 MHz 30 dBV at 10 m distance
230-1000 MHz 37 dBV at 10 m distance
EN 61000-6-2
Electromagnetic compatibility (EMC) –Part 6-2: Generic standards –Immunity
standard for industrial environments (=highest levels)
80-1000 MHz with 80% AM modulation up to 10 V/m at 3 m distance from source
EN 61000-4-2
Electromagnetic compatibility (EMC) for industrial-process measurement and
control equipment –Part 4-2: Electrostatic discharge (ESD) immunity
EN 61000-4-3
Electromagnetic compatibility (EMC) for industrial-process measurement and
control equipment –Part 4-3: Radiated electromagnetic field immunity
EN 61000-4-4
Electromagnetic compatibility (EMC) for industrial-process measurement and
control equipment –Part 4-4: Electrical fast transient/burst immunity
EN 61000-4-5
Electromagnetic compatibility (EMC) for industrial-process measurement and
control equipment –Part 4-5: Surge immunity
EN 61000-4-6
Electromagnetic compatibility (EMC) for industrial-process measurement and
control equipment –Part 4-6: Conducted radio frequency field immunity
EN 61000-4-11
Electromagnetic compatibility (EMC) for industrial-process measurement and
control equipment –Part 4-11: Voltage dips/drops/variations immunity
EN 60947-5-1
Low-voltage switchgear and controlgear –Part 5-1: Control circuit devices and
switching elements –Electromechanical control circuit devices
IEC 60755
General requirements for residual current operated protective devices
UL
UL 1053 Ground-Fault Sensing and Relaying Equipment, Class 1
CSA
C22.2 No. 144-M91 Ground Fault Circuit Interrupters
CE
CE mark –Declaration of Conformity
PAGE 19 OF 26
DGF100 reference manual, rev 1, Feb 22, 2022 Ground Fault Systems B.V.
8. TABLES AND FIGURES
8.1 Table 1 - Dipswitch settings
‘D’ denotes down and ‘U’ denotes up.
Values are primary currents for a 500:1 ratio internal or external Current Sensor.
For other ratio’s see Table 2.
Switch no.
Function
Set to
Meaning
1
CT configuration
D ♦
U
No interposing CT,
With 500:1 External CS,
or with 5000:5 interposing CT
With 500:5 interposing CT
2345
Ground Fault
Trip level
D D D D ♦
D D D U
D D U D
D D U U
D U D D
D U D U
D U U D
D U U U
U D D D
U D D U
U D U D
U D U U
U U D D
U U D U
0,030 A
0,040 A
0,060 A
0,090 A
0,150 A
0,250 A
0,40 A
0,60 A
0,90 A
1,50 A
2,50 A
4,00 A
6,00 A
9,00 A
678
Ground Fault
Trip Delay time
D D D ♦
D D U
D U D
D U U
U D D
U D U
U U D
U U U
20 ms
50 ms
100 ms
200 ms
500 ms
1000 ms
2000 ms
5000 ms
910
Operation Mode
D D ♦
D U
U D
U U
Continuous Non-Failsafe operation
Continuous Failsafe operation
Pulsed Auto Reset operation (Pulse turns
off 3 sec after G/F removed)
Pulsed Non-Failsafe operation
♦Factory settings
Back to Dipswitch settings.
PAGE 20 OF 26
DGF100 reference manual, rev 1, Feb 22, 2022 Ground Fault Systems B.V.
8.2 Table 2 - Primary current Trip Level
Values are primary currents.
DGF100
Setting
External Current Sensor ratio's
Interposing CT ratio’s
500:1
1000:1
2000:1
10.000:1
500:5
5000:5
0,030 A
0,030 A
0,060 A
0,120 A
0,60 A
3 A
0,030 kA
0,040 A
0,040 A
0,080 A
0,160 A
0,80 A
4 A
0,040 kA
0,060 A
0,060 A
0,120 A
0,240 A
1,20 A
6 A
0,060 kA
0,090 A
0,090 A
0,180 A
0,360 A
1,80 A
9 A
0,090 kA
0,150 A
0,150 A
0,300 A
0,60 A
3,0 A
15 A
0,150 kA
0,250 A
0,250 A
0,50 A
1,00 A
5,0 A
25 A
0,250 kA
0,40 A
0,40 A
0,80 A
1,60 A
8,0 A
40 A
0,40 kA
0,60 A
0,60 A
1,20 A
2,40 A
12,0 A
60 A
0,60 kA
0,90 A
0,90 A
1,80 A
3,60 A
18,0 A
90 A
0,90 kA
1,50 A
1,50 A
3,00 A
6,00 A
30,0 A
150 A
1,50 kA
2,50 A
2,50 A
5,00 A
10,00 A
50,0 A
250 A
2,50 kA
4,00 A
4,00 A
8,00 A
16,00 A
80,0 A
400 A
4,00 kA
6,00 A
6,00 A
12,00 A
24,00 A
120,0 A
600 A
6,00 kA
9,00 A
9,00 A
18,00 A
36,00 A
180,0 A
900 A
9,00 kA
Back to General Description. Back to Table 1.
Table of contents
