Growatt THOR 11AS-S User manual

Three-phase AC charger user manual
Growatt THOR 11AS-S/P
Growatt THOR 22AS-S/P
4-13/F, Building A, Sino-German (Europe) Industrial Park,
Hangcheng Ave, Bao'an District, Shenzhen, China
SHENZHEN GROWATT NEW ENERGY CO., LTD.
T
E
W
+ 86-755-27471900
[e-mail]
www.ginverter.com

Thank you for using Growatt EV charging pile!
Disclaimer
This user manual is copyrighted by Growatt New Energy
Co.,ltd.(Hereinafter referred to as “Growatt”). No company or person
may extract or copy part or all of this user manual without the written
permission of Growatt. Content must not be transmitted in any form,
including materials and publications.
All rights reserved. Growatt has the final right to interpret this user
manual. The information in this manual is subject to change without
notice.
THOR series intelligent three-phase AC charger is a power supply device
that uses professional and advanced technology to provide energy supply
to electric vehicles, it also has a friendly man-machine interface and
versatile functions of control, billing, and communication. The charger can
be connected to a back-office server to realize the functions of reservation
and payment via Mobile phone APP. Diversified communication options,
including wired Ethernet, WIFI, 4G is available for back-office server
connection.
We sincerely hope that this product can meet your needs and will
continuously improve the quality of our products.
Menu
I. Product description ·········································································
II. Packing list ·················································································
III. Installation and wiring ···································································

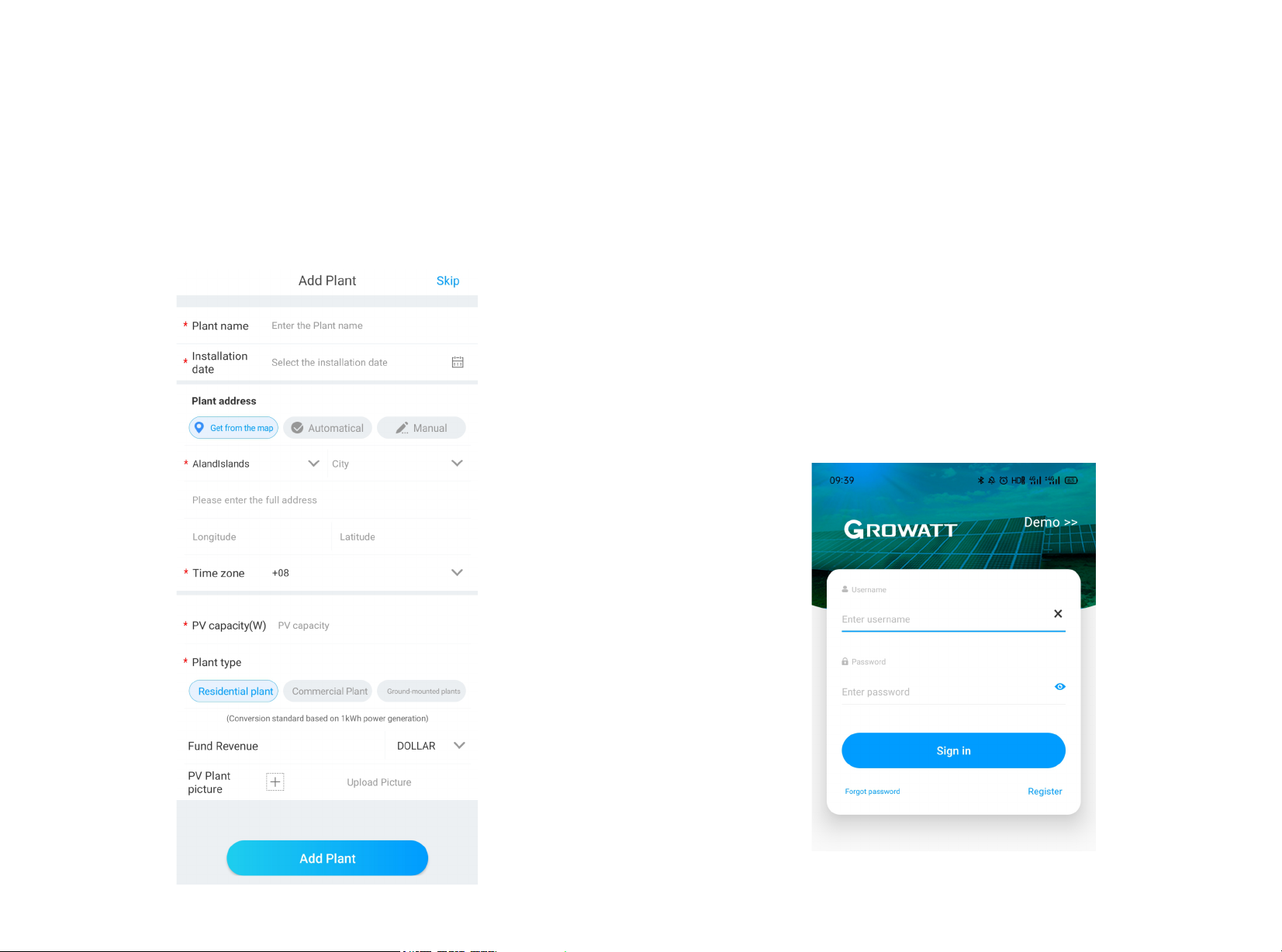

IV. APP download, register, and login ···················································
V. EV Charger Internet Configuration ·················································
VI. Operation instruction and LCD description······································
VII. EV Charger Work Modes ······························································
VIII. Other Settings ··········································································
IX. Record····························································································
X. Data ·······························································································
XI. Troubleshooting ·············································································
1
3
4
8
13
24
28
39
41
43
44
XII. Specification ·················································································
XIII. Annex ····························································································
45
46

I. Product description
12
Wiring definition in the side window
2
1
4
5
9
10
12
13

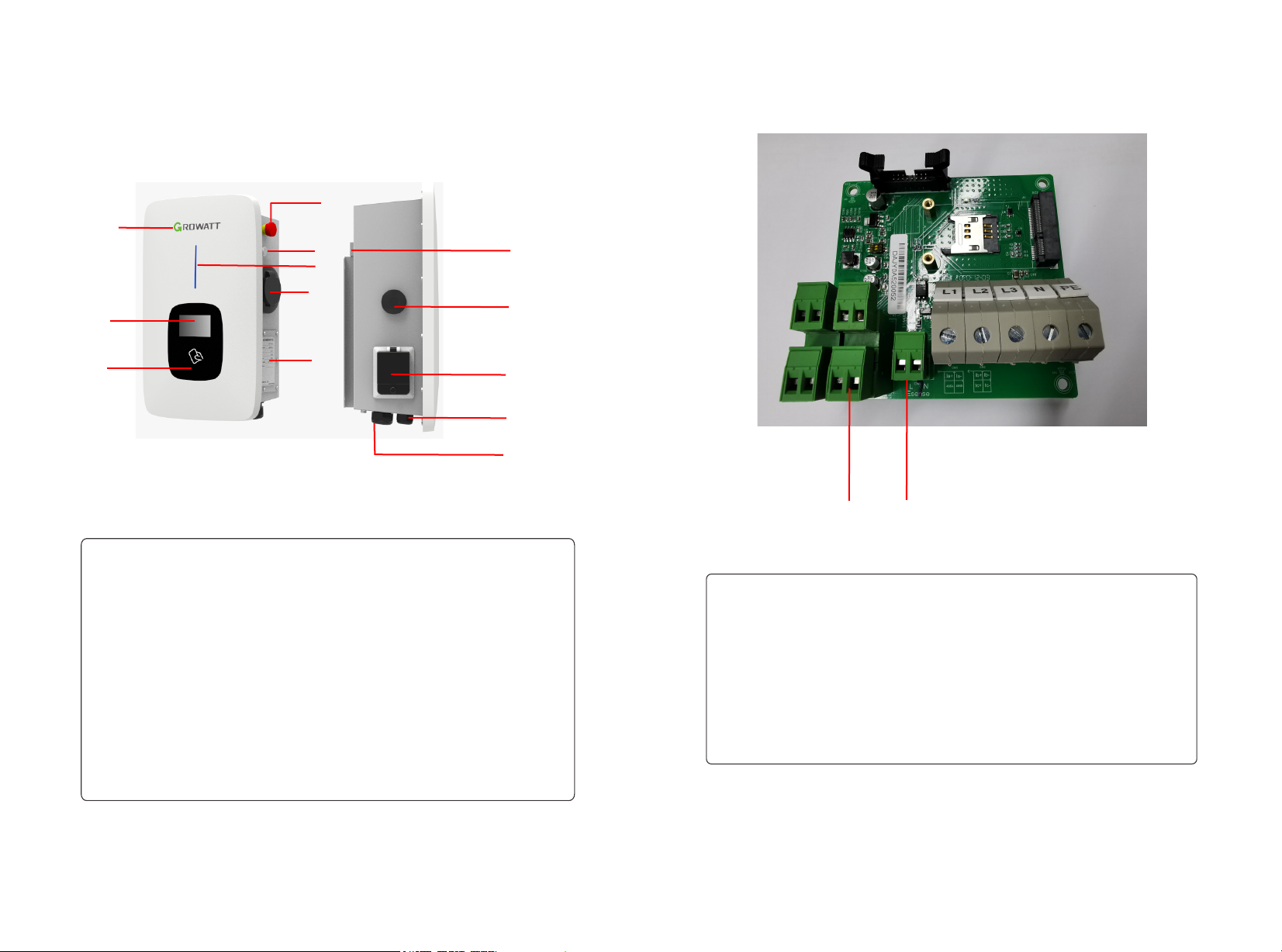

1. Emergency stop button
2.LOGO and LOGO backlight;
3. Forced on/off button;
4. Status indicator
(Indicator flashes when charging);
5. Socket outlet(plug holder for
cabled version);
6. LCD screen
7. Swipe card
8. Name plate
9. Mounting bracket;
10. WIFI/4G antenna;
11. Side window
12. Waterproof cable gland for
communication wires;
13. Waterproof cable gland for
AC input cables
1. Terminal block for CT/meter wiring. The terminal
definition is:
485A/485B is RS485 terminal for meter connection;
Ia+/Ia- , Ib+/Ib-, Ic+/Ic- is for CT connection
2. Peak&Off Peak Charging Enable signal is:
eSense L/N
1 2
711
6
8
3

II. Packing list
No. Name Qty Remark
1
2
3
4
1
1
1
1
Charger
User manual
Quality certificate
Mounting bracket
5
6
7
Cable hook
ST6.3X40
Stainless steel hex-head
self-drilling screws
12X46
Plastic expansion plugs
1
4-7
4-7
For cabled version
4 for socket version, 7 for cabled
version(3 of the 7 screws is for
cable hook fixing)
4 for socket version, 7 for cabled
version(3 of the 7 plugs is for
cable hook fixing)
4
3
8User card 1RFID function will be equipped
with user card
III. Installation and wiring

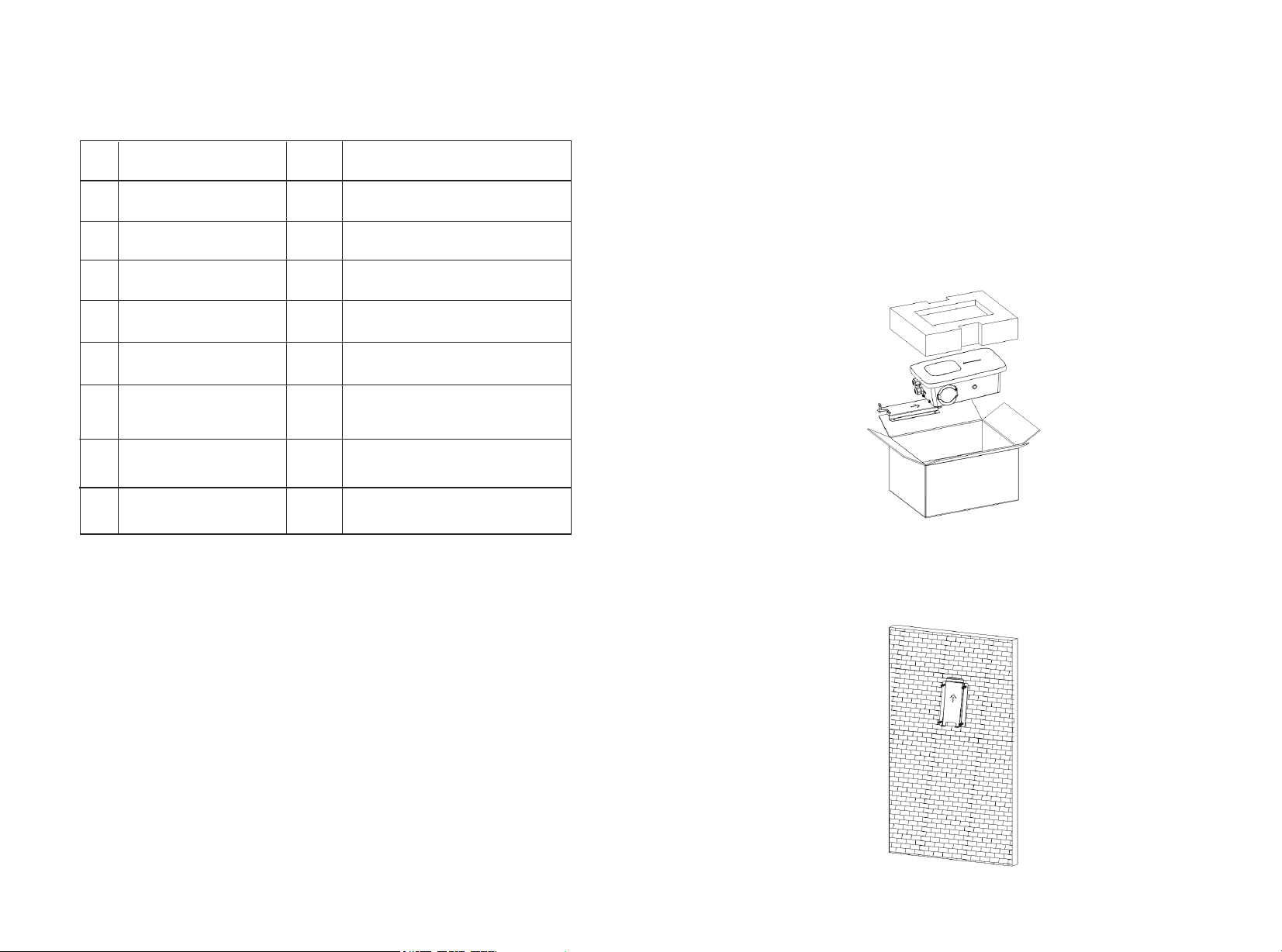

3.1.1 Open the package, you’ll see a charge point, a mounting bracket, a user manual and a
bag of mounting accessories. There is also an RFID card if the charge point is RFID version.
For cabled version, a cable hooker is also included inside.
3.1 Mount on a wall
3.1.2 Remove the mounting bracket from the charge point, use it as a template to mark the
position of the drill holes. Drill the holes and hammer the expansion bolts in the accessories
bag into the holes. Then fix the mounting bracket onto the wall.

3.1.4 Crimp the below shown insulated ferrule or ring terminals on the end of the AC input
wires. Connect the wires into the terminal block of the charge point as below. Check the
wiring and then close the RCBO in the side window. Close the side window with the cover,
then the wring is done.
3.2 Mount on a pole
3.2.1 Open the package of the pole, take out the pole and mounting accessories.
3.2.2 The pole must be installed on a hard surface, concrete surface is recommended, it can
also be mounted on a solid ground. Drill hols according to the requirements marked on the
illustration for fixing expansion bolts.
3.2.3 Fix the pole onto the holes with expansion bolts. The input cables shall go into the pole
from the bottom middle area and come out of it from the area below the cable hooker.
3.1.3 Put the charge point onto the bracket, and fix it with the 2 screws at the bottom of the
charge point. The installation is done.
56
Terminal
Wire
Model L1/L2/L3/N PE
11K
22K
44K
11K
22K
44K
2
≧2.5mm
≧AWG12
2
≧2.5mm
≧AWG12
2
≧6mm
≧AWG9
2
≧6mm
≧AWG9
2
≧16mm
≧AWG5
2
≧16mm
≧AWG5
