Growatt 2500MTL User manual

Installation
&
Operation Manual
GROWATT NEW ENERGY TECHNOLOGY Co.,LTD
No.12 Building, Xicheng Industrial
Zone, Bao’an District, Shenzhen, P. R.China
+ 86 755 2747 1900
+ 86 755 2749 1460
[e-mail]
www.ginverter.com
T
F
E
W
GR - UM - 009 - 04
Growatt 2500MTL
Growatt 3000MTL

Introduction
1.1 Validity
1.2 Target Group
1.3 Product Overview
Unpacking
2.1 Unpacking and Inspection
Mounting
3.1 Selecting Mounting Location
3.2 Dimensions and Required Clearances
3.3 Mounting the Bracket
3.4 Mounting Growatt MTL
Electrical Connections
4.1 Wiring AC Output
4.2 Wiring DC Input
Directory
1
2
3
4
2.2 Information of Label
1.4 Safety
Country Selecting and
Commissioning
5

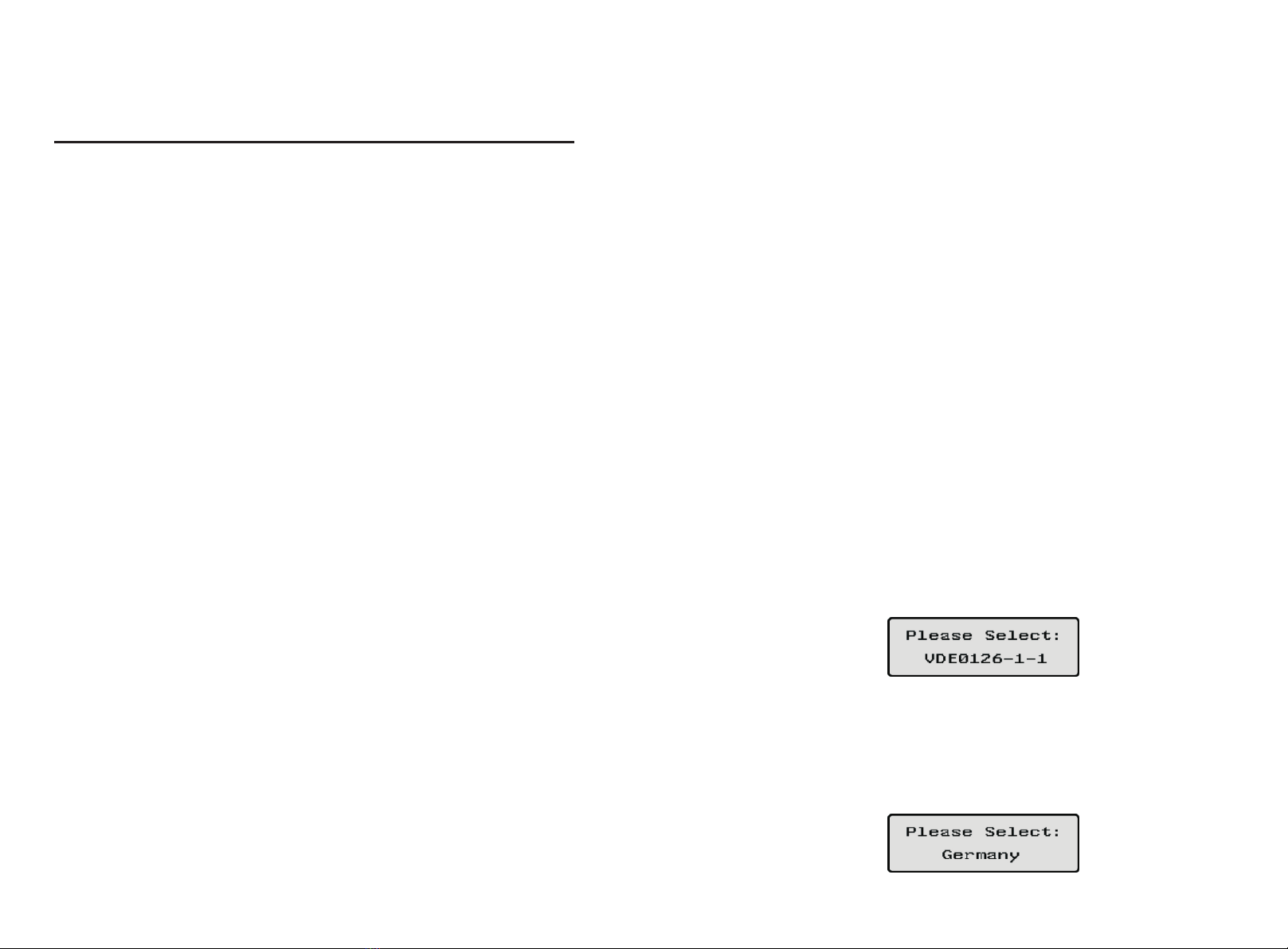

5.1 Country Selecting
5.2 Commissioning

The Growatt MTL series inverters are grid-tied inverters which convert DC current
generated by PV modules into AC current and feed it into the public grid. The
Growatt MTL series inverters are multi-string inverters with multi-MPP trackers,
which meant they are able to connect to different PV module arrays.
Introduction 1
1.1 Validity
1.2 Target Group
1.3 Product Overview
This installation guide contains installation, commissioning, communication, trouble
shooting and information of Growatt MTL series inverters:
Growatt 2500MTL
Growatt 3000MTL
This manual is for qualified personnel who have received training and have
demonstrated skills and knowledge in the construction and operation of this device.
Qualified Personnel are trained to deal with the dangers and hazards involved in
installing electric devices.
Contact
Display and Messages
7.1 LCD display
7.2 LCD control
7.3 Parameters Setting
8.1 ShineNet
8.2 ShineVision
8.3 Shine Pano
Communications
9.1 General question
9.2 Error Messages displayed on LCD
Trouble Shooting
Specifications
Growatt Factory
Warranty
7
8
9
10
11
12
With this installation guide, users are able to install and operate the Growatt MTL
inverters easily. This manual does not cover any details concerning about equipments
connected to the Growatt MTL. Store this manual where accessible at all times.
Notes
responsibilities to inform the users.
: For possible changes in this manual, Growatt New Energy Co., Ltd accepts no
1
Operation Modes
6.2 Normal Mode
6.4 Shutdown Mode
6.3 Fault Mode
6.1 Waiting Mode
6
8.4 ShineWebBox

Inverters Overview:
Front and Bottom Overview:
Fig 1.1
Fig 1.2
Grid-tied PV System Overview:
As the drawing shown above, a complete Grid-tied PV system consists of PV modules,
PV inverters, distribution, grid and other components. Moreover, PV inverters always
act as key components.
Fig 1.3
When designing a PV system contains Growatt MTL series inverters or any other
Growatt inverters, the system designing software Shine Design (please download
from Growatt FTP. ftp://113.106.58.169, user name: ftpguest, password: ftpguest)
will provide adequate supports.
Notes
capacity relative to ground of the modules is large, please contact Growatt New
Energy for technical support before installation.
: If PV modules of the PV system require POSITIVE or NEGATIVE GROUND, or the
1.4 Safety
Growatt MTL is designed for global consumers, and is in accordance with most of the
safety standards of various countries and regions.
Below is the brief introduction of GFCI function and isolation function.
2 3
GFCI function
GFCI is short for Ground-Fault Circuit Interrupter which is used for preventing from
being electric shock.
The inverter is equipped with integrated RCD (Residual Current Protective Device)
and RCM (Residual Current Operated Monitor). The current sensor will detect the
volume of the leakage current and compare it with the pre-set value. If the leakage
current is above the permitted range, the RCD will disconnect the inverter from the
AC load.
Input A
Input B
DC Breaker
DC Breaker
AC Breaker
GROWATT MTL Inverter
Energy meter Public grid
CE / TUV, EN50178, EN61000-6-2, EN61000-3-2, EN61000-6-3, EN61000-3-3,
VDE0126-1-1, IEC-62109, G83, VDE-AR-N4105, CEI 0-21 , AS4777, AS/NZS3100

Danger to life due to high voltages in the inverter!
All work on the inverter may be carried out by qualified personnel only.
The appliance is not to be used by children or persons with reduced physical, sensory
or mental capabilities, or lack of experience and knowledge, unless they have been
given supervision or instruction.
Children should be supervised to ensure that they do not play with the appliance.
Possible damage to health as a result of the effects of radiation!
DANGER!
CAUTION!
Possible damage to the PV modules as a result of Identification of String Failure!
The Growatt MTL Inverter is equipped with a system which recognizes total failure of
individual strings or part-strings.
CAUTION!

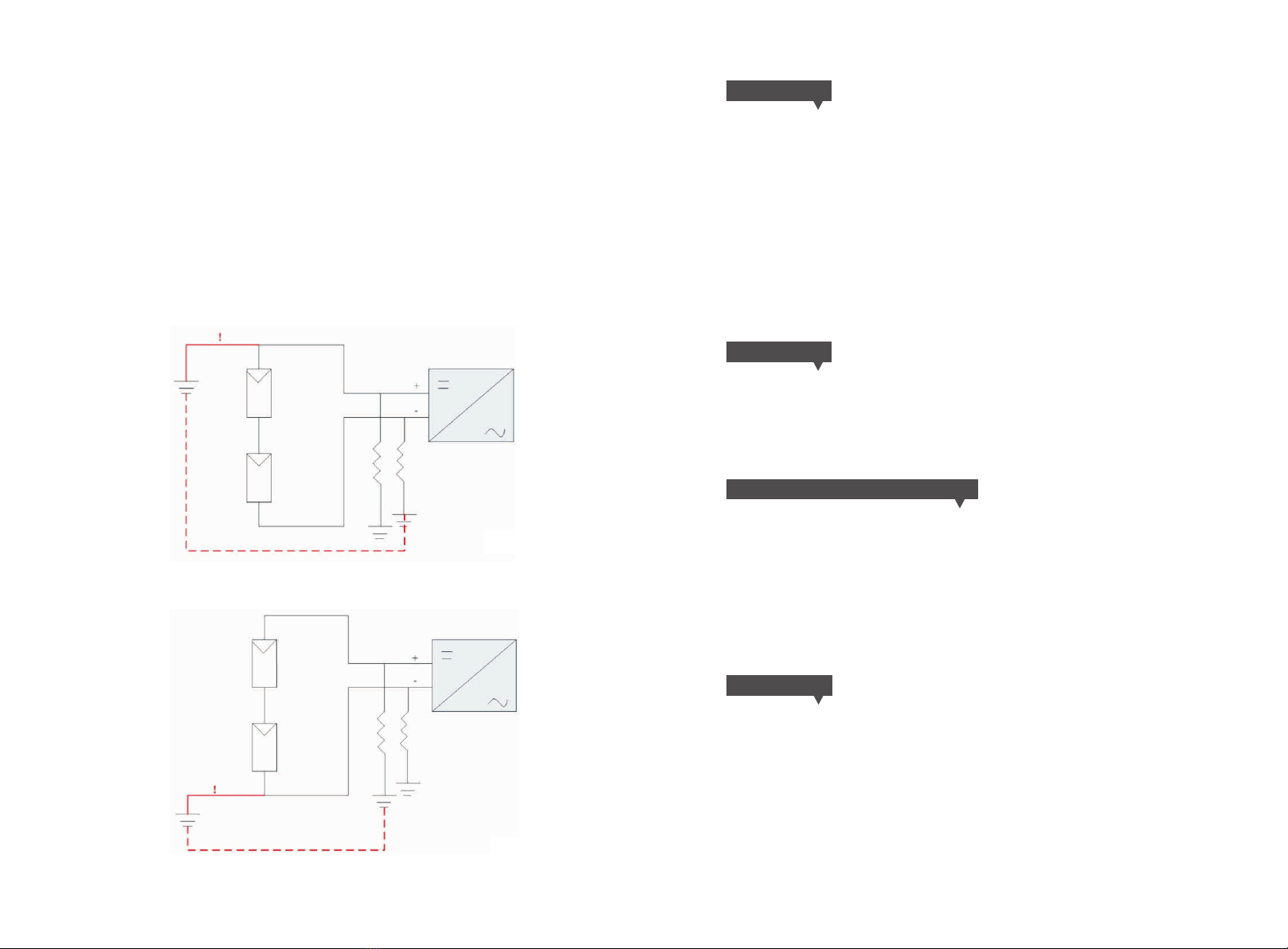

Comply with the local requirements for grounding the PV modules and the PV
generator.
Grounding the PV generator
PV Isolation Detection
The ISO function a protection mechanism.
The inverter measures the resistances between both the positive pole and negative
pole of PV panel and earth.
Either of the measured value is lower than the limit, the PV inverter will not connect
to grid, the output relay will stay open, and show ‘PV isolation low’. The limited value
is determined by the standards. The firmware setting of our PV inverters is 5Mohm.
The simplified principle of the isolation resistance measurement is described as
Image1 and Image2.
Do not stay closer than 20 cm to the inverter for any length of time.
Growatt recommends connecting the generator frame and other electrically
conductive surfaces in a manner which ensures continuous conduction and ground
these in order to have optimal protection of the system and personnel.
Notes
and regulation.
: Operation and installation is required to be in compliance with the local laws
5
4

Unpacking 2
2.1 Unpacking and Inspection
Notes
packing box softly and avoid disposing the packing box.
: Though the packaging box of Growatt MTL is durable, please treat the

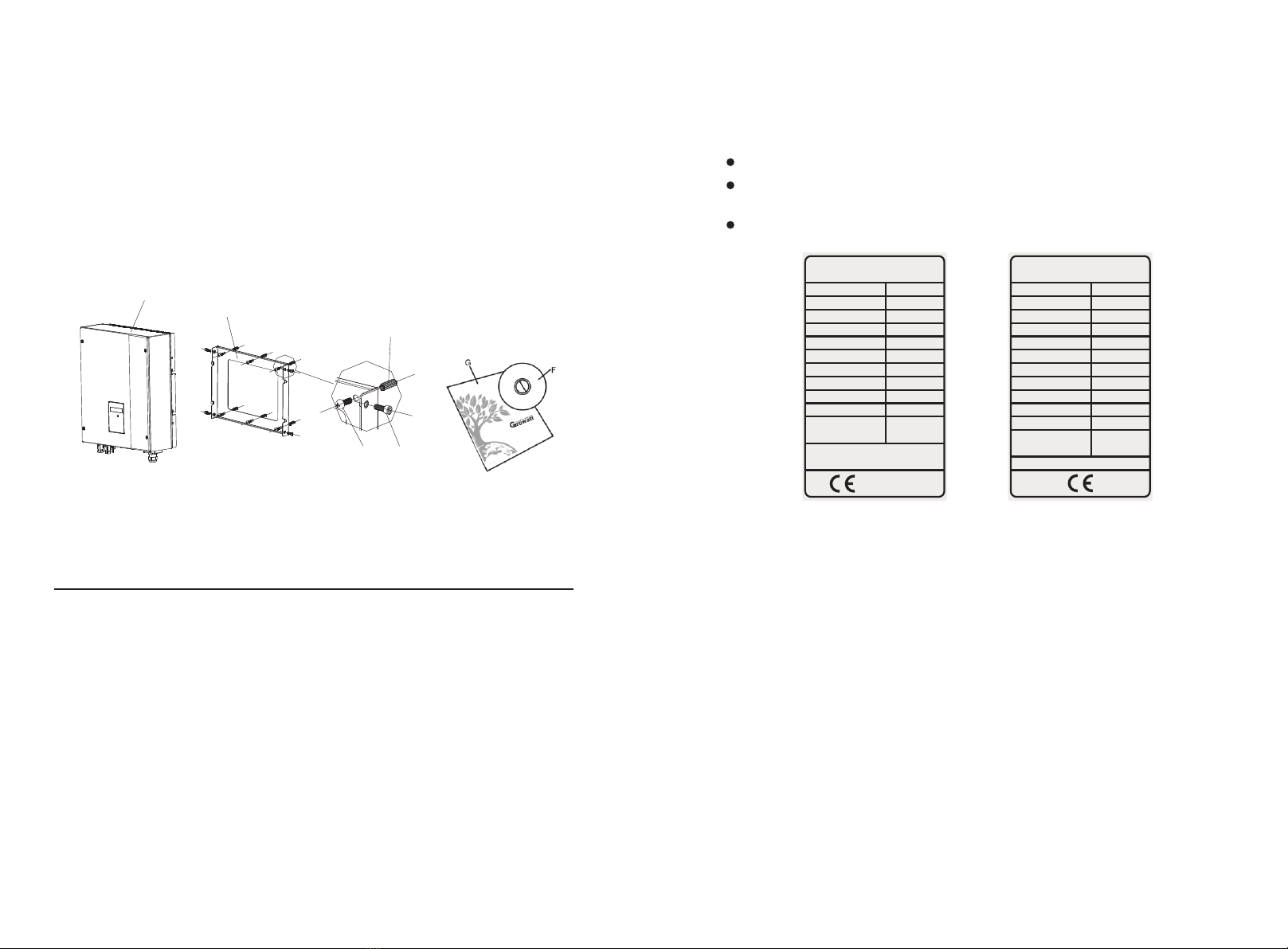

Before opening the packing box of Growatt MTL, please note that whether there are
any visible external damages.
Once open the packing box, please check the delivery for completeness and for any
visible external damages of the inverter. If there are anything damaged or missing,
please contact your dealer. Complete delivery should contain items as follow:
Item
A
B
C
D
E
F,G
Number
1
1
4
6
6
1
Description
Growatt MTL inverter
Mounting frame
Mounting screws
Safety-lock screws
Mounting frame screw sleeves
Installation & Operation Manual
2.2 Information of Label
The label contains information as below:
The inverter type/model (Model Name);
The certificates and approvals (Certificate Number and Logos at the bottom of the
label);
Specifications of the inverter (From UDCmax to Operation Ambient Temperature).
3Mounting
3.1 Selecting Mounting Location
This is guidance for installer to choose a suitable installation location, to avoid
potential damages to devices and operators.
Fig 2.1
Fig 2.2
67
B
E
C
D
A
The wall selected to install the inverter must be strong and firm
enough to support and bear the weight of the inverter for a long
period time. (Refer to Chapter 10 Specifications).
The location selected must be suitable for dimensions of Growatt
MTL. (Refer to 3.2 Dimensions and Required Clearances).
A
B
Model Name
GROWATT
PV G ri d In verter
UDC max
IDC max
UDC range
V
AC norm
f
AC norm
P
AC norm
I
AC norm
PF
Protection Degree
Operation Ambient
Temperature
**************
***V
**A/**A
***V~***V
***V
**Hz
****W
**A
1.0
IP65
-30~+60°C
G83
IEC62109 N4105
Model Name
GROWATT
PV G ri d In verter
Certificate Number
UDC max
IDC max
UDC range
V
AC norm
f
AC norm
P
AC norm
I
AC norm
PF
Protection Degree
Operation Ambient
Temperature
************
***V
**A/**A
***V~***V
***V
**Hz
****W
**A
1.0
IP65
-30~+60°C
AS 4777 & AS 3100
************

F
G
H
I
J
Do not install the inverter on structures constructed of flammable
or thermolabile materials.
Never install the inverter in environment of little or no air flow, or
environment of dust. That may derate the efficiency of heat
dissipation, which will derate the conversion efficiency of inverters.
The Ingress Protection rate (IP level) is IP65 which means Growatt
MTL can be installed both indoors and outdoors.
Do not expose the inverter to direct sunlight, in order to avoid the
power and efficiency derating caused by excessive heating.
The humidity of location should be within 0~95% and without
condensation.
The ambient temperature of installation should be within -30℃
+60℃.
The installation location must be freely and safely to get for
operators or electricians at all times.

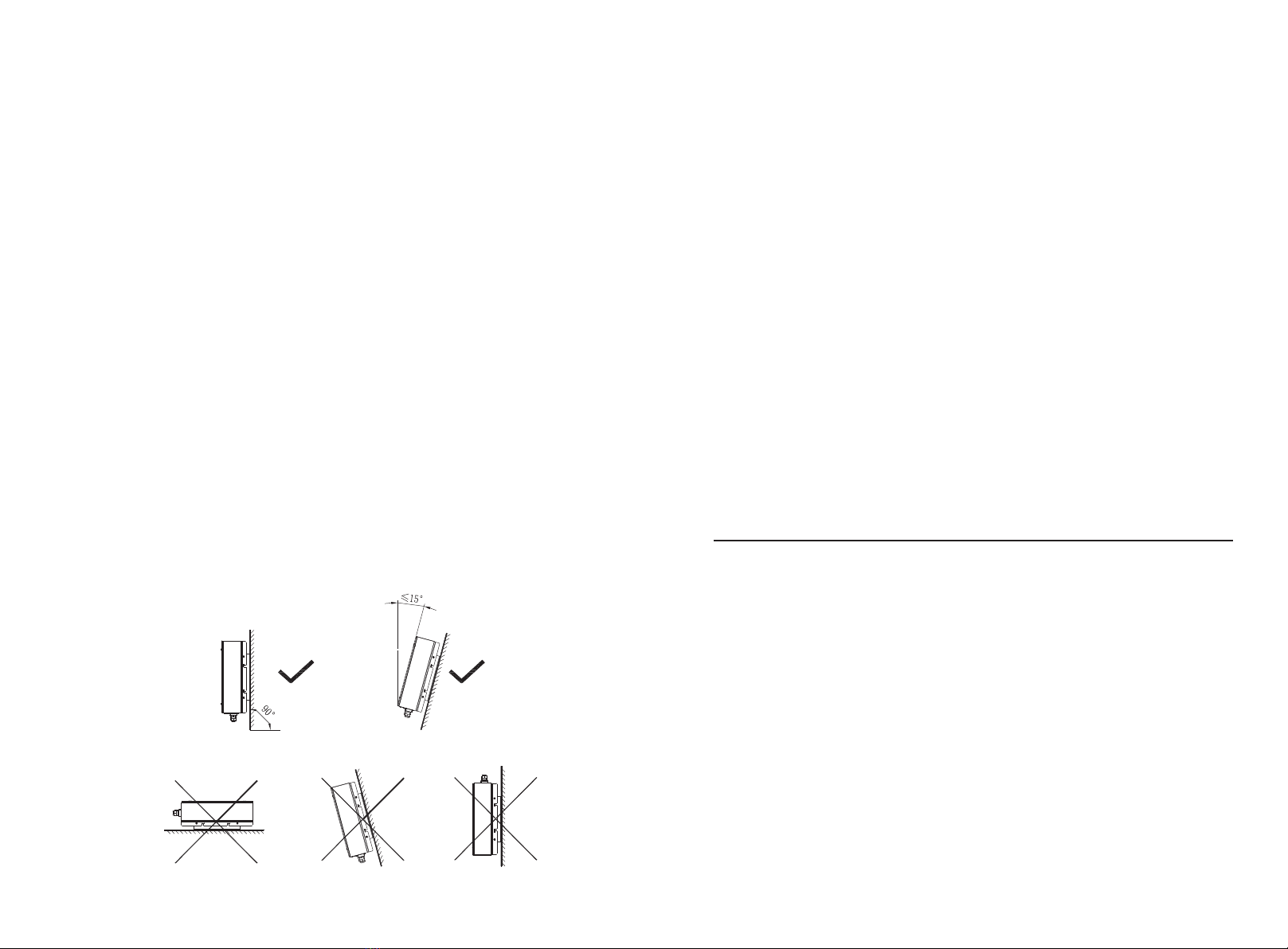

Vertically installation and make sure the connection of inverter is
downward. Never install horizontal and avoids forward and
sideways tilt, refer to drawing below.
K
L
M
Notice the minimum clearances of the inverter. (Refer to 3.2
Dimensions and Required Clearances).
Do not install Growatt MTL near television antenna or any other
antennas and antenna cables, for possible interferences of
inverter or cables.
Do not install Growatt MTL in living area, the noise caused by
inverter might affect on daily life.
For security reasons, DO NOT install Growatt MTL in place where
the children can reach.
N
3.2 Dimensions and Required Clearances
Dimensions and weight :
Types Height(H) Width(W) Weight/kg
2500MTL
3000MTL
152
152
360
360
15.6
15.6
Depth(D)
However, additional clearances are required to guarantee running and operation of
Growatt MTL inverters. Especially when several inverters are installed together, the
clearances between inverters and objects are necessary.
421
421
Fig 3.1
89
Table 3.1
E
C
D

Overview of the Bracket:
Steps:
Drill holes for screws while using the mounting frame as Fig 3.4. 4 holes for
Growatt 2500MTL/3000MTL.
Fix the mounting frame on the wall as Fig 3.4.
Notes
mounting frame is really firmly mounted on the wall after carefully checking.
: Never mount Growatt MTL on the bracket before you are sure that the
3.4 Mounting Growatt MTL
After the bracket is firmly mounted on the wall, then install Growatt MTL onto the
bracket.
Hang Growatt MTL onto the bracket through the match hooks on bracket and
the back of Growatt MTL.
Rise up the Growatt MTL a little higher than the bracket. During the process
please maintain the balance of Growatt MTL.
Fig 3.3
Fig 3.4
Fig 3.5
10
3.3 Mounting the Bracket
To install Growatt MTL on the wall, installers should mount the bracket to the wall
firmly as the first step.
Fig 3.2
11

Cable requirements:
Model _(mm) Area(mm²) AWG no.
2500MTL
3000MTL
_2.05
_2.05
3.332
3.332
12
12
Assemble the connector as figures shown below;
4.2 Wiring DC Input
The open circuit voltage of each sting should never exceed 500 Vdc.
The diagram drawing of DC side is shown as Fig 4.2, note that the connectors
are in paired (male and female connectors). The connectors for PV arrays and
inverters are MC (multi-connector) connectors;
Notes
output, please make sure that the AC breaker has been turned off (open).
: The connector must be screwed firmly. Before you operate and wire the AC
Fig 4.1
12 13
Table 4.1
Connect the positive and negative terminal from the PV panels to positive and
negative terminal on the PV inverter. The maximum string currents are varying
from different inverter types;
4 Electrical Connections
4.1 Wiring AC Output
Measure the public grid voltage and frequency (Voltage: 230 Vac; Frequency:
50Hz/60Hz; in single phase).
Open the breaker or fuse between the PV inverter and utility.
Connect cables to relative bolts shown in figure below, specifications of cables
must meet the requirements shown in the table follows;
Type Max. current
2500MTL
3000MTL
10A/10A
10A/10A
Table 4.2
Fig 4.2

Cable requirements:
Model _(mm) Area(mm²) AWG no.
2500MTL
3000MTL
_2.05
_2.05
3.332
3.332
12
12
Notes:
Current.
Under no circumstances could the total circuit current exceed the Max.
Notes:
treat the terminal carefully.
To reduce the risk of electric shock, avoid touching the live components and
14 15
Table 4.3
Country Selecting and Commissioning 5
When the PV panels are connected and their output voltage is greater than 100Vdc
but the AC grid is not yet connected, inverter will start up automatically. If it is the
first time to power on the inverter after installation, you may need to select a specific
country* .Otherwise, the interface will stay at the ‘Please Select’ interface all the
time. There are eleven options to select, as the list below.
*If you have ordered the inverter with specific country settings, the parameters have been preset in factory
and you don't need to operate this step any more.
Country/Regulation Name options
VDE0126-1-1
Germany
UK_G83
Italy
France
Denmark
Belgium
Spain
Greece
Turkey
Hungary
// 0
// 1
// 2
// 3
// 4
// 5
// 6
// 7
// 8
// 9
// 10
Please finish the country selecting according to the following steps:
The LCD will quickly switch to and stay at the ‘Please select’ interface
after power on, as Fig 5-1-1.
A
Single knock on the LCD, countries will vary from one to another along
the above list order. Fig 5-5-2 acts as an example, and Germany is the
second selection.
B
Fig 5-1-1
Fig 5-1-2
Note: If the country you want to select is not in the above list, please directly select
VDE0126-1-1.
5.1 Country Selecting

When you need to select any of these countries, you can Double knock to
enter the next interface. Here we select Italy as an example, as Fig 5-1-3.
C
Fig 5-1-3
When the country arrives at Italy, Double knock to enter the two options
‘YES’ and ‘NO’, and the cursor stays at ‘NO’ in default, as Fig 5-1-4.
D
Fig 5-1-4
E
Fig 5-1-5
Single knock to select ‘YES’, as Fig 5-1-5.
FDouble knock to confirm your selection, LCD will display ‘Select OK’ with
the country name in the below, as Fig 5-1-6.
Note: if you still single knock at the interface as Fig 5-1-5, the cursor will
go to ‘NO’ again as Fig 5-1-4, then if you double knock, the display will
switch to the interface as Fig 5-1-3.
Fig 5-1-6
G
Note: If you have selected and confirmed an unwanted country
neglectful, please contact Growatt for specific software to clear and reset
again.
When the selection is successful, the inverter will reboot automatically.
5.2 Commissioning
After the inverter reboot, LCD will produce the following messages in order:
‘Ser NO: xxx’->’xxxxx’->’FW version’->’Waiting’->’No AC connection’, the
display repeats ’NO Utility’ and LED will be red.
Close the AC breaker or fuse between PV-Inverter and grid. Turn on the DC
switch. The normal operating sequence begins.
Under normal operating conditions the LCD displays ‘Power: xxx.x W’. That is
the power fed to the grid. The LED turns green.
This completes the check.
6Operation Modes
6.1 Waiting Mode
In this mode, inverter will check the system parameters. If the system is normal,
and PV voltage is higher than 150Vdc, the inverter will attempt to connect to
grid.
When the PV voltage is higher than 100V, Inverter will be powered up, and
enters “waiting” mode.
16 17

In this mode, Growatt MTL works normally and LED turns green.
6.2 Normal Mode
Whenever the DC voltage is lower than 120 Vdc, Growatt MTL inverter will work
in waiting state and attempt to connect the grid. In waiting state Growatt MTL
consumes just enough power generated by PV panels to monitor the internal
system status;
Whenever the DC voltage is higher than 150 Vdc, Growatt MTL inverter converts
DC Power generated by PV panels into AC power and feed it into grid;
Notes:
sufficient (100 Vdc).
The inverter starts up automatically when DC power from PV panels is
6.3 Fault Mode
The internal intelligent controller can continuously monitor and adjust the system
status. If Growatt MTL finds any unexpected conditions such as system fault and
inverter fault, the fault messages will be displayed on LCD screen. In fault mode the
LED turns red.
Notes:
LCD.
Detailed fault information refers to Chapter 9.2 ERROR messages display on
6.4 Shutdown Mode
Growatt MTL automatically stop running during periods of little or no sunlight. In
shutdown mode Growatt MTL won’t take any power from the grid or panels, and LCD
and LED turns off.
Notes:
Shutdown Mode.
If the PV string DC voltage is too low (≤70 Vdc), the inverter will also turn to
Display and Messages 7
7.1 LCD display
Starting-up display sequence: once the PV power is sufficient, Growatt MTL will
display the following information sequentially:
STATUS DISPLAY CONTENT REMARK
Waiting Waiting When the input voltage is between
100V and 150V during start up,
inverter will display waiting.
The first line of LCD display shows different status of the inverter as Table 7.1.
Fig 7.1
The First Line of LCD
Standby When the input voltage falls to
100V,inverter will display standby.
(The inverter will shut down when
input voltage is lower than 70V).
Connect in xxS
Reconnect in xxS
System checking
System checking
Normal Connect OK
Power: xxxx.xW
Connecting to the grid
Inverter output power in normal
mode.
Model: xxxxxx
SerNo: xxxxxxxxxx
FW Version: x.x.x
Connect in: xxS
Connect : OK
Power: xxxx.xW
18 19

20 21
Fault Error: xxx System fault
Auto Test Auto Testing Protecting function
Programming Programming Firmware update
Notes:
to different faults. Please refer to Chapter 9 for reference.
The first line of LCD display can be changed by knock on the LCD screen. The second
line automatically changes in the interval of 2 or 4 seconds as Table 7.2.

In fault mode, there can be different error messages displayed in the LCD due
STATUS DISPLAY CONTENT REMARK
CYCLE DISPLAY DISPLAY TIME/S REMARK
2
2
2
4
Model number of
the inverter
Firmware version of
the inverter
Serial number, which
is also shown on the
label of the inverter
Energy generated
today.For accurate
energy to get the FIT
payment, please refer
to your meter
The Second Line of LCD
Table 7.1
Set Language
Enable auto test
Set contrast
Set COM Address
CYCLE DISPLAY DISPLAY TIME/S REMARK
4
4
4
4
4
4
4
PV input power
PV voltage (PV) and
Bus voltage (B)
Grid voltage (AC) and
frequency (F)
Enable auto test
function
Set display language
Set LCD contrast
Set communication
address
4Total generated energy
since installation.For
accurate energy to get
the FIT payment, please
refer to your meter
Table 7.2

22 23
To save power, the LCD display’s background light will turn off automatically in 10
seconds. Single knock will turn on the background light. The display on the inverter
can be controlled by knocking the sound control panel in front of it.
7.2 LCD control
Fig 7.2
make the current display become bright → to “set language” →
enter “language: English” → to select the language. After setting, you need
to wait a few seconds until the display becomes dark, then the setting will be
saved.
7.3 Parameters Setting
Users can use sound control function to change the display language and luminance
of the display, enable auto-test function and choose utility model.
Note: Single knock
Double knock
make the display become bright→ to “set LCD contrast” → enter
“LCD contrast 2” → to select the luminance. You also need to wait a few
seconds after selecting. When the display becomes dark, the change is saved.
Language setting
Set luminance of LCD display
Communication 8
8.1 ShineNet
ShineNet is a monitoring software applied to monitor Growatt inverters via RS232
port or Bluetooth module. With the special designed functions and friendly compact
UI, it can comprehensively meet users’ requirements for system monitoring and bring
unprecedented user experience.
Fig 8.1
make the display become bright → to “COM Address: xx” →
change the address to set model → to set address. After selecting, you need
to wait a few seconds until the display becomes dark, then the change is saved.
make the display become bright → to “Enable Auto test” →
enter “Waiting to start” → start auto test. and then waiting several minutes
for the test result.
Set communication address
Run auto test function

25
Notes:
user name is ftpguest and Password is ftpguest
you can download the ShineNet YN2.0 from: ftp://113.106.58.169， the
8.2 ShineVision
ShineVision is a wireless monitoring device, which consists of a power monitor and a
number of transmitters, and one shinevision can monitoring 1 to 6 inverters. The
transmitters transmit the running data collected from photovoltaic inverters to the
monitor and display the data onto the monitor screen, including data of generated
energy, the gross generated energy and the generation income obtained from the
above-mentioned data through some simple calculations, indoor temperature, date
and time, as well as CO2 emissions.
Notes:
information about setting and functions refer to the ShineNET Manual.
Users are able to monitor the inverter after the setting of software. Detailed
Features:
Monitor and record current data and of inverters.
Record historical data.
Monitor and record event information of inverter.
Connect computer and inverter via RS232 and RS485 port (wire connection)
or Bluetooth module (wireless connection).
Remote access available for local area network.
24
Features:
Monitor and transmitter communicate via wireless communication technology.
External transmitter, with IP65 waterproof and dustproof.
A monitor can simultaneously communicate with six transmitters.
Communication distance between monitor and transmitter : 30 meter.
Power supply option: built-in battery slot, an external DC power supply.
Easy installation, and convenient to use it.
Notes:
ShineVision Manual.
The Monitor should be kept indoor. For detailed information, please refer to
8.3 ShinePano
It is the latest intelligent monitoring master, specially designed for solar power plant.
Using stable Linux operating system with high-speed CPU, it can smartly present
solar system status through friendly user interface on 8-inch large color touch
screen.
Fig 8.2

26 27
8.4 ShineWebBox
It is a cost-effective and compact monitoring device, specially designed for solar
power plant. Using stable Linux operating system with high-speed CPU, it can
smartly record your system features. ShineWebBox Provides local storage, easy
wireless and TCP/IP configuration, and presents plant data over Internet.
Features:
A multi-functional and high-performance communication data logger;
Keep user informed of the system’s status at any time.
Massive storage with flexible parameters setting, system information
management, error prompt and record.
Collects data and uploads information over the internet in near real-time
to Growatt Shine Server platform.
Connect with inverter: RS485 and Zigbee (Wireless module).
8 inches touch screen(*option): support hand writing and USB mouse.
Fig 8.3
Trouble Shooting 9
Our quality control program assures that every inverter is manufactured to accurate
specifications and is thoroughly tested before leaving our factory. If you have
difficulty in the operation of your inverter, please read through the following
information to correct the problem.
9.1 General question
For General question, please visit www.ginverter.com, and find the Q&A column.
Features:
A multi-functional and high-performance communication data logger;
Keep user informed of the system’s status at any time.
Massive storage with flexible parameters setting, system information
management, error prompt and record.
Collects data and uploads information over the internet in near real-time
to Growatt Shine Server platform.
Fig 8.4

28 29
9.2 Error Messages displayed on LCD
An error message will be displayed on the LCD screen when a fault occurs. The faults
consist of system fault and inverter fault.
You may be advised to contact Growatt in some situation, please provide the
following information.
Information concerning the inverter:
• Serial number
• Model number
• Error message on LCD
• Short description of the problem
• Grid voltage
• DC input voltage
• Can you reproduce the failure? If yes, how?
• Has this problem occurred in the past?
• What was the ambient condition when the problem occurred?
Information concerning the PV panels:
• Manufacturer name and model number of the PV panel
• Output power of the panel
• Number of panels in each string
9.2.1 System fault
System fault (system faults are mainly caused by system instead of inverter, please
check the items as instructed below before replacing inverter).
Error message
No AC Connection
AC V Outrange
Description
N o u t i l i t y g r i d
connected or utility
grid power failure.
Utility grid voltage I
s out of permissible
range.
Suggestion
1.Check AC wiring, especially
the ground wire.
2.Contact Growatt.
1.Check grid voltage.
2.If the error message still exists
despite the grid voltage being
within the tolerable range,
contact Growatt.
PV Isolation Low Insulation problem 1.Check if panel enclosure ground
properly.
2.Check if inverter ground properly.
3.Check if the DC breaker gets wet.
4.If the error message is displayed
despite the above checking passed,
contact Growatt.
Output High DCI Output current DC
offset too high
1.Restart inverter.
2.If error message still exists,
contact Growatt.
Error message Description Suggestion
AC F Outrange Utility grid frequency
out of permissible
range.
1.Check grid frequency.
2.If the error message is displayed
despite the grid frequency being
within the tolerable range,
contact Growatt.
PV Voltage High The DC input voltage is
exceeding the maximum
tolerable value.
Disconnect the DC wire
immediately.
9.2.1 Inverter fault
Error code Meanings Suggestion
2.5V reference
voltage fault
Contact Growatt.
Error: 100
Residual I High Leakage current too
high
1.Restart inverter.
2.If error message still exists,
contact Growatt.
Auto Test Failed Auto test didn’t passed Reboot inverter.
Fuse type: 20A/250VAC (Growatt 2500MTL and Growatt 3000MTL)

30 31
Communication fault
Slave processor can’t
receive data from
Master processor.
1.Restart inverter
2.If error message still exists,
contact Growatt.
Error: 101
Relay fault Contact Growatt.
EEPROM fault Contact Growatt.
Init model fault Contact Growatt.
Error: 102 Consistent fault.
Data received by Master
and Slave processor are
different. The reason
can be utility grid voltage
or frequency change
frequently.
1.Restart inverter.
2.If error message appears frequently
or error message still exists after
replacement, check utility grid.
If you require help, contact Growatt.
3.If error message still exists,
contact Growatt.
Error: 116
Error: 117
Error: 118
Error: 120 HCT fault Contact Growatt
Error code Meanings Suggestion
Error: 123 Auto Test Fail Restart inverter.
Error: 121
Error: 122 Contact Growatt
Communication fault.
Master processor can’t
receive data from
Slave processor.
Bus voltage fault
1.Restart the inverter
2.If error message still exists,
contact Growatt.
Input Data
Max. DC power
Max. DC voltage
PV voltage range
Start voltage
Max. input current /
per string
Number of MPP trackers
/strings per MPP tracker
Output (AC)
Nominal AC output power
Max. AC power
Nominal output current
Phase shift (cosφ)
THDI
AC connection
Efficiency
Max.efficiency
Euro - eta
MPPT efficiency
Protection Devices
DC reverse polarity protection
AC short-circuit protection
Ground fault monitoring
Grid monitoring
Integrated all-pole sensitive
leakage current monitoring unit
2*10A/10A
3200W
500V
100V - 500V
150V
3000W
13A
3000W
15A
<3%
Single phase
12.5A
1.0
<3%
Single phase
97.5%
97%
99.5%
97.5%
97%
99.5%
yes
yes
yes
yes
yes
yes
yes
yes
2700W
500V
100V - 500V
150V
2 / 2
2*10A/10A
2500W
2500W
10.8A
1.0
2 / 2
DC nominal voltage 360V360V
AC grid frequency; range 50,60HZ;±5 Hz 50,60HZ;±5 Hz
Max. output current
220V/230V/240V;
180Vac-280Vac
220V/230V/240V;
180Vac-280Vac
Growatt 3000MTLGrowatt 2500MTL
Specifications 10
AC nominal voltage; range
GFCI Device Damage Contact Growatt.
Error: 119

33
Growatt 3000MTLGrowatt 2500MTL
General Data
Dimensions (W / H / D) in mm
Operating temperature range
Noise emission (typical)
Consumption: operating
(standby)/ night
Topology
Cooling concept
Installation: Indoors / Outdoors
Features
DC connection: (MC3/MC4/H4)
AC connection: Terminals
LCD display
Interfaces:
RS485/RS232/Bluetooth/RF/ZigBee
Warranty: 5 years / 10 years
Certificates and Approvals
360 / 421 / 152
-30 °C ... +60 °C
≤25 dB(A)
< 5W / < 0.5 W
transformerless
No fan
yes / yes
360 / 421 / 152
-30 °C ... +60 °C
≤25 dB(A)
< 5W / < 0.5 W
transformerless
No fan
yes / yes
yes / yes / opt / opt / opt
yes
yes
yes
yes
yes yes
yes / opt
yes / yes / opt / opt / opt
yes / opt
Altitude Up to 2000m without
power derating Up to 2000m without power derating
Continuous full output power
temperature range
-30 °C ... +45 °C -30 °C ... +45 °C
CE / TUV, EN50178, EN61000-6-2, EN61000-3-2,
EN61000-6-3, EN61000-3-3, VDE0126-1-1,
IEC-62109, G83, VDE-AR-N4105, CEI 0-21 ,
AS4777, AS/NZS3100
32
repaired by Growatt, or
repaired on-site, or
If a device becomes defective during the agreed Growatt factory warranty period and
provided that it will not be impossible or unreasonable, the device will be, as selected
by Growatt:
Growatt Factory Warranty 11
Excluded from warranty are damages due to:
Applies solely to the following products: Growatt1500, Growatt2000, Growatt3000,
Growatt4400, Growatt5000, Sungold1500, Sungold2000, Sungold3000,
Sungo l d 5 0 0 0 , Growatt2500MTL, G rowat t 3 0 0 0 M T L , G rowatt3600MTL ,
Growa t t420 0 MTL, Growa t t500 0 MTL, Growatt 2 000H F, Grow a tt250 0 HF,
Growatt3000HF, Growatt10000UE, Growatt12000UE, Growatt18000UE, and
Growatt 20000UE.
For the above named products, you receive a Growatt factory warranty valid for 5
years from the date of installation and no more than five and a half years from the
delivery date from Growatt New Energy Co., Ltd.
This warranty includes all defects of design, components and manufacturing.
Breaking the product seal (opening the casing) without proper approval.
Transport damage.
Incorrect installation or commissioning.
Failure to observe the user manual, the installation guide, and the
maintenance regulations.
Unauthorized Modifications, changes, or attempted repairs.
Incorrect use or inappropriate operation.
Insufficient ventilation of the device.
Failure to observe the applicable safety regulations.
Force majeure (e.g., lightning, over voltage, storm, fire).
Warranty condition

In the latter case, the remainder of the warranty entitlement will be transferred to
the replacement device. In this case, you do not receive a new certificate since your
entitlement is documented at Growatt.
Excessiveness in the meaning above exists in particular if the cost of the measures for
Growatt would be unreasonable.
34 35
in view of the value that the device would have without the defect,
taking into account the significance of the defect, and
after consideration of alternative workaround possibilities that Growatt
customers could revert to without significant inconvenience.
exchanged for a replacement device of equivalent value according to model
and age. 12Contact
If you have technical problems concerning our products, contact your installer or
Growatt. During inquiring, please provide below information:
1. Inverter type
2. Modules information
3. Communication method
4. Serial number of Inverters
5. Error code of Inverters
6. Display of inverters
