GrowSpan 115021 User manual

1
Revision date: 01.28.20
READ THIS DOCUMENT BEFORE YOU BEGIN
Thank you for purchasing this GrowSpan™ door kit.
When properly assembled and maintained, this product
will provide years of reliable service. These instructions
include helpful hints and important information needed to
safely assemble and properly maintain the door. Please
read these instructions before you begin.
SAFETY PRECAUTIONS
• Wear eye protection.
• Wear head protection.
• Use a portable GFCI (Ground Fault Circuit Interrupter)
when working with power tools and cords.
WARNING: Individuals assembling this door are
responsible for designing and furnishing all temporary
bracing, shoring, and supports during assembly.
For safety reasons, those who are not familiar with
recognized construction methods and techniques
must seek the help of a qualified contractor.
115021 Twin-Wall Double Swinging Door Kit
©2020 GrowSpan™
All Rights Reserved. Reproduction
is prohibited without permission.
REQUIRED TOOLS
This list identifies the main tools needed. Additional tools
and supports may be required depending on structure,
location, and application.
• Tape measure or measuring device
• Fine point marker to mark frame members
• Variable speed drill and impact driver (cordless with
extra batteries works best)
• Tool to cut polycarbonate panel
• Hammers, gloves, and eye protection
• Ladders, work platforms, and other machinery for
lifting designed to work safely at door and door frame
height.
ATTENTION: Consult the services of a qualified,
professional contractor if you are not familiar with
construction of similar frame structures and components.
UNPACK AND IDENTIFY PARTS
Complete these steps to ensure that you have all
necessary parts.
1. Unpack shipment and place where you can easily
inventory parts. Refer to the Bill of Materials/Spec
Sheets.
2. Verify that all parts listed on Bill of Materials/Spec
Sheets are present. If anything is missing or you
have questions, consult the parts guide and all
diagrams for clarification, or contact customer
service.
NOTE: At this time, do not open the plastic bags
containing smaller parts such as fasteners and
clamps (if equipped).
PARTS IDENTIFICATION
The following graphics and photos will help identify the
different hardware for the door kit. (Some parts are not
shown.)
102921B & FA4484B
Tek Screws and neo-
bonded washers
104213
Aluminum
U-Channel Profile
104548
End Cap

2Revision date: 01.28.20
115021 Twin-Wall Double Swinging Doors
DOUBLE DOOR FRAME LAYOUT
Frame rough door opening 1/2'' taller than doors and 1/2'' wider than width of both doors. Measure assembled doors
for an exact dimension.
IMPORTANT NOTICE: Remove protective film from the
polycarbonate panels. Allowing film to remain intact and
in direct sunlight will make it difficult if not impossible to
remove. Store panels out of direct sunlight until film is
removed.
Rest panel edges on cardboard or other material to
protect them from dirt and damage during assembly.
96-1/2"
92-1/2"
inside-to-inside
measurements
Ground Level
Header
Door
Jamb
Door
Jamb
CARE AND MAINTENANCE
Proper care and maintenance of the door is important.
Check these items periodically to properly maintain door
and door frame:
• Regularly check polycarbonate panels to ensure
these remain secure and in good condition. Replace
damaged panels if needed.
• Check connections and all fasteners to verify that
they remain tight.
• Check contents of shelter to verify nothing is touching
any panel that could cause damage or interfere with
door operation.
• Do not leave door partially opened. Close door and
secure with latch, or prop open to avoid personal
injury or damage.
• For replacement or missing parts, contact your sales
representative.
Protective Film
Sample panel shown.
ATTENTION: Mark UV-protected side with a piece of
tape after protective film is removed and install that side
toward the sun..

3
Revision date: 01.28.20
105488120
Door Jamb
End wall as seen
from the outside.
Ground Level
C
DE
(inside-to-inside)
96-1/2"
96-1/2"
Install lower girts after
door frame (see X).
X X
X X
Girt
Side View
Jamb
Front
Door
Jamb
E
Wafer Head
Screws
Front
Right Jamb
E
ASSEMBLE DOOR FRAME COMPONENTS

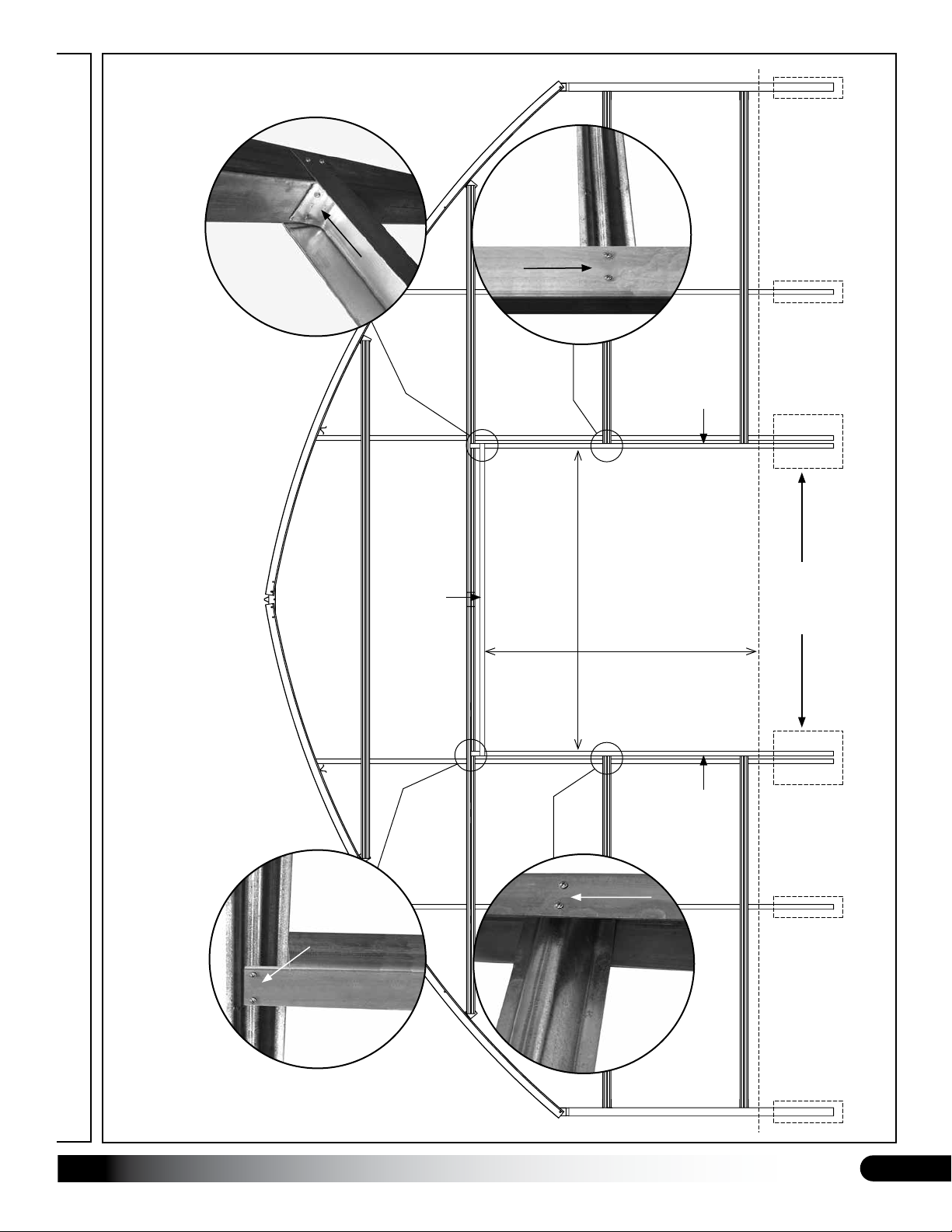

Consult diagrams near the back of this guide before you begin.
ATTENTION: Photos and diagrams show attaching door frame to an end
wall constructed using girts with a specific profile. If actual end wall frame
differs, take necessary steps to alter instructions as needed to allow proper
installation of door jambs and header.
The following steps describe one way to set door jambs.
1. Using dimensions from diagram below, locate and mark door jamb
positions on site.
2. Dig a 10"-12" diameter hole at locations found in previous step to a
depth that is below geographic frost line. (Minimum depth: 24".)
3. Locate the 120" door jambs (105488120). Using a metal saw, cut and
remove 2-1/2" sections from one end of each door jamb as shown in
photo A. This creates a lip and allows jamb to be attached to girt (see
photo B and C and Side View diagram).
ATTENTION: Diagrams A-D show left door jamb only. Adjust cuts when
cutting end for right jamb.
4. Using diagrams as guides, attach jambs to girts using 108553 wafer
head screws (photo C, D, and E). Install end wall girts if needed.
ATTENTION: Position door jambs so open sides of C-channel face
away from door opening (as shown in photo C) and lip overlaps
girt. When attached to girt, lower end of each jamb extends into a
ground anchor hole and is secured in place using concrete. Consult
a knowledgeable contractor if needed. During installation, verify that
inside-to-inside dimension for door frame remains consistent.
Door Frame Assembly
Cut along
dotted lines.
Remove
this section
Vertical
Support
2-1/2" 2-1/2"
A
2-1/2" Lip
Left Jamb
B
Door Side
Front
108553
Wafer Head
Screws Toward
Door
Opening
Front
C
Wafer
Head
Screws
D
Left
Jamb

4Revision date: 01.28.20
HH
Concrete
92-1/2"
(inside-to-inside)
Door jamb
in concrete.
Ground
Level
*Not to
scale.
NOTE: Sample end frame and rafter
are not included with any door kit.
10548872
Header (cut to length)
End wall as seen
from the outside.
Ground Level
(inside-to-inside)
96-1/2"
Step 6
(outside-to-outside)
ASSEMBLE DOOR FRAME COMPONENTS (continued)
Door Frame Assembly
Cut along
dotted lines.
Bend this
section inward
Door
Header
F
G
5. With door jambs attached, measure and mark height of rough door
opening. Consult drawing below and Door Frame Layout located in
Quick Start. Measure from finished grade to underside of header.
6. Locate the 10548872 header material, measure outside-to-outside
width of door jambs, and cut header to required length.
7. Using a metal saw, cut two 2" sections and bend lip inward from
both ends of door header as shown at right (see photos F and G).
This creates two (2) tabs and allows header to attach to jambs.
Open channel of header points upward.
8. Position header so the two (2) tabs on each side overlap door
jambs (see photo H). Align header bottom with vertical support
marks made in Step 5. Ensure header is level and check
dimensions.
9. Attach front and back of header to jambs using wafer head screws.
Reinforce header by securing bent lip to vertical support using Tek
screws as shown in photo H. (Customer-supplied bolts can also be
used.)
10. After door frame is square and assembled, secure door jambs in
ground using concrete.
NOTE: Concrete should remain at least 2"- 4" below ground level
so it does not interfere with construction, installation of other end
wall components (if equipped), or door operation.
11. After assembling door frame, continue with door assembly.
Wafer
Head
Screws
Tek screw
TOP VIEW
H

5
Revision date: 01.28.20
DOUBLE TWIN-WALL DOOR ASSEMBLY
Materials and parts needed to assemble double swinging
doors include:
• Door frames (102923), 8mm panels (113296Z096),
door hinges (FA5030), end cap (104548),
chain bolt (100406), and latches (FA2410)
• Tek screws (FA4484B), neo-bonded washers
(102921B), and aluminum profile (104213)
Assemble and Attach Doors
NOTE: Install panels with UV-protected side toward the
outside. See panel film for details.
1. Locate one (1) door frame (102923), assemble (if
needed), and place it on a flat surface.
2. Take one (1) polycarbonate panel and trim it so that
length is one-quarter inch (1/4") shorter than length
of door frame.
3. Trim width of panel (if needed) so that it is one-
quarter inch (1/4") narrower than width of door frame.
NOTE: Trimming panels as instructed will keep panel
flush with edge of door frame once aluminum profile
(104213) is installed.
4. Center panel on door frame.
5. Using Tek screws (FA4484B) and galvanized neo-
bonded washers, attach panel to horizontal cross
tube of door frame. Evenly space Tek screws and
washers every 12".
Photo shows panel attached to outside of door frame
and finished with aluminum (104213) U-channel.
7. To keep panel and profile in place, install Tek screws
and neo-bonded galvanized washers so screw
drills through longer edge of U-channel (underside
of panel) and washer overlaps shorter edge of
U-channel (top) as shown above. Evenly space Tek
screws every 12".
8. Repeat the above steps to attach panel and to install
profile for remaining door frame.
9. Determine on which door to install handle, locate
the door latch hole (5" from edge of door in cross
member) and drill 1" hole through panel at the hole
location.
6. Install aluminum U-channel profile along all pannel
edges. Ends can be mitered or cut as shown.
NOTE: Attach panel in the locations shown to hold
panel in place while attaching aluminum profile.
To prevent interfering with latch installation, do not
install fasteners near latch mounting hole located in
frame cross tube.
Handle
Sample
Frame
NOTE: Panel is not shown.
10. Insert main handle of assembly through hole in door
and manuver handle and front plate into place as
shown above.
Hole in frame for door
latch. Set Step 9.
Door Frame Assembly

6Revision date: 01.28.20

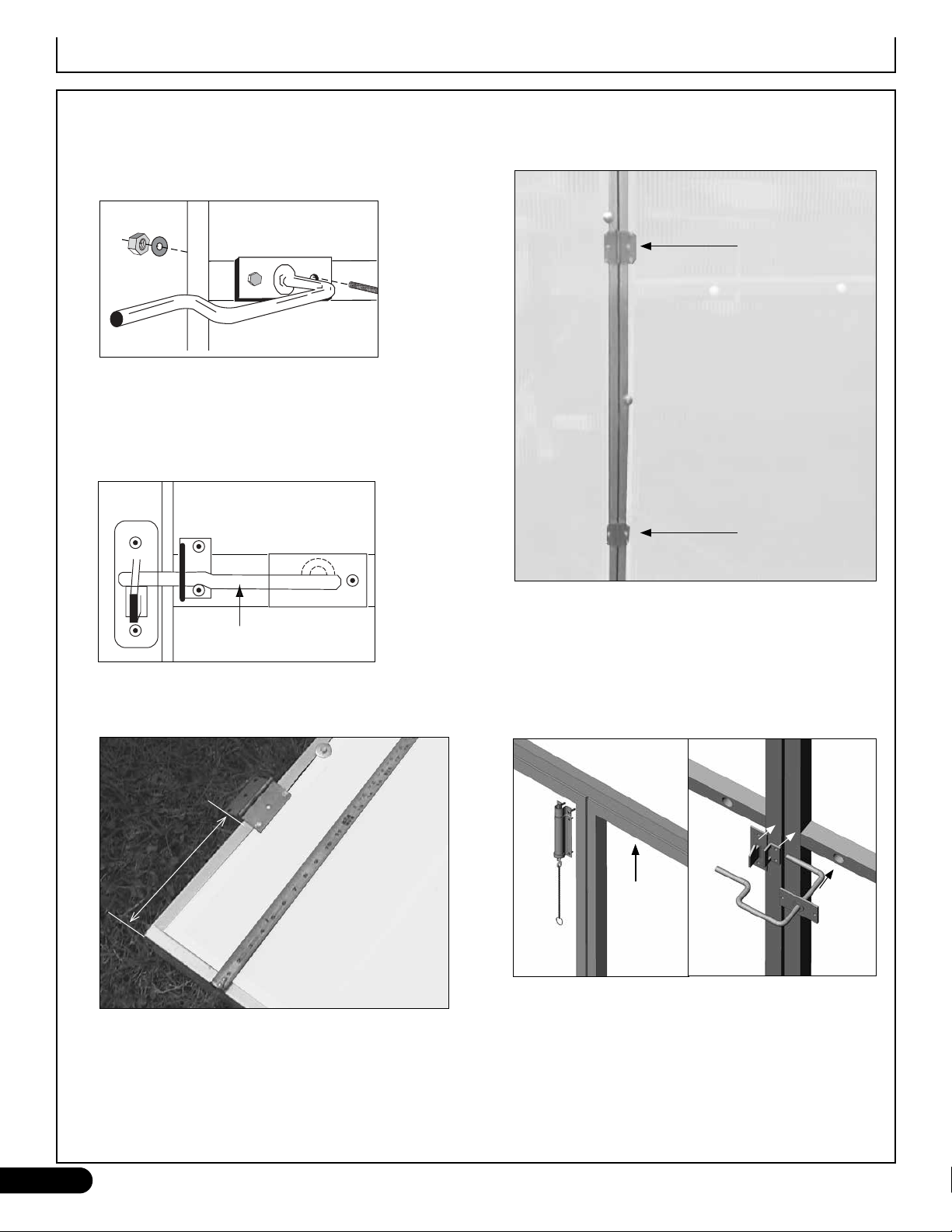

DOUBLE TWIN-WALL DOOR ASSEMBLY (continued) 15. With assistance, set assembled doors in door frame
and secure hinges to door jamb using one Tek screw
per hinge at this time. Locations of hinges may vary.
11. Mark plate mounting hole locations on panel and drill
a 5/16" hole through panel and door frame. Support
frame with a block of wood if needed.
12. Slide back mounting plate into position, align it with
mounting holes and front plate and secure using two
(2) ¼" x 3" bolts and lock nuts. Verify that latch turns
freely. Mount door latch guide (slotted plate) using
the remaining ¼" x 3" bolts. Position so latch handle
is level. See below.
Horizontal
Position
Door Latch
Guide
Latching
Plate
16. Verify there is sufficient clearance along all door
edges to allow door to swing freely in the opening.
17. Test door operation, adjust hinges as needed, and
install remaining Tek screws.
18. Attach the 6" chain bolt to inside, upper corner of the
door without the handle (see X in drawing below).
13. After assembling doors, evenly space three (3)
hinges along door frame of each door and attach
hinges to each assembled door using Tek screws
Inside
View
Outside
View
Door
without
handle.
X
14. Check door opening dimensions. Ensure rough door
opening is 1/2'' taller than doors and 1/2'' wider than
width of both doors. Measure assembled doors for an
exact dimension.
19. Mount latching plate to outside of same door (see
drawing in step 12). Screws supplied with latch are
not used for metal jambs.
12"
Door Frame Assembly

7
Revision date: 01.28.20
DOUBLE TWIN-WALL DOOR ASSEMBLY (continued)
a. Photo (right) shows end cap as attached to door
jamb. View shows assembly from the outside.
b. Cross section insert shows end cap (dashed line)
attached to inside/back of door jamb.
c. Dashed line below identifies where to attach
end cap profile. End cap extends beyond frame
members and into rough opening to stop door
in frame and to help seal gap between door and
frame.
20. At top and sides of door opening on inside, attach end
cap and allow it to extend below and into door opening.
ATTENTION: This profile acts as a stop for double
doors, which prevents undo stress on hinges. Consult
photos to the right.
21. After end cap profile is installed, install another section of the same end cap on the inside frame of the door that
includes chain latch.
NOTE: End cap serves as a stop for remaining door of double door assembly when doors are closed.
22. Check operation of latches and doors.
End cap used for door stop and seal.
Ground Level
Step 20c Step 20c
Step 21
Door Jamb
End Cap
(#104548)
Door
Frame
Opening
a
b
Door Frame Assembly

8Revision date: 01.28.20
QUICK START GUIDE
Double Swinging Door Kit
Quick Start Guide
Twin-Wall Door Sample
115021
Ground Level
ATTENTION: End frame and end rafter are not included with any
door kit. These are presented to demonstrate installation.

9
Revision date: 01.28.20
Door Frame Layout
96-1/2"
92-1/2"
inside-to-inside
measurements
105488120
Door Jamb
105488120
Door Jamb
Ground Level
10548872
Header
Wafer Head
Screws
Wafer Head
Screws
Wafer Head
Screws
Tek Screws
Concrete
