Grunbeck pureliQ:K User manual

We understand water.
Filter | Fine filter pureliQ:K, pureliQ:KD
Operation manual

Central Contact
Germany
Sales
Phone [phone]
Technical Service
Phone [phone]
Fax [phone]
Availability
Monday to Thursday
7:00 am –6:00 pm
Friday
7:00 am –4:00 pm
Your local point of contact: see
accompanying list of
representatives
Copyright
The manufacturer reserves the copyright to this manual. No part of
this manual may be reproduced in any way without the written
permission of Grünbeck Wasseraufbereitung GmbH, nor may any part
be processed, duplicated or disseminated using electronic systems.
Violations of the aforementioned requirements shall be subject to
compensation.
Subject to technical modifications.
© by Grünbeck Wasseraufbereitung GmbH
Translation of the original operation manual
Edition of the manual: May 2018
Order no.: TD3-AK000en_035

Table of contents
3 | 44
BA_TD3-AK000en_035
Table of contents
1About this manual.......................... 4
1.1 Other applicable documents ........... 4
1.2 Target group ................................... 4
1.3 Storage of documents..................... 4
1.4 Symbols used ................................. 4
1.5 Typographical conventions ............. 5
1.6 Validity of the manual ..................... 6
1.7 Type plate ....................................... 7
2Safety .............................................. 9
2.1 Safety measures............................. 9
2.2 Technical safety instructions......... 10
2.3 Regulations................................... 11
2.4 Responsibilities of the specialist
installer ......................................... 11
2.5 Responsibilities of the owner-user 12
2.6 Safety information for the specific
system .......................................... 12
3Product description ..................... 13
3.1 Intended use................................. 13
3.2 Product components..................... 14
3.3 Functional description................... 15
4Installation .................................... 16
4.1 Requirements for the installation
site ................................................ 16
4.2 Checking the scope of supply....... 17
4.3 Installing the product..................... 18
5Start-up ......................................... 20
5.1 How to start up the product .......... 20
5.2 Setting the month display ............. 20
5.3 Setting pressure reducer (only
pureliQ:KD)................................... 21
5.4 Handing over the operation manual
to the operator .............................. 22
6Cleaning, inspection,
maintenance................................. 23
6.1 Cleaning ....................................... 23
6.2 Intervals ........................................ 24
6.3 Inspection ..................................... 24
6.4 Maintenance ................................. 24
6.5 Consumables................................ 27
6.6 Wearing parts ............................... 27
6.7 Service kits ................................... 28
6.8 Spare parts ................................... 30
7Malfunction................................... 31
8Disposal........................................ 32
9Technical specifications ............. 33
9.1 Fine filter pureliQ:K....................... 33
9.2 Fine filter pureliQ:KD .................... 35
10 Other information......................... 37
10.1 Explanation of terminology ........... 37
11 Operation log................................ 38

About this manual
4 | 44
BA_TD3-AK000en_035
1 About this manual
1.1 Other applicable documents
The following documents also apply in the case of the fine filters
pureliQ:K und pureliQ:KD:
●The manuals of all accessories used shall apply.
1.2 Target group
This manual is intended for specialist installers and owners/users.
1.3 Storage of documents
Keep this manual and all other applicable documents, so that they
are available when needed. Make sure that your specialist
installer enters the proper start-up and six-monthly maintenance
in the operation log in chapter 11.
1.4 Symbols used
This symbol identifies instructions that you must comply with for
your personal safety.
This symbol identifies instructions that you must comply with in
order to avoid damage to property.

About this manual
5 | 44
BA_TD3-AK000en_035
This symbol identifies important information about the product or
its handling.
This symbol identifies work that is only allowed to be carried out
by specialist installers. In Germany, the installation company
must be registered in an installation directory of a water supply
company acc. to §12(2) AVB Wasser V (German Ordinance on
General Conditions for the Supply of Water).
1.5 Typographical conventions
The following typographical conventions are used in this manual:
1.5.1 Instructions
Single-step instructions or instructions in which the sequence is
unimportant are indicated as follows:
►Action
Multi-step instructions in which the sequence must be complied
with are indicated as follows:
1. First action
a First step of the first action
b Second step of the first action
2. Second action
Results of an instruction are indicated as follows:
» Result

About this manual
6 | 44
BA_TD3-AK000en_035
1.5.2 Lists
List symbols used:
●First list point (level 1)
•First bullet point (level 2)
•Second bullet point (level 2)
●Second list point (level 1)
1.6 Validity of the manual
This manual applies to the following products:
●Fine filter pureliQ:K
●Fine filter pureliQ:KD

About this manual
7 | 44
BA_TD3-AK000en_035
1.7 Type plate
Type plate is located on the right side of the housing as seen from
the front.
Please specify the data shown on the type plate in order to speed
up the processing of your enquiries or orders. Please enter the
serial number below in order to have the necessary data handy
whenever necessary.
Item
Designation
Item
Designation
1
Observe operation manual
2
SVGW mark of conformity
(registered)
3
DVGW mark of conformity
(registered)
4
Nominal connection diameter
5
Nominal flow
6
Nominal pressure
7
Water temperature
8
Pore size
9
Product designation
10
QR code
11
Data matrix code
12
Order no.
13
Serial no.
●Product designation: Fine filter pureliQ:____
●Order number: 101 ___
2
3
4
5
6
7
8
9
11
10
1
12
13

About this manual
8 | 44
BA_TD3-AK000en_035
●Serial no.: ________________

Safety
9 | 44
BA_TD3-AK000en_035
2 Safety
WARNING: Contamination of drinking water due to incorrect
handling.
●Risk of infectious diseases.
►Have the installation, start-up and six-monthly
maintenance carried out by specialist installers only.
2.1 Safety measures
●Carefully read this manual before operating your product.
●Install the product in a frost-free room. Otherwise, the
system may suffer irreparable damage. The consequence
may be water damage.
●Only use genuine spare parts for maintenance or repair. If
unsuitable spare parts are used, the warranty for your
product will be void.
●Comply with the hygiene instructions in chapter 6. Failure
to comply can result in microbiological contamination of
your drinking water installation.
●Only have persons working on your system that have read
and understood the present manual and that are qualified
to do such work based on their vocational training.
●Only operate the product if all components are installed
properly.
●Safety devices must never be removed, bridged or
otherwise tampered with.

Safety
10 | 44
BA_TD3-AK000en_035
2.2 Technical safety instructions
This manual contains instructions that you must comply with for
your personal safety as well as to avoid damage to property. The
information and instructions are highlighted by a warning triangle
and have the following structure:
CAUTION: Type and source of danger
●Possible consequences
►Measures for avoidance
The following signal words are defined depending on the degree
of danger, and can be used in this document:
●DANGER means that serious or fatal injuries will occur if
the corresponding precautionary measures are not taken.
●WARNING means that serious or fatal injuries may occur if
the corresponding precautionary measures are not taken.
●CAUTION means that minor injuries may occur if the
corresponding precautionary measures are not taken.
●NOTE (without a warning triangle) means that damage to
property may occur if the corresponding safety measures
are not taken.

Safety
11 | 44
BA_TD3-AK000en_035
2.3 Regulations
When installing and starting up the system, amongst others,
comply with the following regulations and guidelines:
●Statutory regulations on environmental protection
●Provisions of the employers' liability insurance associations
●DIN EN 806 Specifications for installations inside buildings
conveying water for human consumption
●VDI 6023 Part 6
2.4 Responsibilities of the specialist installer
Comply with the following instructions to ensure the proper and
safe functioning of the product:
●Only perform activities described in this manual.
●Perform all activities in accordance with all applicable
standards and regulations.
●Brief the owner/user on the function and operation of the
product.
●Advise the owner/user of the maintenance of the product.
●Instruct the owner-user about possible dangers that can
arise during operation of the product.

Safety
12 | 44
BA_TD3-AK000en_035
2.5 Responsibilities of the owner-user
Comply with the following instructions to ensure the proper and
safe functioning of the product:
●Arrange for a specialist installer to carry out installation,
start-up and maintenance.
●Have the product explained to you by the specialist
installer.
●Only perform activities described in this manual.
●Do not carry out any activities that are explicitly marked for
a specialist installer.
●Only use this product as intended.
●Make sure that the required inspection and maintenance
work is carried out.
●Keep this manual.
2.6 Safety information for the specific system
WARNING: If the intervals for inspection and replacement are
not observed, the filter element will become excessively dirty.
●Health risk due to contamination of the drinking water.
►Observe the intervals and recommendations for
inspection and replacement of the filter element.

Product description
13 | 44
BA_TD3-AK000en_035
3 Product description
3.1 Intended use
●The fine filters pureliQ:K and pureliQ:KD are designed for
the filtration of drinking water.
●The fine filter pureliQ:KD with pressure reducer in addition
is suitable for the adjustment of the holding on the
withdrawal side.
●The filters can be used for positive pressure and negative
pressure applications. The adjustment of the after-pressure
on the withdrawal side, however, only works when applied
in the positive pressure range.
●The filters are not suitable for circulation water that is
treated with chemicals.
●They are neither suitable for oils, greases, solvents, soaps
and other lubricating media, nor for the separation of water-
soluble substances.
●The fine filters pureliQ:K and pureliQ:KD are designed
according to DIN EN 13443-1, DIN 19628 and
DIN EN 1567 (only applies to the fine filter pureliQ:KD) and
are intended for installation in drinking water systems
according to DIN EN 806-2 (installation directly after the
water meter system).
●They protect the water pipes and connected water-carrying
system parts from disturbances and corrosion damage due
to undissolved impurities (particles) such as rust particles,
sand, etc.

Product description
14 | 44
BA_TD3-AK000en_035

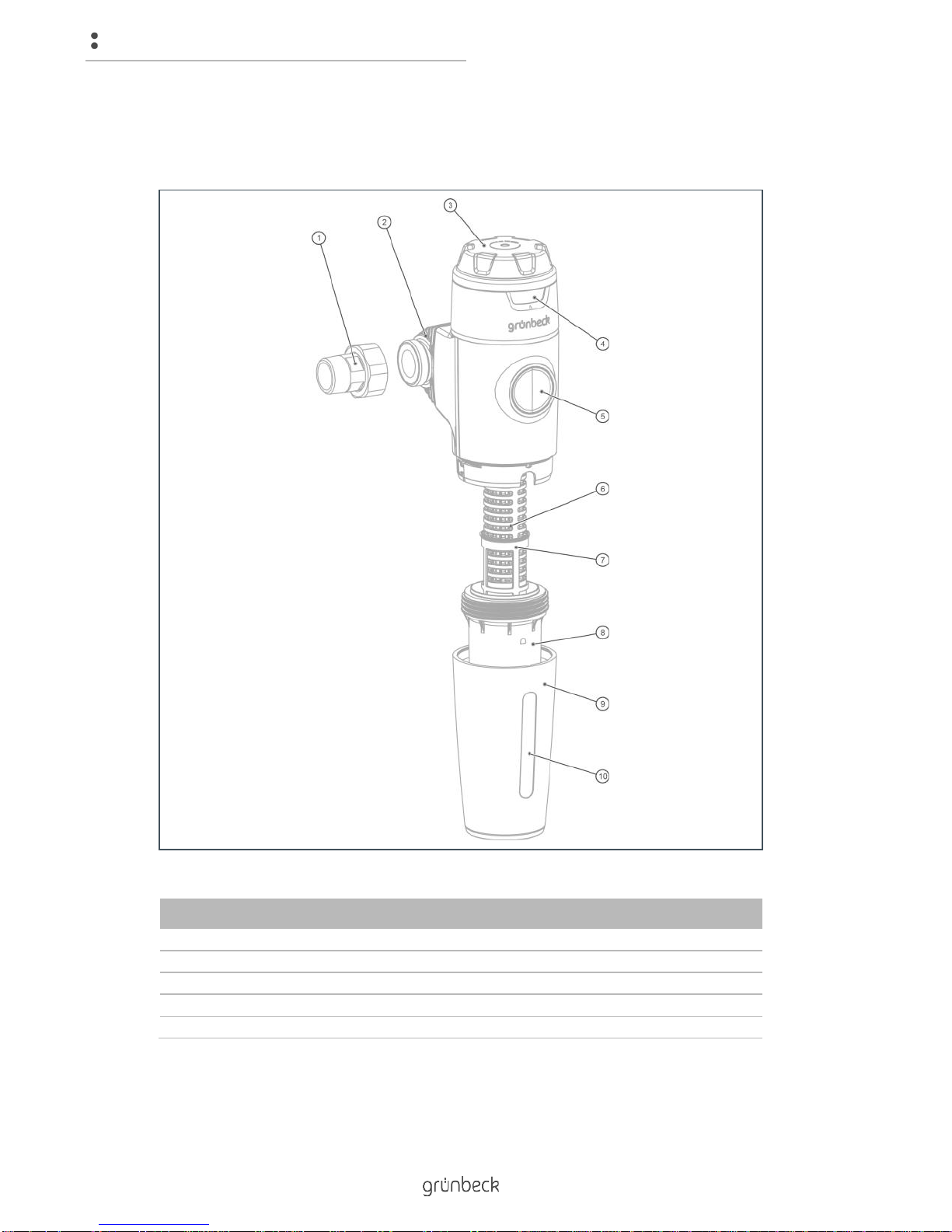

3.2 Product components
Item
Designation
Item
Designation
1
Water meter screw connection
2
Click connection flange
3
Pressure reducer handwheel
4
Month display
5
Pressure gauge
6
Support fabric
7
Filter element
8
Filter cylinder
9
Filter bell cover
10
Inspection window

Product description
15 | 44
BA_TD3-AK000en_035
3.3 Functional description
The unfiltered drinking water flows into the filter from the inlet side
and then flows from the outside in through the filter element and
to the pure water outlet. Thus, foreign particles of > 100 µm in
size are retained.
Depending on their size and weight, the foreign particles either
stick to the filter element or they fall straight down into the filter
cylinder.
In the fine filter pureliQ:KD, the flow-optimised pressure reducer,
which is designed according to DIN EN 1567, enables the after-
pressure on the withdrawal side to be set to 1 –6 bar (factory
setting: 4 bar).

Installation
16 | 44
BA_TD3-AK000en_035
4 Installation
The installation of a filter represents a major intervention into the
drinking water system and may only be performed by a
specialist installer.
The pureliQ filters are installed in accordance with DIN EN 806-2
and DIN 1988-200 in the cold water line downstream of the water
meter and upstream of distribution lines or the devices to be
protected.
Item
Designation
Item
Designation
1
Shut-off valve
4.1 Requirements for the installation site
Observe local installation directives, general guidelines and
technical specifications. The installation site must be frost-proof
and ensure the filter's protection from chemicals, dyes, solvents,
vapours and direct sunlight.

Installation
17 | 44
BA_TD3-AK000en_035
The installation location must be away from heat sources (e.g.
washing machines, boilers and hot water pipes).
The installation room must be provided with a floor drain. If none
is available, an appropriate safety device has to be installed to
avoid water damage. We recommend using a protectliQ:A.
The installation site must be well accessible for maintenance
purposes.

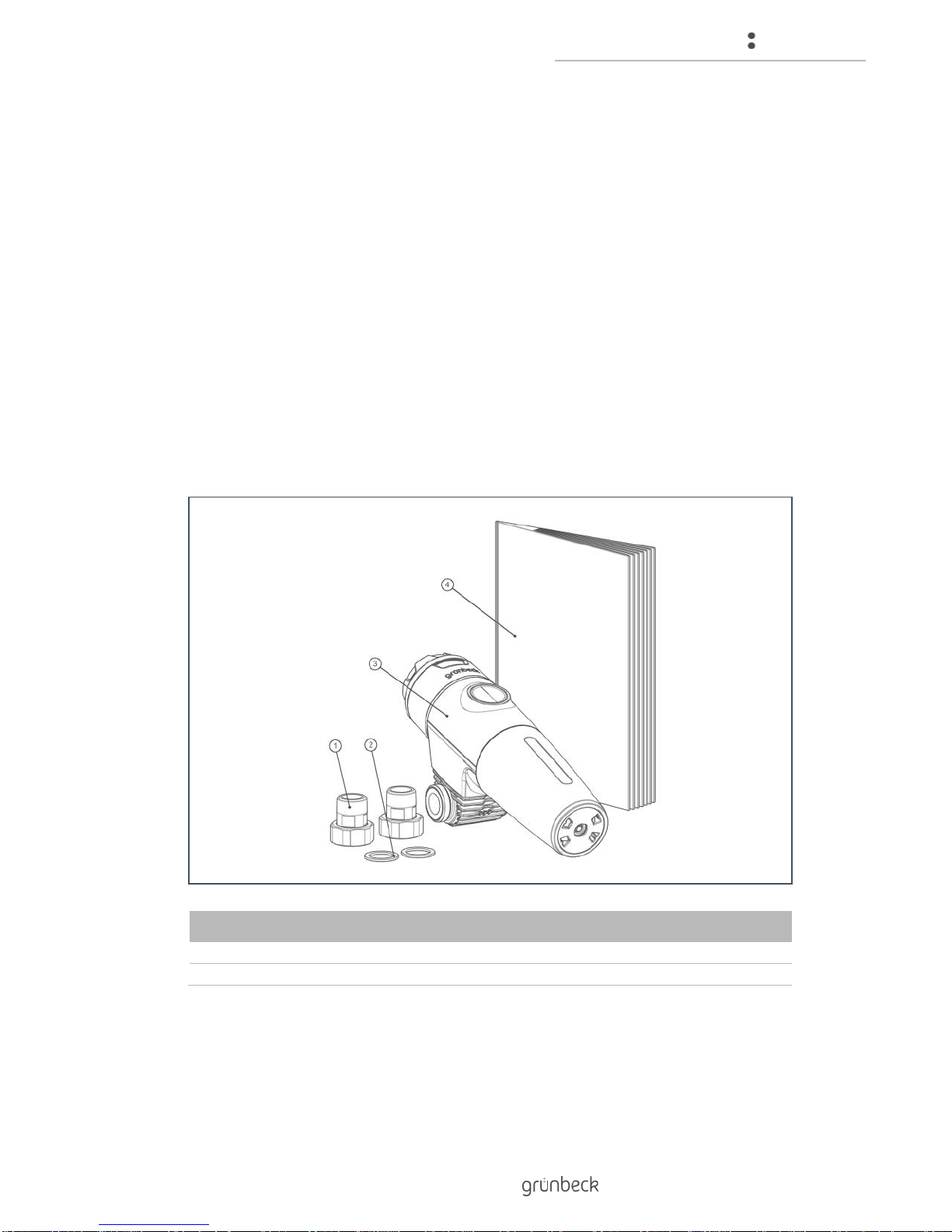

4.2 Checking the scope of supply
Item
Designation
Item
Designation
1
Water meter screw fittings
2
Gaskets
3
Fine filter pureliQ:K or pureliQ:KD
4
Operation manual
►Check the scope of supply for completeness and possible
damage.

Installation
18 | 44
BA_TD3-AK000en_035
4.3 Installing the product
In order for the water line on both sides of the filter to be
properly connected to the protective-equipotential bonding, we
recommend establishing a corresponding electrical bypass
according to DIN VDE 0100-540.
Use suitable tools for assembly and be careful not to scratch the
housing with your tool.
The transparent plastic film serves as transport and dirt
protection. We recommend leaving it on the device during
assembly and the construction phase to prevent soiling of the
white housing.

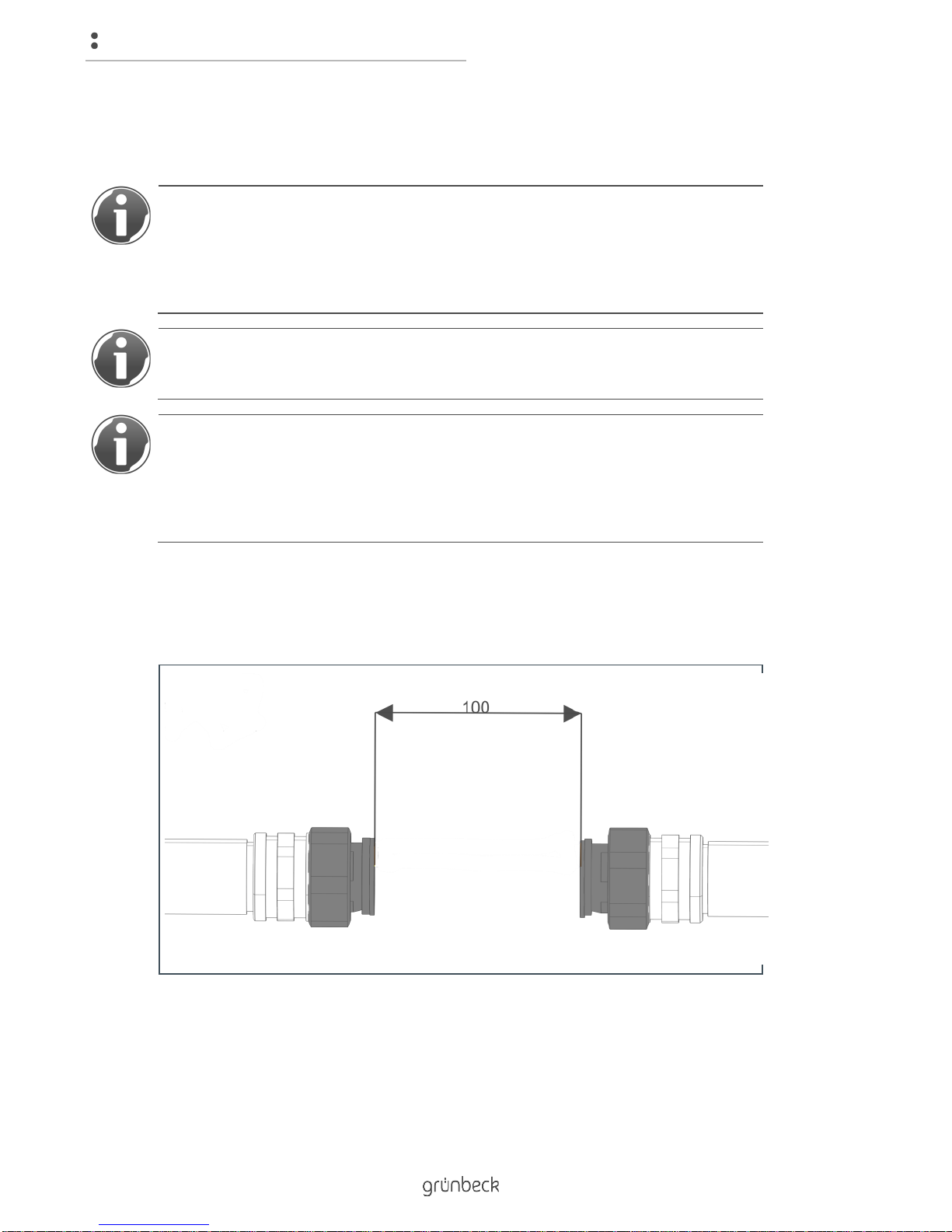

1. Install the water meter screw connection in the pipe (the
distance between the two seals must be 100 mm).
2. Leave the protective caps on the threads.

Installation
19 | 44
BA_TD3-AK000en_035

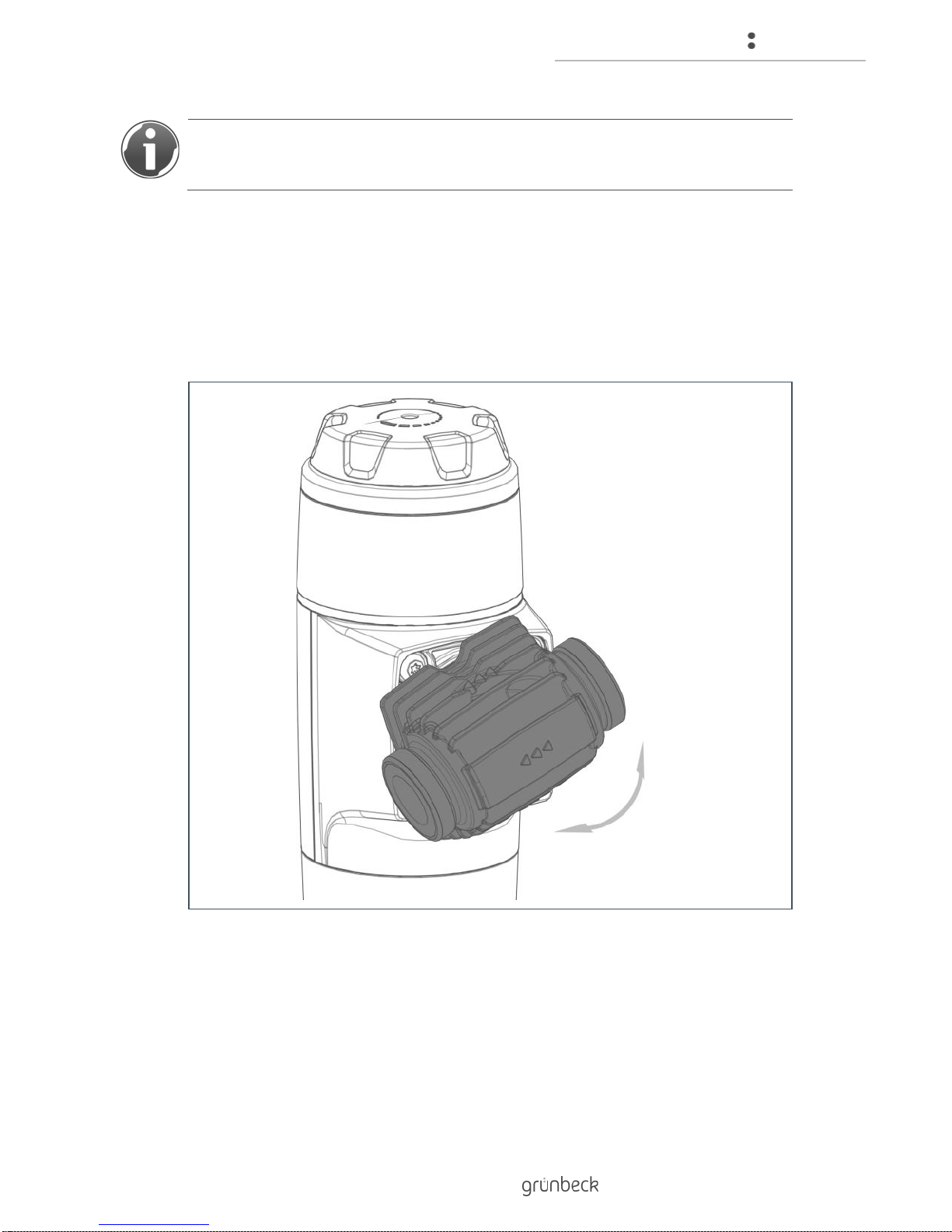

The rotatable click-type connection flange allows the filter to be
adapted to any flow direction given on site.
3. Check the flow direction given on site
4. Rotate the click-type connection flange to the position
suitable for your flow direction (marking on click-type
connection flange).
5. Remove the protective caps.
6. Install the filter without stress and tighten the union nuts.
» This completes the installation.

Start-up
20 | 44
BA_TD3-AK000en_035
5 Start-up
5.1 How to start up the product
1. Open the shut-off valves.
2. Open the nearest tap after the filter as far as it will go.
» The filter is vented.
3. Check the filter for leaks.
» The filter is in operation

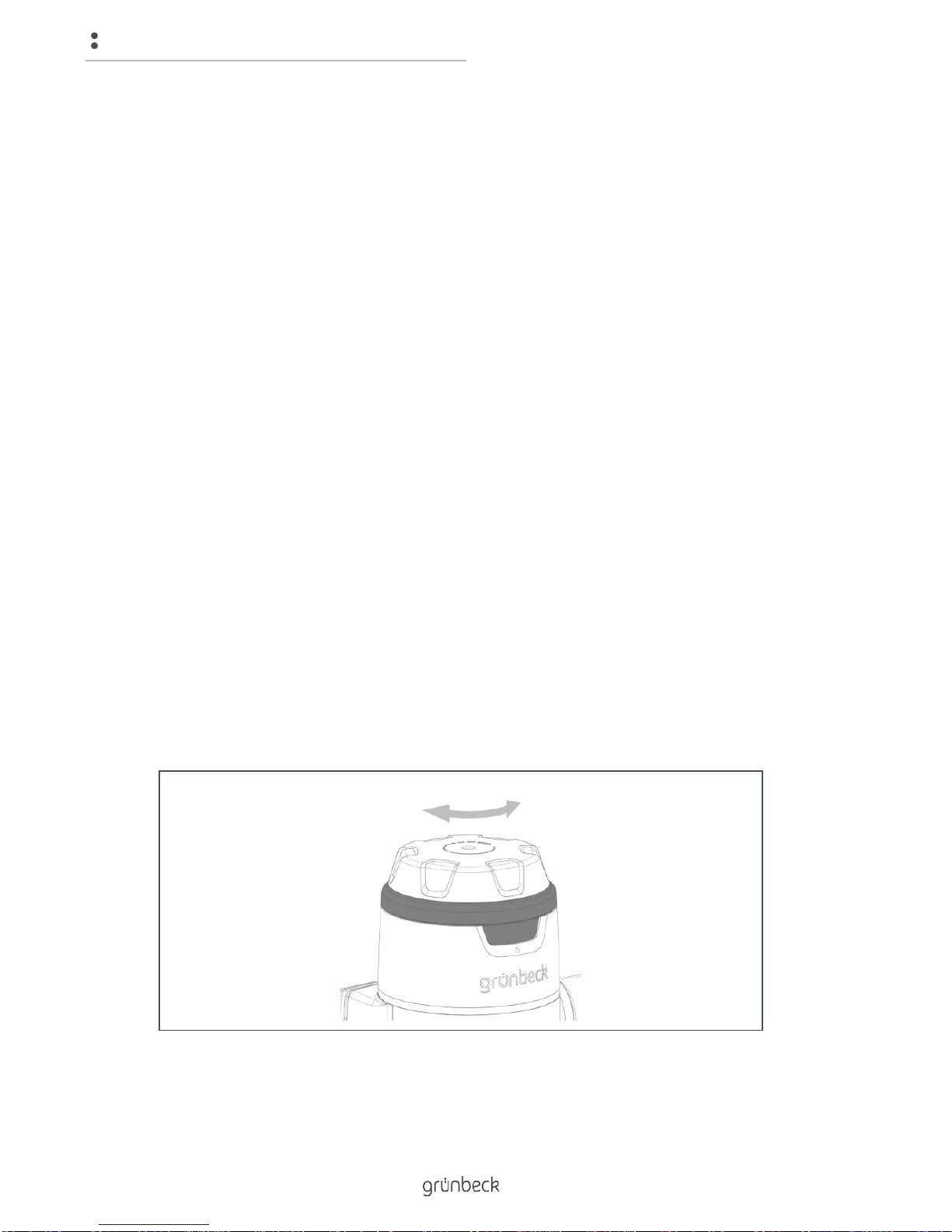

5.2 Setting the month display
In order not to miss a maintenance date, you can set the next
date for maintenance by turning the month display.
►Turn the ring above the month display until the desired
month is shown in the month display.
