Grunbeck BOXER KX User manual

We understand water.
Filter | Fine filter BOXER KX/KDX
Operation manual

Central Contact
Germany
Sales
Phone [phone]
Technical Service
Phone [phone]
Fax [phone]
Availability
Monday to Thursday
7:00 am –6:00 pm
Friday
7:00 am –4:00 pm
Copyright
The manufacturer reserves the copyright to this manual. No part of
this instruction may be reproduced in any way without the written
permission of Grünbeck Wasseraufbereitung GmbH, nor may any part
be processed, duplicated or disseminated using electronic systems.
Non-compliance of the aforementioned requirements shall be subject
to compensation.
Subject to technical modifications.
© by Grünbeck Wasseraufbereitung GmbH
Translation of the original operation manual
Edition of the manual: May 2019
Order-no.: TD3-AK001en_005

Table of contents
3 | 28
Table of contents
Table of contents........................................... 3
1About this instruction.......................... 4
1.1 Validity of the instruction....................... 4
1.2 Other applicable documents ................. 4
1.3 Target group ......................................... 4
1.4 Handover of the documents / product....... 4
1.5 Symbols used ....................................... 5
1.6 Typographical conventions ................... 5
1.7 Type plate ............................................. 6
2Safety .................................................... 7
2.1 Safety measures................................... 7
2.2 Technical safety instructions................. 7
2.3 Responsibilities of the specialist
installer ................................................. 8
2.4 Responsibilities of the owner-user........ 8
3Product description ............................. 9
3.1 Intended use......................................... 9
3.2 Predictable misuse ............................... 9
3.3 Product components........................... 10
3.4 Functional description......................... 11
3.5 Accessories/consumables .................. 11
4Installation .......................................... 12
4.1 Requirements with regard to the
installation site .................................... 12
4.2 Check the scope of supply.................. 13
4.3 Installing the product........................... 14
5Start-up ............................................... 16
5.1 How to start up the product ................ 16
5.2 Setting the month display ................... 16
5.3 Setting the pressure reducer
(BOXER KDX) .................................... 17
6Cleaning, inspection, maintenance.. 18
6.1 Cleaning ............................................. 18
6.2 Intervals .............................................. 19
6.3 Inspection ........................................... 19
6.4 Maintenance ....................................... 19
7Malfunction......................................... 22
8Disposal.............................................. 23
8.1 Disposal.............................................. 23
9Technical specifications ................... 24
9.1 Fine filter BOXER KX.......................... 24
9.2 Fine filter BOXER KDX ....................... 25
10 Operation log...................................... 26
10.1 Start-up log ......................................... 26
10.2 Maintenance ....................................... 27

About this instruction
4 | 28
BA-TD3-AK001en_005_BOXER_KX-KDX
1 About this instruction
1.1 Validity of the instruction
●Fine filters BOXER KX and BOXER KDX
1.2 Other applicable documents
●The manuals of all accessories used shall apply.
1.3 Target group
The intended audience for this manual is comprised of specialist
installers and owner-users.
1.4 Handover of the documents / product
►Explain to the owner/user how the product works.
►Use the manual to brief the owner/user, and answer any
questions.
►Inform the owner/user about the need for inspections and
maintenance.
►Document the initial start-up.
►Hand over all documents to the owner/user for storage.
The owner/user must keep all documents relating to the service
life of the product.

About this instruction
5 | 28
BA-TD3-AK001en_005_BOXER_KX-KDX
1.5 Symbols used
Instructions that you must comply with for your personal safety.
Instructions that you must comply with in order to avoid damage
to property.
Important information about the product or its handling.
Work which may only be carried out by a registered specialist
installer (in DE according to § 12(2) AVB Wasser V).
Entry/written documentation required.
1.6 Typographical conventions
Designation
Header text
Handling instruction
one-step or chronological
sequence of steps does not
matter
►Action
Handling instruction
multi-step and chronological
sequence of action steps
important
1. First action
a first step
b second step
2. Second action
Result after a handling instruction
» Result

About this instruction
6 | 28
BA-TD3-AK001en_005_BOXER_KX-KDX
Designation
Header text
Lists
●List item
•List sub-item
1.7 Type plate
Item
Designation
Item
Designation
1
Nominal connection diameter
2
Flow rate
3
Nominal pressure
4
Max. water temperature
5
Pore size
6
Product designation
7
Observe operation manual
8
Data matrix code
9
Manufacturer
10
Serial number
11
Order no.
12
QR code (www.grünbeck.de)

Safety
7 | 28
BA-TD3-AK001en_005_BOXER_KX-KDX
2 Safety
WARNING: Contamination of drinking water due to improper
handling.
●Risk of infectious diseases.
►Have the installation, start-up and six-monthly
maintenance carried out by specialist installers only.
2.1 Safety measures
●Carefully read this manual before operating your product.
●Only operate the product if all components are installed
properly.
●Observe the maintenance intervals.
●Children under the age of 8, persons with limited abilities or
lack of experience must not operate or maintain the
product.
2.2 Technical safety instructions
These instructions must be complied with for your personal safety
as well as to avoid damage to property.
CAUTION: Type and source of danger
●Possible consequences
►Preventive measures

Safety
8 | 28
BA-TD3-AK001en_005_BOXER_KX-KDX
The following signal words are defined according to the degree of
hazard:
●DANGER means that death or serious injury will result.
●WARNING means that death or serious injury can result.
●CAUTION means that minor bodily injuries can occur.
●NOTE (without warning triangle) means that property
damage can occur.
2.3 Responsibilities of the specialist installer
►Perform all activities in accordance with all applicable
standards (DIN EN 806, VDI 6023 Parts 5 –7) and
regulations.
►Instruct the owner/user in the following:
•The function and operation of the product.
•The maintenance of the product.
•Possible dangers that can arise during operation of the
product.
2.4 Responsibilities of the owner-user
●Arrange for a specialist installer to carry out installation,
start-up and maintenance.
●Make sure that the required inspection and maintenance
work is carried out.
●Keep this instruction.

Product description
9 | 28
BA-TD3-AK001en_005_BOXER_KX-KDX
3 Product description
3.1 Intended use
●The fine filters BOXER KX and BOXER KDX are intended
for filtering drinking water and for installation into drinking
water pipes according to DIN EN 806-2 (installation
immediately downstream of the water meter).
●They protect the water pipes and connected water-carrying
system parts from disturbances and corrosion damage due
to undissolved impurities (particles), such as rust particles,
sand, etc.
●The fine filter BOXER KDX with pressure reducer is
additionally suitable for adjusting the holding pressure on
the withdrawal side.
●The filters can be used for positive pressure and negative
pressure applications. The adjustment of the after-pressure
on the withdrawal side, however, only works when applied
in the positive pressure range.
3.2 Predictable misuse
●The filters are not suitable for circulation water that is
treated with chemicals.
●They are neither suitable for oils, greases, solvents, soaps
and other lubricating media, nor for the separation of water-
soluble substances.

Product description
10 | 28
BA-TD3-AK001en_005_BOXER_KX-KDX

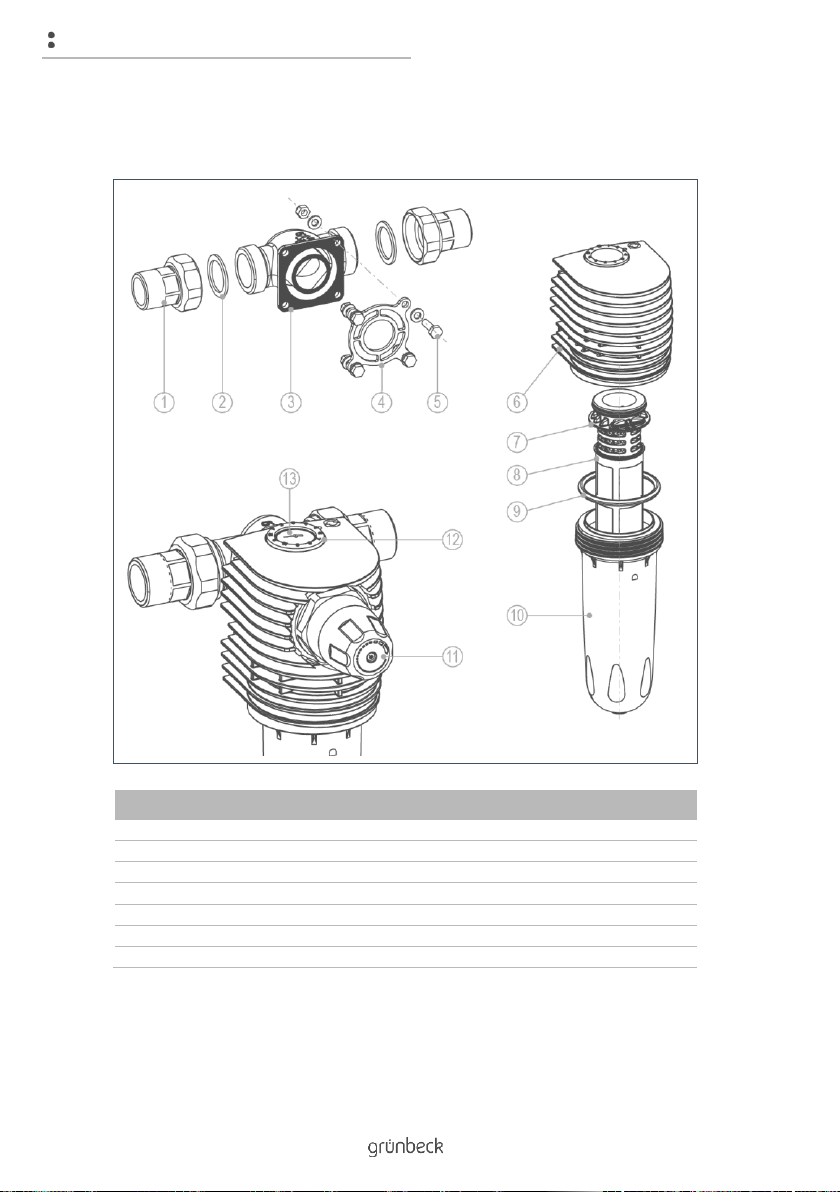

3.3 Product components
Item
Designation
Item
Designation
1
Water meter screw connection
2
Seal
3
Connection flange
4
Flange seal
5
Screw connection set
6
Filter housing
7
Support fabric
8
Filter cartridge
9
O-ring
10
Filter cylinder
11
Pressure reducer cartridge
12
Maintenance ring
13
Pressure gauge

Product description
11 | 28
BA-TD3-AK001en_005_BOXER_KX-KDX
3.4 Functional description
The unfiltered drinking water flows into the filter from the inlet side
and then from the outside in through the filter cartridge and to the
pure water outlet. Thus, foreign particles of > 100 µm in size are
retained.
Depending on their size and weight, the foreign particles either
stick to the filter cartridge or they fall straight down into the filter
cylinder.
In the fine filter BOXER KDX, the flow-optimised pressure
reducer, which is designed according to DIN EN 1567, enables
the holding pressure on the withdrawal side to be set to 1 –6 bar
(factory setting: 4 bar).
3.5 Accessories/consumables
You can retrofit accessories to your product. Please contact
your local Grünbeck representative or Grünbeck's headquarters
in Hoechstaedt for details.
Designation
Order no.
DVGW-certified
100 µm filter cartridge (2x)
101 272
80 µm filter cartridge (2x)
103 075
Not tested according to the German Association of the Gas and Water
Industry (DVGW)
50 µm filter cartridge (2x)
103 068
20 µm filter cartridge (2x)
103 071
5 µm filter cartridge (2x)
103 081

Installation
12 | 28
BA-TD3-AK001en_005_BOXER_KX-KDX
4 Installation
The installation of a filter represents a major intervention into the
drinking water system and may only be performed by a
specialist installer.

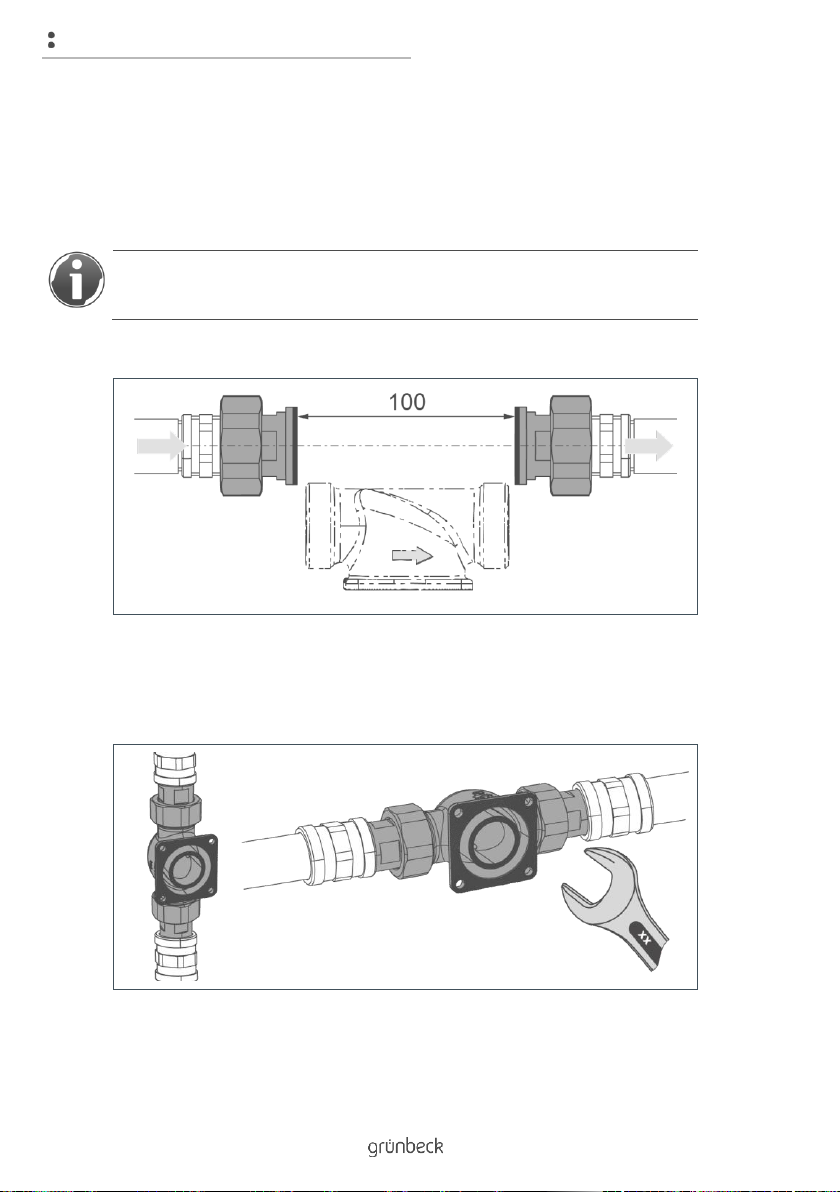

The product is installed in accordance with DIN EN 806-2 and
DIN EN 1717 in the cold water line downstream of the water
meter and upstream of distribution lines or the devices to be
protected.
Item
Designation
Item
Designation
1
Inlet shut-off valve
2
Outlet shut-off valve
4.1 Requirements with regard to the
installation site
●Frost-proof
●Protected against chemicals, dyes, solvents, vapours and
direct sunlight

Installation
13 | 28
BA-TD3-AK001en_005_BOXER_KX-KDX
●Away from heat sources (e.g. washing machines, boilers
and hot water pipes)
●Easily accessible for maintenance work
●With existing floor drain or
●With safety device e.g. protectliQ
4.2 Check the scope of supply
Item
Designation
Item
Designation
1
Water meter screw fittings
2
Seal
3
Connection flange
4
Fine filter
5
Screw connection set
6
Flange seal
7
Operation manual
►Check the scope of supply for completeness and damage.

Installation
14 | 28
BA-TD3-AK001en_005_BOXER_KX-KDX
4.3 Installing the product
4.3.1 Installing connection flange
The connection flange can be mounted in a horizontal or vertical
water pipe.
1. Install the water meter screw connection into the pipe.
2. Position the connection flange –Observe flow direction.
3. Tighten the connection flange using a combination wrench
at the union nuts without applying tension.
» The connection flange is installed.

Installation
15 | 28
BA-TD3-AK001en_005_BOXER_KX-KDX
4.3.2 Mounting the filter
1. Insert the hexagonal screws with washers into the recesses
on the filter head.
2. Slide on the flange seal.
Do not grease the flange seal. Greased flange seal can lead to
leakage and malfunctions.
3. Screw the filter to the connection flange –tighten the nuts
crosswise.
» The filter is mounted.

Start-up
16 | 28
BA-TD3-AK001en_005_BOXER_KX-KDX
5 Start-up
5.1 How to start up the product
1. Open the shut-off valves.
2. Open the nearest water withdrawal point after the filter as
far as it will go.
» The filter is vented.
3. Check the filter for leaks.
4. Enter the initial start-up in the operating log.
» The filter is in operation.
5.2 Setting the month display
►Set the maintenance ring to the month of the next
maintenance (preferably the month of the next filter change
–at the latest every six months).

Start-up
17 | 28
BA-TD3-AK001en_005_BOXER_KX-KDX
5.3 Setting the pressure reducer (BOXER KDX)
The factory setting for the pressure reducer is 4 bar.
You can change this value as follows:
1. Set the desired holding pressure on the handwheel for
pressure reducer
(turn clockwise = pressure increase,
turn anticlockwise = pressure reduction).
2. Open and close a water withdrawal point.
» The holding pressure adjusts itself.
3. Read off the actual holding pressure at the pressure gauge.
4. Repeat these operations until the desired pressure is
reached.
» The required holding pressure is set.

Cleaning, inspection, maintenance
18 | 28
BA-TD3-AK001en_005_BOXER_KX-KDX
6 Cleaning, inspection,
maintenance
WARNING: Risk of contaminated drinking water if the work is
not carried out properly.
●Risk of infectious diseases.
►Pay attention to hygiene when working on the product.
Inspection and maintenance of a filter is prescribed in the
DIN EN 806-5 standard. Regular maintenance ensures trouble-
free, hygienic operation.
A maintenance contract ensures that all the required
maintenance work will be performed in due time.
►Only use genuine spare and wearing parts from Grünbeck.
For spare parts and consumables please contact your local
representative. You can find these on the Internet at
www.gruenbeck.de.
6.1 Cleaning
►Only clean the outside of the product.
►Do not use any strong or abrasive cleaning agents.
►Wipe the housing with a damp cloth.
NOTE: Do not clean the filter with alcohol or cleaning agents
containing solvents.
●These substances will damage plastic components.
►Use a mild/pH-neutral soap solution.

Cleaning, inspection, maintenance
19 | 28
BA-TD3-AK001en_005_BOXER_KX-KDX
6.2 Intervals
Grünbeck recommends a semi-annual and an annual
maintenance according to DIN EN 806-5.
Operation
Interval
Execution
Inspection
2 months
Visual/function test, read off pressure (with
BOXER KDX)
Maintenance
6 months
Replace filter cartridge, clean support fabric,
adjust maintenance ring
Annually
Check O-rings/flat gaskets for wear, check tight
fit, replace filter cartridge
Maintenance
5 years
Recommended: Support fabric, change seals.
10 years
Recommended: in addition to 5-year interval –
replace filter cylinder.
6.3 Inspection
►Check the installation for leaks and function.
►Read off the pressure (for BOXER KDX). Replace the filter
cartridge in case of contamination and/or increased
differential pressure.
6.4 Maintenance
WARNING: Filter cartridge not replaced regularly. Uncleaned
support fabric.
●Health risk due to contamination of the drinking water.
►Observe the intervals for inspection and replacement of
the filter cartridge (according to DIN EN 806-5 every 6
months at the latest).
►Discard a used filter cartridge.

Cleaning, inspection, maintenance
20 | 28
BA-TD3-AK001en_005_BOXER_KX-KDX
6.4.1 Changing filter cartridge hygienically
1. Place a bucket under the filter.
2. Close shut-off valve 1 (inlet).
3. Depressurise the line.
4. Close shut-off valve 2 (outlet).
5. Screw on the filter cylinder by hand.
6. Pull off the O-ring with filter cylinder.
7. Pull the used filter cartridge off the support fabric. Dispose
of the used filter cartridge.
8. Slide the new filter cartridge, in its packaging in the foil,
over the support fabric.
9. Insert the O-ring and screw in the filter cylinder by hand as
far as the stop.
» The filter cartridge has been replaced.
10. Put the filter into operation (refer to chapter 5).
11. Set the date for the next maintenance.
