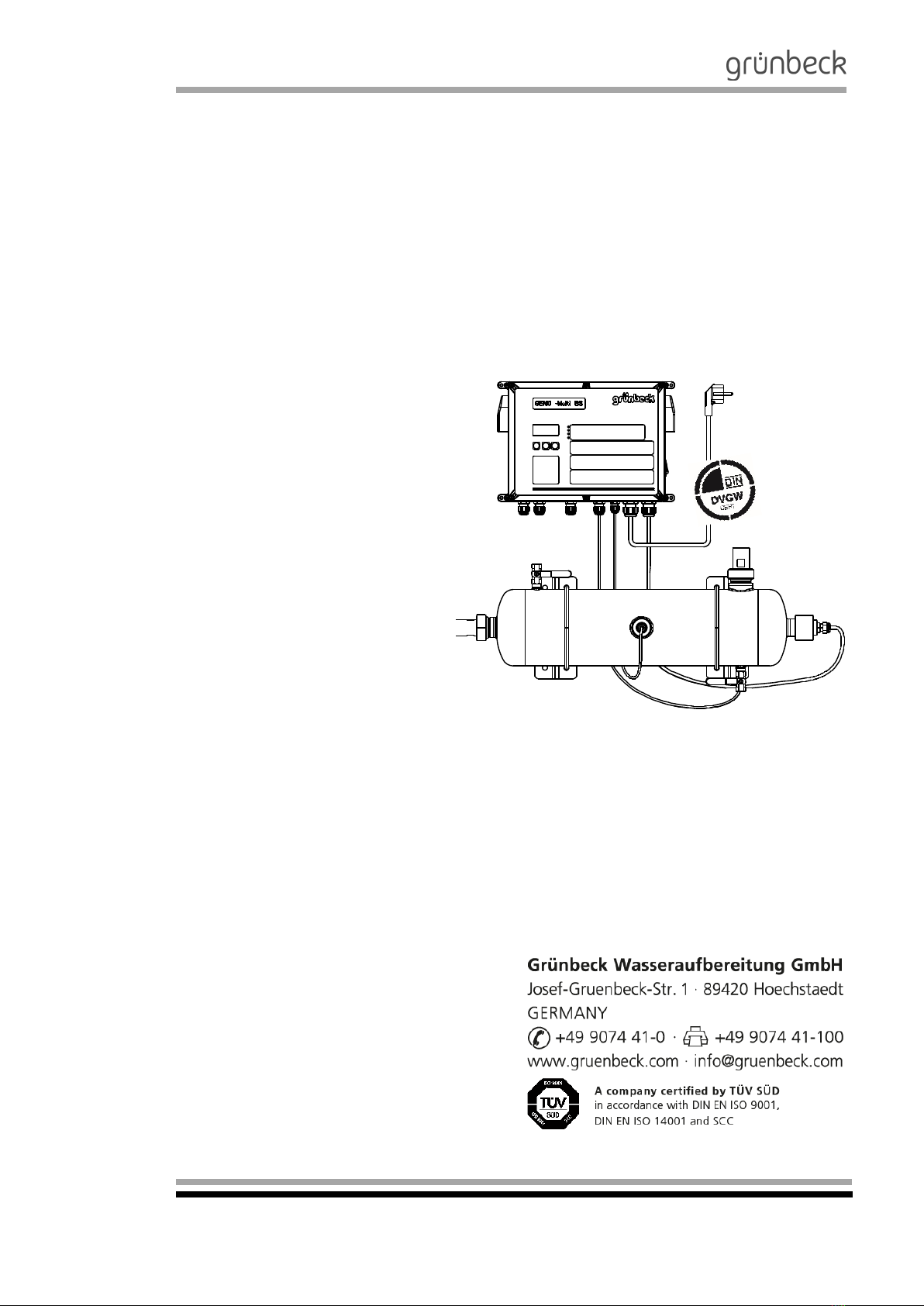

Grunbeck GENO-UV 60 S User manual

Operation Manual
Disinfection systems GENO-
UV 60 S
120 S
200 S
According to the list given in §11 of the German Drinking Wa-
ter Ordinance, GENO-UV disinfection systems intended for the
application in drinking water must be operated according to
DVGW worksheet W 294-1. This is only possible with systems
tested and certified according to worksheet W 294-2
The UV disinfection systems type GENO-UV 60 S, 120 S and
200 S described in this operation manual comply with this re-
quirement.
Edition May 2019
Order no. 264 523 940-inter

Content
Order no. 094 523 941-inter Edited by: mal-mrie G:\BA-523940-INTER_264_DECKBL.DOCX
1
Content

This operation manual consists of several parts as shown in the
table below. Please refer to the cover sheets of the individual
parts for detailed information on their contents
General....................................................................
Basic information.....................................................
Product description .................................................
Installation ...............................................................
Start-up....................................................................
Operation ................................................................
Troubleshooting ......................................................
Maintenance............................................................
Attachment: Operation log
A
B
C
D
E
F
G
H
Publisher's information
All rights reserved.
©Copyright by Grünbeck Wasseraufbereitung GmbH
Printed in Germany
Effective with the date of edition on the cover sheet.
-We reserve the right to modifications, especially with regard to
technical progress-
Reprints, translations into foreign languages, electronic storage
or copying only with explicit written approval of Grünbeck Was-
seraufbereitung GmbH.
Any type of duplication not authorised by Grünbeck Wasserauf-
bereitung is a copyright violation and subject to legal action.
Responsible for contents:
Grünbeck Wasseraufbereitung GmbH
Josef-Grünbeck-Str. 1 89420 Hoechstaedt/Germany
P.O. box 1140 89416 Hoechstaedt/Germany
Phone [phone] Fax [phone]
www.gruenbeck.com [e-mail]
Print: Grünbeck Wasseraufbereitung GmbH
Josef-Grünbeck-Str. 1, 89420 Hoechstaedt/Germany

Declaration of Conformity
Order no. 094 523 941-inter Edited by: mal-mrie G:\BA-523940-INTER_264_DECKBL.DOCX
2
EU Declaration of conformity
This is to certify that the system designated below meets the safety and health requirements of
the applicable European guidelines in terms of its design, construction and execution.
If the system is modified in a way not approved by us, this certificate is void.
Manufacturer:
Grünbeck Wasseraufbereitung GmbH
Josef-Grünbeck-Str. 1
89420 Hoechstaedt/Germany
Responsible for documentation:
Markus Pöpperl
System designation:
Disinfection system
System type:
GENO-UV 60 S; GENO-UV 120 S; GENO-UV 200 S
Serial number:
Refer to type designation plate
Applicable guidelines:
Low voltage (2014/35/EU)
EMC (2014/30/EU)
Applied harmonised standards, in
particular:
DIN EN 60335-1:2012-10,
DIN EN 61000-6-2:2006-03,
DIN EN 61000-6-3:2011-09
Applied national standards and
technical specifications,
in particular:
DVGW-W 294-2:2006-06
Place, date and signature: Hoechstaedt, 15.05.2019 i. V.
M. Pöpperl
Dipl.-Ing. (FH)
Function of signatory:: Head of Product Realisation and Product Launch

General
Order no. 114 181 949-inter Edited by: KONS-mpöp-mrie G:\BA-181949-INTER_114_A_WEE-B2C.DOCX
A-1
A General
Table of contents
1 | Preface ......................................................................
2 | How to use this operation manual ............................
3 | General safety information ........................................
3.1 Symbols and notes..............................................
3.2 Operating personnel............................................
3.3 Designated application ........................................
3.4 Protection from water damage ............................
3.5 Indication of specific dangers ..............................
4 | Shipping and storage.................................................
5 | Disposal ....................................................................
5.1 Packaging............................................................
5.2 Product ................................................................
A-1
A-2
A-2
A-2
A-3
A-3
A-3
A-3
A-4
A-4
A-4
A-4
1 | Preface
Thank you for opting for a Grünbeck product. Backed by dec-
ades of experience in the area of water treatment, we provide
solutions for all kind of processes.
Drinking water (raw water) is classified as food and requires par-
ticular care. Therefore, always ensure the required hygiene in
operating and maintaining systems for drinking water treatment.
This also applies to the treatment of water for industrial use if re-
percussions for the drinking water (raw water)cannot completely
be excluded.
All Grünbeck systems and devices are made of high-quality ma-
terials. This ensures reliable operation over many years, pro-
vided you treat the systems with the required care. This opera-
tion manual assists you with important information. Therefore,
read the complete manual before installing, operating or main-
taining your system.
Customer satisfaction is our prime objective and providing cus-
tomers with qualified advice is crucial. If you have any questions
concerning this system, possible extensions or general water
and waste water treatment, our technical service staff, as well as
the experts at our headquarters in Hoechstaedt, is available to
help you.
Advice and assistance
For advice and assistance please contact your local representa-
tive (www.gruenbeck.com).
Our service hotline is available for emergencies on +49 (0)9074 /
41-333.
We can connect you with the appropriate expert more quickly if
you provide the required system data. To ensure that this infor-
mation is to hand at all times, please keep the precise equip-
ment data to hand (refer to the type plate in chapter C-1).

General
Order no. 114 181 949-inter Edited by: KONS-mpöp-mrie G:\BA-181949-INTER_114_A_WEE-B2C.DOCX
A-2
2 | How to use this operation manual
This operation manual is intended for the operators of our sys-
tems. It is divided into several chapters (a letter is assigned to
each of them) which are listed in the “Table of contents” on page 1
in alphabetical order. In order to find the specific information you
are looking for, check for the corresponding chapter on page 1.
The headers and page numbers with chapter information make it
easier to find your way around in the manual. In case of larger
chapters, first check out page 1 of said chapter (e. g. H-1) where
you will find more information on the contents of this chapter.
3 | General safety information
3.1 Symbols and notes
Important notes in this operation manual are characterised by
symbols. Please pay particular attention to these notes in order
to ensure a danger-free, safe and productive system operation.
Danger! Failure to adhere to these notes will cause serious or
life-threatening injury, extreme damage to property or inadmissi-
ble contamination of drinking water.
Warning! Failure to adhere to these notes may cause injury,
damage to property or contamination of the drinking water.
Attention! Failure to adhere to these notes may result in dam-
age to the system or other objects.

Note: This symbol characterises notes and tips to make your
work easier.
Tasks with this symbol may only be performed by Grünbecks
technical service or by persons expressly authorised by
Grünbeck.
Tasks with this symbol may only be performed by qualified elec-
trical experts according to the VDE guidelines or according to
the guidelines of a similar local institution.
Tasks with this symbol may only be performed by water compa-
nies or approved installation companies. In Germany, the instal-
lation company must be registered in a water company installa-
tion directory as per §12(2) AVBWasserV (German Ordinance on
General Conditions for the Supply of Water).

General
Order no. 114 181 949-inter Edited by: KONS-mpöp-mrie G:\BA-181949-INTER_114_A_WEE-B2C.DOCX
A-3
3.2 Operating personnel
Only persons who have read and understood this operation
manual are permitted to work with the system. The safety guide-
lines are to be strictly adhered to.
3.3 Designated
application
The system may only be used for the purpose outlined in the
product description (chapter C). The guidelines in this operation
manual as well as the applicable local guidelines concerning the
drinking water protection, accident prevention and occupational
safety must be adhered to.
In addition, appropriate application also implies that the system
may only be operated when it is in proper working order. Any
malfunctions must be repaired at once.
3.4 Protection from water damage
Warning! In order to properly protect the installation site from
water damage:
a) a sufficient floor drain system must be available or
b) a water stop device (see chapter C Accessories) must be in-
stalled.
Warning! Floor drains that are channelled off to the lifting sys-
tem do not function in case of a power failure.
3.5 Indication of
specific dangers
Danger due to electricity! →Do not touch electrical parts with
wet hands! Disconnect the system from mains before starting
work on electrical parts of the system. Have qualified experts re-
place damaged cables immediately.
Danger due to mechanical energy! System parts may be subject
to overpressure. Danger of injury and damage to property due to
escaping water and unexpected movement of system parts. →
Check pressure pipes regularly. Depressurise the system before
starting repair or maintenance work on the system.
Hazardous to health due to contaminated drinking water! →The
system may only be installed by a qualified company. The oper-
ation manual must be strictly adhered to! Ensure that there is
sufficient flow. The pertinent guidelines must be followed for
starting-up after long periods of standstill. Inspections and
maintenance must be performed at the intervals specified!

Note: By concluding a maintenance contract, you ensure that all
of the required tasks are performed on time. You may perform
the interim inspections yourself.

General
Order no. 114 181 949-inter Edited by: KONS-mpöp-mrie G:\BA-181949-INTER_114_A_WEE-B2C.DOCX
A-4
4 | Shipping and storage
Attention! The system may be damaged by frost or high tem-
peratures. In order to avoid damage of this kind:
Protect from frost during transportation and storage! Do not in-
stall or store system next to objects which radiate a lot of heat.
The system may only be transported and stored in its original
packing. Ensure that it is handled with care and placed the right
side up (as indicated on the packing).
5 | Disposal
Comply with the applicable national regulations.
5.1 Packaging
Dispose of the packaging in an environmentally sound manner.
5.2 Product
If this symbol (crossed out waste bin) is on the product, Euro-
pean Directive 2012/19/EU applies to this product. This means
that this product and the electrical and electronic components
must not be disposed of as household waste.
Find out about local regulations on the separate collection of
electrical and electronic products.
Use the collection points available to you for disposing of your
product.

For information on collection points for your product, contact
your municipality, the public waste disposal authority, an
authorised body for the disposal of electrical and electronic prod-
ucts or your waste collection service.

Basic information
GENO-
UV disinfection
Order no. 084 523 942-inter Edited by: mal-mrie G:\BA-523942-INTER_084_B.DOCX
B-1
B Basic information (GENO-disinfection systems)
Contents
1 Laws, regulations, standards.......................................
2 Disinfecting effect of UV light ......................................
3 Room irradiation ..........................................................
B-1
B-2
B-3
1 Laws, regulations, standards
In the interest of good health, rules cannot be ignored when it
comes to the processing of drinking water. This instruction man-
ual takes the applicable German guidelines into account and
provides all the information you need to safely operate your wa-
ter treatment system.
Among other things, the regulations stipulate that
•only approved companies are permitted to make major modi-
fications to water treatment facilities,
•and that tests, inspections and maintenance are to be per-
formed on installed systems at regular intervals.
Especially when the water treated by means of this system is
made available to third parties, it must be ensured that the Ger-
man Drinking Water Ordinance is observed.
According to § 11 of the German Drinking Water Ordinance, the
UV disinfection systems may only be applied if these have been
tested corresponding to DVGW worksheet W 294-2. Grünbeck’s
UV disinfection systems GENO-UV 60-200 S comply with this
requirement and have to be installed and operated according to
DVGW worksheet 294-1 for the purpose of proper operation.

Note: In order for the operation of the UV disinfection systems to
comply with the German Drinking Water Ordinance according to
the DVGW’s work sheet W 294 part 1, the water flow must be in-
terrupted in case of a power failure, especially if the irradiation
intensity is insufficient or there is a lamp failure. This can be en-
sured by means of the optional accessory (safety device) de-
scribed in chapter C-6.
Attention! Without the above mentioned safety device, the UV dis-
infection system cannot be operated according to the German
Drinking Water Ordinance. There is a risk that water which is not or
insufficiently disinfected might enter the installation downstream of
the system and contaminate the pipework. The resulting microbio-
logical load of the water makes it unfit for human consumption.
In Germany only DVGW-certified UV-disinfection systems are ap-
proved for installation in drinking water systems!

Basic information
GENO-UV disinfection
Order no. 084 523 942-inter Edited by: mal-mrie G:\BA-523942-INTER_084_B.DOCX
B-2
2 Disinfecting effect of UV light
UV light (ultraviolet light) is light of wave lengths between 100
and 380 nm which are imperceptible (invisible) to the naked eye.
For the UV disinfection, the wave length of 254 nm is of major
importance. This wave length is emitted by mercury-arc lamps
whose built-up is similar to that of common fluorescent lamps.
The disinfecting properties of the UV light are due to the fact that
light of a wave length of 254 nm is absorbed by the nucleic acids
in the genetic material of micro-organisms. The absorption of the
high-energy radiation results in the modification of the genetic
material (DNA resp. RNA) and leads to an incapability to repro-
duce.
The room irradiation (light dose) required to inactivate the mirco-
organisms depends on the respective species and population.
For fungi, spores and algae a much higher room irradiation is re-
quired compared to bacteria and viruses.
The DVGW’s Technical Regulation W 294 stipulates a minimum
room irradiation of 400 J/m² by which a reduction rate of 99.99%
for viruses and bacteria is achieved.
For further details, please refer to DVGW worksheet W 294-1.

Basic information
GENO-
UV disinfection
Order no. 084 523 942-inter Edited by: mal-mrie G:\BA-523942-INTER_084_B.DOCX
B-3
3 Room irradiation
The extent of the irradiation in the room depends on the intensity
and the duration of the irradiation. The irradiation intensity on the
other hand depends on the spectral absorption coefficient of the
water at 254 nm (SAC254). With regard to the UV disinfection the
organic substances (e.g. humic acids) and the inorganic salts
(e.g. iron or manganese ions) contained in the water are of ma-
jor importance as these absorb the UV light at 254 nm and thus
reduce the transmission. As the wave length of 254 nm is invisi-
ble to the naked eye, the SAC254 can only be determined by a
UV-VIS spectrometer.
The intensity of irradiation also depends on the age of the UV
lamps. The performance of the UV lamps decreases with their
increasing operating time. In order to still guarantee the required
room irradiation, the lamp must be replaced at the end of its ser-
vice life.
The period of irradiation results from the flow and the volume of
the UV disinfection system. For the safe operation of UV sys-
tems the limitation of the flow is necessary, as is also required
by DVGW worksheet W 294.
Subject to being operated properly, the GENO-UV disinfection
systems provide the effective minimum room irradiation of
400 J/m² required by the DVGW.

Basic information
GENO-UV disinfection
Order no. 084 523 942-inter Edited by: mal-mrie G:\BA-523942-INTER_084_B.DOCX
B-4

Product description
GENO-UV 60 S –
200 S
Order no. 134 523 943 -inter Edited by: mal-mrie G:\BA-523943-INTER_134_C.DOCX
C-1
C Product description (GENO-UV 60 S – UV 200 S)
Content
1 Type designation plate ................................................
2 Technical specifications ..............................................
3 Designated application ................................................
4 Application restrictions.................................................
4.1 Application in drinking water ...............................
5 Scope of delivery .........................................................
5.1 Basic equipment..................................................
5.2 Optional accessories ...........................................
5.3 Consumables ......................................................
5.4 Wearing parts ......................................................
5.5 Spare parts ..........................................................
C-1
C-1
C-3
C-4
C-4
C-6
C-6
C-6
C-7
C-7
C-8
1 Type designation plate
The type designation plate is located at the right side of the dis-
infection system’s pressure vessel. If you have questions con-
cerning the system, please specify the information shown on the
type designation plate of the unit in order to speed up the pro-
cessing of your request. Please copy the data given on the des-
ignation plate to the table below in order to have it handy when-
ever necessary.
Disinfection system
GENO-UV nnnS
Serial number:
n
n
n
n
n
n
/
n
Order no.: 523
n
n
n
2 Technical specifications
The GENO-UV disinfection systems types 60 S – 200 S are
used for the continuous disinfection of drinking water. They com-
ply with the DVGW’s Technical Rule W 294 (UV disinfection sys-
tems for the drinking water supply – requirements and tests) and
are equipped with a selective UV system sensor. Provided the
system is operated properly and according to the DVGW work
sheet W294-1, it provides a room irradiation of at least 400 J/m².
All system data is summarised in table C-1 and refers to the
standard design of the UV disinfection systems. Possible devia-
tions in case of special designs will be indicated separately, if
necessary.
Warning! In case of system failure or if the GENO-UV disinfec-
tion system is being switched off, the drinking water or the sub-
sequent pipe system might become infested with germs.

Product description
GENO-UV 60 S – 200 S
Order no. 134 523 943-inter Edited by: mal-mrie G:\BA-523943-INTER_134_C.DOCX
C-2
Table C-1: Technical specifications
Disinfection devices GENO-UV
60 S
120 S
200 S
Connection data
Nominal connection diameter
DN 25/R 1“
DN 40/R 1 ½“
DN 50/R 2“
Drain connection, min.
DN 50
Power supply
[V]/[Hz]
230/50-60
Connected load
[VA]
75
145
215
Max. power consumption
[A]
0.33
0.63
0.94
Protection/protection class
IP 54/
Performance data
Nominal pressure
[bar]
PN 10
Operating range
[bar]
2 – 10
Inlet water temperature
[°C]
5 – 30
30-70
SAC254 max.
[m-1]
2.7
5.1
2.7
Nominal flow (Qmax/2)
[m³/h]
1.8
4.0
6.0
4.0
4.0
Max. flow
[m³/h]
3.3
8.0
12.0
8.0
8.0
KV value
[m³/h]
2.4
6.2
9.5
6.2
6.2
Min. irradiation intensity at max. flow
[W/m²]
11.5
14.0
16.0
11.6
11.6
Pressure loss at nominal flow rate (Qmax/2)*
[bar]
0.4
Dimensions and weights
A Installation length with screw connection
[mm]
560
960
1212
B Total length with screw connection
[mm]
795
1185
1430
C Headroom above centre of con. with screw con.
[mm]
165
181
181
D Headroom below centre of connection
[mm]
130
E Space req. on right of sys. for lamp replacement
[mm]
560
950
1200
F Space req. above system min.
[mm]
350
G Distance to wall from centre of connection, min.
[mm]
610
H Req. space for replacement of UV sensor, min.
[mm]
300
I Headroom centre of system with floor rack
[mm]
610
J Head room with screw con. with floor rack
[mm]
791
K Distance between holes to fasten floor rack, width
[mm]
306
550
800
L Distance between holes to fasten floor rack, depth
[mm]
180
M Diameter of bore to fasten floor rack
[mm]
12
N Distance floor rack to wall, min.
[mm]
30
Weight empty
[kg]
13
19
20
Volume
[l]
10
16
21
Environmental data
Ambient temperature
[°C]
5 – 40
Relative humidity of air, max.
[%]
70
Components
Pressure vessel
material
W 1.4404
Protective quartz pipe
length
[mm]
560
950
1200
∅
[mm]
28
28
28
UV lamp
el. capacity
[W]
60
120
200
max. service life
[h]
16,000
UV sensor / sensor shell
according to W294-3
Flow stabiliser
material
POM/EPDM
2 ball valves
nominal diameter
DN 8 (R ¼“)
material
W 1.4301
Control unit GENO-Multi BS
Housing
h x w x d
[mm]
255 x 340 x 115
material
ABS
Displays
operating time, irradiation intensity,
switch-on counter, operating mode
Outputs
ext. operating and fault signal, analogue signal output
for irradiation intensity signal (4 – 20 mA ≙0– 50 W/m²)
switched power output (24 V~, max. 14 VA) to connect
a safety device (solenoid valve) switched power output
(24 V~, max. 14 VA) to connect a temperature-con-
trolled flushing unit (solenoid valve)
Mark of conformity/mark of certification
DVGW mark of conformity
DW-
9181BR0040
DW-
9181BR5794
DW-
9181BR5795
Order no.
523 110
523 120
523 130
* The pressure loss is determined by the flow stabiliser

Product description
GENO-UV 60 S – 200 S
Order no. 134 523 943-inter Edited by: KONS-ada-rg G:\BA-523943-INTER_134_C.DOCX
C-3
3 Designated application
The GENO-UV disinfection systems are designed for the disin-
fection of drinking water. They are to be installed downstream of
water treatment systems. The room irradiation required to kill
bacteria and viruses is min. 400 J/m². At this room irradiation, a
reduction rate of 99.99 % is achieved.
The GENO-UV disinfection systems are adapted to the water
demand and quality to be expected at the installation site. The
max. flow rate must under no circumstances be exceeded. In
case of increasing demand or lower water quality, the system
would have to be extended.
The safe disinfection of the water can only be guaranteed if the
water is mostly free of turbidities and only slightly loaded with re-
gard to microbiological growth. Water containing turbidities or a
permanently low or short-term high load of germs indicating fe-
ces requires a treatment to separate particles.
The system may only be operated after all components had
been installed properly. Safety devices must never be removed,
tampered with, short-cut or otherwise rendered useless.

Note: In particular, this applies for the flow stabilisers contained
in the scope of delivery which are designated to limit the flow
rate. If these are not being used or their function is being tem-
pered with, there is a risk that the disinfection systems are oper-
ated at a flow rate which is too high, thus losing the approval for
their application in the drinking water sector.
The designated application also requires that the instructions
given in this operating manual and the local safety regulations
will be respected and the maintenance and inspection intervals
be observed. The UV systems are approved for an SAC254 value
of up to 2.7 m-1 (GENO-UV 200 S even up to 5.1 m-1) and are
accredited according to the DVGW’s work sheet W 294. There-
fore, the flow rate/irradiation intensity given in pairs in table C-2
guarantee a disinfection efficiency of min. 400 J/m².

Note: In order for the operation of the UV disinfection systems to
comply with the Drinking Water Ordinance according to the
DVGW’s work sheet W 294 part 1, the water flow must be inter-
rupted in case of a power failure, especially if the irradiation in-
tensity is insufficient or there is a lamp failure. This can be en-
sured by means of the optional accessory (solenoid valve) de-
scribed in chapter C-6.
Attention! Without the above mentioned safety device, the UV dis-
infection system cannot be operated according to the Drinking Wa-
ter Ordinance. There is a risk that water which is not or insufficiently
disinfected might enter the installation downstream of the system
and contaminate the pipework. The resulting microbiological load-
ing of the water makes it unfit for human consumption.

Product description
GENO-UV 60 S – 200 S
Order no. 134 523 943-inter Edited by: mal-mrie G:\BA-523943-INTER_134_C.DOCX
C-4
4 Applications restrictions
The SAK
254
value (specific absorption coefficient at a wave length
of the light of 254 nm) indicates how much light is lost in the water.
As in a lot of water analyses the water transmission is also given,
this value is included in the tables below as well. The transmission
refers to the cuvette used for the measuring which is available in
different sizes (thickness). In order to simplify the comparability of
different water analyses, the transmission is indicated for cuvettes
with a thickness of 10 mm, 50 mm and 100 mm.

Note: The transmission resp. the SAK254 value can only be de-
ter-mined in a lab and by means of a water analysis.
The water temperature also influences the capacity of the GENO-
UV disinfection systems as the water temperature has an impact on
the operating temperature of the lamp. Therefore, the systems shall
only be operated within the indicated temperature range.
4.1 Application in drinking
water
The UV disinfection system must be operated according to the
DVGW’s work sheet W 294-1. The index pair “flow rate” and “ir-
radiation intensity” needs to be in the grey-coloured area of the
operating diagram, i.e. the irradiation intensity must always ex-
ceed and the flow rate must always be below the value given in
the table for the respective system. The systems are suitable for
water with a SAK254 value of up to 2,7 m-1 (GENO-UV 200 S even
up to 5,1 m-1). The corresponding data is indicated on the type
designation plate. A UV sensor with 40°logo is to be used for the
monitoring.
The indicated flow rates are limited by flow stabilisers in order to
avoid the improper operation of the systems. According to the re-
quirements of the work sheet DVGW W 294, the flow rates have
to be adjusted by the inaccuracy of the flow stabilisers which
means that the real flow rate is in the area of 90 – 100 % of the
maximum flow rate indicated. The service life of the flow stabilis-
ers is 12 months and they have to be replaced on the occasion
of the extended maintenance service that takes place every
year.

Product description
GENO-UV 60 S – 200 S
Order no. 134 523 943-inter Edited by: KONS-ada-rg G:\BA-523943-INTER_134_C.DOCX
C-5
Table C-2: Application limits GENO-UV disinfection systems
Disinfection system GENO-
UV 60 S
GENO-
UV 120 S
GENO-
UV 200 S
Temperature
[°C]
5 - 30
30 - 70
SAC254-value
[m-1]
2.7
5.1
2.7
1 cm
[%]
94.0
89.0
89.0
5 cm
[%]
73.3
55.8
55.8
10 cm
[%]
53.8
31.2
31.2
Max. flow [m³/h] 3.3 (3.0) 8.0 (7.5) 12.0 (11.4) 8.0 (7.5)
Flow stabiliser colour 1 x red 2 x black
1 x red
2 x blue
1 x red
2 x black
1 x red
Min. irradiation intensity
[W/m²]
11.5
14.0
16.0
11.6
* at a measuring field angle of 40°
Fig. C-1 Index for suitability and index for operation GENO-UV 60 S
Fig. C-2 Index for suitability and index for operation GENO-UV 120 S
Fig. C-3 Index for applicability and index for operation GENO-UV 200 S
Index for suitability GENO-UV 200 S
0
4
8
12
16
0
0,9
1,8
2,7
3,6
4,5
5,4
SSK245 [m-1]
DVGW-tested index points
Index for suitability GENO-UV 60 S
Index for suitability GENO-UV 120 S
Flow [m³/h]
Flow [m³/h]
Index for operation GENO-UV 60 S
Index for operation GENO-UV 120 S
Index for operation GENO-UV 200 S
Flow [m³/h]
DVGW-tested index point
Flow [m³/h]
Flow [m³/h]
Flow [m³/h]
SAC
SAC
SAC
Irradiation [W/m²]
Irradiation [W/m²]
Irradiation [W/m2]
DVGW-tested index point
DVGW-tested index point
DVGW-tested index point

Product description
GENO-UV 60 S – 200 S
Order no. 134 523 943-inter Edited by: mal-mrie G:\BA-523943-INTER_134_C.DOCX
C-6
5 Scope of delivery
5.1 Basic equipment
•1 Stainless steel pressure vessel
•1 Protective quartz pipe
•1 Moulded seal for protective quartz pipe
•1 UV lamp

Note: For the UV lamps, a special warranty of max. 4000 operat-
ing hours or 12 months after installation, if the 4000 operating
hours have not been reached by this time does apply.
•1 Control unit GENO-Multi BS
•1 UV sensor shell
•1 UV system sensor
•1 Flow stabiliser – cavity disk
•1 Set of flow stabilisers to limit the maximum flow rate
•1 Water meter screw connection, long, to install the cavity
disk of the flow stabiliser in the outlet of the systems
•1 Standard water meter screw connection
•1 Operation manual
•1 x Sealing paste to mount the protective quartz pipe
5.2 Optional accessories
•Temperature-controlled flushing unit with ½ “ so-
lenoid valve and contact temperature sensor
(not for warm water UV)
523 825
•UV protective goggles 522 810
•Fastening for wall mounting 523 800
•Floor rack
GENO-UV 120 S
GENO-UV 60 S
523 815
GENO-UV 120 S
523 805
GENO-UV 200 S
523 810
•Safety device
(for control unit
GENO-Multi BS)
GENO-UV 60 S
523 870
GENO-UV 120 S
523 875
GENO-UV 200 S
523 880
•S-WW/backwash filter drinking water filter
BOXER
pls. inquire
•USB data logger
523 830
•Flushing kit for UV disinfection systems resi-
dential version
520 020

Product description
GENO-UV 60 S – 200 S
Order no. 134 523 943-inter Edited by: KONS-ada-rg G:\BA-523943-INTER_134_C.DOCX
C-7

Note: Existing systems may be equipped with optional compo-
nents. Our field service staff in your area as well as the Grünbeck
headquarters will be pleased to submit further information.
5.3 Consumables
In order to ensure the reliable operation of the system, only gen-
uine consumables should be used.
Cleaning agent GENO-Clean CP
(10 x 1 litre bottle) 170 022
Spare UV lamp GENO-UV 60 S
523 112
GENO-UV 120 S
523 122
GENO-UV 200 S
523 132
5.4 Wearing parts
The following parts are considered to be wearing parts:

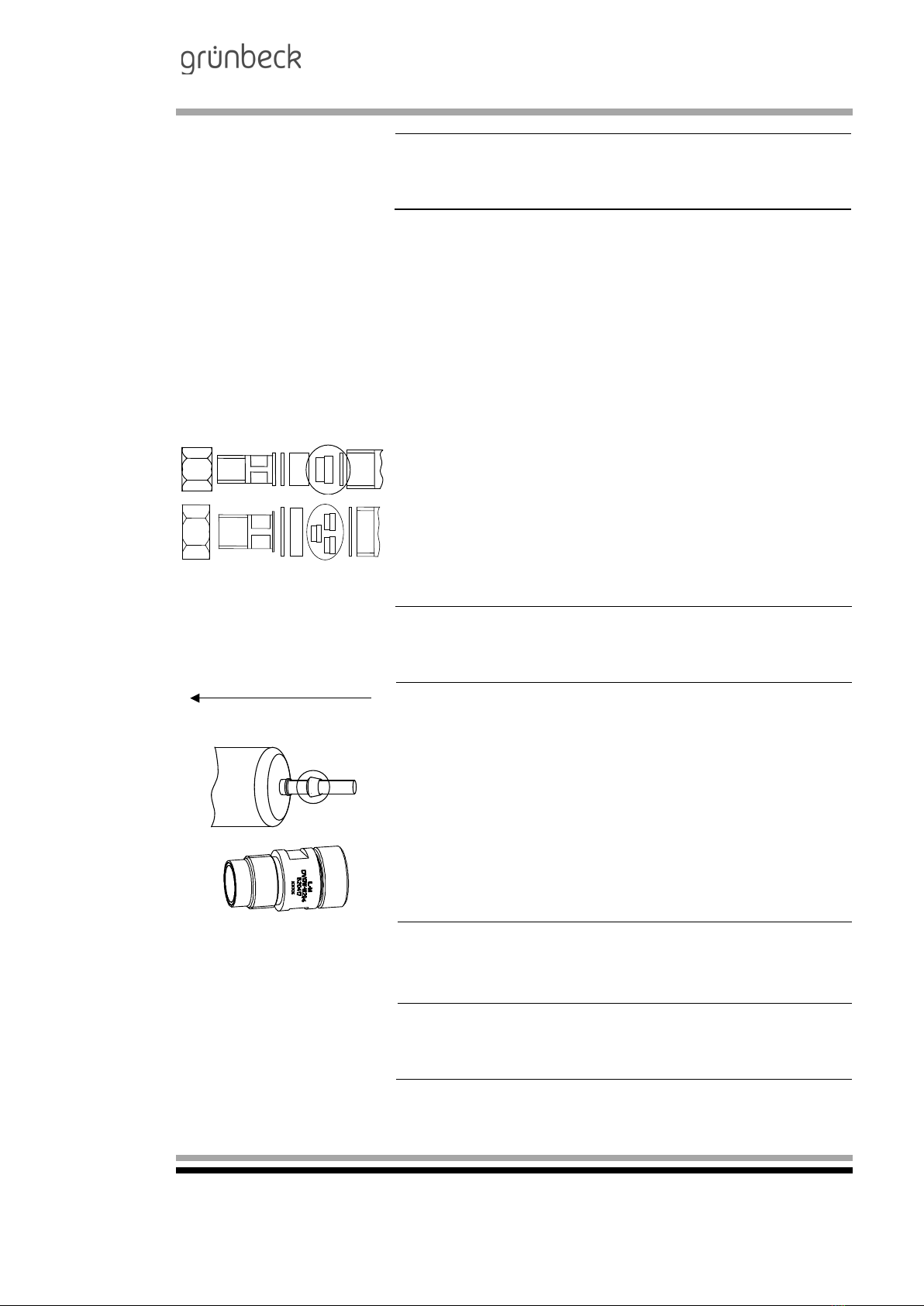

Observe flow direction!
Flow stabiliser GENO-UV 60 S
523 647e
GENO-UV 120 S
523 648e
GENO-UV 200 S
523 649e

Note: The service life of the flow stabilisers of the GENO-UV
disinfection systems depends on the operating conditions (refer
to chapter H-4, 2.6 and 2.7)
UV sensor (measuring angle 40°, for control unit
GENO-Multi BS)
523 612e
Sealing ring for lamp 520 153
Sensor shell 520 610e

Note: Due to the UV radiation, the sealing and fastening elements
of the sensor shell are subject to wear and tear and must be re-
placed on the occasion of the extended maintenance that takes
place every two years.

Note: Although these are wearing parts, we grant a limited war-
ranty of 6 months.

Product description
GENO-UV 60 S – 200 S
Order no. 134 523 943-inter Edited by: mal-mrie G:\BA-523943-INTER_134_C.DOCX
C-8
5.5 Spare parts
The following spare parts for GENO-UV systems may be pur-
chased at Grünbeck’s headquarters, from our field service staff
in your area as well as from authorized dealers:
•Electronic ballast GENO-UV 60 S
523 111e
GENO-UV 120 S
523 121e
GENO-UV 200 S
523 131e
•Spare protective quartz pipe GENO-UV 60 S
523 620
GENO-UV 120 S
522 627
GENO-UV 200 S
522 628
•Control unit GENO-Multi BS
523 615
Warning: To ensure the proper and safe operation of your UV
system, only and exclusively use Grünbeck’s genuine spare
parts. Using spare parts provided by third parties may affect the
operational safety of the system.
