Grundfos SB Series User manual

SB, SBA
Installation and operating instructions
GRUNDFOS INSTRUCTIONS

English (GB)
2
English (GB) Functional profile and user manual
Original installation and operating instructions
These installation and operating instructions
describe Grundfos SB and SBA.
Sections 1-5 give the information necessary to be
able to unpack, install and start up the product in a
safe way.
Sections 6-10 give important information about the
product, as well as information on service, fault
finding and disposal of the product.
CONTENTS Page
1. General information
1.1 Symbols used in this document
1. General information 2
1.1 Symbols used in this document 2
2. Receiving the product 3
2.1 Inspecting the packaging 3
2.2 Scope of delivery 3
3. Installing the product 3
3.1 Location 3
3.2 Pump with float switch and side inlet 3
3.3 Connecting the outlet hose or pipe 4
3.4 Non-return valve 4
3.5 Pump position 4
3.6 Mechanical installation 4
3.7 Electrical connection 4
4. Starting up the product 5
4.1 SBA starting and stopping conditions 5
5. Handling and storing the product 6
5.1 Handling the product 6
5.2 Storing the product 6
5.3 Frost protection 6
6. Product introduction 6
6.1 Product description 6
6.2 SBA functions 6
6.3 Pumped liquids 6
6.4 Identification 7
7. Maintaining the product 7
8. Fault finding the product 8
9. Technical data 10
9.1 Operating conditions 10
9.2 Mechanical data 10
9.3 Electrical data 10
9.4 Dimensions 10
10. Disposing of the product 10
Read this document before you install the
product. Installation and operation must
comply with local regulations and accepted
codes of good practice.
This appliance can be used by children
aged from 8 years and above and persons
with reduced physical, sensory or mental
capabilities or lack of experience and
knowledge if they have been given
supervision or instruction concerning use
of the appliance in a safe way and
understand the hazards involved.
Children shall not play with the appliance.
Cleaning and user maintenance shall not
be made by children without supervision.
Make sure that the system in which the
pump is incorporated is designed for the
maximum pump pressure.
This pump has been evaluated for use with
water only.
DANGER
Indicates a hazardous situation which, if
not avoided, will result in death or serious
personal injury.
WARNING
Indicates a hazardous situation which, if
not avoided, could result in death or
serious personal injury.
CAUTION
Indicates a hazardous situation which, if
not avoided, could result in minor or
moderate personal injury.
Tips and advice that make the work easier.
If these instructions are not observed, it
may result in malfunction or damage to the
equipment.
A blue or grey circle with a white graphical
symbol indicates that an action must be
taken.
A red or grey circle with a diagonal bar,
possibly with a black graphical symbol,
indicates that an action must not be taken
or must be stopped.

English (GB)
3
2. Receiving the product
2.1 Inspecting the packaging
Before installation, check that the pump is as
ordered, and that no visible parts have been
damaged.
If components are damaged or missing, contact your
local Grundfos sales company.
2.2 Scope of delivery
•Pump
• non-return valve, SB only
• adapter
• floating inlet strainer, variant with side inlet only
• installation and operating instructions
• quick guide.
3. Installing the product
3.1 Location
Install SBA pumps so that the height between the
pump and the highest tapping point does not exceed
these values:
SBA 3-35: 13 metres.
SBA 3-45: 20 metres.
Connect SB pumps to an external controller.
Fig. 1 Highest tapping point, SBA
3.2 Pump with float switch and side inlet
If you install the pump in a well, the minimum
dimensions of the well must be as shown in fig. 2.
Fig. 2 Minimum installation dimensions
Observe local regulations concerning
limits for manual lifting or handling.
CAUTION
Crushing of feet
Minor or moderate personal injury
- Use safety shoes when handling the
pump.
DANGER
Electric shock
Death or serious personal injury
- Switch off the power supply before
starting any work on the product. Make
sure that the power supply cannot be
accidentally switched on.
TM06 7648 4116TM06 7644 4016
Max.
13 m/43 ft
Max.
20 m/66ft
SBA 3-35 SBA 3-45
Min.
5 cm/2 inch
Min.
10 cm/
4 inch

English (GB)
4
3.3 Connecting the outlet hose or pipe
The adapter enables the connection of a hose
matching 3/4" or 1" external pipe thread. Cut the
adapter so that it matches the hose diameter. You
can also connect a pipe directly to the pump.
Fig. 3 Adapter
3.4 Non-return valve
Connect the non-return valve to the SB pump. The
non-return valve has G 1" threads for connection to
the adapter or the pipe.
Fig. 4 Non-return valve
3.5 Pump position
Use the pump in the vertical position as shown in fig.
5.
Fig. 5 Pump position
3.6 Mechanical installation
3.6.1 Lifting the product
Fig. 6 Lifting the pump
3.7 Electrical connection
TM06 7645 2715TM06 7646 4016TM06 7643 4016
3
/4"1"
15 °
90 °
0 °
Do not lift the product by the power supply
cable. Lift the product by means of a rope.
TM06 7524 4016
DANGER
Electric shock
Death or serious personal injury
- The protective earth of the socket outlet
must be connected to the protective
earth of the pump. The plug must
therefore have the same PE connection
system as that of the socket outlet. If
not, use a suitable adapter.
We recommend that you fit the permanent
installation with a residual-current circuit
breaker, RCCB, with a tripping current less
than 30 mA.
DANGER
Electric shock
Death or serious personal injury
- If the pump is used for cleaning or other
maintenance of swimming pools,
garden ponds or similar places, make
sure that the pump is supplied through a
residual-current circuit breaker, RCCB,
with a tripping current of 30 mA.
DANGER
Electric shock
Death or serious personal injury
- Connect pumps that are delivered
without cable and/or plugs to an
external main switch with a minimum
contact gap of 3 mm in all poles.
SB SBA

English (GB)
5
Check that the mains voltage and frequency
correspond to the values stated on the pump
nameplate.
3.7.1 Motor protection
The pump has a built-in thermal switch and requires
no additional motor protection.
When the motor has cooled to normal temperature, it
restarts automatically.
3.7.2 Connecting to external controller
SB
SB pumps must be connected to an external
controller. We recommend a Grundfos Pressure
Manager: net.grundfos.com/qr/i/97506325
SBA
SBA pumps have an integrated control unit.
3.7.3 Alternative power supply
The pumps can be powered by a generator or other
alternative power supplies, provided that the
requirements for the power supply are fulfilled. See
section 9. Technical data.
3.7.4 Power supply failure
In case of a power supply failure, the pump restarts
automatically when power returns and runs for at
least 10 seconds.
4. Starting up the product
1. Open a tap in the system.
2. Switch on the power supply.
3. Check that the pump is running and water is
coming out of the tap.
4. Check that the pump is running and pressure is
being built up in the system.
5. Close the tap.
6. Check that pressure has been built up in the
system.
7. Check that the pump stops after a few seconds.
4.1 SBA starting and stopping conditions
When water is consumed in the water supply system,
the pump starts when the starting conditions are
fulfilled. This happens for example when a tap is
opened which makes the pressure in the system
drop. The control unit stops the pump again when
consumption stops, that is when the tap is closed.
Starting conditions
The pump starts when one of the following
conditions is fulfilled:
• The flow rate is higher than minimum flow rate.
• The pressure is lower than the start pressure.
Stopping conditions
The pump stops with a time delay of 10 seconds
when the flow rate is lower than the minimum flow
rate.
The start pressure and minimum flow rate values are
shown in section 9. Technical data.
Make sure that there is at least 3 metres
free cable above the liquid level. WARNING
Flammable material
Death or serious personal injury
- Do not use the pump for flammable
liquids, such as diesel oil, petrol or
similar liquids.
DANGER
Electric shock
Death or serious personal injury
- Do not use the pump in swimming
pools, garden ponds or similar places if
there are people in the water.
Connect SB pumps to an external
controller.

English (GB)
6
5. Handling and storing the product
5.1 Handling the product
5.2 Storing the product
Store the product indoors in a dry and dust-free
environment. Protect the product from vibrations.
Storage temperature: -10 to +40 °C.
5.3 Frost protection
It the pump is not used during periods of frost, drain
the pump and the pipe system before you take the
pump out of operation.
6. Product introduction
6.1 Product description
The pumps are submersible booster pumps for
pumping clean water. The pumps are especially
suitable for rainwater applications and small private
wells.
The pumps are available in two main versions:
• with integrated inlet strainer with 1 mm mesh
• with side inlet which includes a flexible inlet hose
with floating inlet strainer with 1 mm mesh.
Both versions are available with or without float
switch. The float switch can be used for automatic
operation or dry-running protection of the pump.
SB pumps must be connected to an external
controller. We recommend a Grundfos Pressure
Manager: net.grundfos.com/qr/i/97506325
The SBA pump is a complete submersible booster
pump. The pump has a built-in control unit,
eliminating the need for a controller.
The pump has built-in protection against
overheating.
6.2 SBA functions
The built-in control unit incorporates dry-running
protection that automatically stops the pump in case
of dry running.
The dry-running protection functions differently
during priming and operation.
6.2.1 Dry running during priming
If the control unit does not detect any pressure and
flow within 5 minutes after it has been connected to a
power supply and the pump has started, the dry-
running function is activated and the pump stops.
6.2.2 Dry running during operation
If the control unit does not detect any pressure and
flow within 40 seconds during normal operation, the
dry-running function is activated and the pumps
stops.
6.2.3 Resetting of dry-running alarm
If a dry-running alarm has been activated, you can
restart the pump manually by switching off the power
supply, wait for 2 minutes and reconnecting power. If
the control unit does not detect any pressure and
flow within 40 seconds after restarting, the dry-
running alarm is reactivated.
6.3 Pumped liquids
Mains water and rainwater.
Thin, clean, non-aggressive and non-explosive
liquids, not containing solid particles or fibres that
may attack the pump mechanically or chemically.
Do not lift the product by the power supply
cable. Lift the product by means of a rope.
Do not drop or shake the product.

English (GB)
7
6.4 Identification
6.4.1 Nameplate
Fig. 7 Example of nameplate
7. Maintaining the product
Clean the strainer every fall with a brush and a water
jet when needed. In normal operation, the pump
does not require any specific maintenance.
TM06 0548 0514
Pos. Description
1 Product type
2 Frequency [Hz]
3Production code. The last four digits
indicate the year and week of manufacture.
4 Power input [W]
5 Serial number
6 Full-load current [A]
7 Maximum installation depth [m]
8 Maximum liquid temperature [°C]
9 Motor insulation class
10 Enclosure class
11 Maximum head [m]
12 Approval marks
13 Maximum flow rate [l/min.]
14 Supply voltage [V]
15 Product number
16 Country of origin
Type
Model
1x220-240V~
Qmax
Made in Italy
SBA3-35 A
97896286
50Hz P1
100 l/m Hmax
P61404 SN000001
800 W I1/1 3,8A
35m Tmax 40°C 10m
Insulation Class F
DK - 8850 Bjerringbro, Denmark
60148690
IP68
12
11 10
34 5
15
14
13
12
6
7
8
9
16
DANGER
Electric shock
Death or serious personal injury
- If the power supply cable is damaged, it
must be replaced by the manufacturer,
his service agent or similarly qualified
persons in order to avoid hazard.

English (GB)
8
8. Fault finding the product
See also the quick guide.
DANGER
Electric shock
Death or serious personal injury
- Switch off the power supply before
starting any work on the product.
Fault Cause Remedy
1. The pump does not
run.
a) The fuses in the electrical
installation are blown.
Replace the fuses. If the new fuses blow
too, check the electrical installation and
the power supply cable.
b) The residual-current circuit
breaker, RCCB, has tripped. Cut in the circuit breaker.
c) No power supply. Contact the power supply company.
d) The motor protection has cut off
the power supply due to overload.
Check if the pump is blocked.
1. Switch off the power supply to the
pump.
2. Remove the rubber plug (25). See
figures 1and 2on pages 11 and 12.
3. Try to turn the pump shaft with a
screwdriver.
4. If the pump shaft is stuck, follow the
instructions in point 1, h.
Note: Remember to refit the rubber plug
(25).
e) The pump or the power supply
cable is defective. Repair or replace the pump or cable.
f) The float switch is in dry-running
position.
Check the water level and the float switch
for free movability.
Note: If the tank is empty, and the float
switch is often in this position, install a
larger tank.
g) SBA: The dry-running protection of
the pump has stopped the pump.
Check the water level.
Switch off the power supply and wait 2
minutes before switching it back on.
h) The pump is blocked. Check and clean the pump.
1. Switch off the power supply to the
pump.
2. Remove the eight screws (84b) with a
cross-head screwdriver.
3. Remove the pump base (56). See
figures 1and 2on pages 11 and 12.
4. Clean the inlet strainer and hydraulic
parts with a brush and a water jet.
5. Reassemble the pump.

English (GB)
9
2. The pump runs but
gives no water.
a) The outlet valve is closed. Open the valve.
b) No water or too low water level in
tank.
Increase the installation depth of the
pump. The maximum installation depth is
10 metres. Reduce the pump
performance, or replace the pump by a
pump with a lower performance.
c) The non-return valve is stuck in its
closed position.
Pull out the pump, and clean or replace
the valve.
d) The inlet strainer is clogged. Pull out the pump, and clean the inlet
strainer with a brush and a water jet.
e) The pump is defective. Repair or replace the pump.
3. The pump runs at
reduced
performance.
a) The valves in the outlet pipe are
partly closed or blocked. Check and clean or replace the valves.
b) The outlet pipe is partly blocked by
impurities. Clean or replace the pipe.
c) The non-return valve in the outlet
pipe is partly blocked. Clean or replace the valve.
d) The pump and outlet pipe are
partly blocked by impurities.
Pull out the pump. Check and clean or
replace the pump. Clean the pipes.
e) The inlet strainer is clogged. Clean the inlet strainer.
f) The pump is defective. Repair or replace the pump.
g) Leakage in the pipework. Check and repair the pipework.
h) The outlet pipe is defective. Replace the outlet pipe.
i) Undervoltage has occurred. Check the power supply.
4. Frequent starts
and stops.
a) The float switch has not been
adjusted correctly.
Adjust the float switch to ensure suitable
time between the cutting-in and cutting-
out of the pump.
b) The non-return valve is leaking or
stuck half-open.
Clean or replace the non-return valve.
See figures 1and 2on pages 11 and 12.
SB: (149)
SBA: (151)
c) The supply voltage is unstable. Check the power supply.
d) The motor temperature is too high. Check the water temperature.
e) The pump is blocked. Check and clean the pump.
1. Switch off the power supply to the
pump.
2. Remove the eight screws (84b) with a
cross-head screwdriver.
3. Remove the pump base (56). See
figures 1and 2on pages 11 and 12.
4. Clean the inlet strainer and hydraulic
parts with a brush and a water jet.
5. Reassemble the pump.
f) Leakage in the pipework. Check and repair the pipework.
Fault Cause Remedy

English (GB)
10
9. Technical data
9.1 Operating conditions
9.1.1 Maximum flow rate
SB: 3 m3/h.
SBA: 3 m3/h.
9.1.2 Maximum head
SB 3-25: 25 m.
SB 3-35: 35 m.
SB 3-45: 45 m.
SBA 3-35: 35 m.
SBA 3-45: 45 m.
9.1.3 Liquid temperature
0 to 40 °C.
9.1.4 Start pressure
SBA 3-35: 1.5 bar.
SBA 3-45: 2.2 bar.
9.1.5 Minimum flow rate
SBA 3-35: 1.0 l/min.
SBA 3-45: 1.0 l/min.
9.1.6 Frequency of starts and stops
Maximum 20 starts per hour.
9.2 Mechanical data
9.2.1 Cable length
15 m.
9.2.2 Maximum installation depth
10 m.
9.2.3 Enclosure class
IP68.
9.2.4 Insulation class
F.
9.3 Electrical data
9.3.1 Speed
50 Hz: 2800 min-1.
60 Hz: 3400 min-1.
9.4 Dimensions
Fig. 8 SB pump with integrated and with
floating inlet strainer
Fig. 9 SBA pump with integrated and with
floating inlet strainer
10. Disposing of the product
This product or parts of it must be disposed of in an
environmentally sound way:
1. Use the public or private waste collection service.
2. If this is not possible, contact the nearest
Grundfos company or service workshop.
Subject to alterations.
SBA Voltage
[V] Frequency [Hz]
P1 I1/1
[A]
[kW] [hp]
3-35 1 x 230 50 0.80 1.07 3.8
3-45 1.05 1.41 4.8
3-35 1 x 115
60
0.91 1.22 8.6
3-45 1.07 1.43 9.9
3-35 1 x 230 0.74 0.99 3.4
3-45 0.90 1.20 4.1
TM04 6243 5109 - TM04 6928 1210TM05 4804 2712 - TM05 4805 2712
Pump type H
[mm] H1 [mm] D [mm]
SB 3-25 537 370
∅150
SB 3-35 559 392
SB 3-45 584 417
SBA 3-35 559 392
SBA 3-45 584 417
NPT / G 3/4
NPT / G 1
NPT / G 3/4”
NPT / G 1”
Integrated inlet
strainer
Floating inlet strainer
*
*
*
*
Integrated inlet
strainer
Floating inlet strainer

Appendix
11
Appendix 1
SB

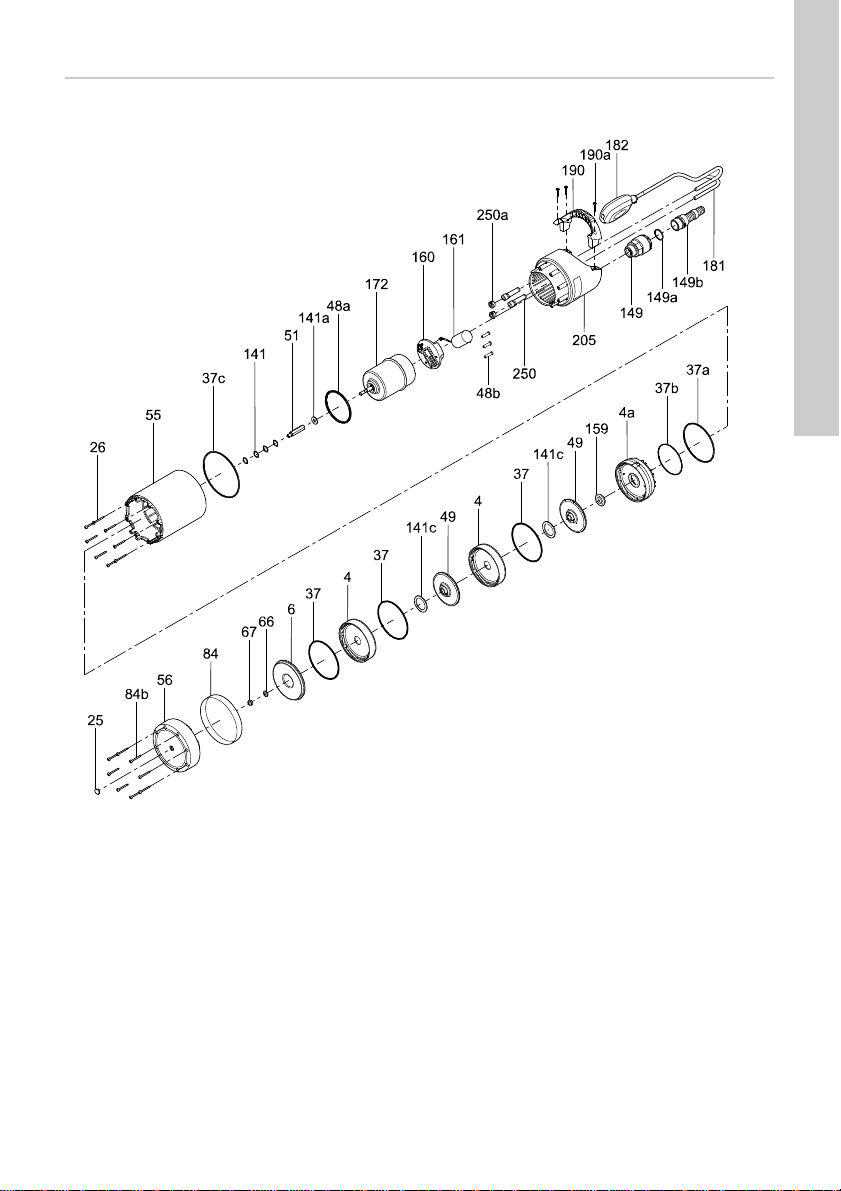

Fig. 1 SB pump
TM04 6209 5109

Appendix
12
SBA

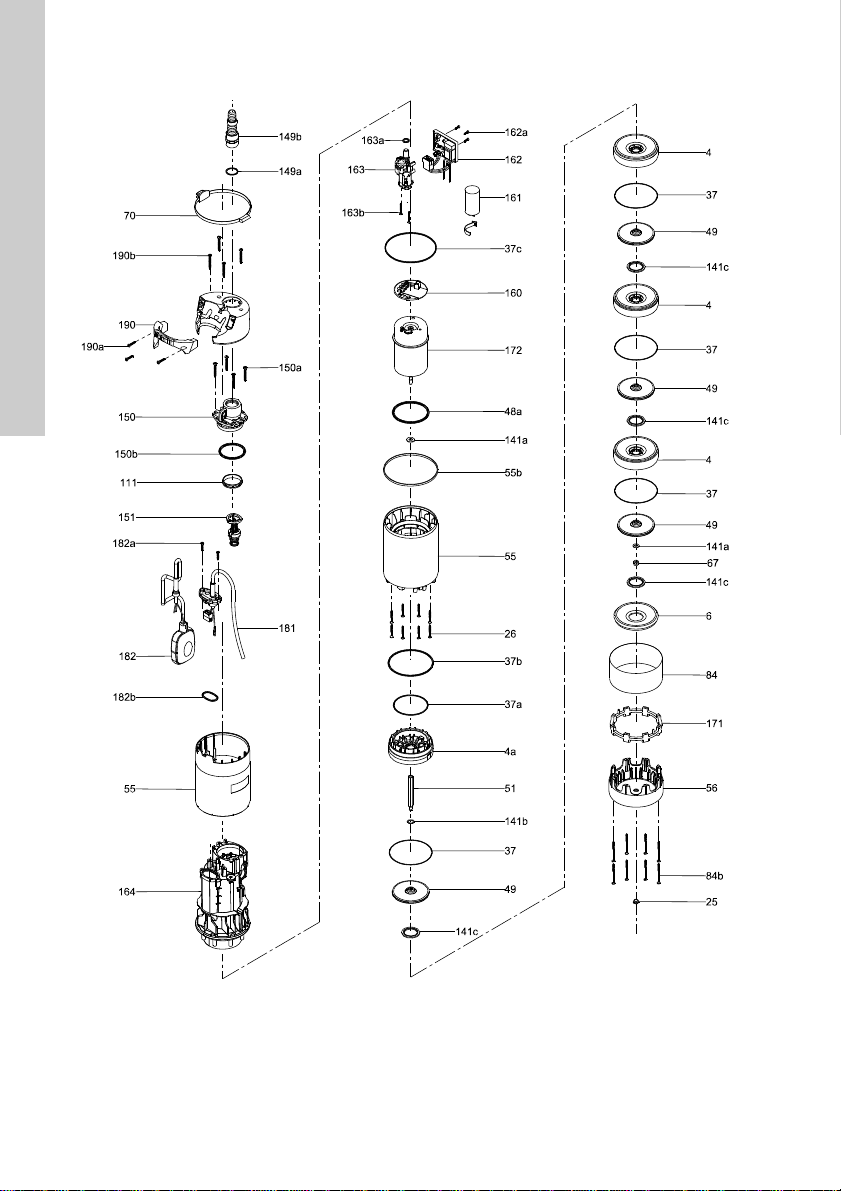

Fig. 2 SBA pump
TM061258 2014

13

Grundfos companies
Argentina
Bombas GRUNDFOS de Argentina S.A.
Ruta Panamericana km. 37.500 Centro
Industrial Garin
1619 Garín Pcia. de B.A.
Phone: [phone]
Telefax: [phone]
Australia
GRUNDFOS Pumps Pty. Ltd.
P.O. Box 2040
Regency Park
South Australia 5942
Phone: [phone]
Telefax: [phone]
Austria
GRUNDFOS Pumpen Vertrieb
Ges.m.b.H.
Grundfosstraße 2
A-5082 Grödig/Salzburg
Tel.: [phone]
Telefax: [phone]
Belgium
N.V. GRUNDFOS Bellux S.A.
Boomsesteenweg 81-83
B-2630 Aartselaar
Tél.: [phone]
Télécopie: [phone]
Belarus
Представительство ГРУНДФОС в
Минске
220125, Минск
ул. Шафарнянская, 11, оф. 56, БЦ
«Порт»
Тел.: [phone]
Факс: [phone]
E-mail: [email protected]
Bosnia and Herzegovina
GRUNDFOS Sarajevo
Zmaja od Bosne 7-7A,
BH-71000 Sarajevo
Phone: [phone]
Telefax: [phone]
www.ba.grundfos.com
e-mail: [e-mail]
Brazil
BOMBAS GRUNDFOS DO BRASIL
Av. Humberto de Alencar Castelo
Branco, 630
CEP 09850 - 300
São Bernardo do Campo - SP
Phone: [phone]
Telefax: [phone]
Bulgaria
Grundfos Bulgaria EOOD
Slatina District
Iztochna Tangenta street no. 100
BG - 1592 Sofia
Tel. [phone]
Fax. [phone]
email: [e-mail]
Canada
GRUNDFOS Canada Inc.
2941 Brighton Road
Oakville, Ontario
L6H 6C9
Phone: [phone]
Telefax: [phone]
China
GRUNDFOS Pumps (Shanghai) Co. Ltd.
10F The Hub, No. 33 Suhong Road
Minhang District
Shanghai 201106
PRC
Phone: [phone]
Telefax: [phone]
COLOMBIA
GRUNDFOS Colombia S.A.S.
Km 1.5 vía Siberia-Cota Conj. Potrero
Chico,
Parque Empresarial Arcos de Cota Bod.
1A.
Cota, Cundinamarca
Phone: [phone]
Telefax: [phone]
Croatia
GRUNDFOS CROATIA d.o.o.
Buzinski prilaz 38, Buzin
HR-10010 Zagreb
Phone: [phone]
Telefax: [phone]
www.hr.grundfos.com
GRUNDFOS Sales Czechia and
Slovakia s.r.o.
Čajkovského 21
779 00 Olomouc
Phone: [phone]
Denmark
GRUNDFOS DK A/S
Martin Bachs Vej 3
DK-8850 Bjerringbro
Tlf.: [phone]
Telefax: [phone]
E-mail: [email protected]
www.grundfos.com/DK
Estonia
GRUNDFOS Pumps Eesti OÜ
Peterburi tee 92G
11415 Tallinn
Tel: + 372 606 1690
Fax: + 372 606 1691
Finland
OY GRUNDFOS Pumput AB
Trukkikuja 1
FI-01360 Vantaa
Phone: [phone]
France
Pompes GRUNDFOS Distribution S.A.
Parc d’Activités de Chesnes
57, rue de Malacombe
F-38290 St. Quentin Fallavier (Lyon)
Tél.: [phone]
Télécopie: [phone]
Germany
GRUNDFOS GMBH
Schlüterstr. 33
40699 Erkrath
Tel.: [phone]
Telefax: [phone]
e-mail: [e-mail]
Service in Deutschland:
e-mail: kundendi[email protected]
Greece
GRUNDFOS Hellas A.E.B.E.
20th km. Athinon-Markopoulou Av.
P.O. Box 71
GR-19002 Peania
Phone: [phone]
Telefax: +0030-210-66 46 273
Hong Kong
GRUNDFOS Pumps (Hong Kong) Ltd.
Unit 1, Ground floor
Siu Wai Industrial Centre
29-33 Wing Hong Street &
68 King Lam Street, Cheung Sha Wan
Kowloon
Phone: [phone]
Telefax: [phone]
Hungary
GRUNDFOS Hungária Kft.
Park u. 8
H-2045 Törökbálint,
Phone: [phone]
Telefax: [phone]
India
GRUNDFOS Pumps India Private
Limited
118 Old Mahabalipuram Road
Thoraipakkam
Chennai 600 096
Phone: [phone]
Indonesia
PT. GRUNDFOS POMPA
Graha Intirub Lt. 2 & 3
Jln. Cililitan Besar No.454. Makasar,
Jakarta Timur
ID-Jakarta 13650
Phone: [phone]
Telefax: [phone] / 460 6901
Ireland
GRUNDFOS (Ireland) Ltd.
Unit A, Merrywell Business Park
Ballymount Road Lower
Dublin 12
Phone: [phone]
Telefax: [phone]
Italy
GRUNDFOS Pompe Italia S.r.l.
Via Gran Sasso 4
I-20060 Truccazzano (Milano)
Tel.: [phone]
Telefax: [phone] / 95838461
Japan
GRUNDFOS Pumps K.K.
1-2-3, Shin-Miyakoda, Kita-ku,
Hamamatsu
431-2103 Japan
Phone: [phone]
Telefax: [phone]
Korea
GRUNDFOS Pumps Korea Ltd.
6th Floor, Aju Building 679-5
Yeoksam-dong, Kangnam-ku, 135-916
Seoul, Korea
Phone: [phone]
Telefax: [phone]
Latvia
SIA GRUNDFOS Pumps Latvia
Deglava biznesa centrs
Augusta Deglava ielā60, LV-1035, Rīga,
Tālr.: + 371 714 9640, 7 149 641
Fakss: + 371 914 9646
Lithuania
GRUNDFOS Pumps UAB
Smolensko g. 6
LT-03201 Vilnius
Tel: + 370 52 395 430
Fax: + 370 52 395 431

Grundfos companies
Malaysia
GRUNDFOS Pumps Sdn. Bhd.
7 Jalan Peguam U1/25
Glenmarie Industrial Park
40150 Shah Alam
Selangor
Phone: [phone]
Telefax: [phone]
Mexico
Bombas GRUNDFOS de México S.A. de
C.V.
Boulevard TLC No. 15
Parque Industrial Stiva Aeropuerto
Apodaca, N.L. 66600
Phone: [phone]
Telefax: [phone]
Netherlands
GRUNDFOS Netherlands
Veluwezoom 35
1326 AE Almere
Postbus 22015
1302 CA ALMERE
Tel.: [phone]
Telefax: [phone]
E-mail: [e-mail]
New Zealand
GRUNDFOS Pumps NZ Ltd.
17 Beatrice Tinsley Crescent
North Harbour Industrial Estate
Albany, Auckland
Phone: [phone]
Telefax: [phone]
Norway
GRUNDFOS Pumper A/S
Strømsveien 344
Postboks 235, Leirdal
N-1011 Oslo
Tlf.: [phone]
Telefax: [phone]
Poland
GRUNDFOS Pompy Sp. z o.o.
ul. Klonowa 23
Baranowo k. Poznania
PL-62-081 Przeźmierowo
Tel: [phone]
Fax: [phone]
Portugal
Bombas GRUNDFOS Portugal, S.A.
Rua Calvet de Magalhães, 241
Apartado 1079
P-2770-153 Paço de Arcos
Tel.: [phone]
Telefax: [phone]
Romania
GRUNDFOS Pompe România SRL
Bd. Biruintei, nr 103
Pantelimon county Ilfov
Phone: [phone]
Telefax: [phone]
E-mail: [e-mail]
Russia
ООО Грундфос Россия
109544, г. Москва, ул. Школьная, 39-
41, стр. 1
Тел. [phone] (495) 737-30-
00
Факс [phone]
E-mail [e-mail]
Serbia
Grundfos Srbija d.o.o.
Omladinskih brigada 90b
11070 Novi Beograd
Phone: [phone]
Telefax: [phone]
www.rs.grundfos.com
Singapore
GRUNDFOS (Singapore) Pte. Ltd.
25 Jalan Tukang
Singapore 619264
Phone: [phone]
Telefax: [phone]
Slovakia
GRUNDFOS s.r.o.
Prievozská 4D
821 09 BRATISLAVA
Phona: [phone]
sk.grundfos.com
Slovenia
GRUNDFOS LJUBLJANA, d.o.o.
Leskoškova 9e, 1122 Ljubljana
Phone: [phone]
Telefax: [phone]
E-mail: [email protected]
South Africa
GRUNDFOS (PTY) LTD
Corner Mountjoy and George Allen
Roads
Wilbart Ext. 2
Bedfordview 2008
Phone: [phone]
Fax: [phone]
E-mail: [e-mail]
Spain
Bombas GRUNDFOS España S.A.
Camino de la Fuentecilla, s/n
E-28110 Algete (Madrid)
Tel.: [phone]
Telefax: [phone]
Sweden
GRUNDFOS AB
Box 333 (Lunnagårdsgatan 6)
431 24 Mölndal
Tel.: [phone]
Telefax: [phone]
Switzerland
GRUNDFOS Pumpen AG
Bruggacherstrasse 10
CH-8117 Fällanden/ZH
Tel.: [phone]
Telefax: [phone]
Taiwan
GRUNDFOS Pumps (Taiwan) Ltd.
7 Floor, 219 Min-Chuan Road
Taichung, Taiwan, R.O.C.
Phone: [phone]
Telefax: [phone]
Thailand
GRUNDFOS (Thailand) Ltd.
92 Chaloem Phrakiat Rama 9 Road,
Dokmai, Pravej, Bangkok 10250
Phone: [phone]
Telefax: [phone]
Turkey
GRUNDFOS POMPA San. ve Tic. Ltd.
Sti.
Gebze Organize Sanayi Bölgesi
Ihsan dede Caddesi,
2. yol 200. Sokak No. 204
41490 Gebze/ Kocaeli
Phone: +90 - 262-679 7979
Telefax: +90 - 262-679 7905
E-mail: [e-mail]
Ukraine
Бізнес Центр Європа
Столичне шосе, 103
м. Київ, 03131, Україна
Телефон: [phone]
Факс.: [phone]
E-mail: [e-mail]
United Arab Emirates
GRUNDFOS Gulf Distribution
P.O. Box 16768
Jebel Ali Free Zone
Dubai
Phone: [phone]
Telefax: [phone]
United Kingdom
GRUNDFOS Pumps Ltd.
Grovebury Road
Leighton Buzzard/Beds. LU7 4TL
Phone: [phone]
Telefax: [phone]
U.S.A.
GRUNDFOS Pumps Corporation
17100 West 118th Terrace
Olathe, Kansas 66061
Phone: [phone]
Telefax: [phone]
Uzbekistan
Grundfos Tashkent, Uzbekistan The
Representative Office of Grundfos
Kazakhstan in Uzbekistan
38a, Oybek street, Tashkent
Телефон: [phone] / 71 150
3291
Факс: [phone]
Addresses Revised 05.12.2016

www.grundfos.com
99057358 0117
ECM: 1200120
The name Grundfos, the Grundfos logo, and be think innovate are registered trademarks
owned by Grundfos Holding A/S or Grundfos A/S, Denmark. All rights reserved worldwide. © Copyright Grundfos Holding A/S
