GSi 1100 User manual

PNEG-1717
CE Approved GSI/FFI Portable
Dryer Manual
Operation Manual
PNEG-1717
Date: 03-27-14

2 PNEG-1717 CE Approved GSI/FFI Portable Dryer Manual
Models:
1100 Series (Models 1108, 1112, 1114, 1116, 1118, 1120, 1122, 1126, CFAB190, CFAB270, CFAB320,
CFAB370, CFAB400, CFAB460, CFAB510, CFAB511, CFAB601)
1200 Series (Models 1214, 1216, 1218, 1220, 1222, 1226, C2120A, C2122A, C2125A, C2130A,
C2132A, C2140A)
1200S Series (Models 1214S, 1218S, 1220S, 1222S, 1226S, CF2141, CF2181, CF500H,
CF2221, CF650M)
2300 Series (Models 2314, 2318, 2320, 2322, 2326, CF3142, CF3182, CF3202, CF3222, CF3262)
2400 Series (Models 2420, 2426, CF1000H, CF1300M)
3400 Series (Models 3414, 3418, 3420, 3422, 3426, CF4143, CF4183, CF4203, CF4223, CF4263)
3600 Series (Models 3620, 3626, CF1500H, CF2000M)
X-Stream Configuration - Uses same model numbers (and components) as listed above. The only
difference is that the fans are pointed in different directions.

Table of Contents
PNEG-1717 CE Approved GSI/FFI Portable Dryer Manual 3
Contents
Chapter 1 Introduction ..........................................................................................................................................5
Dryer Operation ..................................................................................................................................... 5
Precautions ........................................................................................................................................... 5
Chapter 2 Safety .....................................................................................................................................................6
Safety Guidelines .................................................................................................................................. 6
Emergency Stop Switch ........................................................................................................................ 7
Chapter 3 Installation ............................................................................................................................................8
Transporting/Single Fan ........................................................................................................................ 8
Location of the Dryer ............................................................................................................................. 9
Foundation ............................................................................................................................................ 9
Supporting the Dryer ............................................................................................................................. 9
Anchor Points ........................................................................................................................................ 9
Wet/Dry Grain ....................................................................................................................................... 9
Electrical Power Supply ...................................................................................................................... 10
Fuel ..................................................................................................................................................... 11
Chapter 4 Specifications .....................................................................................................................................13

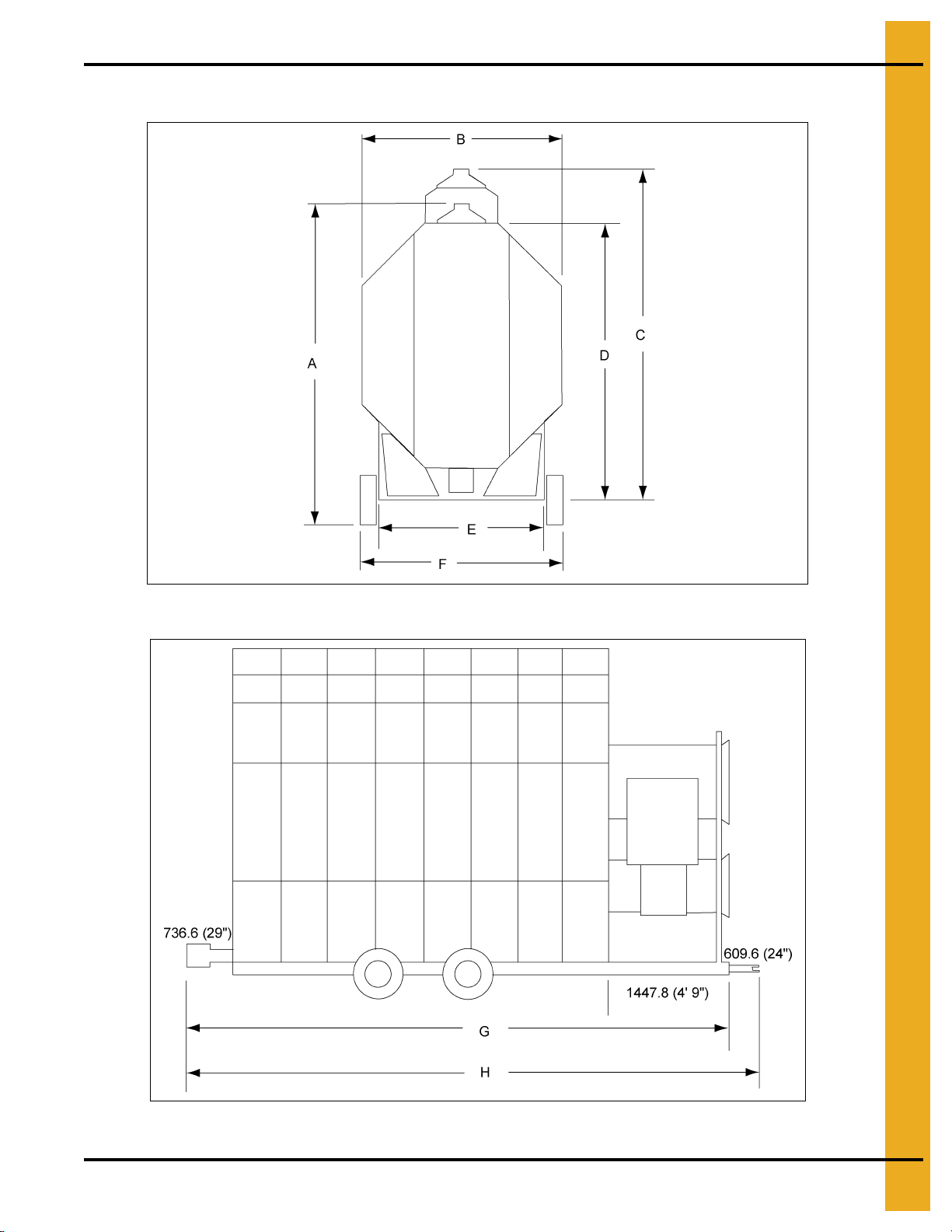

FFI Dimensions ................................................................................................................................... 13
FFI Specifications ................................................................................................................................ 15
GSI Dimensions .................................................................................................................................. 17
GSI Specifications ............................................................................................................................... 19

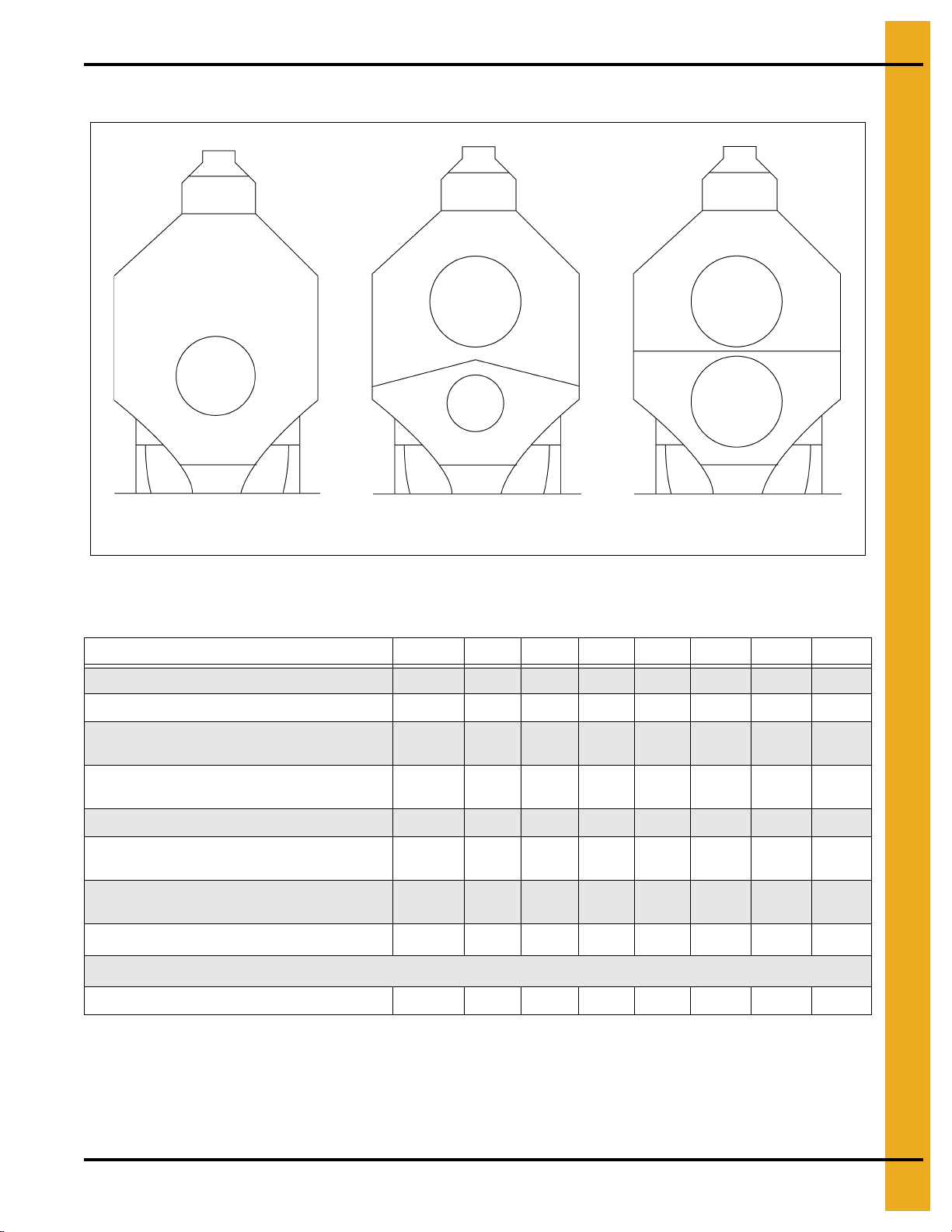

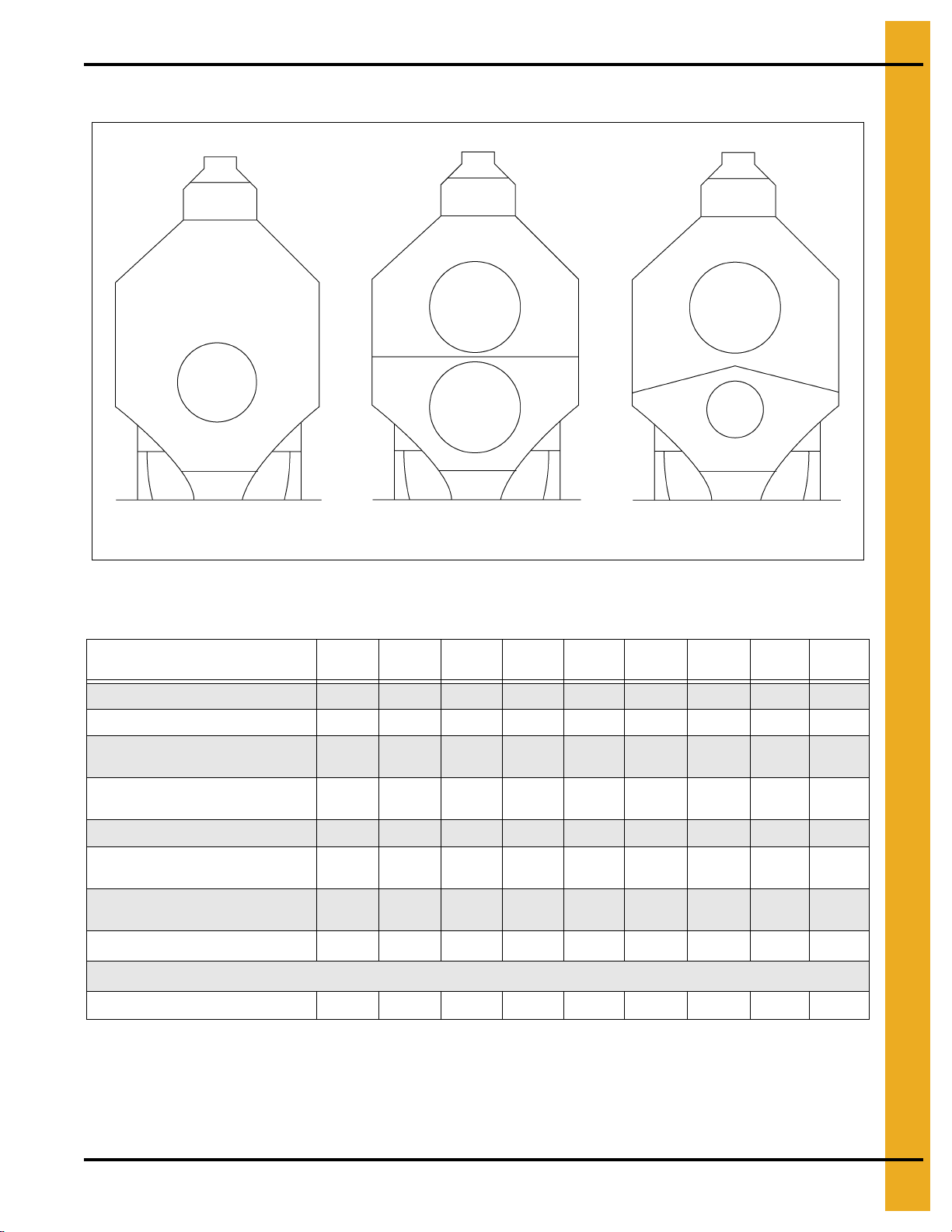

All Stack Dimensions .......................................................................................................................... 21
All Stack Specifications ....................................................................................................................... 24
Stack Dryer Foundation Specifications ............................................................................................... 28
Chapter 5 Vision Control Panel ..........................................................................................................................29
Vision Control Panel Layout ................................................................................................................ 29
Control Power Switch .......................................................................................................................... 29
Fan Switch .......................................................................................................................................... 29
Heater Switch ...................................................................................................................................... 30
Load Auger Switch .............................................................................................................................. 30
Unload Switch ..................................................................................................................................... 30
Outside Light Switch ........................................................................................................................... 30
Start Switch ......................................................................................................................................... 30
Stop Switch ......................................................................................................................................... 30
Chapter 6 Vision Touch Screen Display ............................................................................................................31
Boot Screen ........................................................................................................................................ 31
Chapter 7 Vision Test Firing ...............................................................................................................................32
Dryer Pre-Season Checks .................................................................................................................. 32
Burner Test Fire .................................................................................................................................. 33
Dryer Shut Down ................................................................................................................................. 35
Emergency .......................................................................................................................................... 35
Chapter 8 Vision/Dri-Tek Dryer Operation .........................................................................................................36
Full Heat Drying .................................................................................................................................. 36
Final Moisture ...................................................................................................................................... 36
Drying Temperatures .......................................................................................................................... 36
Initial Setup Parameters ...................................................................................................................... 36
Timer and Delay Settings .................................................................................................................... 36
Setting the Temperatures .................................................................................................................... 36
Start-Up ............................................................................................................................................... 36
Continuous Flow Drying Mode Using Regulation of Grain Temperature ............................................ 37
Continuous Flow Drying Mode Using Regulation of Moisture: 5 MR SP ............................................ 41

Table of Contents
4 PNEG-1717 CE Approved GSI/FFI Portable Dryer Manual
Chapter 9 Vision Illustrations .............................................................................................................................44
Supply Line (LP Shown) ...................................................................................................................... 44
28" and 36" LP 1" NPT CE Pipe Train Assembly ................................................................................ 45
40" and 42" LP 1-1/2" NPT CE Pipe Train Assembly .......................................................................... 45
LP Vaporizer Coil Adjustment ............................................................................................................. 46
28" and 36" LP/NG 1" NPT CE Pipe Train Assembly ......................................................................... 47
Vision Fan/Heater Control Box ............................................................................................................ 49
Top Auger Drive .................................................................................................................................. 49
Discharge Safety Switch ..................................................................................................................... 50
Meter Roll Speed Sensor .................................................................................................................... 50
Vision Upper Control Box .................................................................................................................... 51
Vision Control Panel (Rear) ................................................................................................................ 52
Vision Lower Control Box (Back Panel) .............................................................................................. 53
Chapter 10 Service ...............................................................................................................................................54
Safety First ........................................................................................................................................ 54
Seasonal Inspection/Service ............................................................................................................. 54
Lubrication Procedure ....................................................................................................................... 56
Fan Blade Removal and Installation .................................................................................................. 56
Removing the Fan Blade Assembly .................................................................................................. 57
Installing the Fan Blade Assembly .................................................................................................... 57
Fan Motor Removal and Installation .................................................................................................. 60
Heater Parts Removal and Installation .............................................................................................. 60
Metering Roll Servicing ...................................................................................................................... 61
Main Controls .................................................................................................................................... 61
How to Clear a Jammed Meter Roll (All Power “OFF”) ...................................................................... 61
Chapter 11 Vision Schematics and Wiring Diagrams .......................................................................................62
Fan/Heater Standard ......................................................................................................................... 62
Front Panel ........................................................................................................................................ 63
Upper Control Box ............................................................................................................................. 85
380-400 VAC 3 Phase ....................................................................................................................... 86
Ladder Diagram ................................................................................................................................. 87
Chapter 12 Warranty ............................................................................................................................................91

PNEG-1717 CE Approved GSI/FFI Portable Dryer Manual 5
1. Introduction
Dryer Operation
Thank you for choosing a CE Approved GSI/FFI Vision Series Grain Dryers.
Please read this manual before installing or operating the equipment.
Make sure you and your employees understand all requirements, hazards and precautions associated
with this equipment. Failure to do so could result in SERIOUS INJURY or DEATH.
Ensure you have the correct power and fuel supply for the dryer.
Do not alter or modify this equipment.
Follow all local directives, codes and regulations when installing this equipment.
Authorities having jurisdiction should be consulted before installations are made.
Precautions
1. Keep ALL guards, safety decals and safety devices in place. NEVER operate with guards removed.
2. Restrict access to trained persons only.
3. NEVER bypass safety devices.
4. Switch OFF and LOCK all power and fuel before entering, servicing or accessing the equipment.
5. Follow all servicing instructions.
6. Keep the dryer CLEAN.
7. DO NOT exceed maximum temperatures or pressures.
8. Drying unclean grain will reduce the performance of the dryer and can cause fires.
9. CAUTION Equipment on the dryer can START AUTOMATICALLY.
10. Feed and discharge equipment must match dryer throughput.
11. DO NOT allow foreign material to be drawn into the fan.
12. When drying products not included in this manual refer to GSI for further precautions and instructions.
13. Check for leaks at least every day. Repair before operation.
Use Caution in the Operation of this Equipment
This dryer is designed and manufactured with operator safety in mind. However, residual hazards remain
due to the nature of grain drying. Use extreme caution at all times.
Keep the dryer clean.

6 PNEG-1717 CE Approved GSI/FFI Portable Dryer Manual
2. Safety
Safety Guidelines
Please observe all safety decals on the equipment.
Safety decals on this equipment use the following system:
PROHIBITION
Example: No smoking or naked flames
MANDATORY ACTION
Example: Wear ear defenders
Instructions for your safety
HAZARD
Example: Rotating auger

2. Safety
PNEG-1717 CE Approved GSI/FFI Portable Dryer Manual 7
Emergency Stop Switch
In event of emergency press the Emergency Stop to stop all dryer equipment (power remains connected).

8 PNEG-1717 CE Approved GSI/FFI Portable Dryer Manual
3. Installation
Transporting/Single Fan
When transporting the unit by truck or tractor observe these precautions:
1. Hitch height is 350 mm-430 mm. (See Figure 3A.)
Figure 3A
2. Hitch pin diameter is 19 mm minimum. Must be securely fastened. (See Figure 3B.)
3. Minimize hitch movement. (See Figure 3B.)
Figure 3B
4. Use a safety chain. (See Figure 3A.)
5. Dryer must be empty and towed in accordance with all applicable laws and regulations.
6. Tyre pressure should be 3.8 bar.
7. Maximum towing speed is lowest of 70 km/h or statutory speed limit.
8. After first 80 km and every 300 km check:
a. Wheel bearing temperature <= 65°C.
b. Wheel nuts torque = 160 Nm.
Washers
Locking nut
19 mm Minimum diameter

3. Installation
PNEG-1717 CE Approved GSI/FFI Portable Dryer Manual 9
Location of the Dryer
Consider:
1. Wet and dry storage.
2. Access to power and fuel.
3. Proximity to other structures (maintain minimum 1 m clearance).
4. Noise.
5. Over head power.
Always install out of doors.
Foundation
1. Dryers should be installed on a suitable concrete base/foundation.
2. Foundation design to be carried out by qualified engineer.
3. Take into account ground and weather conditions.
4. Refer to dryer dimensions and loaded weights in table on Pages 11-25.
Supporting the Dryer
1. Wheels are for transport only.
2. Support under the hitch (drawbar removed).
3. Support every 2 m on both sides.
4. Ensure the dryer is level in all directions.
5. Ensure supports can carry the full weight of the dryer.
6. Allow 400 mm clearance under the dryer for cleaning.
Anchor Points
Anchor to the concrete slab to ensure stability against high winds.
Wet/Dry Grain
Wet Grain Supply
1. Wet grain supply to the dryer intake may be gravity or powered auger/conveyor.
2. Powered fill equipment can be connected via the contactor provided in the dryer control box.
3. After the initial fill the system will run to maintain the dryer level.
4. Dryer fill is monitored by the out of grain timer. (Refer to PNEG-1710 for setting this timer.)
5. Dryer shuts down when out of grain.

3. Installation
10 PNEG-1717 CE Approved GSI/FFI Portable Dryer Manual
Dry Grain Removal
1. Dry grain discharges at the rear of the dryer (front discharge optional).
2. Dry grain removal may be electrically connected to contactor provided in the main control box.
Electrical Power Supply
Ensure there is adequate electrical power to run the dryer. All supplies are 3 phase with neutral and
include a protective earth.
NOTE: Excessive voltage drops can cause equipment malfunction. Size supply and conductors to ensure
maximum 5% voltage drop under all start and run conditions.
Power Supply Disconnect
Supply connections are made at the main power disconnect on the upper control box.
Machine to Earth Grounding
1. The dryer must be connected to an adequate earth connection.
2. This must be carried out and tested in accordance with EU Directives, local regulations, codes and
EN60204 “Electrical Equipment of Machines”.
3. Failure to do so will result in equipment malfunction and can result in a dangerous fault condition.
4. Electrical supplies from generators must also include adequate, tested earth connection supplied by
the generator installer.
5. A 2.4 m copper ground rod, supplied with the dryer must be installed in accordance with
local regulations.
Connecting Auxiliary Conveyors
Load and discharge conveyors connected into the dryer must not exceed electrical load information in
Specifications Chapter on Pages 15-25.
Motors exceeding these must be powered separate from the dryer with separate contactor and overload
device for each motor. Control may still be performed by the dryer.

3. Installation
PNEG-1717 CE Approved GSI/FFI Portable Dryer Manual 11
Fuel
Liquid Propane (LP)
Liquid Draw
1. LPG is vaporized internally within the dryer.
2. LPG pipework and controls from the tank to the dryer must be installed by the gas supplier in
accordance with local directives, laws, codes and regulations.
3. LPG tank should be sized to supply the full heat input of all burners. See heater rating plates
for details.
Fuel System Specifications and Recommendations (LP) Liquid Propane
Dryer
Model # Maximum Heat Capacity kW Maximum Fuel Flow l/h Fuel Line Size mm *
Heater Orifice Diameter mm **
(U = Upper, L = Lower, Heater Position)
(T = Top, M = Middle, B = Base Dryer Module)
1108/190 880 131 15 7.8
1112/270 1320 195 15 9.6
1114/320 1685 250 15 10.9
1116/370 1685 250 15 10.9
1118/400 2052 302 15 12.0
1120/460 2200 326 15 12.4
1122/511 2491 370 22 13.2
1126/601 2785 414 22 13.9
1214/2120 1700 250 22 (U)8.8 (L)6.8
1216 1993 294 22 (U)10.2 (L)6.8
1218/2125 1993 292 22 (U)10.2 (L)6.8
1220/2130 2565 382 22 (U)10.7 (L)7.8
1222 2931 434 22 (U)11.7 (L)7.8
1226/2140 3078 458 22 (U)12.2 (L)7.8
1214S/2141 2052 302 22 (U+L) 8.8
1218S/2181 2638 390 22 (U+L) 10.3
1220S/500H 3371 501 22 (U+L) 10.7
1222S/2221 4104 609 22 (U+L) 11.7
1226S/650M 4397 653 22 (U+L) 12.2
2314/3142 3445 510 22 T 10.7 B (U+L) 7.8
2318/3182 4104 609 22 T 11.7 B (U+L) 8.8
2320/3202 4837 717 22 T 12.2 B (U+L) 10.2
2322/3222 5130 760 22 T 13.7 B (U+L) 10.2
2326/3262 7183 1063 22 T 14.2 B (U+L) 11.2
2420/1000H 5277 784 22 (T+B, U+L) 10.2
2426/1300M 7622 1130 22 (T+B, U+L) 11.2
3414/4143 5130 760 22 T 10.8 M 10.8 B (U+L) 7.8
3418/4183 6156 911 22 T 11.7 M 11.7 B (U+L) 8.8
3420/4203 7036 1043 22 T 12.2 M 12.2 B (U+L) 10.2
3422/4223 7622 1130 22 T 13.7 M 13.7 B (U+L) 8.3
3426/4263 9381 1389 22 T 14.2 M 14.2 B (U+L) 11.2
3620/1500H 7915 1174 22 (T+M+B, U+L) 10.2
3626/2000M 11433 1646 22 (T+M+B, U+L) 11.2
* Maximum line size for 30m length. ** Maximum burner pressure 450 mBar.

3. Installation
12 PNEG-1717 CE Approved GSI/FFI Portable Dryer Manual
Natural Gas (N)
Gas Volume and Pressure
Natural gas supply should offer:
1. 49 MJ/m3 calorific value.
2. 650 mBar supply pressure. (Lower pressure may inhibit dryer performance.)
3. Gas pipework and controls from the supply to the dryer must be installed by the gas supplier in
accordance with local directives, laws, codes and regulations.
Check the supply capacity against dryer requirements. (See heater rating plates for details.)
Fuel System Specifications and Recommendations (NG) Natural Gas
Dryer
Model # Maximum Heat Capacity kW Maximum Fuel Flow m3/h Fuel Line Size mm *
Heater Orifice Diameter mm **
(U = Upper, L = Lower, Heater Position)
(T = Top, M = Middle, B = Base Dryer Module)
1108/190 880 82 32 9.7
1112/270 1320 123 38 11.9
1114/320 1685 157 38 13.3
1116/370 1685 157 38 13.2
1118/400 2052 188 50 14.1
1120/460 2200 206 50 14.9
1122/511 2491 233 50 15.3
1126/601 2785 261 50 16.5
1214/2120 1700 158 38 (U)10.5 (L)8.1
1216 1993 186 50 (U)12.9 (L)8.1
1218/2125 1993 186 50 (U)12.9 (L)8.1
1220/2130 2565 239 50 (U)13.3 (L)8.1
1222 2931 273 50 (U)13.3 (L)8.1
1226/2140 3078 287 50 (U)14.1 (L)8.1
1214S/2141 2052 191 38 (U+L) 10.5
1218S/2181 2638 246 38 (U+L) 12.9
1220S/500H 3371 314 50 (U+L) 13.3
1222S/2221 4104 316 50 (U+L) 14.1
1226S/650M 4397 410 50 (U+L) 14.9
2314/3142 3445 321 50 T 13.3 B (U+L) 9.7
2318/3182 4104 316 50 T 14.1 B (U+L) 10.5
2320/3202 4837 451 80 T 14.9 B (U+L) 12.9
2322/3222 5130 478 80 T 15.3 B (U+L) 12.9
2326/3262 7183 669 80 T 16.6 B (U+L) 13.7
2420/1000H 5277 492 80 (T+B, U+L) 12.9
2426/1300M 7622 710 80 (T+B, U+L) -13.7
3414/4143 5130 478 80 T 13.3 M 13.3 B (U+L) 9.7
3418/4183 6156 574 80 T 14.1 M 14.1 B (U+L) 10.5
3420/4203 7036 656 80 T 14.9 M 14.9 B (U+L) 12.9
3422/4223 7622 710 80 T 15.3 M 15.3 B (U+L) 12.9
3426/4263 9381 874 80 T 16.6 M 16.6 B (U+L) 13.7
3620/1500H 7915 738 80 (T+M+B, U+L) 12.9
3626/2000M 11433 1065 80 (T+<M+B, U+L) 13.7
* Maximum line size for a 100' distance. ** Maximum burner pressure 450 mBar.

PNEG-1717 CE Approved GSI/FFI Portable Dryer Manual 13
4. Specifications
FFI Dimensions
Figure 4A
Figure 4B

4. Specifications
14 PNEG-1717 CE Approved GSI/FFI Portable Dryer Manual
Single Module FFI Transport and Installation Dimensions
NOTE: All dimensions are in mm.
Values are Valid for Transportation of Stack Modules
Dryer
Basket
AB C DEFGH
Transport
Height Installed Width
Installed Height Heightw/o
Wet Bin Frame Width Transport Width Installed Length Transport Length
Wet
Bin Standard Top
1 Fan CFAB
Series Dryers
190T (10') 3632.2
(11' 11") 2438.4 (8') 3962.4 (13') 3505.2 (11' 6") 3124.2 (10' 3") 1955.8 (6' 5") 2438.4 (8') 5232.4 (17' 2") 5842.0 (19' 2")
270 (12') 4089.4
(13' 5") 2438.4 (8') 4419.6 (14' 6") 3962.4 (13') 3581.4 (11' 9") 1955.8 (6' 5") 2438.4 (8') 5842.0 (19' 2") 6451.6 (21' 2")
320 (14') 4089.4
(13' 5") 2438.4 (8') 4419.6 (14' 6") 3962.4 (13') 3581.4 (11' 9") 1955.8 (6' 5") 2438.4 (8') 6451.6 (21' 2") 7061.2 (23' 2")
370 (16') 4089.4
(13' 5") 2438.4 (8') 4419.6 (14' 6") 3962.4 (13') 3581.4 (11' 9") 1955.8 (6' 5") 2438.4 (8') 7061.2 (23' 2") 7670.8 (25' 2")
400 (18') 4089.4
(13' 5") 2438.4 (8') 4419.6 (14' 6") 3962.4 (13') 3581.4 (11' 9") 1955.8 (6' 5") 2438.4 (8') 7670.8 (25' 2") 8280.4 (27' 2")
460 (20') 4089.4
(13' 5") 2438.4 (8') 4419.6 (14' 6") 3962.4 (13') 3581.4 (11' 9") 1955.8 (6' 5") 2438.4 (8') 8280.4 (27' 2") 8890.0 (29' 2")
511 (22') 4089.4
(13' 5") 2438.4 (8') 4419.6 (14' 6") 3962.4 (13') 3581.4 (11' 9") 1955.8 (6' 5") 2438.4 (8') 8890.0 (29' 2") 9499.6 (31' 2")
601 (26') 4089.4
(13' 5") 2438.4 (8') 4419.6 (14' 6") 3962.4 (13') 3581.4 (11' 9") 1955.8 (6' 5") 2438.4 (8') 10109.2 (33' 2") 10718.8 (35' 2")
2 Fan CFAB
Series Dryers
320 (14') 4089.4
(13' 5") 2641.6 (8' 8") 4419.6 (14' 6") 3962.4 (13') 3581.4 (11' 9") 1955.8 (6' 5") 2438.4 (8') 6451.6 (21' 2") 7061.2 (23' 2")
410 (18') 4089.4
(13' 5") 2641.6 (8' 8") 4419.6 (14' 6") 3962.4 (13') 3581.4 (11' 9") 1955.8 (6' 5") 2438.4 (8') 7670.8 (25' 2") 8280.4 (27' 2")
510 (22') 4089.4
(13' 5") 2641.6 (8' 8") 4419.6 (14' 6") 3962.4 (13') 3581.4 (11' 9") 1955.8 (6' 5") 2438.4 (8') 8890.0 (29' 2") 9499.6 (31' 2")
600 (26') 4089.4
(13' 5") 2641.6 (8' 8") 4419.6 (14' 6") 3962.4 (13') 3581.4 (11' 9") 1955.8 (6' 5") 2438.4 (8') 10109.2 (33' 2") 10718.8 (35' 2")
C2100A
Series Dryers
2120 (14') 4089.4
(13' 5") 2438.4 (8') 4419.6 (14' 6") 3962.4 (13') 3581.4 (11' 9") 1955.8 (6' 5") 2438.4 (8') 6451.6 (21' 2") 7061.2 (23' 2")
2122 (16') 4089.4
(13' 5") 2438.4 (8') 4419.6 (14' 6") 3962.4 (13') 3581.4 (11' 9") 1955.8 (6' 5") 2438.4 (8') 7061.2 (23' 2") 7670.8 (25' 2")
2125 (18') 4089.4
(13' 5") 2438.4 (8') 4419.6 (14' 6") 3962.4 (13') 3581.4 (11' 9") 1955.8 (6' 5") 2438.4 (8') 7670.8 (25' 2") 8280.4 (27' 2")
2130 (20') 4089.4
(13' 5") 2438.4 (8') 4419.6 (14' 6") 3962.4 (13') 3581.4 (11' 9") 1955.8 (6' 5") 2438.4 (8') 8280.4 (27' 2") 8890.0 (29' 2")
2132 (22') 4089.4
(13' 5") 2438.4 (8') 4419.6 (14' 6") 3962.4 (13') 3581.4 (11' 9") 1955.8 (6' 5") 2438.4 (8') 8890.0 (29' 2") 9499.6 (31' 2")
2140 (26') 4089.4
(13' 5") 2438.4 (8') 4419.6 (14' 6") 3962.4 (13') 3581.4 (11' 9") 1955.8 (6' 5") 2438.4 (8') 10109.2 (33' 2") 10718.8 (35' 2")

4. Specifications
PNEG-1717 CE Approved GSI/FFI Portable Dryer Manual 15
FFI Specifications
Figure 4C
1 Fan CFAB Specifications
1Actual discharge rate is controlled by meter roll speed adjustment, at 5% to 100% of maximum rate.
2Excludes auxiliary load and unload conveyor equipment.
CFAB 150
8' CFAB 190 10' CFAB 270 12' CFAB 320 14' CFAB 370 16' CFAB 400 18' CFAB 460 20' CFAB 511 22' CFAB601 26'
Total Holding Capacity (Bushels) 173 216 294 357 436 509 565 622 735
Grain Column Holding Capacity (Bushels) 149 186 257 300 376 414 460 506 598
Fans 28"
10-13 HP 28" 10-13 HP 36" 15 HP 40" 15 HP 40" 15 HP 42" 20 HP 42" 25 HP 42" 30 HP 42" 40 HP
Top Auger 8" Dia.
1.5 HP 8" Dia. 2 HP 8" Dia. 2 HP 8" Dia. 5 HP 8" Dia. 5 HP 8" Dia. 5 HP 8" Dia. 7.5 HP 8" Dia. 7.5 HP 8" Dia. 10 HP
Capacity (BPH) 680 925 1150 1800 2800 2800 2800 2800 2800
Bottom Auger 8" Dia.
1 HP 8" Dia. 1.5 HP 8" Dia. 2 HP 8" Dia. 3 HP 8" Dia. 3 HP 8" Dia. 3 HP 8" Dia. 5 HP 8" Dia. 5 HP 8" Dia. 7.5 HP
Meter Roll Drive SCR,
3/4 HP SCR, 3/4 HP SCR, 3/4 HP SCR, 3/4 HP SCR, 3/4 HP SCR, 3/4 HP SCR, 3/4 HP SCR, 3/4 HP SCR, 3/4 HP
Capacity - Maximum Rate1(BPH) 1120 1400 1680 1960 2240 2520 2800 3080 3640
Electrical Load (Fans, Top and Bottom Augers2)
380 Volt, 50 Hz, 3 Phase 23 30 30 32 40 46 61 69 91
2 Fan CFAB profile C2100A Profile
1 Fan CFAB profile

4. Specifications
16 PNEG-1717 CE Approved GSI/FFI Portable Dryer Manual
2 Fan CFAB Specifications
1Actual discharge rate is controlled by meter roll speed adjustment, at 5% to 100% of maximum rate.
2Excludes auxiliary load and unload conveyor equipment.
C2100A Specifications
1Actual discharge rate is controlled by meter roll speed adjustment, at 5% to 100% of maximum rate.
2Excludes auxiliary load and unload conveyor equipment.
CFAB 510
22' CFAB 600 26'
Total Holding Capacity (Bushels) 622 735
Grain Column Holding Capacity (Bushels) 506 598
Fans 36" 15 HP (2) 40" 20 HP (2)
Top Auger 8" Dia. 7.5 HP 8" Dia. 10 HP
Capacity (BPH) 2800 2800
Bottom Auger 8" Dia. 5 HP 8" Dia. 7.5 HP
Meter Roll Drive SCR, 3/4 HP SCR, 3/4 HP
Capacity - Maximum Rate1(BPH) 3080 3640
Electrical Load (Fans, Top and Bottom Augers2)
380 Volt, 50 Hz, 3 Phase 69 109
C2120A
14' C2122A 16' C2125A 18' C2130A 20' C2132A 22' C2140A 26'
Total Holding Capacity (Bushels) 375 436 490 544 599 708
Grain Column Holding Capacity (Bushels) 322 376 415 460 517 600
Fans 28" 10-13 HP/
28" 10-13 HP 28" 10-13 HP/ 36" 15 HP 28" 10-13 HP/ 36" 15 HP 28" 10-13 HP/ 40" 20 HP 28" 10-13 HP/ 42" 20 HP 28" 10-13 HP/ 42" 25 HP
Top Auger 8" Dia. 5 HP 8" Dia. 5 HP 8" Dia. 5 HP 8" Dia. 7.5 HP 8" Dia. 7.5 HP 8" Dia. 10 HP
Capacity (BPH) 1800 2800 2800 2800 2800 2800
Bottom Auger 8" Dia. 3 HP 8" Dia. 3 HP 8" Dia. 3 HP 8" Dia. 5 HP 8" Dia. 5 HP 8" Dia. 7.5 HP
Meter Roll Drive SCR, 3/4 HP SCR, 3/4 HP SCR, 3/4 HP SCR, 3/4 HP SCR, 3/4 HP SCR, 3/4 HP
Capacity - Maximum Rate1(BPH) 1960 2240 2520 2800 3080 3640
Electrical Load (Fans, Top and Bottom Augers2)
380 Volt, 50 Hz, 3 Phase 50 56 56 63 69 87

4. Specifications
PNEG-1717 CE Approved GSI/FFI Portable Dryer Manual 17
GSI Dimensions
Figure 4D
Figure 4E

4. Specifications
18 PNEG-1717 CE Approved GSI/FFI Portable Dryer Manual
Single Module GSI Transport and Installation Dimensions
NOTE: All dimensions are in mm.
Values are Valid for Transportation of Stack Modules
Dryer
Basket
AB C DEFGH
Transport
Height Installed Width
Installed Height Heightw/o
Wet Bin Frame Width Transport Width Installed Length Transport Length
Wet
Bin Standard Top
1108T 4089.4
(13' 5'') 2438.4 (8') 4419.6 (14' 6'') 3962.4 (13') 3581.4 (11' 9'') 1955.8 (6' 5'') 2438.4 (8') 4622.8 (15' 2'') 5232.4 (17' 2'')
1112 4089.4
(13' 5'') 2438.4 (8') 4419.6 (14' 6'') 3962.4 (13') 3581.4 (11' 9'') 1955.8 (6' 5'') 2438.4 (8') 5842.0 (19' 2'') 6451.6 (21' 2'')
1114 4089.4
(13' 5'') 2438.4 (8') 4419.6 (14' 6'') 3962.4 (13') 3581.4 (11' 9'') 1955.8 (6' 5'') 2438.4 (8') 6451.6 (21' 2'') 7061.2 (23' 2'')
1116 4089.4
(13' 5'') 2438.4 (8') 4419.6 (14' 6'') 3962.4 (13') 3581.4 (11' 9'') 1955.8 (6' 5'') 2438.4 (8') 7061.2 (23' 2'') 7670.8 (25' 2'')
1118 4089.4
(13' 5'') 2438.4 (8') 4419.6 (14' 6'') 3962.4 (13') 3581.4 (11' 9'') 1955.8 (6' 5'') 2438.4 (8') 7670.8 (25' 2'') 8280.4 (27' 2'')
1120 4089.4
(13' 5'') 2438.4 (8') 4419.6 (14' 6'') 3962.4 (13') 3581.4 (11' 9'') 1955.8 (6' 5'') 2438.4 (8') 8280.4 (27' 2'') 8890.0 (29' 2'')
1122 4089.4
(13' 5'') 2438.4 (8') 4419.6 (14' 6'') 3962.4 (13') 3581.4 (11' 9'') 1955.8 (6' 5'') 2438.4 (8') 8890.0 (29' 2'') 9499.6 (31' 2'')
1126 4089.4
(13' 5'') 2438.4 (8') 4419.6 (14' 6'') 3962.4 (13') 3581.4 (11' 9'') 1955.8 (6' 5'') 2438.4 (8') 10109.2 (33' 2'') 10718.8 (35' 2'')
1214 4089.4
(13' 5'') 2438.4 (8') 4419.6 (14' 6'') 3962.4 (13') 3581.4 (11' 9'') 1955.8 (6' 5'') 2438.4 (8') 6451.6 (21' 2'') 7061.2 (23' 2'')
1216 4089.4
(13' 5'') 2438.4 (8') 4419.6 (14' 6'') 3962.4 (13') 3581.4 (11' 9'') 1955.8 (6' 5'') 2438.4 (8') 7061.2 (23' 2'') 7670.8 (25' 2'')
1218 4089.4
(13' 5'') 2438.4 (8') 4419.6 (14' 6'') 3962.4 (13') 3581.4 (11' 9'') 1955.8 (6' 5'') 2438.4 (8') 7670.8 (25' 2'') 8280.4 (27' 2'')
1220 4089.4
(13' 5'') 2438.4 (8') 4419.6 (14' 6'') 3962.4 (13') 3581.4 (11' 9'') 1955.8 (6' 5'') 2438.4 (8') 8280.4 (27' 2'') 8890.0 (29' 2'')
1222 4089.4
(13' 5'') 2438.4 (8') 4419.6 (14' 6'') 3962.4 (13') 3581.4 (11' 9'') 1955.8 (6' 5'') 2438.4 (8') 8890.0 (29' 2'') 9499.6 (31' 2'')
1226 4089.4
(13' 5'') 2438.4 (8') 4419.6 (14' 6'') 3962.4 (13') 3581.4 (11' 9'') 1955.8 (6' 5'') 2438.4 (8') 10109.2 (33' 2'') 10718.8 (35' 2'')
1214S 4089.4
(13' 5'') 2641.6 (8' 8'') 4419.6 (14' 6'') 3962.4 (13') 3581.4 (11' 9'') 1955.8 (6' 5'') 2438.4 (8') 6451.6 (21' 2'') 7061.2 (23' 2'')
1218S 4089.4
(13' 5'') 2641.6 (8' 8'') 4419.6 (14' 6'') 3962.4 (13') 3581.4 (11' 9'') 1955.8 (6' 5'') 2438.4 (8') 7670.8 (25' 2'') 8280.4 (27' 2'')
1220S 4089.4
(13' 5'') 2641.6 (8' 8'') 4419.6 (14' 6'') 3962.4 (13') 3581.4 (11' 9'') 1955.8 (6' 5'') 2438.4 (8') 8280.4 (27' 2'') 8890.0 (29' 2'')
1222S 4089.4
(13' 5'') 2641.6 (8' 8'') 4419.6 (14' 6'') 3962.4 (13') 3581.4 (11' 9'') 1955.8 (6' 5'') 2438.4 (8') 8890.0 (29' 2'') 9499.6 (31' 2'')
1226S 4089.4
(13' 5'') 2641.6 (8' 8'') 4419.6 (14' 6'') 3962.4 (13') 3581.4 (11' 9'') 1955.8 (6' 5'') 2438.4 (8') 10109.2 (33' 2'') 10718.8 (35' 2'')

4. Specifications
PNEG-1717 CE Approved GSI/FFI Portable Dryer Manual 19
GSI Specifications
Figure 4F
1100 Series Dryer Specifications
1108T 1112 1114 1116 1118 1120 1122 1126
Total Holding Capacity (Bushels) 190 327 381 436 490 544 599 708
Grain Column Holding Capacity (Bushels) 160 282 329 376 423 470 517 611
Fans 28''
10-13 HP 36'' 15 HP 40'' 15 HP 40'' 15 HP 42'' 20 HP 42'' 25 HP 42'' 30 HP 42'' 40 HP
Top Auger 8'' Dia.
1-1/2 HP 8'' Dia. 3 HP 8'' Dia. 5 HP 8'' Dia. 5 HP 8'' Dia. 5 HP 8'' Dia. 7-1/2 HP 8'' Dia. 7-1/2 HP 8'' Dia. 10 HP
Capacity (BPH) 2900 2900 3800 3800 3800 3800 3800 3800
Bottom Auger 8'' Dia.
1 HP 8'' Dia. 1-1/2 HP 8'' Dia. 3 HP 8'' Dia. 5 HP 8'' Dia. 5 HP 8'' Dia. 7-1/2 HP 8'' Dia. 7-1/2 HP 8'' Dia. 10 HP
Meter Roll Drive SCR,
3/4 HP SCR, 3/4 HP SCR, 3/4 HP SCR, 3/4 HP SCR, 3/4 HP SCR, 3/4 HP SCR, 3/4 HP SCR, 3/4 HP
Capacity - Maximum Rate1(BPH) 1120 1680 1960 2240 2520 2800 3080 3640
Electrical Load (Fans, Top and Bottom Augers2)
3 Phase, 380 Volt 22 33 36 44 49 68 75 88
1Actual discharge rate is controlled by meter roll speed adjustment, at 5% to 100% of maximum rate.
2 Excludes auxiliary load and unload conveyor equipment.
1200 Series profile 1200S Series profile
1100 Series profile

4. Specifications
20 PNEG-1717 CE Approved GSI/FFI Portable Dryer Manual
1200 Series Dryer Specifications
1200S Series Dryer Specifications
1214 1216 1218 1220 1222 1226
Total Holding Capacity (Bushels) 381 436 490 544 599 708
Grain Column Holding
Capacity (Bushels) 329 376 423 470 517 611
Fans 26'' 10-13 HP
36'' 10-13 HP 26'' 10-13 HP 36'' 15 HP 26'' 10-13 HP 36'' 15 HP 28'' 10-13 HP 40" 15 HP 28'' 10-13 HP 42'' 20 HP 28'' 10-13 HP 42'' 25 HP
Top Auger 8'' Dia.
5 HP 8'' Dia. 5 HP 8'' Dia. 5 HP 8'' Dia. 7-1/2 HP 8'' Dia. 7-1/2 HP 8'' Dia. 10 HP
Capacity (BPH) 3800 3800 3800 3800 3800 3800
Bottom Auger 8'' Dia.
5 HP 8'' Dia. 5 HP 8'' Dia. 5 HP 8'' Dia. 7-1/2 HP 8'' Dia. 7-1/2 HP 8'' Dia. 10 HP
Meter Roll Drive SCR, 3/4 HP SCR, 3/4 HP SCR, 3/4 HP SCR, 3/4 HP SCR, 3/4 HP SCR, 3/4 HP
Capacity - Maximum Rate1(BPH) 1960 2240 2520 2800 3080 3640
Electrical Load (Fans, Top and Bottom Augers2)
3 Phase, 380 Volt 50 61 61 70 75 90
1Actual discharge rate is controlled by meter roll speed adjustment, at 5% to 100% of maximum rate.
2 Excludes auxiliary load and unload conveyor equipment.
1214S 1218S 1220S 1222S 1226S
Total Holding Capacity (Bushels) 381 490 544 599 708
Grain Column Holding Capacity (Bushels) 329 423 470 517 611
Fans 28'' 10-13 HP (2) 36'' 10-13 HP (2) 36'' 15 HP (2) 36'' 15 HP (2) 40'' 25 HP (2)
Top Auger 8'' Dia.
5 HP 8'' Dia. 5 HP 8'' Dia. 7-1/2 HP 8'' Dia. 7-1/2 HP 8'' Dia. 10 HP
Capacity (BPH) 3800 3800 3800 3800 3800
Bottom Auger 8'' Dia.
5 HP 8'' Dia. 5 HP 8'' Dia. 7-1/2 HP 8'' Dia. 7-1/2 HP 8'' Dia. 10 HP
Meter Roll Drive SCR, 3/4 HP SCR, 3/4 HP SCR, 3/4 HP SCR, 3/4 HP SCR, 3/4 HP
Capacity - Maximum Rate1(BPH) 1960 2520 2800 3080 3640
Electrical Load (Fans, Top and Bottom Augers2)
3 Phase, 380 Volt 50 50 80 80 115
1Actual discharge rate is controlled by meter roll speed adjustment, at 5% to 100% of maximum rate.
2Excludes auxiliary load and unload conveyor equipment.
