GSi PNEG-902 User manual

PNEG-902
Multi - Module Dryer Stacking
(Review of Stacking a Dryer)
Installation Manual
PNEG-902
Date: 07-26-07

2 PNEG-902 Multi - Module Dryer Stacking

PNEG-902 Multi - Module Dryer Stacking 3
Table of Contents
Contents
Chapter 1 Safety ..................................................................................................................................................4
Safety Guidelines ............................................................................................................................... 4
Safety Instructions .............................................................................................................................. 5
Chapter 2 Stack Dryer Component Callout ......................................................................................................7
Stacking a Network Dryer ................................................................................................................... 7
Chapter 3 Module Preparation and Installation ................................................................................................8
Crane Bracket Placement .................................................................................................................. 9
Setting Lower Module on Pedestals ................................................................................................. 10
Anchoring Lower Module to Foundation ........................................................................................... 11
Installing Support Legs ..................................................................................................................... 12
Lifting Upper Module ........................................................................................................................ 13
Setting Upper Module in Place ......................................................................................................... 14
Securing Upper Module .................................................................................................................... 15
Chapter 4 Module Finishing .............................................................................................................................16
Chapter 5 Ladder Cage Installation .................................................................................................................17
Chapter 6 Warranty ...........................................................................................................................................19

4PNEG-902 Multi - Module Dryer Stacking
1. Safety
Safety Guidelines
This manual contains information that is important for you, the owner/operator, to know and understand.
This information relates to protecting personal safety and preventing equipment problems. It is the
responsibility of the owner/operator to inform anyone operating or working in the area of this equipment
of these safety guidelines. To help you recognize this information, we use the symbols that are defined
below. Please read the manual and pay attention to these sections. Failure to read this manual and its
safety instructions is a misuse of the equipment and may lead to serious injury or death.
This is the safety alert symbol. It is used to alert you to
potential personal injury hazards. Obey all safety
messages that follow this symbol to avoid possible
injury or death.
WARNING indicates a potentially hazardous situation
which, if not avoided, could result in death or serious injury.
CAUTION indicates a potentially hazardous situation which,
if not avoided, may result in minor or moderate injury.
CAUTION used without the safety alert symbol indicates a
potentially hazardous situation which, if not avoided, may
result in property damage.
NOTE indicates information about the equipment that you
should pay special attention to.
DANGER indicates an imminently hazardous situation
which, if not avoided, will result in death or serious injury.

1. Safety
PNEG-902 Multi - Module Dryer Stacking 5
Safety Instructions
Our foremost concern is your safety and the safety of others associated with this equipment. We want
to keep you as a customer. This manual is to help you understand safe operating procedures and some
problems which may be encountered by the operator and other personnel.
As owner and/or operator, it is your responsibility to know what requirements, hazards and precautions
exist, and to inform all personnel associated with the equipment or in the area. Safety precautions may
be required from the personnel. Avoid any alterations to the equipment. Such alterations may produce
a very dangerous situation, where SERIOUS INJURY or DEATH may occur.
This equipment shall be installed in accordance with the current installation codes and applicable
regulations which should be carefully followed in all cases. Authorities having jurisdiction should be
consulted before installations are made.
Follow Safety Instructions
Carefully read all safety messages in this manual and
safety signs on your machine. Keep signs in good
condition. Replace missing or damaged safety signs. Be
sure new equipment components and repair parts include
the current safety signs. Replacement safety signs are
available from the manufacturer.
Learn how to operate the machine and how to use controls
properly. Do not let anyone operate without instruction.
Keep your machinery in proper working condition.
Unauthorized modifications to the machine may impair
the function and/or safety and affect machine life.
If you do not understand any part of this manual or need
assistance, contact your dealer.
Read and Understand Manual
Prepare for Emergencies
Be prepared if fire starts.
Keep a first aid kit and fire extinguisher handy.
Keep emergency numbers for doctors, ambulance service,
hospital, and fire department near your telephone. Keep Emergency Equipment
Quickly Accessible

6PNEG-902 Multi - Module Dryer Stacking
1. Safety
Wear Protective Clothing
Wear close fitting clothing and safety equipment appropriate
to the job.
Remove all jewelry.
Long hair should be tied up and back.
Safety glasses should be worn at all times to protect eyes
from debris.
Wear gloves to protect your hands from sharp edges on
plastic or steel parts.
Wear steel toe boots to help protect your feet from falling
debris. Tuck in any loose or dangling shoe strings.
A respirator may be needed to prevent breathing potentially
toxic fumes and dust.
Wear hard hat to help protect your head.
Eye Protection
Gloves
Steel Toe Boots
Respirator
Hard Hat
Install and Operate Electrical Equipment Properly
Electrical controls should be installed by a qualified electrician
and must meet the standards set by the National Electrical Code
and all local and state codes.
Disconnect and lock out all power sources before installing
wires/cables or servicing equipment. Electric Shock Hazard
Install and Operate Gas-Fired Equipment Properly
Fuel supply should be installed by a qualified gas
technician and must meet local and state codes for
gaseous fuel supplies.
Disconnect and lock out all fuel sources before
servicing equipment. Explosive Gases
Stay Clear of Hoisted Equipment
Always use proper lifting/hoisting equipment when
assembling or disassembling equipment.
Do not walk or stand under hoisted equipment.
Always use sturdy and stable supports when needed
for installation. Crush Hazard

PNEG-902 Multi - Module Dryer Stacking 7
2. Stack Dryer Component Callout
Stacking a Network Dryer
The following information is intended to help outline the steps required in stacking a Network Dryer.
Figure 2A

8PNEG-902 Multi - Module Dryer Stacking
3. Module Preparation and Installation
Module Preparation
• Identify all parts shipped in crates or in the back of the dryer.
• Group parts for each of the assemblies together to have them at hand as needed.
• Attach the rear ladders and safety cages to the rear of all modules if not already installed
(See Chapter 5 of this manual.)
• Attach the front safety cages to the front ladder of all modules (See Chapter 4 of this manual.)
See PNEG-1273 for reference.
• Raise the top auger to its installed position.
• Install the wet bin side panels and attach them to the top auger housing.
• Install the pulleys, belts and guards to the top auger and/or to the bottom auger.
• Install the fill hopper.
See PNEG-349 for reference.
• Assemble the service platform onto the top module and/or the middle module.
• Attach all of the stiffener supports to each module.
• Double check to see if all parts are installed as needed.
This product may have sharp edges! To avoid injury, handle sharp edges with
caution and use proper protective clothing and equipment at all times.

3. Module Preparation and Installation
PNEG-902 Multi - Module Dryer Stacking 9
Crane Bracket Placement
Base Module Crane Brackets
Install the crane brackets onto the modules if not already installed.
Base modules and middle modules utilize four crane brackets. Brackets mount to stack module support
pads.
Lifting usually occurs between the 2nd column from fan end to the 6th column from fan end. This will vary
with model number.
The module should remain parallel to the earth as it is lifted.
Figure 3A
Top Module Crane Brackets
Top modules utilize two (2) crane brackets with four (4) lifting points and a spreader bar between them.
These mount to column seams on the roof screen.
Lifting usually occurs between the 2nd column from fan end to the 6th column from fan end.
The module should remain parallel to the earth as it is lifted.
A crane with sufficient lifting capability must be used.
Loads of 5,000 to 15,000 pounds should be expected.
Figure 3B
Crane bracket location
Crane brackets installed

10 PNEG-902 Multi - Module Dryer Stacking
3. Module Preparation and Installation

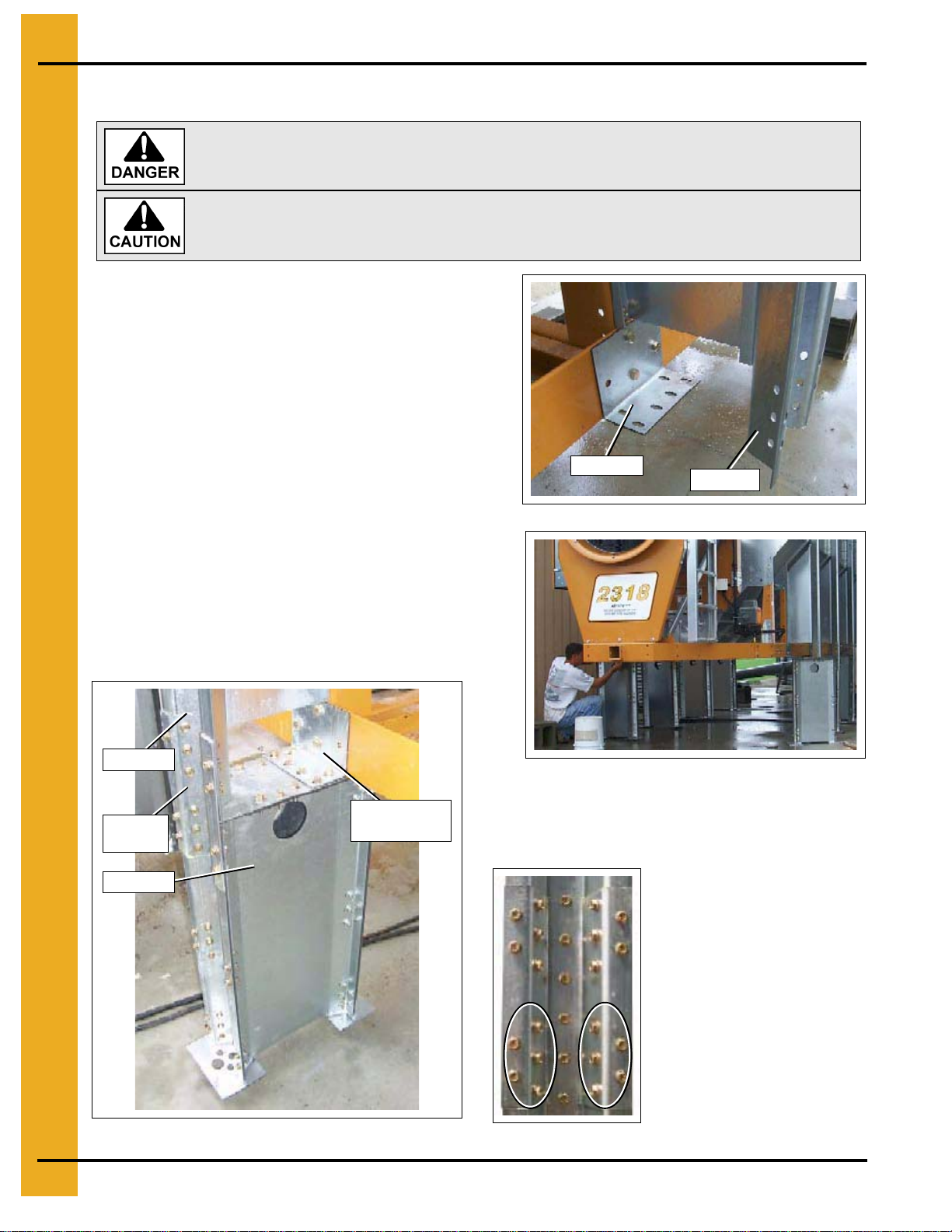

Setting Lower Module on Pedestals
1. Install stiffeners and service platform in
accordance with PNEG-349REV. At each
stiffener/pedestal location, remove the 1/2" bolts
and nuts that attach the dryer frame leg to the
frame rail. Use that hardware to attach a stiffener
base connector clip (D01-1045). (See Figure 3C
and Figure 3E.)
Figure 3C
2.Lift base module and position it in the location the
dryer is to occupy. NOTE: Crane brackets may
need to be adjusted to ensure that the module will
be parallel to the ground when lifted. With the base
module in position, bolt a pedestal to each stiffener
base connector clip using 3/8"-16 x 1-1/2" bolts
(S-7928). (See Figure 3D.)
Figure 3D
Figure 3E
3. With a stiffener splice (SS-7053), splice the
pedestal to stiffener at each pedestal location.
Make sure all nuts and bolts used so far have
been tightened.
Figure 3F
Personnel working around this equipment while it is lifted into position must
use extreme caution.
Lifting equipment (crane and rigging) must be of proper lifting capability for the
unit size and weight. All local safety precautions and procedures
must be followed.
Stiffener
D01-1045
Stiffener base
connecter clip
Pedestal
Stiffener
splice
Stiffener
When splicing pedestal to
stiffener use 3/8"-16 x 1-1/2"
bolts (S-7928) where circled
in
Figure 3F . Use 3/8"-16 x 1"
(S-7927) in all other holes.

3. Module Preparation and Installation
PNEG-902 Multi - Module Dryer Stacking 11

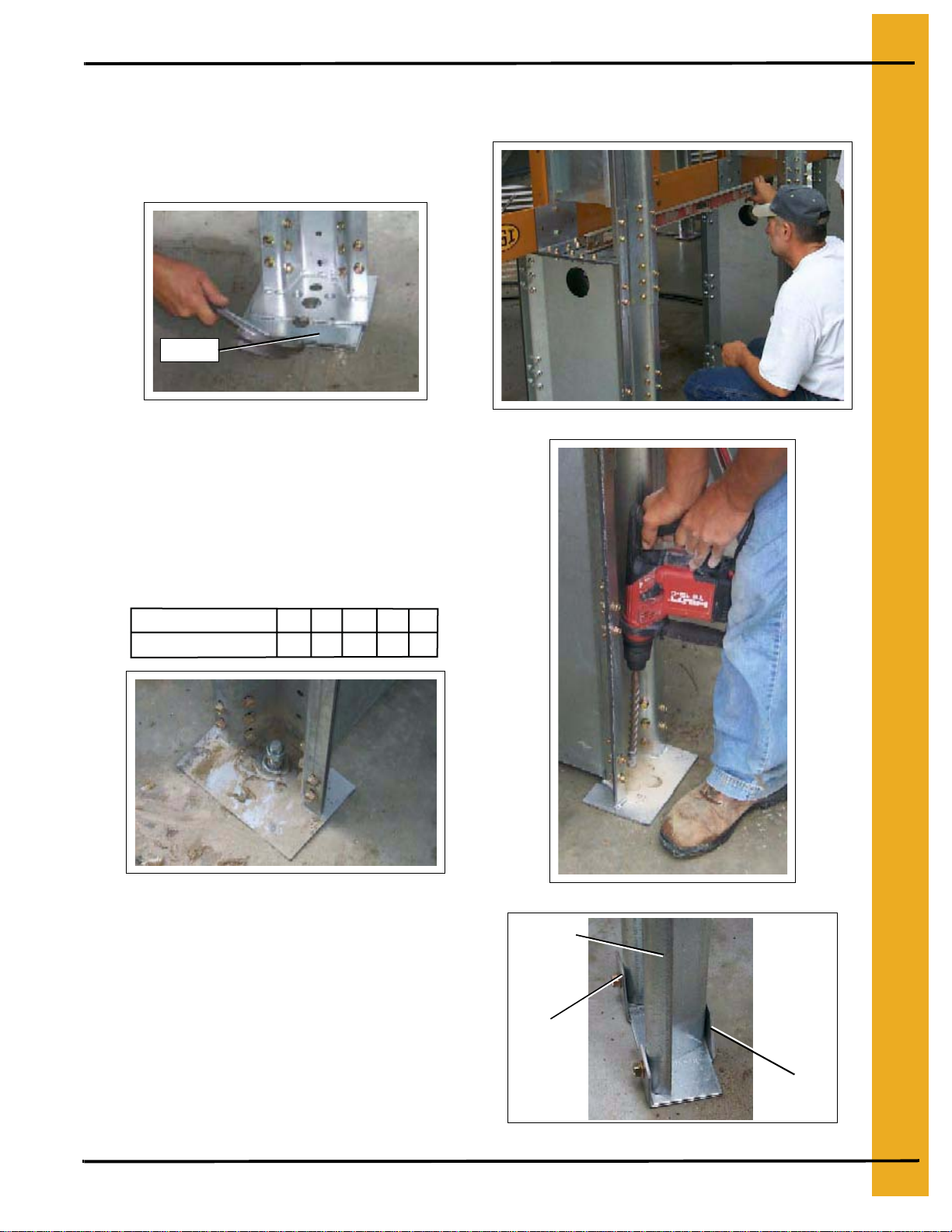

Anchoring Lower Module to Foundation
4. Set the lower module into final position and check
level.Useshims(SS-6953) tolevel lowermodule if
needed. (See Figure 3G and Figure 3H.)
Figure 3G Figure 3H
5. Anchor lower module to foundation. If anchor bolts
were not set when the concrete was poured, drill
holes in the foundation to accept anchor bolts (use
3/4" x 9-5/8" minimum anchors with epoxy resin).
(See Figure 3I and Figure 3J.) GSI has 1" x 12"
anchor bolts (Part # S-8957), tubes of epoxy
(GTC-0004) and mixing nozzles for epoxy tubes
(GTC-0005). An epoxy gun will be needed.
Figure 3I Figure 3J
6. Attach front (BLK-10058) and back (BLK-10057)
leganchor platesto legsusing 5/16"-18x 3/4"bolts
(S-6606) and 5/16"-18 nuts (S-3611)
as shown in Figure 3K.
Figure 3K
Shims
Base Length
No.of anchors needed
14' 18' 20' 22' 26'
16 20 22 24 28
Leg stand
BLK-10058
BLK-10057

12 PNEG-902 Multi - Module Dryer Stacking
3. Module Preparation and Installation

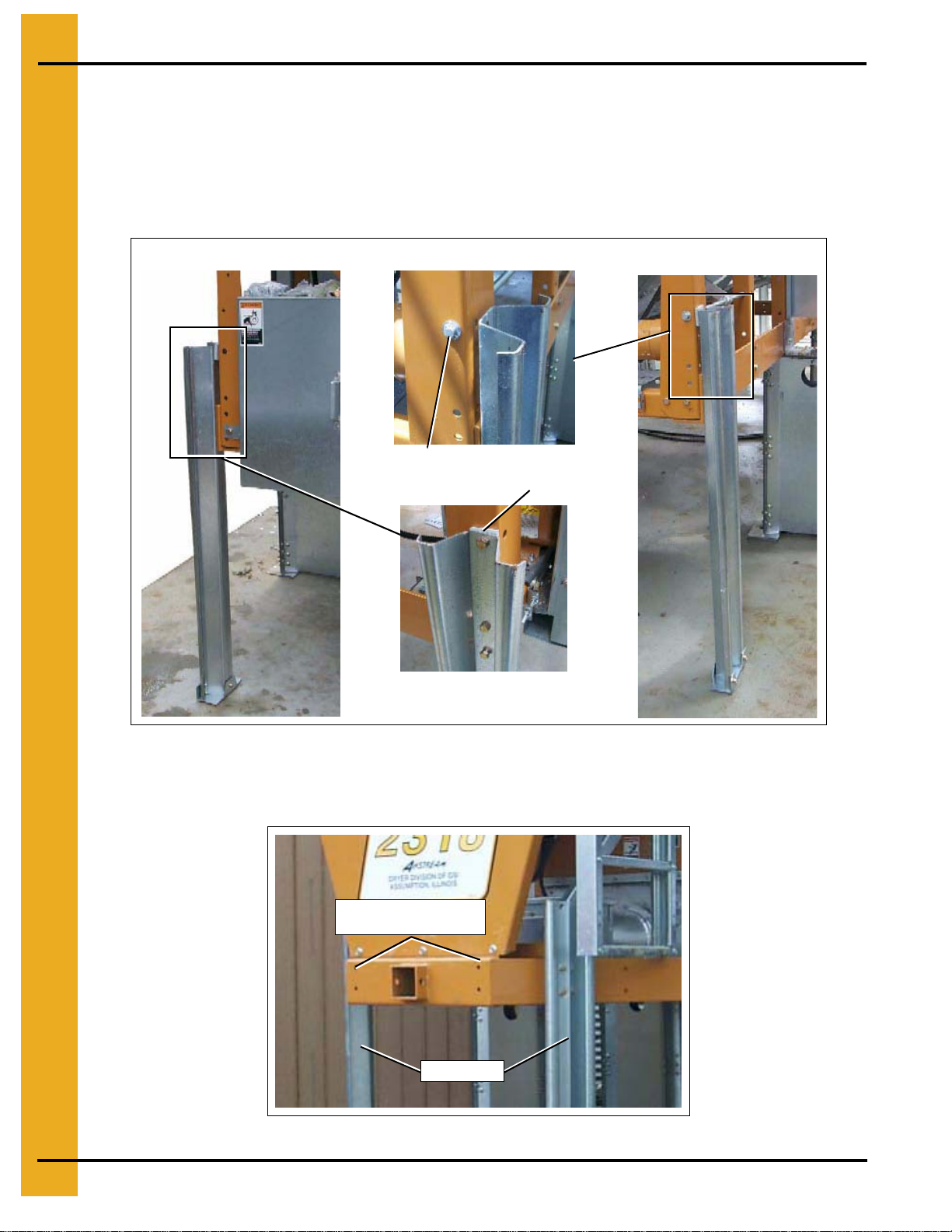

Installing Support Legs
7. NOTE: This step is not required for a 20' dryer. Use 1/2"-13 x 1-3/4" bolts (S-3883) and 1/2"-13
lock nuts (S-6493) to attach support leg assemblies to rear corners of the dryer frame. Use the grey
shim (D01-1221) to fill the gap between the support leg and dryer frame. On the right side it may
be necessary to remove the cotter pin and slide the clean out door pivot rod forward enough to
insert the top bolt. (See Figure 3L.)
Figure 3L
8. Use 1/2"-13 x 1-3/4" bolts (S-3883) and 1/2"- 13 lock nuts (S-6493) to attach support legs to hitch
weldment as shown in Figure 3M. Once installed, anchor the support legs to the foundation.
Figure 3M
Left rear support leg
Cotter pin and clean out
Shim
door pivot shaft
Right rear support leg
Support legs may also
be installed here.
Support leg

3. Module Preparation and Installation
PNEG-902 Multi - Module Dryer Stacking 13
Lifting Upper Module
9. Attach a frame tie down (D61-0011) at each corner of the upper module frame using existing and
supplied 1/2" bolts (S-3728), washers (S-2120) and nuts (S-6493) as shown in Figure 3N.
Figure 3N
10.Lift upper module and move into place over lower module. Use a guide line to keep module steady
while it is being moved. (See Figure 3O.)
Figure 3O
Frame tie down (D61-0011)
Always use proper lifting/hoisting equipment when assembling or
disassembling equipment.
Do not walk or stand under hoisted equipment.
Always use sturdy and stable supports when needed for installation.

14 PNEG-902 Multi - Module Dryer Stacking
3. Module Preparation and Installation
Setting Upper Module in Place
11. Once the upper module is in place over the lower module, slowly start to lower the upper module.
Make sure that the frame tie downs (D61-0011) come down to the outside of the module support
pads to which they will be bolted. Notice that the connecting section end (factory installed) has a
tab that extends below module frame. This tab will slide into the lower module just behind the
plenum end panel. (See Figure 3P.)
Figure 3P
12. When the upper module is set in place and the crane is bearing none of the weight, check to be
sure the upper module is level. If the upper module is not level place module support shims
(D61-0089) on the module support pads. It may be necessary to raise the upper module slightly
to place these shims. (See Figure 3Q.)
Figure 3Q
Shim here
(If required)
Module support pad
Frame tie down
Shim here
(If required)
Tab of connecting
section end
Plenum end panel

3. Module Preparation and Installation
PNEG-902 Multi - Module Dryer Stacking 15
Securing Upper Module
13. Once the upper module is set and level, use 1/2"-13 x 1-1/2" bolts (S-3728), 1/2" washers
(S-2120), 1/2"-13 lock nuts (S-6493) and bolt the frame tie downs (D61-0011) on the upper
module to the module support pads of the lower module. (See Figure 3S.)
14. Use 3/8"-16 x 1" (S-7927), 3/8"-16 nut (S-968) and a stiffener splice (SS-7053) to splice the
stiffeners of the lower module to the upper module. (See Figure 3R.)
15. Use 3/8"-16 x 1" (S-7927), 3/8"-16 nut (S-968) to connect the top angle bracket of the lower
module to the frame tie channel of the upper module. There may be a small gap between these
two parts, if so, the 5/16" bolts connecting the top angle bracket to the lower module can be
loosened just enough to adjust the height of this bracket (the holes are slotted). Be careful not to
loosen the bolts too much, there is no convenient way to get to the nutson these bolts. If the bolts
are loosened just enough to adjust this bracket they can be retightened without having to holdthe
nut on the other side. (See Figure 3T.)
16. If you are stacking a three module dryer perform Steps 9 - 15 for placing the third module.
Figure 3R
Figure 3S Figure 3T
Splice all
stiffeners
Module support pad
Frame tie down
Frame tie channel
Top angle
bracket

16 PNEG-902 Multi - Module Dryer Stacking
4. Module Finishing
• Connect wiring between modules making sure all connections are secure.
• Contact the electrical service provider to connect power.
• Connect fuel connections between modules making sure all connections are secure and no
leaks are present.
• Contact the fuel service provider to connect fuel supply.
Electrical Safety
Provision of an adequate and safe power supply to the stack dryer unit is
essential to your safety. A competent and qualified electrician must undertake
all electrical wiring. All wiring is to be installed according to the national
standards and regulations relevant to your country and region.
A mains power isolator should be installed with the stack dryer unit and is
essential for your safety. This should be installed as indicated in the enclosed
installation instructions and in accordance with the relevant directives in force.
FuelSafety
Provision of an adequate and safe fuel supply to the stack dryer unit is
essential to your safety. A competent and qualified fuel serviceman must
undertake all fuel connections. All fuel connections are to be installed to the
national standards and regulations relevant to your country and region.
A mains fuel isolator should be installed with the stack dryer unit and is
essential for your safety. This should be installed as indicated in the enclosed
installation instructions.

PNEG-902 Multi - Module Dryer Stacking 17
5. Ladder Cage Installation
1. To install the safety cage for the rear ladder of the bottom module, connect two (2) large bell hoop
halves (LS-4352) together and connect two (2) small bell hoop halves (LS-4351) together. Attach
a safety cage bracket (LS-4349) to each end of those assemblies. Use 5/16"-18 x 3/4" bin bolts
(S-275) and 5/16"-18 nuts (S-3611) (See Figure 5A, Figure 5B and Figure 5C.)
2. Use five (5) 44" safety cage vertical supports (LS-4353) and connect the small and large bell hoops
assembled in the Step 1 using 5/16"-18 x 3/4" bin bolts (S-275) and 5/16"-18 nuts (S-3611).
NOTE: Leave one side of this assembly open so the rear access door on the dryer will
not be obstructed.
3. Now locate the safety cage bolt holes on the ladder (See Figure 5A.) Use 5/16"-18 x 3/4" bin bolts
(S-275) and 5/16"-18 nuts (S-3611) to install safety cage onto the ladder.
Figure 5A Figure 5B
Figure 5C
Safety cage bolt holes
LS-4351
(Small bell hoop halves)
LS-4349
(Safety cage brackets)

18 PNEG-902 Multi - Module Dryer Stacking
5. Ladder Cage Installation
4. Assemble the front ladder safety cage as previouslydescribed. Use the same hardware except use
only seven (7) of the 44" safety cage vertical supports (LS-4353). (See Figure 5D.)
5. Assemble eight (8) small hoop halves to make four small safety cage hoops. Connect these hoops
together with five (5) 34" vertical supports (D61-0110) and ten (10) 44" vertical supports (LS-4353)
to make the cage assembly for the upper module rear ladder. (See Figure 5E.)
Figure 5D
Figure 5E
D61-0110
LS-4353

PNEG-902 Multi - Module Dryer Stacking 19
6. Warranty
The GSI Group, Inc. Warranty
THE GSI GROUP, INC. (GSI) WARRANTS ALL PRODUCTS WHICH IT MANUFACTURES TO BE
FREE OF DEFECTS IN MATERIAL AND WORKMANSHIP UNDER NORMAL USAGE AND
CONDITIONSFORA PERIODOF 12MONTHS AFTERRETAILSALE TOTHE ORIGINALENDUSER.
THE PURCHASER’S SOLE REMEDY AND GSI’S ONLY OBLIGATION SHALL BE TO REPAIR OR
REPLACE, AT GSI’S OPTION AND EXPENSE, PRODUCTS THAT, IN GSI’S SOLE JUDGMENT,
CONTAIN A MATERIAL DEFECT DUE TO MATERIALS OR WORKMANSHIP. ALL DELIVERY AND
SHIPMENTCHARGES TOAND FROMGSI’SFACTORYWILLBE PURCHASER’SRESPONSIBILITY.
EXPENSES INCURRED BY OR ON BEHALF OF THE PURCHASER WITHOUT PRIOR WRITTEN
AUTHORIZATION FROM AN AUTHORIZED EMPLOYEE OF GSI SHALL BE THE SOLE
RESPONSIBILITY OF THE PURCHASER.
EXCEPT FOR THE LIMITED WARRANTY EXPRESSED ABOVE, GSI MAKES NO FURTHER
WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING, WITHOUT LIMITATION,
WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE OR USE IN
CONNECTION WITH (I) PRODUCT MANUFACTURED OR SOLD BY GSI OR (II) ANY ADVICE,
INSTRUCTION, RECOMMENDATION OR SUGGESTION PROVIDED BY AN AGENT,
REPRESENTATIVEOR EMPLOYEEOFGSIREGARDING ORRELATEDTOTHECONFIGURATION,
INSTALLATION, LAYOUT, SUITABILITY FOR A PARTICULAR PURPOSE, OR DESIGN OF SUCH
PRODUCTS.
GSI SHALL NOT BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL OR CONSEQUENTIAL
DAMAGES, INCLUDING, WITHOUT LIMITATION, LOSS OF ANTICIPATED PROFITS ORBENEFITS.
PURCHASER’S SOLE AND EXCLUSIVE REMEDY IS AS SET FORTH IN THE LIMITED WARRANTY
EXPRESSED ABOVE, WHICH SHALL NOT EXCEED THE AMOUNT PAID FOR THE PRODUCT
PURCHASED. THIS WARRANTY IS NOT TRANSFERABLE AND APPLIES ONLY TO THE ORIGINAL
PURCHASER. GSI SHALL HAVE NO OBLIGATION OR RESPONSIBILITY FOR ANY
REPRESENTATIONS OR WARRANTIES MADE BY OR ON BEHALF OF ANY DEALER, AGENT OR
DISTRIBUTOR OF GSI.
GSI ASSUMES NO RESPONSIBILITY FOR CLAIMS RESULTING FROM ERECTION DEFECTS OR
UNAUTHORIZED MODIFICATIONS TO PRODUCTS WHICH IT MANUFACTURED. MODIFICATIONS
TO PRODUCTS NOT SPECIFICALLY DELINEATED IN THE MANUAL ACCOMPANYING THE
EQUIPMENT AT INITIAL SALE WILL NULLIFY THE PRODUCT WARRANTY THAT MIGHT HAVE
BEEN OTHERWISE AVAILABLE.
THE FOREGOING WARRANTY SHALL NOT EXTEND TO PRODUCTS OR PARTS WHICH HAVE
BEEN DAMAGED BY NEGLIGENT USE, MISUSE, ALTERATION OR ACCIDENT. THIS WARRANTY
EXTENDS SOLELY TO ONLY PRODUCTS MANUFACTURED BY GSI. THIS WARRANTY IS
EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES EXPRESS OR IMPLIED. GSI RESERVES
THE RIGHT TO MAKE DESIGN OR SPECIFICATION CHANGES AT ANY TIME.
PRIOR TO INSTALLATION, PURCHASER HAS THE RESPONSIBILITY TO COMPLY WITH ALL
FEDERAL, STATE AND LOCAL CODES WHICH MAY APPLY TO THE LOCATION AND
INSTALLATION OF PRODUCTS MANUFACTURED OR SOLD BY GSI.
PHLEGAL: #1832020 v1 (139LG01!.DOC) (revised December 2005)

This equipment shall be installed in accordance with
the current installation codes and applicable
regulations which should be carefully followed in all
cases. Authorities having jurisdiction should be
consulted before installations are made.
GSI Group
1004 E. Illinois St.
Assumption, IL 62510-0020
Phone: [phone]
Fax: [phone]
www.grainsystems.com
Copyright © 2007 by GSI Group
Printed in the USA
