GSM G202 User manual

GSM Gate, Barrier, Shutter, Garage Door and Door opener
Open gate or garage door with a FREE call from your mobile phone!
Remote switching machines with a FREE call from your mobile phone!
GSM Gate Opener
GSM Remote Switch
G202
User Manual
Ver 1.0 Date Issued: 2019-10-18

-1 -
Table of contents
1. Brief introduction ---------------------------------------------------------------------------- 2
2. Safety Directions ----------------------------------------------------------------------------- 2
3. Standard Packing list ------------------------------------------------------------------------ 3
4. Physical Layout ------------------------------------------------------------------------------ 3
5. Features --------------------------------------------------------------------------------------- 4
6. Settings (SMS Commands) ----------------------------------------------------------------- 4
7. Installation-------------------------------------------------------------- 9
8. Technical specifications--------------------------------------------------------- 9
9. Important information --------------------------------------------------------------------- 10
9. Maintenance -------------------------------------------------------------------------------- 10
10. Warranty --------------------------------------------------------------- 11
This handbook has been designed as a guide to the installation and operation of G202 GSM Gate
Opener.
Statements contained in the handbook are general guidelines only and in no way are designed to
supersede the instructions contained with other products.
We recommend that the advice of a registered electrician be sought before any Installation work
commences.
Its employees and distributors, accept no liability for any loss or damage including consequential
damage due to reliance on any material contained in this handbook.
Its employees and distributors, accept no liability for GSM Network upgrading or SIM Card upgrading
due to the technology specifications contained in this handbook.

-2 -
1. Brief introduction
The GSM Gate Opener G202 is a very simple device which can be used for authorized door access,
controlling gates, switching of remote equipments, car parking systems. Actually the GSM Gate
Opener G202 can be used in places which requires turning ON/OFF your system, machines,
equipments remotely with a FREE call from your mobile phone and protect your assets.
Just dial from Authorized User number then the Barrier and doors are opened, or the machine are
turn on or off by the GSM Gate Opener. There are no call costs, the GSM Gate Opener rejects the call
from authorized number then carries out the turn ON/OFF action.

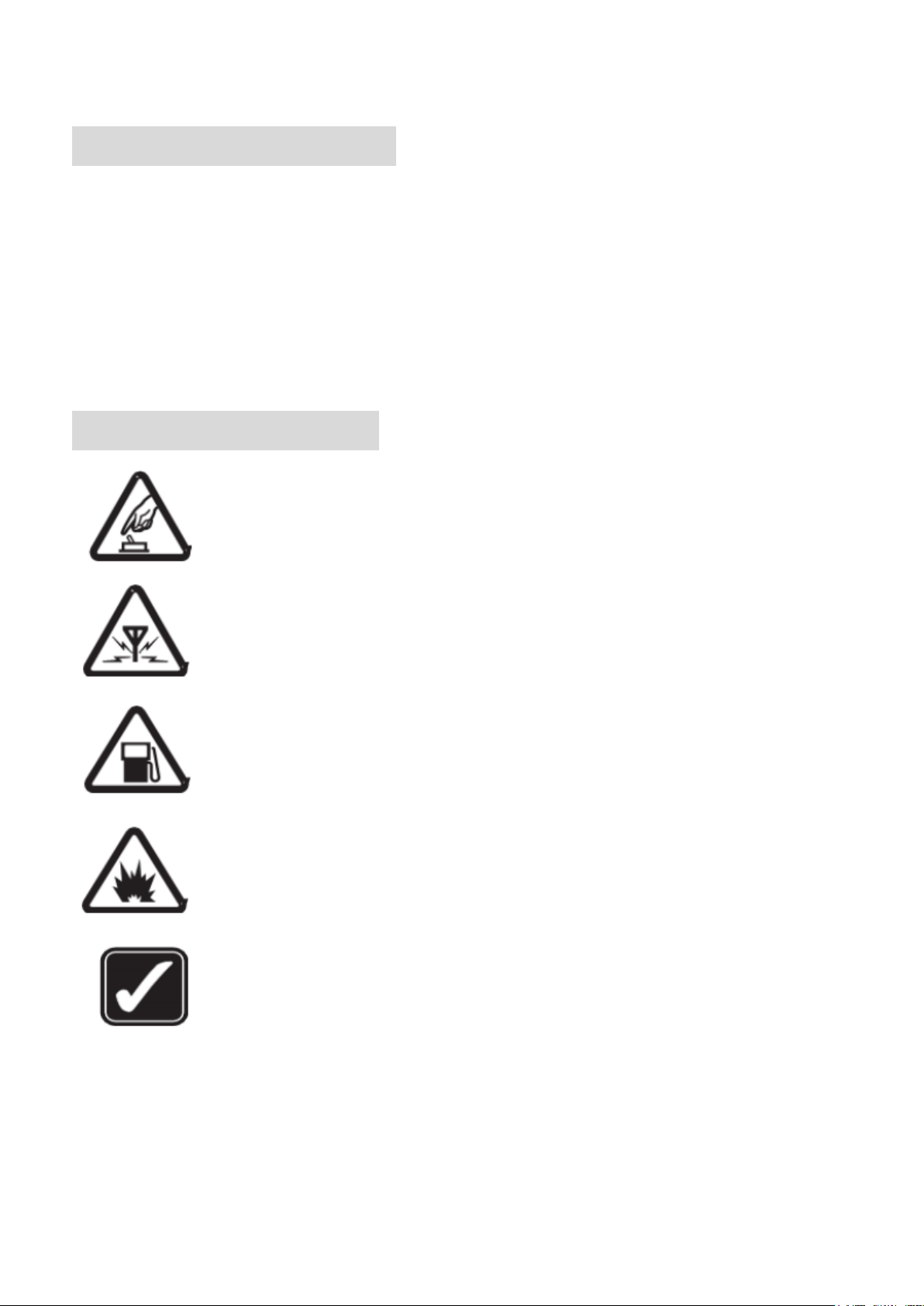

2.Safety Directions
Safe Startup
Do not use GSM SMS IR Controller when using GSM equipment is
prohibited or might bring disturbance or danger.
Interference
All wireless equipment might interfere network signals of GSM SMS IR
Controller and influence its performance.
Avoid Use at Gas Station
Do not use GSM SMS IR Controller at a gas station. Power off GSM SMS IR
Controller when it near fuels or chemicals.
Power it off near Blasting Places
Please follow relevant restrictive regulations. Avoid using the device in
blasting places.
Reasonable Use
Please install the product at suitable places as described in the product
documentation. Avoid signal shielded by covering the mainframe.

-3 -
3. Standard Packing List
Control Unit X1, GSM ANT X1, User Manual X1.

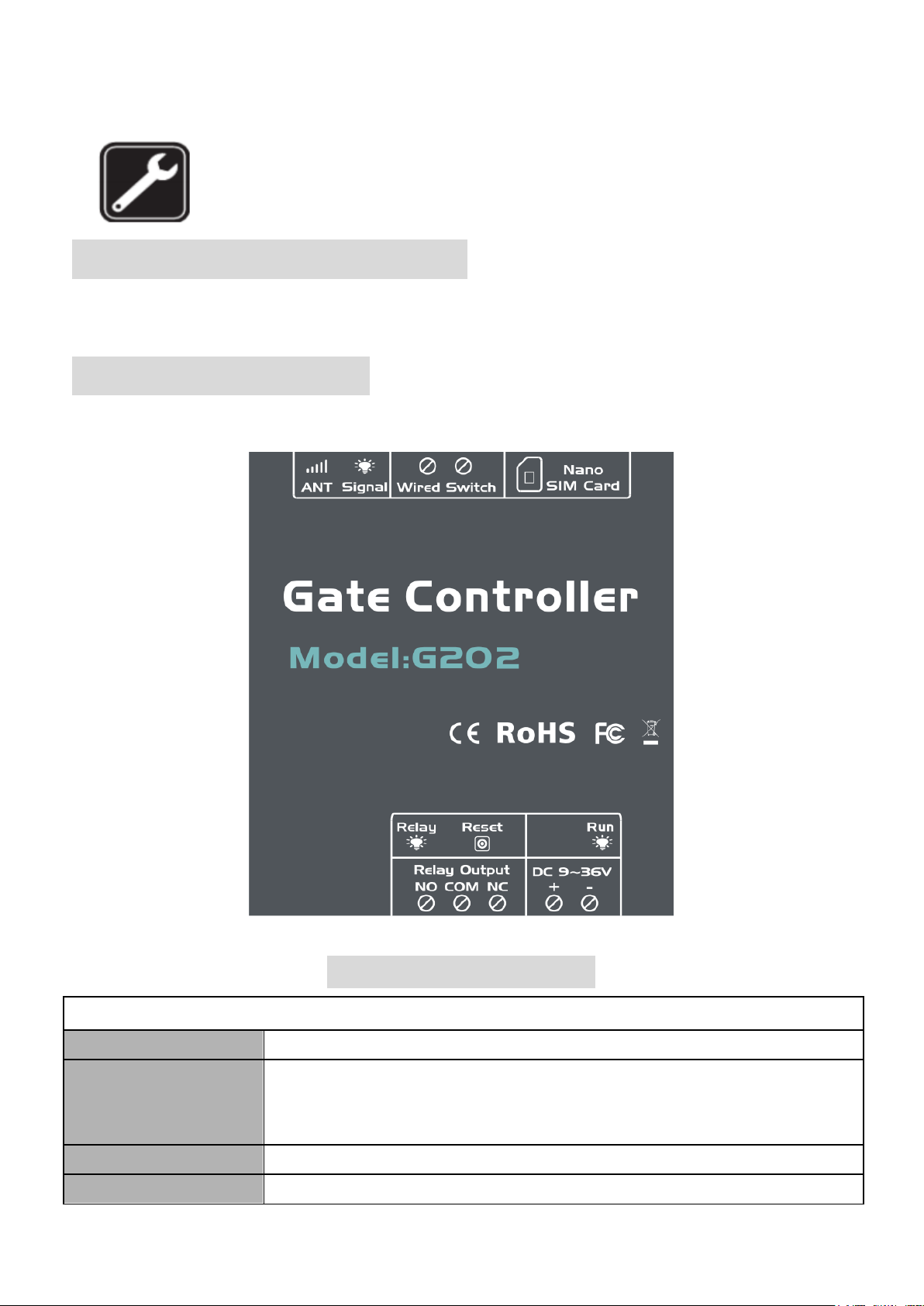

4. Physical Layout
4.1 Control Unit physical layout
Interface Instruction
INDICATORS
ANT
Connect to GSM/3G/4G antenna
Signal
Flash per 1 second (quickly): registering to cellular network.
Flash per 2 seconds: Normal status.
OFF: can not connect to SIM card or unregistered to the cellular network.
Relay
Relay Status, calling in, the relay will work, this LED indicator will on.
Reset
Press and hold the Reset button until the Run LED is always on, then after 5
Use Qualified Maintenance Service
Maintenance can be carried out only by qualified maintainer.

-4 -
seconds, you can release the Reset button.
This operation will reset the device to factory default.
Run
Flash per 1 second: Connected the cellular network successfully.
Always on: Reset successfully when pressing the Reset button.
OFF: can not connect to SIM card or unregistered to the cellular network.
Connection Terminals
DC
9~36V
+
Power supply input, Positive wire.
-
Power supply input, Negative wire.
Relay
Output
NO
Normally Open port. The relay is 3A/240VAC. Connect to the switch of the
electric lock or device.
COM
Common port. The relay is 3A/240VAC. Connect to the switch of the electric
lock or device.
NC
Normally Close port. The relay is 3A/240VAC. Connect to the switch of the
electric lock or device.
Wired Switch
Dry contact, used to be connected with wired switch, like push button.
Notice: It should not be connected with voltage input.
5. Features
1. No call charges. The GSM Gate Opener rejects the call from authorized number, then the relay
will turn ON/OFF on the first ring;
2. It is no longer traditional to open the door, but it is more interesting to shake the mobile phone
to unlock the door.
3. Multiple applications. (gates, bollards, barriers, garage doors, shutters and access doors or
machines);
4. Secure - Using caller ID for identification, unknown callers are ignored;
5. Can be operated from anywhere, no distance limit;
6. Add or remove users by SMS Text command;
7. No need to provide a remote control for different users;
8. Up to 200 authorized phone numbers can be configured;
9. One output with relay （3A/240VAC）for connecting the switch of the door or machines;
10. The relay action will return a SMS confirmation to the owner, this function is editable by user;
11. Based on GSM Network, applied to many applications.

-5 -
For example:
In UK, the country code is 0044, or +44 .
The user cell phone number is 3408888666 and has been assigned as the first user number, the SIM card number
in the panel is 3408888555 .
Problem 1: Relay is activated but the first user have not received the SMS alert .
Solution: When you set the first number, you should add the country code in front of the 3408888666. Then it
means setup 00443408888666 instead of the 3408888666 .
Problem 2: The first user number can receive the Relay action message from the G202, but the G202 can not
receive the commands from the first user number.
Solution: Please add country code to the SIM card number in the G202. The it means send SMS commands to
003408888555 to instead of 3408888555 .
Solution 3: When you use cell phone to dial another cell phone, what number it will be displayed then you can set
this displayed number as the dial numbers; when you use cell phone send SMS to another cell phone, what
number it will be displayed then you can set the displayed number as the first user number, just use the 00 to
replace the “+”, also, you can try the “+”.
6. Settings (SMS Commands)
Notice:
1. The default Password is 1234 .
2. All the settings are through SMS commands, please edit the below SMS commands in your cell
phone, then send to the G202 Unit. The unit cannot support PIN Code Protected SIM Card.
3. You can program the GSM Gate Opener with SMS commands by using your phone. It is safe to
do so because in addition to the fact that other people may not know the number of the SIM
inserted in it, we also use a Password that makes it impossible for anybody, who doesn't know it,
to access the system by chance.
4. The relay output will change the close or open status by every call in, please note it. Means the
first time call it, it will close the relay to switch on the lock, if the second call in is in the setting
time, then the unit will ignore the setting time, and open the relay, to switch off the lock or
machine.
5. Remember that commands must be CAPITAL Lock LETTERS . It is PWD not pwd, CAP not Cap
etc. Don't add spaces or any other character.
6. The pwd in the commands is means the password, when you use it, please in stand of it by the
digital number; the capital letters PWD is the command letter, use PWD directly.
7. If you use this model for gate open, you only need to change the password and setup the
authorized numbers
8. For some GSM operators, they use different SMS parameter, the units cannot return the SMS
confirmation is normally. It is not product problem. Also, you can try to add the country code
before the number, see the below settings:

-6 -
9. Please write down the Authorized number list in a paper for review it in the future.
10. If you want to reset the G202 to factory default, then please send pwd#RESET# （The unit will
reply a message with Reset Success! Please Reboot your Device ) or When the G202 works
normally, you can press and hold the RESET button for several seconds until the Run Led is
always ON, and then after 5 seconds ,it will reset the G202 to factory default.
11. If the command is incorrect, the G202 will return: Command error, please resend command .
So please check the Command, or add the country code before the telephone number or check
the input is in ENGLISH INPUT METHOD and CAPS LOCK.
12. The SMS commands that you will certainly use in the GSM Gate Opener are the following
instruction:
6.1 Setup New Password
RTU5035
If successful, the unit will return: New Password:xxxx.
For example, the original password is 1234, you want change it to 6666, then you can send the
command below: 1234#PWD6666#PWD6666#
Tips: 1.The pwd in the commands means the password, when you use it, please use digital number,
the capital letters PWD is the command letter, use PWD directly.
2. Remember that commands must be CAPITAL Lock LETTERS. It is PWD not pwd, CAP not Cap
etc. Don't add spaces or any other character. When input punctuation symbol #, must be
in ENGLISH or DIGITAL input method. Not support other input method.
6.2 Setup Authorized number
E.g.: if you want to setup 13500001111 as the first user number, and the password is 1234,then you
can send 1234#TEL[phone]#001# to the G202 unit. After the G202 received this
command (the 0044 is country code), the device will return:
Tips: 1. the authorized number means the one who can dial the G202 unit to open it.
2. We highly recommend that the serial number of 001 is administrator’s cellphone number,
pwd#PWDnewpassword#PWDnewpassword#
pwd#TELAuthorized Number#Serial Number#
001:004413500001111
002: Empty
003: Empty
004: Empty
005: Empty

-7 -
because the Relay action message only send to the first position number;
3. The Serial Number is the position to store the authorized number, from 001~200.
6.3 Inquiry the Serial Number’s Authorized number
E.g.: If you want to know the authorized number at position 2, and the password is 1234, then you
can send 1234#TEL002? to check it.
6.4 Remove the Authorized Number
(Or you can overwrite with another number you wish to change it).
E.g.: if you want to remove the authorized number at position 12, and the password is 1234, then you
can send 1234#TEL#012#
6.5 Setup any phone number could dial to access the device
Tips: This command allows anybody calling the SIM number to access it.
Warning! With the command above, it will allow anyone to access the device.
6.6 Setup only authorized number can access it (Default)
Tips: With the command above, you could allow the authorized number can access the G202.
This is the default settings.
Inquiry this setting:
Reply: Allow all numbers can access it or Allow User Numbers can access it only
6.7 Setup the relay close time
Tips: The time should be in 0~9.5seconds.
pwd#TELSerial Number？
pwd#TEL#Serial Number#
pwd#AU#
pwd#AA#
pwd#AC?#
pwd#GOTTime#

-8 -
This command is useful in case you need to keep the relay closed (or button pressed) longer. The
default time is 0.5 seconds(500 ms). You can change it with the GOT command. The relay closed time
is twice as the number you set, E.g.: if you set pwd#GOT19#, means the relay closed 19/2=9.5
Seconds.
To check the value, you can use the command pwd#GOT? , the unit will reply the current value.
If you want to let the relay always closed until you call it next time, then you can set the time as 00,
the format is pwd#GOT00#, the relay will be always closed until next time call in. in this case, only
the authorized number can access it. The other unauthorized numbers can not access the unit. This is
very useful for remote switch on or switch off the electricity appliance or equipment or device for a
long time.
6.8 Check GSM signal quality
Check GSM signal quality. This command is useful to see the GSM network signal level of your GSM
Gate Opener. After you send the command, you can receive a SMS with signal quality in range 0 to 31
(if it is 0 we doubt it will never answer). To ensure to open the door successfully, we suggest to keep
the signal level above 12, or it will be better above 16. If it is below 12, please make sure you had
connected with an external GSM antenna, or take the device to a better open area where it will have a
better GSM signal.
6.9 Enable return SMS confirmation when Relay action
Tips: if you enable it, when the relay action, close or open, the unit will return a SMS confirmation to
you(The first user number). The return SMS is: Relay ON! Operated by xxx or Relay OFF! Operated
by xxx. You can disable it by the following command: pwd#N#. Default is no return SMS
confirmation when relay is activated. This is very useful when you use the G202 to control the
equipment remotely.
To check the settings, you can use the command: pwd#M?
It will return: Relay action return SMS ON or Relay action return SMS OFF.
6.10 Control the relay ON/OFF by SMS command
Return SMS: The relay is ON.
pwd#R#
pwd#CSQ?
pwd#ON#

-9 -
Return SMS: The relay is OFF.
7. Installation
Before installing the control unit, please help to test the system firstly, including power supply,
GSM signal, etc.

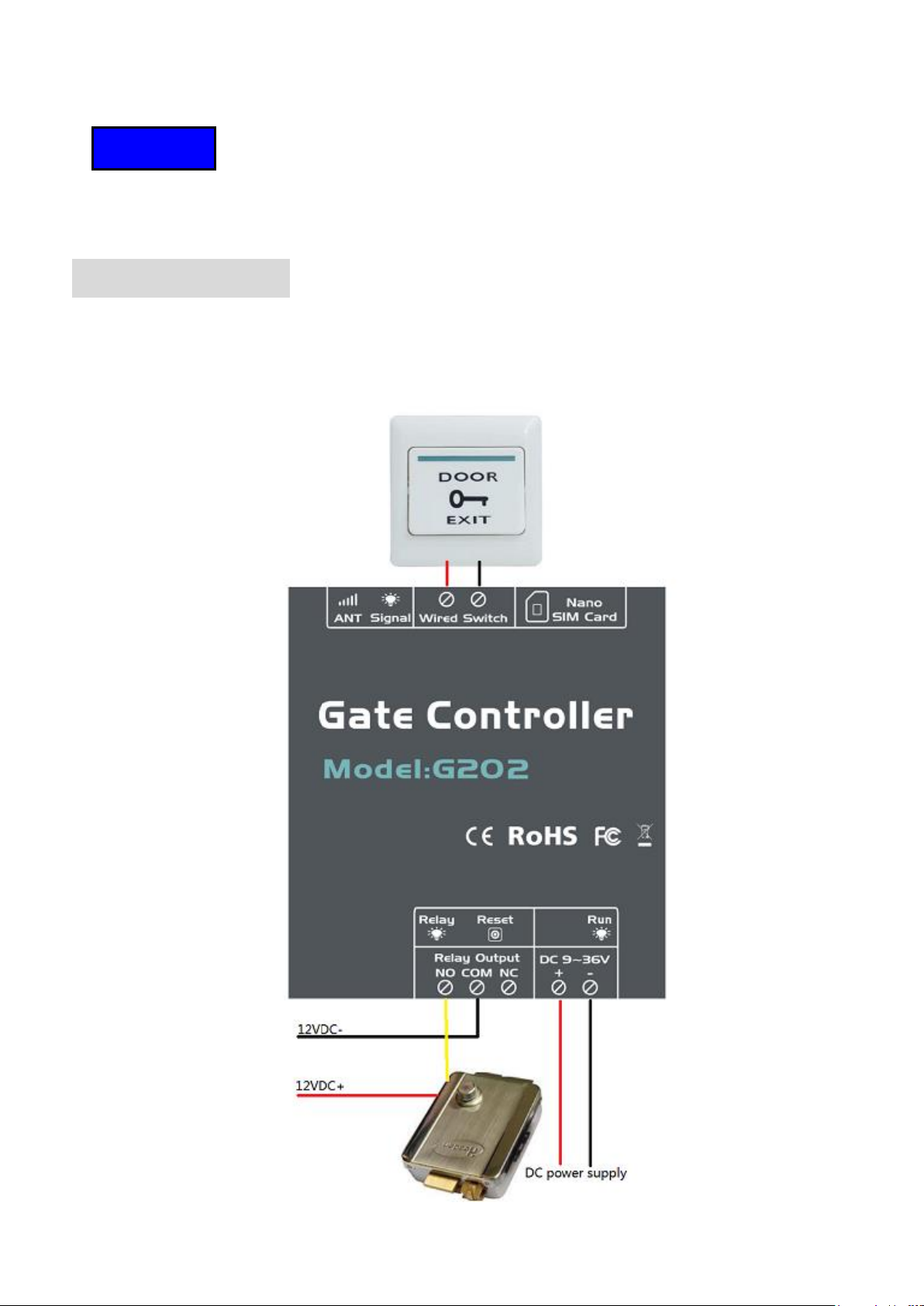

7.1 Connecting the Electronic Lock or Electric equipment
pwd#OFF#

-10 -
7.2 Install the Mainframe
The main frame should be installed in the position that person can not get it, and there with a
power source as well as enough GSM signal coverage.
8. Technical specifications
Rated Voltage: DC 9V~36V/1A
Working temperature: -10℃～+60℃
Storage temperature: -20℃～+60℃

-11 -
Relative humidity: 10-90%, No condensation
Work frequency:
GSM: 850/900/1800/1900MHz
3G WCDMA: 900/2100 MHz UMTS
3G CDMA2000:850/1900MHz UMTS
3G: 850/2100MHz UMTS
Communication protocol: GSM PHASE 2/2+ (include data service)
Related Voltage of the Output Relay: 3A/240V AC
SIM Card：Nano type, 3V
Antenna: 50 ΩSMA
Wired Switch: Supports
Dimension: 96.5*50*31.5mm
Net Weight: 88g
9. Important information
1) Please read the User Manual carefully before you install the Control Unit and set the Control
Unit.
2) Install the system in a hidden place.
3) Avoid getting water into the Control Unit.
4) Have a secure connection to the main power supply.
10. Maintenance
1) In case of failure, please contact the distributor or manufacturer.
2) If the remote control works, but the Control Unit fails to send SMS texts, switch the power of
Control Unit off and switch it on after one minute. Test this system after another minute, or check
the settings are correct and the GSM Signals are strong enough.
3) If the Control Unit can run work, but cannot send SMS texts, please change SIM Card to check it.
4) If the problem cannot be solved, please contact the distributor or manufacturer.

-12 -
11. Warranty
1) This system is warranted to be free of defects in material and workmanship for one year from the
date of purchase.
2) This warranty does not extend to any defect, malfunction or failure caused by abuse or misuse by
the Operating Instructions. In no event shall the manufacturer be liable for any system altered by
purchasers.
The End!
Any questions please help to contact us feel free.
