GST C-9202 User manual

HTTP://WWW.HOMBI.RU
30302077 Issue 1.05
Features
Alarming by pressing, reset by a special key.
Providing independent normally open output
contact.
Plug-in structure.
Standard: EN 54-11.
Description
C-9202 Conventional Manual Call Point (the MCP) will
report alarm as current caused by pressing the glass,
simply connected to the loop of compatible
conventional fire alarm system from various
manufacturers. This MCP is suitable for public places.
When there is fire, pressing the glass on this MCP can
send alarm signal to compatible conventional fire
alarm control panel.
Connection and Wiring
Terminals on the MCP base are shown as Fig. 1.
O+O-
K1 K2
62
I+ I-
Fig. 1
I+, I-: Input signal, connecting with compatible control
panel or the previous MCP.
O+, O-: Output signal, connecting with the next MCP.
K1, K2: Normally open output terminals.
Recommended Wiring
0.5mm2or above fire cable, subject to local codes.
Installation
Hook the juts of the MCP body to the base, and then
press the part below the glass to combine them
completely. Finally fasten the MCP with tapping
screws (ST2.9×9.5). The mounting is shown in Fig. 2.
Note the upward arrow for the mounting direction
(Fig.1).
Fig. 2
Application
The MCP and conventional detectors can be used
together in a compatible control panel system.
The base doesn’t connect with a diode if a 4.7kΩ
resistor is connected to the end of output loop instead
of Active End of Line Unit. The system composition is
shown in Fig. 3.
MANUAL CALL POINT
TERMINAL
RESISTOR
COMPATIBLE
CONTROL PANEL
LOOP
INITIATING +
OUTPUT
-
OUTPUT
MANUAL CALL POINT
K
2
K
1
O
-O +I
-
I
+
K
2
K
1
O
-O +I
-
I
+
Fig. 3
The base must connect with a diode if P-9907
Active End of Line Unit is connected to the end of
output loop.
¾The Active End of Line Unit can be used as
the base of a conventional detector. The system
The Intelli
g
ent Solution
C-9202
Conventional Manual Call Point
548g/01
Short Groove Jut
Screw Hole
HTTP://GSTRU.RUE-MAIL: [email protected]

HTTP://WWW.HOMBI.RU
30302077 Issue 1.05

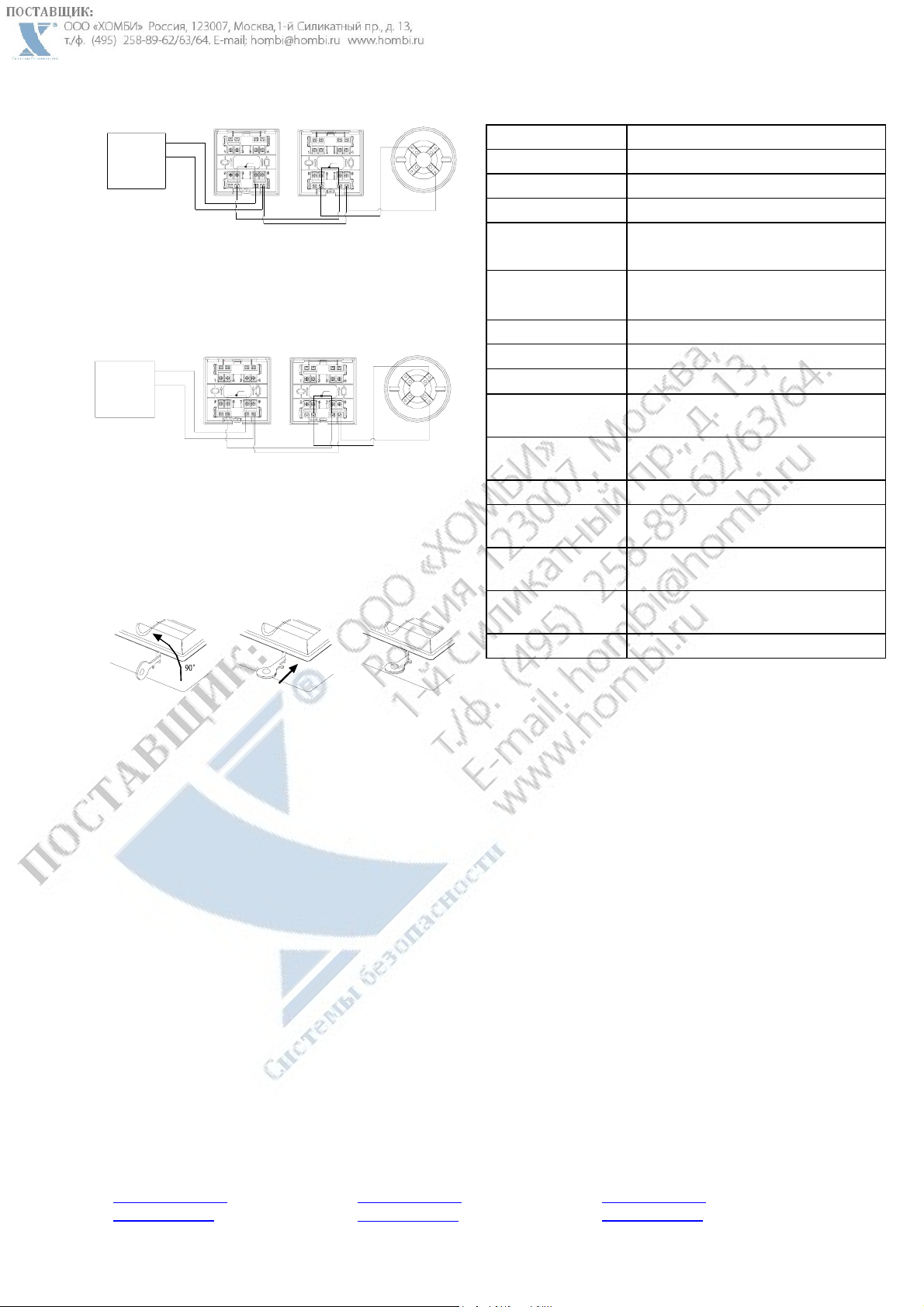

composition is shown in Fig. 4.
COMPATIBLE
CONTROL PANEL
LOOP
INITIATING OUTPUT+
OUTPUT-
ACTIVE END OF
LINE UNIT
2
1
3
4
K
2
K
1
O
-O +I
-
I
+
K
2
K
1
O
-O +I
-
I
+
DIODE DIODE
MANUAL CALL POINT MANUAL CALL POINT
Fig. 4
¾When Active End of Line Unit is not used as
detector base, a cover should be added. The
system composition is shown in Fig. 5.
2
1
3
4
COMPATIBLE
CONTROL PANEL
LOOP
INITIATING OUTPUT+
OUTPUT-
K
2
K
1
O
-O +I
-
I
+
K
2
K
1
O
-O +I
-
I
+
DIODE DIODE
MANUAL CALL POINT MANUAL CALL POINT ACTIVE END OF
LINE UNIT
Fig. 5
Usage of the key
Vertically insert the key to the key-hole, and turn it
anticlockwise by 90°, then push it with force. Turn the
key back and pull it out when the glass is rebounded,
as shown in Fig. 6.
Fig. 6
Specifications
Operating Voltage 24VDC
Standby Current 0mA
Alarm Current ≤30mA (Equivalent resistor 470Ω/1W)
Alarm LED Red, illuminates when alarming.
Normally Open
Output Contact Rated value:60VDC/0.1A
Contact resistance≤100mΩ
Type of Initiating
Part Reusable
Initiating Mode Pressing the glass manually
Resuming Mode Manually resumed by a special key
Wiring Polarity-insensitive two-wire
Ingress Protection
Rating IP20
Environmental
Temperature -10℃～+50℃
Relative Humidity ≤95%, non condensing
Material and Color
of Enclosure ABS, Red (PANTONE 193C)
Dimension
(L×W×H) 97mm×100mm×45.5mm
Mounting Hole
Distance 52mm～68mm
Weight About 144g (with base)
Limited Warranty
GST warrants that the product will be free from defects
in design, materials and workmanship during the
warranty period. This warranty shall not apply to any
product that is found to have been improperly installed
or used in any way not in accordance with the
instructions supplied with the product. Anybody,
including the agents, distributors or employees, is not
in the position to amend the contents of this warranty.
Please contact your local distributor for products not
covered by this warranty.
