GST DI-9319E Operator's manual

30310468 Issue 1.05
Features
Cable checking for inputs and outputs.
Normally-open (NO) or normally-close (NC) output
automatically follows Input port to change state.
Electronically addressing. Addresses can be
modified in field.
DIN-Rail mounted or Wall mounted.
Standard: EN 54-18:2005
Description
DI-9319E Digital Zone Monitor Unit (the Unit) is
designed to connect with conventional detectors,
occupying one address. When any device in the loop
reports alarm signal, the Unit will transmit the signal to
the FACP which generates fire alarm and displays the
address of the Unit.
Connection and Cabling

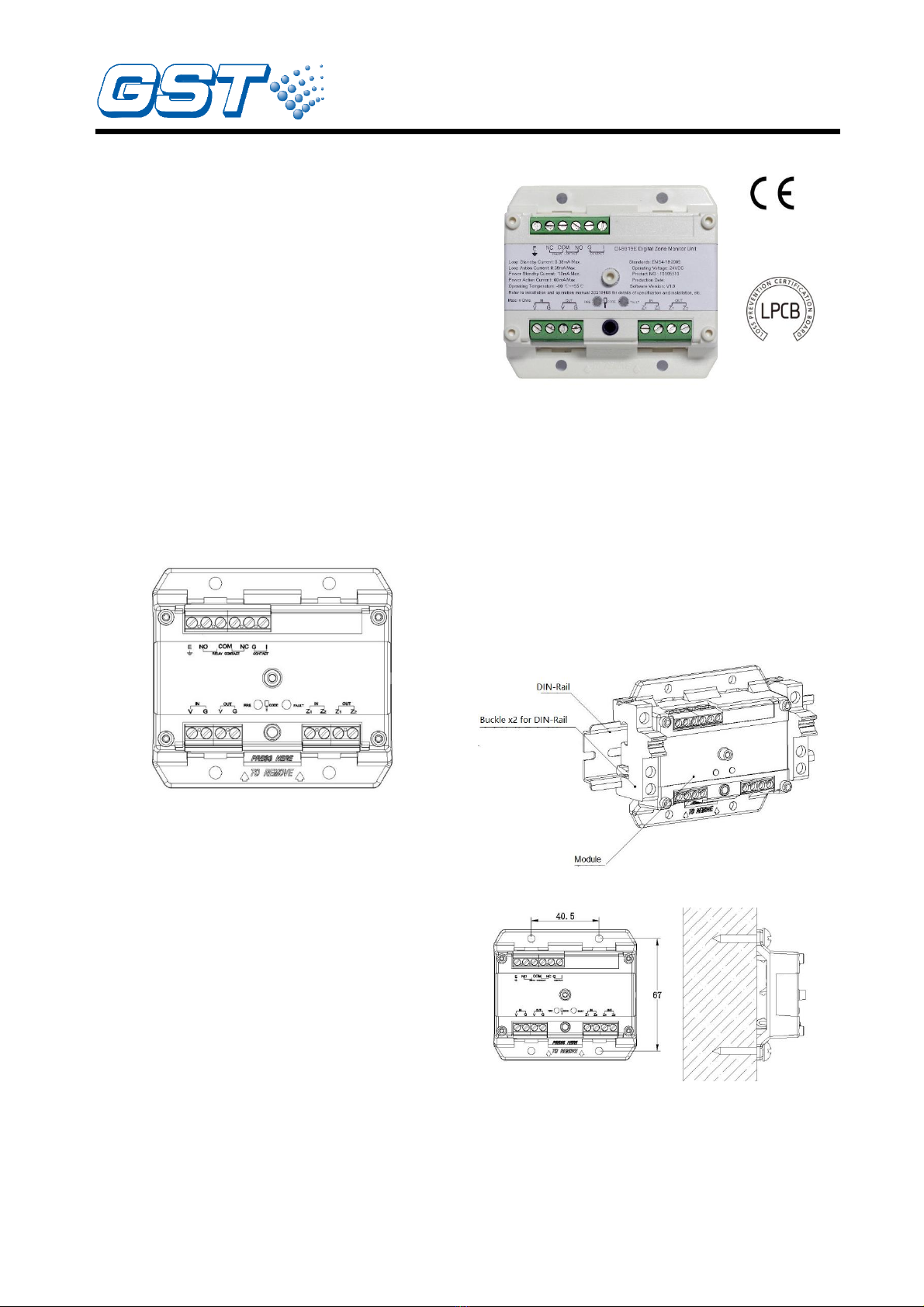

Fig. 1 shows terminals of the Unit.
Fig. 1
(Z1, Z2) IN & OUT: Connect with the loop of FACP,
polarity-insensitive.
(V, G) IN & OUT: Connect with 24VDC power, V
connects with a positive terminal and G with a negative
terminal.
I, G: Connect with conventional detectors.
E: Ground cable. This terminal shall not be connected
when the 24V power circuit provides cable checking.
Otherwise, it shall be connected to ground.
COM, NO, NC: Dry Output terminals. COM and NO are
normally open contacts, COM and NC are normally
closed contacts ( note: there is 20kΩ between COM
and NO).
CODE: Connect with the programmer.
Recommended Wiring: 1.0mm2 or above fire cable for
all terminals. Subject to local codes.
Installation
Warning: Before installing the Unit,
disconnect power from the loop and verify
that the guide rail is securely installed.
1) Before installation, make sure the enclosure is in
good condition and markings are complete.
2) The module can be mounted on a 35mm DIN-Rail
as shown on Fig. 2.
3) The module can also be wall mounted by 4
mounting screws as shown in Fig. 3.Mouting
space is 67×40.5mm.
Fig. 2
Fig. 3
Application
The output loop can connect up to 30 conventional
devices. Smoke, heat and combination detectors, such
as DC-9101E Detector, DC-9102E Detector, DC-9103E
DI-9319E
Digital Zone Monitor Unit
Monitor Unit
2831-CPR-F2023
GST-0018-01
18
548m/07

30310468 Issue 1.05
Detector, C-9101 Detector, C-9102 Detector, C-9103
Detector and C-9104 Detector can be used together.
The parameters of the Unit can be programmable by a
programmer in field.
Programming Parameters：
In standby state of the programmer, pressing Fn and
then number 3, “—“ (data waiting for programming) will
be popped up on the screen. Writing a parameter and
then pressing “Program”, a “P” will show on the screen
meaning the parameter is programmed.
Press Fn and then number 3, output checking methods
can be set.
1
No checking
others(Default)
Checking
The relationship between the input port resistance and
the product state is shown in the following table:
I/G port
Resistance
Input state
0 - 100Ω
Short fault
110 - 1.4kΩ
Alarm
1.5 - 10kΩ
Normal
> 11 kΩ
Open fault
The relationship between the output port voltage and
the product state is shown in the following table:
Output port voltage
Output state
< 8 V
Fault
> 9 V
Normal
If the output end connects with end-of-line resistor, the
system connection is shown in Fig. 4.
NO
COM
NC
Controlled Devices
I+
G
DI-9319E Digital Zone Monitor Unit
Conventional Detectors Conventional Detectors
4.7kΩ End-of-line Resistor
Fig. 4
If the NO and COM terminals do not connect the
controlled device, the DC24V power supply on the
controller is needed, the system connection is shown in
Fig. 5.
NO
COM
NC
DC24V Power Supply
I+
G
DI-9319E Digital Zone Monitor Unit
Conventional Detectors Conventional Detectors
4.7kΩ End-of-line Resistor
V1
V2
Accessories and Tools
Model
Name
Remark
P-9910B
Hand Held
Programmer
Order
separately
RT-0.25W-4.7k
Ω±5%-25mm
Resistor
Provided
Specification
Operating Voltage
Loop: 24VDC (16VDC-28VDC)
Power: 24VDC(20VDC-28VDC)
Standby Current
Loop≤ 0.38mA
mA Power≤ 10mA
Action Current
Loop ≤ 0.39mA
Power≤ 60mA
Output Capacity
2A@30VDC
Relay Output
NO or NC
Input Capacity
Up to 30 conventional detectors
Programming
Method
Electronically addressed. Code
range is within 1 - 242.
Indicators
Alarm LED: Red, illuminates in
fire condition, quiet when 24V
power is off and flashes in other
states.
Fault LED: Yellow, it turns 0.5s
on, 0.5s off when input fault
occur, 0.2s on and 0.2s off
when output faults occur, 0.1s
on and 0.9s off when ground
fault occurs. It lights steadily
when loop faults occur and it
turns off in other states.
Ingress Protection
Rating
IP30
Operating
Temperature
-10°C - +55°C
Relative Humidity
≤ 95%, non-condensing
Compatible
DIN-Rail
35mm DIN-Rails
Material and Color
of Enclosure
ABS, white (RAL9016)
Dimension
(L×W×H)
85.3mm×78mm×33mm
Weight
About 74.1g
Limited Warranty
GST warrants that the product will be free of charge for
repairing or replacing from defects in design, materials
and workmanship during the warranty period. This
warranty shall not apply to any product that is found to
have been improperlyinstalled or used in any way not in
accordance with the instructions supplied with the
product. Anybody, including the agents, distributors or
employees, is not in the position to amend the contents
of this warranty. Please contact your local distributor for
products not covered by this warranty.

30310468 Issue 1.05
Product warnings and disclaimers
THESE PRODUCTS ARE INTENDED FOR SALE TO,
AND INSTALLATION BY, AN EXPERIENCED
SECURITY PROFESSIONAL. UTC FIRE & SECURITY
CANNOT PROVIDE ANY ASSURANCE THAT ANY
PERSON OR ENTITY BUYING ITS PRODUCTS,
INCLUDING ANY “AUTHORIZED DEALER”, IS
PROPERLY TRAINED OR EXPERIENCED TO
CORRECTLY INSTALL SECURITY RELATED
PRODUCTS.
For more information on warranty disclaimers and
product safety information, please check
https://firesecurityproducts.com/policy/product-warning/
or scan the following code:
This Data Sheet is subject to change without notice. Please contact GST for more information or questions.
