Gudsen MOZA Lite 2 Operation instructions

MOZA Lite 2 Mimic Motion Control Tutorials
Parts schematic
Figure 1
MOZA thumb controller schematic

Please note that to use the mimic motion control functionality, it requires to
upgrade both the firmware of the MOZA thumb controller and the MOZA Lite 2
gimbal first.
Steps to upgrade the firmware of MOZA thumb controller:
1. With the thumb controller off, long press “SPEED” without releasing it, connect
controller to computer through USB port, release “SPEED” button when the screen
displays “connecting”.
2. Launch MOZAAssistant after installing the driver. When the screen displays “Connect
OK”, MOZA Assistant enters the interface of firmware upgrade.
3. Ensure the network being connected, MOZAAssistant will display information of
firmware version and upgrade, click “Upgrade” to start upgrading the thumb controller.

Upgrade Firmware of the MOZA Lite 2 Gimbal：
1. Use the MOZAAssistant Software to Upgrade on Computer：
Press the joystick to turn MOZA Lite 2 on and enter the firmware upgrading mode. The
indicator will blink and the motors power off. Connect the gimbal to computer with USB
cable and then launch GUI. GUI will automatically recognize the status of the MOZALite 2
and enter the firmware upgrading interface. Connect to the network and click "Upgrade".
The GUI will automatically download the latest firmware and rewrite it to the MOZA Lite 2.
Plug out USB after upgrading is done 100% and restart the MOZA Lite 2.
2. Use the MOZAAssistant App to Upgrade on Your Phone：
Press the joystick to turn MOZA Lite 2 on and enter the firmware upgrading mode. The
indicator will blink and the motors power off. Turn on Bluetooth and search your MOZA
device to connect. The MOZAAssistantApp will recognize MOZALite 2's status and enter
the firmware upgrading interface. Make sure network is connected and click "Upgrade".
The App will automatically download the latest firmware and rewrite it to the MOZA Lite 2.
After the upgrading is 100% done, disconnect and restart the MOZALite 2. It takes around
20 minutes to upgrade firmware on the mobile phone.
Operation Guides:
Only apply to version D of the MOZA thumb controller
1. Pair MOZALite 2 with the thumb controller (which has been paired after manufacture).
2. Turn MOZA Lite 2 on.
3. Calibration should be done when you use this function for the first time or drifts and
unstable situations occur, please refer to mimic control calibration.

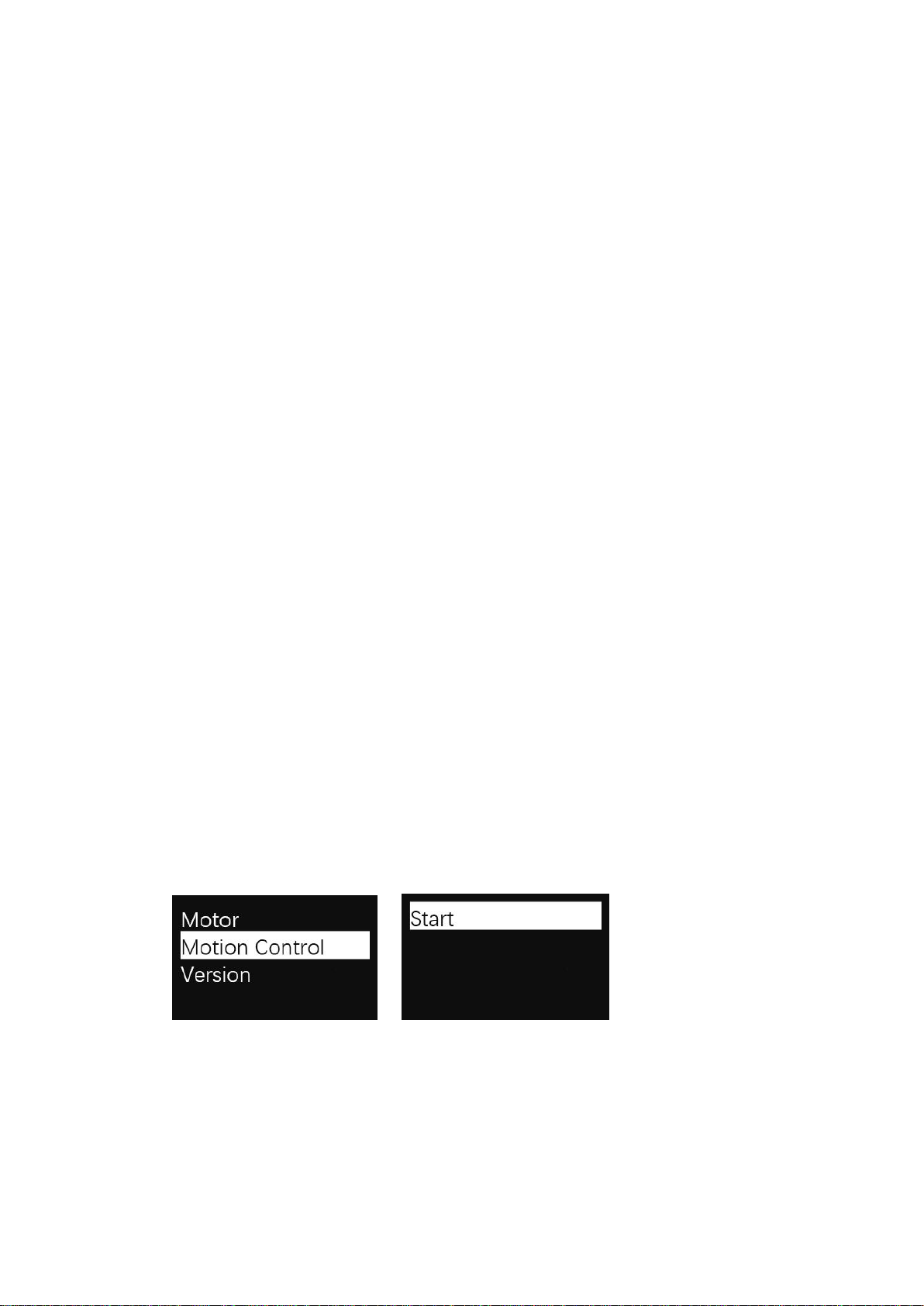

4. Long press “OPTIONS” to enter the menu. Select “Motion Control””Start” to enter the
mimic control mode.
5. The screen displays parameters of each axis after entering the mimic control mode. If
“Error” pops out on the screen, please check the thumb controller code or try it again.

6. If the attitude of MOZA Lite 2 is inconsistent with the thumb controller in mimic control
mode, long press “SPEED” button to pause mimic control, turn the thumb controller to a
desired position, then release “SPEED” to restart control when both attitudes become
consistent.
7. Move the joystick leftwards to exit the mimic control mode.
Mimic control calibration
1. Place the thumb controller and MOZA Lite 2 well like figure 1
2. Long press “OPTIONS” to enter the menu. Select “Motion Control”->”Motion Calib” to
start calibration.
3. Keep the thumb controller still, until the screen displays “Success” or “Fail”.
