Guilin Woodpecker Medical Instrument Ai-Motor MotoPex User manual

Please read this User Manual carefully before use for operating
instructions, care and maintenance.

Contents
1 Product introduction .............................................................................. 1
2 Installation ............................................................................................. 6
3 Function and operation of product ....................................................... 14
4 Operation instruction ............................................................................ 17
5 Troubleshooting ................................................................................... 31
6 Cleaning, Disinfection and Sterilization .............................................. 32
7 Storage, maintenance and transportation ............................................. 41
8 Environmental protection ..................................................................... 42
9 After service ......................................................................................... 42
10 European authorized representative ................................................... 42
11 Symbol instruction ............................................................................. 43
12 Statement ............................................................................................ 43
13 EMC-Declaration of conformity ........................................................ 43

1
Note: The description on reciprocating mode is only
applicable for the device that has reciprocating mode.
1 Product introduction
1.1 Preface
Guilin Woodpecker Medical Instrument Co., Ltd is a professional
manufacturing company that produces a wide range of dental products.
It devotes a lot of time and resources to the research and development
of innovative dental products with a robust quality control mechanism.
Guilin Woodpecker Medical Instrument Co., Ltd has two brands,
Woodpecker and DTE. Its main products include Ultrasonic Scalers,
Curing light, Apex locators, Ultrasurgery equipment, Endo Motors, etc.
1.2 Product description
Endo Motor ( model: Ai-Motor MotoPex) is used in Endodontic treatment. It
is a cordless endo motor with an integrated apex locator. It can be used as
an endo motor to prepare and enlarge root canals or as a device for
measuring canal length. It can be used to enlarge the canals while
monitoring the position of the file tip inside the canal.
Features:
a) Efficient brushless motor, low noise, long service life.
b) Cordless portable endo motor with integrated apex locator
c) 360 degrees rotation of the contra-angle
d) Adapt real-time feedback technology and dynamic torque control
effectively preventing file separation.
1.3 Model and specification
Ai-Motor, MotoPex
Please refer to packing list for device configurations.
1.4 Performance and composition
The device is composed of a charging base, motor handpiece, contra-angle,
measuring wire, lip hook, file clip, power adapter, protective silicon cover,
etc.

2

3

4
1.5 Scope of application
1.5.1 The device can be used for preparation and enlargement of root
canals, or device for measuring canal length.
1.5.2 This device must only be used in hospital environments, clinics or dental
offices by qualified dental personnel
1.6 Contraindication
a) This endo motor with an integrated apex locator should be used
with caution in patients with a cardiac pacemaker.
b) Contraindicated to use in Hemophilia patients.
c) Use with caution in patients with heart disease, pregnant women
and young children.
1.7 Warnings
1.7.1 Please carefully read this Instruction Manual before using
for the first time.
1.7.2 This device should be operated only by a qualified
dentist or professional in a registered hospital or clinic.
1.7.3 Do not place this device near the heat source directly or
indirectly. Operate and store this device in a safe and protected
environment.
1.7.4 This device requires special precautions regarding
electromagnetic compatibility (EMC) and must be in strict accordance
with the EMC information for installation and use. Do not use this
equipment especially in the vicinity of fluorescent lamps, radio
transmitting devices, remote control devices, handheld and mobile high-
frequency communication devices.
1.7.5 Reciprocating mode usage for a long time may result in
overheating of the device. The device should be switched off for some
time to allow cooling down. If the motor handpiece is overheated
frequently, please contact the local distributor.
1.7.6 Please use the original contra angle head to avoid adverse
consequences.
1.7.7 Please do not make any alterations to this device. Any changes
made may violate safety regulations, that can cause harm to the patient.
1.7.8 Please use the original power adapter. Other power adapters
may result in damage to the lithium battery and control circuit.
1.7.9 The motor handpiece cannot be autoclaved. Use disinfectant of
neutral pH value or ethyl alcohol to wipe its surface.

5
1.7.10 Do not activate the push button on the contra-angle head
during operation or slow down This leads to damage of the head or
instrument separation.
1.7.11 Do not remove the contra-angle head when the handpiece is
rotating. If removed may result in the damage of the gear inside the motor
handpiece
1.7.12 Please confirm whether the file is well inserted and locked
before starting the motor handpiece.
1.7.13 Please set the torque and speed as per the recommended
specifications of file manufacturer.
1.7.14 Error in replacing lithium batteries can lead to unacceptable
risks, so use the original lithium battery and replace the lithium battery
according to the instructions.
1.7.15 Do not place the equipment in a difficult position to avoid difficulty
in disconnection after use,
1.7.16 Please remove the battery if the Endo motor is not likely to be
used for some time.
1.7.17
Wireless charging will generate heat, and the surface temperature
of the charging base and motor handpiece will rise. It is
recommended that the time of contact between the motor handpiece
and charging base during wireless charging should not exceed 10
seconds (only for Ai- Motor).
1.8 Device safety classification
1.8.1 Type of operation mode: Continuous operating device
1.8.2 Type of protection against electric shock: Class II equipment
with internal power supply
1.8.3 Degree of protection against electric shock: B type applied part
1.8.4 Degree of protection against harmful ingress of water: Ordinary
equipment (IPX0)
1.8.5 Degree of safety application in the presence of a flammable
anesthetic mixture with air, oxygen, or nitrous oxide: Equipment cannot
be used in the presence of a flammable anesthetic mixture with air,
oxygen, or nitrous oxide.
1.8.6 Applied part: contra angle, lip hook, file clip, touch probe.
1.8.7 The contact duration of applied part: 1 to 10 minutes.
1.8.8 The temperature of the surface of applied part may reach till
46.6℃.

6
1.9 Primary technical specifications
1.9.1 Battery
Lithium battery in motor handpiece: 3.7V /2000mAh
1.9.2 Power adapter (Model: DJ-0500100-A5)
Input: ~100V-240V 50Hz/60Hz 0.5-0.2A
Output: DC5V/1A
1.9.3 Torque rang: 0.4Ncm-5.0Ncm（4mNm ~ 50mNm）
1.9.4 Speed rang: 100rpm~1200rpm
1.9.5 Wireless charging (only for Ai-Motor)
Frequency range: 112-205KHz
Maximum RF output power of the product: 9.46dBuA/m@3m
1.10 Environment parameters
1.10.1 Environment temperature: +5℃ ~ +40℃
1.10.2 Relative humidity: 30% ~ 75%
1.10.3 Atmospheric pressure: 70kPa ~ 106kPa
2 Installation
2.1 Basic accessories of product
Motor handpiece Contra angle
Ai-Motor Charging base MotoPex Charging base
Nozzle Protective silicon cover

7

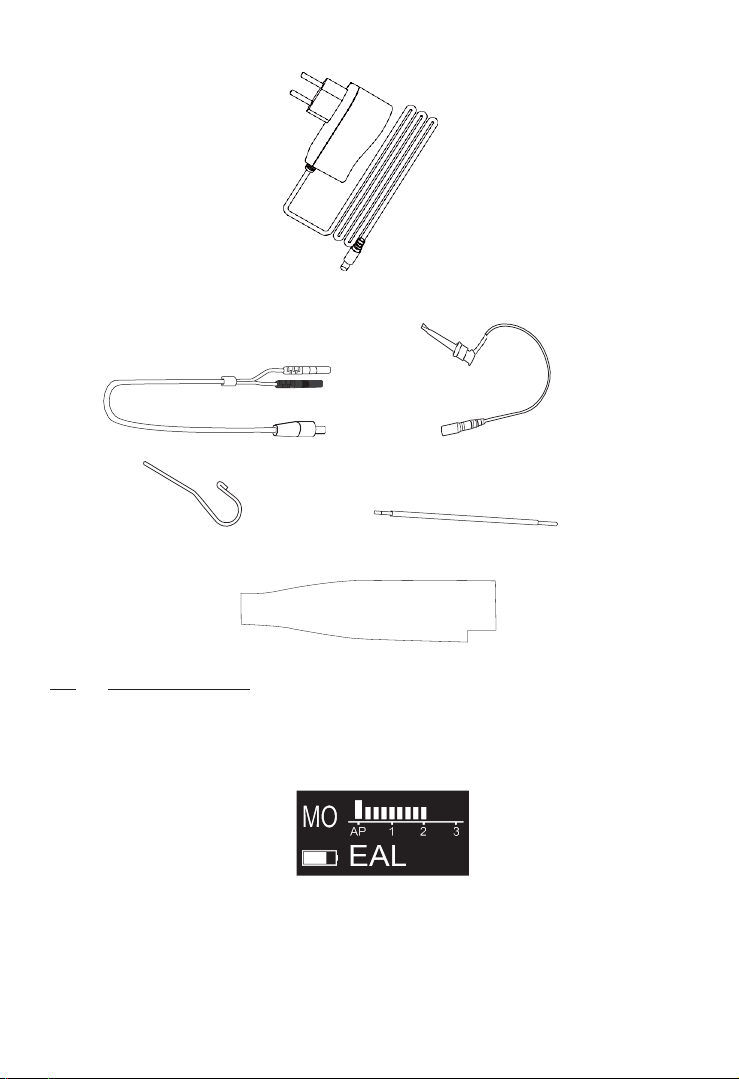

Power adapter
Measuring wire File clip
Lip hook Touch probe
Disposable insulation sleeves
2.2 Display Screens
2.2.1 Display Screens for 5 Operation Modes and Standby
2.2.1.1 EAL Mode
This mode is for canal measurement. The motor handpiece does not
run in this mode.
2.2.1.2 CW Mode
The motor handpiece rotates forward 360º, clockwise direction. It is
used for rotary files such as WOODPECKER W3-Pro.

8
2.2.1.3 CCW Mode
The motor handpiece rotates in a counterclockwise direction only. This
mode is used to inject calcium hydroxide or any other intracanal
medicament. When this mode is used, a double-beep sound will be heard
continuously.
2.2.1.4 REC Mode
Reciprocating mode.
F: Forward angle, R: Reverse angle
It is suggested that the difference between the forward angle and
reverse angle should be greater than or equal to 120 degrees, otherwise,
root canals cannot be prepared effectively.
Forward Angle<Reverse Angle, such as F:30/R:150, the effective
cutting angle is Reverse Angle, it is suitable for use of the reciprocating
files such as WOODPECKER W3-ONE.
Forward Angle>Reverse Angle, such as F:180/R:30, the effective
cutting angle is Forward Angle, it is suitable for use of the reciprocating
files such as SENDONELINE S1.
2.2.1.5 ATR Mode
ATR: Adaptive Torque Reverse function.

9
When the load on the file is greater than the set torque limit, the file
will start to rotate alternately at the set angle.

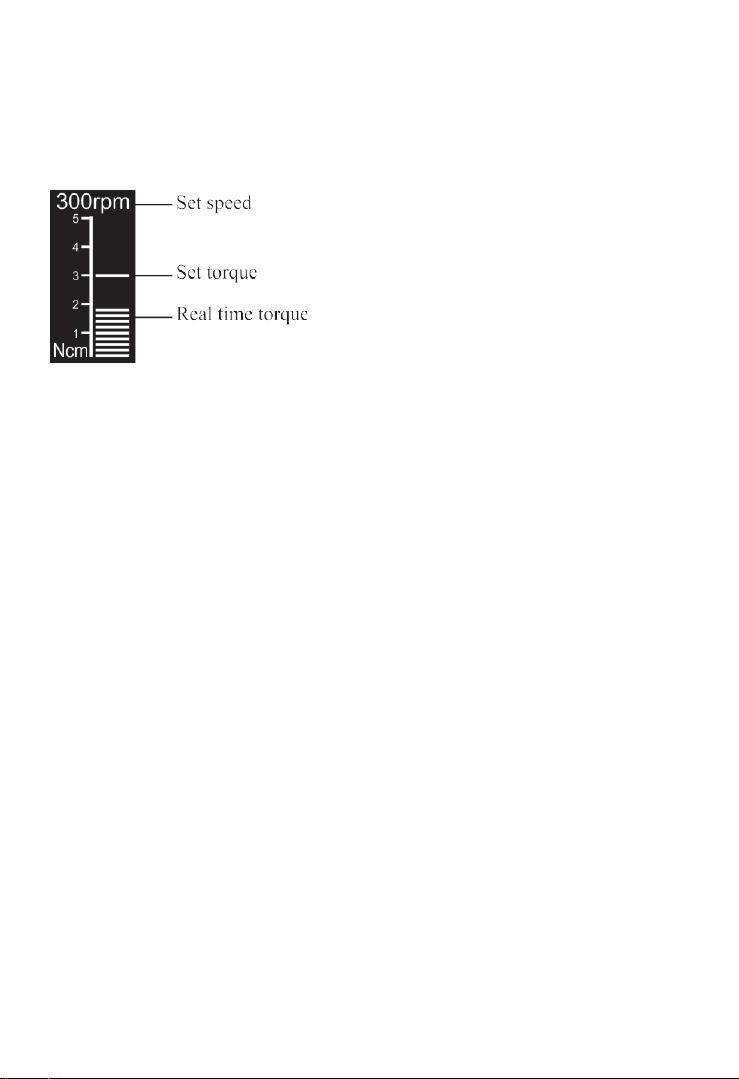

2.2.2 Torque Display
This appears when the device is operating. Display shows the torque load
on the file.

10

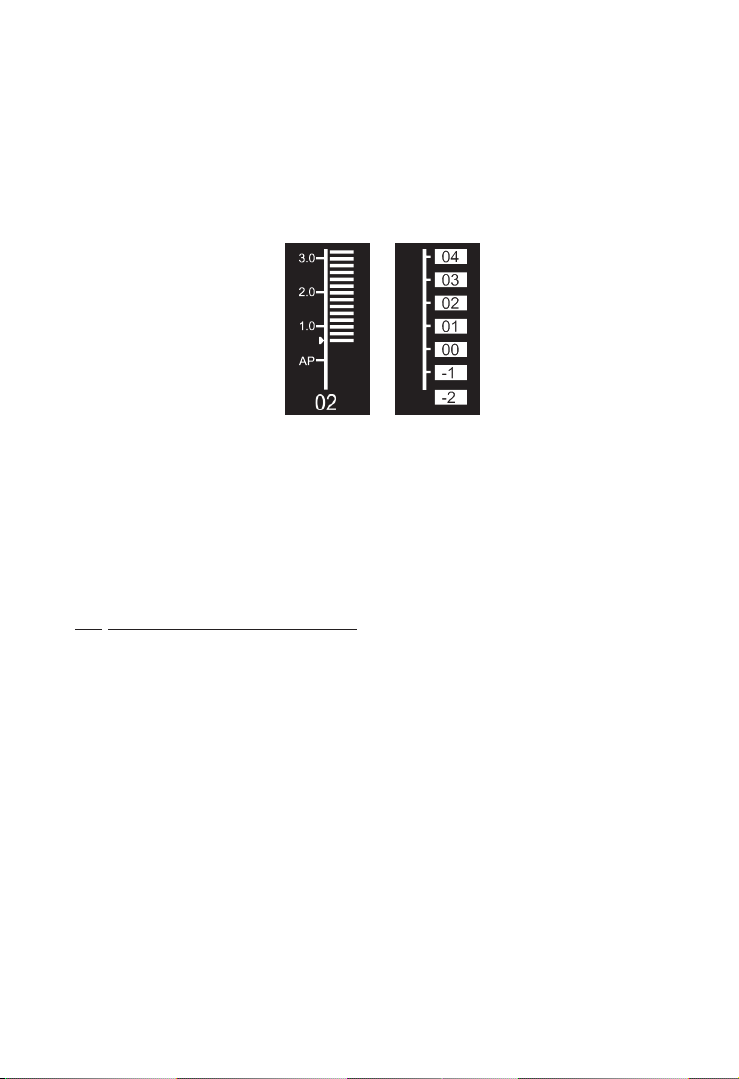

2.2.3 Canal Measurement Display
This appears when a file is inside the canal and the lip hook is in
contact with the patient’s lip. Bars on the display show the location of the
file tip in the root canal. In the EAL Mode, If the length is less than 1.0,
the display will be enlarged.
The numbers displayed such as 1.0, 2.0, 3.0 and digital numbers 00-16
do not represent the actual length from the apical foramen. It indicates the
file progression towards the apex. The digital numbers -1 and -2 indicate
that the file extended beyond the apical foramen. The digital number “00”
indicates that the file has reached the apical foramen. Subtract 0.5-1mm
from the measured file length as the working length. These numbers are
used to estimate the canal’s working length.
2.3 Instructions for contra angle
2.3.1 The contra angle adapts precision gear transmission, and the
transmission ratio is 6:1
2.3.2 Before the first use and after the treatment, please clean and
disinfect the contra-angle head with the disinfectant of neutral PH
value. After disinfection, lubricate it with recommended cleaning oil.
Finally, sterilize it under high temperature and high pressure (134℃,
2.0bar~2.3bar (0.20MPa~0.23MPa)). The contra angle should be used
only with this device. The contra angle will be damaged if there is a
mismatch with the device.

11
2.4 Installation and removal of contra angle.
2.4.1 Installation
Align one of the locating pins of the contra-angle with the positioning
slot on the motor handpiece and push the contra-angle horizontally.
When the three locating pins on the contra-angle are inserted into the
corresponding three positioning holes on the motor handpiece a “click”
sound indicates that the installation is achieved. The contra-angle can be
rotated 360° freely.
The contra-angle is free to rotate, adapting to the root canal in
different positions, and it is convenient to watch the display on the
device when operating by adjusting the position of the contra angle head.
2.4.2 Removal
Pull out the contra angle ahead away from the hand piece only after the
device is switched off.

12
Warnings:
a) Before plugging in or pulling out contra angle head, please make sure
the device is not in function.
b) Please ensure Contra angle is inserted properly into the hand
piece before use.
2.5 Insertion and removal of file
2.5.1 Insertion of file
The file should be inserted into the contra- angle head before starting the hand
piece. Press the push button on the contra-angle and insert the file. Tease
the file back and forth until it is oriented with an interior latch groove
and slips into place. Release the push button to make sure the file is
engaged properly in the contra-angle head.
Warnings:
After plugging the file into contra-angle, release the push button and assure that
the file cannot be taken out by gently pulling it.
Be careful when inserting files to avoid injury to fingers.
Inserting and removing files without holding the push button may damage the
chuck of the contra-angle.
Please use files with shanks that are in compliance with ISO standards. (ISO
standard: Ø2.334 – 2.350 mm)
2.5.2 Removal of file
Press the push button and then pull the file gently out of the contra-angle

13
Warnings:
Before Inserting and removing the file, the motor handpiece should not
be in function.
Be careful when removing files to prevent injury to fingers.
Removing files without pressing the push button will damage the
chuck of the contra-angle.
2.6 Working length measurement Assembly
Working Length Measurement Connection.
This assembly is required only when the working length is
measured or to simultaneously monitor the working length during
canal preparation.
Connect the measurement cable to the motor handpiece.
. Connect the measurement cable and turn on the device. Connect the
metal part of the connection hook to the lip clip. Make sure that the
accessories are cleaned properly before the test.
Orient measurement cable plug with the notch on the back of the
motor and secure it firmly.

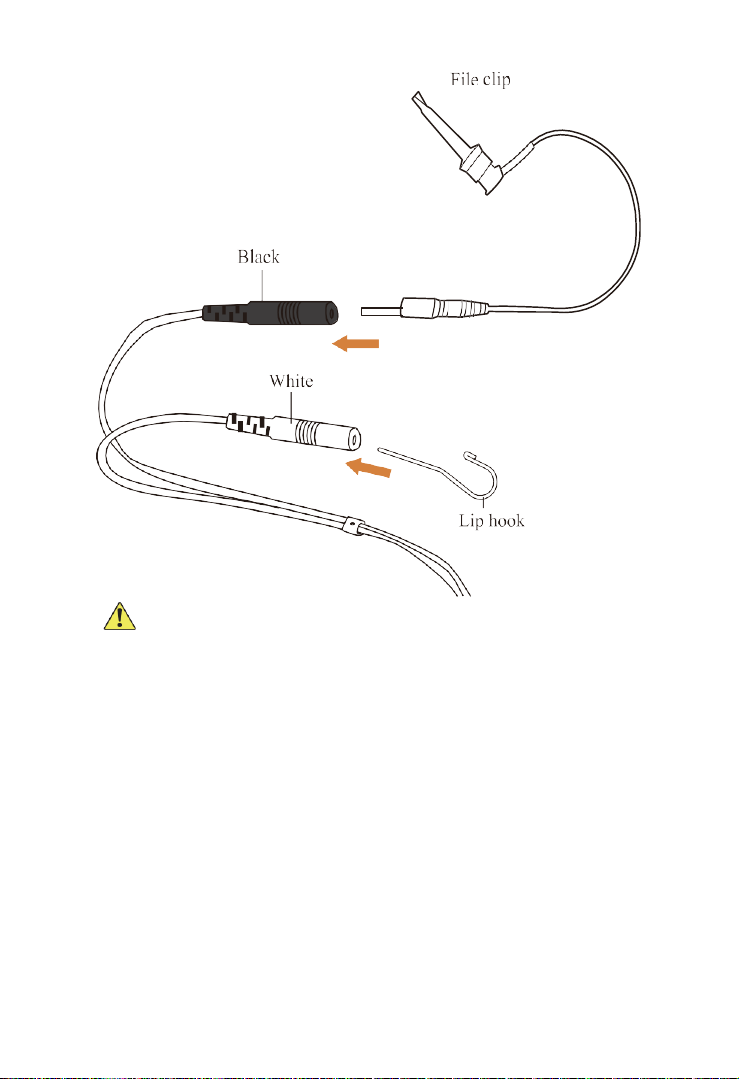

Connect the file clip plug into the socket (black) on the
measurement cable Connect the lip hook to the socket (white) on
the measuring wire.

14
Connect the lip hook to the socket (white) on the measurement cable
io monitor working length during the root canal preparation
Installation and removal of disposable insulation sleeves
2.7.1 Installation
Before each use of the handpiece and after the handpiece is cleaned
and disinfected, a disposable isolation sleeve should be used to cover the
handpiece. Take the isolation sleeve out of the isolation sleeve box,and
cover the motor handpiece from the thin end without any obvious wrinkle.
After covering the handpiece with the disposable isolation sleeve, wrap
the barrier film around the handpiece surface, clean and disinfect the
surface of the handpiece.
Warnings:

15
Refer to Chapter 6.3 for cleaning and disinfection procedures.
2.7.2 Removing
After each use, remove the barrier film and slowly pull the isolation
sleeve from the thin end of the handpiece.
Warming: Isolation sleeves are not reusable.

16
3 Function and operation of product
3.1 Button definition and settings
a. Power on
Press the Main button to turn on the motor handpiece.
b. Power off
Hold down the Setting button “P”, then press the Main button to turn off
motor handpiece.
c. Customized program change
Press Adjusting button “+”/ “-” during standby sate.
d. Parameter setting
Press Setting button “P” till target parameters, press Adjusting button “+”/ “-” to
change, then press Main button or wait 5 seconds to confirm.
e. Preset program selection
Long press Setting button “P” to enter the preset program during standby state,
press Adjusting button “+”/ “-” to select file system, press Setting button “P” to
enter the select file number, press Adjusting button “+”/“-” to select file number,
then press the Main button to confirm.
f. Handpiece functions setting
With the motor handpiece turned off, hold down the Setting button “P”

17
and press Main button to entry handpiece functions setting, press Setting
button “P” till target setting, press Adjusting button “+”/“-” to adjust, then
press the Main button to confirm.

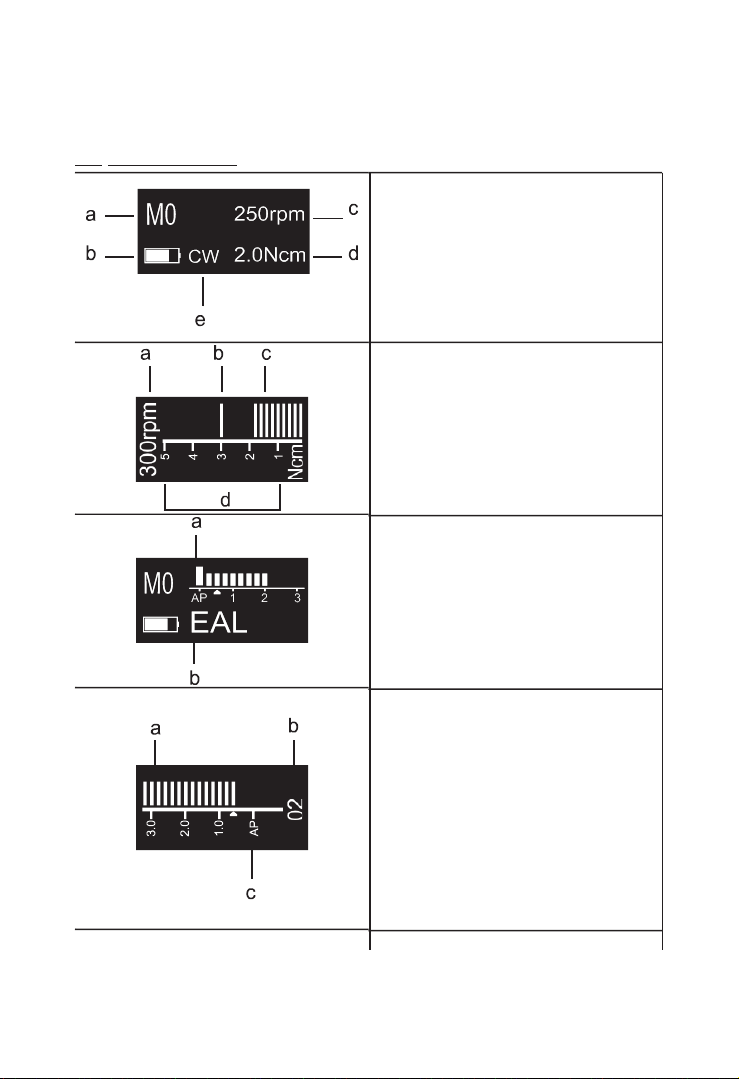

3.2 Screen display
Standby interface
a. Customized program sequence
number 0-9, total 10 programs.
b. Battery level
c. Set speed
d. Set torque
e. Operation mode
Working interface
a. Set speed
b. Set torque
c. Real time torque
d. Torque display scale
Working length measurement mode
interface
a. Apical reference point flash bar
b. EAL: Electronic apex locator
Working Length measurement state
interface
a. Canal length indicator bar
b. Indication number
Digital numbers 00-16 do not
represent the actual length from the
apical foramen. It simply indicates
the file progression towards the
apex. Number “00” indicate that the
file has reached the apical foramen.
c. Apical foramen.

18
3.3 Terms and definition
CW
Clockwise rotation, forward ration
applicable to rotary file
CCW
Counterclockwise rotation, reverse rotation
applicable to special files / lentilospirals to inject
calcium hydroxide or any other intracanal
medicaments or root canal sealers
REC
Reciprocating motion
Applicable to reciprocating file, path file and
to prevent rotary file separation by setting
some special angle.
ATR
Adaptive torque reverse
Up on setting torque, the motor will function in
reciprocating ATR mode; as the torque reduces
to normal value, the motor will function in
rotation mode.
Forward Angle
Angle of clockwise rotation of the file.
Reverse Angle
Angle of counterclockwise rotation of the file.
EAL
Electronic apex locator
In this mode, the device functions as a stand-
alone apex locator
AP
Apical foramen.
Apical Action
The file action when file tip reaches the flash bar
point.
Flash Bar Position
Shows the point inside the canal where specified
apical action is triggered.
Auto Start
The file starts rotating automatically when the file
is inserted in the canal.
Auto Stop
The file stops rotating automatically when the file
is of the canal.

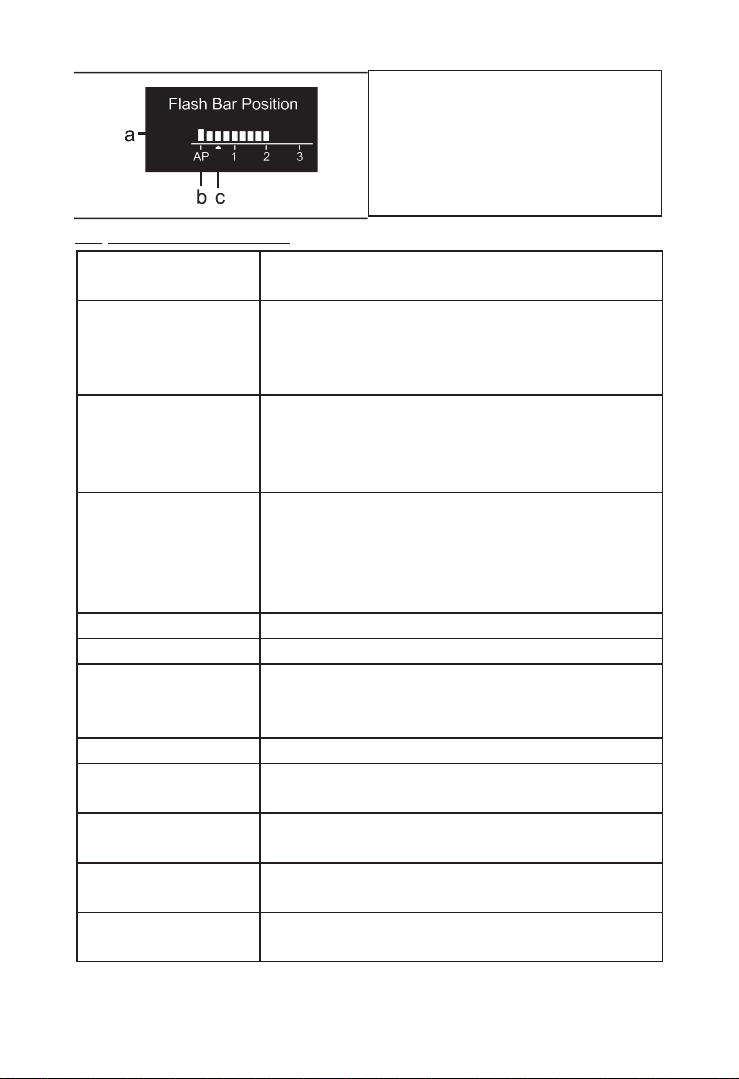

Apical reference point setting
interface
a. Apical reference point flash bar
b. Apical foramen
c. Digital “02” meter reading, very
close to the apical foramen.
