Introduction
Thank you for purchase Fi-P Heating and Packing Instrument
developed by Guilin Woodpecker Medical Instrument Co., Ltd, a Hi-tech
enterprise developing, manufacturing, and selling dental instruments.
Woodpecker has excellent Quality Control System. To guarantee correct
and safe operation, please read this Instruction Manual carefully before
use.Depending on the level of risk involved, safety requirements are
classed under the following indications:
Danger: (always referred to personal injury)
Warning: (referred to possible damage to property)
1 Product introduction
1.1 Intended use
It is used to provide heat to the Work Tip, cut the gutta-percha point,
and soften and pressurize the gutta-percha. And the applied part is Work
Tip.
1.2 Diagram of components and control buttons

2

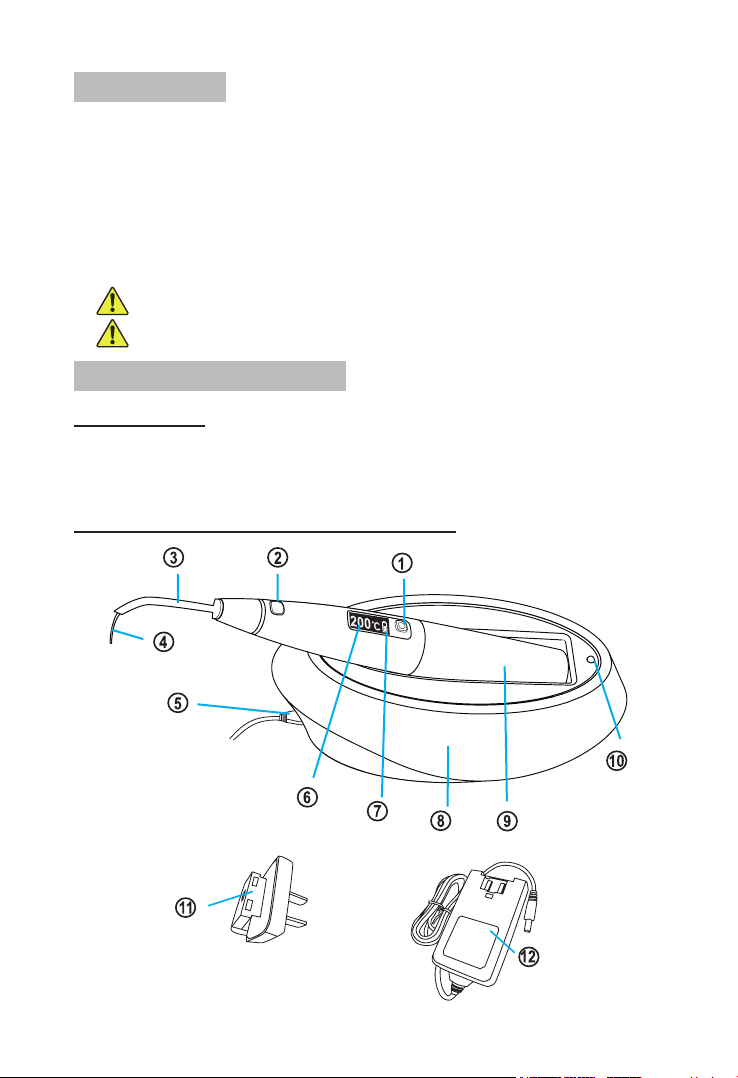

1. “ON/OFF” button 2. Heating button
3. Work Tip Protector 4. Work Tip
5. Connecting hole for power adapter 6. Temperature Level
7. Battery level 8. Charging base
9. Battery cartridge 10. Charging indicator
11. Power adapter plug 12. Power adapter unit
1) “ON/OFF” button:
Under shutdown state, shortly press “ON/OFF” button to start the
device.
Under shutdown state, long press “ON/OFF” button to start the device
and change the direction of screen display, that is to say, the direction of
display can be change to adapt to the operation in left hand or right hand.
Under ON state, long press “ON/OFF” button to shut down the device.
(Time for long press is about 1s.)
Note: If there is no operation for 10 minutes, the Heating and Packing
Instrument will automatically shut down.
Under ON state, shortly press “ON/OFF” button to change the preset
temperature of Work Tip. The preset temperature will change to the next
with the sequence 150℃→180℃→200℃→230℃ after each press. And
then go back to 150℃ after short press at temperature of 230℃.

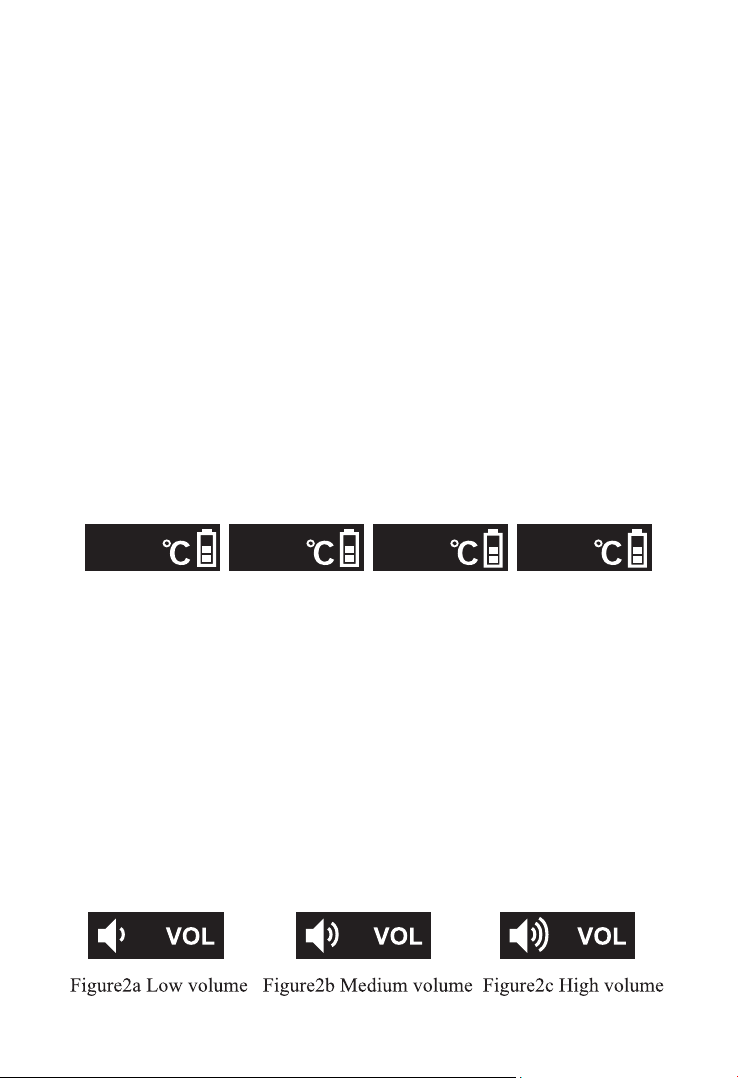

150 180 200 230
Figure 1 Preset temperature
2) Heating button:
Under the ON state, connect the Work Tip, and press Heating button to
start heating. Release the Heating button to stop heating, followed by the
fall of Work Tip temperature.
Note: If press and hold the Heating button for more than 10 seconds,
the device will stop heating. If need to continue heating, please release
the Heating button and press again.
3) Volume set
After power-on ,press “ON/OFF” button and “Heating” button
simultaneously to enter the voice volume setting mode, then short press
the “ON/OFF” button to select suitable voice volume, the last, short press
the “Heating” button to exit the voice volume setting mode as shown in
Figure2.

3
4) Battery level:
The actual power of the battery is displayed in real time on the screen.
When the battery is fully charged, the power of the OLED display is
displayed as ve grids. When the battery level is one grid, it indicates that
the battery is low and needs to be charged in time. When the battery level
is displayed as a space, it indicates that the battery is very low and needs
to be charged immediately.
Note: During normal use, try not to let the battery level reduced to
space status (completely no power) before charge, which will shorten the
service life of battery.
Warning:
If the device has not been used for more than one month, the battery
needs to be recharged. If the device is not in use for a long time, please be
sure to charge it at least once a month to protect the battery. The service
life of battery of Heating and Packing Instrument will be shortened when
it is in a low battery state for a long time or when it leaves the charging
base for a long time.
5) Temperature Level:
When the temperature is preset, the display screen shows the preset
temperature value. About 1s after the temperature preset, the OLED
screen will display the real-time temperature of the Work Tip. When the
Heating and Packing Instrument is in the heating state, the temperature
indicator will simultaneously display the current temperature of the Work
Tip.
6) Charging base:
Firstly, connect the power adapter plug to the power adapter as shown
in Figure 3. Then connect the power adapter to the power connecting hole
on the charging base as shown in Figure 4 and connect the power adapter
to a standard socket. Place the Heating and Packing Instrument correctly
on the charging base as shown in Figure 5, so that the charging connector
under the Heating and Packing Instrument can be reliably connected to
the output connector of the charging base. When the Heating and Packing
Instrument is properly connected to the charging base, the LED charging
indicator on the base will be on constantly. If the LED is ashing or not
lit, please check all the cables carefully.
There are charging status indicators on the charging base. When the
Heating and Packing Instrument is not placed on the charging base, the
indicator will ashes in yellow and green alternately. When the Heating

4
and Packing Instrument is placed on the charging base, if the charging
is being charged, the yellow indicator will be on constantly. When the
battery is full, the yellow indicator will be o and the green indicator will
be on constantly.
Notes: After receiving the device, please charge it immediately.
Before use, please be sure that battery is fully charged. When the device
is fully charged, the battery level of the Heating and Packing Instrument
led display screen is the highest. After the battery runs out, the time of
battery charging takes at least 2 hours and 30 minutes.
Figure 3 Installation of power adapter Figure 4 Connection to power supply
Figure 5 Charging
1.3 Device includes
1. Heating and Packing Instrument
2. Charging base
3. Power adapter with cord
4. Work Tips (The models are as shown in Table 2)
5. Work Tip Protector
6. Instruction Manual
7. Qualied Certication
8. Warranty card
9. Packing list
Model Work Tip
Size(mm)
Taper
WP4004 0.40 0.04
WP4504 0.45 0.04
WP5506 0.55 0.06

5
WP5508 0.55 0.08
Table 2 Model of Work Tips
1.4 Introduction and scope of application
1.4.1 Features:
a) The display can be set to both right and left sides, to meet the needs
of both left-hander and right-hander.
b) Cordless design for Heating and Packing Instrument effectively
broadens the operation space.
c) Sensitive temperature control, simple display, and convenient
operation; Press temperature setting button to set suitable working
temperature.
d) Four preset temperatures are for option: 150℃, 180℃, 200℃,
230℃.
e) If there is no operation for 10 minutes, the Heating and Packing
Instrument will automatically shut down.
1.4.2 Scope of application:
Used in the root canal obturation stage in endodontic treatment.
1.5 Product specications
Size Heating and Packing Instrument 23.8mm×158.3mm×23.8mm
Charging base 75.5mm×149.7mm×62.6mm
Weight
Heating and Packing Instrument 80g
Charging base 195g
Power adapter 167g
1.6 Technical parameters
Classication Class Ⅱ(AC/DC power adapter)
Optional preset
temperatures 150℃→180℃→200℃→230℃
Time consumption for
charging About 2.5h
Power supply Input AC100V-240V 50/60Hz
800mA
Output DC15V/1.6A
Battery capacity Chargeable battery 2000mAh
Heater Rating 10W

6
1.7 Environmental parameters
Temperature: +5℃ ~ +40℃
Humidity: 30% ~ 75%
Air pressure: 70kPa ~ 106kPa
1.8 Storage and transport
1. The device should be handled carefully and lightly. Be sure that
it is far from the vibration, and is installed or kept in a cool, dry, and
ventilated place.
2. Do not store the device together with the articles that are
combustible poisonous, caustic, or explosive.
3. The device should be stored in a room where the relative humidity
is 10% ~ 93%, the air pressure is 70kPa ~ 106kP, and the temperature is
-20℃ ~ +55℃.
4. Please avoid the device from strong shock or vibration during
transport. And please handle it carefully.
5. Please do not mix the device with hazardous articles during
transport.
6. Please avoid the device from sun, rain, and snow during transport.
2 Standard icons
Product serial number Follow Instructions for Use
Manufacturer Date of manufacture
Type B applied part Class II device
Power switch Ordinary equipment
Used indoor only Caution,hot surface
Can be autoclaved DC 15V
Device complies with WEEE directive
Attention! Please refer to the accompanying documents.

7
Humidity limit for storage: 10% ~ 93%
Atmospheric pressure for storage: 70kPa ~ 106kPa
Temperature limit for storage: -20℃ ~ +55℃
3 Contraindications
1. People who are allergic to known natural latex and metals such as
stainless steel, silver, copper, etc. are prohibited to use this device.
2. The patient with hemophilia is forbidden to use this device.
3. The patients with heart pacemaker are forbidden to use this device.
4. The dentists with heart pacemaker are forbidden to use this device.
5. Heart disease patients, pregnant women and children should be
cautious to use the equipment.
4 Installation and disassembly method of
accessories
4.1 Connection of power adapter
Connect the output point of power adapter to the charging base, and
connect the input point to the socket that meets the standard of this
power adapter. Please install in accordance with the procedures in Figure
3, Figure 4, and Figure 5. (Note: The installation in Figure 3 had been
nished before delivery.)
4.2 Installation and removal of Work Tip
1. After turning o the power switch, you can directly pull the Work
Tip o the Heating and Packing Instrument.
2. Place the used Work Tip in a certain container and disinfect it.
3. Select the desired work Work Tip and the hexagonal plug on the
Work Tip (as indicated by the red arrow in Figure 6). When installing
the work Work Tip as shown in Figure 7, you can select the appropriate
direction according to the usage to insert the Work Tip into the Heating
and Packing Instrument.
4. Install the Work Work Tip Protector to the Work Tip as shown in
Figure 8, to prevent scalding patient’s mouth during operation.
5. Under ON state, if the Work Tip hasn’t been installed or is in poor
connection, there would be an error code on display screen as shown in
Figure 9.

8
Figure 6 Work Tip Figure 7 Installation of Work Tip
open
Figure 8 Installation of
Work Tip Protector Figure 9 Error code
4.3 Installation and replacement of battery
When replacing the battery, as shown in Figure 10, first rotate the
battery barrel counterclockwise to remove the battery tube, then take the
old battery out of the battery tube, replace it with a new one, and nally
tighten the battery tube clockwise according to the corresponding thread.
Warning: When removing the battery, the screw under the
battery barrel (pointed by the arrow in Figure 10) does not need to be
unscrewed,just push the connector slightly inward to remove the battery.
Improper replacement of lithium batteries may result in unacceptable
risks,so replacement of lithium batteries requires trained personnel.
Figure 10 Replacement of battery
5 Operation method
1. According to the situation of patient, select suitable Work Tip and
install it. When installing the Work Tip, chose a suitable angle to install
the Work Tip.
Danger:
Don’t turn on the device when installing the Work Tip, to prevent
scalding the user by mistakenly pressing the heating button.
2. After pressing the “ON/OFF” button, the display screen of Heating
and Packing Instrument lights up and display the preheating temperature
and power status.

9
3. According to the actual situation, lightly press the temperature
setting button, and select suitable preheating temperature as per the
instruction on display screen.
4. During operation, lightly press the heating button so as to heat up
to the preset temperature, soften and pressurizing the gutta-percha with
careful, continuous and stable motion with the help of vertical pressurizer.
Note: The continuous heating time on gutta-percha cannot exceed 4s,
or there would be risk of scalding.
5. After operation, please clean, disinfect, and sterilize the Work Tip.
The specic method is shown in Chapter 9.1.
6 Charging instruction
6.1 Use the corresponding charging base for this device. Connect the
power adapter with the charging base, connect the power supply, and
then correctly place the Heating and Packing Instrument into the charging
base.
6.2 The battery used in this product has no memory and can be used at
any time or charged at any time.
6.3 Before rst use of this device, please charge it at least for 3 hours.
Warning: Only unplug the adapter to disconnect from the
network power.
7 Safety precautions
1. Do not polish the Work Tip.
2. Do not knock or scratch the Heating and Packing Instrument.
3. Do not place the Heating and Packing Instrument near an electronic
device, phone, radio or HD/satellite TV as these may affect the
temperature control of the Heating and Packing Instrument.
4. Keep the heating pressurizer, Work Tip, etc. under heating state
away from inammable and explosive materials.
5. Please keep the device clean before and after operation. Before each
use, please disinfect Work Tip and its accessories.
6. Users should be equipped with adequate protection such as glove,
mask, etc. to prevent cross-infection.
7. The product should be in strict accordance with relevant operation
specications of medical authority and relative regulations. The product
can only be operated by trained doctors or technicians.

10
8. Do not install, remove, or replace the Work Tip under heating state.
Please power o before replace the Work Tip.
9. The Work Tip must be correctly installed to prevent it from falling
o.
10. When the Work Tip is bent or worn, it will cause uneven heating.
The operator should replace the Work Tip in time according to the clinical
conditions;
11. After operation, please turn o the power immediately.
Woodpecker is specialized in producing medical instrument. We are
only responsible for the safety on the following conditions:
a) The maintenance, repair, and modification are made by the
manufacturer or the authorized dealers.
b) The charged components are original of “Woodpecker” and
operated according to instruction manual.
8 Cleaning, Disinfection, Sterilization and
Maintenance
The cleaning, disinfection and sterilization of Work Tip and Work Tip
Protector are as follow Unless otherwise stated, they will be hereinafter
referred to as “products”.
Warnings
The use of strong detergent and disinfectant (alkaline pH>9 or acid
pH <5) will reduce the life span of products. And in such cases, the
manufacturer takes no responsibility. This device shall not be exposed to
high temperature above 138℃.
Processing limit
The products have been designed for a large number of sterilization
cycles. The materials used in manufacture were selected accordingly.
However with every renewed preparation for use, thermal and chemical
stresses will result in ageing of the products. The maximum number of
sterilizations for Work Tip and Work Tip Protector is 300 times.
8.1 Initial processing
8.1.1 Processing principles
It is only possible to carry out effective sterilization after the
completion of eective cleaning and disinfection. Please ensure that, as
part of your responsibility for the sterility of products during use, only
sufficiently validated equipment and product-specific procedures are

11
used for cleaning/disinfection and sterilization, and that the validated
parameters are adhered to during every cycle. Please also observe the
applicable legal requirements in your country as well as the hygiene
regulations of the hospital or clinic, especially with regard to the
additional requirements for the inactivation of prions.
8.1.2 Post-operative treatment
The post-operative treatment must be carried out immediately, no later
than 30 minutes after the completion of the operation. The steps are as
follows:
1. Turn o the Heating Handpiece and allow it to stand on the base for
1 minutes to cool down to room temperature at the Work Tip;
2. Use a cotton swab or a clean soft cloth to remove the remaining
Gutta-percha material from the Work Tip,
3. Dry the product with a clean, soft cloth and place it in a clean tray.
Notes:
The water used here must be pure water, distilled water or deionized
water.
8.2 Preparation before cleaning
Steps
Tools: tray, clean and dry soft cloth.
1. Remove the Work Tip Protector from the handle and put it into a
clean tray.
2. Remove the Work Tip from the handle and place it in a clean tray.
3. Wipe the Work Tip and Work Tip Protector with a soft cloth until no
dirt can be seen on the surface. Then dry all accessories with a clean soft
cloth and put them into a clean tray. Cleaning agent can be pure water,
distilled water or deionized water
8.3 Cleaning
The cleaning should be performed no later than 24 hours after the
operation.
The cleaning can be divided into automated cleaning and manual
cleaning. Automated cleaning is preferred if conditions permit.
8.3.1 Automated cleaning
•The cleaner is proved to be valid by CE certificationin accordance
with EN ISO 15883.
▪The cleaning procedure is suitable for the product, and the irrigating
period is sucient.
It is recommended to use a washer-disinfector in accordance with

12
EN ISO 15883. For the specic procedure, please refer to the automated
disinfection section in the next section “Disinfection”.
Notes:
a) The cleaning agent does not have to be pure water. It can be distilled
water, deionized water or multi-enzyme. But please ensure that the
selected cleaning agent is compatible with the product.
b) In washing stage, the water temperature should not exceed 45 °C,
otherwise the protein will solidify and it would be dicult to remove.
c) After cleaning, the chemical residue should be less than 10mg / L.
8.4 Disinfection
Disinfection must be performed no later than 2 hours after the cleaning
phase. Automated disinfection is preferred if conditions permit.
8.4.1 Automated disinfection-Washer-disinfector
·The Washer-disinfector complies with EN ISO 15883.
·Use high temperature disinfection function. The temperature does not
exceed 134 ° C, and the disinfection under the temperature cannot exceed
20 minutes.
·The disinfection cycle is in accordance with the disinfection cycle in
EN ISO 15883.
Cleaning and disinfecting steps by using Washer-disinfector
1. Carefully place the product into the disinfection basket. Fixation of
product is needed only when the product is removable in the device. The
products are not allowed to contact each other.
2. Start the program.
3. After the program is nished, remove the product from the washer-
disinfector, inspect (refer to section “Inspection and Maintenance”) and
packaging (refer to chapter “Packaging”). Dry the product repeatedly if
necessary (refer to section“Drying”).
The intrinsic suitability of the product for effective cleaning and
disinfection using the above automated cleaning and disinfection
procedures was veried by a certied facility.
Notes:
a) Before use, you must carefully read the operating instructions
provided by the equipment manufacturer to familiarize yourself with the
disinfection process and precautions.
b) With this equipment, cleaning, disinfection and drying will be
carried out together.
c) Cleaning: (c1) The cleaning procedure should be suitable for the

13
product to be treated. The flushing period should be sufficient (5-10
minutes). Pre-wash for 3 minutes, wash for another 5 minutes, and rinse
it for twice with each rinse lasting for 1 minute. (c2) In the washing stage,
the water temperature should not exceed 45 °C, otherwise the protein
will solidify and it is dicult to remove. (c3) The solution used can be
pure water, distilled water, deionized water or multi-enzyme solution,
etc., and only freshly prepared solutions can be used. (c4)During the use
of cleaner, the concentration and time provided by manufacturer shall be
obeyed.
d) Disinfection: (d1) Direct use after disinfection: temperature ≥ 90℃,
time≥ 5 min or A0 ≥ 3000.(d2)Sterilize it after disinfection and use:
temperature ≥ 90℃, time ≥ 1 min or A0 ≥ 600.(d3) For the disinfection
here, the temperature is 93 ° C, the time is 2.5 min, and A0>3000.
e) Only distilled or deionized water with a small amount of
microorganisms (<10 cfu/ml) can be used for all rinsing steps.
(For example, pure water that is in accordance with the European
Pharmacopoeia or the United States Pharmacopoeia).
f) After cleaning, the chemical residue should be less than 10mg / L.
g) The air used for drying must be ltered by HEPA.
h) Regularly repair and inspect the disinfector.
8.5 Drying
If your cleaning and disinfection process does not have an automatic
drying function, dry it after cleaning and disinfection.
Methods
1. Spread a clean white paper (white cloth) on the at table, point the
product against the white paper (white cloth), and then dry the product
with filtered dry compressed air (maximum pressure 3 bar). Until no
liquid is sprayed onto the white paper (white cloth), the product drying is
completed.
2. It can also be dried directly in a medical drying cabinet (or oven).
The recommended drying temperature is 80℃~120℃ and the time
should be 15~40 minutes.
Notes:
a) The drying of product must be performed in a clean place.
b) The drying temperature should not exceed 138 °C;
c) The equipment used should be inspected and maintained regularly.
8.6 Inspection and maintenance
In this chapter, we only check the appearance of the product. After

14
inspection, ensure that there is no problem.
8.6.1 Check the product. If there is still visible stain on the product
after cleaning/ disinfection, the entire cleaning/disinfection process must
be repeated.
8.6.2 Check the product. If it is obviously damaged, smashed,
detached, corroded or bent, it must be scrapped and not allowed to
continue to be used.
8.6.3 Check the product. If the accessories are found to be damaged,
please replace it before use. And the new accessories for replacement
must be cleaned, disinfected and dried.
8.6.4 If the service time (number of times) of the product reaches the
specied service life (number of times), please replace it in time.
8.7 Packaging
Install the disinfected and dried product and quickly package it in a
medical sterilization bag (or special holder, sterile box).
Notes:
a) The package used conforms to ISO 11607;
b) It can withstand high temperature of 138 °C and has sucient steam
permeability;
c) The packaging environment and related tools must be cleaned
regularly to ensure cleanliness and prevent the introduction of
contaminants;
d) Avoid contact with parts of dierent metals when packaging.
8.8 Sterilization
Use only the following steam sterilization procedures (fractional pre-
vacuum procedure*) for sterilization, and other sterilization procedures
are prohibited:
1. The steam sterilizer complies with EN13060 or is certified
according to EN 285 to comply with EN ISO 17665;
2. The highest sterilization temperature is 138 ° C;
3. The sterilization time is at least 4 minutes at a temperature of
132℃/134℃ and a pressure of 2.0 bar ~ 2.3 bars.
4. Allow a maximum sterilization time of 20 minutes at 134 °C.
Verification of the fundamental suitability of the products for effective
steam sterilization was provided by a veried testing laboratory.
Notes:
a) Only products that have been eectively cleaned and disinfected are
allowed to be sterilized;

15
b) Before using the sterilizer for sterilization, read the Instruction
Manual provided by the equipment manufacturer and follow the
instructions.
c) Do not use hot air sterilization and radiation sterilization as this may
result in damage to the product;
d) Other sterilization procedures (e.g., ethylene oxide, formaldehyde
and bottom temperature plasma sterilization) may be used other than
those recommended above. If other sterilization procedures are used,
please follow the appropriate eective standards and verify the essential
suitability and effectiveness of the procedures.The manufacturer is not
responsible for sterilizing using an unproven sterilizing procedure.
* Fractional pre-vacuum procedure = steam sterilization with repetitive
pre--vacuum. The procedure used here is to perform steam sterilization
through three pre-vacuums.
8.9 Storage
8.9.1 Store in a clean, dry, ventilated, non-corrosive atmosphere with
a relative humidity of 10% to 93%, an atmospheric pressure of 70KPa to
106KPa, and a temperature of -20 °C to +55 °C;
8.9.2 After sterilization, the product should be packaged in a medical
sterilization bag or a clean sealing container, and stored in a special
storage cabinet. The storage time should not exceed 7 days. If it is
exceeded, it should be reprocessed before use.
Notes:
a) The storage environment should be clean and must be disinfected
regularly;
b) Product storage must be batched and marked and recorded.
8.10 Transportation
1. Prevent excessive shock and vibration during transportation, and
handle with care;
2. It should not be mixed with dangerous goods during transportation.
3. Avoid exposure to sun or rain or snow during transportation.
8.11 The cleaning and disinfection of main unit and charging base are as
follows.
Warnings: Do not clean the main unit and charging base with
ultrasound cleaning machine.
• Before each use, wipe the surface of the main unit and charging base
with a soft cloth or paper towel soaked in 75% medical alcohol. Repeat

16
the wipe for at least 3 times.
• After each use, wipe the surface of the main unit and charging base
with a soft cloth soaked in clean water (distilled or deionized water) or a
clean disposable wipe. Repeat the wipe for at least 3 times.
8.12 Daily maintenance
1. When the device is not used, please turn o the power and unplug
the power supply plug.
2. If the Heating and Packing Instrument is in a low battery state for a
long time, the service life of battery will be shortened. Please charge it in
time if the battery level is low.
3. When the device is not used, please charge it for 1 hour once a
month.
8.13 Repair of device
This product does not contain self-repairing spare parts. If there
is any abnormality in the equipment, please contact our company
for maintenance and do not disassemble without authorization. With
our company's consent, we will provide circuit diagrams, component
part lists, descriptions, calibration instructions to assist to SERVICE
PERSONNEL in parts repair.
9 Troubleshooting
Fault Cause Solution
No indications,
no response
1. Inadequate battery power
2. Battery is damaged.
3. The charging interface is
short-circuited, causing the
lithium battery to enter a
protection state;
4. Heating and Packing
Instrument is damaged.
1. Connect to power
supply to charge. /
Replace the battery.
2. Replace the battery.
3. Remove the substance
that causes the short
circuit, put the device
into the charging base
to charge, and then the
device will return to
normal;
4. Contact local distributor
or manufacturer.

17
Automatic
shutdown
If there is no operation for
10 minutes, the device will
automatic powers o.
Reboot
Work Tip
works
abnormally
1. The Work Tip is damaged.
2. Malfunction of main unit
1. Replace the Work Tip
2. Send it to the repair
center.
Charging
failure after
connecting to
power supply
1. The power supply is not
correctly connected;
2. The power supply is
damaged, or the specication
doesn’t match.
3. There are impurities on the
contact thimble of charging
base.
1. Unplug and reconnect.
2. Replace the battery.
3. Wipe the thimble
with alcohol, dry it, and
reconnect.
The service
time after each
charging is
shortened
The battery ages and the
battery capacity become
smaller.
Contact local distributor
or manufacturer to
buy new batteries for
replacement.
OPEN code
appears on
display screen
1. The Work Tip is damaged.
2. The Work Tip is not
installed.
3. The Work Tip is not well
installed.
1. Replace the Work Tip.
2. Install the Work Tip.
3. Unplug the Work Tip,
and reconnect.
If the problem still cannot be solved, please contact your local dealer
or our company.
10 After-sales service
Since the date of sales, if the device cannot work normally for quality
problem, our company will be responsible for the repair of device during
the warranty period. Please refer to the Warranty Card for warranty
period and warranty scope.
11 Environment protection
The device does not contain any harmful ingredients. It can be handled
or destroyed in accordance with the relevant local regulations.
Note:
1) Without Woodpecker agreement and authorization, private

18
modification of device may result in the electromagnetic compatibility
problem of that device or other devices.
2) The design and test of Heating and Packing Instrument complies
with the related operation regulations of electromagnetic compatibility.
12 EMC-Declaration of comformity
The device has been tested and homologated in accordance with EN
60601-1-2 for EMC. This does not guarantee in any way that this device
will not be effected by electromagnetic interference Avoid using the
device in high electromagnetic environment.
Technical Description Concerning Electromagnetic Emission
Table 1: Declaration - electromagnetic emissions
Guidance and manufacturer’s declaration - electromagnetic emissions
The model Fi-P is intended for use in the electromagnetic environment specied
below. The customer or the user of the model Fi-P should assure that it is used
in such an environment.
Emissions test Compliance Electromagnetic environment -
guidance
RF emissions
CISPR 11
Group 1 The model Fi-P uses RF energy
only for its internal function.
Therefore, its RF emissions
are very low and are not likely
to cause any interference in
nearby electronic equipment.
RF emissions
CISPR11
Class B The model Fi-P is suitable
for used in all establishments,
including domestic
establishments and those
directly connected to the public
low-voltage power supply
network that supplies buildings
used for domestic purposes.
Harmonic emissions
lEC 61000-3-2
Class A
Voltage uctuations /
icker emissions
lEC 61000-3-3
Complies
Technical Description Concerning Electromagnetic Immunity
Table 2: Guidance & Declaration - electromagnetic immunity
Guidance & Declaration — electromagnetic immunity
The model Fi-P is intended for use in the electromagnetic environment specied
below. The customer or the user of the model Fi-P should assure that It is used
in such an environment.
