Häfele HLS100 User manual

HLS100 - USER MANUAL
USER MANUAL
HLS100

2
PAGE 3
PAGE 4
PAGE 4
PAGE 4-5
PAGE 6
PAGE 6
PAGE 6
PAGE 7
PAGE 7
PAGE 7
PAGE 7
PAGE 8
PAGE 8
PAGE 8
PAGE 9
PAGE 9
PAGE 9
PAGE 10
PAGE 10
PAGE 10
PAGE 11
PAGE 11
PAGE 11
PAGE 12
CONTENTS
1. PRODUCT DIMENSIONS
2. PRODUCT FUNCTIONS
2.1 PARAMETERS
2.2 FUNCTIONS & FEATURES
3. OPERATIONS
3.1 MULTI USER MODE
3.1.1 MODE INTRODUCTION
3.1.2 SET LOCK INTO MULTI USER MODE
3.1.3 CHANGE THE MANAGER CODE
3.1.4 CHANGE THE USER CODE
3.1.5 HOW TO USE THE USER CODE
3.2 SINGLE USER MODE
3.2.1 MODE INTRODUCTION
3.2.2 SET LOCK INTO SINGLE USER MODE
3.2.3 CHANGE THE MANAGER CODE
3.2.4 CHANGE THE USER CODE
3.2.5 HOW TO USE THE USER CODE
3.3 LIMITED SINGLE USER MODE
3.3.1 MODE INTRODUCTION
3.3.2 SET LOCK INTO LIMITED SINGLE USER MODE
3.3.3 CHANGE THE MANAGER CODE
3.3.4 CHANGE THE USER CODE
3.3.5 HOW TO USE THE USER CODE
4. RESET LOCK

HLS100 - USER MANUAL
3

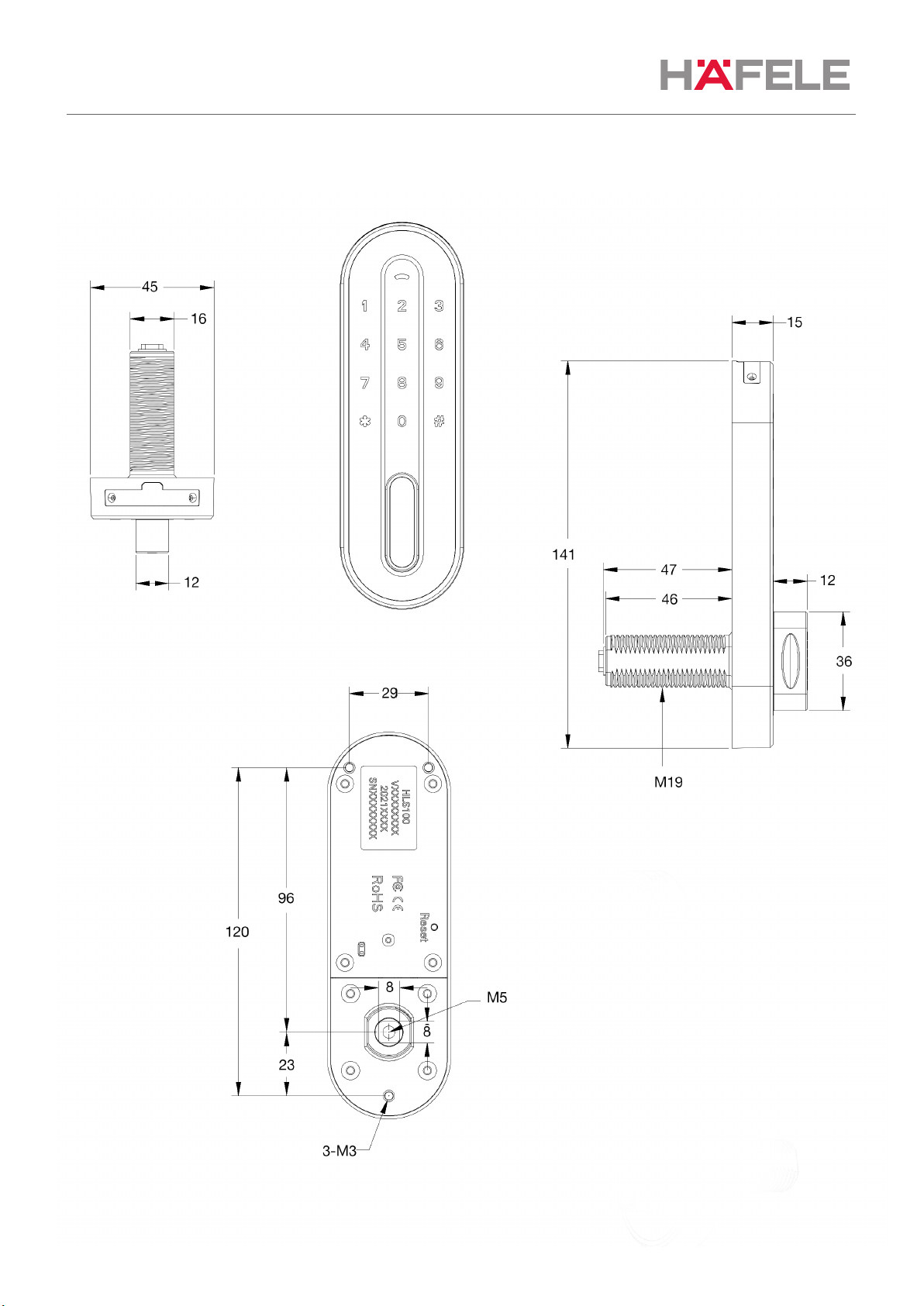

1. PRODUCT DIMENSIONS

HLS100 - USER MANUAL
4
2. PRODUCT FUNCTIONS
2.1 PARAMETERS
Material ABS for lock body shell, Zinc alloy for panel
Power consumption Stand-by power consumption<10mA
Static power consumption <25uA
Load current <300mA
Working voltage DC3V (2x CR2032 button cell battery)
Estimated working life 1 year
Working environment Working temperature -20C +65C
Working humidity 10% ~ 90%RH
Functions Features
Activate sound prompts Input “*#6#” and the lock will prompt with a “beep” and
green light will blink quickly. Input the “manager code#”
and green light will blink slowly. Then input “0#” and
lock will beep and green light will blink once. Sound
activation is successful.
*#6# > manager code# > 0#
Deactivate sound prompts Input “*#6#”and the lock will prompt with a
“beep” and green light will blink quickly. Input the
“manager code#” and green light will blink slowly. Then
input “1#” and lock will beep and green light will blink
twice. Sound deactivation is successful.
*#6# > manager code# > 1#
Scramble code protection 1. User can input any random numbers (before and/or
after) of the full correct code to unlock, as long as the
correct code is sequential.
2. The total code should be less than 20 digits.
Enable the function of scramble code Input “*#4#” and the lock will prompt with a
“beep” and green light will blink quickly. Input the
“manager code#” and green light will blink slowly. Then
input “0#” and the lock will beep. Scramble code has
been enabled successfully.
*#4# > manager code # > 0#
Disable the function of scramble code Input “*#4#” and the lock will prompt with “beep” and
green light will blink quickly. With a “beep” input the
“manager code#” and green light will blink slowly. Then
input “1#” and the lock will beep. Scramble code has
been disabled successfully.
*#4# > manager code # > 1#
Low Battery alarm When batteries voltage is lower than 2.4V the light
will shine in blue and the lock will prompt with “beep,
beep” on every opening to remind the user to change
batteries.
2.2 FUNCTIONS & FEATURES

5
HLS100 - USER MANUAL
Functions Features
Sound prompt Lock will prompt with sound when input
correct/incorrect code and when battery is in low
voltage.
Light prompt Green: correct operation
Red: wrong operation
Blue: low voltage
Alarming function Input the incorrect code and lock will shine in red
three times and prompt with “beep beep beep”. If
the incorrect code is entered 5 times continuously,
the lock will be unavailable for 5 minutes. During the
unavailable period, input any code and the lock light
will blink red.
Code functions 1. Manager code: For changing lock function
and can also be used for emergency unlock. It is
very important to keep the manager code safe and
secure.
2. User code: Only be used for locking and unlocking.
Note: Valid password must be 4~8 digits

HLS100 - USER MANUAL
6
3. OPERATIONS
3.1 MULTI USER MODE
3.1.1 MODE INTRODUCTION
Lock remains unlocked under multi user mode. Any 4-8 digit code can be used to lock and
unlock.
1. Put your belongings into the locker.
2. To Lock - Input any 4-8 digit code, close locker and turn the knob to the locked
position.
3. To Unlock - Input the same code and turn the knob to the unlocked position and
remove your belongings.
4. The locker is then available for the next user.
Important: Manager code should be programmed rst as the manager code can
be used for emergency unlock.

HLS100 - USER MANUAL
7
3.1.2 SET LOCK INTO MULTI USER MODE
*#2# > manager code # > 1#
INPUT *#2#,
GREEN LIGHT
WILL BLINK
INPUT MANAGER
CODE #, LIGHT
WILL
BLINK SLOWLY
INPUT 1#,
MOTOR REVERSE,
AND GREEN LIGHT
WILL BLINK
FOR 1S
SET TO MULTI
USER MODE
SUCCESSFULLY
3.1.3 CHANGE THE MANAGER CODE (FACTORY SETTING: 456789)
*#1# > old manager code # > new manager code # > new manager code #
INPUT *#1#,
GREEN LIGHT
WILL BLINK
QUICKLY
INPUT THE
OLD
MANAGER
CODE #,GREEN
LIGHT WILL
BLINK SLOWLY
INPUT THE
NEW
MANAGER
CODE #, TWICE
LOCK WILL
PROMPT WITH
“BEEP” AND
GREEN LIGHT
WILL BLINK
FOR 1S
MANAGER
CODE SET
SUCCESSFULLY
Important: Manager code can be used for emergency unlock.
3.1.4 CHANGE THE USER CODE
In multi user mode, there is no need to set user code. Input any 4-8 digit code into the lock
followed by the same code to unlock.
INPUT ANY 4-8
DIGIT CODE #
TURN THE KNOB TO
THE LOCKED
POSITION, LOCKED
SUCCESSFULLY
INPUT THE SAME
CODE WHICH
LOCKED THE LOCK
TURN THE KNOB
TO THE UNLOCKED
POSITION,
UNLOCKED
SUCCESSFULLY
3.1.5 HOW TO USE THE USER CODE

HLS100 - USER MANUAL
8
3.2 SINGLE USER MODE
3.2.1 MODE INTRODUCTION
Lock remains locked under single user mode. Input the user code to unlock, 5 seconds
later, motor reverse and lock will prompt with a “beep” to close. Turn the knob to the
locked position. No need input user code again.
Important: Manager code and user code should be set rst.
1. Input the user code, turn the knob to the unlocked position.
2. Take out/put in the belongings.
3. No need to input the code again, Just turn the knob to the locked position.
3.2.2 SET LOCK INTO SINGLE USER MODE
*#2# > manager code # > 0#
INPUT *#2#,
GREEN LIGHT
WILL BLINK
INPUT MANAGER
CODE #, LIGHT WILL
BLINK SLOWLY
INPUT 0#,
MOTOR REVERSE
AND GREEN LIGHT
WILL BLINK FOR 1S
SET TO SINGLE
USER MODE
SUCCESSFULLY

HLS100 - USER MANUAL
9
3.2.3 CHANGE THE MANAGER CODE (FACTORY SETTING: 456789)
*#1# > old manager code # > new manager code # > new manager code #
INPUT *#1#,
GREEN LIGHT
WILL BLINK
QUICKLY
INPUT THE
OLD
MANAGER
CODE #,GREEN
LIGHT WILL
BLINK SLOWLY
INPUT THE
NEW
MANAGER
CODE #, TWICE
LOCK WILL
PROMPT WITH
“BEEP” AND
GREEN LIGHT
WILL BLINK
FOR 1S
MANAGER
CODE SET
SUCCESSFULLY
Important:
1. Manager code can be used for emergency unlock.
2. The user code will be back to factory setting after using the manager code to unlock.
3.2.4 CHANGE THE USER CODE (FACTORY SETTING: 0123)
*#0# > old user code # > new user code # > new user code #
3.2.5 HOW TO USE THE USER CODE
INPUT *#0#,
GREEN LIGHT
WILL BLINK
QUICKLY
INPUT THE
OLD
USER CODE
#,GREEN LIGHT
WILL BLINK
SLOWLY
INPUT THE
NEW USER
CODE #,
TWICE
LOCK WILL
PROMPT WITH
“BEEP” AND
GREEN LIGHT
WILL BLINK
FOR 1S
USER CODE SET
SUCCESSFULLY
INPUT THE USER
CODE #, LOCK
WILL PROMPT
WITH “BEEP”
AND GREEN
LIGHT WILL
BLINK FOR 1S
MOTOR
REVERSE,
TURN THE
KNOB TO THE
UNLOCKED
POSITION
5 SECONDS
LATER, MOTOR
REVERSE
AND MAKES A
SOUND
TURN THE
KNOB TO THE
LOCKED
POSTION

HLS100 - USER MANUAL
10
3.3 LIMITED SINGLE USER MODE
3.3.1 MODE INTRODUCTION
Lock remains unlocked under limited single user mode. Input the user code to unlock and it will
stay unlocked until user code is used to lock.
Important: Manager code and user code should be set rst.
1. Input the user code, turn the knob to the unlocked position.
2. Take out/put in the belongings.
3. Input the user code and turn the knob on the locker to the locked position.
3.3.2 SET LOCK INTO LIMITED SINGLE USER MODE
*#2# > manager code # > 2#
INPUT *#2#,
GREEN LIGHT
WILL BLINK
INPUT MANAGER
CODE #, LIGHT WILL
BLINK SLOWLY
INPUT 2#,
MOTOR REVERSE
AND GREEN LIGHT
WILL BLINK
FOR 1S
SET TO LIMITED
SINGLE USER MODE
SUCCESSFULLY

HLS100 - USER MANUAL
11
3.3.3 CHANGE THE MANAGER CODE (FACTORY SETTING: 456789)
*#1# > old manager code # > new manager code # > new manager code #
INPUT *#1#,
GREEN LIGHT
WILL BLINK
QUICKLY
INPUT THE
OLD
MANAGER
CODE #,GREEN
LIGHT WILL
BLINK SLOWLY
INPUT THE
NEW
MANAGER
CODE #, TWICE
LOCK WILL
PROMPT WITH
“BEEP” AND
GREEN LIGHT
WILL BLINK
FOR 1S
SET MANAGER
CODE
SUCCESSFULLY
Important:
1. Manager code can be used for emergency unlock.
2. The user code will be back to factory setting after using the manager code to unlock.
3.3.4 CHANGE THE USER CODE (FACTORY SETTING: 0123)
*#0# > old user code # > new user code # > new user code #
INPUT *#0#,
GREEN LIGHT
WILL BLINK
QUICKLY
INPUT THE
OLD
USER CODE
#,GREEN LIGHT
WILL BLINK
SLOWLY
INPUT THE NEW
USER CODE #,
TWICE
LOCK WILL
PROMPT WITH
“BEEP” AND
GREEN LIGHT
WILL BLINK
FOR 1S
USER CODE SET
SUCCESSFULLY
3.3.5 HOW TO USE THE USER CODE
INPUT THE USER
CODE #, LOCK WILL
PROMPT WITH
“BEEP” AND GREEN
LIGHT WILL BLINK
FOR 1S
MOTOR REVERSE,
TURN THE KNOB
TO THE UNLOCKED
POSITION
INPUT THE USER
CODE #, MOTOR
REVERSE AND
MAKES A SOUND
TURN THE
KNOB TO THE
LOCKED
POSITION

HLS100 - USER MANUAL
12
4. RESET LOCK
OPTION 1:
PRESS THE “RESET” BUTTON
ON THE BACK OF THE LOCK
FOR 2 SECONDS
LOCK WILL PROMPT WITH
“BEEP BEEP BEEP”
AND GREEN LIGHT
WILL BLINK TWICE
RESET THE LOCK
SUCCESSFULLY
OPTION 2:
Input “*#5#”, the lock will prompt with a “beep beep” and green light will blink quickly. Input the
“manager code #”, and green light will blink slowly. Then input the “manager code #” again.
Important: After resetting, the lock will revert to factory settings.
IMPORTANT INFORMATION
1. # Is for conrming
2. If blue light blinks after opening the lock, it means that the lock is under lower voltage.
Please change the batteries.

13
