H.Koenig AXO800 User manual

INSTRUCTION MANUAL!
MANUEL D’UTILISATION
!BEDIENUNGSANLEITUNG
!GEBRUIKERSHANDLEIDING
!MANUAL DE UTILIZACIÓN
!MANUALE D’USO
AXO800
Vacuum Cleaner
Aspirateur
Staubsauger
Stofzuiger
Aspiradora
Aspiratore

ENGLISH
IMPORTANT SAFETY INSTRUCTIONS
Read this manual thoroughly before first use, even if you are familiar
with this type of product. The safety precautions enclosed herein
reduce the risk of fire, electric shock and injury when correctly adhered
to.
Keep the manual in a safe place for future reference, along with the
completed warranty card, purchase receipt and carton. If applicable,
pass these instructions on to the next owner of the appliance.
Always follow basic safety precautions and accident prevention
measures when using an electrical appliance, including the following:
Electrical safety and cord handling
• Before turning on, ensure that your electrical voltage and circuit
frequency correspond to those indicated on the appliance.
• To reduce the risk of electrocution, never operate this product or
handle the plug with wet hands, submerge it under water or spill
liquids into the product.
• Do not insert any objects into the appliance.
• If the supply cord is damaged, it must be replaced by the
manufacturer or its service agent or an appropriately qualified
person in order to avoid a hazard.
• Check the appliance and cord regularly for visible damage. Do not
use it if the cord or housing is damaged, if it has been dropped,
damaged, left outdoors or dropped into water, or if it appears faulty
in any way. Call the after sales support line if any part appears

damaged.
• Do not kink, bend, squash, strain or damage the power cord.
• Do not pull or carry the vacuum cleaner by the cord. Do not use the
cord as a handle, close a door on the cord or pull the cord around
sharp edges or corners.
Do not run the vacuum cleaner over the cord. Keep the cord away
from heated surfaces.
• Turn off the vacuum cleaner controls before connecting or
disconnecting it from the mains supply.
• WARNING: Always switch off and unplug the vacuum cleaner before
connecting or disconnecting the vacuum hose and accessories and
before emptying or cleaning the dust tank.
• Do not pull on the cord to disconnect the plug from the power
supply. To unplug, grasp the plug, not the cord, and gently pull it
out of the power point and then press the cord retraction button to
retract the cord.
Usage conditions and restrictions
• This appliance is intended for household use only. It is neither
suitable for commercial/industrial nor for outdoor use.
• Only use the vacuum cleaner on dry, indoor surfaces, as described
in this manual and with the original accessories supplied by the
manufacturer/distributor.
Do not use it for any purpose other than described in this manual.
• Improper installation and use may result in the risk of fire, electric
shock and/ or injury to persons. We assume no liability for any

eventual damages caused by improper or faulty use.
• This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities, or
lack of experience and knowledge, unless they have been given
supervision or instructions concerning use of the appliance by a
person responsible for their safety.
• Supervise young children to ensure they do not play with the
appliance. Close supervision is necessary when any appliance is
used by or near children.
• Never leave the appliance unattended.
Safe usage
• Keep hair, loose clothing, fingers and all parts of the body away
from openings and moving parts.
• Keep the end of the hose, wands and other openings away from
your face and body.
• Do not point the vacuum cleaner at people or animals when in use.
• Do not use the product without the filters in place.
• Take extra care when vacuuming on stairs.
• Do not use the vacuum cleaner to pick up: flammable or
combustible fluids (such as fuel or solvent); burning substances
(such ash, cigarettes or hot coals), or use it in the presence of
explosive liquids or vapours; hard or sharp objects such as shards
of glass, nails, coins; harmful or toxic materials (such as chlorine
bleach, ammonia, drain cleaner); any liquids, or vacuum in areas
where liquids may be present.

• Keep the vacuum cleaner away from heat sources (radiator, oven
etc.), direct sunlight, moisture and sharp edges.
• Keep all openings free of dust, lint, hair or anything that may reduce
the airflow.
Do not use the product with any openings blocked or restricted
airflow.
• Put the vacuum cleaner away after every use to prevent anyone
tripping over it.
• IMPORTANT: Washing the filters improves vacuum performance.
Make sure all filters are completely dry before reattaching them.
• Only clean the housing with a soft, dry cloth. Do not use liquid or
aerosol cleaners.
• Store the vacuum cleaner indoors in a cool, dry area, out of reach of
young children.
• Never attempt to open the motor base of the vacuum cleaner
yourself or to replace the power cord. If the vacuum cleaner is
damaged, it must be repaired by the manufacturer or its service
agent or an appropriately qualified person in order to avoid a
hazard. In case of damage, call the after-sales support line for
advice.

WARNING!
• Never use this machine when the suction power becomes very
weak.
When this happens:
• Switch off the unit, unplug it and check whether the dust
container is full.
• Then check if any part of the floor brush, tube or hose is blocked.
Do not use the vacuum cleaner until the blockage is removed and it
operates normally again.
If you cannot solve the problem, contact the after-sales support line.
• Always switch the vacuum cleaner off after use, and before plugging
it in again, make sure to hold the vacuum cleaner firmly when using
it.
• Always switch off and unplug the vacuum cleaner from the electrical
outlet before assembling, opening or emptying the dust bag, or
before connecting/ disconnecting the attachments.

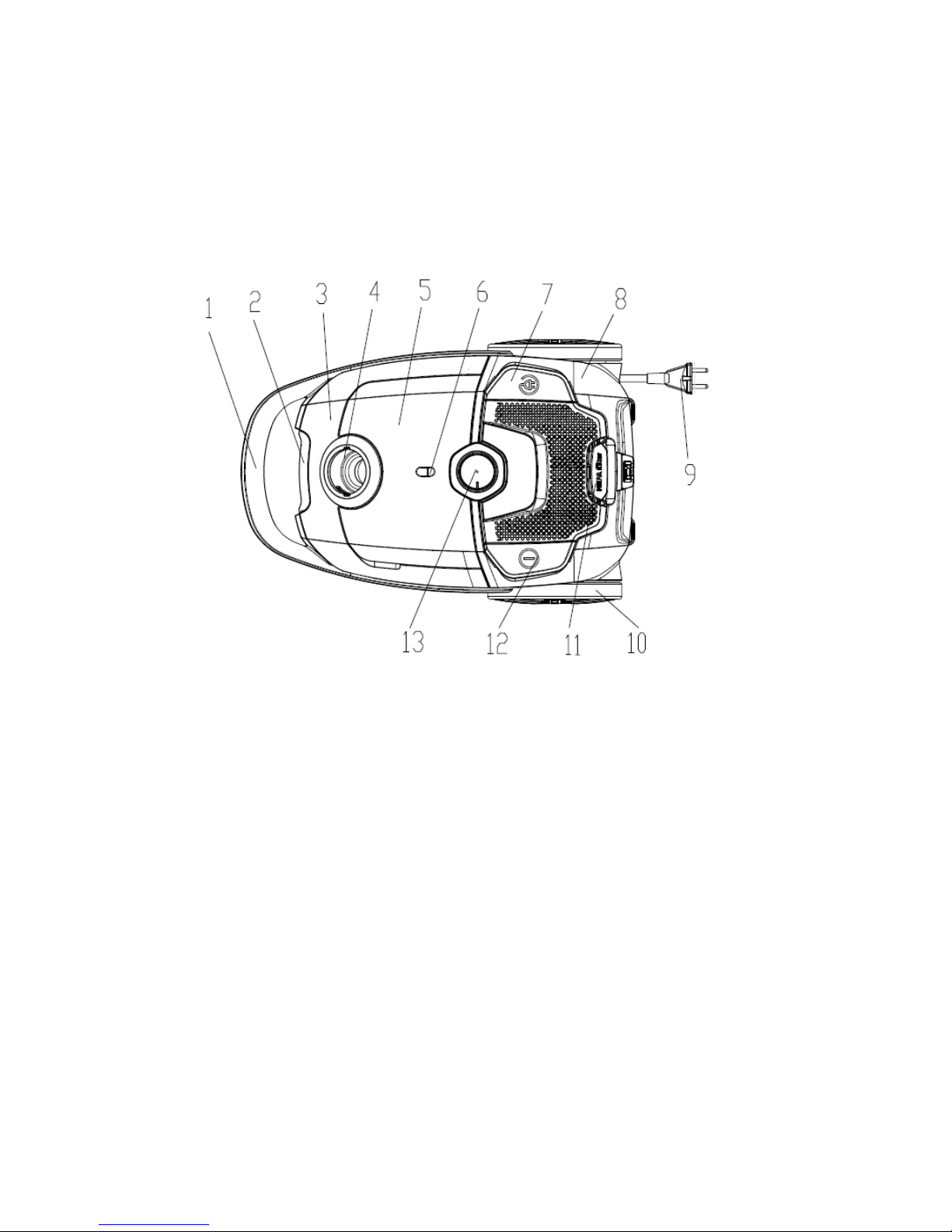

PARTS
1. Handle cover
2. Front cover Decorating Plate
3. Front cover
4. Suction Base
5. Accessories Cover
6. Dust full indicator
7. Cord Rewinding Button
8. Back Cover
9. Power Cord and Plug
10. Big Wheel
11. Air Outlet Cover
12. ON/OFF Switch Button
13. Mode Selection knob
Accessory List
A set of hose accessories, Include : one metal tube, one floor brush , one round brush ,one flat
brush.
Operation Method

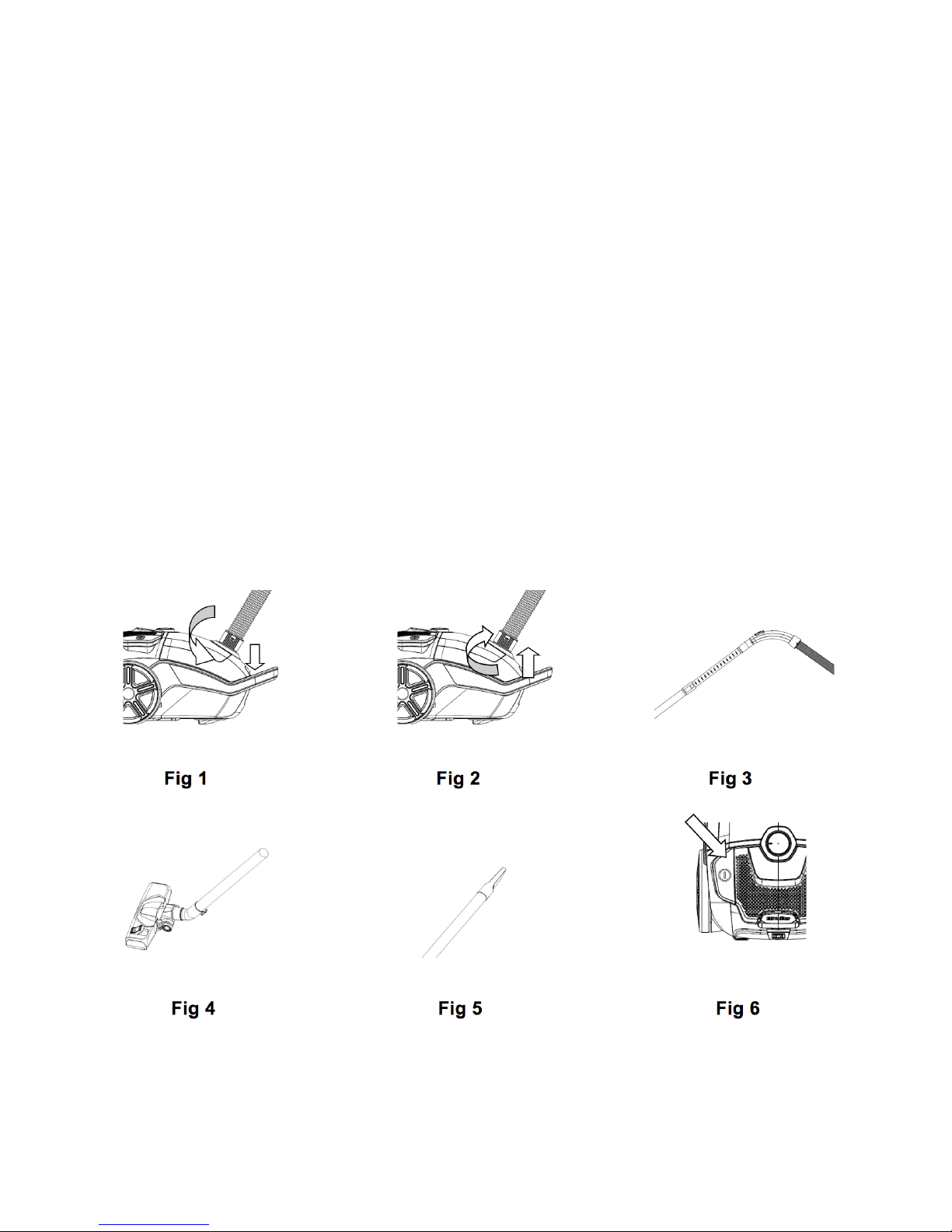

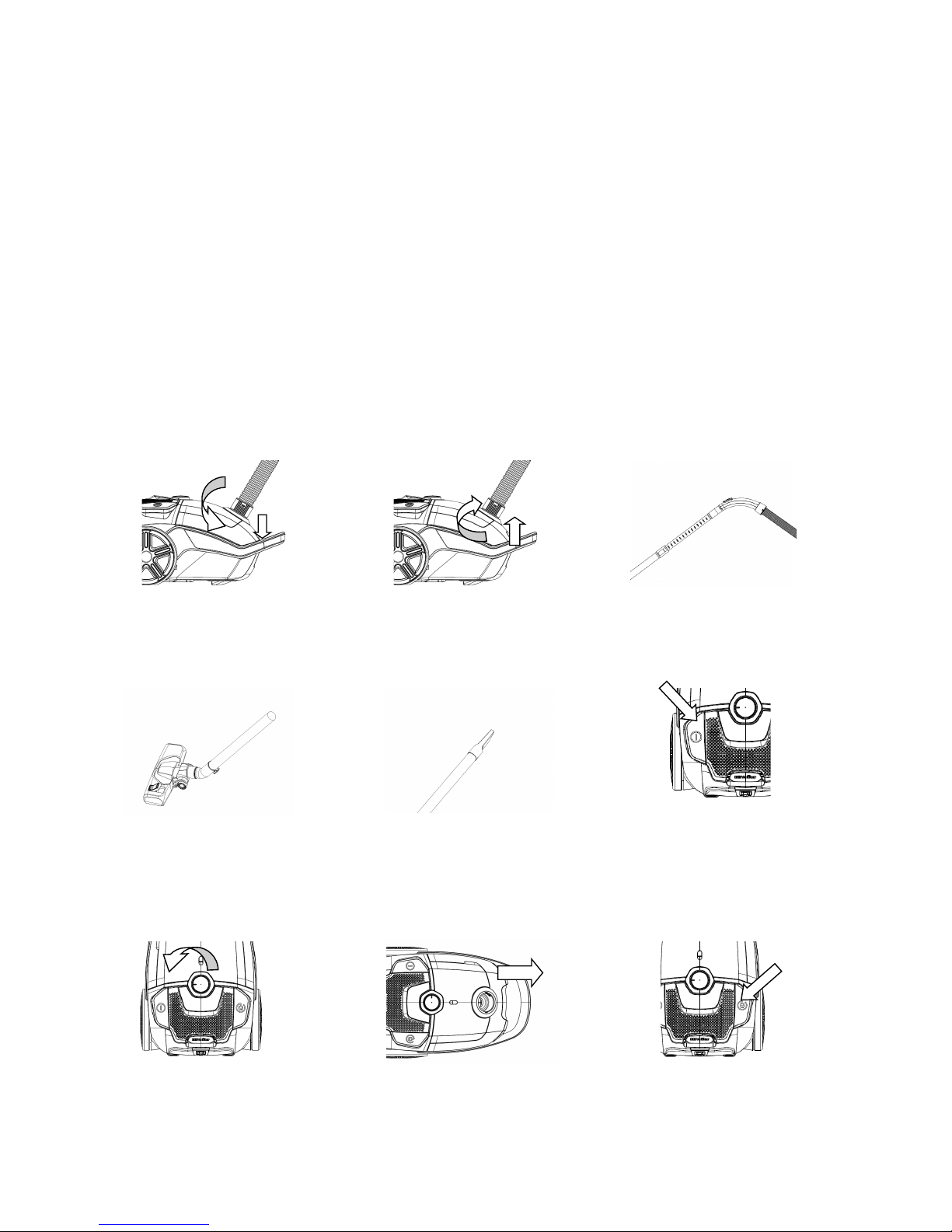

1. Connect the hose accessory: insert the hose end into the hose socket at the front cover and
then hook it.(Fig 1)
Remove the hose accessory: turn the connector of hose to the right position and then pull
the hose accessory. (Fig 2), Connect the metal tube to the curved end of the hose. (Fig 3)
2. Connect different nozzle tools to the tube for different cleaning purposes: floor brush

(adjusted to the type of ground) for carpet or hard floor (Fig 4);crevice nozzle for sofa, wall
surface, curtain ,corner of space between furniture and etc. (Fig 5)；The round brush and
crevice tool is stored in the accessory compartment ;
3. Operating the vacuum cleaner: insert the plug and cord into the power socket which
conforms to that on the label for the power supply, and press the on/off switch pedal, the
vacuum cleaner will start working. (Fig 6)

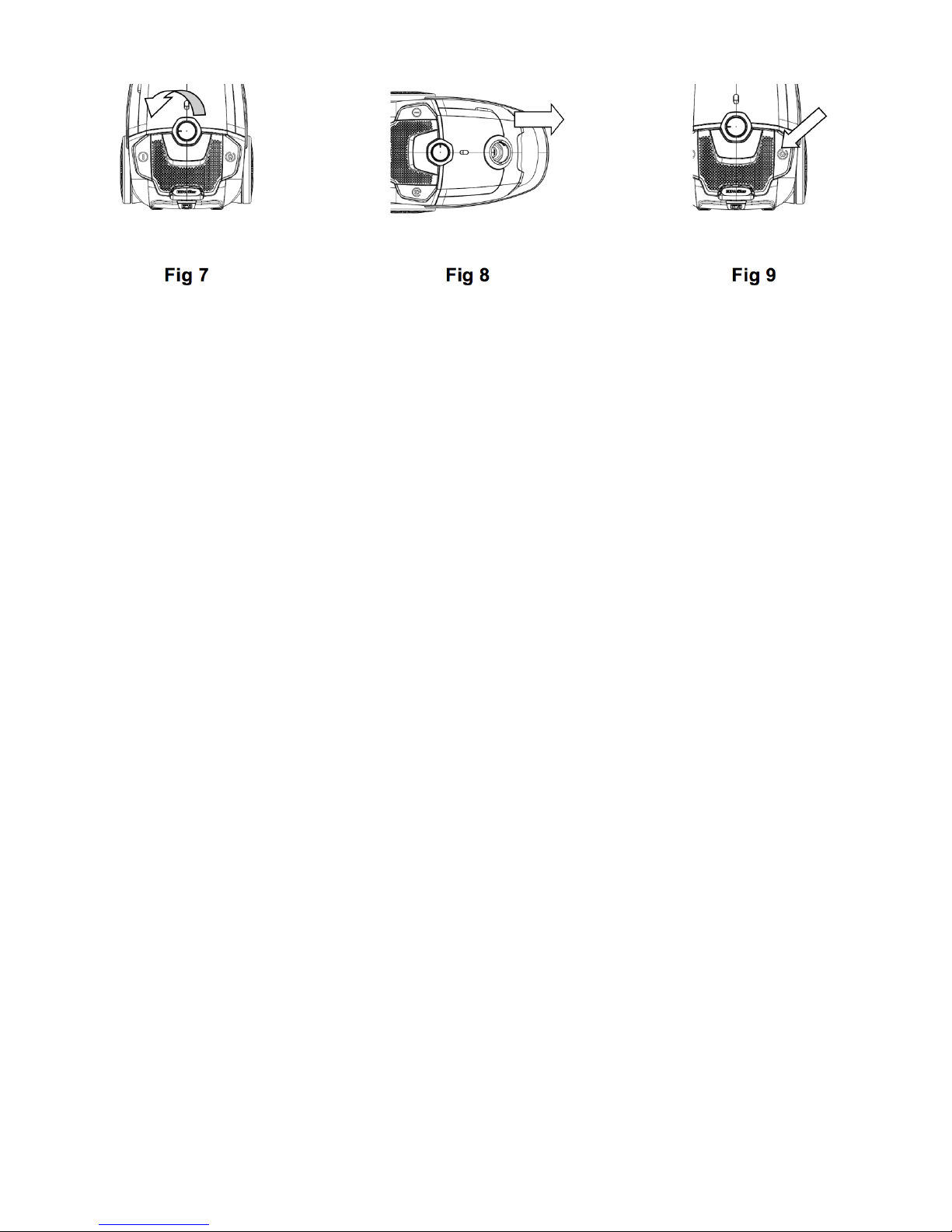

4. Adjust the power of the vacuum power: changing the power of the machine by the right and
left rotation speed control knob to meet the different needs of use (Fig 7).
5. Move the machine: carry the handle at the back of vacuum (Fig 8).
6. Cord rewinding: Switch off the vacuum cleaner with on/off switch button and pull the plug
from the main socket, press the cord rewinding button, the power cord will be drawn in
(Fig 9).
Fig 1 Fig 2 Fig 3
Fig 4 Fig 5 Fig 6
Fig 7 Fig 8 Fig 9

Maintenance

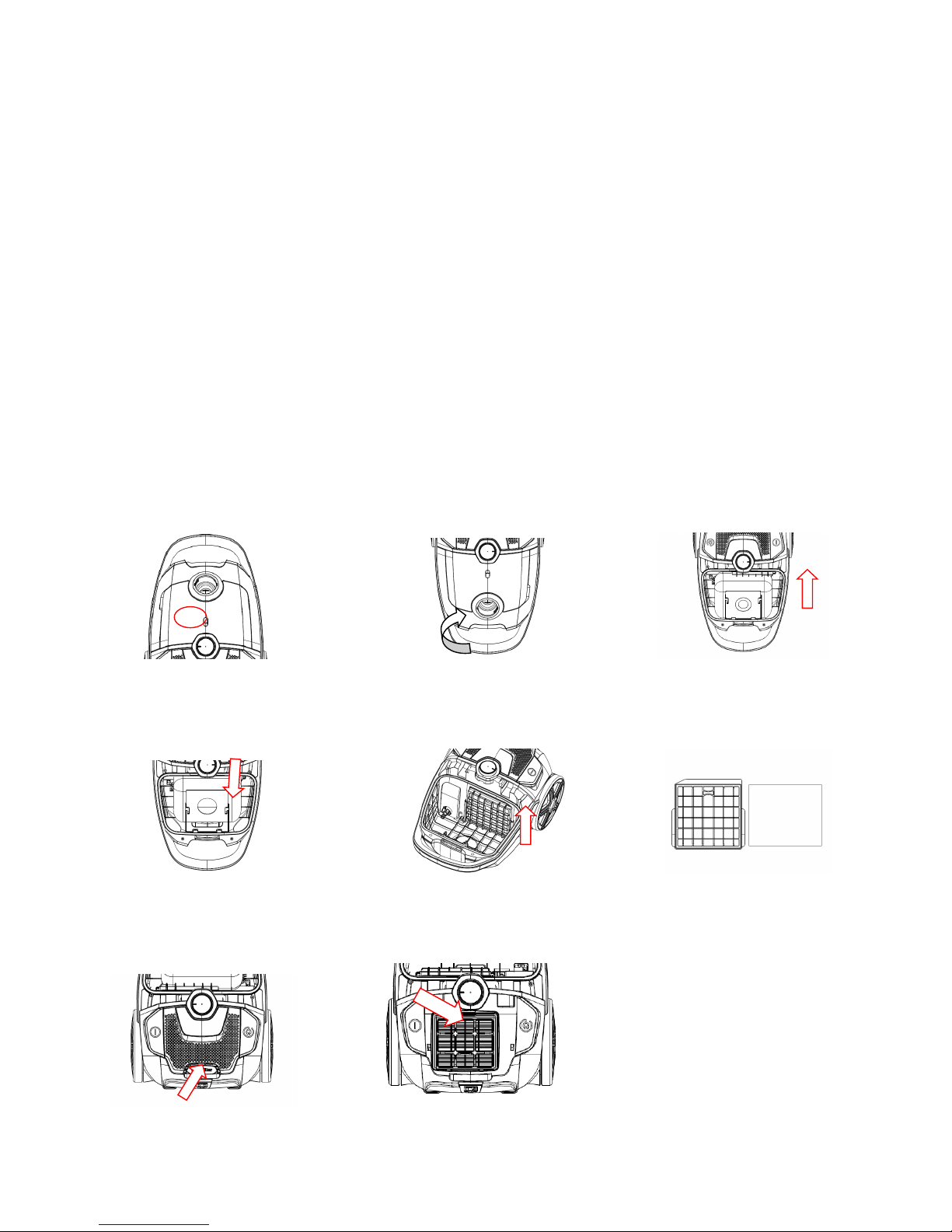

1. Change the dust bag: when the dust full indicator turns red or loss of suction is noticed, it is
time to clear the dust bag or replace with a new bag. (Fig 10)
l Open the front cover by touching front cover button. (Fig 11)
l Take out the bag holder then remove the full dust bag. (Fig 12)
Installing the dust bag: insert the dust bag into the bag holder and then put it in the slot
cabinet. (Fig 13)
Note: If the dust bag is not installed, the front cover can’t be closed
2. Inlet filter: clean the filter with warm water and allow to dry fully before placing back into the
unit. (Fig 14)
Replacing the inlet filter: clip down and remove the inlet cover, remove and replace with a
suitable filter. (Fig 25)
3. Clean the outlet filter: open the outlet cover and take out the HEPA frame and filter. Wash it
and install it after the filter has fully dried. (Fig 16/17)
Fig 10 Fig 11 Fig 12
Fig 13 Fig 14 Fig 15
Fig 16 Fig 17

Warning
The plug must be removed from the power socket before any maintenance or replacement.
If the power cord is damaged, it must be replaced by the manufacturer or its service agent or an
appropriately qualified person in order to avoid a hazard.
Environment
CAUTION:
Do not dispose of this product as it has with other household products. There is a separation of this
waste product into communities, you will need to inform your local authorities about the places where
you can return this product. In fact, electrical and electronic products contain hazardous substances
that have harmful effects on the environment or human health and should be recycled. The symbol
here indicates that electrical and electronic equipment should be chosen carefully, a wheeled waste container
is marked with a cross.
