ENGLISH
STRUCTURE OF THE PRODUCT
1
Brush tool
9
Winding device button
2
Extending metal tube
10
Back wheel
3
Power button
11
Back wheel rubber
4
Handle
12
Crevice nozzle
5
Handle of the dust cup
13
Accessory holder
6
Hose
14
Round brush
7
Hose connector
15
Furniture brush
8
Dust cup

Safety warning
1.Be sure to use the cleaner in compliance with the
contents of this manual, and use the fittings designated
by the manufacturer.
2.Please do not leave the cleaner when it is
powered on.
Turn off the power switch and pull out the power
plug when not using or before maintenance.
3.Please do not pull or carry the cleaner by the
power cord, or nip it when closing a door; keep the cord
free from the press of the cleaner.
4.Please do not let children take the cleaner as a
toy, and close attention is necessary when the cleaner
approaches children.
5.Please do not use the cleaner when its power
cord or plug is damaged. Send it to the appointed
service center. Please do not unplug by pulling the cord
or plug. To unplug, grasp the plug, not the cord.
6.Never pull the power plug or use the cleaner with
wet hands.
7.When using the cleaner, pay attention to prevent

any hair roll or other rubbish block up the air inlet
(including the hose and the spile), otherwise motor
failure and housing distortion may be caused. If the
matters absorbed in forms a blockage, stop the cleaner
by pulling out the power plug immediately to clean the
blockage.
8.When using the cleaner, don’t plug up the air
outlet by towel or other matters, otherwise the efficiency
of dust absorbance will be influenced, and the motor
will be at high risk of being burnt out.
9.Never use the cleaner at uneven floor or ground;
and be very careful when cleaning stairs to prevent the
cleaner from falling down.
10. Never absorb live stumps with the cleaner,
otherwise the motor may be damaged.
11. The cleaner should be kept far away from heat
sources (such as central heating, oven, etc) to avoid
the distortion of plastic parts as well as the influence
caused by such distortion.
12. Before using the cleaner, please remove big
and sharp matters on the floor to avoid damaging the
plastic parts, filter gauzes and motor.

13. Never absorb water or other liquid with this
cleaner, otherwise, the motor will be damaged.
14. This device is not intended for use by persons
with reduced capacity on the physical, mental or
sensory or lack of experience and knowledge (including
children), unless he has them was asked to monitor or
if they have had instructions on the use of the appliance
by a person responsible for their safety. Children should
be supervised to ensure they do not play with the
device.
15. If the power cord is damaged, it must be
replaced with an after-sales service to avoid any
danger.
16. Do not operate this appliance if it has a
damaged cord or plug, if it is not working properly or if it
has been damaged or dropped. If the supply cord is
damaged, it must be replaced by the manufacturer or
its service agent or a similarly qualified person in order
to avoid a hazard.
17. This appliance may be used by children of at
least 8 years of age, as long as they are supervised
and have been given instructions about using the

appliance safely and are fully aware of the dangers
involved.
18. Cleaning and maintenance should not be
carried out by children unless they are at least 8 years
of age and are supervised by an adult.
19. Keep the appliance and its power cord out of
reach of children under 8 years of age.
20. When using electrical equipment, safety
precautions must always be taken to prevent the risk of
fire, electric shock and/or injury in the event of misuse.
21. Make sure that the voltage rating on the
typeplate corresponds to your main voltage of your
installation. If this is not the case, contact the
dealer and do not connect the unit
22. Never leave the unit unattended while in
operation.
23. Make sure the power supply is 220-240V 50Hz

HOW TO USE
ASSEMBLY BEFORE USE
Fig.1 shows the connection of the hose and the vacuum cleaner:
Put the hose connector in front of the vacuum cleaner .Then insert it into the inlet hole and
turn right. If you want to disassemble it, you can turn the hose connection left and then pull it
out.
Fig.2 shows the connection of the hose and the extending metal tube:
Hold the flexural connector of the hose and put it into the bigger hole of the tube.
Fig.3 shows the connection of the tube and the brush tool:
Put the metal tube into the hole of the brush and rotate it to fasten them.
Fig.4 shows how to check the winding of the power cord.
You can pull the power cord out of the machine and stop it when you see the yellow mark.
Make sure the red mark is not out. When your sweep is over, first turn off the power, pull the
plug out of the socket, and then push the winding device button until the cord is completely in
the machine.
Fig.5 shows the power button
Put the plug into the socket, push the power button to control the work of the machine.
Fig.1 Fig.2
Fig.3 Fig.4
Fig.5

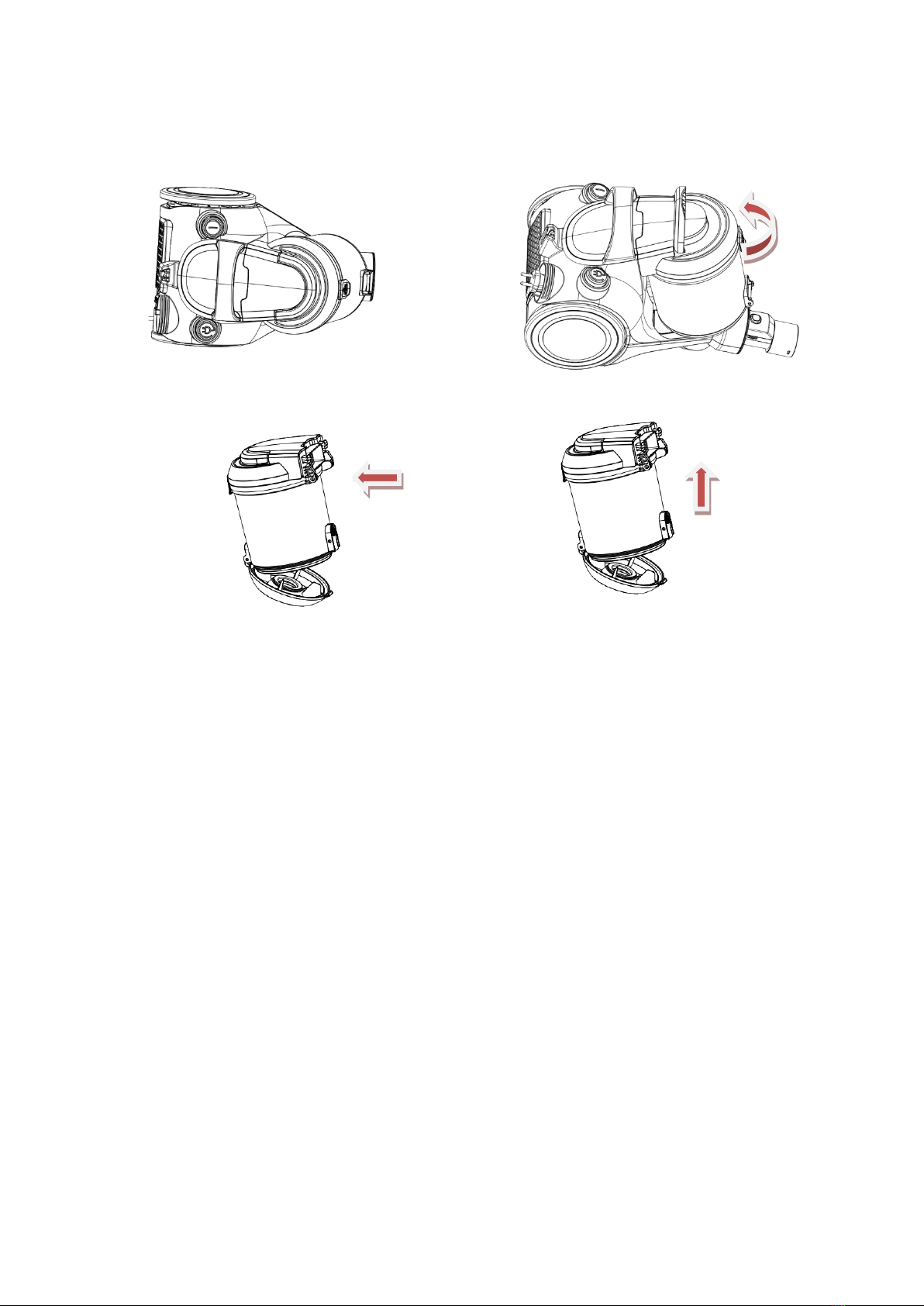

CLEANING OF THE DUST CHAMBER
The steps of the chamber cleaning:
1. As in Fig.6, hold the dust chamber and handle and
push the release button.
2. As in Fig.7, take the dust chamber out of the machine.
3. As in Fig.8, put the dust chamber onto the rubbish bin,
push the release button to open the bottom of the dust
chamber, and the dirt and dust will fall into the bin by
themself.
4. As in Fig.9, shut up the dust chamber for a circular
use after your cleaning.
Fig.6Fig.7
Fig.8Fig.9

MAINTENANCE
HOW TO MAINTAIN
1. The filter should be cleaned twice a year, and when
there is obvious dirt on the filter, it is time.
2. You must fix the filter properly before running the
vacuum cleaner.
3. The filter can't be cleaned in the washing machine or
baked by the blower.
4. It will reduce the suction power and damge the motor if
you use the wet filter.
5. Steps for maintenance:
1) As in fig.10, press the outlet lock to open the outlet
board.
2) As in fig.11, get out the outlet filter.
3) As in fig.12, rotate the HEPA cover to separate it from
the chamber cover
4) As in fig.13, get the HEPA cover
5) As in fig.14, If you have any hair winding removable
cleaning.
6) As in fig.15, get the HEPA and wash it.
7) Wash the HEPA cover, the HEPA assembly, the
outlet sponge and the dust chamber in the water without

detergent and dry them before use.
8) Put the dust chamber assembly into the machine.
And in this process, first you should make the chamber in
the right position and then press the handle of the dust
chamber, if there is a cluck it means the operation is
successful.
Fig.10Fig.11
Fig.12Fig.13
Fig.14Fig.15
