H.Koenig WaterMop Gyro+ User manual

Instruction manual
Manuel d'utilisation
Gebruachsanweisung
Gebruiksaanwijzing
Manual de Usuario
Manuale d’uso
SWRC130
Robot Vacuum Cleaner
Aspirateur robot
Staubsaugerroboter
robotstofzuiger
Robot aspirador
Robot Aspirapolvere

ENGLISH
Please read this manual carefully before using the product
and keep it safe
SAFETY REGULATION
Before using this product, please read the following safety
instructions and follow all the safety precautions.
Please read the instructions carefully. Please keep these
instructions.
Any operation inconsistent with this instruction manual may
cause damage to this product.
Note:
1. Only authorized technicians can disassemble this
product. Users are not recommended to disassemble this
product by themselves.
2. Please use the original power adapter only. Other
adapters may cause damage to this product.
3. Do not touch wires, sockets or power adapters when your
hands are wet.
4. Do not use cloth curtains or body parts to roll into the
product drive wheels.
5. Do not place this product near cigarette butts, lighters
and other smoldering fires.
6. Do not bend wires excessively or place heavy objects
and sharp objects on the machine.
7. This product is an indoor household product. Do not use
it outdoors.
8. Do not sit on the product.
9. Do not use this product in wet environment (e.g.

bathroom).
10. Before using this product, please remove all vulnerable
items (e.g. glasses, lamps, etc.) on the ground as well as
items (e.g. wires, paper sheets, curtains) that may
entangle the side brushes and air suction passages.
11. Do not put this product in a place where it is easy to fall
(e.g. on desks and chairs).
12. Please carefully check whether the power adapter is
connected to the socket before use, otherwise the
battery may be damaged.
13. To prevent tripping, please inform other members of
the house when this product works.
14. Please empty the dust box before using this product
when the dust box is full.
15. The temperature used for this product is 0 to 40
degrees Celsius.
16. Do not use this product in high temperature
environment.
17. Please remove the battery from the machine before the
product is scrapped.
18. Please make sure that this product is not powered on
when removing the battery.
19. Please recycle the discarded batteries safely.
20. The supply cord cannot be replaced. If the cord is
damaged the charger should be discarded and replaced.
It must be replaced by the manufacturer, its service agent
or a qualified technician in order to avoid a hazard.
21. This appliance may be used by children of at least 8
years of age, as long as they are supervised and have
been given instructions about using the appliance safely
and are fully aware of the dangers involved.
22. Cleaning and maintenance should not be carried out by

children unless they are at least 8 years of age and are
supervised by an adult.
23. Keep the appliance and its power cord out of reach of
children under 8 years of age.
24. - When using electrical equipment, safety precautions
must always be taken to prevent the risk of fire, electric
shock and/or injury in the event of misuse.
25. Make sure that the voltage rating on the type plate
corresponds to your main voltage of your installation. If
this is not the case, contact the dealer and do not
connect the unit
26. The device must not be used if it has been dropped, it
obvious signs of damage are visible or if it has leaks.
27. Please keep this document at hand and give it to the
future owner in case of transfer of your device
28. The charger must be removed from the socket before
removing the battery, cleaning or maintaining the
appliance.
29. This device is not intended for use by persons with
reduced capacity on the physical, mental or sensory or
lack of experience and knowledge (including children),
unless he has them was asked to monitor or if they have
had instructions on the use of the appliance by a person
responsible for their safety. Children should be
supervised to ensure they do not play with
the device.
Warning:
1. Use only the original rechargeable battery and
charging station specially equipped by the

manufacturer. Non-rechargeable batteries are strictly
prohibited, please refer to “product parameters” for
battery specification information.
2. It is forbidden to use products in environments with open
flames or fragile objects.
3. It is forbidden to use products in extremely hot (above
40 °C) or extremely cold (below 0 °C) weather.
4. It is forbidden for human hair, clothes, fingers and other
parts to approach the opening and operating parts of
the product.
5. It is forbidden to use products on wet or stagnant ground.
6. It is forbidden for products to absorb any articles such
as stones and waste paper that may clog products.
7. It is prohibited for the product to absorb any inflammable
substances, such as petrol, toner and toner for printers
or photocopiers. It is also prohibited to use the product
in clean areas with flammable items.
8. It is forbidden for products to absorb any burning
articles, such as cigarettes, matches, ashes and other
articles that may cause fire.
9. It is forbidden to place articles at the suction port. Do
not use the product when the suction port is blocked.
Clean up dust, cotton wool, hair etc. at the suction port
to ensure smooth air circulation at the suction port.

10. Use the power cord carefully to avoid damage. It is
forbidden to use the power cord to drag or pull the
products and the product charging station. It is forbidden
to use the power cord as a handle. It is forbidden to
clamp the power cord in the crack of the door. It is
forbidden to pull the power cord at sharp corners and
corners. It is forbidden for the product to run on the
power cord while the power cord should be far away from
the heat source.
11. Do not use damaged charging station.
12. Even if the product has been severely damaged,
burning of the product is prohibited, which may lead to
explosion of the battery of the product.
PRODUCT COMPOSITION/ PACKAGE CONTENTS
PART NAME
Charging station
Host
Remote control
Water tank
Dust box
Mop
Cleaning brush
Cleaning brushes

Top
Bottom
Start/pause key
Surface Cover
Omnidirectional Lens
Water tank,
Dust box
buton
Ground Sensor
Left Side
Brush
Left Wheel
Dust box
Right Wheel
Right Side
Brush
Charging pole Piece
Battery cover
Rolling brush
assembly
Universal
Wheel

Dust box
Charging station
Water tank and mop assembly
Remote control
Signal Indicator
DC Socket
Charging Pole
Piece
HEPA Filter
Primary Filter Strainer
Dust Box Metal Sheet
HEPA Filter Cover
Conductive Shrapnel
Dust Box Side Cover
Water Injection
Port
Water Tank
Mop

PRODUCT USAGE
Remove Protection
Before using the host, remove the protective strip on the host and the protective film on the
charging station.
QRcode to download APP
Thanks for buying our robot vacuum cleaner. Please read this manual carefully before use.
Please follow up the manual during operation for your safe.
There are wifi-version and non-wifi version of our SWRC130 model.
If your robot is wifi-version, please read the Quick Guide for APP Using in the next page; If your
robot is non-wifi version, please skip the page of Quick Guide for APP Using.
***Please make sure that your robot, your router, and your phone are close to each other before
you start APP connection.
Remove the protective strip
Remove protective film

IOS APP
Android APP

GUIDE FOR APP USING
1. App Downloading
Search “Tuya” from your APPSTORE or google play; download the APP [Fig 1]; Open “Tuya” on
your cellphone after download [Fig 2]; Register an account via email or cell phone number [Fig 3]
(tap the right Verification Code and Set up a password for your Tuya ID [Fig 4]); Login with
account and password [Fig 5].
***Important***: Before WIFI connection, turn on the robot; After the voice prompts “Welcome to
use sweeping robot”, please press the start button continuously twice, then the voice prompts
“connecting network”, and the WIFI icon begins to flash constantly; Your robot is initialized.
Tap + on the top right corner to add device [Fig 6]; Tap All [Fig 7]; Choose Robot Vacuum [Fig 8];
Click Confirm indicator rapidly blink [Fig 9];
Type your WIFI Password [Fig 10] and start device connection [Fig 11]; Adding device succeeded
[Fig 12].
Fig 01
Fig 02
Fig 03
Fig 04
Fig 06
Fig 07
Fig 08
Fig 09
Fig 10
Fig 05

Rename your device, e,g. Robot SWRC130 [Fig 13]; Start using App to control your robot [Fig
14].
2. APP Operation
You may click “Auto Mode”, “Fix point mode”, “Single room mode”, “Edge mode”, “Charging
mode” as you want to start certain cleaning mode [Fig 15]; Choose Cleaning strength to enter
suction power setting interface [Fig 16];
3. Scheduling
Choose Schedule to enter scheduling interface and Choose “Add Schedule” [Fig 17]; choose the
proper working time [Fig 18] and day (multiple Mon-Sun) [Fig 19].
4. Pause/ Standby/ Sleeping mode
Press , the robot will pause [Fig 20] [Fig 21]; Or press Idle mode, the robot will pause [Fig 22];
Press the On/Off symbol on your App to make the robot enter standby/sleeping mode.
Note: When it is in sleeping mode, the App page turns darker [Fig 23];
If it is in sleeping mode, press the On/Off symbol , the robot will be waken up to standby
mode [Fig 24]; Press the cleaning mode as you want to start working [Fig 25].
Fig 11
Fig 12
Fig 13
Fig 14
Fig 15
Fig 16
Fig 17
Fig 18
Fig 19
Fig 20

5. Working Map
The App will show the map of working cleaning path of the robot [Fig 26]; But it may not update
in real time.
6. Find robot
You may not know where the robot is when it finishes cleaning and stops. Then press “Find
robot” and “Confirm” [Fig 27]; then there is “Di” sound prompt for you to find the robot.
7. Share Devices
Only one main ID for one single device is available. If you want to share the device to others in
your family, tap on the top right corner [Fig 28]; Choose “Share devices” [Fig 29]; type correct
registered cellphone number/ email ID to add additional users [Fig 30].
Note: other users have to register Tuya ID before added.
8. Reset WIFI
Changing the connection from existing WIFI network to new WIFI network, you need to re-
connect your robot to the new WIFI network after initializing your robot as follows: turn on the
robot, after the voice prompts “Welcome to use sweeping robot”, press the start button twice
continuously, then the voice prompts “Connecting network”, and WIFI icon begins to flash
constantly, your robot is initialized; Then you could connect it to new network.
Fig 21
Fig 22
Fig 23
Fig 24
Fig 25
Fig 26
Fig 27
Fig 28
Fig 29
Fig 30

Notes: The APP software is upgrading; the actual APP user interface may be different from the
statements in this manual. Some functions may be added while some functions mentioned above
may be deleted. As different countries have different networking policy, the real time map
displaying function may be delayed or may not be fulfilled. Our company reserves the right to
change the parameters without prior notice.
PRODUCT USE / HOST CHARGING
1. Placing and charging: The charging station is against the wall and placed on a flat ground.
Do not place articles within the range of 0.5m left and right and 1.5m ahead.
2. Connect the power supply.
3. Installing side brush: Install the side brush according to the left and right (L/R).
Charging attention:

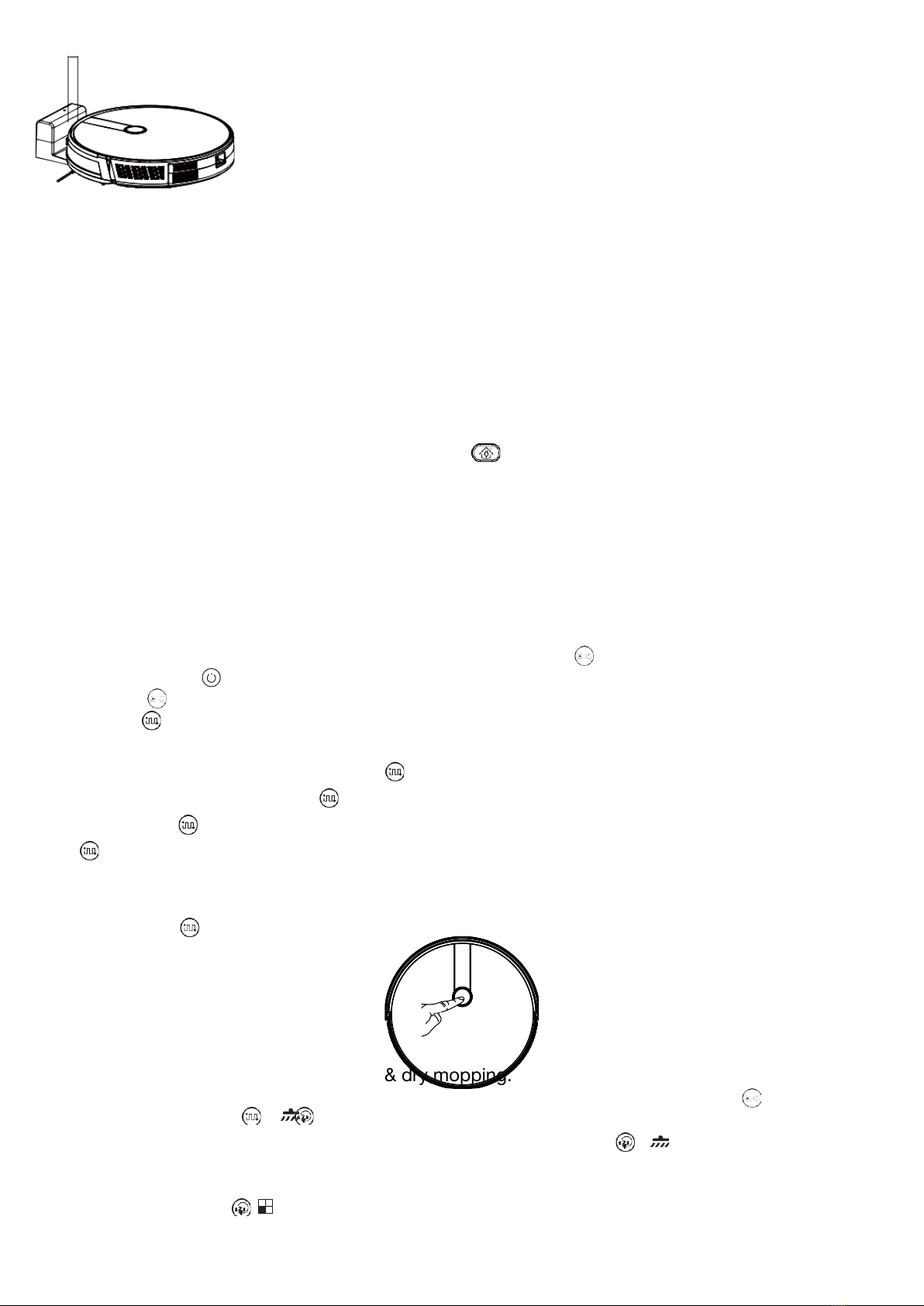

1. Charging: Place the host on the charging station for charging. (During charging, the
indicator light flashes; If charging is over, the light is always on. The charging
time is about 5 hours.
Suggested distance: less than 4M

Attention：When manual charging, please keep the front bumper of the
robot 2cm away from the charging station to ensure the metal contacts
connected well for a successful charging
2. The charging station cannot be used in environments with strong reflection such as direct
sunlight or nearby mirrors. If there is any object with strong reflection, please cover it 7cm from the
bottom.
3. In order to ensure the normal working hours of the host, please fully charge it before use.
The charging time is about 5 hours.
4. When charging, do not assemble the water tank assembly to the robot vacuum, so as to
ensure the safety of charging and prevent wet mops from damaging the floor.
5. During the cleaning process, the host can sense that its power is insufficient and
automatically start the recharging mode to find the charging station to recharge. You can also
command the host to start the recharging mode through the recharging button on the
remote controller.
PRODUCT USE / START CLEANING
According to different cleaning needs, the product has a variety of cleaning modes to choose from.
You can start
various cleaning modes through a host, remote control or app.
Automatic Cleaning
Setting method: In the shutdown state, press the button for a few seconds. When the
indicator light of the host is on, it indicates that the host is powered on. When the
button on the host is pressed for a short time, or press the automatic cleaning
button on the remote controller, the host starts automatic cleaning.
If it is dustbin instead of water tank installed in the host, and in standby mode or other
working modes, press the button on the remote controller, the host starts automatic
cleaning. Press the button again, the host will switch to powerful suction mode. Press
the button once more, the host will switch to quiet cleaning mode. Pressing the button
additionally more times will make the host switch between powerful suction mode and
quiet cleaning mode circularly.
If the water tank is installed in the host, and in standby or other working modes, pressing
the button will always make the host enter into mopping mode.
MOPPING MODE
Applicable scenario: Used to do wet & dry mopping.
Setting method: Install the water tank to the host and press the start button on the
host or the button or ( ) on the remote controller, the host starts mopping mode.
(Attention: If the water tank is not installed, press the button ( ) on the remote
controller, the host will prompt that the water tank is not installed and the host will not
work at this status.)
Press the button ( ), the host will switch to single room
cleaning mode.

Press the button ( ), the host will switch to border cleaning mode.
SINGLE ROOMM CLEANING
Applicable scenario: Used to clean the single room.
Setting method: Click the remote-control mode switch button ( ) to select the
single room cleaning mode to start the single room cleaning.
Friendly Reminder: When it is only necessary to clean a single room, please close the door
and the host will do centralized
cleaning in the room.
If this room does not have a charging station, the host will return to the original point
after finishing cleaning.
BORDER SWEEPING
Applicable scenario: For indoor border cleaning, the host cleans along the
perimeter of fixed objects (such as walls), and returns to the charging station
after the border cleaning finished.
Setting method: Click the remote control mode switch button ( ) to select the border
cleaning mode to start the border cleaning.
MANUAL CONTROL
Applicable scenario: Suitable for manual control cleaning.
Setting method: Click on the buttons on the remote

PRODUCT USE / PAUSE, WAKE UP AND SHUT DOWN
Pause: During the operation of the host, press the host button or the pause button on the
remote controller or app to pause the host.
Wake up: If the host stops working for more than ten minutes, it will automatically enter into sleep
mode (all the host lights are off). You can wake up the host by pressing the host button or any
button on the remote controller, or the button on app.
Shut down: After the host stops working, press the host button for a few seconds and all the
indicator lights of the host go out to indicate that the host has been shut down.
PS: Before the schedule setting, you need to press the button to set the current time of the host
first. Press the button, then press the buttons to set the hour and minute of the current time. After
it, press the button, then the setting is completed.
PRODUCT USAGE / SCHEDULE SETTING
Schedule setting: Press the remote-control schedule setting button to set the host
scheduled cleaning time. First press the button , then press the buttons to set the hour
and minute. After it, press the button , then the setting is completed.
The host will automatically start to clean at the scheduled time every day.
PS: Before the schedule setting, you need to press the button to set the current time of the
host first. Press the button , then press the buttons to set the hour and minute of the
current time. After it, press the button , then the setting is completed.
PRODUCT USE/ WATER TANK USE
Do not use the floor mopping function on carpets.
After mopping the floor, please empty the water tank in time and remove the mop.
Add water Install the Water Tank Assembly

Install Mop Start Mopping the Floor
Component maintenance / dust box
A. Press the dust box button to take B. Open the dust box side
cover;
out the dust box;
C. Dumping the rubbish D. Open the HEPA filter cover
out the dust box;
E. Open the HEPA filter cover and take out the HEPA
filter and the primary filter. It is not recommended to wash
the HEPA filter by water. Tap gently to remove the dust;
F. Rinse the primary filter G. The dust box should be scrubbed with mop;

H. Dry the dust box and filter
assembly and keep it dry to
ensure its service life;
I. Replace the primary filter and
the HEPA filter into the dust box;
Note:
1. Before installing the filters, please ensure that the HEPA filter and the primary filter are in
dry state.
2. Do not expose the HEPA filter and primary filter to the sun.
J. Close the dust box cover and install the dust box into the host.
Note: Do not allow water to seep into the fan port when cleaning.
COMPONENT MAINTENANCE / WATER TANK AND
MOP
1.Take out the water tank assembly 2. Remove the
mop

3.Empty the Water Tank 4.
Washing mop
5.Airing 6. Dry or naturally dry the water
tank.
HOW TO CLEAN THE RUBBISH IN THE DUSTBIN OF
THE WATER TANK
1. Put the water tank horizontally with the dustbin port
upside
