SAFETY REGULATION
Before using this product, please read
the following safety instructions and
follow all the safety precautions.
Please read the instructions carefully.
Please keep these instructions.
Any operation inconsistent with this
instruction manual may cause damage
to this product.
Note:
1. Only authorized technicians can
disassemble this product. Users are
not recommended to disassemble this
product by themselves.
2. Please use the original power
adapter only. Other adapters may
cause damage to this product.
3. Do not touch wires, sockets or
power adapters when your hands are
wet.

4. Do not use cloth curtains or body
parts to roll into the product drive
wheels.
5. Do not place this product near
cigarette butts, lighters and other
smoldering fires.
6. Do not bend wires excessively or
place heavy objects and sharp objects
on the machine.
7. This product is an indoor household
product. Do not use it outdoors.
8. Do not sit on the product.
9. Do not use this product in wet
environment (e.g. bathroom).
10. Before using this product, please
remove all vulnerable items (e.g.
glasses, lamps, etc.) on the ground as
well as items (e.g. wires, paper sheets,
curtains) that may entangle the side
brushes and air suction passages.
11. Do not put this product in a place
where it is easy to fall (e.g. on desks
and chairs).
12. Please carefully check whether
the power adapter is connected to the

socket before use, otherwise the
battery may be damaged.
13. To prevent tripping, please inform
other members of the house when this
product works.
14. Please empty the dust box before
using this product when the dust box is
full.
15. The temperature used for this
product is 0 to 40 degrees Celsius.
16. Do not use this product in high
temperature environment.
17. Please remove the battery from
the machine before the product is
scrapped.
18. Please make sure that this
product is not powered on when
removing the battery.
19. Please recycle the discarded
batteries safely.
20. The supply cord cannot be
replaced. If the cord is damaged the
charger should be discarded and
replaced. It must be replaced by the
manufacturer, its service agent or a

qualified technician in order to avoid a
hazard.
21. This appliance may be used by
children of at least 8 years of age, as
long as they are supervised and have
been given instructions about using the
appliance safely and are fully aware of
the dangers involved.
22. Cleaning and maintenance
should not be carried out by children
unless they are at least 8 years of age
and are supervised by an adult.
23. Keep the appliance and its power
cord out of reach of children under 8
years of age.
24. When using electrical equipment,
safety precautions must always be
taken to prevent the risk of fire, electric
shock and/or injury in the event of
misuse.
25. Make sure that the voltage rating
on the type plate corresponds to your
main voltage of your installation. If this
is not the case, contact the dealer and
do not connect the unit

26. The device must not be used if it
has been dropped, it obvious signs of
damage are visible or if it has leaks.
27. Please keep this document at
hand and give it to the future owner in
case of transfer of your device
28. The charger must be removed
from the socket before removing the
battery, cleaning or maintaining the
appliance.
29. This device is not intended for use
by persons with reduced capacity on
the physical, mental or sensory or lack
of experience and knowledge
(including children), unless he has
them was asked to monitor or if they
have had instructions on the use of the
appliance by a person responsible for
their safety. Children should be
supervised to ensure they do not play
with
the device.

Warning:
1. Use only the original rechargeable
battery and charging station specially
equipped by the manufacturer. Non-
rechargeable batteries are strictly
prohibited, please refer to “product
parameters” for battery specification
information.
2. It is forbidden to use products in
environments with open flames or
fragile objects.
3. It is forbidden to use products in
extremely hot (above 40 °C) or
extremely cold (below 0 °C) weather.
4. It is forbidden for human hair,
clothes, fingers and other parts to
approach the opening and operating
parts of the product.
5. It is forbidden to use products on wet
or stagnant ground.
6. It is forbidden for products to absorb
any articles such as stones and waste
paper that may clog products.

7. It is prohibited for the product to
absorb any inflammable substances,
such as petrol, toner and toner for
printers or photocopiers. It is also
prohibited to use the product in clean
areas with flammable items.
8. It is forbidden for products to absorb
any burning articles, such as
cigarettes, matches, ashes and other
articles that may cause fire.
9. It is forbidden to place articles at the
suction port. Do not use the product
when the suction port is blocked. Clean
up dust, cotton wool, hair etc. at the
suction port to ensure smooth air
circulation at the suction port.
10. Use the power cord carefully to
avoid damage. It is forbidden to use
the power cord to drag or pull the
products and the product charging
station. It is forbidden to use the power
cord as a handle. It is forbidden to
clamp the power cord in the crack of
the door. It is forbidden to pull the
power cord at sharp corners and
corners. It is forbidden for the product

to run on the power cord while the
power cord should be far away from
the heat source.
11. Do not use damaged charging
station.
12. Even if the product has been
severely damaged, burning of the
product is prohibited, which may lead
to explosion of the battery of the
product.

PRODUCT COMPOSITION/ PACKAGE
CONTENTS
Remote control
Charging station
Host
Cleaning brush
Mop
Water tank
Cleaning brushes
Dust box

PART NAME
Top
Bottom
Start/pause key
Surface Cover
Omnidirectional Lens
Water tank, Dust box buton
Ground Sensor
Right Side
Brush
Left Side Brush
Right Wheel
Right Side
Brush
Right Wheel
Left Wheel
Dust box
Charging pole Piece
Universal Wheel
Battery cover
Rolling brush
assembly

Dust box
Charging station
Water tank and mop assembly
HEPA Filter
HEPA Filter Cover
Primary Filter Strainer
Conductive Shrapnel
Dust Box Metal Sheet
Dust Box Side Cover
Signal Indicator
DC Socket
Charging Pole Piece
Water Injection Port
Water Tank
Mop

Remote control
PRODUCT USAGE
Remove Protection
Before using the host, remove the protective strip on the host and the
protective film on the charging station.
Display Screen
Schedule Setting
Start / Pause
Auto Cleaning Mode /
Powerful Suction Mode /
Quiet Cleaning Mode
Mode Switching(Mopping
Mode / Single Room Mode
/ Border Mode)
Direction Control
Time Setting
Recharging
Remove protective film
Remove the protective strip

QRcode to download APP
Thanks for buying our robot vacuum cleaner. Please read this manual
carefully before use.
Please follow up the manual during operation for your safe.
There are wifi-version and non-wifi version of our SWRC130 model.
If your robot is wifi-version, please read the Quick Guide for APP Using
in the next page; If your robot is non-wifi version, please skip the page of
Quick Guide for APP Using.
***Please make sure that your robot, your router, and your phone are
close to each other before you start APP connection.
APP setting
1. Download the APP and register
1. Please scan the QR code or search”Smart Life”and download APP
2. After the App is installed, please following the App instruction to
registered the account and login
IOS APP

QUICK GUIDE FOR APP USING
Tap + on the top right corner to add device [Fig 6];
Tap Small Home Appliance [Fig 7]; Choose Robot Vacuum [Fig 8];
Click Confirm indicator rapidly blink [Fig 9];
Type your WIFI Password [Fig 10] and start device connection [Fig 11];
Fig 8
Fig 6
Fig 7
Fig 11
Fig 10
Fig 9

Adding device succeeded [Fig 12].
Rename your device, e,g. Robot SWRC130 [Fig 13];
Start using App to control your robot [Fig 14].
2. APP Operation
You may click "Auto cleaning", "Recharge mode", "Room cleaning",
"Edge cleaning", "Spot cleaning" as you want to start certain cleaning
mode [Fig 15] [Fig 16]; Choose Cleaning strength to enter suction power
setting interface [Fig 17];
Fig 13
Fig 12
Fig 14
Fig 17
Fig 16
Fig 15

3. Scheduling
Choose Schedule cleaning to enter scheduling interface and Choose
“Add Schedule” [Fig 18]; choose the proper working time [Fig 19] and
day (multiple Mon-Sun) [Fig 20].
Fig 20
Fig 18
Fig 19

4. Start / Pause / Standby / Sleeping mode
Press “ ” / “ ” to start / pause the robot [Fig 21];
Note: When the robot pauses over 10 minutes, it will enter sleeping
mode;
If it is in sleeping mode, press “ ” , the robot will be waken up to
standby mode; Press the cleaning mode as you want to start working.
5. Working Map and Cleaning Record
The App will show the map of working cleaning path of the robot [Fig 22];
But it may not update in real time;
Tap "Cleaning record", it will show the cleaning records of working time
and cleaned area, also you can clear the data[Fig 23].
Fig 23
Fig 22
Fig 21

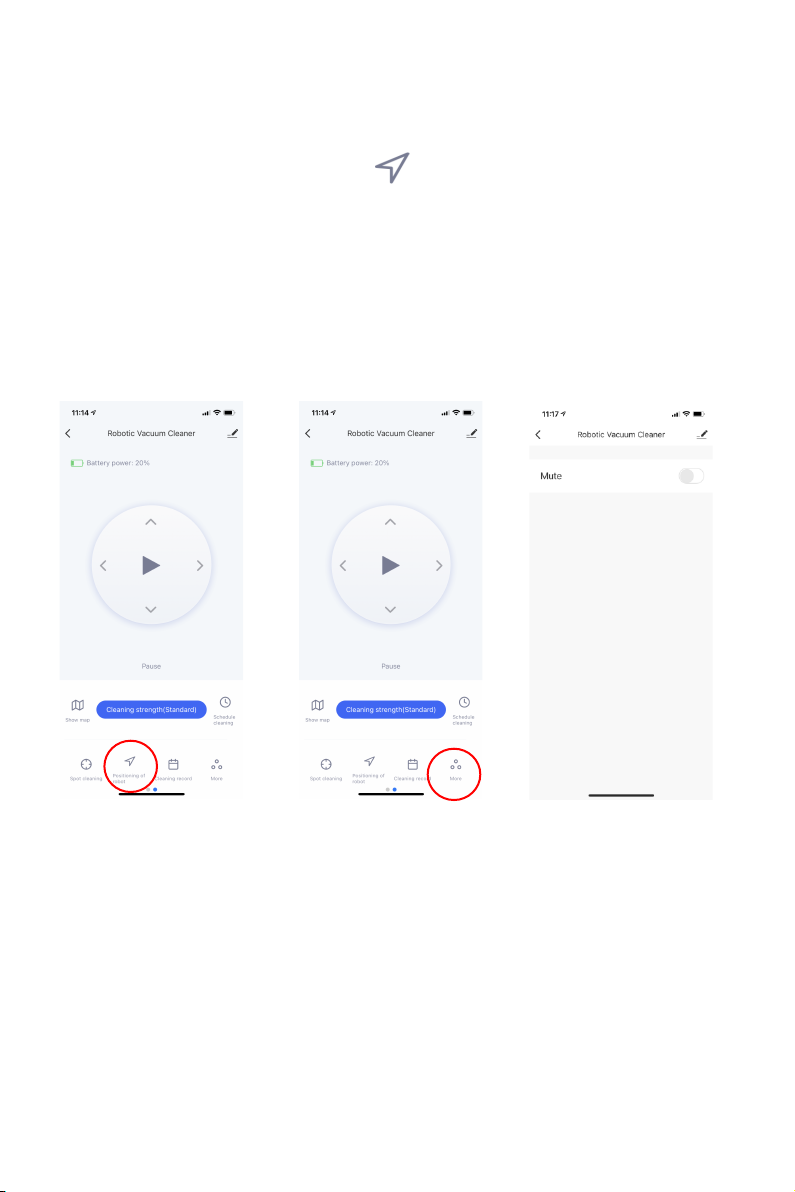

6. Find robot
You may not know where the robot is when it finishes cleaning and
stops. Then press “Positioning of ” [Fig 24]; then there is “Ding
Dong” sound prompt for you to find the robot.
7. Mute
Tap "More" to enter mute function setting interface [Fig 25]; If mute
function is active, the robot will cancel voice prompt, so it will not bother
you [Fig 26].
Fig 24
Fig 26
Fig 25

Fig 28
8. Supported Third-party Control
The robot works with Amazon Alexa, Google Assistant, and some other
third part control devices. Tap in the top right corner [Fig 27], then
find "Supported Third party Control" and tap corresponding icon to learn
connection way [Fig 28].
9. Share Devices
Only one main ID for one single device is available. If you want to share
the device to others in your family, tap on the right corner; Choose
“Share devices” [Fig 29]; type correct registered cellphone number/ email
ID to add additional users [Fig 30].
Note: other users have to register Tuya ID before added.
10. Reset WIFI
Changing the connection from existing WIFI network to new WIFI
network, you need to reconnect your robot to the new WIFI network after
initializing your robot as follows: turn on the robot, after the voice
prompts “Welcome to use sweeping robot”, press the start button
twice continuously, then the voice prompts “Connecting network”, and
Fig 30
Fig 29
Fig 27
