Thank you for purchasing our new robotic vacuum cleaner SWR22. Please read carefully this manual before using !
Safety Precautions :
Caution
No one else can disassemble, maintain or
transform the product except the
maintenance technicians designated by our
company, or it may cause fire, electric shock
or personal injury.
Dont' use the other charger but the
equipped one of the robot, or it may cause
product damage, electric shock or fire due
to high voltage.
Don't touch high-voltage power cord of the
electric appliance with your wet hand, or it
may cause electric shock.
Don't bend the power cord overly or place
weight on it, or it may cause power cord
damage, fire or electric shock.
Dont' twist your clothes or any part of
your body (head, finger, etc.) into the
brush or wheel of the robot, or it may
cause personal injury.
Don't approach cigarette, lighter, match
and other heat objects or combustible
materials such as the gasoline cleaner.
Caution
Don't forget to turn off the power while
transporting or storing the cleaner for long,
or the battery may be damaged.
Insert the power cord of the charger well or
it may cause electric shock, short circuit,
smocking or fire.
Check whether the charger and socket is
connected well, or it may cause charging
failure or even fire.
Remove all easily damaged objects
(including luminous objects, fabrics, glass
bottles, etc.) before using, or it may cause
damage to these objects or affect the using
of the cleaner.
Please use the cleaner cautiously in the
presence of the children to avoid frightening
or harming them.
Don't stand or sit on the cleaner, or it may
cause damage to the cleaner or personal
injury.
Don't make the cleaner take in water and
other liquors for fear of the product damage.
Don't use the cleaner on small tables and
chairs or other small space, otherwise the
cleaner may be damage.
Don't use the cleaner outdoors, or it may
cause the product damage.
Don't use the cleaner in commercial places,
or the cleaner may be damage by excessive
use.
Don't leave movable thread, wire and other objects with the legend of more than 150mm on the
ground or the brush may be entangled.
The cleaner is not for use of the disabled (people with physical or mental handicap), children and
those who use the cleaner before reading the user manual carefully.

Applicability :
The product, mainly applicable to home, hotel rooms and small office, is good for cleaning to various short-
haired carpet, wood floor, ceramic tile, etc.
Function introduction:
It is the new generation Robotic vacuum cleaner with rechargeable battery, controlled by avanced intelligent
program, with the following function : automatic vacuum cleaning, mopping, sterilizing, timing cleaning, "full
go" cleaning, wireless remote control, speed selection ; easy to use and clean.
Components of the cleaner:
Cleaner Remote control Auto charging AC/DC adaptor Manual
docking station
Space isolator Trailing Bar Mop pad (two) Dust Brush Side brush (two) Filters (two)
Introduction:
Control panel of main body :
Menu display :
1. Date/week set display
2. Wheel rotation/speed display
3. UV lamp display
4. Auto cleaning display
5. Spot cleaning display
6. Current week display
7. Malfunction display
8. Charging/power display
9. Time/error code display
10. UV lamp key
11. Auto cleaning key
12. Spot cleaning key

Function information of display interface
Make sure full charged 5/6 hours (the battery should be charged and discharged for about 2 or 3 times before reaching
the best performance). Turn on the power switch, the buzzer will ring once and the display will show as follows :
1. displays the current date per week automatically based on the date.
2. displays in case of malfunction, "88:88
” displays the failure code from E001 to 034 .
3. displays the battery, three grids mean full power, or decreased power with less grids.
4. means the cleaner is in charging, the battery is not enough if the icon is flickering, or full if stops
flickering..
5. displays the timing cleaning time, surrent time per day and malfunction code..
6. means running speed ; faste speed on speed 1, or slow on speed 2.
7. displays the UV lamp is on when the cleaner is working, when open the UV lamp, it can sterilize, or off
when not working.
8. displays the cleaner is cleaning in the spot cleaning mode.
9. displays the cleaner is cleaning in the auto cleaning mode.
The following displays functions will only be selected and set in the remote control :
1. means selecting cleaning day or some days or everyday of one week.
2. displays the time and timing cleaning setting.
3. means adjusting the speed of the wheel.
4. displays the current date per week.
Touchkeys
Function description
1. Auto cleaning key
a
Clear up gadgets or obstacles in the room before cleaning, and then press Automatic cleaning
key, it will clean by spiral, linear, zigzag, follow the wall modes automatically.
b You can choose fast or slow running when cleaning.
c
The cleaner will stop running in case of low battery, then it will ring ten times and search the
docking station for charging automatically.
d The cleaner will stop cleaning if you press any keys during cleaning.
2. Spot cleaning key
a
Press spot cleaning key, it will enter the area about 1m² and clean by the spiral mode.
b Choose the fast cleaning time of about 2 minutes and low cleaning time of about 4 minutes,
and it will stop automatically after the cleaning.
C The cleaner will stop cleaning if you press any keys during cleaning.
3. UV lamp key
This cleaner is supplied of a UV lamp which can disinfect the floor and it is especially suitable
for people suffering allergy or for home with pets.
a Turn on the power of the main body, the display will light.
b Press the UV key, the icon will be display, UV lamp will be on if the cleaner is
working, or off if the cleaner stops working.
c If the UV lamp is unused, press the key to turn off, the icon will be off.
d The on/off mode of UV lamp will be memorized automatically.
: The keys of main body are of electronic touch type, you only need to touch them lightly with your finger while using it.
Besides, you should clean the keys and the space between them to remove water or oil stains, or may cause the touch failure.

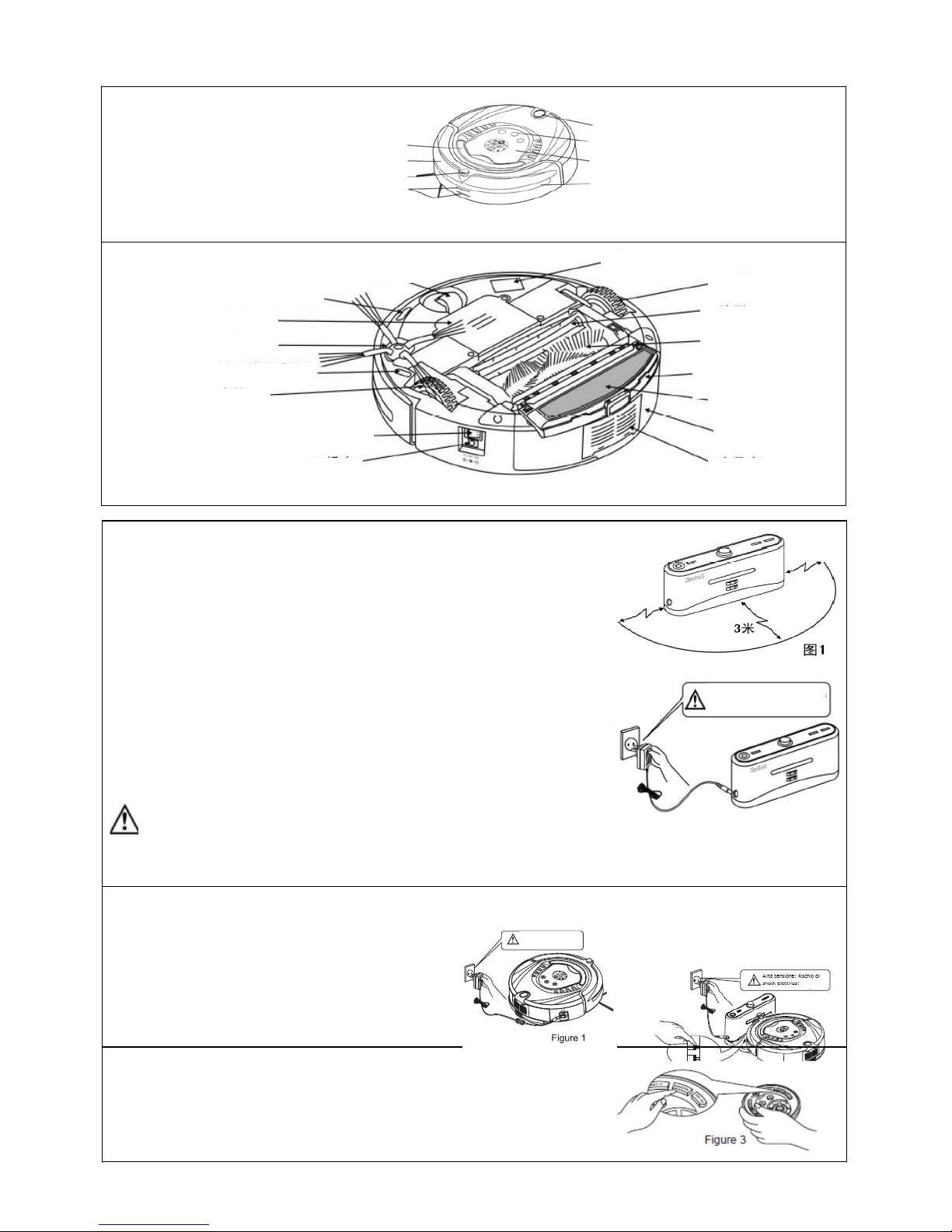

Parts :
Dustbin key
Handle Function key
Front bumper Display screen
Infrared signal receiver
Auto-charging electrode Sensor window
Front wheel
Ground detection sensor
Battery cover
Side cleaning brush
Ground detection sensor
Right wheel
Power switch
UV sterilizing lamp
Left wheel
Floor brush
Main brush
Trainling bar
Mop pad
Dusbin
DC socket Air outlet window
Installation of docking station and charging for the cleaner :
Automatic recharging :
1. Install the docking station on the flat ground firmly and
against the vertical wall.
2.
No obstacle or hollow areas 3m away from the docking station in
the front and 0.5m on the right and left
.
3. The cleaner cannot search the docking station for charging if
the infrared signal transmitting window of the recharger is
covered.
4. Connect the output terminal of the adaptor with DC socket of
the docking station.
0.5m
0.5m
3m
Caution !
: Please place the power cord of the adaptor along the wall,
or it may interfere with the brush or wheels.
Manual charging :
1. You can use the adaptor or docking station of the
cleaner to charge for the main body directly.
2. Connect the output terminal of the adaptor
with DC socket of the main body while
using the adapter for charging..
3. Press Docking in the remote control if you want to charge for the main
body, the cleaner will search the docking station for charging within
available scope automatically.

:
4. Press any key in host panel or Power off and
Docking keys in the remote control while the
cleaner is searching for the docking station, the
cleaner will then stop searching.
5. After the battery is used up, the first grid of the
charging icon will flicker, when the second and
then the third grid will flicker showing it is charging,
stop flickering after completing the charging.
.
6. Turn on the cleaner, full three grids show enough
power, one grid missing means the decreased
power, and it should be charged after three grids
missing.
Automatic charging :
The cleaner will search the docking station for charging automatically in case of low battery during cleaning.
1. The cleaner may fail to find the docking station due to the obstacle, decreased battery and complex condition, so the
docking station should be put in wide space.
2. When the cleaner finish cleaning, the temperature of the battery is very high ; so charging time will be longer.
Assembly & disassembly and cleaning of dustbin :
Assembly & disassembly of dustbin :
1. Extract the dustbin by pressing the red key on top.
2. Press the orange button on it, and then the blower
will pop up automatically.
3. Reverse the blower, release 2 fasteners and open
the cover.
4. Open the bracket and the filter will appear.
5. Change a new filter, press the semicircle bracket by
one hand to release the fastener from the filter
screen, and remove the filter grid by the other hand
and then change a new one.

6. Reverse the dustbin, tear out the mop, release the trailing bar and then unplug the right and left fasteners
on the bottom of the dustbin. All parts should be assembled as before disassembly.
: Don't use the mop and trailing bar on the carpet or uneven ground.
Cleaning of dustbin and blower :
1. First dump the dust, and the, and then
clean it with dust brush.
2. Pop up the blower, and then clean the
air inlet/outlet with dust brush.
3. Don't clean the blower in water !
4. Pop up the blower, take out the filter,
and then clean the dustbin in water.
5. Clean the filter by hairdryer or
dust brush.
6. After cleaning, you can assemble it
firmly as before the disassembly.

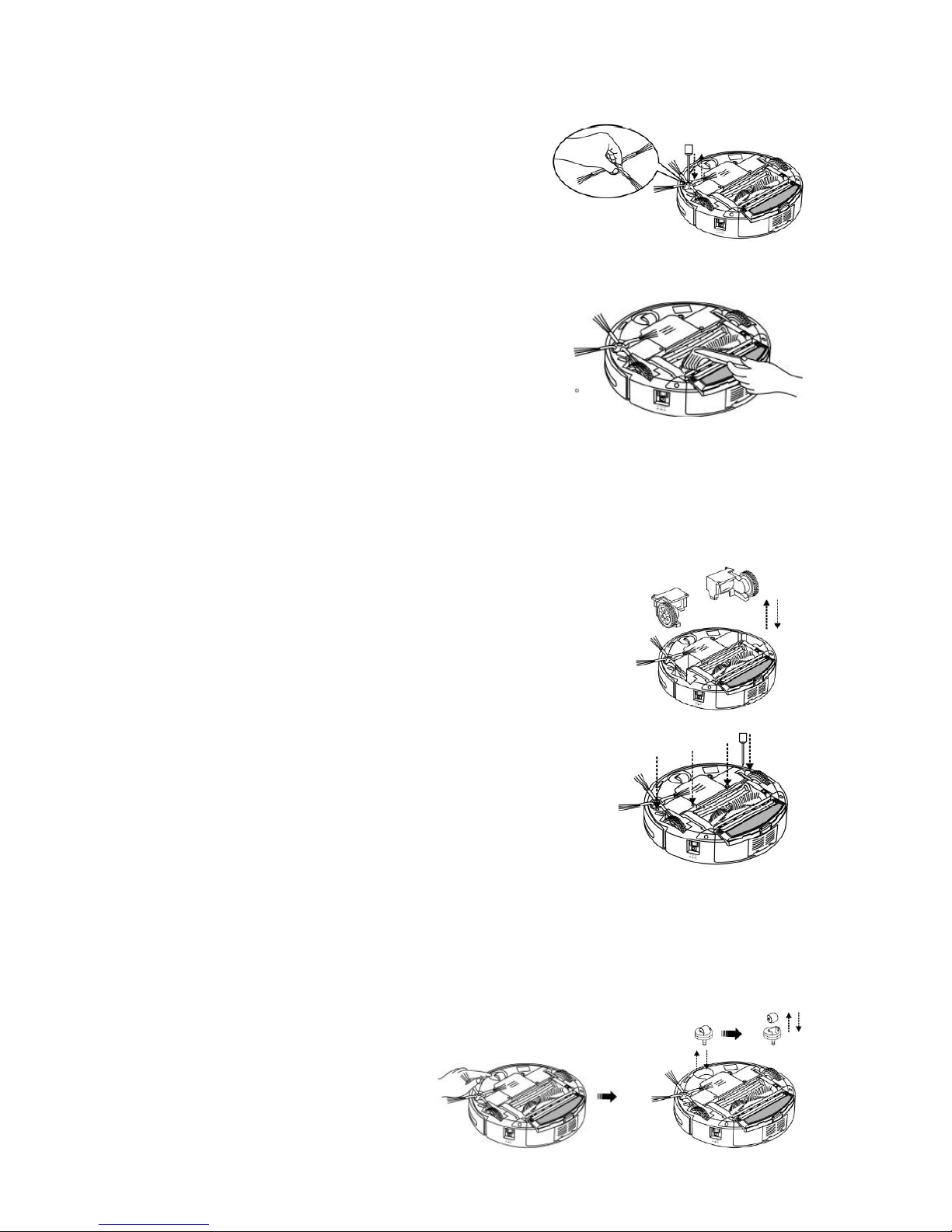

Assembly & disassembly and cleaning of main brush, floor brush, side brush :
Assembly & disassembly of mid cleaning brush and floor brush :
1. Force the locking bar forward and raise the cover by right
thumb, and then raise rod of the mid cleaning brush by
your left hand.
2. Take out the main brush and floor brush.
3. Insert the main brush and floor brush into the holes before
closing the cover in assembly.

8
Assembly & disassembly of side brush :
1. Release the screw in the main shaft of the
side brush before changing the side brush.
2. Press the side brush against the main shaft
and then fasten the screw.
Cleaning of main brush and floor brush :
1. Clear the hair or big dust particles on the brush
and floor brush regulary to improve the
cleaning performance. Clean the dust at the air
intake. Clean the wastepaper or small particles
by dust brush direcltly. Rotate the brush
carefully and cut by scissors or pull by hand the
hair, yarn and other twisted objects.
2. The cleaning of the main brush and floor brush can be done by reference to the assembly & disassembly.
Assembly & disassembly and cleaning of Left/Right wheel and front wheel :
Assembly & disassembly and cleaning of Left/Right wheel :
1. Release the screw of the left/right wheel by the screwdriver.
2. Take out the left/right wheel and clean them with the brush.
Don't wash them in water !
3. Place the left/right wheel in the original position, and tighten
the screw while assembling.
Assembly & disassembly and cleaning of front wheel :
1. Pull out the front wheel with your finger and tools and then clean it.
2. Insert and press the front wheel into the right position while assembling.

Cleaning of sensor and infrared transparent window :
1. Clean the sensor and infrared transparent window with the cotton swab or soft cloth.
2. The wall detection sensor is in front of the cleaner, while the ground detection sensor and infrared
transparent window are at the bottom of the cleaner.
3. Please keep the transparent window clean so as to make the robot work better.
Replacement of battery:
Battery replacement of the cleaner :
1. Release the screw with a screwdriver,
open its base plate.
2. Connect two terminals during battery
installation.
3. Place the positive and negative poles
correctly for fear of the damage due to
wrong poles.
4. Set the cleaner in charging status to keep
the best performance of the battery while
the cleaner is not in use.
5. Ensure using the original battery of the
manufacturer for installation, otherwise
there may be damage or accident.
Battery replacement of the space isolator :
1. Spin the pivot as per figure 1 and the cover will
open.
2. Please place the batteries (not included) with
correct polarity (=/-)
3. The right place of battery (Figure 3)
4. Please take out the battery if it was unused for
long.
Battery replacement of the remote control :
1. Open the battery cover and then replace the battery.
2. Please place the batteries (not included) with correct
polarity.
3. Please take out the battery if it was unused for long.

1. Please don’t forget to take out the battery before discarding the Cleaner.
2. Please remember to turn off the switch before taking out the battery from
the Cleaner and Space Isolator.
3. Please don’t place the battery in the high-temperature environment above
45
℃
or in the water.
4. Please don’t exert external force to the battery or drop them from high
place.
5. The battery should be recycled with safe disposal. Please don’t discard it
freely or throw it into fire for fear of explosion!

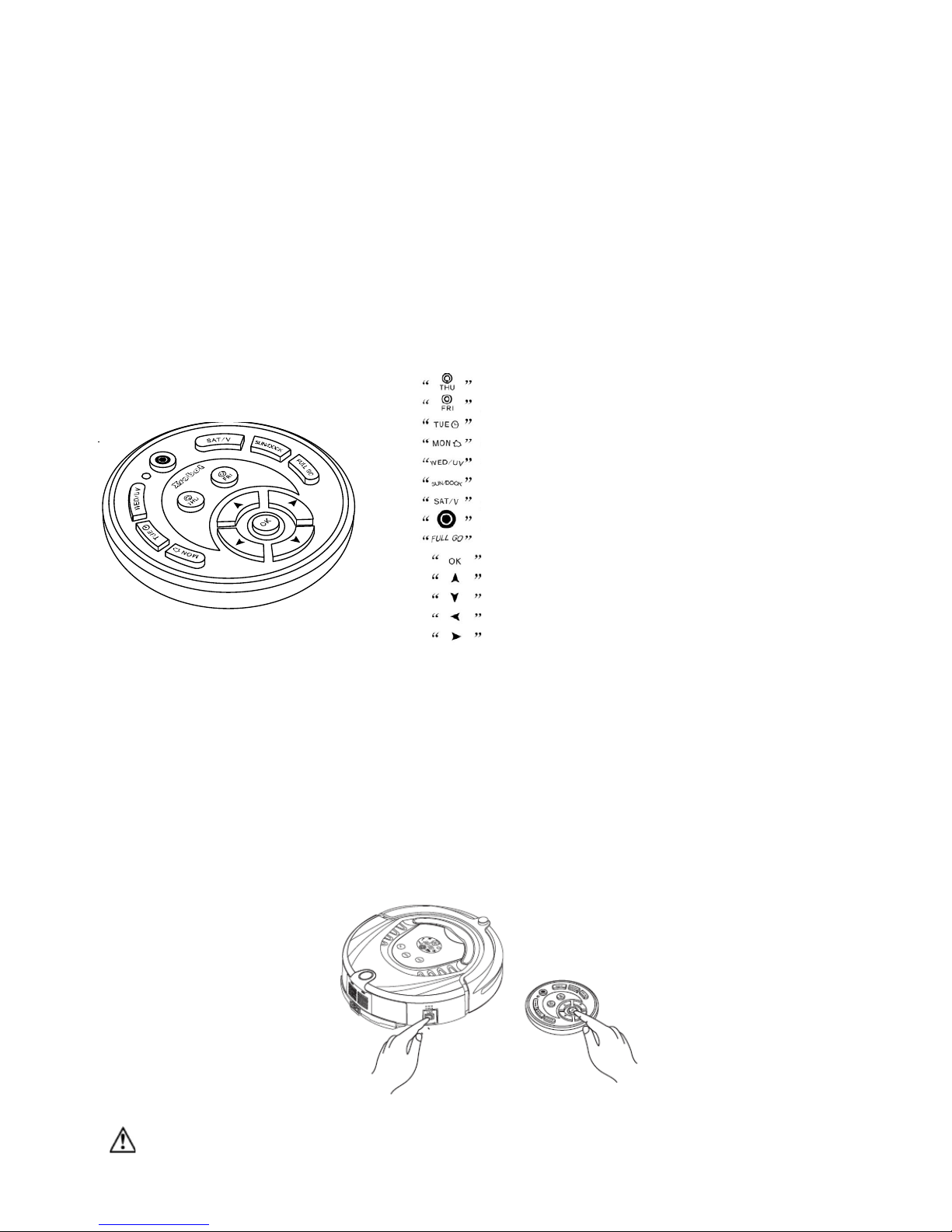

Remote control :
Automatic cleaning key/Thursday
Spot cleaning key/Friday
Time set key/Tuesday
Timing key/Monday
UV sterilizing key/Wednesday
Automatic recharching key/Sunday
Speed selection key/Saturday
Turn off/cancel
It will work automatically after the battery id full
Confirmation key
Forward key
Back key
Turn left key
Turn right key
Keys in total
Using method & functional status of control panel :
The following steps are very important, or the remote control may fail.
1. You should check code of the remote control or cleaner.
2. Check the remote control and cleaner have enough power, turn off the cleaner, press OK on the remote
control for more than 4s, and then turn on the cleaner without releasing OK.
After the cleaner toots twice, release OK, then the code check set is finished.
3. If you fail to hear toot during the code check, just repeat the above process.
: You can use the remote to a maximum range of 10 meters.

Function guide
Auto cleaning
Spot cleaning
Week & time setting
Timing cleaning setting
Full go function setting
Speed selection
Function information
Press the key, the Cleaner will clean in the auto cleaning mode ;Press
the key again, the Cleaner will stop running.
Press the key, the Cleaner will clean in the spot mode ;Press the key
again, the Cleaner will stop running.
1. Turn on the Cleaner.
2. Press on the remote controller, the icon in the LCD screen
of cleaner will flicker.
3. Press correct week button on the remote controller; there is display
in icon , 1 means Sunday, 2 means Monday, …accordingly, 7
means Saturday.
4. After setting correct week , then you can set time
5. Press ►to enter time setting, the Icon in the LCD screen of
the cleaner will flicker.
6. Press ▲or ▼to set the correct hour.
7. Press►again will flicker
8. Press ▲or ▼to set the correct minute
9. After finishing Week & Time Setting, press “OK” to save it
Cleaning week setting :
1. Turn on the Cleaner.
2. Press Timing Cleaning setting button , then the icon in
the LCD screen of the cleaner will flicker.
3. Press any week button /some week buttons or all week buttons you
want to set timing cleaning on any day or days or everyday of a we-
ek, then the selected date or dates will flicker. In , 1 means Su-
nday, 2 means Monday, accordingly, 7 means Saturday.
4. If you want to cancel any setting day or days, just press the week
button again.
5. after set the clean day of each week, it is possible to set the starting
time of cleaning.
Cleaning time setting:
1．Press ►to enter cleaning time setting, the Icon in the LCD
screen of the cleaner will flicker.
2．Press ▲or ▼to select the timing cleaning hour.
3．Press again will flicker.
4．After finishing Week & Time Setting, press “OK” to save it.
Cleaning Week setting :
When the cleaner is connected to the Docking Station, at the
setting time it will start cleaning automatically (when the battery is
fully charged); when the cleaning is finished or the battery is low,
the cleaner will go back to the Docking Station automatically.
Press FULL GO, “D” in the icon “ ” will flicker, the cleaner will
start cleaning automatically when the battery is charged (5/6 hours
charging); this function is suitable for large house which one full
charging can not clean all the rooms.
Remark: Can not set timing cleaning and full go function at the
same time !
Press the “SAT/V” key repeatedly, you can choose fast or slow speed.
It will have automatic memory after the speed selection (fast 1, slow 2)

You should use the remote control within 10m (radio signal scope), or you
may fail to control the main body.
The Cleaner may fail to find the Docking Station due to the obstacle,
complex condition or because the battery’ power used up .
Auto charging docking station
Docking Station Display and Control Panel :
1. LED decorative light (a little essence can be placed above)
2.Decorative light switch
3.Power LED
4.Charging indicator
5. Signal transmitting
6. Charging positive electrode
7. Charging negative electrode
8. Charging power DC socket
Using method & functional status of the docking station :
No.
Function guide
Function Information
1
LED decorative
light
Turn on the decorative light to activate the atmosphere, and place in the glowing
center of the light a little essence, wich will give off charming aroma after heating.
Function guide
Turn off/cancel/stop
OK key
UV lamp key
Auto Docking Key
▲Forward key
▼Backward key
◄Turn left key
►Turn right key
Function information
1．Turn on the power switch of the cleaner, and press the key can
turn on/off the Cleaner .
2．You can stop the running mode by pressing the key .
3．You can delete and return to the original setting if you get wrong
sets or want to stop setting.
4．Press the key for more than 5s, you can delete all set and memory
and return to the initial status
You must press “OK” to save any setting you did
You can turn on/off UV lamp by pressing the “UV” key while the
cleaner is in the Standby mode or running. The on/off set will be
memorized automatically.
While the Cleaner is in the Standby mode or running, the Cleaner will
search the Docking Station for charging after you press “SUN/DOCK”
key.
Press “Forward”, the Cleaner will run forward cleaning press
can stop. It will stop automatically in case of the obstacle.
Press ▼for long, the Robot will run backward cleaning, and it will
stop after you release the key.
Press ◄and release till the Cleaner turn left to the direction you
want. It will stop automatically in case of the obstacle.
Press ►and release till the Cleaner turn right to the direction you
want. It will stop automatically in case of the obstacle.

2
Decorative light
switch Press the switch to turn on/off while the decorative light is on.
3
Power LED The power LED will light when the docking station is connected with the power, or
turn off if not connected.
4
Charging indicator The indicator will flicker while the recharger is connected with the cleaner.
5
Signal transmitting
Transmitting signal is the only way to lead the cleaner to return the docking
station for charging, so the signal transmitting position should be clean for long
without any obstacle on it.
6、7
Recharging
positive & negative
electrode
The electrode and that of the cleaner are connected to charge under contact
mode, so the position should be clean without any obstacle on it while using, or
there will be impact to the charging.
8
Charging power DC
socket The power DC socket, called recharger for short, used to connect output terminal DC24V of the adaptor, is the charging transit station between the cleaner and
adaptor, so the recharger should be placed against the wall firmly and the adaptor
cable should be away from the recharger, or the robot may have impact and
winding during cleaning.
Some essence may damage the plastic surface, so please make purchase
and use after consideration.
Space isolator

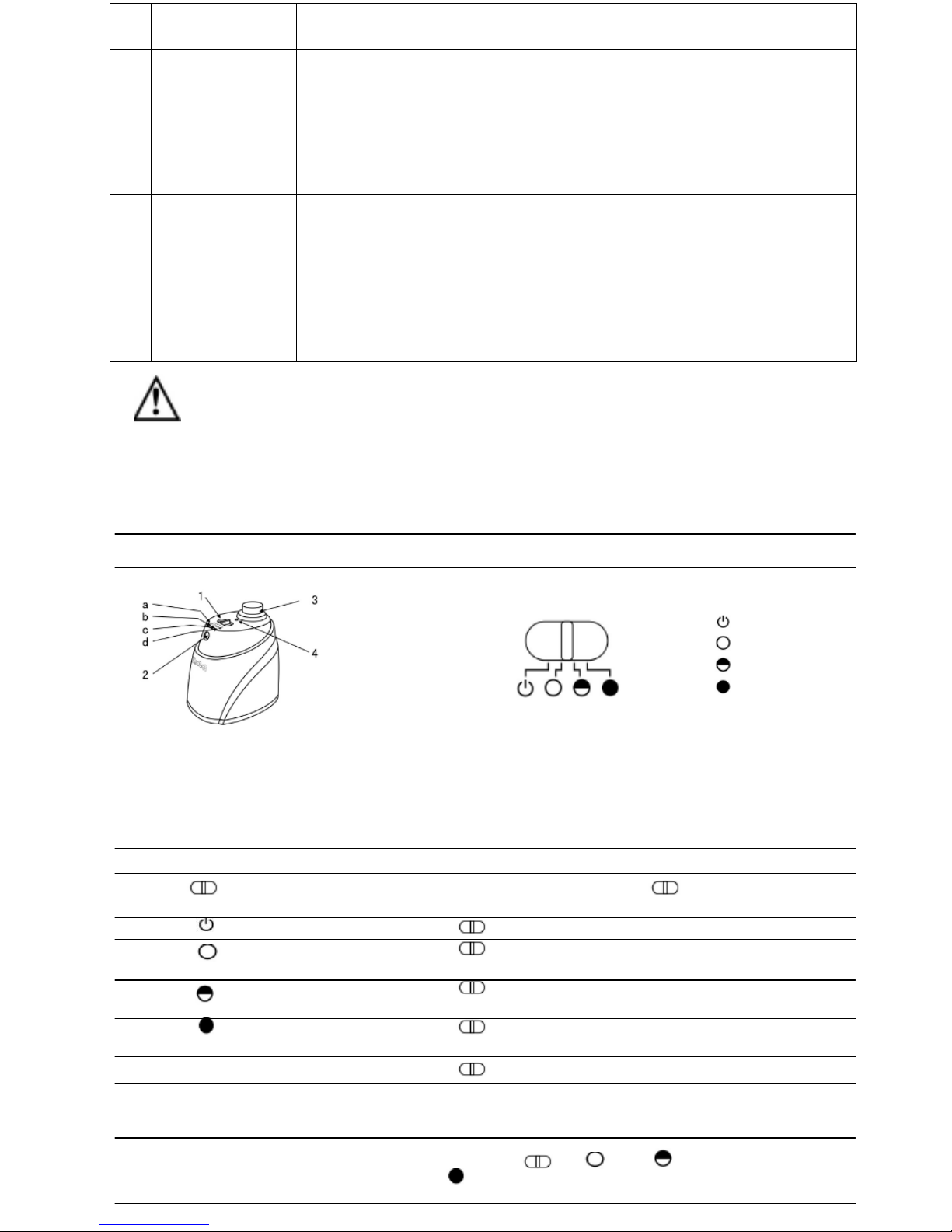

Space isolator display and control panel :
Overall display Function instructions
1. Toggle switch
Function Introduction of Space Isolator :
Space Isolator, an accessory of the cleaner, can block area by sending special infrared
signal so as to prevent the Cleaner from entering some unnecessary areas.
Using Method & Functional Status of Space Isolator :
No. Name Function information
Turn off
Low
Middle
High
a
b
c
d
1
2
3
4
Toggle switch
a Turn off
b Low
c Middle
d High
Infrared wall transmitting signal head
Near-infrared transmitting
head
Power LED
You can switch the function by sliding repeatedly : Turn off, Low,
Middle and High.
Slide to the position, then the power is off.
Slide to Low and turn on the power, you can select the distance
within 4m as required by infrared wall.
Slide to Middle and turn on the power, you can select the
distance within 6m as required by infrared wall.
Slideto High and turn on the power, you can select the distance
within 8m as required by infrared wall.
Slide , then you can adjust the distance of the Space Isolator.
The near-infrared transmitting signal makes the Cleaner
run outside the Space Isolator scope of 50-100cm without
any impact to it.
The Power LED will flicker once every 8s until the low
battery after you slide to Low, Middle
and High, and the Cleaner works normally.

1. Open the battery cover before using, place 2x”D” batteries (not included) into
the box correctly. Pay attention to the polarity or the Space Isolator will not
work.
2. The battery consumption duration is related to the selected transmitting
distance and working duration, please select proper transmitting distance
and low transmitting power to save the battery, so don’t forget to turn off the
toggle switch while unused.
3. There will be some difference in the direction, transmitting infrared signal of
the Space Isolator and receiving distance of the Cleaner due to environmental
impact and movement of the Cleaner during the actual using. The difference
above may vary based on the actual environment and different battery power
of the Cleaner and Space Isolator.
Installation method of Space Isolator:

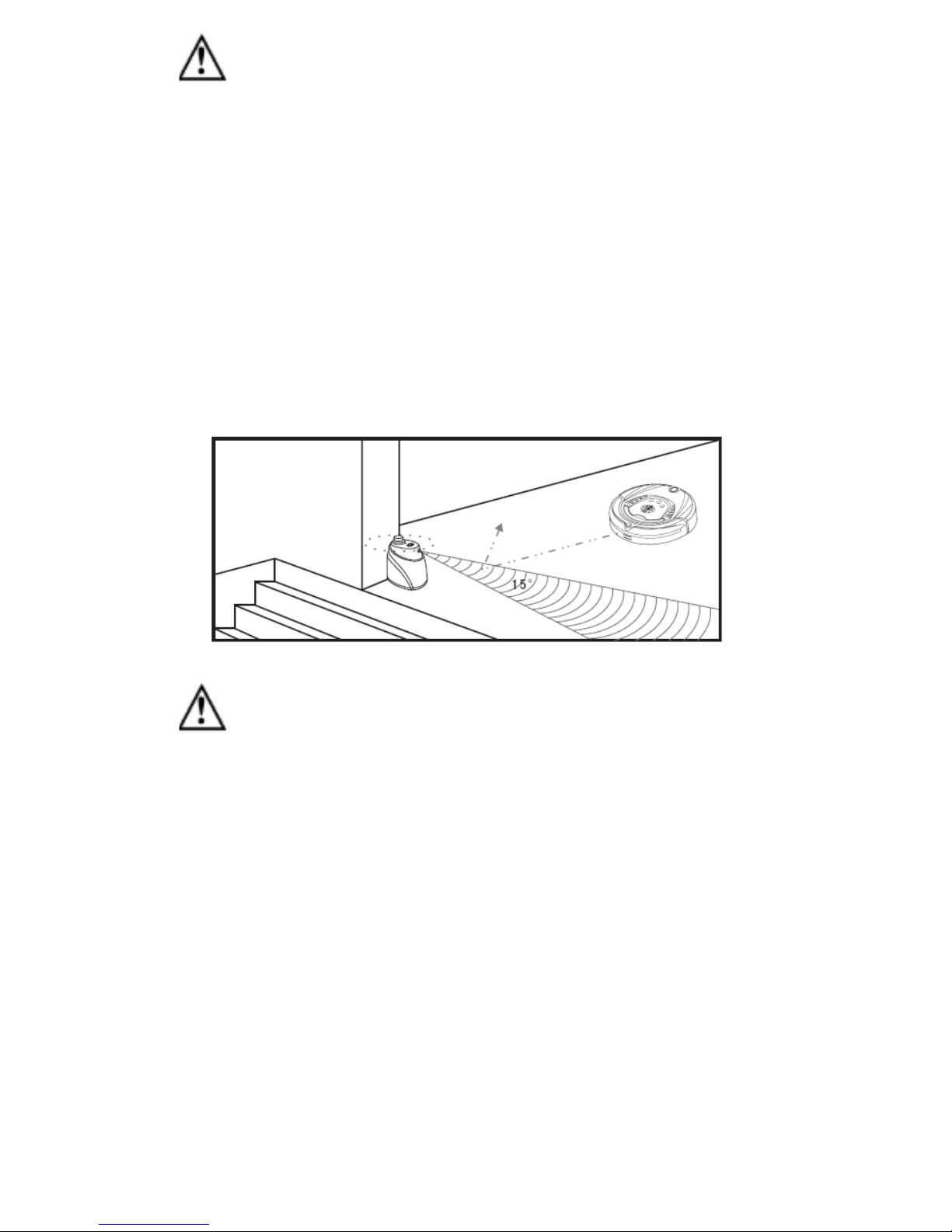

1. The Space Isolator is placed at the entrance to the stair or room generally.
2. You can place the Space Isolator at proper position to stop the Cleaner passing through
some places.
3. Remove obstacles from the area you want to block in front of the Space Isolator as much
as possible for fear of poor effect.
1. The Space Isolator should be placed at the same level of the ground where the
Cleaner is running.
2. You should check whether the Cleaner can pass the Space Isolator while
using it first.
The distance between the Space Isolator and recharger should be more than
3m, or there will be interference.
4. The Docking Station should not be installed within the signal scope of the
Space Isolator.

Trouble shooting :
The cleaner doesn't work or clean poorly :
1. Check whether turning on the switch.
2. Check whether the dustbin, filter and intake are clean, and whether the side brush works.
3. Check whether the battery voltage declines greatly.
The remote control doesn't work :
1. Check the battery status of the remote control.
2. Check the battery status of the robot.
3. Whether check code between the remote control and main body.
4. Check whether the remote control is within the available scope of the signal transmitting.
The cleaner can not charge automatically :
1. Check whether the adaptor is connected well with the charger and whether power LED of the charger lighting.
2. Check whether the battery power is too low ; if so, charge the cleaner with the adaptor directly.
3. Make sure there is no barrier in front of the docking station.
4. Use the remote controller to let the cleaner go back to the docking station.
Increased noise in cleaning :
1. Clean the dustbin and filter.
2. Check whether the brush or side brush is too dirty.
3. If the noise still too big, you may send back the cleaner to the after sale service maintenance to add lubricants.
The cleaner stops working suddenly and rings intermittently :
1. Check whether the set cleaning time is over.
2. Check whether there are failure codes on the display by reference of the followings.
The cleaner back off continuously :
1. Avoid use in sunlight or dark color carpet.
2. Pat the front bumper.
The cleaner dropped from the stair :
Clean the ground detection sensors at the front bottom of the cleaner.
The cleaner can not auto-charging after didn't use in a long time :
Use adaptor to full charged first.
The cleaner stop to work, but not error code display :
Don't disassemble and maintain it by yourself, contact the after sale service maintenance.

Failure information which may appear during using :
Code
Failure Cause
How to solve
E001
Ground detection sensors
Clean the sensors at the front bottom of the cleaner
E002
Middle brush
Clean the rubbish such as hair, thread wrapped on the brush
E003
Power off
Use the adaptor to charge, after full charged, then use again
E004
Left & right wheel
Check the left and right wheels, clean the rubbish on it
E005
Dustin poor contact
Check the dustbin and re-fix the dustbin after cleaning
If the failure still exist after the above check, please contact the after-sale service
maintenance, professional maintenance staff or the technical center of the
company, don't disassemble and maintain it by yourself.
CAUTION:
Do not dispose of this product as it has with other household products. There is a
separation of this waste product into communities, you will need to inform your local
authorities about the places where you can return this product. In fact, electrical and
electronic products contain hazardous substances that have harmful effects on the
environment or human health and should be recycled. The symbol here indicates that
electrical and electronic equipment should be chosen carefully, a wheeled waste
container is marked with a cross.
Manufactured and imported: Adeva SAS 8 rue Marc Seguin 77290 Mitry-Mory FRANCE
www.hkoenig.com - [e-mail] - Tel [phone]

FRANCAIS
Précautions de sécurité:
Avertissement
Personne ne peut démonter, entretenir ou
transformer le produit à l'exception de
l'entretien fait par des techniciens
désignés par notre entreprise, car cela
pourrait causer des problèmes de feu,
d'électrocutions ou des blessures.
Ne pas utiliser de chargeur autre que celui
distribué avec le robot car cela pourrais
causer des dommages, chocs électriques ou
incendies dû à une grande tension.
Ne pas toucher le cordon
d'alimentation à haute tension de
l’appareil électrique avec les mains
mouillées car cela peut causer un choc
électrique.
Ne pas trop plier le cordon d'alimentation ou
mettre du poids dessus car cela
pourrais endommager le cordon,
causer un incendie ou provoquer un
choc électrique.
Ne laissez pas entrer vos vêtements ou une
partie de votre corps (tête, doigt, etc.)
dans la brosse ou roue du robot car
cela pourrait causer un risque de
blessure.
Ne vous approchez pas d'une source de feu
telle que cigarette, briquet, allumette
et autres sources de chaleur ou autres
matériaux à combustibles tels que le
filtre à essence.
Attention
Ne pas oublier de couper l'alimentation lors
du transport ou quand l'aspirateur est
rangé pour une longue période car la
batterie risque de s’endommager.
Insérez de la bonne façon le cordon
d'alimentation du chargeur car cela
peut provoquer un choc électrique, un
court-circuit, de la fumée ou un
incendie.
Vérifiez si le chargeur et la prise sont bien
reliés, car cela peut provoquer une
panne voir un incendie.
Enlevez tous les objets facilement
endommageables (y compris les
objets lumineux, tissus, verre,
bouteilles, etc.) avant d'utiliser car cela
peut affecter l'utilisation de l'aspirateur.
Faites attention en utilisant l’aspirateur
en présence d'enfants car l'aspirateur
peut les effrayer ou leur faire du mal.
Ne pas se tenir debout ou s'asseoir
sur l'aspirateur car cela peut causer
des dommages à l'aspirateur ou des
blessures.
Faites attention a ne pas mouiller
l'aspirateur avec de l'eau ou n importe
quel liquide, de peur que le produit s
endommage.
Ne pas utiliser l'aspirateur sur de
petites tables et chaises ou tout autre
petit espace car l'aspirateur risque de
s endommager.
Ne pas utiliser l'aspirateur en usage
extérieur car cela peut provoquer sa
détérioration.
Ne pas utiliser l'aspirateur dans des
endroits de grand passage ou
l'aspirateur risque d'être endommagé
par un usage excessif.
Ne laissez pas d'objets du type fil, câble et autre d'une longueur de plus de 150 mm sur
le sol car ils peuvent rester coincé dans la brosse.
L'utilisation de l'aspirateur n'est pas adaptée pour les personnes handicapées
(personnes atteintes d'un handicap physique ou mental), les enfants et tous ceux qui
utilisent l'aspirateur avant de lire attentivement le manuel d'utilisation.

Zones d´utilisation possible:
Le produit s utilise principalement pour la maison, les chambres d’hôtels et les petits bureaux.
C'est un bon appareil pour le nettoyage de diverses moquettes et tapis à
poil court, plancher de bois, sol dur, céramique, etc.
Introduction aux fonctions de l'aspirateur:
C est un aspirateur robot nouvelle génération avec une batterie rechargeable, contrôlée par
un programme avancé intelligent, avec les fonctions suivantes: aspirateur automatique,
nettoyage, stérilisation, programmation du temps de nettoyage, nettoyage entier des surfaces,
télécommande sans fil, sélection de la vitesse. Il est facile à utiliser et à nettoyer.
Composants de l’aspirateur
Aspirateur Télécommande Station de charge Adaptateur secteur Manuel d’utilisation
Mur virtuel Support serpillère Balais a franges(2) Brosse Brosse à côtés (2) Filtres (2)
Présentation:
Vous trouverez ici les éléments principaux qui constituent l'aspirateur robot:
Interface d'affichage Les signes LCD
Menu d’affichage:
Menu :
1.
Voyant de la date et l'heure
2.
Molette de rotation / affichage rapide
3.
Voyant lampe UV
4.
Voyant de nettoyage automatique
5.
Point d'affichage de nettoyage
6.
Affichage de la semaine en cours
7.
Voyant de disfonctionnement
8.
Voyant de charge
9.
Heure / Code d'affichage d'une erreur
1.
Clé lampe UV
2.
Clé de l'auto nettoyage
3.
Point d'auto nettoyage

Fonctions d'information de l'interface d'affichage :
Assurez-vous que l'aspirateur soit complètement chargée pendant 5 ou 6 heures (la batterie
doit être chargée et déchargée entièrement environ 2 ou 3 fois avant d'atteindre la meilleure
performance).
Appuyer sur le bouton de mise en marche, la sonnerie retentira une fois et l'écran affichera ce
qui suit:
1. Affichage automatique de la date actuelle par semaine.
2. Voyant en cas de dysfonctionnement "," affichage du code d'erreur allant d’E001 à 034.
3. Trois barres signifient que la batterie est pleine. Moins il y a de barres, moins il y a de batterie.
4. Signifie que l'aspirateur est en charge. La batterie n'est pas suffisamment chargée si l'icône
clignote, ou complet si celui-ci s arrête de clignoter.
5. Voyant du temps de nettoyage en temps réel, l'heure actuelle par jour et le code de disfonctionnement.
6. Réglage de la vitesse. 1 : vitesse rapide 2 : vitesse.
7. Voyant de la lampe UV sur « allumée » lorsque l'aspirateur est en marche, lors de l'ouverture de
la lampe UV, ou sur « éteint » lorsqu’il ne fonctionne pas.
8. Voyant de l’aspirateur en mode nettoyage.
9. Voyant de l’aspirateur en mode nettoyage automatique.
1. Sélection du jour de nettoyage ou de quelques jours ou d'une semaine entière.
2. Affichage de l’heure et du temps de nettoyage.
3. Moyens de réglage de la vitesse de l’appareil.
4. Affichage de la date en cours et de la semaine.
Fonctions d’opération des
touches clefs :
Description de la fonction :
1. La touche d’auto nettoyage
a. Enlever les objets et obstacles présents dans la pièce à
nettoyer avant de mettre en marche l’aspirateur. Appuyez
ensuite sur le bouton nettoyage automatique.
L’aspirateur fonctionnera en faisant des spirales, en ligne, en
zig-zag, suivant les différents modes automatiques.
b. Vous pouvez choisir la vitesse rapide ou lente pour le mode
de nettoyage.
c. L’appareil s’arrêtera de fonctionner si la batterie est faible. Il
sonnera 10 fois avant de chercher le support de la recharge
automatique.
d. L’aspirateur s’arrêtera de fonctionner si vous appuyer sur
n’importe quel bouton de l’appareil durant son fonctionnement.
2. Bouton de nettoyage
a. Appuyer sur le bouton de la clef de nettoyage , de cette
manière l’aspirateur nettoiera en spirale une surface de 1m2
b. Le mode rapide de nettoyage dure 2 minutes et le lent 4
minutes. Il s’arrêtera automatiquement après avoir finit
c. L’aspirateur s’arrêtera de fonctionner si vous appuyer sur
n’importe quel bouton de l’appareil durant son fonctionnement
3. Bouton de lampe UV
a. Appuyer sur le bouton ON du corps principal de l’appareil.
L’affichage s’allumera.
b. Appuyez sur le bouton de la lampe UV, l’icône
apparaitra et la lampe UV se mettra sur ON si l’aspirateur est
allumé ou sur OFF s’il est éteint
c. Si vous n’avez pas besoin d’utiliser la lampe UV, appuyez
sur le bouton pour l’éteindre, et l’icône s’éteindra
d. Le mode ON/OFF de la lampe peut être mémorisé
automatiquement.
Ce nettoyage est spécialement conçu pour les personnes
souffrant d'allergies et les maisons avec animaux
domestiques
Les touches du corps principal de l’appareil sont de type électronique, vous avez juste besoin
de les toucher doucement avec vos doigts pour l’allumer. A côté de ca, vous devez nettoyer
les touches et l’appareil avec un tissu humide d’eau, autrement cela peut causer l’usure des
touches si celles-ci ne sont jamais nettoyées.

Les parties :
Installation de la station d’accueil et de la recharge automatique :
La recharge automatique :
1. Installer la station d’accueil fermement
et verticalement sur le sol.
2. Pas d’obstacles ou de surfaces
creuses à 3 mètres devant l’appareil et
0.5 mètres sur les côtés de l’appareil.
3. L’aspirateur ne peut pas chercher la
station d’accueil si le signal infrarouge
transmit par le cadran est couvert.
4. Connecter l’adaptateur à la prise afin
de brancher la station de recharge.
Placer la corde de la prise au sol lors du
chargement afin d’éviter que le fil ne se coince
dans les roues ou les brosses.
Attention !
