IMPORTANT: READ ALL INSTRUCTIONS BEFORE USE.
RETAIN INSTRUCTIONS FOR FUTURE REFERRENCE.
Do not use in rain or leave outdoors whilst raining
WARNING: Basic safety precautions should always be
observed when using an electrical appliance, including the
following to reduce the risk of fire, electrical shock, or injury.
Personal Safety:
1. Store indoors in a dry place out of the reach of children;
2. This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way
and understand the hazards involved. Children shall not
play with the appliance. Cleaning and user maintenance
shall not be made by children without supervision.
3. Don’t let children play with the appliance; supervise
children using or maintaining the appliance;
4. Use only manufacturer’s recommended attachments as
described in this manual; misuse or use of any accessory
or attachment other than those recommended, may
present a risk of personal injury;
5. Take extra care when cleaning stairs;
6. Keep the appliance and accessories away from hot
surface;
7. Do not block the appliances openings or hinder air flow,
keep openings free of any objects including dust, lint,
clothing, fingers (and all parts of the body);
8. Particularly keep hair away from openings and moving
parts;

Electrical Safety:
1. Only use batteries and chargers supplied by the
manufacturer;
2. Never modify the charger in any way;
3. The charger has been designed for a specific voltage.
Always check that the mains voltage is the same as that
stated on the rating plate;
4. A charger that is suitable for one type of battery pack
may create a risk of fire when used with another battery
pack;
5. Before use, check the charger cord for signs of damage
or ageing. A damaged or entangled charger cord increases
the risk of fire and electric shock;
6. Don not abuse the charger cord;
7. Never carry the charger by the cord;
8. Do not pull the cord to disconnect from a socket, grasp
the plug and pull to disconnect;
9. Don’t wrap the cod around the charger when storing;
10, Keep the charger cord away from hot surfaces and
sharp edges;
11. The supply cord cannot be replaced. If the cord is
damaged the charger should be discarded and replaced. It
must be replaced by the manufacturer, its service agent or
a qualified technician in order to avoid a hazard.
12. Do not handle the charger or the appliance with wet
hands;
13. Do not store or charge the appliance outdoors;
14. The charger must be removed from the socket before
removing the battery, cleaning or maintaining the
appliance.

15. The device must not be used if it has been dropped, it
obvious signs of damage are visible or if it has leaks.
Battery safety:
1. This appliance includes Li-ion batteries, do not
incinerate batteries or expose to high temperatures, as
they may explode;
2. Liquid ejected from the battery may cause irritation or
burns;
3. in an emergency situation contact professional help
immediately;
4. Leaks from the battery cells can occur under extreme
conditions. Do not touch any liquid that leaks from the
battery. If the liquid that gets on skin wash immediately with
soap and water. If the liquid gets into the eyes, flush them
immediately with clean water for a minimum of 10 minutes
and seek medical attention. Wear gloves to handle the
battery and dispose of immediately in accordance with
local regulations;
5. Shorting the battery terminals may cause burns or fire;
6. When the battery pack is not in use, keep it away from
paper clips, coins, keys, nails, screws or other small metal
objects that could make a connection from one terminal to
another.
7. When you dispose of the appliance remove the battery
and dispose of the battery safely in accordance with local
regulations.

Service:
1. Before using the appliance and after any impact, check
for signs of wear of damage and repair as necessary;
2. Do not use the appliance if any part is damaged or
defective;
3. Repairs should be carried out by a service agent or a
suitably qualified person in accordance with relevant safety
regulations. Repairs by unqualified persons could be
dangerous;
4. Never modify the appliance in any way as this may
increase the risk of personal injury;
5. Only use replacement parts or accessories provided or
recommended by manufacturer.
Intended use:
1. This appliance has been designed for domestic dry
vacuum cleaning only;
2. Do not pick up liquids or use on wet surfaces;
3. Do not pick up anything that is flammable, burning or
smoking;
4. Use only as described in this manual;
5. Don’t use on concrete, tarmacadam or other rough
surfaces.
WARNING:
1. Do not use water, solvents, or polishes to clean the
outside of the appliance; wipe clean with a dry cloth;
2. Never immerse the unit in water and do not clean in a
dish washer.

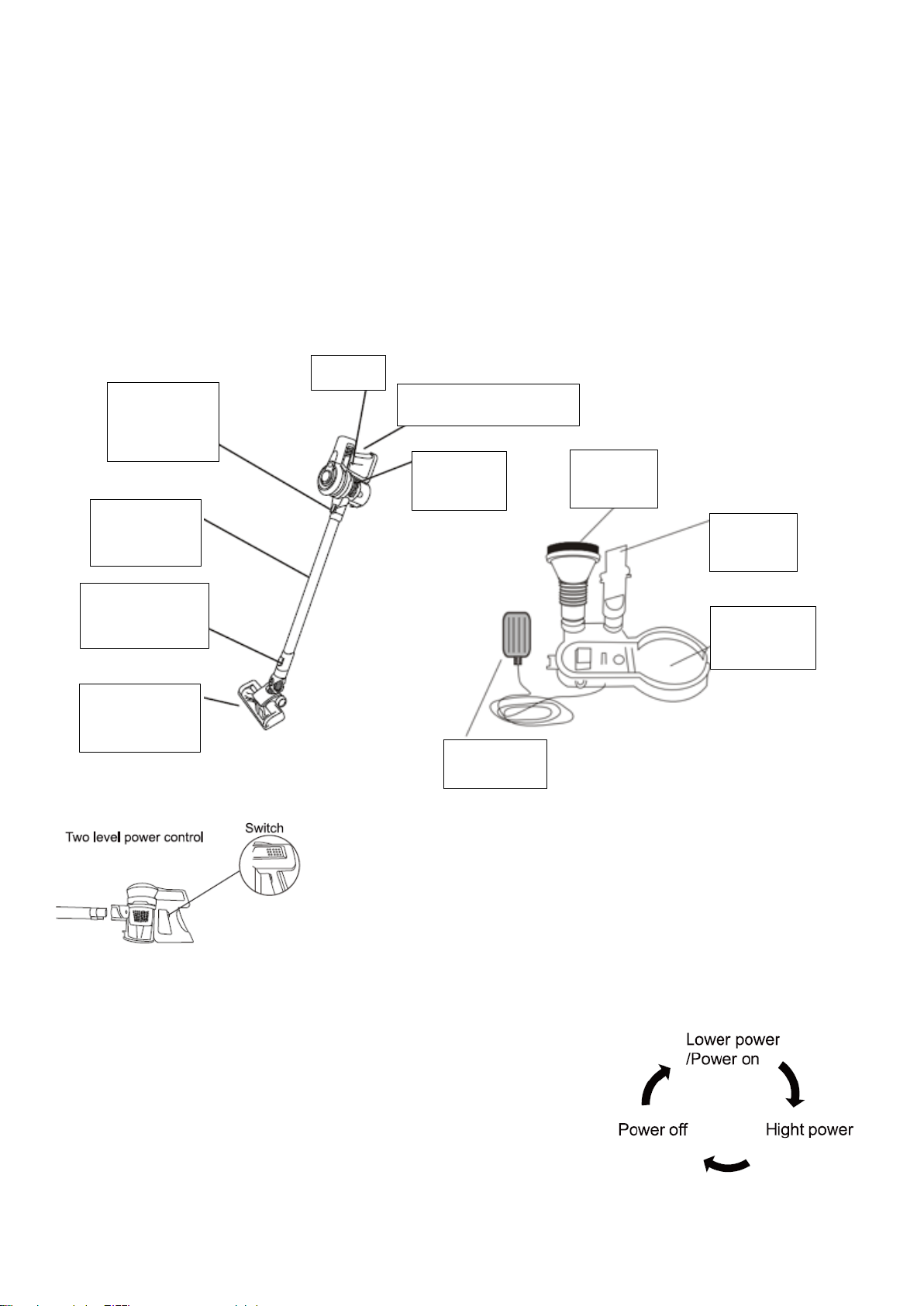

Introduction of components:
Metal tube
loacker
Metal tube
Power brush
locker
Power brush
Switch
Handle with
battery
Dust cup
Charger
Charger
base
2 in 1
crevice
Round brush

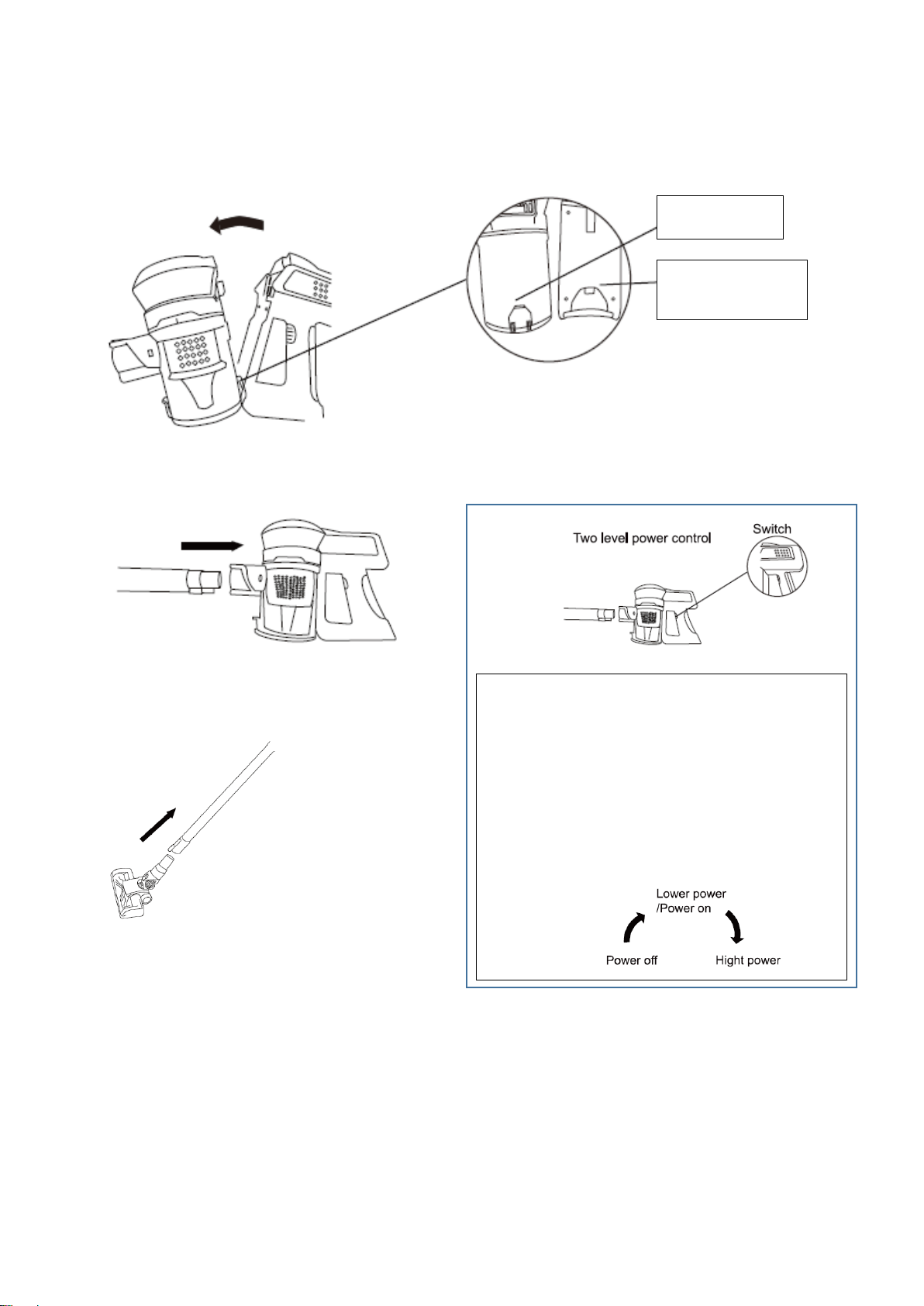

I Use as the stick vacuum cleaner
a) Assemble the battery into the dust cup, make sure the battery bolt head insert the dust cup
slot rightly as below
b) Attached the metal tube to the body as
below until hear click sound
c) Attached the brush to another head of metal tube
as below showed
d) Press the switch to work
II How to use as handly
Insert the accessory (2in 1 crevice or round brush) to body as below showed
Dust cup slot
Battery bolt
head
A Lower power
It’s lower power when your press the switch button first time
B high power
Its high power when you press the switch button second time
It will be power off when press third time, it’s kind of circle as
below showed

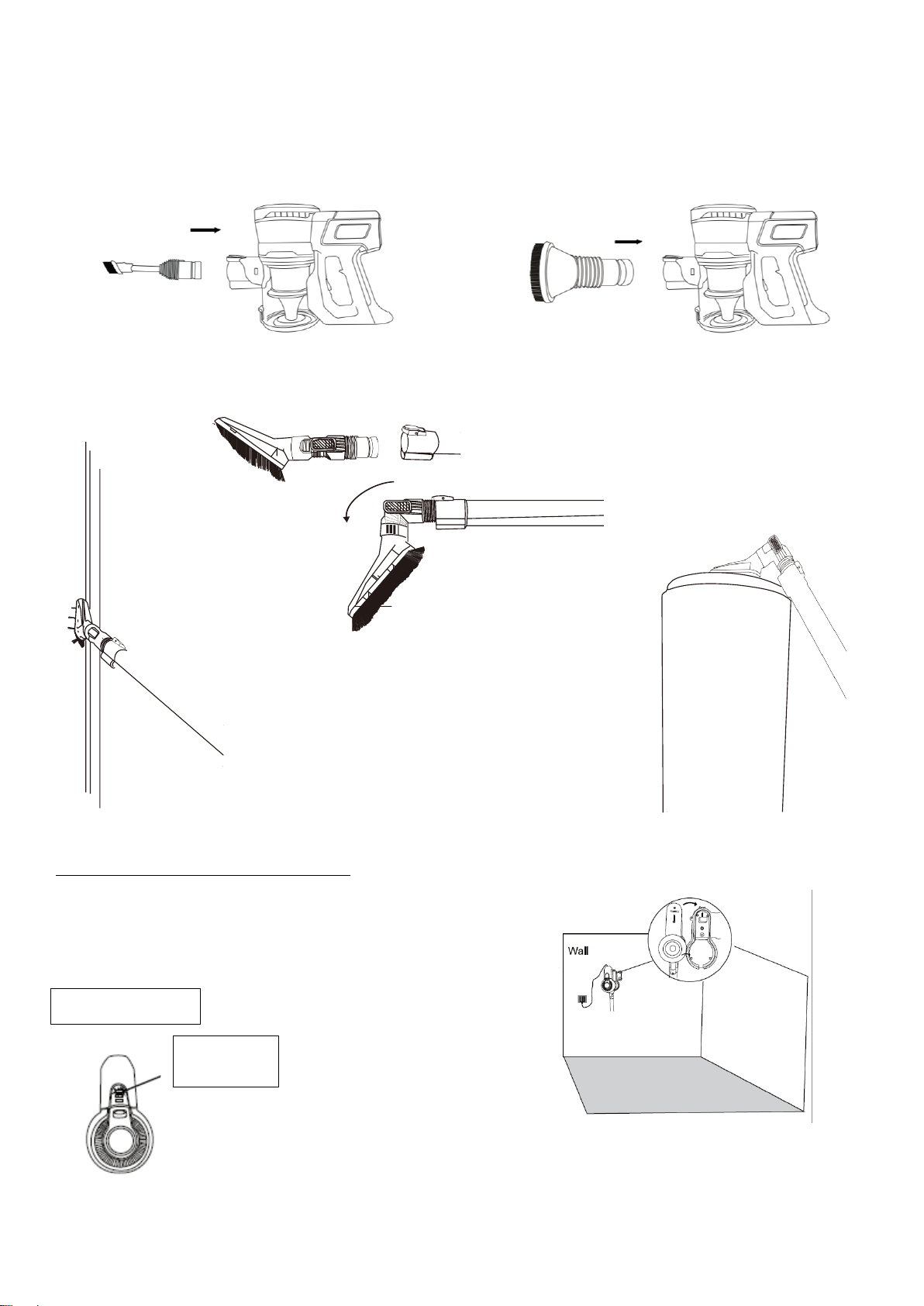

III Using the accessories :
BATTERY CHARGING:
When the battery power indictor
Is blinking, please power off then
Put back to charge base for charging
As left showed
Blinking
Lower power
Connect the up side brush with the metal tube.
Twist the up side brush (90 degree at most)
You can clean high walls or
coners in high places
You can clean up side of the
appliances or furnitures with the
twisted brush

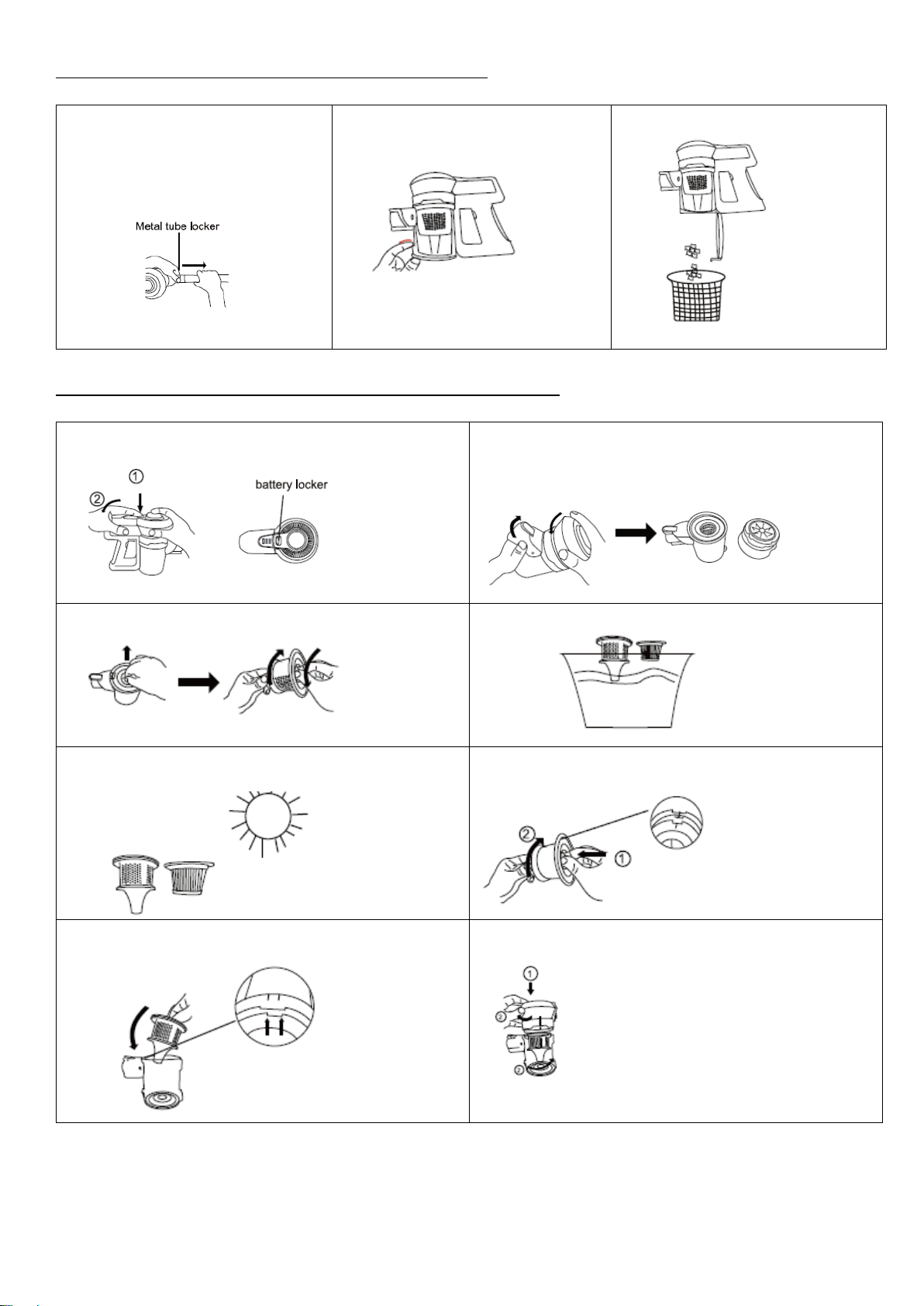

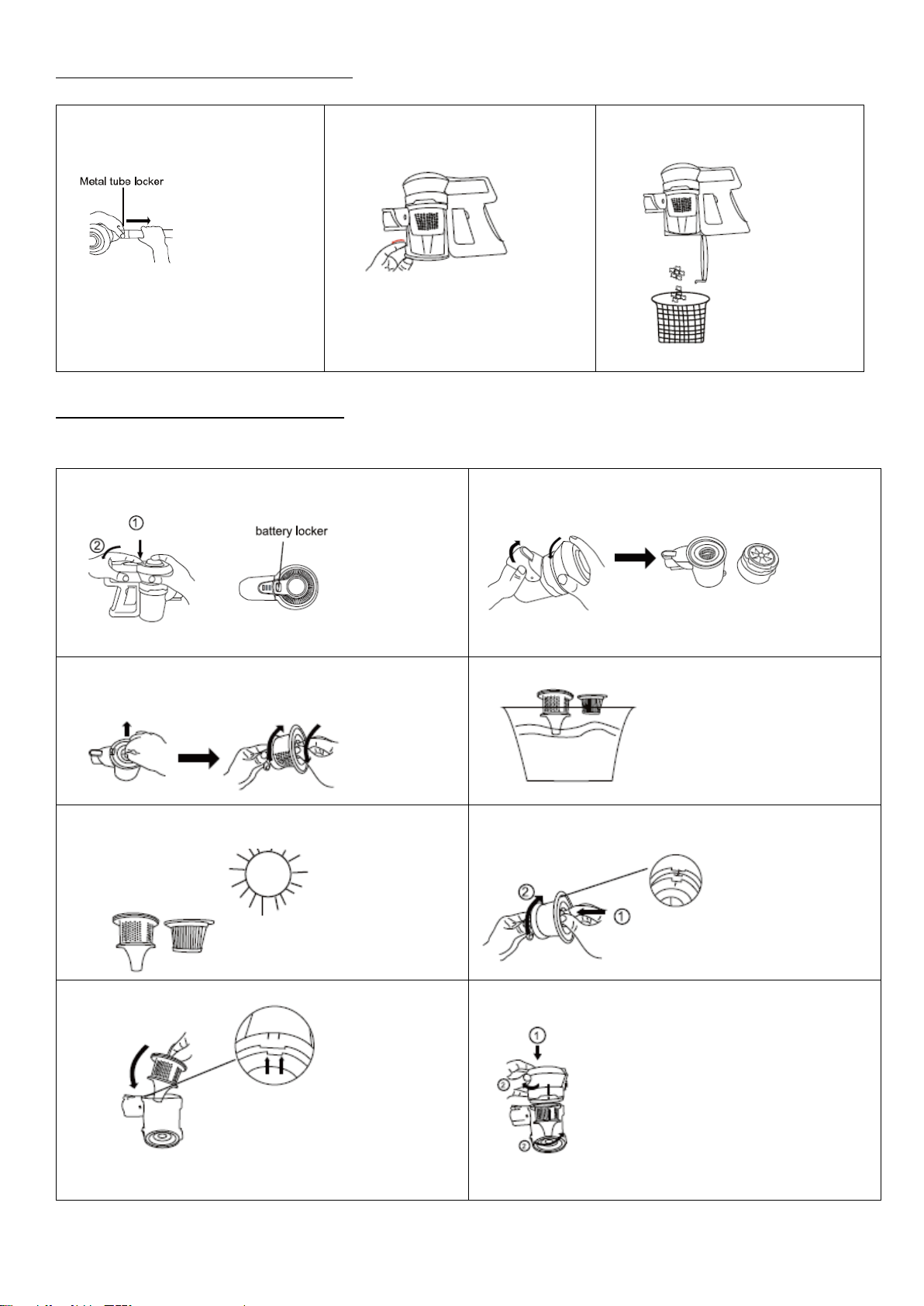

HOW TO EMPTY THE DUST CUP:
1. Press the metal tube locker
then take out the metal
2. unlock the dust cup locker
3. Empty the dust cup
HOW TO MAINTAIN THE FILTER:
1. Press the battery locker to unattached the
battery from dust cup
2. Open the dust cup as below showed
3. Take out the filter case, then take out the
filter
4. wash the filter case and HEPA filter
5. Please dry the HEPA filter and filter case
completely before assemble back
6. After drying, assemble the filter to the case
7. put the filter case back to the dust cup
8. assemble the dust cover into the dust cup as
below showed

TROUBLESHOOTING:
Not cleaning Well
1. Empty the dust bin
2. Check dust bin is correctly fitted
3. Check the filter is correctly fitted
4. Clean the filter
Stop or won’t work
1. Charge battery
2. Clear debris from brush bar
Battery will not
charge
1. Check connections
2. Check wall socket
TECHNICAL SPECIFICATION:
Battery
22.2V/2200mA
Charging period
4 hours
Battery charger output
26V/500mA
Net Weight
2.8kg
Usage time
40min (low speed), 25min (high speed)
Power
100W
Vacuum
7Kpa
Airflo
20m3/s
