Haas+Sohn Engadin Plus User manual

Kaminöfen EN13240 / Engadin
Engadin Plus
Typenschild:
Aufstellungs- und Bedienungsanleitung
Kaminöfen EN13240 / Engadin, Engadin Plus
Notice d’installation et d’utilisation
Poêles cheminée EN13240 / Engadin, Engadin Plus
Istruzioni d’installazione e di funzionamento
Stufe-caminetto EN 13240 / Engadin, Engadin Plus
Installation and operating manual
Wood stoves EN13240 / Engadin, Engadin Plus
Upute za postavljanje i korištenje
Kaminske peći EN13240 / Engadin, Engadin Plus
Navodila za postavitev in uporabo
Kaminske peči EN13240 / Engadin, Engadin Plus
V19 E22

Please read this Operation Manual carefully. It will provide you information of the function and operation of
this stove, and in addition, proper heating will allow you saving fuel and behaving environment-friendly. The
enclosed specification forms a part of this Operation Manual.
Notes in the text
Of utmost importance there are the notes entitled WARNING. The notes entitled WARNING advise you on
serious danger of damage to the heating device or of an injury.
The note entitled Notice advises you on possible damage to your heating device.
The note itself calls your attention to the information important for the operation of your heating device in
general.

Contents
1. General instructions ..................................................................................................... 1
2. Safety instructions ........................................................................................................ 1
2.1. Proper conduct in case of a fire in the chimney! ........................................................... 2
3. Chimney .......................................................................................................................... 2
3.1. Weather conditions ...................................................................................................... 2
3.2. The draft of the chimney at nominal heating output of the stove .................................. 2
3.3. Connection to the chimney ........................................................................................... 3
4. Emplacement ................................................................................................................. 3
4.1. Minimum distances from inflammable construction parts ............................................. 3
4.2. Inlet of combustion air .................................................................................................. 4
5. Operation of the fireplace stove .................................................................................. 4
5.1. Suitable fuels ............................................................................................................... 4
5.2. Unsuitable fuels ........................................................................................................... 5
5.3. First putting in operation ............................................................................................... 5
5.6. Overheating ................................................................................................................. 7
5.7. Removal of ashes ........................................................................................................ 7
6.
Cleaning and servicing ................................................................................................. 8
7.
Defects, reasons ............................................................................................................. 9
8.
Guarantee ....................................................................................................................... 10
9.
Orders of spare parts / questions of the service / complaints .................................. 10
9.1. Orders of spare parts ................................................................................................... 10
Contents
5.3.1 First use of Engadin Plus............................................................................................. 5
5.4. Heating up properly ...................................................................................................... 6
5.5. Adding fuel in the start-up phase........... ......................................................................... 7
5.5.1 Adding fuel in the heating phase........... ....................................................................... 7
7.1
Error message alerts App .............................................................................................. 9

1
1. General instructions
• When unpacking the appliance, please check whether it has not suffered harm during transport.
Report possible faults to your specialised vendor of stoves immediately!
Note: The return draft boards which are loose or which loosened from their embedding etc. do not
constitute defects (see Specification –First putting into service).
• During the installation, connection and putting in operation there must be observed national and
European standards, local and building regulations, as well as the Building Order of the
respective country, or the Decree of fire-boxes.
• The fireplace stove, described in this Manual, has been checked according to DIN EN13240. The door
of the combusting space must be closed during the heating always.
• The fireplace stove is a fire box for interrupted combustion, and is suitable for multiple employment of
a chimney. Please observe the international regulations.
2. Safety instructions
• With the stoves equipped with an intake of external air, the orifice must not be closed during
operation of the stove.
• During operation of the stove, the installed orifice for the intake of combustion air must not be
closed, partially closed, straitened, covered or blocked.
• During the operation, the fireplace stove warms up intensely. Therefore, the stove is attended employing
a protecting glove which is included in the scope of the delivery.
• Alert children to this danger, and take care that they may not linger in the vicinity of the stove when it is
in operation.
• A sufficient input of fresh air must be secured in any case.
• The appliances for suction of air, such as ventilation appliances, fume hoods, laundry driers with
discharge of waste air etc., or other fire boxes must not exert a negative impact on the supply of
air to the stove.
WARNING
The fireplace stove must not be brought into operation at the same time with the controlled ventilation
appliances in the flat.

2
2.1. Proper conduct in case of a fire in the chimney!
• If employing improper or wet fuel, a fire can be produced in the chimney due to the accretions in the
chimney.
Proper conduct:
• Shut all the air orifices of the stove immediately.
• Inform the fire brigade and the chimneysweep.
• Provide access to cleaning orifices.
• Once the fire is over, have the chimney inspected by an expert in fissures and leaks.
• Ascertain the reason of the fire in the chimney.
3. Chimney
3.1. Weather conditions
For safe operation of the fire box, it is always necessary to secure that the chimney may have a sufficient
draft. In particular, this issue must be taken in consideration in transition seasons (e.g. in the spring, in the
autumn etc.).
3.2. The draft of the chimney at nominal heating output of the stove
min. draft of the
chimney (from
type):
11-12 Pa
If the minimum draft of the chimney is not achieved, a proper operation
of the stove is not possible.
Note
At a low draft of the chimney, we recommend to connect the chimney by a
vertical tube, 1 m long at least.
If surpassing the maximum admissible draft of the chimney, there in-
creases the consumption of fuel, the temperature in the combustion
space and consequently, the heating output.
max. draft of the
chimney: 20 Pa Note
There arises the danger of overheating, and consequently, excessive
load on construction parts.
In case of excessive draft of the chimney, we recommend to install a
draft controller or a draft limiter.
WARNING
Prior to the installation, it is always necessary to calculate the chimney according to the standard.

3
3.3. Connection to the chimney
• The tube of the smoke flue must be mounted on the neck of the discharge of combustion products.
• The tube of the smoke flue must not be installed with a gradient towards the chimney.
• There must be paid attention unconditionally that the tube of the smoke flue may not protrude into clear
diameter of the chimney; it would disturb the upward lift of the combustion products and would make
an optimum cleaning of the chimney more difficult.
• Longer horizontal sections of smoke flue tubes reduce the necessary draft of the chimney.
• All the orifices mouthed into the same chimney, such as cleaning orifices of the stove and of the
chimney, must be shut.
• In case of multiple employment of the chimney, the minimum vertical distance of two chimney
connections ought to be 30 cm at least. As a matter of principle, the fire places must be suitable and
approved for multiple employment of the chimney.
4. Emplacement
4.1. Minimum distances from inflammable construction parts:
CAUTION
As a matter of principle, the emplacement of a fireplace stove must observe the valid official fire-fighting
regulations.
In this respect, please observe the international regulations.
Caution! With a stove with lateral window, the same distance must be maintained as with the extent of
radiation in the front!
WARNING
Caution! As minimum distances from inflammable materials or materials sensitive to heat (e. g. furniture,
wallpapers, wooden linings), or load
-
bearing walls respectively, there must be respected the distances
shown in the type plate.
Bei brennbaren oder temperaturempfindlichen Fußbodenbelägen muss das Gerät auf eine nicht brennbare
Unterlage (z.B. Glasplatte) gestellt werden (siehe Zeichnung).
WARNING

4

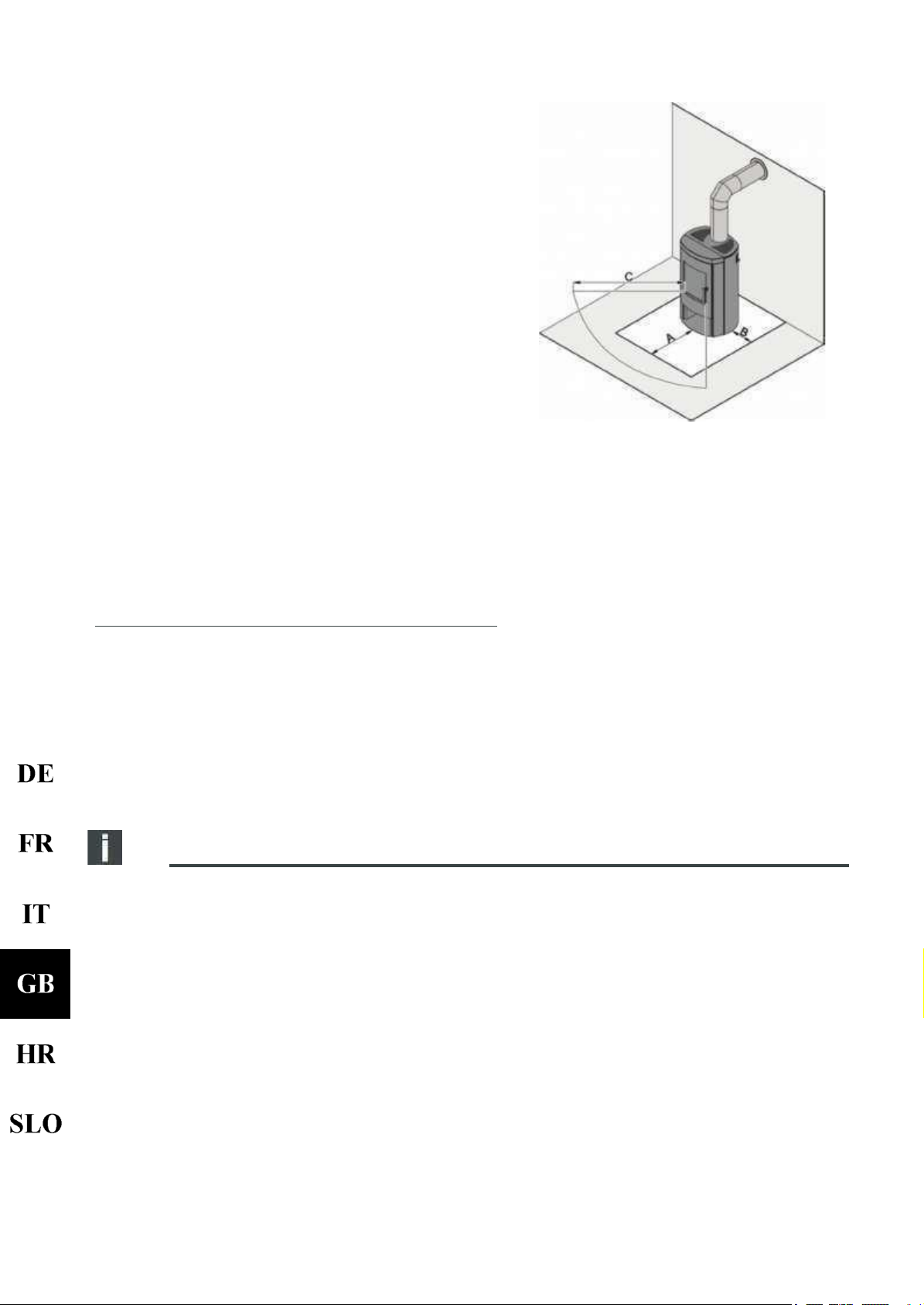

Recommended protection of the floor:
A 50 cm – in the front
B 30 cm – from the inside edge of the combustion space
C see the type plate – extent of radiation from the window
Safety distances from inflammable construction parts:
In the rear - see the type plate
On the side - see the type plate
In the front in the extent of radiation - see the type plate
4.2. Inlet of combustion air
It is necessary to ensure that in the place of location of the stove there would be available sufficient combustion air.
5. Operation of the fireplace stove
. 5.1. Suitable fuels
The fuels approved for combustion and the maximum stoking amounts of fuel are shown in the
specification of the appliance.
The length of the fuel varies from 29 cm to 33 cm, depending on the combustion chamber.
Orientating value (depending on the type of the wood):
1kg of fire wood = about 4kW
1kg of wood briquettes = about 5kW
Note
Wood briquettes expand during combustion, and therefore, they ought to be broken to pieces.
5.2. Unsuitable fuels
Never use for heating any waste, wallpapers, rests of chipboards, plastics or impregnated wood! When
combusting such materials, the appliance can suffer damage, by the consequence of which any guarantee
ceases to exist.

5
5.3. First putting in operation Engadin
Prior to first putting in operation, it is necessary:
• To remove stickers, if there are any.
• To take out all accessories from the ash-pan or from the combustion space.
• Check whether the return draft boards (see the specification of the appliance – spare part combustion
space, figure A) are mounted in their embeddings. These can shift during the transport or installation of the
fireplace stove.
CAUTION
Smoke and odour may occur for a short time during initial start-up. Please provide for this time sufficient
ventilation of the room where the stove has been installed, and avert direct inhalation.
CAUTION
Smoke and odour may occur for a short time during initial start-up. Please provide for this time sufficient
ventilation of the room where the stove has been installed, and avert direct inhalation.
•Remove existing stickers.
•Remove all accessories from the ash pan and the furnace.
•Check whether the baffle plates (see device data sheet - Spare part Combustion chamber, fig. A) are
positioned correctly. These could have been shifted during the transport or installation of the fireplace.
•Prior first use, the power supply and the WLAN module must be plugged into their respective
connections.

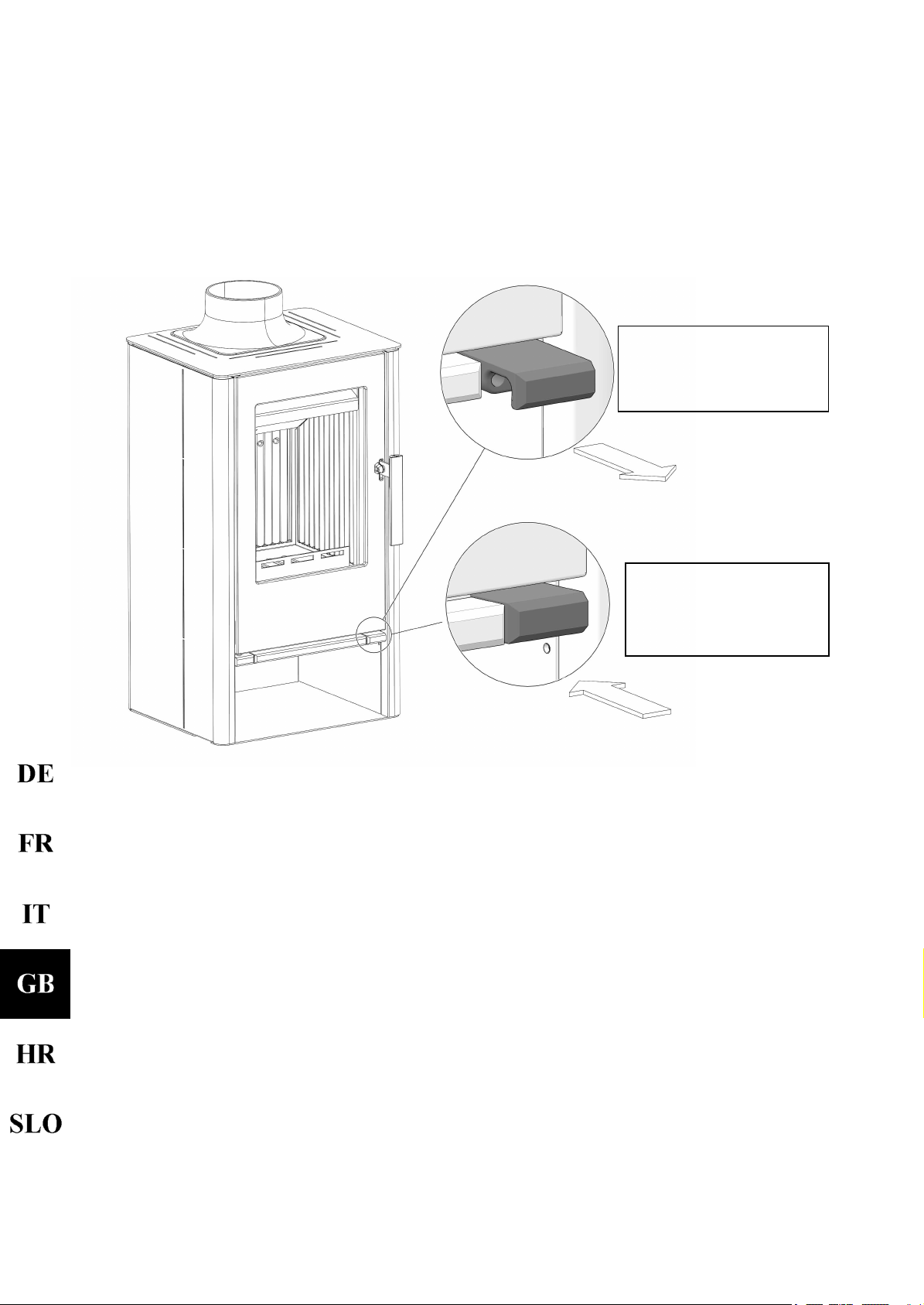

5.3.1 First use of Engadin Plus
Prior first use, you may

In heating mode the
regulator must be
pressed in.
When heating up and in
the start-up phase, the
regulator must be pulled
out.
5.4. Heating up properly
• Place two pieces of split wood (about 075 kg each) parallel to the glass door of the combustion chamber.
• Now place some small pieces of wood (about 7 pieces total weight = about 0.7 kg) on the firewood and place
two fire starters between the small pieces of wood, ignite the fire starters.
• Pull out the air regulator and close the door of the fireplace.
6

5.5. Adding more fuel in the start-up phase
•Add more fuel only on the bed of red embers (not on the flame).
•Place two pieces of split wood (about 0.75 kg each) parallel to the glass door on the bed of red
embers and close the door of the fireplace.
•When the refilled wood is burning with a bright flame, slide the air regulator inwards.
5.5.1 Adding fuel in the heating phase
•Pull out the air regulator.
•Place two pieces of split wood (about 0.75 kg each) parallel to the glass door on the bed of red
embers and close the door of the fireplace.
•When the refilled wood is burning with a bright flame, slide the air regulator inwards.
5.6. Overheating
WARNING
In order to avoid damage to the appliance due to overheating, there must not be exceeded the maximum
one- shot stoking amount of fuel (see specification of the appliance). It can bring about damage to fire clay,
grate, pile grating, formation of fissures in tiles, tinting of parts of the casing, heat accumulating bricks and
glass, deformation of metal sheet parts, destruction of sealing and of the glass board of the cover etc. All the
rights arising from the guarantee cease to exist.
5.7. Removal of ashes
After longer heating, but once a week at least, it is necessary to rake out ashes into the ash-pan by means of
a poker, and to empty the ash-pan. Please mind to empty the ash-pan meanwhile it is approximately half-full,
so that the layer of ashes may not touch the grate.
CAUTION
There is a danger that the circulation of air might be interrupted, and of insufficient cooling as the
consequence, which can bring about overheating and damage to the grate.
Before removal of ashes, check always whether there are no remains of live fuel in the ashes. Even in cold
ashes, there may possibly remain rests of live fuel, and bring about fire in the waste bin.
WARNING
7
6. Cleaning and servicing
• Once in a year at least, or more often in case of need, you should clean the fireplace stove in cold
state, and service it. During the servicing, it is necessary to remove accumulated ashes from the tube
of the smoke flue and from boards changing the smoke direction or from the return draft boards. The
return draft boards can be taken out for cleaning (see the specification of the appliance).
• Glass of the door: For ecological cleaning, we dip a wet dishcloth in wood ashes, and clean the
glass with it. Also, it is possible to employ special cleaning agents for the glasses of fireplace
stoves, or regular agents for cleaning of glass (without caustic acids and solvents).
• It is also necessary to have the chimney cleaned by a chimneysweep. The respective
chimneysweep will give you information of the necessary intervals.
Note
A fireplace stove ought to be checked by a professional every year.

8
7. Defects, reasons
Defect: Reason: Suppression:
The stove heats badly or smokes:
The draft of the chimney is too
low (min. 10 Pa. in the neck of
combustion products)
Seal the chimney cleaning
orifices that are not tight.
Have the draft of the chimney
measured by the chimneysweep
in charge.
The stove or the smoke flue tubes
are clogged with soot
The stove and the smoke flue
tubes are to be cleaned in time
The connection tube of the stove
to the chimney is not tight
Check the connection tube and
seal it
The amount of fuel in the stove is
excessive
Use the amount of fuel as per the
specification
The stove has not been con-
nected properly, or the chimney
is overcharged
Consult the
chimneysweep
The input of external air is missing Day-to-day shock ventilation
Bad weather conditions
(transition seasons)
If necessary, set the air regulator
to „position pressed in".
Too large wood logs Use smaller logs (max. 0.7 kg/
piece)
The fuel is burning too fast:
Appliance not tight (sealing of
the door, of the glass)
Replace the sealing
The draft of the chimney too big
(min. 20 Pa. in the neck of com-
bustion products)
Have a draft limiter installed
The glass of the door gets
soiled quickly:
Wet wood stock Check up, max. 17 % of residual
moisture
Too large wood logs Use smaller logs (max. 0,7 kg/
piece)
The draft of the chimney is too low
(min. 10 Pa. in the neck of com-
bustion products)
Seal the chimney cleaning
orifices that are not tight.
Have the draft of the chimney
measured by the chimneysweep
in charge.
Air regulator always open:
position „pressed in".
When the product is burning
briskly, the air regulator should be
in the „extracted" position
The draft of the chimney too big
(min. 20 Pa. in the neck of com-
bustion products)
Have a draft limiter installed
The door glass has milky colour Overheating New glass
Bothering smoke:
The fuel has not burned down
completely
Stoke new fuel on live embers
only (no flame)
The draft of the chimney is too
low (min. 10 Pa. in the neck of
combustion products)
Seal the chimney cleaning
orifices that are not tight.
Have the draft of the chimney
measured by the chimneysweep
in charge.

9
7.1 Error message alerts app
Malfunction: Cause: Remedy:
Too high heating capacity
warning Too much fuel was added Do not add more fuel until
the app prompts you. Check
the fuel quantity during the
next heating up or refilling
Problem – No connection to
the oven The oven is not connected to the Wi-Fi Check your network and
check if the module is
connected to the oven
properly
Problem Power outage Do not refill the oven until
the oven status in the app
states "OFF"
Problem The temperature
sensor is not working
Contact our customer service
via the service form on the
homepage

10
8. Guarantee
HAAS + SOHN gives the buyer a guarantee in the frame of valid legal regulations. The two-year guarantee
runs from the moment of the actual hand-over.
Note
As a document, the respective invoice is to be presented.
WARNING
In case of any alteration in the construction of the stove, as well as of its use contrary to the determined
purpose, all the rights arising from the guarantee cease to exist.
9. Orders of spare parts / questions of the service / complaints
In case of ordering spare parts, or with questions concerning the repairs and service, or when lodging a
complaint, address always directly your Haas+Sohn vendor, from whom you have bought the appliance.
In order to allow fast processing of your query, the data from the type plate of the appliance are
necessary unconditionally:
• Exact designation of the type (execution, model)
• Serial number
The type plate is situated on the rear side of the stove and on the title page of the Operation Manual.
9.1. Orders of spare parts
Moreover, please pay attention to technical drawings and tables in the specification of the appliance, where
you will find the correct denomination of the required spare part.
If a defect occurs in your appliance within the warranty period, HAAS + SOHN will correct (repair) this defect in
the shortest possible time or optionally replace the defective item. Cancellation of the contract /a reduction in
price is excluded in so far as this does not conflict with the statutory regulations. Only replacement parts that
are expressly authorised or offered by the manufacturer may be used.
Replacement parts that are covered by the warranty and which the customer can replace himself are provided
free of charge during the warranty period. Replacement parts are provided without service intervention.
However, if the customer requires assembly of replacement parts by a service technician, this service is
charged.
Changes to the item purchased that are connected with normal use, invalidate a warranty. Maintenance or
cleaning not performed or performed inadequately, a flue draft that is incorrectly set to the appliance or is
insufficient or too high, improper commissioning, negligence and changes to the appliance, also invalidate a
warranty.

11
Maß- und Konstruktionsänderungen, technische und optischen Änderungen, Irrtümer, Satz- und Druckfehler
vorbehalten.
Alle Dokumente wie zB. Bedienungsanleitung, Geräteblatt, Prüfberichte, etc. und Kontaktdaten finden sie
auch unter:
www.haassohn.com/at www.haassohn.com/de
Toutes les informations sont fournies sous réserve de modifications techniques, d'erreurs et de fautes de
frappe et d´orthographe.
Tous les documents (notice d´utilisation, fiche technique, procès-verbaux d´essais) peuvent être trouvés sur le
site:
www.haassohn.com
Le variazioni delle dimensioni e della costruzione, le modifiche tecniche e ottiche, errori, refusi e gli errori nelle
frasi sono riservati.
Tutti i documenti come per es. istruzioni per l´uso, specificazione dell´apparecchio, rapporti di prova ecc. ed i
contatti troverete anche su:
www.haassohn.com
We reserve the right of changing the dimensions and construction, as well as of technical and optical changes,
mistakes, printing errors and faults in sentences.
You will find all documents, as e.g. the Operation Manual, specification of the appliance, testing reports etc.,
as well as the contact data, also on:
www.haassohn.com
Izmjene dimenzija i konstrukcije, tehničke i optičke izmjene, greške, greške u tisku ili nepotpune rečenice su
pridržane.
Sve dokumente, kao npr. upute za uporabu, specifikacija uređaja, izvještaji o probama, itd. te kontaktni podaci
se također nalaze na:
www.haassohn.com
Spreminjanje dimenzij in konstrukcije, tehnične in optične spremembe, napake, tiskovne napake in napake v
stavkih pridržane.
Vsa dokumentacija, kot npr. navodila za uporabo, specifikacija naprave, protokoli, itd. ter kontaktni podatki so
na voljo tudi na:
www.haassohn.com
