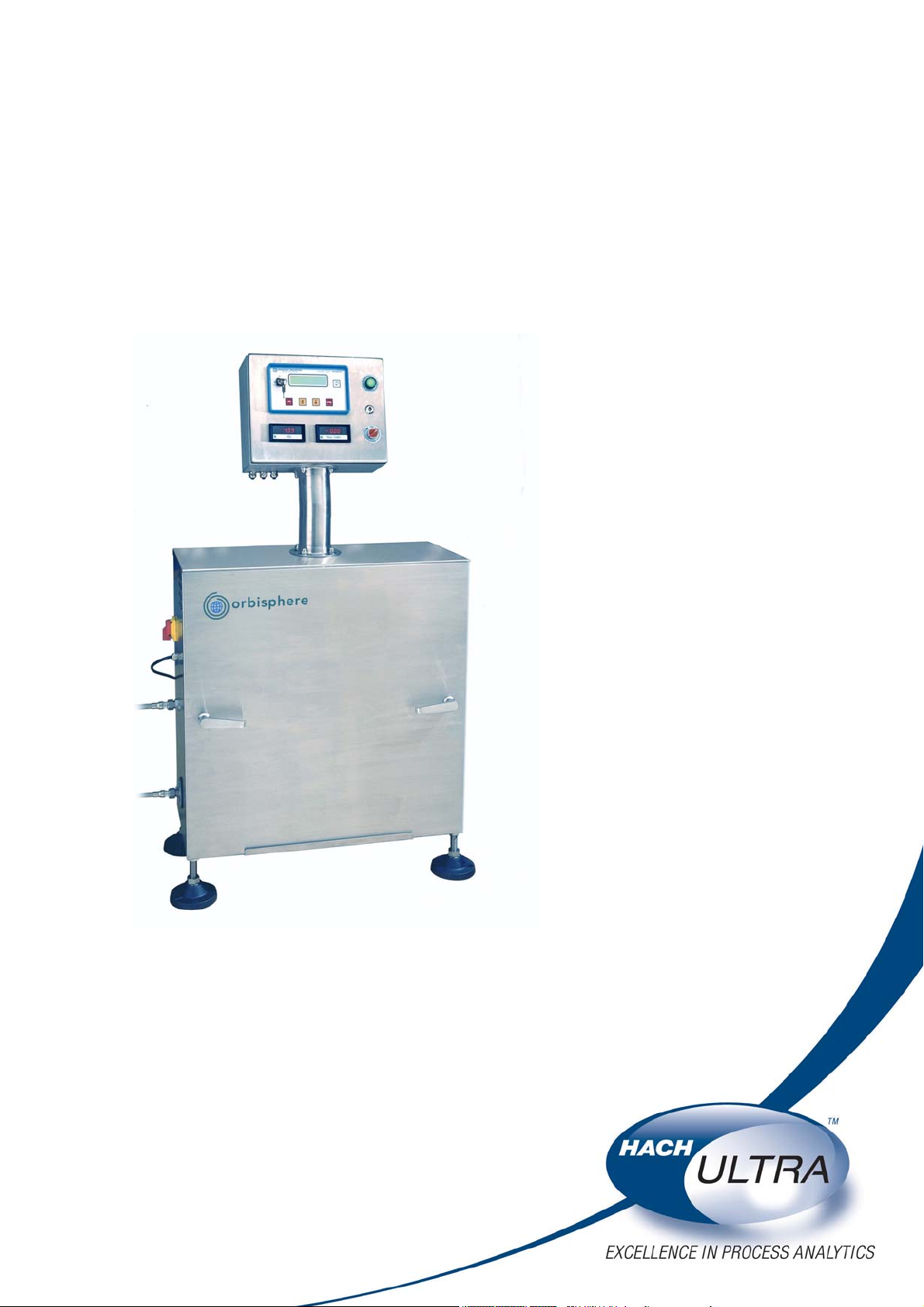

Hach Ultra ORBISPHERE 3624 User manual

Operator Manual
ORBISPHERE 3624
Revision F - 03/10/2008

3624 ProBrix Plus - Important Information
Operator Manual ORBISPHERE
Product Recycling Information
ENGLISH
Electrical equipment marked with this symbol may not be disposed of in European public
disposal systems after 12 August 2005. In conformity with European local and national
regulations (EU Directive 2002/96/EC), European electrical equipment users must now
return old or end-of-life equipment to the manufacturer for disposal at no charge to the
user.
Note: For return for recycling, please contact the equipment manufacturer or supplier for
instructions on how to return end-of-life equipment for proper disposal.
GERMAN
Elektrogeräte, die mit diesem Symbol gekennzeichnet sind, dürfen in Europa nach dem 12. August 2005
nicht mehr über die öffentliche Abfallentsorgung entsorgt werden. In Übereinstimmung mit lokalen und
nationalen europäischen Bestimmungen (EU-Richtlinie 2002/96/EC), müssen Benutzer von
Elektrogeräten in Europa ab diesem Zeitpunkt alte bzw. zu verschrottende Geräte zur Entsorgung
kostenfrei an den Hersteller zurückgeben.
Hinweis: Bitte wenden Sie sich an den Hersteller bzw. an den Händler, von dem Sie das Gerät bezogen
haben, um Informationen zur Rückgabe des Altgeräts zur ordnungsgemäßen Entsorgung zu erhalten.
FRENCH
A partir du 12 août 2005, il est interdit de mettre au rebut le matériel électrique marqué de ce symbole par
les voies habituelles de déchetterie publique. Conformément à la réglementation européenne (directive
UE 2002/96/EC), les utilisateurs de matériel électrique en Europe doivent désormais retourner le matériel
usé ou périmé au fabricant pour élimination, sans frais pour l'utilisateur.
Remarque: Veuillez vous adresser au fabricant ou au fournisseur du matériel pour les instructions de
retour du matériel usé ou périmé aux fins d'élimination conforme.
ITALIAN
Le apparecchiature elettriche con apposto questo simbolo non possono essere smaltite nelle discariche
pubbliche europee successivamente al 12 agosto 2005. In conformità alle normative europee locali e
nazionali (Direttiva UE 2002/96/EC), gli utilizzatori europei di apparecchiature elettriche devono restituire
al produttore le apparecchiature vecchie o a fine vita per lo smaltimento senza alcun costo a carico
dell’utilizzatore.
Nota: Per conoscere le modalità di restituzione delle apparecchiature a fine vita da riciclare, contattare il
produttore o il fornitore dell’apparecchiatura per un corretto smaltimento.
DANISH
Elektriske apparater, der er mærket med dette symbol, må ikke bortskaffes i europæiske offentlige
affaldssystemer efter den 12. august 2005. I henhold til europæiske lokale og nationale regler (EU-
direktiv 2002/96/EF) skal europæiske brugere af elektriske apparater nu returnere gamle eller udtjente
apparater til producenten med henblik på bortskaffelse uden omkostninger for brugeren.
Bemærk: I forbindelse med returnering til genbrug skal du kontakte producenten eller leverandøren af
apparatet for at få instruktioner om, hvordan udtjente apparater bortskaffes korrekt.

Important Information - 3624 ProBrix Plus
Operator Manual
ORBISPHERE
SWEDISH
Elektronikutrustning som är märkt med denna symbol kanske inte kan lämnas in på europeiska offentliga
sopstationer efter 2005-08-12. Enligt europeiska lokala och nationella föreskrifter (EU-direktiv 2002/96/
EC) måste användare av elektronikutrustning i Europa nu återlämna gammal eller utrangerad utrustning
till tillverkaren för kassering utan kostnad för användaren.
Obs! Om du ska återlämna utrustning för återvinning ska du kontakta tillverkaren av utrustningen eller
återförsäljaren för att få anvisningar om hur du återlämnar kasserad utrustning för att den ska bortskaffas
på rätt sätt.
SPANISH
A partir del 12 de agosto de 2005, los equipos eléctricos que lleven este símbolo no deberán ser
desechados en los puntos limpios europeos. De conformidad con las normativas europeas locales y
nacionales (Directiva de la UE 2002/96/EC), a partir de esa fecha, los usuarios europeos de equipos
eléctricos deberán devolver los equipos usados u obsoletos al fabricante de los mismos para su
reciclado, sin coste alguno para el usuario.
Nota: Sírvase ponerse en contacto con el fabricante o proveedor de los equipos para solicitar
instrucciones sobre cómo devolver los equipos obsoletos para su correcto reciclado.
DUTCH
Elektrische apparatuur die is voorzien van dit symbool mag na 12 augustus 2005 niet meer worden
afgevoerd naar Europese openbare afvalsystemen. Conform Europese lokale en nationale wetgegeving
(EU-richtlijn 2002/96/EC) dienen gebruikers van elektrische apparaten voortaan hun oude of afgedankte
apparatuur kosteloos voor recycling of vernietiging naar de producent terug te brengen.
Nota: Als u apparatuur voor recycling terugbrengt, moet u contact opnemen met de producent of
leverancier voor instructies voor het terugbrengen van de afgedankte apparatuur voor een juiste
verwerking.
POLISH
Sprzęt elektryczny oznaczony takim symbolem nie może byćlikwidowany w europejskich systemach
utylizacji po dniu 12 sierpnia 2005. Zgodnie z europejskimi, lokalnymi i państwowymi przepisami prawa
(Dyrektywa Unii Europejskiej 2002/96/EC), użytkownicy sprzętu elektrycznego w Europie musząobecie
przekazywaćProducentowi stary sprzęt lub sprzęt po okresie użytkowania do bezpłatnej utylizacji.
Uwaga: Aby przekazaćsprzęt do recyklingu, należy zwrócićsiędo producenta lub dostawcy sprzętu w
celu uzyskania instrukcji dotyczących procedur przekazywania do utylizacji sprzętu po okresie
użytkownia.
PORTUGESE
Qualquer equipamento eléctrico que ostente este símbolo não poderá ser eliminado através dos
sistemas públicos europeus de tratamento de resíduos sólidos a partir de 12 de Agosto de 2005. De
acordo com as normas locais e europeias (Directiva Europeia 2002/96/EC), os utilizadores europeus de
equipamentos eléctricos deverão agora devolver os seus equipamentos velhos ou em fim de vida ao
produtor para o respectivo tratamento sem quaisquer custos para o utilizador.
Nota: No que toca à devolução para reciclagem, por favor, contacte o produtor ou fornecedor do
equipamento para instruções de devolução de equipamento em fim de vida para a sua correcta
eliminação.

3624 ProBrix Plus - Important Information
Operator Manual ORBISPHERE
Product Disposal
Note:
The following only applies to European customers.
Hach Ultra is committed to ensuring that the risk of any environmental damage or
pollution caused by any of its products is minimized as far as possible. The European
Waste Electrical and Electronic Equipment (WEEE) Directive (2002/96/EC) that came
into force on August 13 2005 aims to reduce the waste arising from electrical and
electronic equipment; and improve the environmental performance of all those involved
in the life cycle of electrical and electronic equipment.
In conformity with European local and national regulations (EU Directive 2002/96/EC
stated above), electrical equipment marked with the above symbol may not be disposed
of in European public disposal systems after 12 August 2005.
Hach Ultra will offer to take back (free of charge to the customer) any old,
unserviceable or redundant analyzers and systems which carry the above symbol, and
which were originally supplied by Hach Ultra. Hach Ultra will then be responsible for the
disposal of this equipment.
In addition, Hach Ultra will offer to take back (at cost to the customer) any old,
unserviceable or redundant analyzers and systems which do not carry the above symbol,
but which were originally supplied by Hach Ultra. Hach Ultra will then be responsible for
the disposal of this equipment.
Should you wish to arrange for the disposal of any piece of equipment originally supplied
by Hach Ultra, please contact your supplier or our After Sales Service department in
Geneva for instructions on how to return this equipment for proper disposal.

Important Information - 3624 ProBrix Plus
Operator Manual
ORBISPHERE
Restriction of Hazardous Substances
Note:
The following only applies to exports of the product into the People’s Republic of China.
Marking
Products contain toxic or hazardous substances or elements.
Environment Protection Use Period Marking (years).
Toxic or Hazardous Substances and Elements
Part Name Lead
(Pb) Mercury
(Hg) Cadmium
(Cd)
Hexavalent
Chromium
(Cr VI)
Polybrom
Biphenyls
(PBB)
Polybrom
Diphenyls
(PBDE)
1106A Backplane
Board X
1062C Keypad Board X
1100B Logic Board X
1104A Analog Board X
1121B Options Board X
1067C Supply Board X
1063G Supply Board X
1127 Connection
Board X
1117C Measurement
Board X
70467 LCD Board X
Spacer X
O: Indicates that this toxic or hazardous substance contained in all homogeneous material for
this part is below the limit requirement
X: Indicates that this toxic or hazardous substance contained in at least one of the
homogeneous materials used for this part is above the limit requirement

3624 ProBrix Plus - Table of Contents 1 of 96
Operator Manual ORBISPHERE
Table of Contents
1 Installation
1.1 Pre-Installation Procedures ...............................................................10
1.2 3624 Sampling Module Installation....................................................11
1.2.1 Sampling Module Unpacking and Assembly .......................11
1.3 3624 Indicating Instrument Installation..............................................13
1.3.1 Mounting..............................................................................14
1.4 Connections.......................................................................................15
1.4.1 Sampling Module Connections............................................15
1.4.2 Indicating Instrument Electrical Connections.......................16
1.4.3 Instrument Connectors ........................................................17
1.4.4 Cable Gland Wiring Instructions ..........................................20
1.4.5 User-Supplied Cabling Requirements .................................21
1.5 PC Installation ...................................................................................21
1.6 Sensor Installation.............................................................................23
1.6.1 CO2Sensor Purge Gas Connection....................................23
1.7 Installation Completion Check List ....................................................25
1.7.1 Check the Purge Gas Supply ..............................................25
1.7.2 Check Sampling Pump ........................................................25
1.7.3 Check PC-Instrument Connections .....................................25
2 Operating Information
2.1 Instrument Controls ...........................................................................27
2.2 Program Menus.................................................................................28
2.3 Entering Numerical Values................................................................28
2.4 CO2, O2and Brix/Diet Measurement.................................................28
2.4.1 Measurement Displays ........................................................29
2.4.2 Measurement Hold Switch...................................................29
2.4.3 Warning Messages..............................................................30
2.5 Shutting Down the System ................................................................30
2.6 Measurement From the PC ...............................................................31
2.6.1 Numerical Indicator Panel ...................................................31
2.6.2 Status Panel ........................................................................32
2.6.3 Graphic Panel......................................................................32
2.6.4 Button Panel ........................................................................33
3 Instrument Setup
3.1 Display Units......................................................................................38
3.1.1 CO2 ............................................................................................................38
3.1.2 BRX .....................................................................................38
3.2 Thermal Cutoff (instrument only).......................................................39
3.3 Setting Instrument Alarm Limits.........................................................39
3.4 Serial Output (instrument only)..........................................................40
3.5 Continuous Purge Mode (instrument only)........................................40

2 of 96 Table of Contents - 3624 ProBrix Plus
Operator Manual
ORBISPHERE
3.6 Rolling Average (instrument only)......................................................41
3.7 Languages (instrument only) .............................................................41
3.8 Hold Recovery (instrument only) .......................................................41
3.9 Offsets ...............................................................................................41
3.10 Corrections (instrument only).............................................................42
3.10.1 CO2/Brix Corrections ...........................................................42
3.10.2 Temperature Correction.......................................................42
3.11 Change Product.................................................................................42
4 PC Program Setup
4.1 Getting Help.......................................................................................43
4.2 Configuration Menu ...........................................................................43
4.2.1 Access Levels......................................................................43
4.2.2 Setting a LINE Configuration ...............................................44
4.2.3 Products List ........................................................................45
4.2.4 Oxygen and Temperature Values........................................49
4.2.5 Autosave..............................................................................49
4.2.6 Water Calibration Status......................................................50
4.2.7 Alarms Delay........................................................................50
4.2.8 Sound Alarms ......................................................................50
4.2.9 Serial Output........................................................................51
4.3 Tools Menu ........................................................................................52
4.3.1 Chart ....................................................................................52
4.3.2 Events List ...........................................................................53
4.3.3 Statistics ..............................................................................53
5 Calibrations
5.1 Sensor Calibrations ...........................................................................55
5.1.1 Barometric Pressure Sensor Calibration..............................56
5.1.2 CO2Sensor Calibration .......................................................56
5.1.3 O2Sensor Calibration..........................................................59
5.2 Brix Calibration ..................................................................................60
5.3 Diet Calibration ..................................................................................60
5.3.1 Automatic Calibration...........................................................60
5.3.2 Manual Calibration...............................................................60
5.3.3 Absolute Calibration.............................................................61
6 PBViewer Program for Statistical Analysis
6.1 Getting Help.......................................................................................63
6.2 Views .................................................................................................63
6.2.1 Table Window ......................................................................64
6.2.2 Graph Window .....................................................................65
6.3 File Menu ...........................................................................................67
6.4 Table Menu........................................................................................67
6.4.1 Copy ....................................................................................67
6.4.2 Select All..............................................................................67

3624 ProBrix Plus - Table of Contents 3 of 96
Operator Manual ORBISPHERE
6.4.3 Search .................................................................................67
6.4.4 Base Styles..........................................................................68
6.4.5 Table Format .......................................................................68
6.4.6 Resize Rows and Resize Columns .....................................69
6.4.7 Include/Exclude Measurement Mode ..................................69
6.4.8 Show....................................................................................69
6.5 Graph Menu.......................................................................................70
6.5.1 Customize............................................................................70
6.5.2 Line Colors ..........................................................................71
6.5.3 Graph Events.......................................................................71
6.5.4 Scales..................................................................................71
6.5.5 Copy ....................................................................................71
6.6 Statistics ............................................................................................72
6.6.1 Statistics Window Features .................................................72
6.6.2 Statistics Window Options ...................................................73
7 Accessories and Attachments
7.1 Model 32957 Sample Filter Kit ..........................................................75
7.1.1 Installation ...........................................................................75
7.1.2 Maintenance ........................................................................75
8 Maintenance and Troubleshooting
8.1 Preventive Maintenance....................................................................77
8.1.1 Daily.....................................................................................77
8.1.2 Weekly.................................................................................77
8.1.3 Monthly ................................................................................77
8.1.4 Six Monthly ..........................................................................77
8.1.5 Yearly ..................................................................................78
8.2 Sensor Maintenance..........................................................................78
8.3 Pump Seal Replacement...................................................................79
8.3.1 Pump Removal ....................................................................79
8.3.2 Seal Replacement ...............................................................80
8.3.3 Pump Installation .................................................................81
8.4 Liquid Detector Replacement ............................................................82
8.5 Sample Filter .....................................................................................82
8.6 Troubleshooting.................................................................................83
8.6.1 Measurement Troubleshooting............................................83
8.6.2 Warning Messages..............................................................85
9 Specifications
9.1 General Technical Data.....................................................................87
9.2 Additional Specifications....................................................................88
10 Part Lists
10.1 Instrument Configurations .................................................................89
10.2 Accessories .......................................................................................89

4 of 96 Table of Contents - 3624 ProBrix Plus
Operator Manual
ORBISPHERE
10.3 Spare Parts........................................................................................90
Appendix A: Glossary
A.1 Common Units ...................................................................................91
A.2 Terms and Definitions........................................................................91

3624 ProBrix Plus - Manual Overview 5 of 96
Operator Manual ORBISPHERE
Manual Overview
About this Manual
The information in this manual has been carefully checked and is believed to be
accurate. However, Hach Ultra assumes no responsibility for any inaccuracies that may
be contained in this manual. In no event will Hach Ultra be liable for direct, indirect,
special, incidental, or consequential damages resulting from any defect or omission in
this manual, even if advised of the possibility of such damages. In the interest of
continued product development, Hach Ultra reserves the right to make improvements in
this manual and the products it describes at any time, without notice or obligation.
Published in Europe.
Copyright © 2006 by Hach Ultra. All rights reserved. No part of the contents of this
manual may be reproduced or transmitted in any form or by any means without the
written permission of Hach Ultra.
Revision History
• Initial Release, March 1999, Orbisphere
• Revision A, June 2000, Orbisphere
• Revision B, December 2002, Orbisphere
• Revision C, May 2003, Hach Ultra Analytics
• Revision D, July 2004, Hach Ultra Analytics
• Revision E, February 2006, Hach Ultra
• Revision F, May 2007, Hach Ultra
Safety Conventions
WARNING
A warning is used to indicate a condition which, if not met, could cause serious personal
injury and/or death. Do not move beyond a warning until all conditions have been met.
CAUTION:
A caution is used to indicate a condition which, if not met, could cause minor or
moderate personal injury and/or damage to the equipment. Do not move beyond a
caution until all conditions have been met.
Note:
A note is used to indicate important information or instructions that should be considered
before operating the equipment.
Safety Precautions
Please read the entire manual before unpacking, setting up, or operating this instrument.
Pay particular attention to all warning and caution statements. Failure to do so could
result in serious injury to the operator or damage to the equipment.
To ensure the protection provided by this equipment is not impaired, do not use or install
this equipment in any manner other than that which is specified in this manual.

6 of 96 Manual Overview - 3624 ProBrix Plus
Operator Manual
ORBISPHERE
Safety Recommendations
For safe operation, it is imperative that these service instructions be read before use and
that the safety recommendations mentioned herein be scrupulously respected. Opening
the 3624 instrument exposes non-insulated electrical components with hazardous
voltages. Therefore the instrument should not be opened. If repairs or adjustments are
necessary, the instrument should be returned to an authorized Hach Ultra service center.
If danger warnings are not heeded to, serious material or bodily injury could occur.
WARNING
In accordance with safety standards, it must be possible to disconnect the power supply
of the instrument in its immediate vicinity.
WARNING
The installation of the instrument should be performed exclusively by personnel
specialized and authorized to work on electrical installations, in accordance with
relevant local regulations.
Service and Repairs
None of the instrument’s components can be serviced by the user. Only personnel from
Hach Ultra or its approved representative(s) is (are) authorized to attempt repairs to the
system and only components formally approved by the manufacturer should be used.
Any attempt at repairing the instrument in contravention of these principles could cause
damage to the instrument and corporal injury to the person carrying out the repair. It
renders the warranty null and void and could compromise the correct working of the
instrument and the electrical integrity or the CE compliance of the instrument.
If you have any problems with installation, starting, or using the instrument please
contact the company that sold it to you. If this is not possible, or if the results of this
approach are not satisfactory, please contact the manufacturer’s Customer Service.

3624 ProBrix Plus - Manual Overview 7 of 96
Operator Manual ORBISPHERE
Precautionary Labels
Read all labels and tags attached to the instrument. Personal injury or damage to the
instrument could occur if not observed.
Acknowledgements
• Dacron, Delrin, Tedlar, Tefzel, and Viton are registered trademarks of DuPont.
• Halar is a registered trademark of Ausimont U.S.A., Inc.
• Hastelloy is a registered trademark of Haynes International.
• Kynar is a registered trademark of The Pennwalt Corporation.
• Monel is a registered trademark of IMCO Alloys International, Inc.
• Saran is a registered trademark of Dow Chemical Co.
• Swagelok is a registered trademark of Swagelok Co.
• Microsoft and Windows are registered trademarks of Microsoft Corporation.
This symbol, when noted on a product enclosure or barrier, indicates that a risk of
electrical shock and/or electrocution exists and indicates that only individuals
qualified to work with hazardous voltages should open the enclosure or remove
the barrier.
This symbol, when noted on the product, indicates that the marked item can be hot
and should not be touched without care.
This symbol, when noted on the product, indicates the presence of devices
sensitive to electrostatic discharge and indicates that care must be taken to
prevent damage to them.
This symbol, when noted on the product, identifies a risk of chemical harm and
indicates that only individuals qualified and trained to work with chemicals should
handle chemicals or perform maintenance on chemical delivery systems
associated with the equipment.
This symbol, if noted on the product, indicates the need for protective eye wear.
This symbol, when noted on the product, identifies the location of the connection
for protective earth (ground).
Electrical equipment marked with this symbol may not be disposed of in European
public disposal systems. In conformity with European local and national
regulations, European electrical equipment users must now return old or
end-of-life equipment to the manufacturer for disposal at no charge to the user.
Products marked with this symbol indicates that the product contains toxic or
hazardous substances or elements. The number inside the symbol indicates the
environmental protection use period in years.

8 of 96 Manual Overview - 3624 ProBrix Plus
Operator Manual
ORBISPHERE

3624 ProBrix Plus - Installation 9 of 96
Operator Manual ORBISPHERE
1 Installation
This section should provide you with all the necessary information to prepare for and
install your ProBrix Plus. Should you have any questions, or encounter any difficulties,
please do not hesitate to contact your Hach Ultra representative.
Note:
Because there are specific line-to-sampling module distances and line-level
considerations specified in “Pre-Installation Procedures” on page 10, make a pre-
installation inspection before delivery of the ProBrix Plus to ensure that these conditions
can be met.
Note:
User-supplied N2purge gas cylinder mounts on right side and may vary in width.

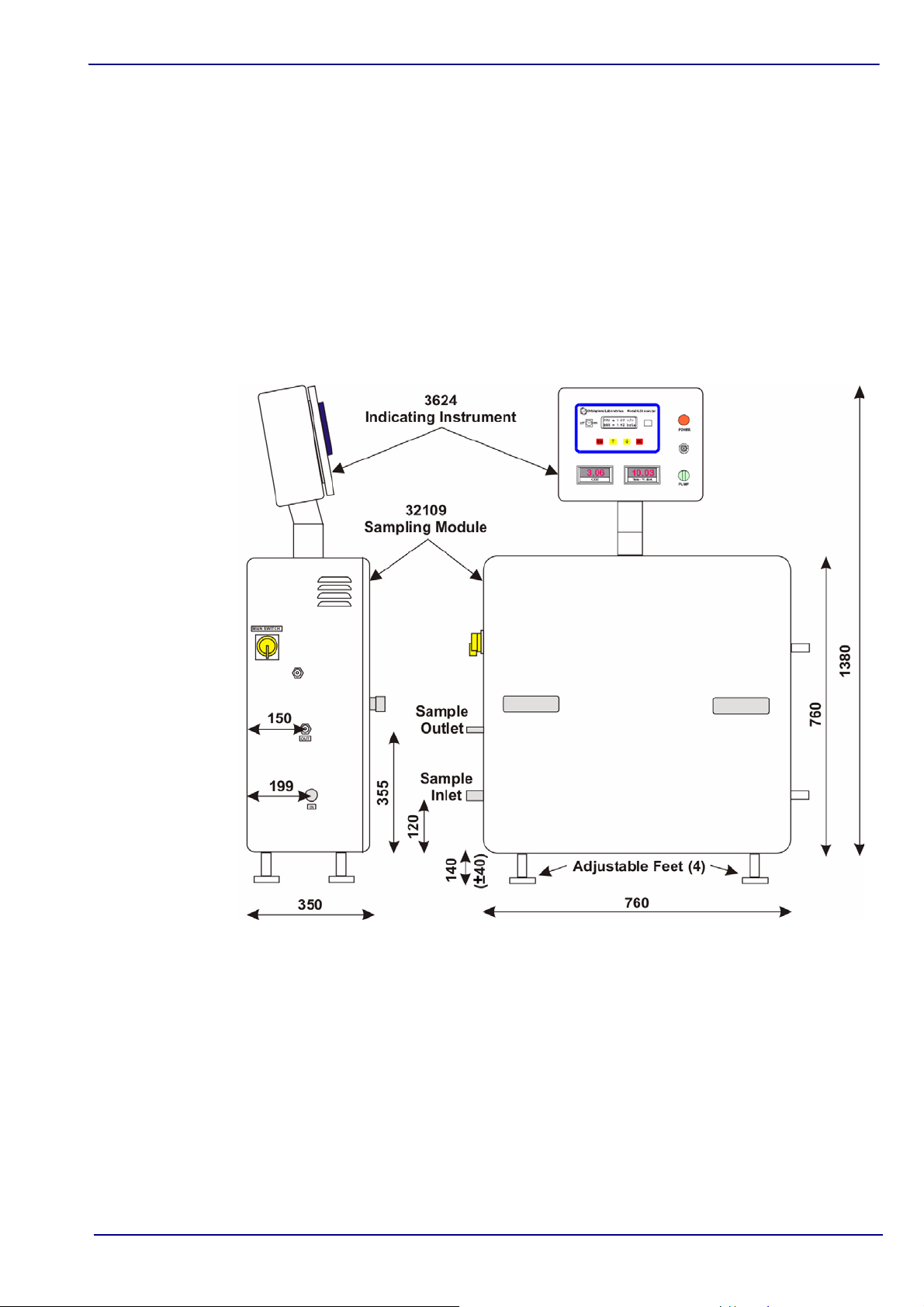

Fig 1-1: Sampling Module and Indicating Instrument Dimensions

10 of 96 Installation - 3624 ProBrix Plus
Operator Manual
ORBISPHERE
1.1 Pre-Installation Procedures
Before installing the ProBrix Plus, perform the following:
• Locate two filling line connections on the sampling module. The first within one
meter of the inlet connection, and the second at up to three meters from the outlet
connection.
• Weld two isolation valve fittings (Swagelok VCO ½" male fittings or fittings for ½"
inside diameter tubing) on the filling line, as close as possible to the filler. Mount
the nuts on the connectors before welding.
Note:
During the above procedures, ensure there are no restrictions in the inlet line, as this
could cause degassing of the CO2leading to incorrect measurements.
Tilt the connectors 10-15° upward and 45° toward the line axis, as illustrated in Fig 1-2.
• Mount the liquid detector in a T-Piece Swagelok fitting in the inlet line. The
detector should be on top, facing downward as depicted in Fig 1-3.
• Provide an N2gas cylinder (minimum 30 liters recommended) with a pressure
regulator output in the range 2 to 7 bar.
• Provide access to a 115 or 230 VAC power supply within two meters from the
sampling module location.
• Route the serial communication cable from the instrument to the PC location.
• Route a cable from the instrument to the filling line hold switch. The switch should
be open when the line is on and closed when line is off.
Fig 1-2: Weld-on Connectors in Beverage Sample Pipe
Fig 1-3: Connectors with Liquid Detector on Supply/Inlet Side

3624 ProBrix Plus - Installation 11 of 96
Operator Manual ORBISPHERE
1.2 3624 Sampling Module Installation
1.2.1 Sampling Module Unpacking and Assembly
The sampling module is packed in a crate for shipment. The indicating instrument,
instrument mounting neck (for mounting onto the sampling module), CO2and O2
sensors, adjustable feet, and cables are packaged separately.
Note:
If you have ordered the sampling unit for Brix analysis only (model 32109D.A or
32109D.B), a CO2sensor is not included. Instead a sensor simulator (model 29117) is
pre-installed (see diagram above). As such, all the following references to the CO2
sensor installation can be ignored.
• Keeping the crate vertical, open the front cover of the crate and carefully pull the
sampling module out of the crate. The sampling module is heavy, 95 kg, and
requires a forklift for movement.

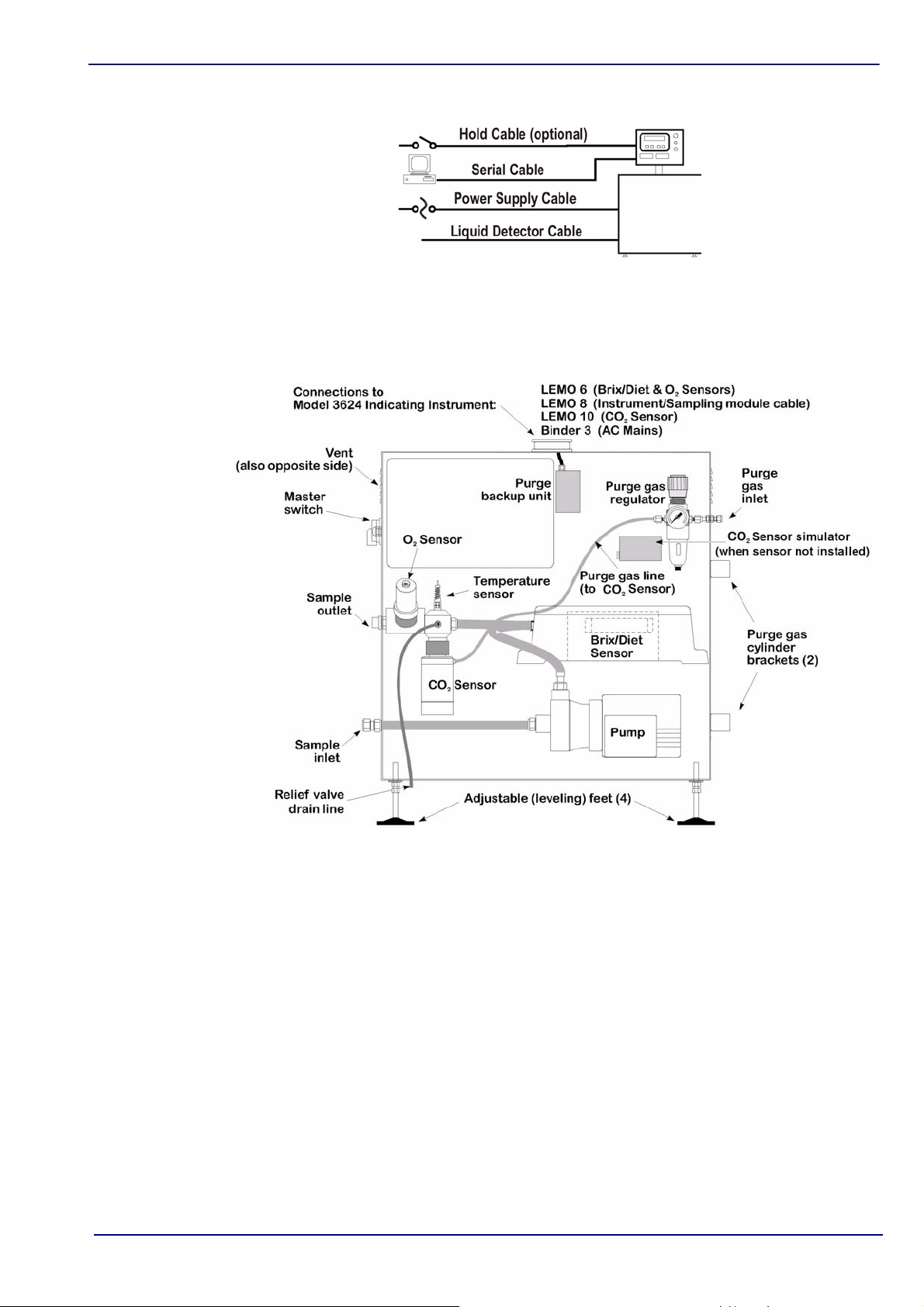

Fig 1-4: External Cabling
Fig 1-5: Sampling Module (Front Cover Opened)

12 of 96 Installation - 3624 ProBrix Plus
Operator Manual
ORBISPHERE
• Open the sampling module and check for shipment damages inside the sampling
module. Retighten all fittings in the sampling module.
• Attach the four adjustable feet to the bottom of the sampling module (see Fig 1-6).
Do not tighten the locking nut yet.
• Place the CO2sensor and the O2sensor in their respective flow chamber
mountings inside the sampling module (see Fig 1-5), using their collar to secure
each sensor into place.
• Connect the cables with 10-pin LEMO connectors to the CO2sensor and the O2
sensor. The CO2sensor cable connects to the purge backup unit; the O2sensor
cable connects to the Brix/Diet sensor controller.
CAUTION:
Take care to connect the O2sensor to the correct cable, as it can be damaged if
plugged into the CO2sensor cable.
• Connect the temperature sensor to the CO2sensor's temperature adapter using
the cable with the 4-pin LEMO connector.
• Connect the CO2sensor's purge gas tubing from the purge gas regulator, and re-
tighten all purge gas fittings (see also “CO2Sensor Purge Gas Connection” on
page 23).
• Install the 3mm (inside diameter) purge gas exit tube into the CO2sensor
• If you have also taken delivery of the sample filter, install this on the sample inlet
tube using standard Swagelok connections (see also “Model 32957 Sample Filter
Kit” on page 75 for additional information).
• Reposition the ProBrix Plus to its final location.
• Make sure the sampling module vents (on both the left and right sides) are
sufficiently unobstructed to allow airflow to the pump. The pump must have
adequate airflow to prevent it from overheating.
CAUTION:
Prevent water from being sprayed directly into these vents.
• Secure the sampling module feet to the floor if necessary. The feet have holes that
can be used to bolt the unit to the ground.
• Adjust the four feet to level the unit. To test, place a level on top of the Brix/Diet
sensor inside the sampling module. It should be level (or tilted slightly
counterclockwise, just 1-2° to the left as you face the unit) to avoid liquid collecting
inside its U-tube densitometer.
Fig 1-6: Adjustable Feet Locking Nut

3624 ProBrix Plus - Installation 13 of 96
Operator Manual ORBISPHERE
1.3 3624 Indicating Instrument Installation
Cable glands for serial, recorder output, hold switch, and alarms are provided on the
underside of the instrument. LEMO and Binder connectors for the sensors, sampling
module, and power are inside the opening of the mounting bracket.
If mounting separately, include at least 400 mm additional frontal clearance for front
panel access, and at least 100 mm bottom clearance for cable protrusion.
Fig 1-7: Indicating Instrument - Front and Bottom View

14 of 96 Installation - 3624 ProBrix Plus
Operator Manual
ORBISPHERE
1.3.1 Mounting
Usually, the instrument is mounted onto the sampling module, as described below.
Alternatively, you may mount the instrument on a wall using a stainless-steel support
(model 32209). However, if you wish to wall-mount the instrument, then please contact
your local Hach Ultra Service Representative for more information.
To mount the instrument onto the sampling module, perform the following:
• Pass the four cables from the top of the sampling module (with the LEMO-6,
LEMO-8, LEMO-10, and Binder connectors) through the stainless steel neck (see
Fig 1-8).
• Attach the neck to the top of the sampling module, using the four bolts provided on
the top.
• Connect the cables to the three LEMO connectors and the Binder connector at the
bottom of the instrument case. The LEMO and Binder connectors for the sensors,
sampling module and power are located between the four mounting blocks (see
Fig 1-9).
• Attach the instrument to the top of the neck using the four mounting bolts on the
bottom of the instrument case.

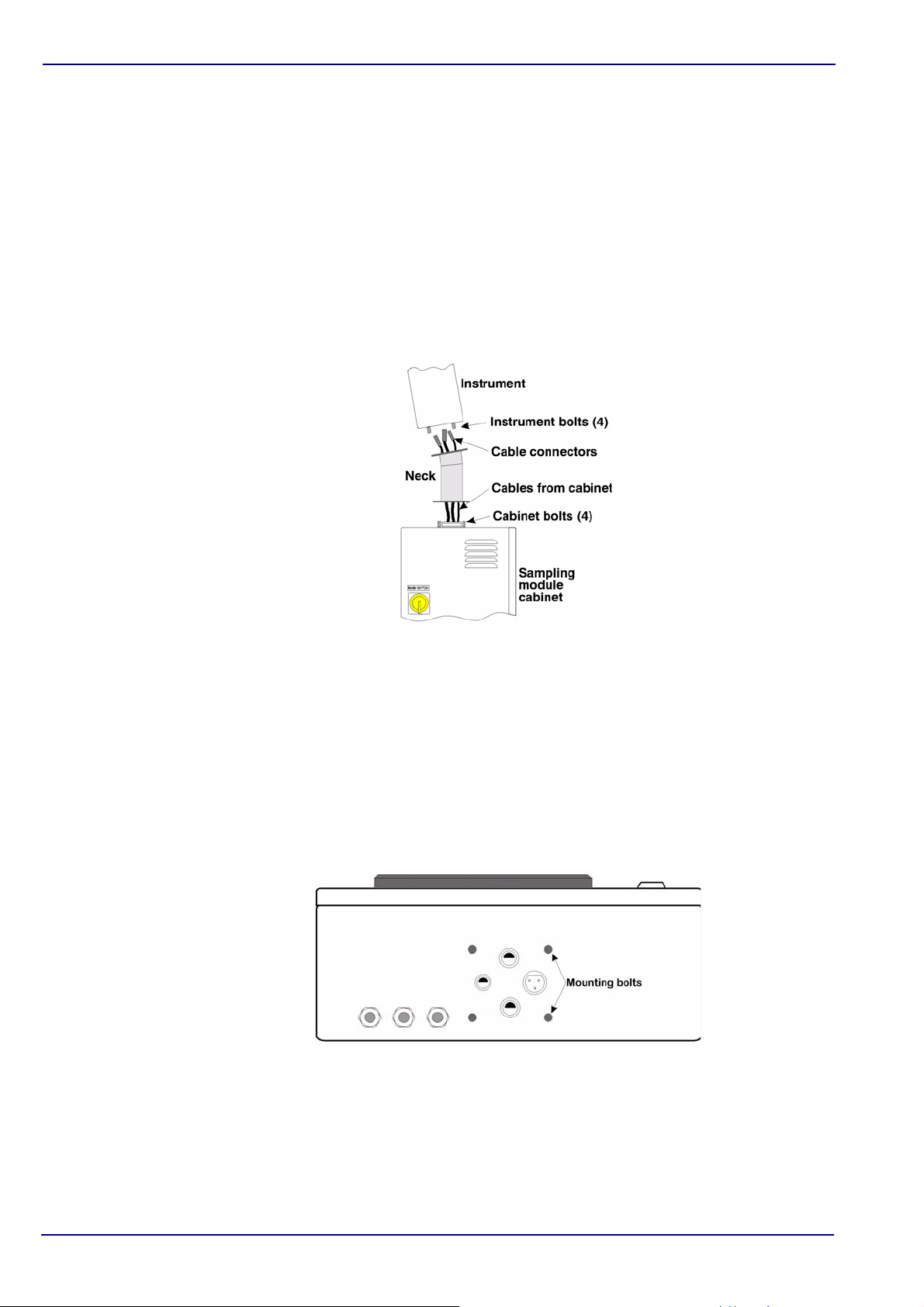

Fig 1-8: Indicating Instrument Mounting
Fig 1-9: Indicating Instrument Bottom View
