hadewe Auroria MD User manual

Art. 0776
FB 04-320 Rev. 1
Date: 28.01.2019
Manual
Auroria MD

2
Directory
Foreword 3
Safety Instructions 4
Cleaning & Disinfection 9
Getting to Know the Unit 10
Before First Use 11
Area of Application 11
Operation 11
Use 13
Operating Steps 13
Working Positioning 14
Suction 16
Exchange Micro Filter 16
Exchange Control Unit Filter 16
Clamping the Bur/Tool 17
Setting up the Speed 17
Memory Buttons m1, m2, m3 17
Button on the Handpiece 17
Foot Switch 18
LCD Display 18
Messages 20
Maintenance & Care 21
Cleaning the Chuck 21
Maintenance Overview 22
Handling Instructions 23
Troubleshooting 24
Technical Data 25

3
Foreword
The Auroria MD foot care unit was produced according to strict quality criteria and uses
the latest technology in its design. The images in this manual may vary slightly from the
product you have bought as we are constantly developing our products.
This user manual includes a detailed description and explanation of how to use the
Auroria MD unit. If you have any questions or suggestions, you can contact us by tele-
phone or email.
This user manual belongs with the Auroria MD unit. Keep it somewhere safe. If you
give this product to someone else, please include this document as it includes im-
portant information on how to correctly use the product.
Short description of functions
The Auroria MD is a medical device for the treatment of callus and nails. The hand-
piece is compatible with rotating tools such as diamond polishers, steel cutters and
ceramic cutters. These can reach at speeds up to 40,000 rpm and therefore provide an
efficient way of removing tissue. The direction of rotation can be changed by pressing a
button. The integrated filtered suction function effectively sucks up any dust particles.
The rotation speed and suction function can be adjusted using the keyboard. The de-
vice display will notify you when the filter needs to be changed and when the device is
due for inspection.

4
Safety Instructions
The equipment should only be used by trained
operators.
The installation of the working area has to cor-
respond to the relevant regulations. Set up the
unit in such a way, that the air slits are not
blocked and the extracted air can escape well.
To avoid the risk of electrocution only connect
the device to the mains power supply.
If you pull the power plug, it will stop the con-
nection to the mains power supply. Set up the
unit so that the power plug is always accessi-
ble. The power switch should also always be
easily accessible.
Only switch on the unit if the handpiece rests
secured in the handpiece holder, or if you hold
it safely in your hand.
Prevent any liquids from entering into the con-
trol unit, since this could damage the electronic
elements. Clean the outside of the box only
with a damped cloth. Make sure, that you have
unplugged the unit before.
Only when pulling the mains cable, you can
ensure that the device will be completely dis-
connected from mains. Check the mains cable
regularly for damages and in case of such,

5
Safety Instructions
have it changed or repaired by an authorized
service center.
Prevent your hair from wrapping itself around
moving parts. If applicable, wear a hair net.
When working with materials, which might cre-
ate dust or moisture, use a drilling unit with
suction or spray technique. Wear a nose and
mouth protection. Always follow the safety in-
structions provided by the manufacturer of the
materials being formed and used.
For safety reasons, always wear disposable
gloves and protective glasses when operating
this device. In addition, a face mask conform-
ing to EN 14683 type IIR or EN 149 FFP 2
must also be worn.
Ensure that the patient’s foot and the hand-
piece are held firmly in place during the opera-
tion. To prevent injury, work with extreme cau-
tion on the foot of the patient and use only light
pressure.
To ensure that the bur/tool sits firmly in the
chuck, do not work with tools which
•have an oily shaft,
•are worn,
•are bent.

6
Safety Instructions
Before using the equipment, assure that
•the tool can be pushed far enough into the
chuck (test this with a dipstick and clean if
necessary),
•the inserted tool sits properly in the chuck
and will not cant/jam while clamping it,
•the tool is approved for using it at the max
speed (see manufacturer’s instructions), or
•only use the speed required by the instru-
ment,
•the tool is absolutely dry.
For safety reasons do not change the tool while
the motor is running.
Switch off the unit immediately if
•the bur comes off during the treatment itself.
•the motor blocks during the treatment.
While doing any foot care, only operate the unit
with the suction turned on.
Only use the suction function if you have in-
stalled the suction filter. Check this filter every
10 operating hours. If it is full, please exchange
it. A filter should be exchanged at least after 50
operating hours. When changing the filter, it is
advisable to wear a face mask conforming to

7
Safety Instructions
EN 14683 type IIR or EN 149 FFP 2.
The light on the handpiece is for lighting the
area being treated. Do not look directly into the
light.
Never use the suction to vacuum any liquids or
air/water fog which contains particles of liquids.
Always follow the operating instructions. Do not
carry out any repairs, modifications or mainte-
nance work yourself. This is only to be accom-
plished by an authorized specialist. The mains
cable may also only be changed by the manu-
facturer, or an authorized specialist. Mainte-
nance records may be supplied to repair work-
shops and trained technicians upon request.
Never remove the housing, especially not while
the equipment is plugged into the socket, since
some components are under electric voltage.
Any unauthorized or improper handling (e.g.
trying to repair the unit) of the equipment will
immediately nullify the guarantee/warranty, and
any other liabilities of the manufacturer.
Attention! Only use burs/tools which are permit-
ted for speed level saved under m1 –m3!

8
Safety Instructions
When the device is brought out of standby
mode it will run with the rotation speed and
suction power used last. Take care to not start
the mill at an overly high rotation speed. Select
the required rotation speed before changing
the milling tool.

9
Cleaning & Disinfection
The device is designed to be compatible with rotating in-
struments which do not penetrate the skin or mucosal or
inadvertently may still cause injuries. For this application
please adhere to the cleaning and disinfection instructions pro-
vided below. After every treatment please carry out the following
steps:
•Remove the rotating tool (e.g. bur, capper etc.) first. Then
handle the tool according to the instructions of its manufactur-
er.
•Remove tissue remains by wiping off the unit with a mildly
moistened paper cloth. Afterwards clean all surfaces with dis-
infection cloth (e.g. Mikrozid AF Tücher of Schülke and Mayr)
There is no limit to the number of times this device can be
cleaned and disinfected during its recommended lifespan.

10
Getting to Know the Unit

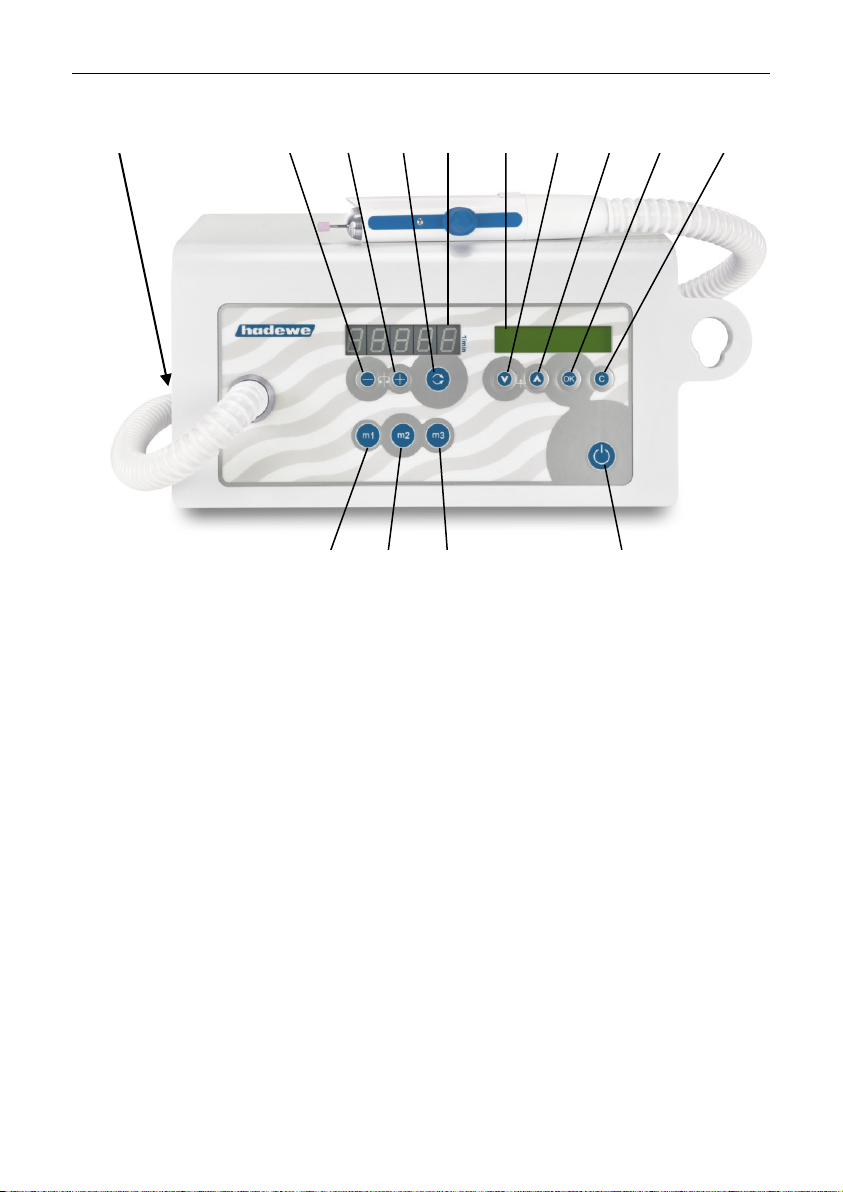

1 power switch
2 decrease speed
3 increase speed
4 change direction of speed
5 display for speed [rpm]
6 display for suction level, time, change of the filter bag etc.
7 menu button down and reducing the suction level
8 menu button up and increasing the suction level
9 menu button OK
10 menu button stop
11 memory button m1 for speed/suction level
12 memory button m2 for speed/suction level
13 memory button m3 for speed/suction level
14 ON/OFF button (standby)
1 2 3 4 5 6 7 8 9 10
11 12 13 14

11
Before First Use
Please read through the instructions
carefully before using the unit and
carefully note the safety advice.
Always keep this manual accessible
to any users of the drill.
Area of Application
This device should only be used by
people who have completed a foot
care qualification. Before use the
operator should make themselves
familiar with the device by reading
this manual or being instructed by
another.
The device must only be used in
closed spaces. It may be used in
hospitals, in a commercial environ-
ment or in homes. The device is not
intended for use in operating rooms.
The control unit can be set up in a
cabinet or can be used as a porta-
ble unit, e.g. in a carry case. It is
suitable for the following scopes:
•foot care (milling, trimming and
polishing),
•manicure (grinding, milling and
polishing works).
The devise is determined of
operating rotating
instruments, which will not
penetrate the skin or murcous
membrane if used appropriate, but
could evoke damages accidently.
Caution: In the area of
pedicure you have to work
with suction techniques.
Operation
The working area must conform to
the conditions described. Set up the
unit in such a way, that the air slits
are not blocked and the extracted
air can escape well. To guarantee
unhindered air flow there must a
gap of at least 12cm to the right of
the device.
Position the device so that the op-
erating buttons are easy to reach
and the outlet of the hose is a max-
imum distance of 60cm from the
patient’s foot. The unit should be
30-90cm from the floor.
Image: Example of positioning of foot
care unit in treatment room

12
Before First Use

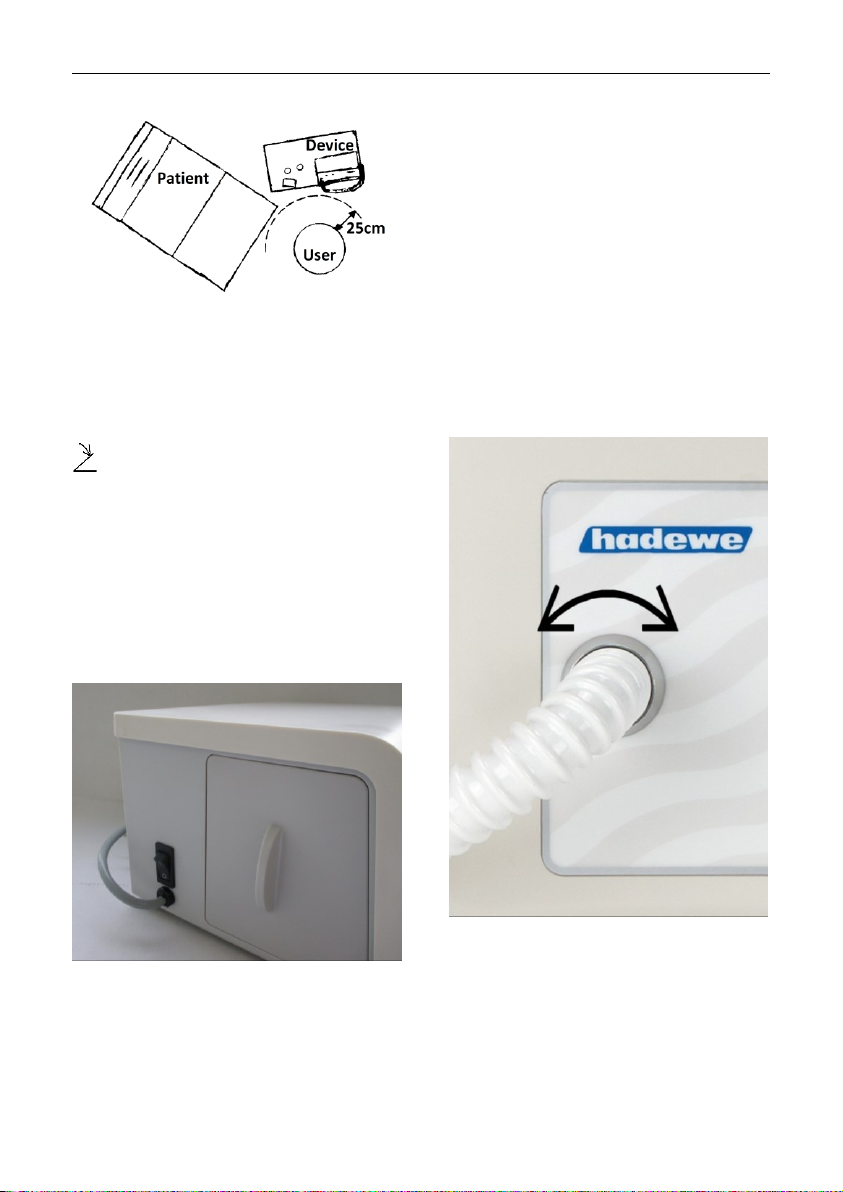

Image: Bird's eye view of work area
If you have a foot switch, insert its
plug into the port on the right of the
device which displays this symbol
.
Check that the filter bag and dust
filter are correctly fitted. Ensure that
the tool is fixed.
On the left side of the device you
will find the main power switch.
Press this switch to turn the unit on.
The word “Language?”will appear
on the display. Use the buttons 
and to select a language and
press OK to confirm.
On the display will appear “Press
OK”. By pressing the OK button, the
counter which calculates the time
until the next inspection is due is set
to 0.
The device is now on standby. As
soon as the LCD display (6) is ac-
tive the device is ready to use.
Pick up the handpiece. Should the
handpiece be twisted by the hose
you can adjust that at the control
unit.
To use the handpiece and suction
function press the button (14) on
the front of the unit.

13
Use
Operating Steps
In the following section the order in
which you should use the device is
described. Additionally, the individ-
ual steps will be explained in detail.
Read the complete manual before
use.
After connecting the device to the
power press the standby button (14)
to make it start rotating. Use the
buttons (2) and (3) to select a rota-
tion speed. Manufacturers often
provide recommendations for opti-
mal rotation speeds. However, it is
important that you never exceed the
maximum recommended rotation
speed.
You can now choose the rotation
direction using the button (4). The
most commonly used direction is
clockwise. Most milling instrument
(steel instruments with steel cutters)
are optimised for clockwise use.
The rotation direction is irrelevant
for diamond cutters and high-grade
corundum sanders in terms of effi-
ciency. Working anti-clockwise can
be beneficial if, for example, the
dust obscures your field of vision
when working clockwise.
Now switch on the suction with but-
ton (8). Using buttons (7) and (8)
you can adjust the intensity of the
suction. Frequently used rotation
speeds and suction power settings
can be saved. First select the de-
sired rotation speed and suction
power. Save these settings by
pressing the memory button m1 for
4 seconds. To use your custom
settings simply press m1. Other
values can be saved using memory
buttons m2 and m3.
After choosing rotation speed and
suction power you can start work-
ing. If you want to take a break or
finish the job, press the standby
button (14). The handpiece motor
and suction will turn off. The hand-
piece can now be placed in its
holder on the right of the unit. Alter-
natively, you can switch the device
to standby by pressing and holding
the button on the handpiece or by
pressing the button on the foot
switch.
We recommend to disconnect the
device from the mains power supply
if is not going to be used for a while.
This will save electricity. The mains
plug must also be removed when it
comes to retiring the device.

14
Use
Work Positioning
The following images are examples
of how to work on various parts of
the foot. Always make sure that the
foot is firmly gripped and that you
can work freely and without strain.

15
Use

16
Use
Suction
Switch on the suction with button
(8). The suction power can be regu-
lated in 5 levels. You will see the
selected level in the display. Level 0
would mean that the suction is
turned off.
In case the suction motor over-
heats, the unit will switch off auto-
matically. Leave the unit to cool off
for a while before starting it again.
Should the same failure appear
again, please return the unit to your
supplier for inspection.
Exchange Micro Filter
When changing the filter, it
is advisable to wear a face
mask conforming to EN
14683 type IIR or EN 149 FFP 2.
Only operate the unit with a suction
filter assembled. Control the bag
after every 10 operating hours. Ex-
change a full filter bag immediately.
A filter should be exchanged at
least after 50 operating hours.
At first, unfold the paper of the mi-
cro filter bag (art. 5179) and push
your finger into the opening in the
front.
Pull out the lid of the dust chamber
and remove the old filter.
Hold the filter in the middle to pre-
vent it from bending and sliding off
(see picture below). Therefore, you
avoid it from coming off again.
The dust filter (art. 5179)
must be used. The paper
filter (art. 5115) must NOT
be used.
Exchange Control Unit Filter
This filter (art. 3752) has to be ex-
changed after every 200 operating
hours. Remove the old filter and
place the new one in its holder.

17
Use
Clamping the Bur/Tool
The handpiece is equipped with a
chuck, which can hold all burs with
a diameter of 2.35 mm. This is the
diameter usually used for tools in
podiatry. To open the chuck, push
the knob forward with your thumb
and leave it there. Now insert the
tool as far as possible. Pull back the
knob and the tool will be firmly
clamped.
For security reasons, only
change the tool if the
handpiece is turned off.
Setting up the Speed
Hold the handpiece (incl. tool) in
your hand or store it in the hand-
piece holder attached to the side of
the control unit. Switch on the unit
with button (14). Now you can also
set the speed with buttons (2) and
(3). Choose the direction of rotation
with button (4).
Memory Buttons m1, m2, m3
Frequently used speed or suction
levels can be saved. Therefore,
three memory buttons are available.
At first, choose your speed/suction
level, and then save it by pushing
the memory button m1 for 4 sec-
onds. To recall the above combina-
tion of speed/suction level, simply
press button m1 again. Further
combinations can be saved with m2
and m3.
Attention! Only use
burs/tools which are permit-
ted for speed level saved
under m1 –m3!
Button on the Handpiece
If you press this button once (for a
short time), you can recall the
memorised combination of speed
and suction you saved under m1.
By pressing the button once again
(shortly), you recall the m2 setting.
You can switch between settings
m1 and m2 (not m3 though) by
using this button. If you press the
button on the handpiece for a long-
er period, you will switch on/off the
complete control unit.
When the device is brought
out of standby mode, it will
run with the rotation speed
and suction power used last. Take
care to not start the mill at an overly
high rotation speed. Select the re-
quired rotation speed before chang-
ing the milling tool.

18
Use
Foot Switch (art. 0970)
Operation of the foot switch
Only use the original hadewe foot
switch, to avoid any damages. In-
sert the plug of the foot switch into
the socket with the symbol .
Function of the foot switch
If you press on the foot switch once,
you can recall the memorized com-
bination of speed and suction you
saved under m1. By pressing the
switch once again, you recall the
m2 setting. You can switch between
settings m1 and m2 (not m3
though) by using the foot switch this
way. If you press the foot switch for
a longer period, you will switch
on/off the complete control unit.
Attention! Only use
burs/tools which are permit-
ted for speed level saved
under m1 –m3!
LCD Display
The LCD display shows you infor-
mation about the operating mode of
the control unit, such as direction of
rotation (left/right rotation), suction
level (level 1 –level 5) or date and
time. A warning notice to exchange
the filter bag will appear in the dis-
play. It will also show, when the unit
should be brought to a maintenance
(after approx. 1 year).
By pressing the OK button, you will
access the selective list for settings
of the device. With the buttons 
and you can go through the list
and select a setting by pressing OK.
With “C”you can stop a function to
return to the main menu.
The following functions are availa-
ble:
•verification of changing the filter
bag (the date of the last ex-
change will be displayed),
•turn light on/off at handpiece,
•show date of last maintenance,
•setting the time,
•setting the date,
•choose your language.
Change of filter bag approval
After every 50 operating hours dur-
ing suction mode, you will read the
note „Check the filter bag”. When
this message appears, you have to
confirm the date of the exchange.
Choosing “Change filter”from the
selective list and then press OK.
Now the date of the last change will
be shown in the display. Press 
and then OK to confirm the change.
Turn ON/OFF light
To turn on the light on the hand-
piece, take the following steps: Se-
lect “light”from the selective list.
Approve by pressing OK. Press to
choose between “light on”or “light
off”. Then press OK.
Display date of maintenance
Select from the list “maintenance”.
Approve with the button OK. The
date of the last service will appear.
If you send in the device for
maintenance, hadewe or an ap-
proved service agent will update the
date of service for you.

19
Use
Setting the time
Select from the menu list “time”.
Confirm with the button OK. With
the button - and + you can set the
hours. With the buttons and you
can set the minutes. Press OK to
save the setting.
Setting the date
Select from the list “date”. Confirm
with OK. With the button - and +
you can set the day. With the button
and you can set the month.
With the button m1 and m2 you can
set the year. Press OK to save the
setting.
Choose your language
Select from the list “language”. Con-
firm with the button OK. With the
button and you can select the
language. Press OK to save the
setting.

20
Messages
CHECK FILTER BAG
→Change the filter bag (see page
166).
HS CHECK
→No handpiece is connected or
the handpiece is faulty.
MAINTENANCE RECOMMENDED
→After longer operation of the unit
(approx. 1 year, depending on how
much the unit is used), the ex-
change of moving parts, e.g. ball
bearings, washers and other parts
that will wear down in time will be-
come necessary. A maintenance by
an approved hadewe service agent
is recommended after a year.
The control system will determine
the period between the last mainte-
nance and shows a recommenda-
tion for a new service. Please con-
tact your distributor or an authorized
repair service, when this occurs.
In the display appears “Mainte-
nance recommended”. Press OK.
The display shows “Note off?”. If the
message should still appear, select
NO and the OK. If you do not want
this message to appear again dur-
ing the next 2 months, press YES
and then OK.
ERROR 1
→The unit switches off when the
rotational speed of the handpiece
cannot be maintained.
ERROR 2
→The unit switches off when the
speed of the suction motor cannot
be maintained.
ERROR 3
→The unit switches off when if the
handpiece has been very heavily
used for a long period of time.
