Hafco BM-53VE User manual

TURRET MILL
OPERATION MANUAL
Edition No : TM-001
Date of Issue : 6/2017
Models.
BM-23A, BM-53VE, BM-63VE
Page 1
Instructions Manual for BM-23A (M595D)
12/02/2018

2
OPERATION MANUAL
NOTE:
In order to see the type and model of the machine, please see the
specication plate. Usually found on the back of the machine. See
example (Fig.1)
Fig.1
TURRET MILL
MACHINE
MODEL NO.
SERIAL NO.
DATE OF MANF.
NOTE:
This manual is only for your reference. Owing to the continuous improvement
of the machine, changes may be made at any time without obligation or notice.
Please ensure the local voltage is the same as listed on the specication plate
before operating this electric machine.
Distributed by
www.machineryhouse.co.nz
MACHINE DETAILS
Page 2
Instructions Manual for BM-23A (M595D)
12/02/2018

3
OPERATION MANUAL
CONTENTS
INTRODUCTION
Specications..............................................................4
Front View Identication..........................................5
BM-23A Belt Driven Head Identication...........6
BM-23A Controls And Components..................7
BM-53VE , 63VE Variable Head Identication.8
BM-53VE, 63VE Controls And Components..9
Table Identication..................................................10
Safety Operating Procedures..............................11
Safety Requirements...............................................12
SET-UP AND INSTALLATION
PreparingtheMillingMachineforService..........13
Leveling theMachine..............................................13
Removal Of Mill Head Block.................................14
ElectricalConnection..............................................14
Electrical Requirent.................................................14
Extension Cords.......................................................14
OPERATING INSTRUCTIONS
Operating Controls..........................................................14
Motor Switch.............................................................14
Setting BM-23A Spindle Speed..........................15
Setting Variable Head Speeds.............................16
Variable Speed Control..........................................17
High-Neutral-Low Shift Lever..............................17
Spindle Brake............................................................17
Quill Feed Level........................................................18
Feed Rate Lever....................................................... .18
Feed Clutch Lever....................................................18
Feed Direction Control......................................... .18
Coarse Feed Handle................................................19
Quill Lock Lever........................................................19
Micrometer Adjusting Nut...................................19
Fine Feed Wheel......................................................19
Depth Scale and Stop............................................19
Spindle Downfeed Operation.............................20
Loading and Unloading Tooling.........................21
ADJUSTMENTS
Mill Head – Fore/Aft Adjustment.......................22
Mill Head – Left/Right Adjustment....................22
Returning to Upright Position.............................23
Positioning the Ram...............................................24
MAINTENANCE
Lubrication.................................................................25
Gib Adjustment........................................................26
Troubleshooting.......................................................27
PARTS
How to Order Spare Parts.....................................29
BM-23A Belt Drive Head Parts............................30
BM-23A Parts List for Head Assembly..............31
Spindle Assembly....................................................33
Parts List for Spindle Assembly...........................34
BM-53VE Head Assembly Parts...........................32
BM-53VE Part List for Head Assembly..............37
BM-53VE Head Assemybly Parts........................38
Base Assembly..........................................................41
Parts List for Base Assembly.................................42
Lead Screw Assembly Parts.................................44
Parts List for Lead Screw Assembly...................45
One-Shot Lubrication System.............................46
Parts List for One-Shot Lubrication System...46
APPENDIX
Risk Assesment.........................................................47
Page 3
Instructions Manual for BM-23A (M595D)
12/02/2018

4
OPERATION MANUAL
Model Number: BM-23A BM-53VE BM-63VE
Digital Readout 3-Axis Counter X, Y Scales 3-Axis 3-Axis
Table Size (mm) 1066 x 230 1370 x 254 1370 x 254
Spindle Taper NT30 NT-40 NT-40
Longitudinal Travel X-Axis (mm) 585 910 890
Cross Travel Y-Axis (mm) 295 400 400
Vertical Travel Z-Axis (mm) 400 385 400
Type of Slides Dovetail (X, Y, Z) Dovetail (X) Square (Y & Z) Dovetail (X) Square (Y & Z)
Longitudinal and Cross Travel Type Lead Screws Lead Screws Ball Screws
Ram Travel (mm) 420 555 550
Quill Diameter (mm) 86 86 105
Quill Travel (mm) 127 127 127
Spindle to Table Max. (mm) 480 385 450
Throat Depth Max. (mm) 545 635 740
Tilting Head (Left to Right) +90 ° +90 ° +90 °
Tilting Head (Forward & Back) +45 ° +45 ° +45 °
Power Feed - Quill 0.04, 0.08, 0.15mm/rev 0.04, 0.08, 0.15mm/rev 0.04, 0.08, 0.15mm/rev
Power Feed - Longitudinal (X-Axis) 20-2000 mm/min 20 - 2000 mm/min 20 - 2000 mm/min
Power Feed - Cross (Y-Axis) Optional 20 - 2000 mm/min 20 - 2000 mm/min
Power Feed - Vertical (Z-Axis) Optional Rapid Rapid
Lubrication System One Shot One Shot One Shot
Table T-Slot Size (mm) 16 16 16
Work Table Load Capacity (Kgs) 250 350 400
Spindle Speeds Vertical 8 Steps (65-2330) rpm Variable (50 - 3550) rpm Variable (50 - 3550) rpm
Motor Power - Vertical 2.2kW/3HP 1Ph 3.75kW/5hp 3.75kW/5hp
Motor Voltage 240V-15amp 415V-20amp 415V-20amp
Overall Dimensions (mm./W x D x H) 1500 x 1700 x 2200 1800 x 2430 x 2200 1800 x 2430 x 2200
Net Weight (kgs.) 1100 1365 1375
The above specications were current at the time this manual was published, but because of
our policy of continuous improvement, we reserve the right to change specications at any
time and without prior notice, without incurring obligations
SPECIFICATIONS
This manual covers the safe operation and maintenance procedures for the Hafco/Metalmaster Turret
Mills with model numbers listed below in the specications. These machines have been designed and
constructed to provide years of trouble free operation if used in accordance with the instructions set
forth in this manual.
NOTE: Some sections may apply only to certain models. Please be sure you know your model.
INTRODUCTION
Page 4
Instructions Manual for BM-23A (M595D)
12/02/2018

5
OPERATION MANUAL

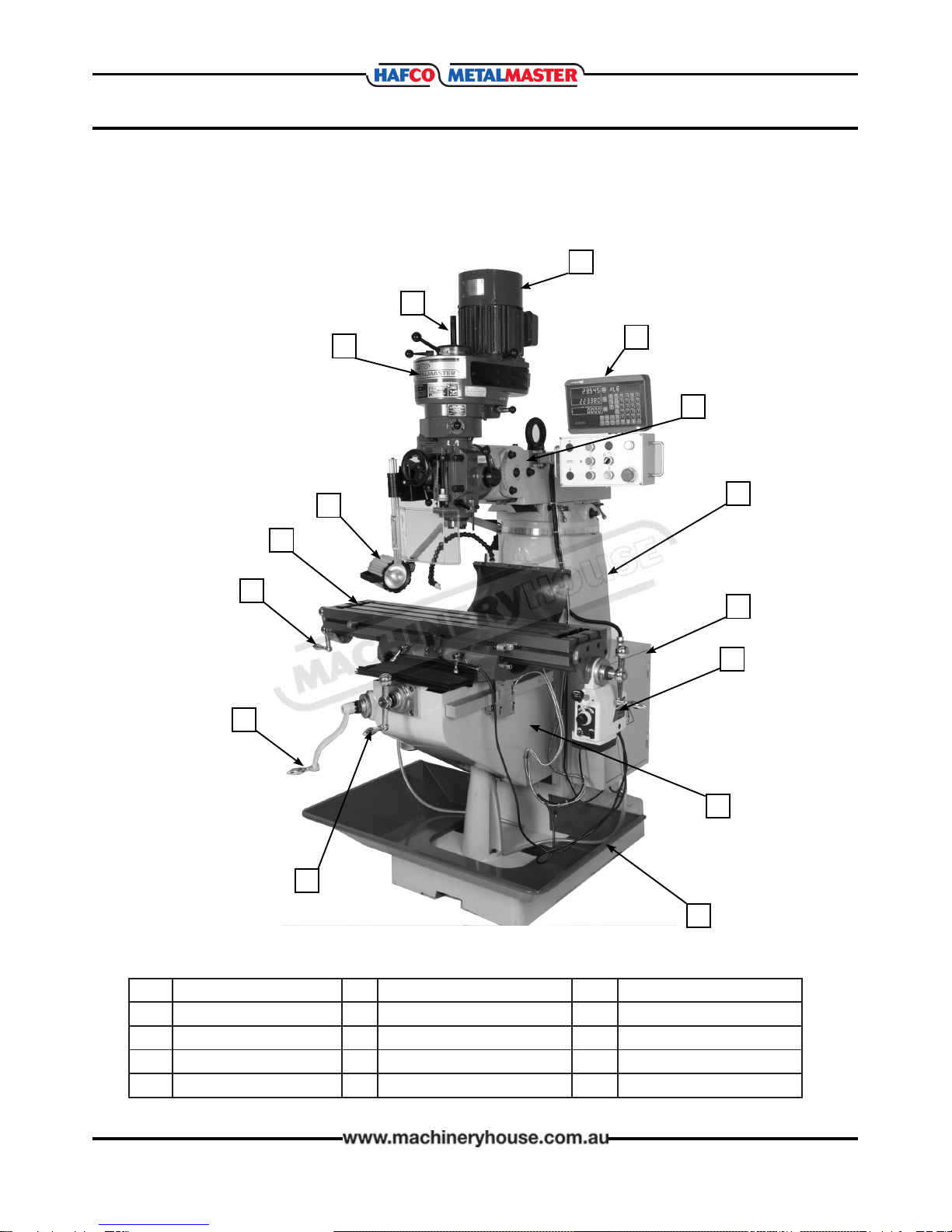

A Motor F Longitudinal Power Feed K Longitudinal Handle
B Digital Readout G Knee L Slotted Table
C Ram H Splash Tray M Halogen Lamp
D Main Body I Cross Handle N Headstock
E Electrical Cabinet J Knee Handle O Spindle Drawbar
B
Become familiar with the names and locations of the controls and features shown below to better
understand the instructions in this manual.
A
B
C
D
E
F
G
H
I
J
K
L
M
N
BM-23A
DISPLAYED
Fig. 1
FRONT VIEW IDENTIFICATION
O
Page 5
Instructions Manual for BM-23A (M595D)
12/02/2018

6
OPERATION MANUAL
BM-23A
Belt Drive Head
Belt Tension
Adjustment Lever
Belt Housing
Spindle Safety Cover
Spindle Speed
Range Selector
Coarse
Downfeed Lever
Quill Lock
Lever
Adjustable
Downfeed Stop
Spindle
Brake Lever
High/Low
Range Lever
Fine Downfeed
Handwheel
Auto-Downfeed
Direction Pin
Fine Downfeed
Clutch Lever
Auto-Downfeed
Rate Selector
Quill & Spindle
Manual/Power
Downfeed Selector
Motor Lock
Screw
Fig. 2
BELT DRIVEN HEAD IDENTIFICATION
Page 6
Instructions Manual for BM-23A (M595D)
12/02/2018

7
OPERATION MANUAL
Spindle Brake Lever: Quickly stops the spindle
after power to spindle is turned OFF.
High/Low Range Lever: Selects between
low (65 RPM–270 RPM) and high (590 RPM–
2330 RPM) spindle speed ranges.
Belt Tension Adjustment Lever: Adjusts the
V-belt tension by moving the position of the
motor.
Motor Lock Screw: Locks motor position to
secure belt tension.
Belt Safety Cover: Must be secured closed to
protect user from entanglement during opera-
tion. Used for access to V-belt when changing
spindle speed.
Spindle Speed Range Selector: Used in con-
junction with high/low range lever. Engages
back gear for low (65–270 RPM), and disengag-
es back gear for high (590–2330 RPM) spindle
speed ranges.
NOTE: When engaged, the back gear reverses
the spindle rotation, causing the spindle switch
settings to be reversed when in low range
Manual/Power Downfeed Selector: Selects
between manual and power downfeed.
Coarse Downfeed Lever: Quickly moves the
quill downward manually and automatically
retracts spindle to top position when released.
Typically used for drilling operations
Quill Lock Lever: Locks the quill in any position
for best rigidity
Adjustable Downfeed Stop: Limits depth of
the quill travel. The dial is graduated in incre-
ments of 0.01mm. Typically used for repeat
operations.
Fine/Auto Downfeed Clutch Lever: Engages
ne/auto-downfeed gears.
Fine Downfeed Handwheel: Manually controls
slow spindle downfeed for ne Z-axis control.
Auto-Downfeed Direction Pin: Starts, stops,
and reverses the auto-downfeed direction.
Auto-Downfeed Rate Selector: Selects one of
the three auto-downfeed rates:
0.04 mm/rev
0.08 mm/rev
0.15 mm/rev
NOTE:
The correct feed selection depends on the type
of material and the number of cutting edges
on the tool. Refer to the Fitting and Machining
manual (Hafco Code L341)
The following descriptions are explanations of the items for the belt driven head listed in Fig.2.
These will help the operator to become familiar with the basic controls and components of this
machine. Understanding these items and how they work will help the operator understand the
rest of the manual and stay safe when operating this machine.
CONTROLS AND COMPONENTS FOR THE BM-23A BELT DRIVEN HEAD
Hafco Order
Code L341
Page 7
Instructions Manual for BM-23A (M595D)
12/02/2018

8
OPERATION MANUAL
Spindle
Brake

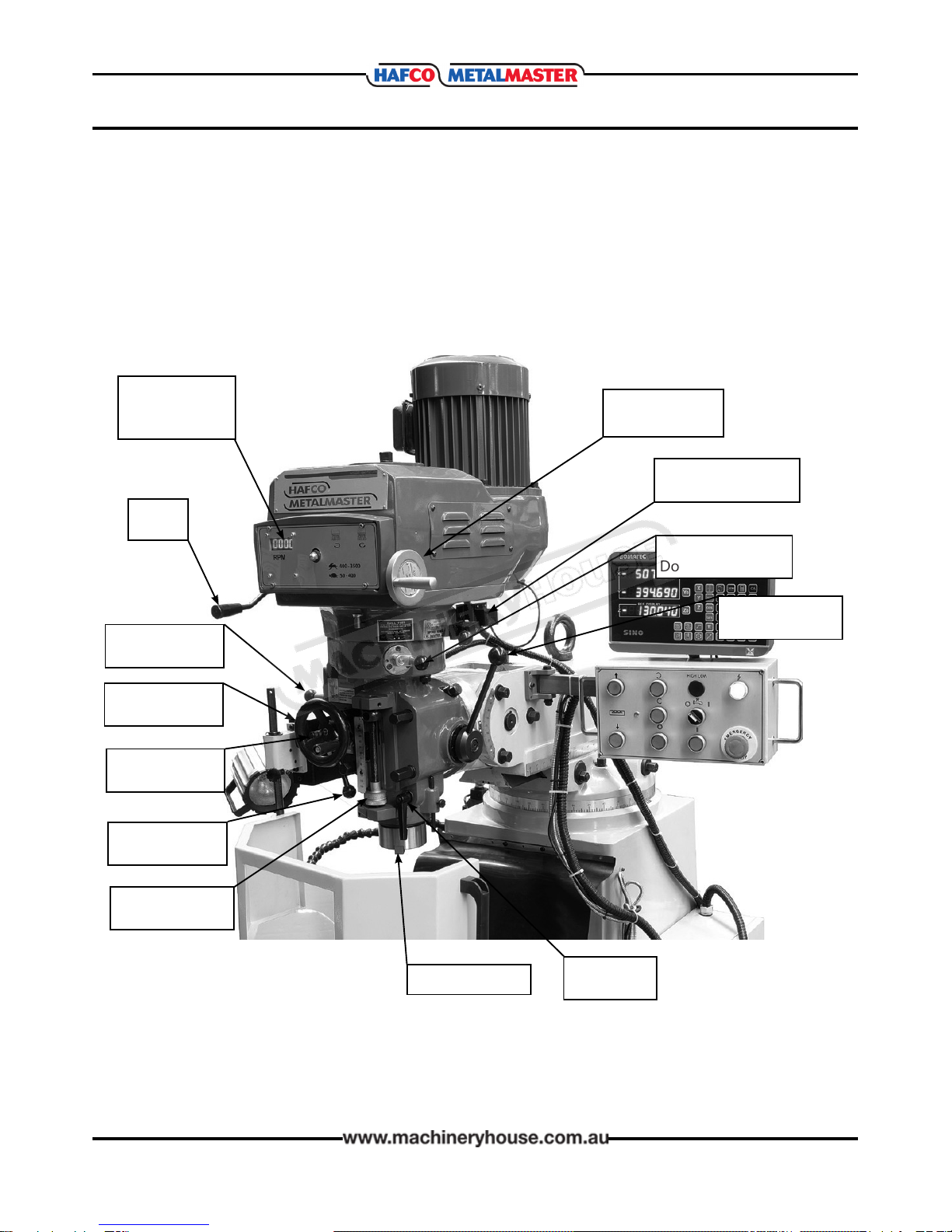

BM-53VE, BM-63VE
Variable Speed Head
Variable-Speed
Handwheel
Spindle Speed
Range Selector
Manual/Power
Downfeed Selector
Digital
Variable-Speed
Display
Auto-Downfeed
Direction Pin
Fine Downfeed
Clutch Lever
Auto-Downfeed
Rate Selector
Fine Downfeed
Handwheel
Coarse
Downfeed Lever
Quill Lock
Lever
Adjustable
Downfeed Stop
Quill & Spindle
VARIABLE SPEED HEAD IDENTIFICATION
Fig. 3
Page 8
Instructions Manual for BM-23A (M595D)
12/02/2018

9
OPERATION MANUAL
Spindle Brake Lever: Quickly stops the spindle
after the power to spindle is turned OFF.
High/Low Range Lever: Selects between
low (50 RPM–400 RPM) and high (400 RPM–
3550 RPM) spindle speed ranges.
Spindle Speed Range Selector: Used in con-
junction with high/low range lever. Engages
back gear for low (50–400 RPM), and disengag-
es back gear for high (400–3550 RPM) spindle
speed ranges.
Note: When the back gears are engaged, the
spindle rotation, is reversed and the switch set-
tings need also to be reversed in low range
Digital Variable-Speed Display: Displays the
spindle speed when the machine is in both the
high and low range.
Spindle Speed Range Selector: Engages
back gears for low (50 RPM–400 RPM), and
disengages back gears for high (400 RPM–
3550 RPM) spindle speed ranges.
NOTE: When engaged, the back gears reverse
the spindle rotation, causing spindle switch
settings to be reversed when in low range
Manual/Power Downfeed Selector: Selects
between manual and power downfeed.
Coarse Downfeed Lever: Quickly moves the
quill downward manually and automatically
retracts the spindle to top position when re-
leased. Typically used for drilling operations
Quill Lock Lever: Locks quill in any position for
better rigidity
Adjustable Downfeed Stop: Limits the depth
of the quill travel. The dial is graduated in in-
crements of 0.01mm. Typically used for repeat
operations.
Fine/Auto Downfeed Clutch Lever: Engages
ne/auto-downfeed gears.
Fine Downfeed Handwheel: Manually controls
slow spindle downfeed for ne Z-axis control.
Auto-Downfeed Direction Pin: Starts, stops,
and reverses the auto-downfeed direction.
Auto-Downfeed Rate Selector: Selects one of
the three auto-downfeed rates:
0.04 mm/rev
0.08 mm/rev
0.15 mm/rev
NOTE:
The correct feed selection depends on the type
of material and the number of cutting edges
on the tool. Refer to the Fitting and Machining
manual (Hafco Code L341 Page 7)
The following descriptions are explanations of the items for the variable speed head listed in Fig.3.
These will help the operator to become familiar with the basic controls and components of these
machines. Understanding these items and how they work will help the operator understand the
rest of the manual and stay safe when operating these machines.
CONTROLS AND COMPONENTS FOR THE BM-53VE & BM-63VE VARIABLE SPEED HEAD
Page 9
Instructions Manual for BM-23A (M595D)
12/02/2018

10
OPERATION MANUAL
A
A. X-Axis Ball Handle: Manually moves
table along X-axis (left and right).
B. X-Axis Locks: Tightens to prevent X-axis
table movement for increased rigidity
during operations where the X-axis
should not move.
C. Y-Axis Ball Handle: Manually moves
table along Y-axis (front and back).
D. Knee Crank: Manually moves table
along Z-axis (up and down).
E. Y-Axis Lock: Tightens to prevent Y-axis
table movement for increased rigidity
during operations where the Y-axis
should not move.
B
C
D
F. One Shot Oiler: Lubricates X-, Y-, and
Z-axis table ways.
G. Limit Stop: Restricts table movement by
its positioning along front of table.
H. Direction Knob: Selects direction of
table movement. Middle position is
neutral.
I. Speed Dial: Controls speed of power
feed. Rotating dial clockwise causes the
table to move faster.
J. Rapid Traverse Button: When pressed,
moves table at full speed when already
in motion.
E
F
I
H
G
J
TABLE IDENTIFICATION
Fig. 3.1
Page 10
Instructions Manual for BM-23A (M595D)
12/02/2018
