The HCH Haglöf Clinometer Compass with Height Measuring Function is used to measure horizontal and vertical
angles. With the built-in compass the HCH is great for forest inventories and survey work. The instrument is
rugged and durable yet small enough to fit in your pocket. The HCH features azimuth compass 0 - 360° graduated
in 1° increments and accuracy to 2.5°. The clinometer measures -55° to +85° graduated in 0.1° increments with
accuracy to 0.2°. The HCH is operated with one button it has magnetic declination and is easy to calibrate. The
HCH Compass Clinometer with Height Function has an adjustable correction of local discrepancies as well as built-
in digital functions that will adjust the compass if not held horizontally. Heights can be measured from optional
distance and location in relation to the height position of the measuring object. The built-in compass function
offer better functionality and increased utility and uses a regular AA battery to operate.

HCH HAGL Ö F HEIG H T COM P A S S M ANUAL E N G LISH 2013-0 8 - 21 REV 1 . 1 JN/GH
©HAGL Ö F SWEDE N A
DIST
25

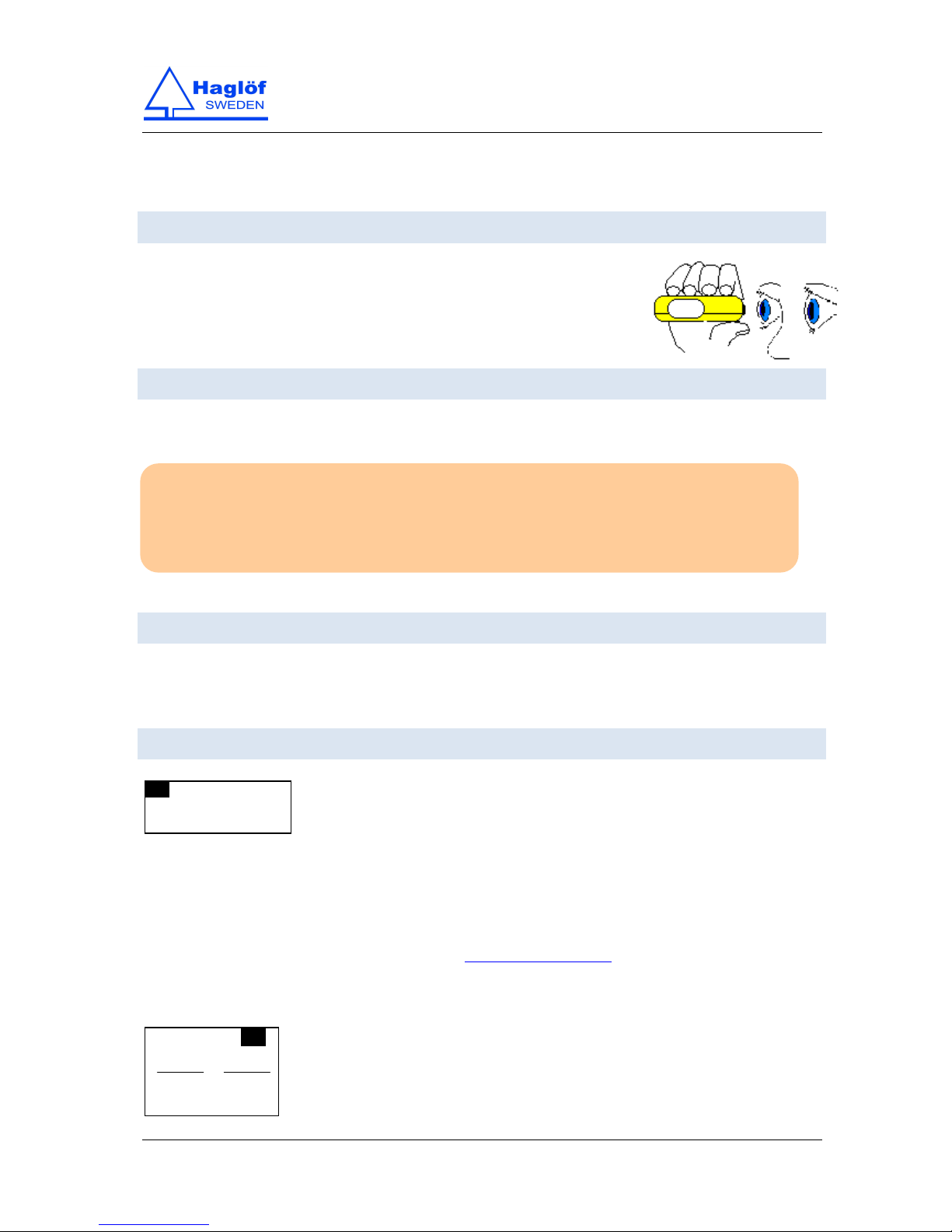

TO USE
Maintain both eyes open when measuring. One eye reads the display and the
other eye monitors the measuring object/surrounding. After only a short time this
way to work will feel comfortable and the advantage is that you can avoid
measuring the wrong tree height for example.
FUNCTION
Select function by pressing the button a number of times according to the below:
BATTERY
HCH uses one standard AA (LR6) battery to operate. A warning is displayed if the battery is weak and goes below
1.0V. The warning comes up as a text message (BAt) for a short second when turning on the HCH.
DISTANCE AND HEIGHT MEASURING
The HCH uses the factual distance from the measuring point (the eye) to the lower
part of the measuring object. You will not have to state any horizontal distance.
Register the distance by pressing the button and tilting the instrument up and down. Release the button when
you have reached a desired value. If the angle is too narrow to obtain the value you need simply release the
button and start over. By repeating until you reach the desired value an optional distance from 0 to 999m/ft can
be set. Note that the HCH instrument does not measure distances! The more accurate the input distance value
the more accurate the height measuring results. The distance can be measured with a measuring tape a thread
meter or an ultrasound measuring device please visit www.haglofsweden.com for different models.
Complete the distance registration with a short button press. Last input value remains in the HCH instrument
memory.
Measure the angle to the lower part of the measuring object by aiming with the two
horizontal lines in the display. Press the button.
1press Ht Height measuring
2presses C º Compass (0..359 º)
3presses Ang Angle measuring (-55.0 º..+85.0 º)
4presses SET Setting and adjustment of local deviations
5presses CAL Calibration of the compass
DEG
+
-11.1

HCH HAGL Ö F HEIG H T COM P A S S M ANUAL E N G LISH 2013-0 8 - 21 REV 1 . 1 JN/GH
©HAGL Ö F SWEDE N A
When a result is displayed aim at the top or other optional height on the same object
and press the button again. If you wish to measure more heights on the same object
simply repeat the process of aiming pressing and releasing the button.
’C º’ (COMPASS)
Note: The compass needs to be calibrated before it is used. Calibration is made in the menu CAL. It is also
necessary to adjust the difference between true (geographic) north and magnetic north in the SET menu.
Metal framed glasses can cause disturbances in the compass function. If you are wearing metal framed glasses
calibrate the instrument with the glasses on (see CAL below). Also note that surrounding magnetic fields can
cause disturbances in the built-in compass as with all compasses.
•Important! All compasses use and are affected by Earth’s magnetic fields
•All compasses are sensitive to disturbances in the surroundings caused by for example the following:
heavy metals household appliances computers high voltage power lines etc.
Push the button one time. The bearing is displayed. Use the two linear lines in the display as your aim. Hold the
instrument plane when measuring or values may be incorrect! The instrument will compensate the compass
angle up to +-10 degrees. If leaning the instrument an image/ message will be displayed urging you to correct the
position.
Tilt the HCH upwards! Tilt the HCH downwards! Turn the HCH clockwise! Turn the HCH anti-clockwise!
Complete the measurement by giving a short press on the button one time.
HGT
+
21.3
M
M
M
234
M

HCH HAGL Ö F HEIG H T COM P A S S M ANUAL E N G LISH 2013-0 8 - 21 REV 1 . 1 JN/GH
©HAGL Ö F SWEDE N A
’ANG’ (ANGLE MEASURING)
Press the button three (3) times. The current angle is displayed. Use the two horizontal lines in the display as aim.
Complete the measuring with a short button press.
’SET’ (SETTINGS)
The deviation varies from location to location. To compensate for the deviation you need to consider the
location you are presently at when adjusting the compass. Note that the deviation can vary from time to time as
well. Choose SEt to set the current local deviation between true north and magnetic north. The HCH will
automatically correct the measured compass angle with the set deviation. Activate the SEt menu by pressing
three (3) times on the button. Register the deviation by pressing and keeping the button depressed and tilting the
instrument up and down. Release the button when the desired value has been registered. If the angle is not big
enough to obtain the desired value release the button and start over. By doing this you can obtain optional
deviation between -45º and 45º. A short press on the button finishes the registration. The input value will remain
in the HCH memory also if removing the battery.
Without compensation for ex. in Stockholm the compass will show 0 degrees at magnetic north. Since the
deviation is 2º degrees to geographic north, the setting should be 2º in the SEt menu. The compass will now show
correct result 2º.

HCH HAGL Ö F HEIG H T COM P A S S M ANUAL E N G LISH 2013-0 8 - 21 REV 1 . 1 JN/GH
©HAGL Ö F SWEDE N A
Deviation in some large cities:
INTERNATIONAL
Anchorage 22º
Atlanta -4º
Bombay -1º
Boston -16º
London -4º
Little Rock 3º
Livingston MT 14º
Münich 1º
New York City -14º
Orlando -5º
Oslo -2º
Paris -2º
Calgary -18º
Chicago -3º
Denver 10º
Jerusalem 3º
Rio de Janeiro -21º
San Francisco 15º
Seattle 19º
Shanghai -5º
Toronto -11º
Vancouver -20º
Washington DC -10º
Waterbury CT -14º
Stockholm 2º

HCH HAGL Ö F HEIG H T COM P A S S M ANUAL E N G LISH 2013-0 8 - 21 REV 1 . 1 JN/GH
©HAGL Ö F SWEDE N A
’CAL’ (CALIBRATION)
The compass needs to be calibrated at each battery change also if the same battery is removed and used again
or if the battery is somehow dispositioned.
The calibration is made in the CAL menu. Press four (4) times to activate the function. Rotate the HCH instrument
during 10-20 seconds at least 1-2 rotations preferably on a plane surface free from magnetic objects. Another
option is for the operator to rotate while holding and aiming with the instrument and this method is
recommended if wearing metal frame glasses.
Finish the calibration after at least 1-2 spins by pressing the button. Important! Hold the HCH instrument plane
both while measuring and calibrating! The built-in compass will show incorrect values if tilting the instrument. If
the instrument is tilted during calibration a message will be displayed urging you to correct the position see
section Compass this manual. During calibration the instrument shows how long time has passed since the
calibration started (maximum timed 20 seconds) . NOTE! Always test the compass function in at least four (4)
directions after calibration!
TECHNICAL DATA
Size: 20x63x44mm/0 8x2 5x1 7”
Weight: 50g/1 8oz incl battery
Battery: 1xAA (LR6)
Battery warning: Yes
Display: LCD
Backlit display: Yes
Summer: Yes
Consumption: 15mW
Distance: 0-999m/ft (manual feed)
Height: 0-999m/ft
Resolution height: 0 1m/ft<100m/ft; 1m/ft>100m/ft
Angle: %/deg -55deg…+85deg
Accuracy angle: +-0.2deg
Resolution angle: 0.1deg
DECLARATION OF CONFORMITY
According to the EMC Directive with amendment 92/31/EEC Low Voltage Directive 73/23/EEC and CE Marking Directive 93/68/EEC. Type of
equipment Clinometer. Brand name or trade mark Haglöf. Manufacturer’s name address telephone & fax no: Haglöf Sweden AB
Klockargatan 8 SE-882 21 Långsele Sweden. Tel: [phone], Fax: [phone] [e-mail]; www.haglofsweden.com
The following standards and/or technical specifications which comply with good engineering practice in safety matters in force within the
EEA have been applied: Test report/ technical construction file/normative document. Ref.no 03087/Issued by Haglöf Sweden AB.Standards
EMC Emission EN61000-6-3: 2001 EN 55022 Class B. EMC Immunity EN61000-6-2: 2001 EN 6100-4-2 -3. The HEC Product was CE marked
2003. As manufacturer established within EEA we declare under our sole responsibility that the equipment follows the provisions of the
Directives stated above.

HCH HAGL Ö F HEIG H T COM P A S S M ANUAL E N G LISH 2013-0 8 - 21 REV 1 . 1 JN/GH
©HAGL Ö F SWEDE N A
WARRANTY AND SERVICE INFORMATION
Haglöf Sweden AB warrants that this product shall be free from defects in materials and workmanship under normal intended use for a
period of 12 months after date of shipment. The warranty excludes the battery the accessories and any written materials. The warranty does
not apply if the product has been improperly installed improperly calibrated or operated in a manner not in accordance with the user guide.
Warranty is also automatically expired if the product has been opposed to external force and warranty is not applicable for cosmetic defects.
The one-year limited warranty time covers obvious fabrication defects. Defects in the electronic components that are impossible for the
manufacturer to detect prior to assembling and shipping of the product may occur. Haglöf Sweden AB can in no case be responsible for
problems of this nature and has no liability for any loss of business profits savings consequential damages or other damages resulting from
use of the products described. Signs of misuse cosmetic damage accidents or equal automatically withdraw the warranty. The warranty is
valid in the country where your Haglöf product has been purchased. A product covered by warranty will be object to exchange service and
repair or according to special agreement between seller and buyer within the frames of the limited warranty. Haglöf Sweden reserves the
right to determine which option will be most suitable for each separate case after having examined and evaluated the product.
IMPORTANT ISSUES:
For a valid warranty a copy of invoice or dated receipt of your purchase must be presented. The serial number of the returned product has to
be clearly stated upon return. Go to http://www.haglofsweden.com/PDF/HaglofRMA.pdf for return form/turn to your supplier for
assistance.
The return freight to us is on buyer’s expense. After warranty repair or exchange the return freight to you is on our expense. If warranty has
expired or is null and void all freights are on buyer’s expense.
If no original invoice can be presented upon shipment or if two years have passed from date of purchase a customs fee will be added by the
applicable customs authorities and possibly in receiving country as well. These fees are on buyers account.
We perform repair and service of products where warranty has expired when possible. Cost estimation will be sent to you after evaluating the
returned product for cost approval. Please also see above paragraph on customs fees.
Please do not hesitate to contact us or any Haglöf Sweden AB representative for questions or comments!
Any signs of misuse or negligence automatically withdraw our warranty commitments.
©Haglöf Sweden AB 2012-2013. All rights reserved. The information contained herein is confidential and not intended for copying. Software
and software descriptions belong to Haglöf Sweden AB. Unauthorized duplication is prohibited.
HAGLÖF SWEDEN’S PROFESSIONAL CLINOMETERS FEATURE
•
Reliable results
•
Low battery consumption
•
Uses regular 1.5V AA batteries for function
•
Backlit display for easy reading
•
Electronic results for impro ed accuracy
•
One year full factory warranty
•
Quality manufacturing
•
Made in Sweden
