Haicen 4S13P-26650-3.2V-4000mAh User manual

Shandong Haicen Power CO .,LTD
Product Manual
NO. : LI2022009
REV ： A/0
LiFePO4 Battery Pack
12.8V75Ah
Product Manual
Customer Name
Model 4S13P-26650-3.2V-4000mAh
Version A/0
evision 2022-05-12
1

Shandong Haicen Power CO .,LTD
Product Manual
NO. : LI2022009
REV ： A/0
Prepared by Checked Approved by
LEO Chengbo Miao Peng Zhang
evision History
N.O evision Description Check Date Note
1 A/0 Issued Chengbo Miao 2022-05-12
2
山东精工电子科技有限公司
2 Shandong Haicen Power Co., Ltd.

Shandong Haicen Power CO .,LTD
Product Manual
NO. : LI2022009
REV ： A/0
TABLE OF CONTENTS
1. Cell Specification............................................................3
2 Product Specification.......................................................6
3 Characteristics Curve......................................................7
............................................................................................7
4 User’s Manual..................................................................7
5 BMS function...................................................................8
6 Extra Tips.........................................................................9
7 Tests................................................................................9
8 Cautions........................................................................10
9 Other Technical Indicators.............................................13
10 Products Liability.........................................................13
3

Shandong Haicen Power CO .,LTD
Product Manual
NO. : LI2022009
REV ： A/0
1. Cell pecification
No. Items Specification Remark
1Nominal apacity 4Ah 0.5 @25° ±2°
2Nominal Voltage 3.2V Average for Std. discharge
3Max. harge Voltage 3.65V
4Min. Discharge ut-off Voltage 2.0V
5Standard harge
25° ±2° , 0.5 (2A) constant
current charge to 3.65V, followed
by 3.65V constant voltage charge
until current taper to 0.05 (0.2A)
6Standard Discharge 25° ±2° , 0.5 (2A) constant
current discharge to 2.0V.
7Standard harge urrent 0.5 (2A)
8Standard Discharge urrent 0.5 (2.A)
9Max. ontinuous harge urrent 1 (4A)
10 Max. ontinuous Discharge
urrent 2 (8A)
11 Weight ＜95g
12 Storage Temperature Within 1 year： - 20 ~ 25° Storage at 40%-60%SO
Within 3 months： -20 ~ 45°
13
Operating Temperature (Battery
Surface Temperature)
harge： 0° ~ 55°
Discharge： -20° ~ 60°
14 Impedance
≤20mΩ (A ) 25℃, 50%SO , 2 (9A)
discharge 10s
≤40mΩ (D )
Battery ase Material Nickel plated steel shell

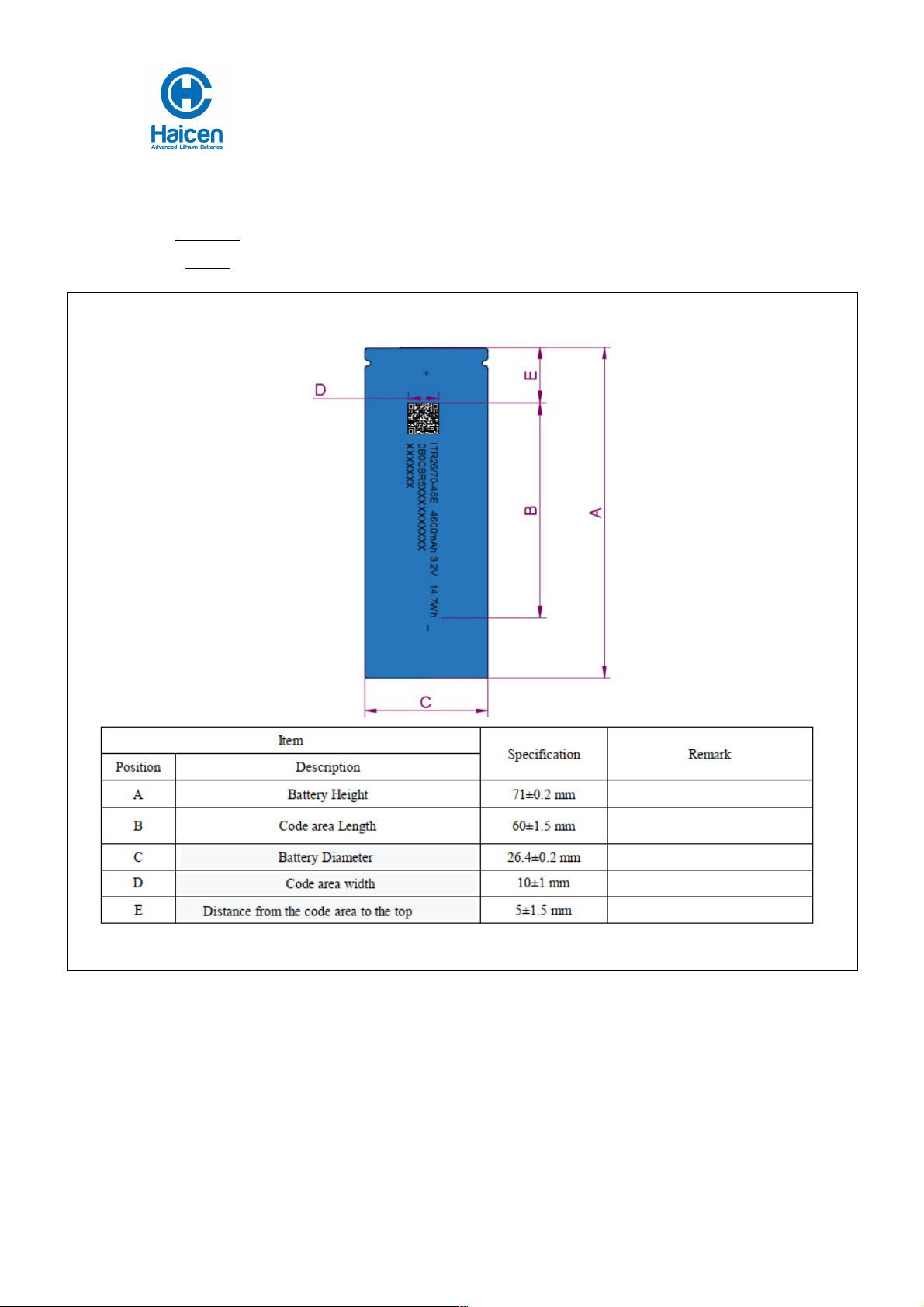

Drawing
4
山东精工电子科技有限公司
4 Shandong Haicen Power Co., Ltd.

Shandong Haicen Power CO .,LTD
Product Manual
NO. : LI2022009
REV ： A/0
5

Shandong Haicen Power CO .,LTD
Product Manual
NO. : LI2022009
REV ： A/0
2 Product pecification
No. Items Specification
1 Product Mode 12.8V75Ah（26650-4000mAh-3.2V-4S19P）
2 Norma Vo tage 12.8V
3 Rated Capacity 75Ah(C5)
4 Energy 0.96KWh
5 Weight About 8±0.5kg
6 Size ≤229*138*208mm
7 Interna Resistance(AC) ≤25mΩ
8 Charge Vo tage 14.4±0.2V
9 Standard Cu toff Vo tage About 10V
10 Charge Current ≦37.5A
11 Standard Discharge
Current
≦37.5A
12 Max Discharge Current ≤100A
13 Passive Protection
Function
Over charge protection, Over discharge protection,
Temperature protection, Ba anced function,B uetooth
14 Charging Termina M6
15 Discharge Termina
16 Cyc e Life ≥3,[email protected]/1C（100%DOD）
≥6,[email protected]/1C（80%DOD）
Drawing
6
山东精工电子科技有限公司
6 Shandong Haicen Power Co., Ltd.

Shandong Haicen Power CO .,LTD
Product Manual
NO. : LI2022009
REV ： A/0
3 Characteristics Curve
7

Shandong Haicen Power CO .,LTD
Product Manual
NO. : LI2022009
REV ： A/0
4 User’s Manual
4.1 Charge
Charging terminal of battery pack is connected to charger appropriate with it, and then
charge. Charge voltage is 14.4±0.2V. Do not reverse.
4.2 Discharge
Discharge terminal of battery pack is connected to load with connectors, and then
discharge. Do not reverse.
5 BM function
This battery pack has a battery management system (BMS), which can monitor the
operation status of the system through Bluetooth, providing over discharge, over charge,
over current, short circuit, over temperature and low temperature protection.

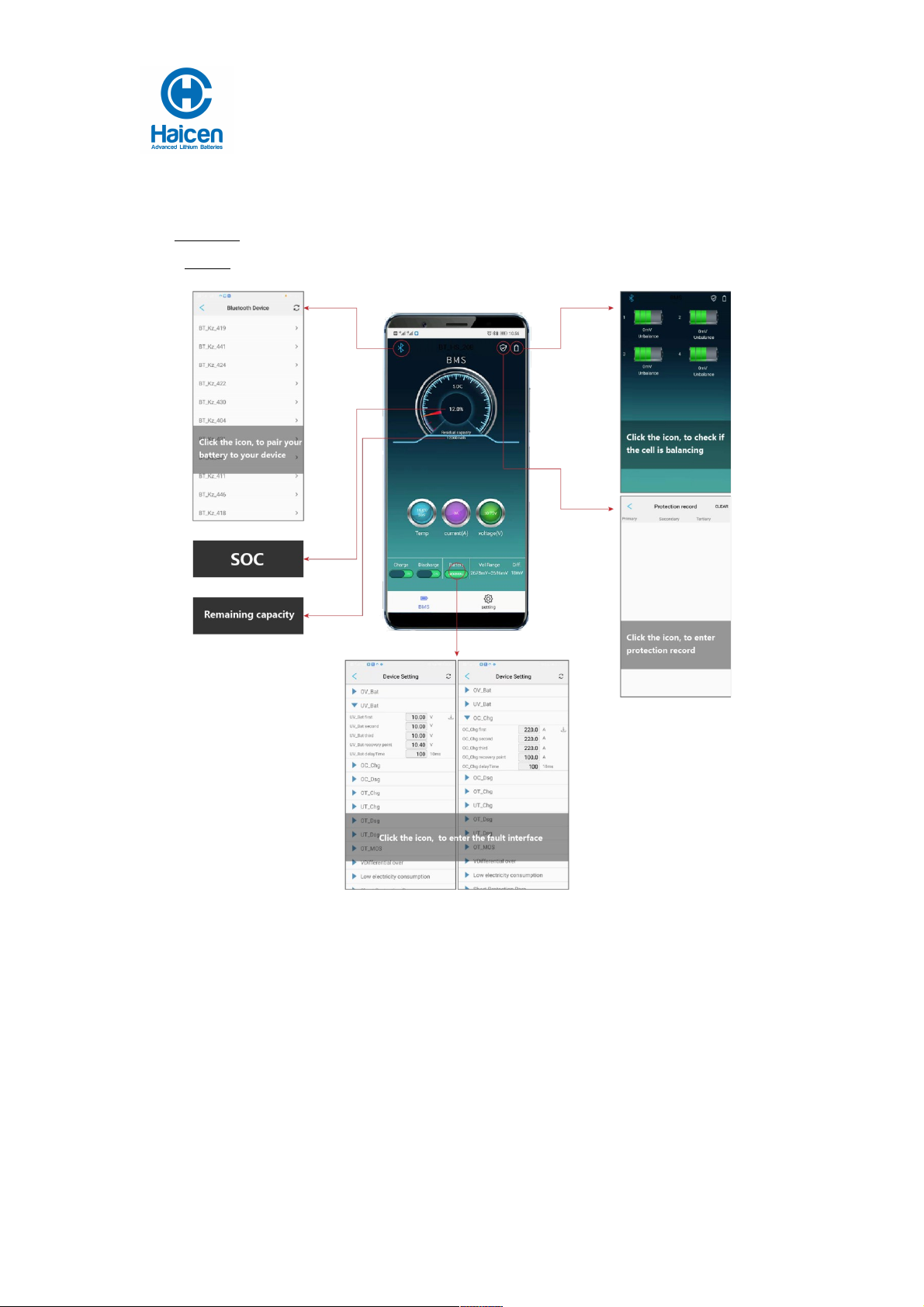

5.1 Bluetooth function description
8
山东精工电子科技有限公司
8 Shandong Haicen Power Co., Ltd.

Shandong Haicen Power CO .,LTD
Product Manual
NO. : LI2022009
REV ： A/0
9

Shandong Haicen Power CO .,LTD
Product Manual
NO. : LI2022009
REV ： A/0
6 Extra Tips
You encounter difficulties, please contact us, we will try our best to provide you with
service and help.
Please do not be machined on the circuit board, any damage may cause
functional failure of the internal circuit;
Please do not make the force and deformation to the product, any damage
to electronic components or lines may make the product unstable.
Please do not disassemble the shell, lest you cause unnecessary damage
to you;
The charging terminal polarity is reversed, and it burn internal circuit board,
please pay attention to the port when connect.
7 Tests
Single cell and Protection Circuit Specification are only results of standard test, this is
for your reference only.
7.1 Standard Test Requirements
Battery test must be within 1 month after production. All tests in this specification
should be at standard atmospheric conditions. (Temperature: 25± 2 , relative humidity:℃
65± 20%).Charge voltage is 14.4±0.05V, Standard cutoff voltage is about 10 V;
Standard current is I5 (A).
7.2 Standard Charge
Charge the battery with Lithium ion battery special test cabinet, supply standard
voltage, standard current until current down to 0.05I5(A).
7.3 Standard Discharge
Discharge the battery at standard current with special detection device, constant
discharging to standard discharge cutoff voltage or until the battery stop.
10
山东精工电子科技有限公司
10 Shandong Haicen Power Co., Ltd.

Shandong Haicen Power CO .,LTD
Product Manual
NO. : LI2022009
REV ： A/0
7.4 Capacity Retention Rate
Test Methods Test tandards
tandard charge, in standard test conditions on
hold for 28 days, standard discharge.
capacity retention rate≥80%
7.5 Cycle ife
Cycles Life≥6000 cycles, capacity retention rate≥80%). (Standard charge at 0.5C, rest
0.5~1h; discharge at 1C to cut off voltage, rest 0.5~1h, repeat the above steps until
6000cycles.)

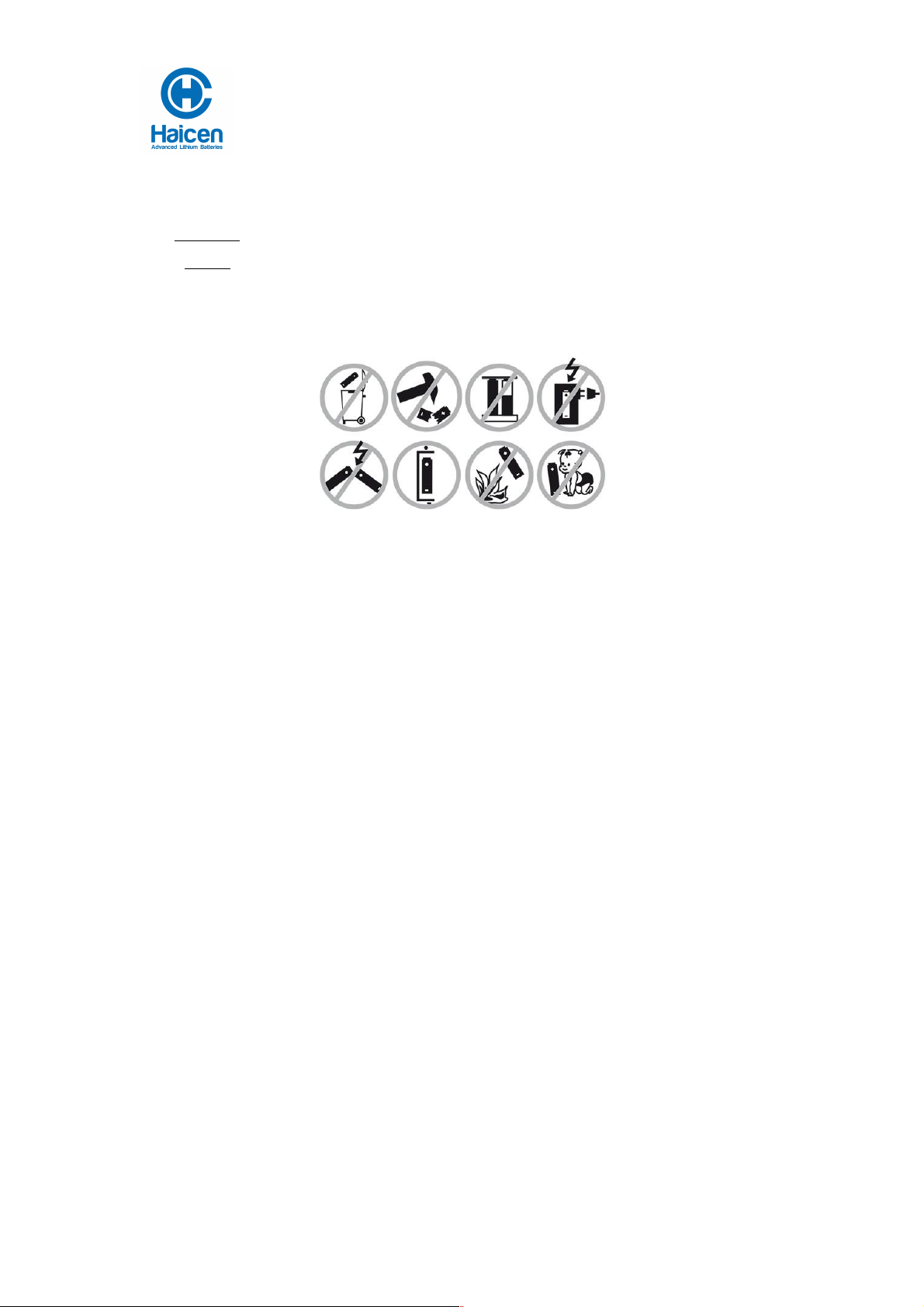

8 Cautions
Please pay attention to followings in case of battery will have leakage, heat etc.
Do not immerse the battery in water or seawater, and keep the battery in a cool dry
surrounding if it stands by.
Do not use or leave the battery at high temperature as fire or heater. Otherwise,
it can overheat or fire or its performance will be degenerate and its service life will be
decreased.
Do not reverse the positive and negative terminals.
Do not reverse polarity charging.
Do not connect the battery electrodes to an electrical outlet.
Do not short circuit. Otherwise it will cause serious damage of the battery.
Do not transport or store the battery together with metal objects such as
hairpins, necklaces, etc.
Do not strike, trample, throw, fall and shock the battery.
Do not directly solder the battery and pierce the battery with a nail or other
sharp objects.
Do not use the battery in the location where static electricity and magnetic field
is great, otherwise, the safety devices may be damaged, causing hidden trouble of
safety.
Do not overload with battery
Please use special charger for charging.
Please charge the battery within 24 hours after fully discharged.
If the battery leaks and the electrolyte gets into the eyes, do not rub the eyes,
instead, rinse the eyes with clean water, and immediately seek medical attention.
Otherwise, it may injure eyes.
If the battery gives off strange odor, generates heat, becomes discolored or
deformed, or in any way appears abnormal during use, recharging or storage,
immediately stop charging, using, and remove it from the device.
In case the battery terminals are dirty or oxidation, clean the terminals with a
11

Shandong Haicen Power CO .,LTD
Product Manual
NO. : LI2022009
REV ： A/0
dry cloth before use. Otherwise poor performance may occur due to the poor
connection with the instrument.
Tape the discarded battery terminals to insulate them.
8.1 Battery Checking
After receiving the battery, you should first check the packing carefully. During the
handling process, please ensure there’s no shock on the battery.
Please check the battery case and accessories if there’s any damage or leakage,
if so, please contact us immediately.
Please check the output connector is correct or not, measuring the voltage
between positive and negative, if it’s within the normal standard.
8.2 Installation and Precautions
No smoking or fire during installation to avoid short-circuit of battery and prevent
equipment damage or personal injury.
The battery should be installed under the condition with well-ventilated and no
sunlight. Don’t put it under place with possible flooding.
When fastening battery terminals, please don’t use excessive force, or the
terminals could be damaged.
Clean the surface of battery with dry cloth, please don’t use oil or other volatile
organic solvents to clean, or it may damage it.
Please make sure that the positive (+) & negative (-) polarity is correct connected,
or it may fire or damage the battery and load.
Start testing the equipment if it could be well working with battery.
Using and maintenance
8.3 Battery Using and Maintenance
Charging current should be less than maximum charge current specified in the
Product Specification, charging current bigger than recommended current may
damage the battery.
Discharging current should be less than maximum discharge current specified
in the Product Specification; discharging current bigger than recommended current
may damage the battery.
Discharge temperature:-20℃~+60℃.Humidity: H≤85%.When the temperature is
higher than 45℃, please note ventilation. When the environment humidity is higher
than 85%, please pay attention to protection. Charging
temperature:0℃~+45℃.Humidity: H≤85%, When the environment humidity is
12
山东精工电子科技有限公司
12 Shandong Haicen Power Co., Ltd.

Shandong Haicen Power CO .,LTD
Product Manual
NO. : LI2022009
REV ： A/0
higher than 85%, please pay attention to protection; storage temperature: 0℃~40℃
(Best temperature is 15℃~25℃ in dry environment). Temperature affects the
capacity of battery obviously, it’s normal.
When the battery power is low, please charge it in time. This could ensure longer
cycle life. If the battery can’t be charged in time and let it under power shortage
condition, it may affect the cycle life.
The lithium-ion battery charge discharge shallow is beneficial to improve the
cycle life, proposal user each discharge is put to the nominal capacity of 80%.
It should be noted that the cell would be possible to be at the over-discharged
state by its self-discharge characteristics in case the cell is not used for long time.
In order to prevent over-discharging, the cell shall be charged periodically to
maintain a certain voltage range 13.2V~13.6V, 2months one cycle，Over-
discharging may causes loss of cell performance, characteristics, or battery
functions. But
for battery packs with commnunication fuction, please maintain it once in 1 month.
Don’t use organic solvents to clean the battery case. If for battery fire accident,
please use dry powder fire extinguisher or sand.
Battery is a consumable product with limited cycle life. Please charge it in time
when the capacity can’t reach the requirement to avoid any loss of the user.
8.4 Battery Common Troubles and Solutions
Battery voltage is too low after fully charged.
Battery was in long-term storage with no usage, not in accordance with the
provisions for maintenance either.
Solution: charge the battery can be solved.
Battery disconnected
Solution: remove the battery to check whether the line is broken or not, the solder
joints come off or not, nickel belt breaks or not, and then repair according to the
damage situation.
Protection circuit does not work
Solution: first, make sure the cable is contact with the protection circuit well, then,
observe solder is off or not. If the above conditions are normal, please test voltage
between B+/B- and P+/ P- voltage, then the board would be failed if the voltage
difference is very high. Then please do testing in detail on protection circuit, if not
pass, please change another new protection circuit.
Battery suffered fierce collision, with character-external battery case damaged or
with electrolyte odor.
Solution: It’s not in the scope of maintenance generally. If needing maintenance,
we need the confirmation of the problem whether on the output line or the battery
itself.
First, open the battery case, check the battery P + / C + and P- / C- lines or joints
damaged or not. If damaged, it needs to be replaced. Then, instigating smell odors
method to determine the battery, if there is irritation electrolyte odor, indicating that
the battery has been leaking. You need to test the voltage of each series. If the
voltage of one series is very different with much lower voltage, then this series
needs to be replaced.
Insufficient capacity
13

Shandong Haicen Power CO .,LTD
Product Manual
NO. : LI2022009
REV ： A/0
Solution: To charge and discharge the battery with 3~5 cycles generally.
Battery voltage instability or cannot charge or discharge normally.
Faulty soldering
Solution: To test the resistance with the internal resistance tester, and confirm the
internal resistance of the battery exceeding a predetermined value or not. If not,
the battery would be in faulty soldering condition, the battery needs to be
unpacked to be welded again.
Protection circuit abnormal
Solution: replace the protection circuit.
Connector or terminals in poor contact condition
Solution: replace the terminals or connectors
Battery works properly in charging but could not discharge or discharging well
but could not charge.
Solution: The protection circuit is damaged; you need to replace the protection
circuit.
9 Other Technical Indicators
If you need battery protection parameters and other related parameters, please contact
our sales or technical staff, we will provide you as soon as possible.
10 Products Liability
Shandong Haicen Power Co., Ltd. is not responsible for the incident caused by not
obeying the Manual. Before using the battery, you should read the specifications, usage
instruction and some attentions carefully to learn its application method and areas. If the
phenomenon such as incorrect using method or wrong circuit connection, or input power
data, working index are inconsistent with the Manual, cause damage to product, load and
its accessories, we are not responsible for it.
14
山东精工电子科技有限公司
14 Shandong Haicen Power Co., Ltd.
