CAUTIONS
Disposal of the old air conditioner
Before disposing an old air conditioner
that goes out of use, please make sure
it's inoperative and safe. Unplug the
air conditioner in order to avoid the risk
of child entrapment.
It must be noticed that air conditioner
system contains refrigerants, which
require specialized waste disposal.
The valuable materials contained in a
air conditioner can be recycled.
Contact your local waste disposal
center for proper disposal of an old air
conditioner and contact your local
authority or your dealer if you have
any question. Please ensure that the
pipework of your air conditioner does
not get damaged prior to being picked
up by the relevant waste disposal
center, and contribute to
environmental awareness by insisting
on an appropriate, anti-pollution
method of disposal.
Disposal of the packaging of your
new air conditioner
All the packaging materials employed
in the package of your new air
conditioner may be disposed without
any danger to the environment.
Consult your local authorities for the name
and address of the waste materials
collecting centers and waste paper
disposal services nearest to your house.
Safety Instructions and Warnings
Before starting the air conditioner, read
the information given in the User's Guide
carefully. The User's Guide contains very
important observations relating to the
assembly, operation and maintenance
of the air conditioner.
The manufacturer does not accept
responsibility for any damages that may
arise due to non-observation of the
following instruction.
Damaged air conditioners are not to
be put into operation. In case of doubt,
consult your supplier.
All these valuable materials may be taken
to a waste collecting center and used
again after adequate recycling.
The cardboard box may be broken or cut
into smaller pieces and given to a waste
paper disposal service. The wrapping
bag made of polyethylene and the
polyethylene foam pads contain no
fluorochloric hydrocarbon.

3
CAUTIONS
All electrical repairs must be carried
out by qualified electricians.
Inadequate repairs may result in a
major source of danger for the user of
the air conditioner.
Do not damage any parts of the air
conditioner that carry refrigerant by
piercing or perforating the air
conditioner's tubes with sharp or
pointed items, crushing or twisting any
tubes, or scraping the coatings off the
surfaces. If the refrigerant spurts out
and gets into eyes, it may result in
serious eye injuries.
For the purpose of safety, the air
conditioner must be properly grounded
in accordance with specifications.
Always remember to unplug the air
conditioner before opening inlet grill.
Never unplug your air conditioner by
pulling on the power cord. Always grip
plug firmly and pull straight out from
the outlet.
Use of the air conditioner is to be
carried out in strict compliance with the
relative instructions set forth in the
User's Guide.
Installation shall be done by
professional people, don't install unit
by yourself.
Do not obstruct or cover the
ventilation grille of the air conditioner.
Do not put fingers or any other things
into the inlet/outlet and swing louver.
Do not allow children to play with the
air conditioner. In no case should
children be allowed to sit on the
outdoor unit.

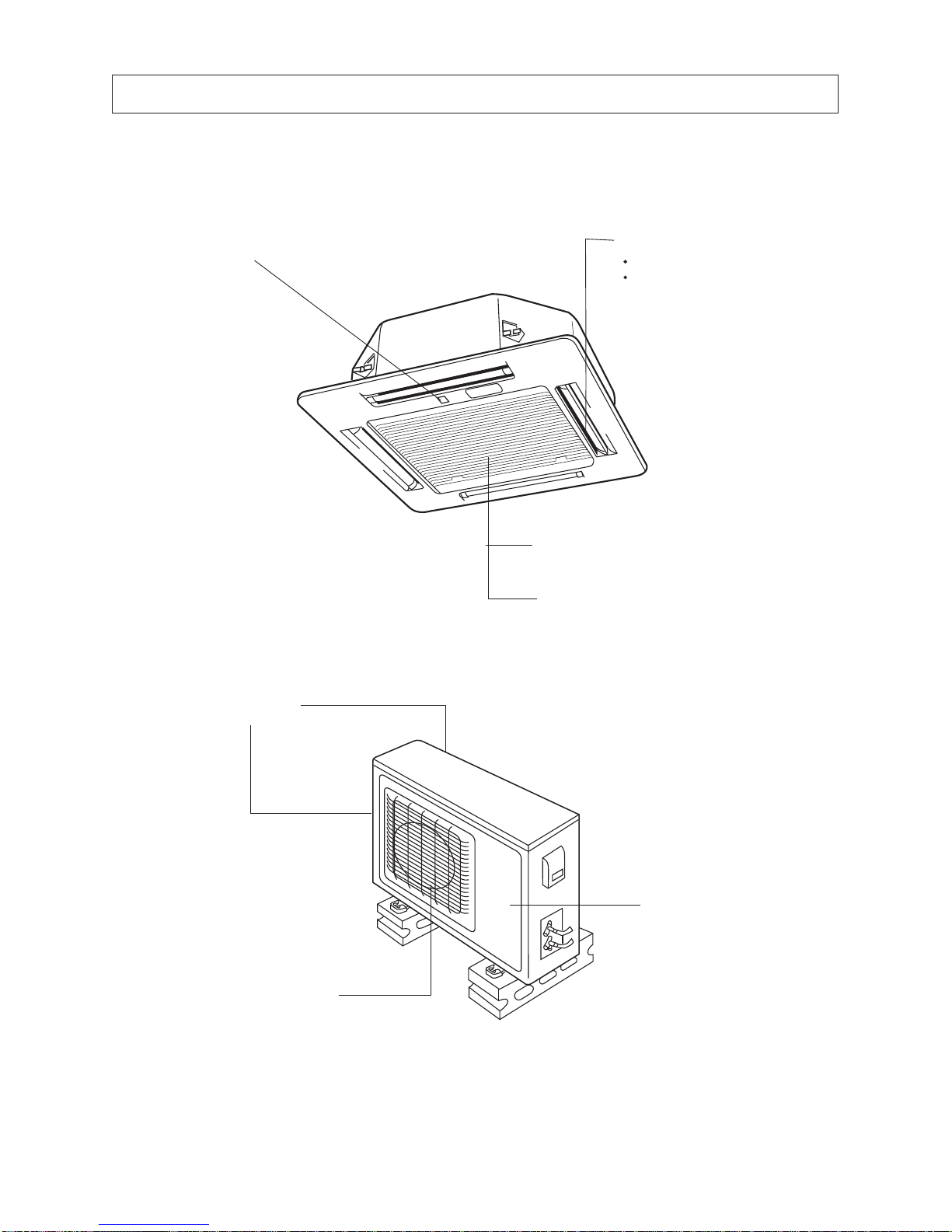

Indoor unit
Back up switch
Swing louver
Air blows out from here.
Air flow direction is adjusted.
Air inlet grille
Takes in the indoor air.
Air filter
Removes dust or dirt out of the inlet air.
(In the Air inlet grille)
Air inlet
Outdoor unit
Air outlet
Compressor(inside of unit)
4
THE NAME OF EACH PART AND ITS FUNCTION

Operation
%
INTRODUCTION TO SPARE PARTS
5

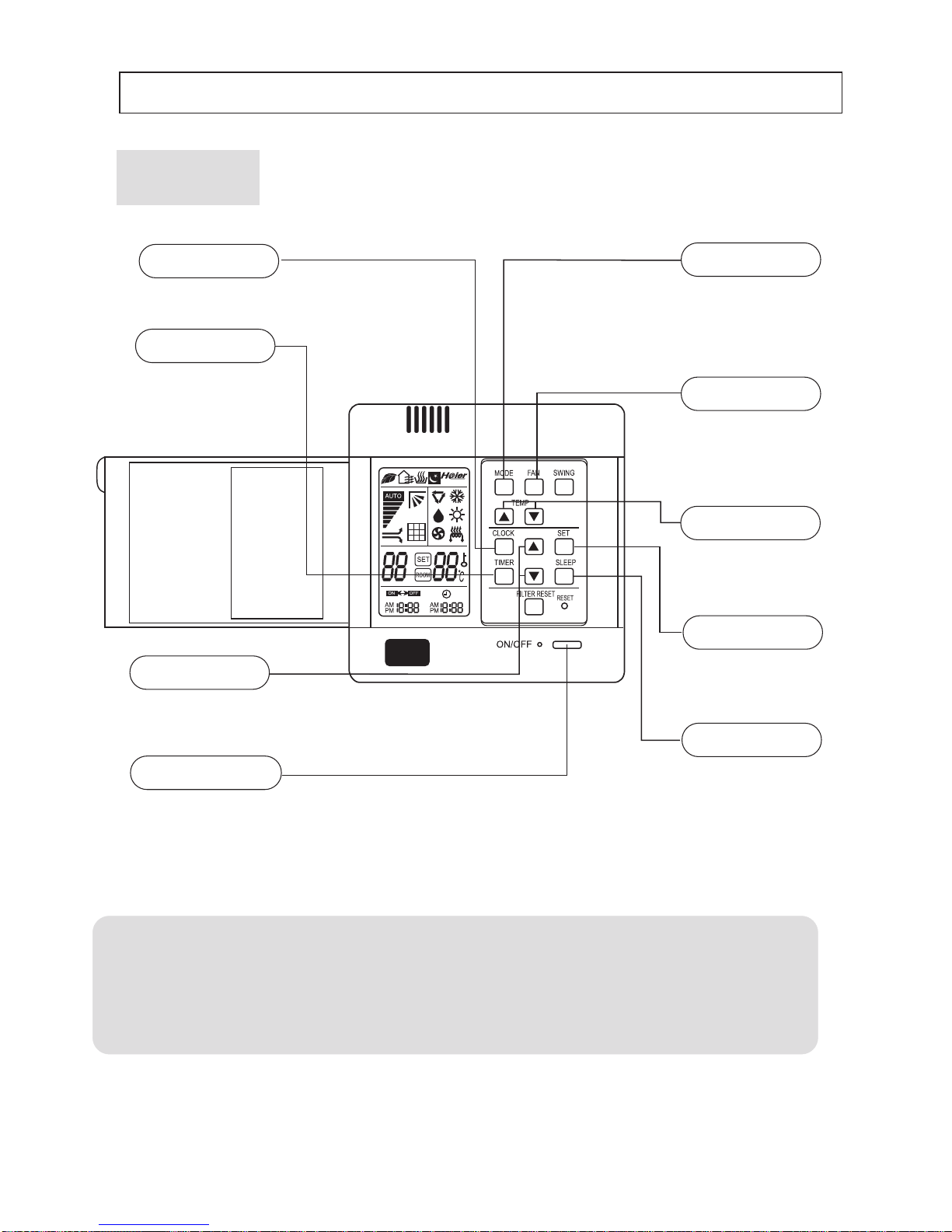

Buttons and display of the wire controller.
Cautions:
On cooling only unit, heating
mode is not available.
Note:
The above information is the explanation of
the displayed information therefore varies
with those displayed in actual operation.
CLOCK
Used to set correct time.
TIMER
Used to select
TIMER ON,
TIMER OFF,
TIMER ON/OFF.
TIME
Used to set clock and
timer setting.
Used for unit start and
stop.
Power ON/OFF
MODE
Used to select AUTO
RUN, COOL, DRY,
HEAT and FAN
operation.
FAN SPEED
Used to select fan
speed: LO, MED, HI, AUTO
TEMP
Used to select your
desired temp.
SET
Used to confirm Timer
and Clock settings.
SLEEP
Used to select sleep
mode.

%
INTRODUCTION TO SPARE PARTS
6
OPERATING LAMP
Buttons and display of the wire controller.
DRY
COOL
AUTO
FAN SPEED
TIMER ON
TIMER OFF
CLOCK TEMP.
FAN OPERATION
HEAT
Clock set
When unit is started for the first time, clock should be adjusted as follows:
Press CLOCK button, "AM"or "PM" flashes.
Press or to set correct time. Each press will increase or decrease 1min. If the
button is kept depressed, time will change quickly.
After time setting is confirmed, press SET, "AM "and "PM" stop flashing, while clock
starts working.
Operation
Remote control
SLEEP

1
4
3
2
Fan operation
Enjoy yourself by just a gentle press.

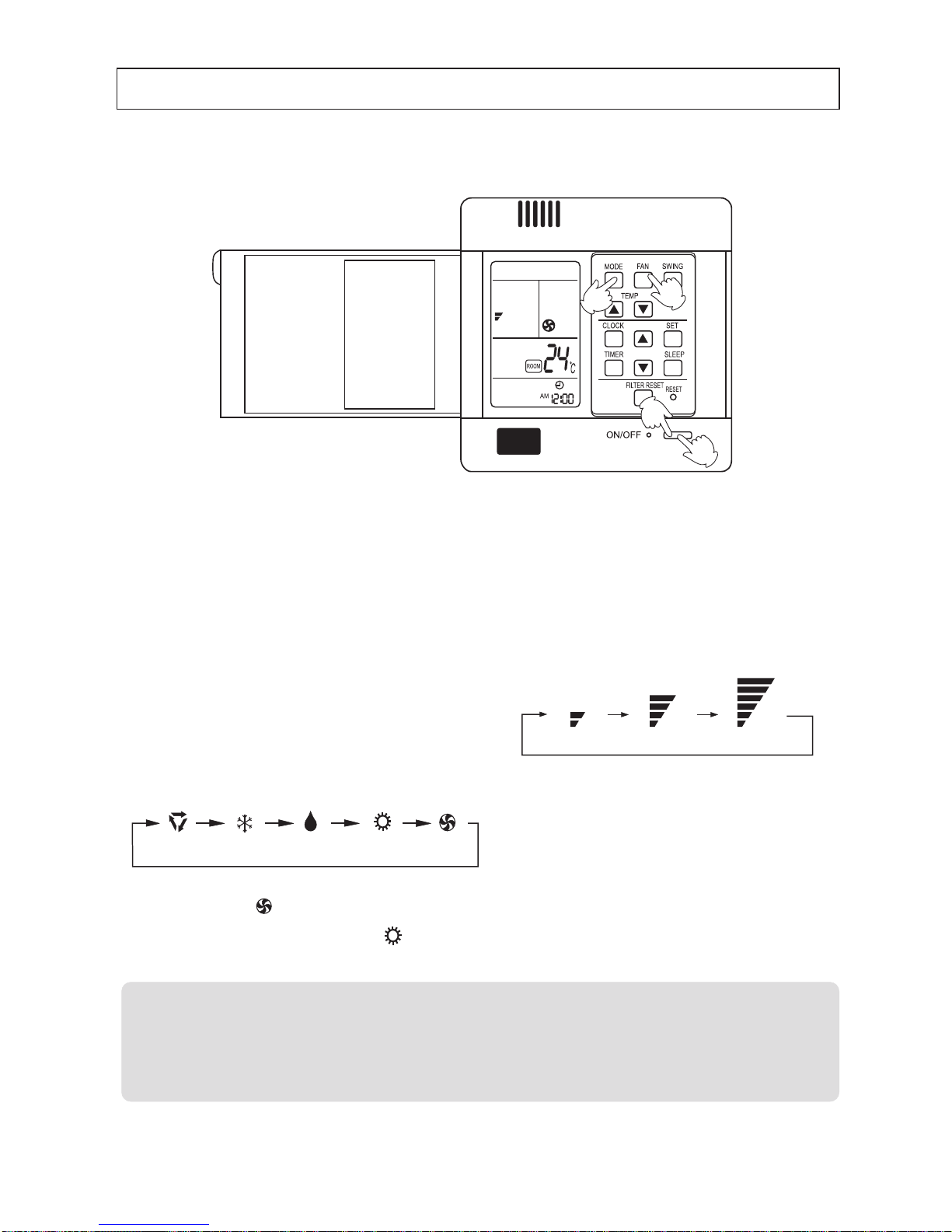

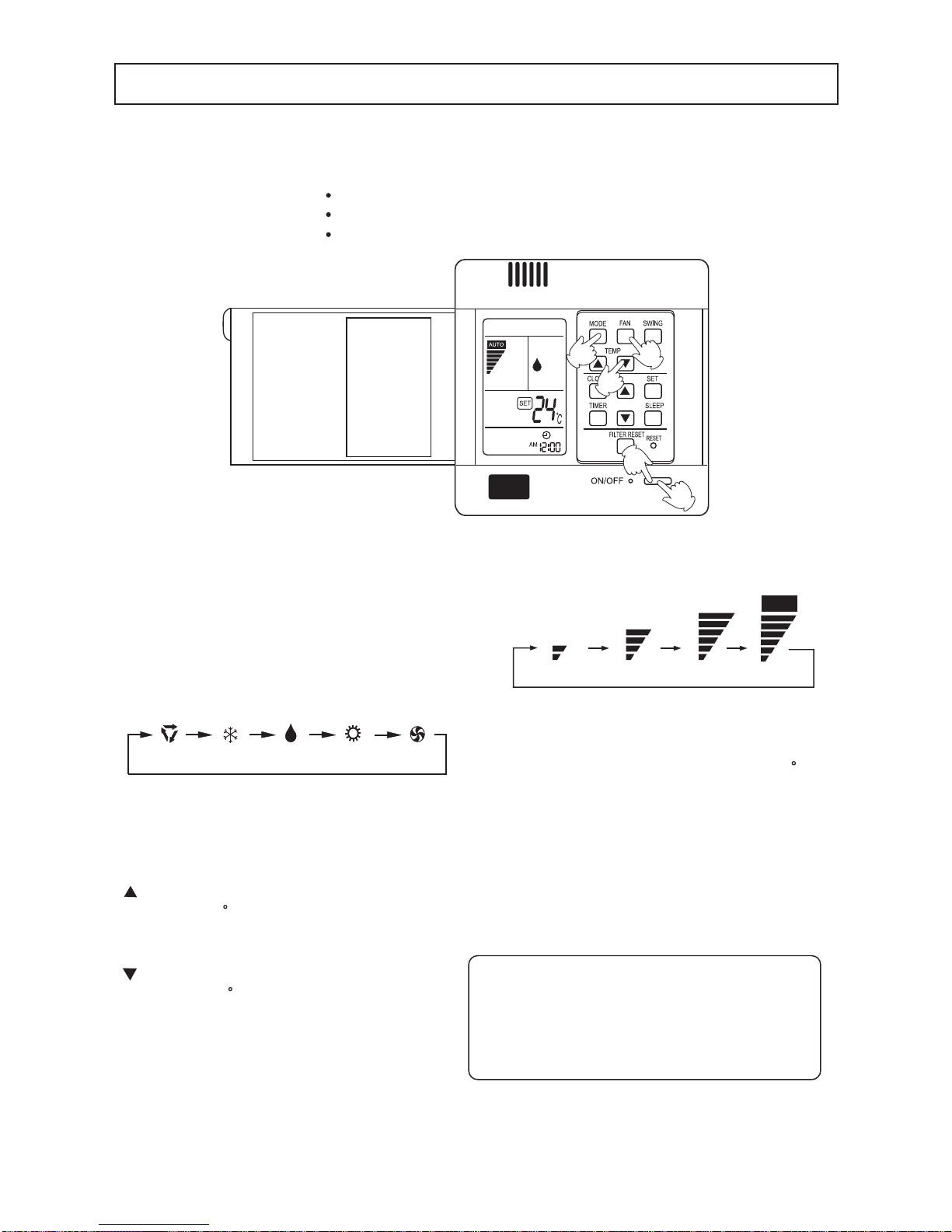

(1) Unit start
(2) Select operation mode
Press ON/OFF button, unit starts.
Previous operation status appears on display.
(Not Timer setting)
Power indicator lights up.
Press MODE button. For each press, operation
mode changes as follows:
Unit will run in selected mode.
stop display at " " FAN.
Wire controller can memorize settings in each operation mode. To run it next time just select
the operation mode and it will start with the previous setting.
No reselecting is needed.(TIMER ON/OFF needs reselecting)
In FAN mode, temp. can't be set.
Hints
For cooling only type no " HEAT " function.
AUTO COO DR FA
The air conditioner has the function of POWER
FAILURE RESUME.
HEA
(3) Fan
Press FAN button. For each press, fan speed
changes as follows:
Unit will run at selected fan speed.
LOW MID HIGH
7
(4) Unit stop
Press ON/OFF button.
Only time and room temp remains on LCD.
All indicators go out.
Vertical flap closed automatically.
GUIDE TO OPERATION

1
5
2
3
4
GUIDE TO OPERATION
8

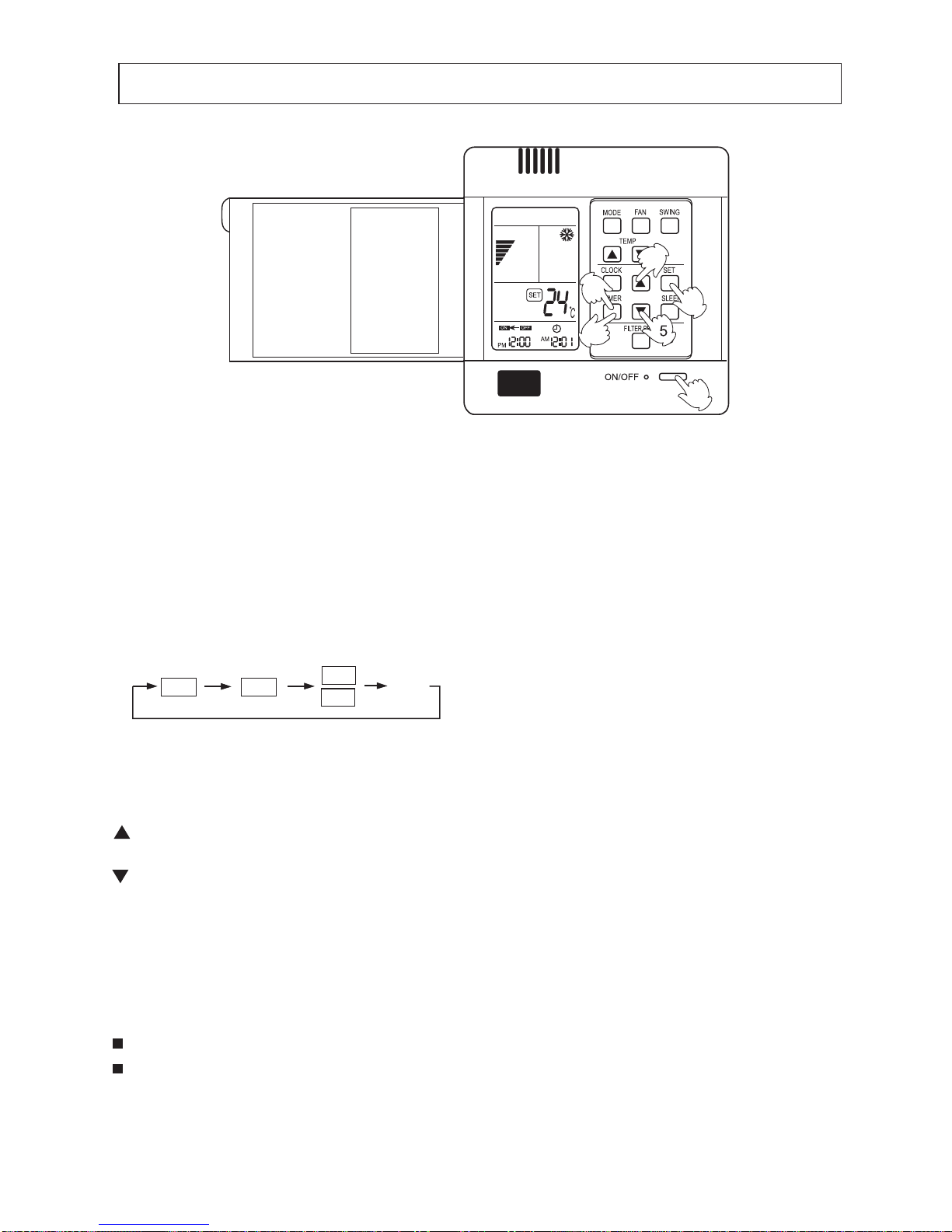

AUTO RUN, COOL,HEAT and DRY operation
Use COOL in summer.
Use HEAT in winter.
Use DRY in spring,autumn and in damp climate.
(1) Unit start
(2) Select operation mode
(3) Select temp. setting
Press ON/OFF button, unit starts.
Previous operation status appears on display
(Not Timer setting). Power indicator lights up.
Press MODE button. For each press, operation
mode changes as follows:
Unit will run in operation mode displayed on LCD.
Stop display at your desired mode.
Every time the button is pressed, temp. setting
increases 1 C.
If button is kept depressed, temp.setting will
increase quickly.
Every time the button is pressed, temp. setting
decreases 1 C.
If button is kept depressed, temp. setting will
decrease quickly.
Recommendations
Hints
Wire controller can memorize each operation
status. When starting it next time, just press
ON/OFF button and unit will run in previous
status.
Press FAN button. For each press, fan speed changes
as follows:
(4) Fan speed
Unit runs at the speed displayed on LCD.
In HEAT mode, warm air will blow out after a short
period of time due to cold-draft prevention function.
In DRY mode, when room temp. becomes 2 C higher
than temp. setting, unit will run intermittently at LOW
speed regardless of FAN setting.
Unit will start running to reach the temp. setting
on LCD.
Press ON/OFF button.
Only time and room temp remains on LCD.
All indicators go out.
Vertical flap closes automatically.
(5) Unit stop
Press TEMP button
AUTO
LOW MID HIGH
AUTO
AUTO COO DR FAHEA

1
24
3

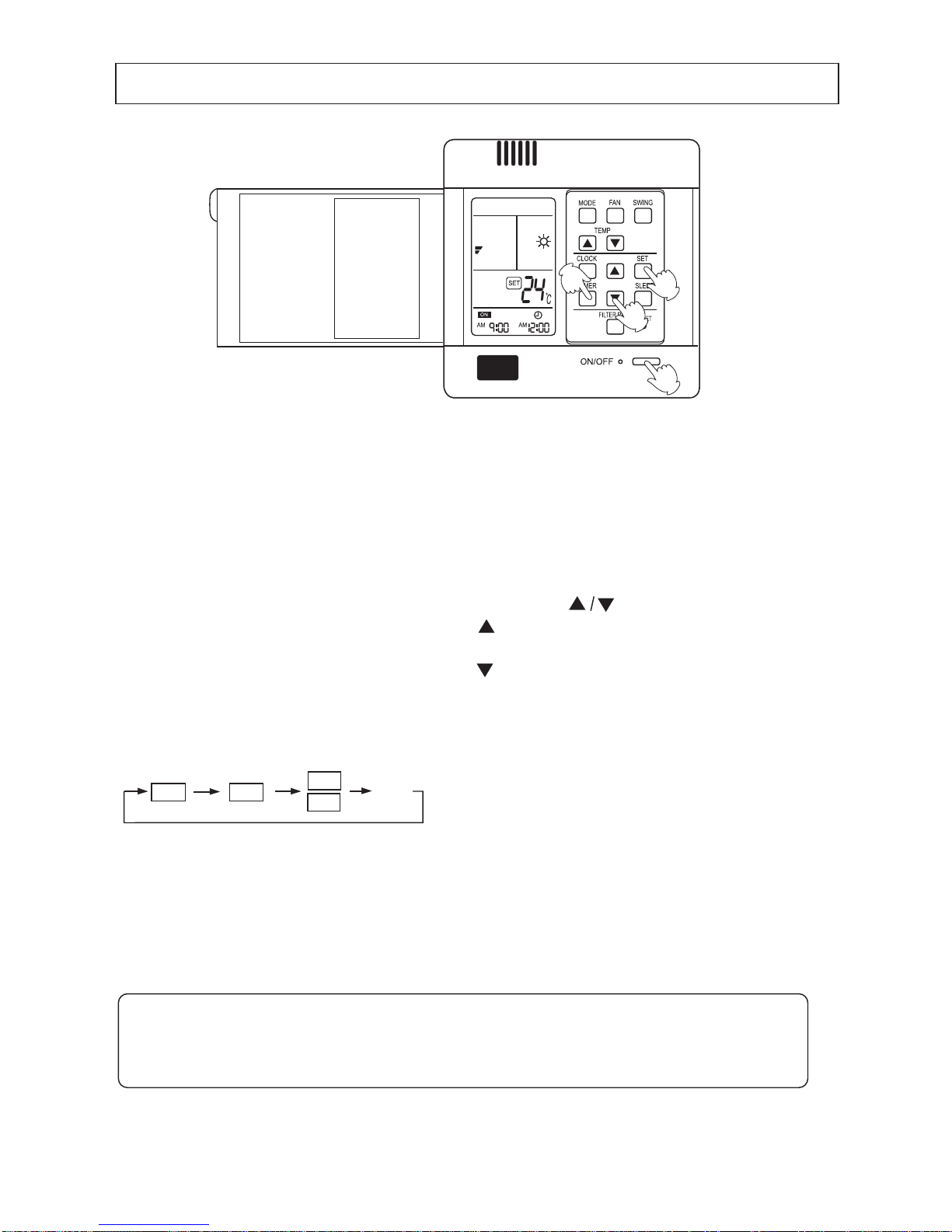

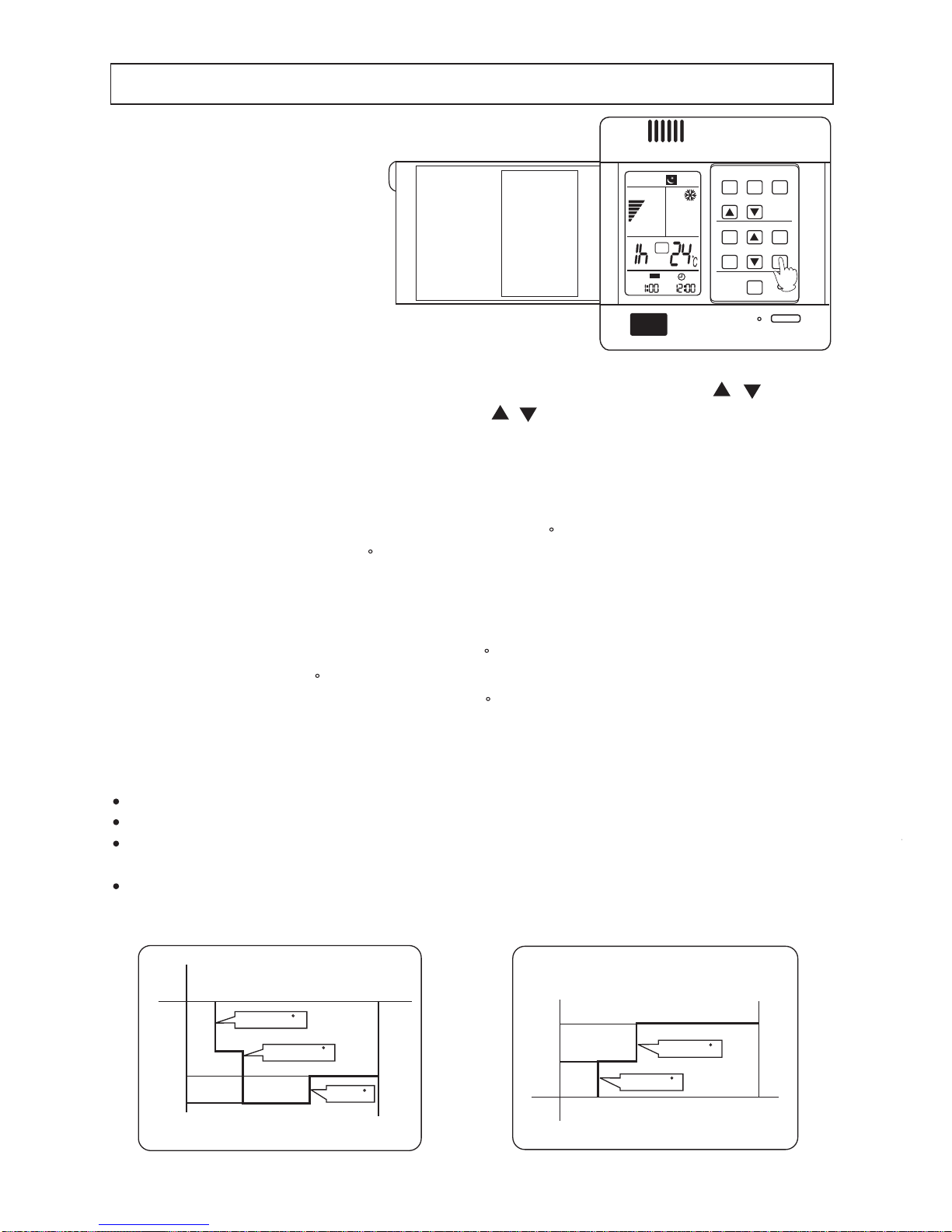

TIMER operation
Hints
Set Clock correctly before starting Timer operation.
You can let unit start or stop automatically at following time: Before you wake up in the
morning, or get back from outside or after you fall asleep at night.
Operation mode will be displayed on LCD.
Power indicator lights up.
(2)TIMER mode selection
Press TIMER button to change TIMER mode.
Every time the button is pressed, display changes
as follows:
Select your desired TIMER mode (ON or OFF)
(3)Timer setting
Press TIME button.
Every time the button is pressed, time increases 10min.
If button is kept depressed, time will change quickly.
Every time the button is pressed, time decreases 10min.
If button is kept depressed, time will change quickly.
Time will be shown on LCD. It can be adjusted within
24hours.
(4)Confirming your
After setting correct time, press SET button to confirm
"ON" or "OFF" stops flashing.
Time displayed: Unit starts or stops at x hour x min
(ON or OFF).
Timer mode indicator lights up.
TIMER ON/OFF
To cancel TIMER
Just press TIMER button several times until TIMER mode disappears.
Wire controller possesses memory function, when use TIMER mode next time, just
press SET button after mode selecting if timer setting is the same as previous one.
(1)After unit start, select your desired
operation mode.
blank
ON
OFF
ON OFF
