AIR CONDITIONER SAFETY
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all
safety messages.
DANGER
WARNING
CAUTION
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others. All safety messages will
follow the safety alert symbol and either the word “DANGER,” “WARNING” or “CAUTION.”
These words mean:
An imminently hazardous situation. You could be killed or seriously injured if you don’t
immediately follow instructions.
A potentially hazardous situation which, if not avoided, could result in death or serious
bodily injury.
A potentially hazardous situation which, if not avoided, may result in moderate or minor
injury.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what
can happen if the instructions are not followed.
IMPORTANT SAFETY INSTRUCTIONS
WARNING: To reduce the risk of re, electrical shock, injury to persons, or damage when using the air conditioner,
follow basic precautions, including the following:
•Read all of the instructions before using this appliance.
•Plug into a grounded 3 prong outlet.
•Do not remove ground prong.
•Do not use an adapter.
•Do not use an extension cord.
•Do not operate the air conditioner if it has a damaged
cord or plug, if it is not working properly, or if it has
been damaged or dropped.
•The air conditioner should be serviced only by qualied
service personnel. Call an authorized service company
for examination, repair, or adjustment.
•Disconnect power before servicing.
•Disconnect power before cleaning.
NOTE: Turning o power by pressing the Power button
does NOT disconnect the appliance from the power
supply.
•Do not install or use the air conditioner in any area where
the atmosphere contains combustible gases or where the
atmosphere is contaminated. Avoid any chemicals coming
in contact with your air conditioner.
•Do not store anything directly on top of the air conditioner.
•Use two or more people to move and install air conditioner.
•Never operate the air conditioner without the lters in
place.
•Do not use the air conditioner near a bathtub, shower or
wash basin or other wet area.
READ AND SAVE THESE INSTRUCTIONS
State of California Proposition 65 Warnings:
WARNING: This product contains one or more chemicals known to the State of California to cause cancer.
WARNING: This product contains one or more chemicals known to the State of California to cause birth defects or other
reproductive harm.
2
ENGLISH

PARTS AND FEATURES
a
c
b
d
e
g
f
h
i
h
j
AControl Panel
BSide Handle
CVertical Air Vent
Louver
DHorizontal Air Vent
Louver
ECasters
FCenter Drain Cap
GPower Cord Storage
HAir Filter
IReal Air Discharge
JLower Drain Cap
INSTALLATION REQUIREMENTS
TOOLS AND PARTS
Gather the required tools and parts before starting
installation.
TOOLS NEEDED
•Flat-blade Screwdriver •Phillips Screwdriver
PARTS SUPPLIED
•Main Window
Panel •Extension Panels (2) •Flat Screws (6) 4 for extension
panels
2 for nozzles
•Pointed
Screws (7)
2 for top
window
brackets
1 for security
bracket
4 for main
window panel
•Exhaust
Nozzle •Exhaust Hose (1 or 2
depending on
model)
•Top Window
Bracket (2) •Bottom Window
Bracket (2)
•Security
Bracket
3
ENGLISH

•Top Foam
Strip (10 mm
x 10 mm x
102 cm)
•Bottom Foam
Strip (3 mm x
10 mm x
102 cm)
•Remote
Control
•Batteries (2)
LOCATION REQUIREMENTS
•Place the air conditioner on a at, level surface in a
location that is at least 20" (51 cm) from any wall.
NOTE: A minimum clearance of 20" (51 cm) from the
air conditioner to the wall must be maintained to
ensure proper airow.
•Maintain a minimum 20" (51 cm) clearance around the air
conditioner to not block airow.
•Keep the air conditioner free of any obstructions such as
drapes, curtains, blinds, etc.
•The exhaust hose should be free of any obstructions.
•Do not place the air conditioner on an unstable or raised
surface because it could fall and cause damage or injury.
•Do not place the air conditioner in direct sunlight or near
a heat source such as baseboard heaters, stoves, etc.
•The window panel can be installed in a window with a
minimum 20" (51 cm) to a maximum 40" (101.6 cm)
opening.
20"
(51 cm)
20"
(51 cm)
ELECTRICAL REQUIREMENTS
WARNING
Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
Do not remove the ground prong from the power
cord plug.
Do not use an adapter.
Do not use an extension cord.
Failure to do so can result in death, fire or
electrical shock.
POWER SUPPLY CORD
Wiring Requirements
•115 Volt, 60Hz, 15-amp fused grounded 3 prong outlet
•The use of a time-delay fuse or time-delay circuit breaker
is recommended.
•Use a dedicated circuit only.
NOTE: Do not operate any other electrical
appliances on this circuit or you may trip the circuit
breaker/fuse.
If this power supply cord is damaged, it cannot be repaired. It
must be replaced with a cord from the product manufacturer.
If the power supply cord is damaged call Haier Customer
Service: 1-877-337-3639.
RESET
TEST
To test the power supply cord before operation:
1. Plug the power cord into a grounded 3 prong outlet.
2. Press the Test button, and then press and release the
Reset button to restore power.
REQUIRED GROUNDING METHOD
This air conditioner must be grounded. The air conditioner is
equipped with a power supply cord that has a 3 prong
grounding plug. The power supply cord must be plugged into
a mating, grounded 3 prong outlet, and grounded in
accordance with all local codes and ordinances.
115V
15 Amp
4
ENGLISH

INSTALLATION INSTRUCTIONS
STEP 1 - UNPACK AIR
CONDITIONER
WARNING
Excessive Weight Hazard
Use two or more people to move and install air
conditioner.
Failure to do so can result in back or other injury.
•Remove packaging materials. Save the carton and the
foam packaging for storing the air conditioner when not
in use.
NOTE: There are NO packing materials inside the
air conditioner to remove—Do Not open the cabinet.
•Properly dispose of/recycle all packing material.
•Handle the air conditioner gently.
•Keep the air conditioner upright and level. Do not set the
air conditioner on its side, front, back or upside down.
STEP 2 - INSTALL EXHAUST
NOZZLE TO MAIN WINDOW PANEL
1. Hold the main window panel so that the L-shaped edges
of the panel are facing you.
a
AL-Shaped
Edges
2. Align the exhaust nozzle with the slots in the opening,
and then insert and slide the nozzle to access the hole
from the back of the main window panel.
b
a
AMain Window
Panel
BExhaust
Nozzle
3. Turn the main window panel over, so that the nozzle is
away from you. Insert a at screw through the hole to
fasten the window panel to the adapter.
NOTE: On a dual hose unit, install the smaller hose
nozzle to the left-hand hole in the panel.
a
A Flat
Screw
STEP 3 - INSTALL MAIN WINDOW
PANEL AND EXTENSION PANELS
NOTE: Depending on the size of your window opening,
use the main panel and one or both of the extension
panels.
1. Open the window and place the main window panel into
the window.
NOTE: The window assembly is designed to
accommodate either a vertical slide or horizontal
slide window.
Vertical Slide Window
a
AMain Window Panel
Horizontal Slide Window
a
AMain Window Panel
2. Adjust the extension panel(s) to t the width or height
of the window as shown.
NOTE: Some window installations may require the
extension panels to be trimmed.
3. Depending on the number of extension panels used, use
two or four at screws to secure the main panel to the
extension panel(s).
5
ENGLISH

NOTE: There are many window types on the market
today. Use the foam strips and brackets (provided)
to secure the extension panels that ll the window
opening.
4. Place the two top window brackets and two bottom
window brackets where they will best support the
extension panels.
Before Assembly
a
b
a
b
ATop Window Brackets
BBottom Window Brackets
After Assembly
5. Apply the top foam strip (provided) across the top of the
window panel assembly, and then apply the bottom
foam strip (provided) across the bottom front edge of
the window panel assembly, as shown.
b
c
de
a
ATop Foam Strip
BTop Bracket
CExtension Panel
DBottom Bracket
EBottom Foam Strip
6. Place the window panel assembly in the window, and
using the screws provided, fasten the assembly to the
window sill and window frame.
7. Using one pointed screw, install the Security bracket to
the window.
NOTE: The security bracket prevents the window
from being opened from the outside.
a
b
ASecurity Bracket
BPointed Screw (1)
STEP 4 - ATTACH EXHAUST HOSE
TO THE EXHAUST NOZZLE
1. Grasp both ends of the exhaust hose and gently pull to
expand the hose.
NOTE: Do not attach additional hoses to extend the
length. This would decrease cooling eciency and
may damage the air conditioner.
2. Using a counterclockwise motion, attach the open end
of the exhaust hose to the exhaust nozzle.
c
b
a
AExhaust Nozzle
BHose (open end)
CHose (connector
end)
STEP 5 - CONNECT EXHAUST HOSE
TO THE AIR CONDITIONER
IMPORTANT: When connecting the hose, the air
conditioner must be close enough to the window that
you will not dislodge the window seal plate. Once the
hose is connected, move the air conditioner 20" (51 cm)
from the wall.
1. Align the notches on the connector end of the exhaust
hose with the ridges in the opening on the back of the
air conditioner.
6
ENGLISH

2. Holding the air conditioner with one hand, snap the
connector end of the hose into the air outlet on the back
of the air conditioner.
STEP 6 - COMPLETE INSTALLATION
WARNING
Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
Do not remove the ground prong from the power
cord plug.
Do not use an adapter.
Do not use an extension cord.
Failure to do so can result in death, fire or
electrical shock.
1. Plug the power cord into a grounded 3 prong outlet.
2. Press the Reset button on the power cord to ensure the
safety plug is providing power to the air conditioner.

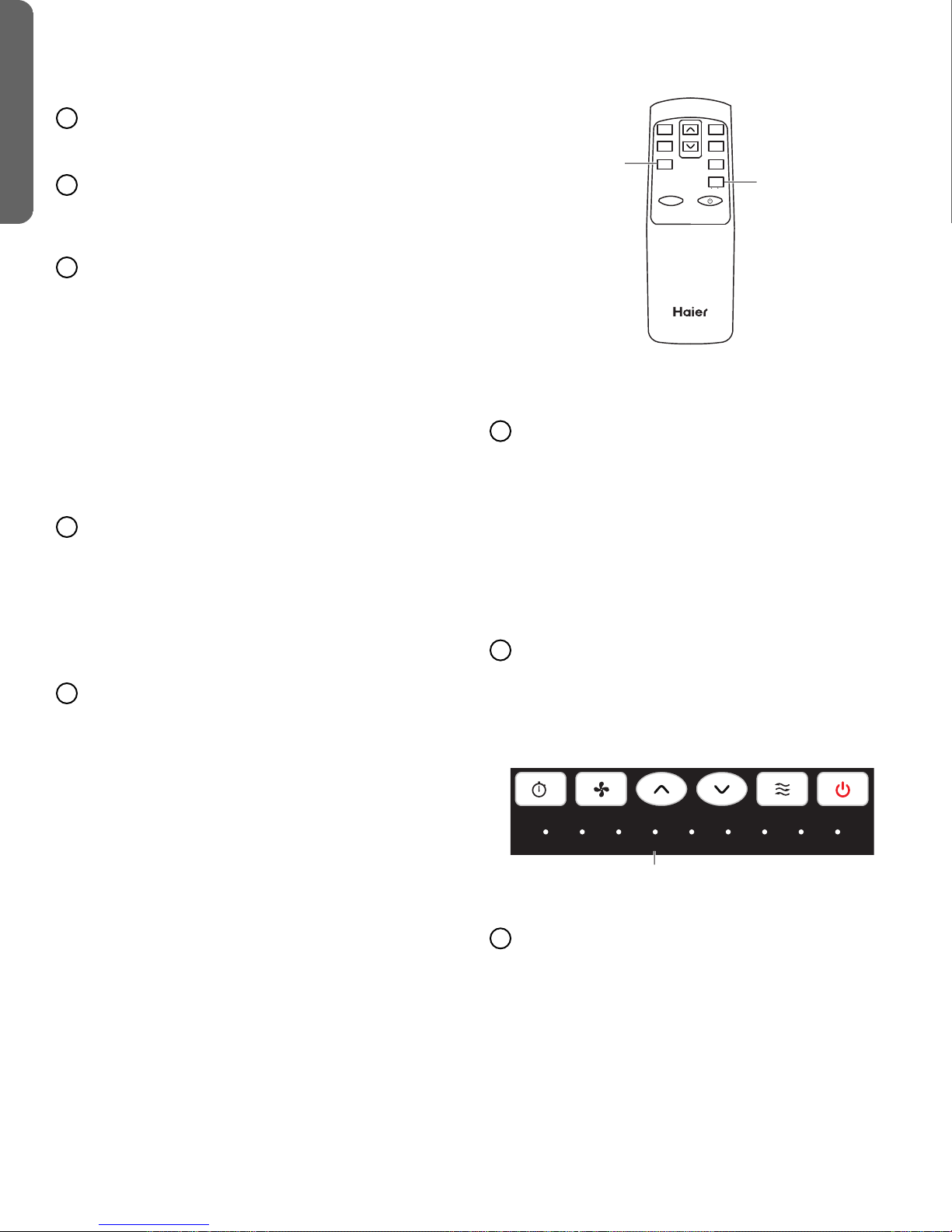

CONTROL PANEL
Timer
°C
°F
Hr
High Low Water Full Cool Fan Dehum Sleep POWER
a b f gc d e
BUTTONS
ATIMER BUTTON
Program a time from (1-hour to 24-hours) for the air
conditioner to turn O or On. When a Time Delay is
programmed, the Timer indicator light will illuminate.
While the air conditioner is operating:
1. Press the Timer button.
2. Press the Up/Down arrow buttons to select the
number of hours you want the air conditioner to
continue to operate before turning O.
NOTE: Wait approximately 5 seconds for the
Turn-O time to be saved.
While the air conditioner is o:
1. Press the Timer button.
2. Press the Up/Down arrow buttons to select the
number of hours you want the air conditioner to
remain o before turning On.
NOTE: Wait approximately 5 seconds for the
Turn-On time to be saved.
To cancel the timer:
•Press the Timer button once, the hours remaining
will ash, press the timer button again and the timer
will be cancelled.
BFAN SPEED BUTTON
The fan speed can be adjusted from Low speed to High
speed when the air conditioner is in either Cool or Fan
mode.
NOTE: The fan speed cannot be adjusted when the
unit is in Dry mode.
7
ENGLISH

•Press the Fan Speed button to toggle among the two
speeds. The corresponding fan speed indicator will
illuminate.
CREMOTE CONTROL SIGNAL RECEIVING WINDOW
Aim the Remote Control at this window so the Control
will receive the signal.
DCONTROL PANEL DISPLAY
Displays the Set Temperature in degrees Fahrenheit or
degrees Celsius, or the hours remaining in a Time Delay.
The corresponding indicator light will illuminate.
EUP AND DOWN ARROW BUTTONS
Adjusts the Temperature or Hours in Time Delay.
To Set the Temperature:
The temperature can be set between 62ºF and 86º F
(17ºC and 30º C) when the air conditioner is in Cool
mode.
1. Press the Mode button until the Cool mode is
selected.
2. Press the Up Arrow or Down Arrow buttons to
select the Temperature.
NOTE: The temperature cannot be set when
the air conditioner is in either Fan or Dry mode.
FMODE BUTTON
Press the Mode button to toggle among the three
operating modes. The corresponding indicator will
illuminate:
Cool – Cools the room to the set temperature
Dehum – Reduces the humidity in the room
Fan – Circulates the air in the room without cooling
GPOWER BUTTON
Turns ON/OFF power to the air conditioner.
NOTE: Turning o power by pressing the Power
button does NOT disconnect the appliance from the
power supply.
•Press the Power button. The Power indicator will
illuminate.
REMOTE CONTROL
High
Low
Sleep
TIMER POWER
TEMP
Cool
Dehum
Fan
C / F
a
b
1. Insert the two batteries (provided).
2. Aim the remote control at the signal receiver on the
control panel to operate the air conditioner.
ASLEEP BUTTON
Increases the set temperature by 2ºF (1ºC) after 2-
hours, and then increases the temperature by an
additional 2ºF (1ºC) after another 2-hours.
NOTE: The fan will operate at Low speed and cannot
be adjusted while in Sleep mode.
Press the Sleep button to enter Sleep mode. The Sleep
indicator will illuminate.
To Cancel Sleep Mode:
•Press the Sleep button or any of the Mode buttons
(Cool, Fan or Dry) on the remote control.
B°C/°F BUTTON
•Press the °C/°F button to toggle between displaying
the temperature in degrees Fahrenheit or degrees
Celsius. The corresponding indicator will illuminate.
INDICATOR LIGHTS
Timer High Low Water Full Cool Fan Dehum Sleep POWER
a
Illuminate to indicate the selected mode, speed or
condition.
AWATER FULL
The Water Full indicator illuminates, when the internal
water tank has lled with condensed water. The air
conditioner will turn o automatically. To drain the water
tank, see “Air Conditioner Care” for instructions.
8
ENGLISH
