Haier AP162ACMAA User manual

Cabinet unit
Operation Manual
AP162ACMAA
AU162AFMAA
(HPU-16CB03)
AP232ACMAA
AU232AHMAA
(HPU-23CB03)
No.0010573001
A
ON
OFF
TEMP
HEALTH FAN
MODE
SLEEP SWING
CLOCK
TIMER
SET
LOCK
LIGHT
RESET
SOFT
SWING
ON OFF
POWER
SET
DAMP
TEMP

Content
Cautions
Parts
Operation
Maintenance
Trouble shooting
When problems occur
Energy saving
Indoor & outdoor unit connection
Tools necessary
Installation procedures
5-16
17-18
19
20
22
23
24-29
1-2
3-4
Content
21

CAUTIONS
Disposal of the old air conditioner
Before disposing an old air conditioner
that goes out of use, please make sure
it's inoperative and safe. Unplug the air
conditioner in order to avoid the risk of
child entrapment.
It must be noticed that air conditioner
system contains refrigerants, which
require specialized waste disposal. The
valuable materials contained in a air
conditioner can be recycled. Contact
your local waste disposal center for
proper disposal of an old air conditioner
and contact your local authority or your
dealer if you have any question. Please
ensure that the pipework of your air
conditioner does not get damaged prior
to being picked up by the relevant
waste disposal center, and contribute
to environmental awareness by
insisting on an appropriate, anti-
pollution method of disposal.
Disposal of the packaging of your
new air conditioner
All the packaging materials employed
in the package of your new air
conditioner may be disposed without
any danger to the environment.
The cardboard box may be broken or
cut into smaller pieces and given to a
waste paper disposal service. The
wrapping bag made of polyethylene
and the polyethylene foam pads
contain no fluorochloric hydrocarbon.
All these valuable materials may be taken
to a waste collecting center and used again
after adequate recycling.
Consult your local authorities for the name
and address of the waste materials
collecting centers and waste paper
disposal services nearest to your house.
Safety Instructions and Warnings
Before starting the air conditioner, read
the information given in the User's Guide
carefully. The User's Guide contains very
important observations relating to the
assembly, operation and maintenance of
the air conditioner.
The manufacturer does not accept
responsibility for any damages that may
arise due to non-observation of the
following instruction.
Damaged air conditioners are not to
be put into operation. In case of doubt,
consult your supplier.
Use of the air conditioner is to be
carried out in strict compliance with the
relative instructions set forth in the User's
Guide.
Installation shall be done by professional
people, don't install unit by yourself.
1

CAUTIONS
Cooling Indoor
outdoor
Rated Maximum Minimum
27 32 18
19 23 14
35 43 10
24 26 6
DB C
WB C
DB C
WB C
For the purpose of safety, the air
conditioner must be properly grounded
in accordance with specifications.
Always remember to unplug the air
conditioner before opening inlet grill.
Never unplug your air conditioner by
pulling on the power cord. Always grip
plug firmly and pull straight out from
the outlet.
All electrical repairs must be carried
out by qualified electricians.
Inadequate repairs may result in a
major source of danger for the user of
the air conditoiner.
Do not damage any parts of the air
conditioner that carry refrigerant by
piercing or perforating the air
conditioner's tubes with sharp or
pointed items, crushing or twisting any
tubes, or scraping the coatings off the
surfaces. If the refrigerant spurts out
and gets into eyes, it may result in
serious eye injuries.
Do not obstruct or cover the
ventilation grille of the air conditioner.
Do not put fingers or any other things
into the inlet/outlet and swing louver.
Do not allow children to play with the
air conditioner. In no case should
children be allowed to sit on the
outdoor unit.
Specifications
The refrigerating circuit is leak-proof.
Applicable ambient temperature range:
2

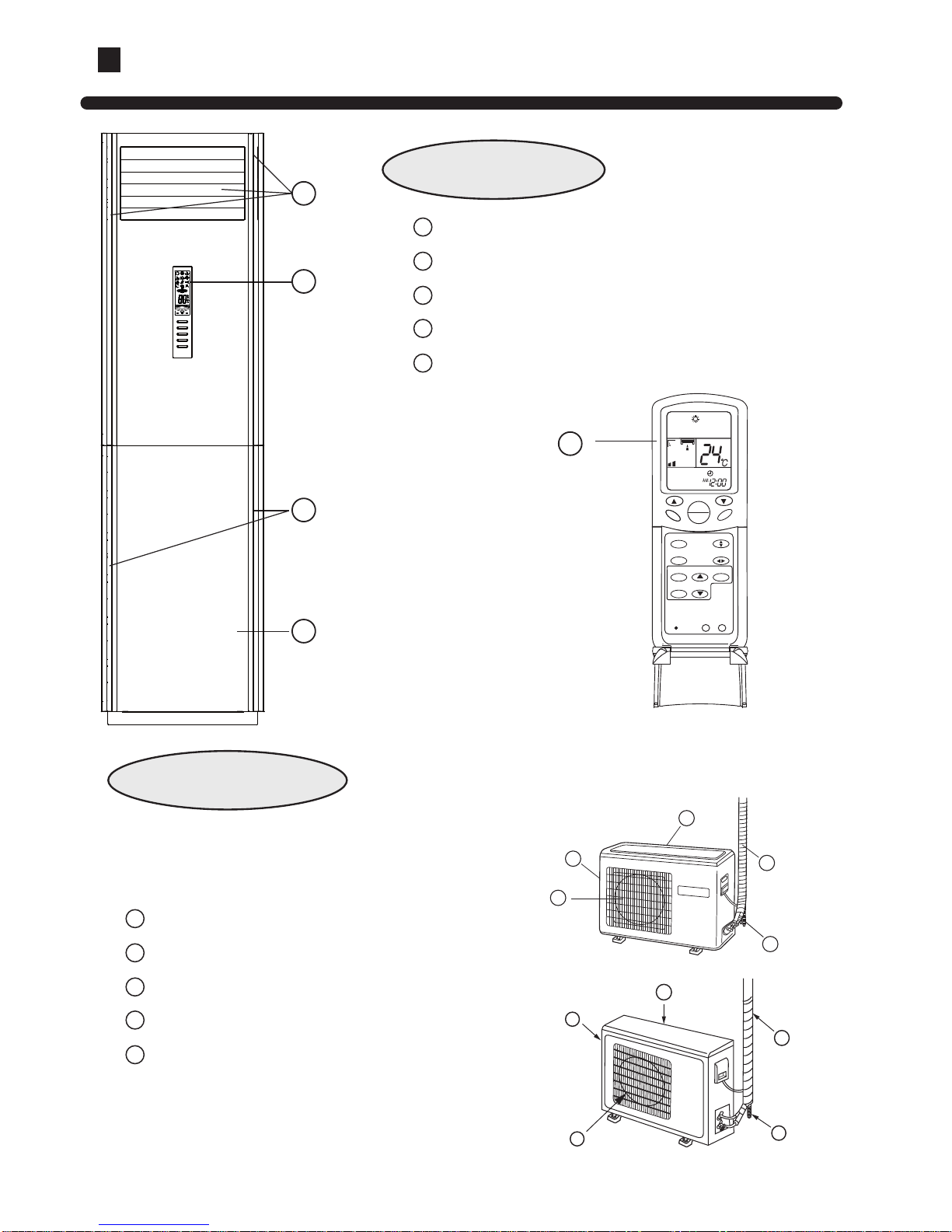

Parts
1
2
3
4
Outlet grill
Operation panel
Inlet grill [both side]
Air filter [inside the unit]
Remote-controller
Indoor unit
Outdoor unit
Air inlet
Air outlet
1
3
5
4
2
1
3
5
4
2
1
2
3
4
5
1
2
3
4
5
Drain hose
Air inlet
Connecting hose and
ON
OFF
TEMP
HEALTH FAN
MODE
SLEEP SWING
CLOCK
TIMER
SET
LOCK
LIGHT
RESET
5
3
SOFT
SWING
ON OFF
POWER
SET
DAMP
TEMP

Parts
Manual Operation

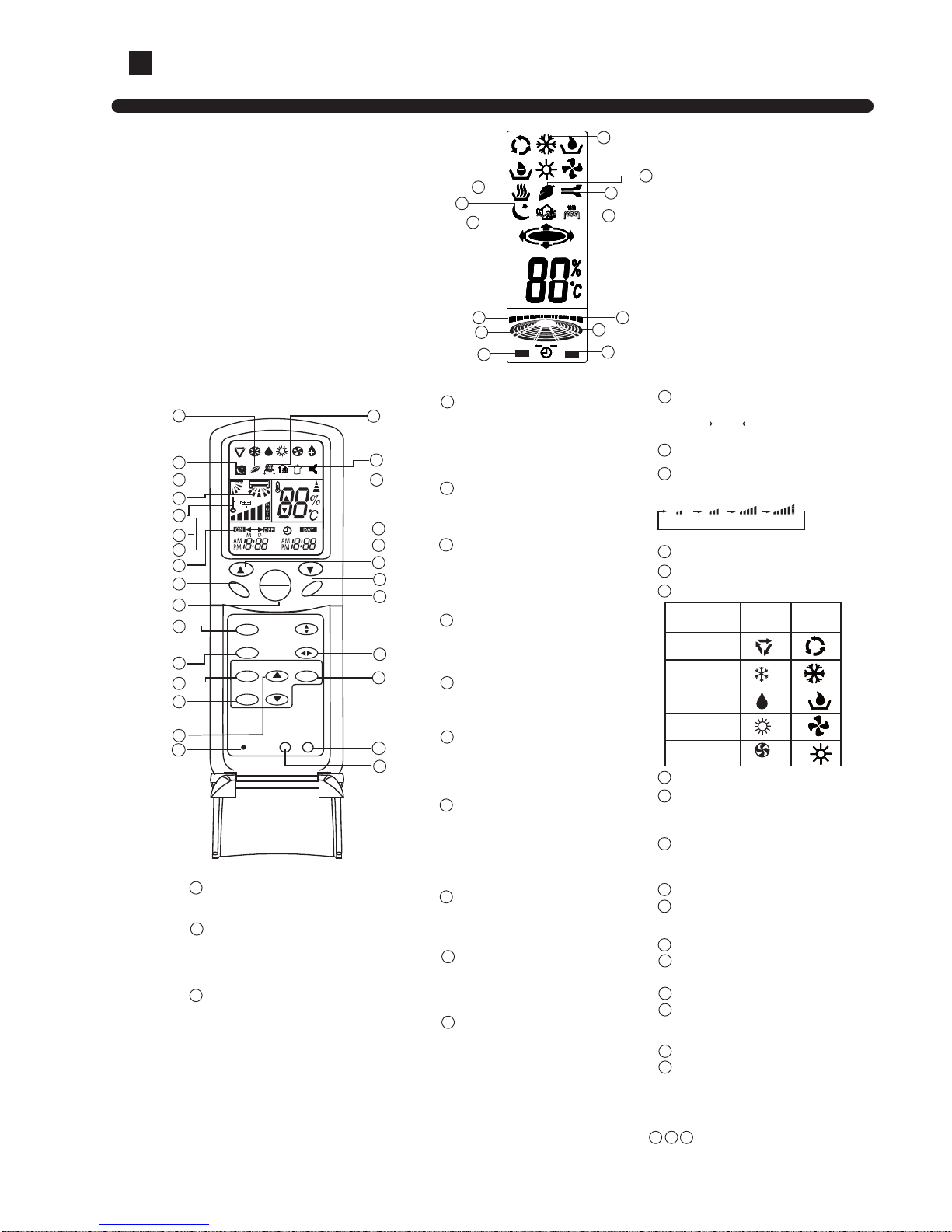

Remote controlled operation
MODE
CLOCK
Used to set correct time.
TIMER
LIGHT
Used to set temp.,temp.
range:16 C~30 C
SLEEP
Used to select sleep
mode
HOUR
Used to set clock and
timer setting.
RESET
Used to reset the
controller back to
normal condition.
LOCK
Used to select
TIMER ON, TIMER
OFF, TIMER
ON/OFF.
Used to lock buttons
and LCD display.
Note: Auxiliary heat function is not available.
This model does not have the following related display and function .
ON
OFF
TEMP
HEALTH FAN
MODE
SLEEP SWING
CLOCK
TIMER
SET
LOCK
LIGHT
RESET
Power ON/OFF
Used for unit start and stop.
Used to selectAUTO run,
COOL, DRY,HEAT and
FAN operation.
2
SET
Used to confirm
Timer and Clock
setting.
TEMP
HEALTH
Control the light up and go
out of the control panel's
background light source and
control the switch of the
buzzer.
Used to set Health
operation function
Fan Speed button
Used to select fan speed:
AUTO, LOW FAN, MED
FAN, HIGH FAN.
Used to set UP/DOWN air
sending and RIGHT/LEFT air
sending direction.
Health display
Display when set Health
operation function.
Battery Capacity display
Display when the electric power of
the battery is insufficient.
Timer ON/OFF display
Fan speed and air sending
direction display
Fan direction display
Room temperature display
Super/Quiet operation display
Humidifying display
Compressor Operation display
Compressor OFF, no display;
compressor ON, full display.
Clock display
Temperature display
Used to display the set temperature
and room temperature.
Lock state display
Working mode display
Sleep state display
Electric Heating display
Fresh Air state display
Working
mode
Auto
operation
Cooling
operation
Dehumidifying
operation
Heating
operation
Fan
operation
Manual
Operation
Remote
controlled
2
SWING
LOW MID HIGH AUTO
1
1
3
3
4
4
5
5
6
6
7
7
8
8
9
9
10
10
11
11
12
12
13
13
14
14
14
15
15
16
16
19
19
17
17
18
18
20
20
20
21
21
22
22
22
23
23
23
24
25
26
24
25
27
26
27
28
29
28 28
29
30
30
30
16
16
15
15
21
4
11 21 22
SOFT
SWING
ON OFF
POWER
SET
DAMP
TEMP

Operation

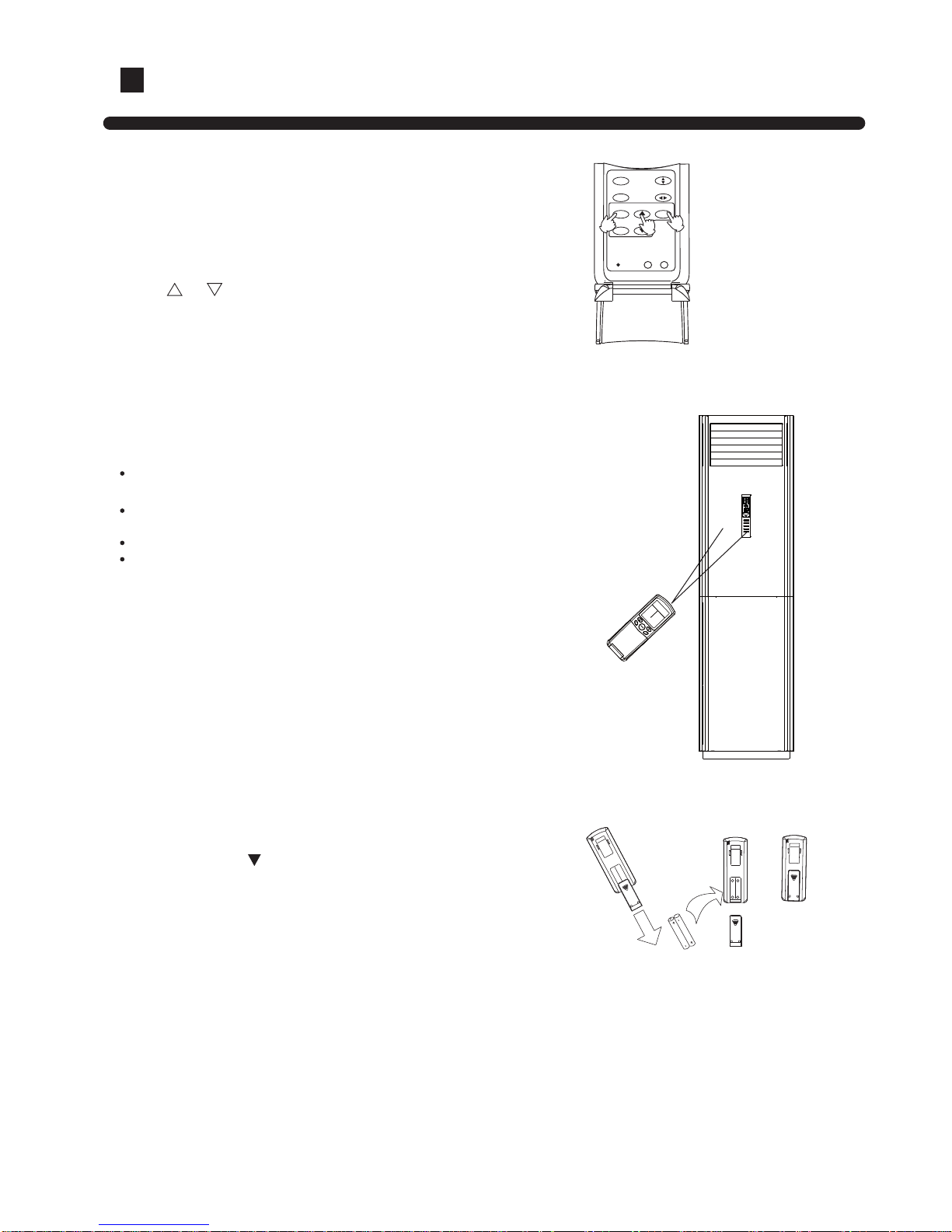

Clock set
When unit is started for the first time
and after replacing batteries in remote
controller, clock should be adjusted as follows:
Press CLOCK button, "AM"or "PM" flashes.
Press or to set correct time. Each press will increase
or decrease 1 min . If the button is kept depressed, time
will change quickly.
After time setting is confirmed, press SET, "AM" and "PM"
stop flashing, while clock starts working.
Remote controller's operation
When in use, put the signal transmission
head directly to the receiver hole on the
indoor unit
The distance between the signal transmission
head and the receiver hole should be within
7m without any obsacles as well.
Don't throw the controller, prevent it from
being damaged.
When electronic-started type fluorescent
lamp or change-over type fluorescent lamp
or wireless telephone is installed in the room,
the receiver is apt to be disturbed in receiving
the signal
so the distance to the indoor unit should be
shorter.
Loading of the battery
Slinghtly press " " and push down the cover.
Load the batteries as illustrated.
2 R-03 dry batteries, (cylinder)
Be sure that the loading is in line with the "+"/"-" pole
request as illustrated.
Put on the cover again
Confirmation indicator:
In disorderation, reload the batteries or load the new batteries after 5 mins.
Note:The waster batteries should be disposed properly,use two new same-type batteries when loading.
If the remote controller canít function normally or doesnít work at all,use a sharp-pointed item to pres
the reset key.
Hint:Remove the batteries in case unit wonít be in usaged for a long period.
If there are any displays after taking-out just need to press reset key.
MODE
SLEEP SWING
CLOCK
TIMER
SET
LOCK
LIGHT
RESET
2R-03 dry batteries
MINUTES
123
5
SOFT
SWING
ON OFF
POWER
SET
DAMP
TEMP

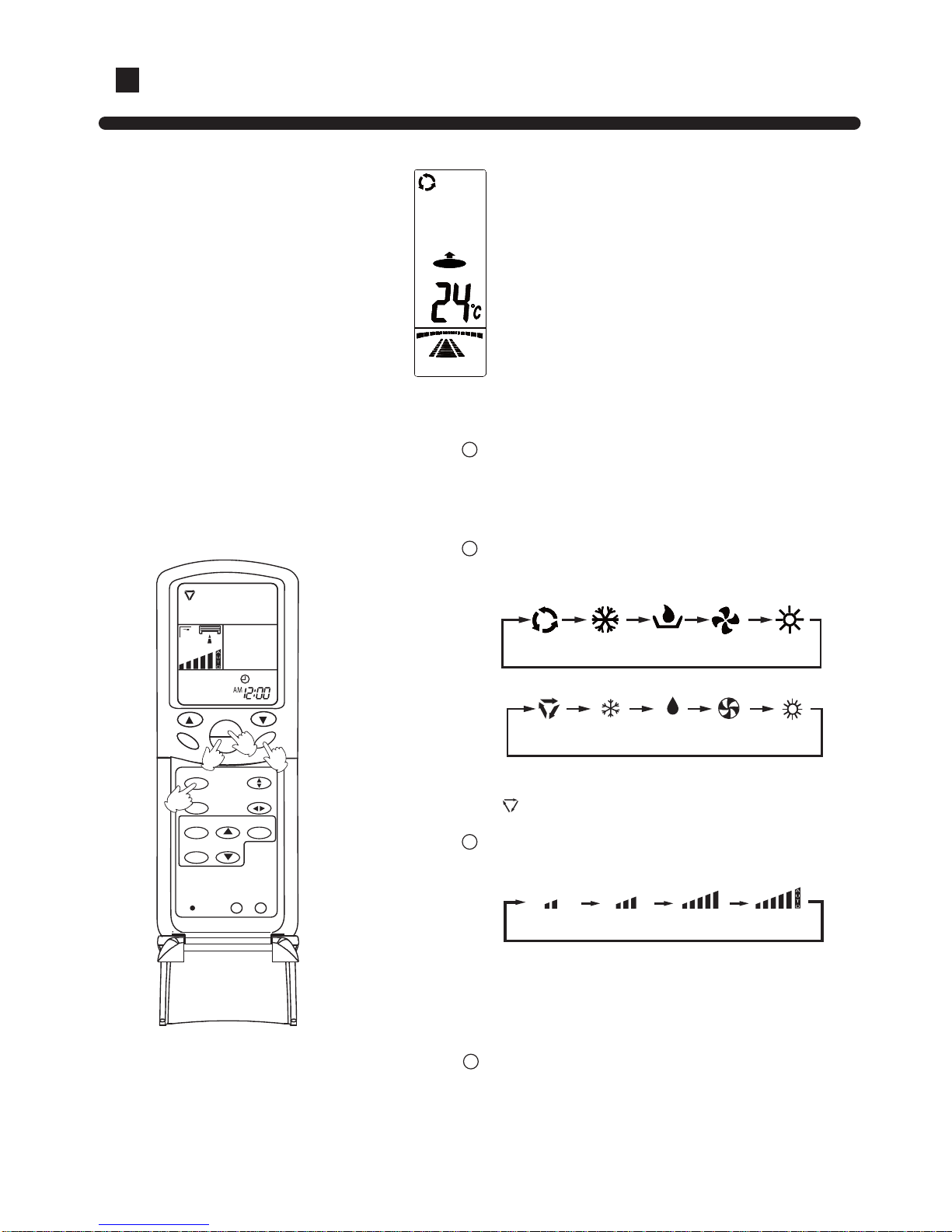

Operation Auto
Manual
Remote-control unit
AUTO COOL DRY HEAT
2
1Press ON/OFF button
Unit starts running.
The previous status appears on the display
(except. TIMER, SLEEP and SWING mode)
Press MODE button. For each press,
operation mode changes as follows:
3
Manual
Remote
controller
FAN
AUTO COOL DRY FAN HEAT
Press ON/OFF button
Unit stops running.
4
Select Auto run,
" " appears and auto run starts.
Press FAN,For each press, operation mode
changes as follows:
Remote
controller LOW MID HIGH AUTO
ON
OFF
TEMP
HEALTH FAN
MODE
SLEEP SWING
CLOCK
TIMER
SET
LOCK
LIGHT
RESET
2
4
Unit runs at the speed displayed on LCD.
When fan speed is AUTO,it is changed outomatically
according to the indoor temperature.
Manual find it in page 20
Note:
During Auto run operation, temp. setting will not be shown in LCD display, unit will select heating, cooling
or fan operationaccording to the room temp.
1
3
6
TEMP
SWING

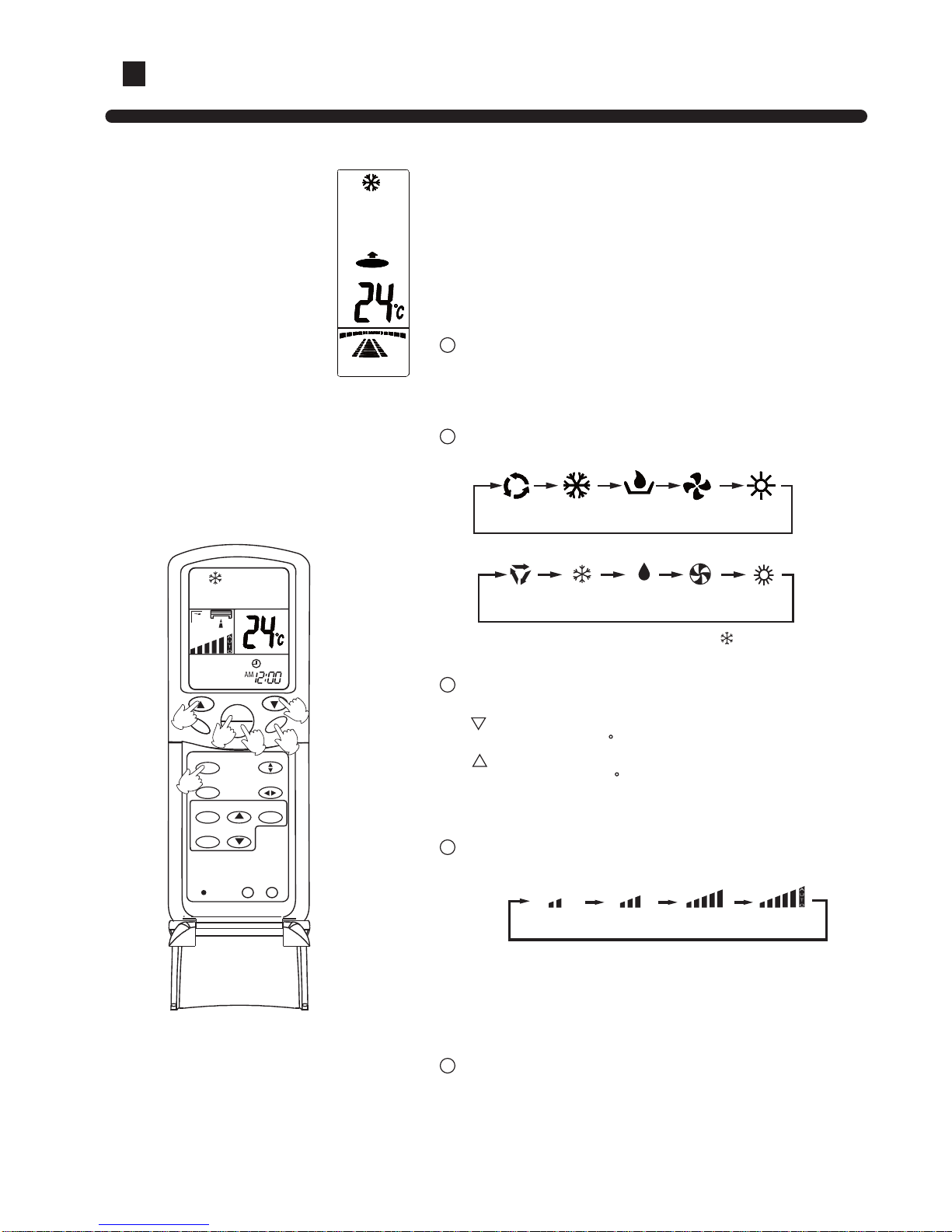

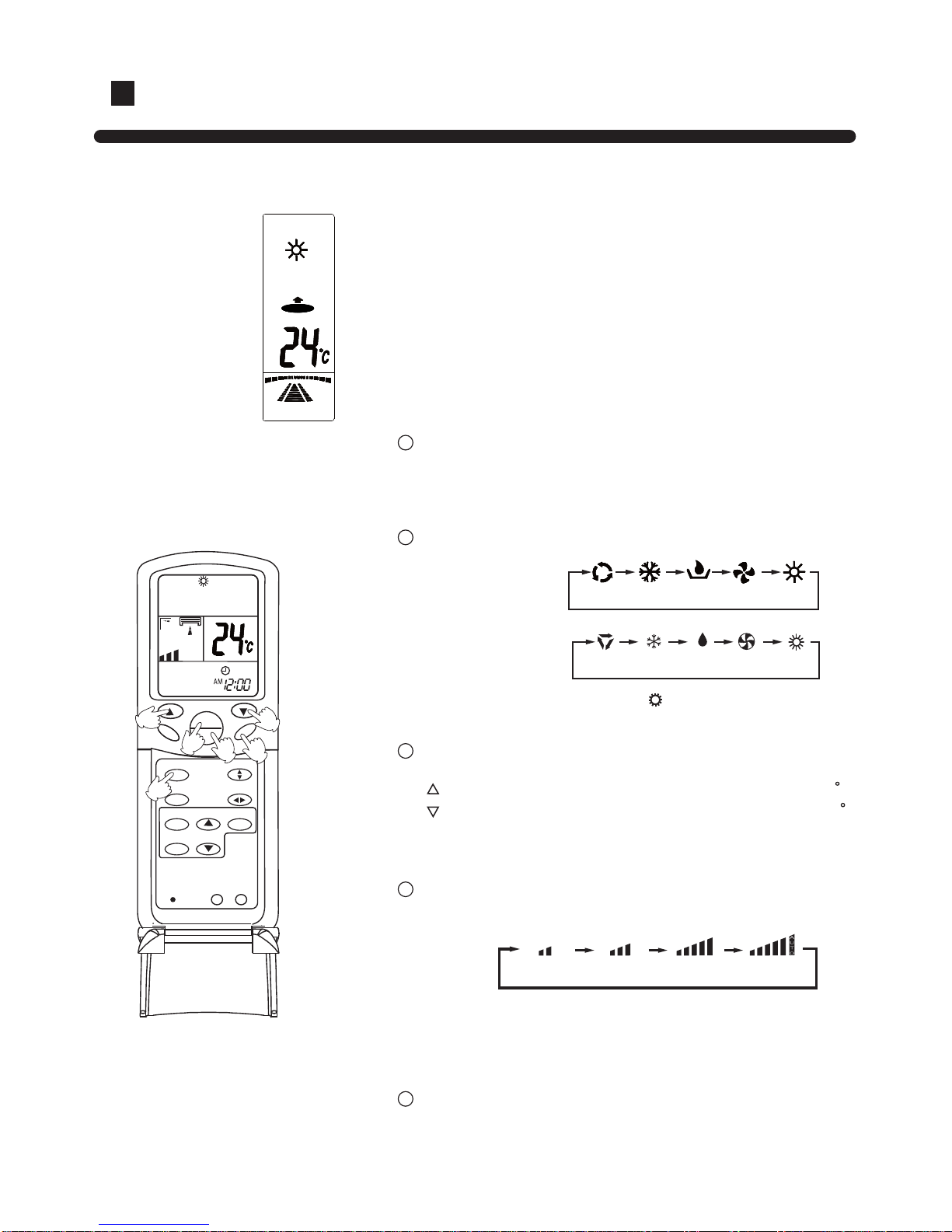

Operation Cooling
Manual
Press ON/OFF button
Unit starts running.
The previous status appears on the display
(except. TIMER, SLEEP and SWING mode)
Press MODE button. For each press,
operation mode changes as follows:
Select temp. button
Press TEMP button
Every time the button is pressed, temp.
setting increases 1 C
Every time the button is pressed, temp.
setting decreases 1 C
If the button is kept pressed, setting will
increase or decrease quickly.
Press ON/OFF button
Unit stops running,and when entry this mode for the
next time,it will show the previous setting.
Unit runs at the speed displayed on LCD.
When fan speed is AUTO,it is changed outomatically
according to the indoor temperature.
5
3
2
1
Select cooling operation, Shows" "
Cooling operation starts.
Press FAN button. For each press, fan speed
changes as follows:
4
Remote-control unit
Remote
controller
AUTO COOL DRY HEAT
Manual
Remote
controller
FAN
AUTO COOL DRY FAN HEAT
Manual find it in page 20
LOW MID HIGH AUTO
ON
OFF
TEMP
HEALTH FAN
MODE
SLEEP SWING
CLOCK
TIMER
SET
LOCK
LIGHT
RESET
1
2
3
5
3
4
7
TEMP
SWING

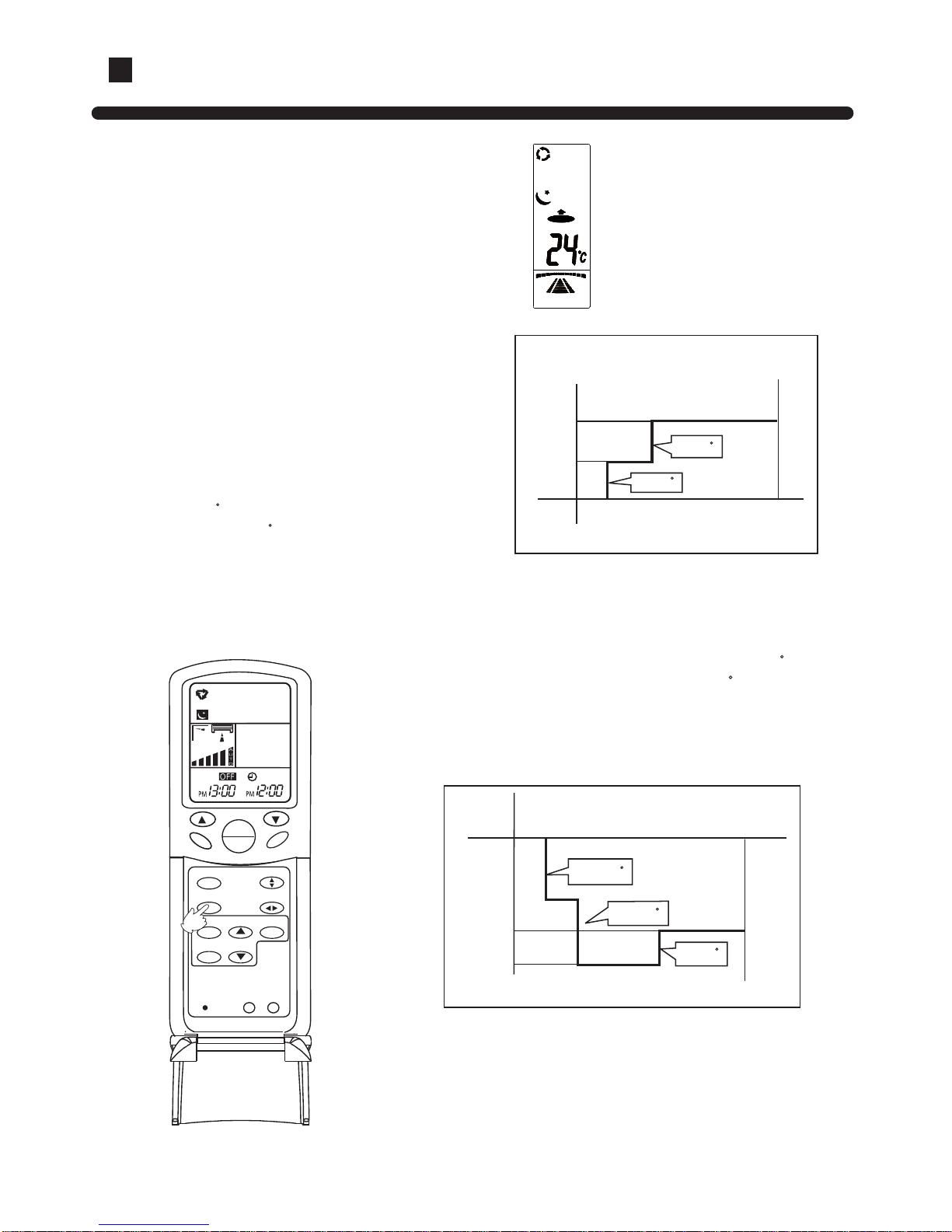

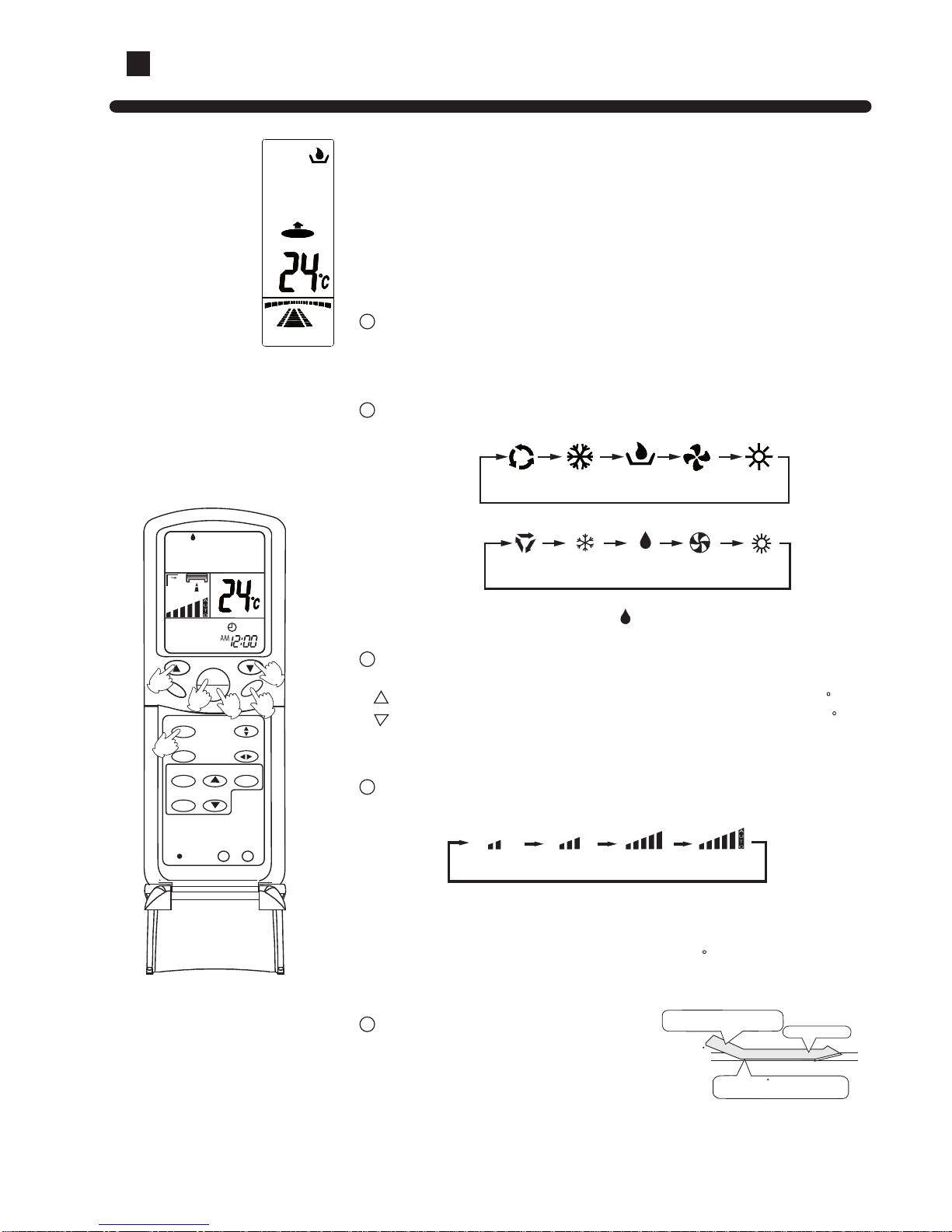

Operation Dry
Manual
Press ON/OFF button
Unit starts running.
The previous status appears on the display
(except. TIMER, SLEEP and SWING mode)
Press MODE button. For each press, operation mode changes
as follows:
Select Drying operation shows" "
Dry operation starts
Select temp. button
Press TEMP button
Every time the button is pressed, temp. setting increases 1 C
Every time the button is pressed, temp. setting decreases 1 C
If the button is kept pressed, setting will increase or decrease
quickly.
Press FAN button. For each press, fan speed changes as
follows:
Press ON/OFF button
Unit stops running, and when
entering this mode for the next
time, it will show the previous setting
Unit runs at the speed displayed on LCD.
In DRY mode, when room temp.becomes 2 C higher than temp.
setting,unit will run intermittently at LOW speed regardless of FAN
setting.
3
2
1
4
5Ultra-low air flow
Temp.setting+2 C
Temp.setting
On reaching 2 C higher than temp.
setting,unitwill run in mild DRY mode.
COOL operation starts when room
temp. is higher than temp. setting.
Remote-control unit
ON
OFF
TEMP
HEALTH FAN
MODE
SLEEP SWING
CLOCK
TIMER
SET
LOCK
LIGHT
RESET
1
2
3
AUTO COOL DRY HEAT
Manual
Remote
controller
FAN
AUTO COOL DRY FAN HEAT
Remote
controller LOW MID HIGH AUTO
Manual find it in page 20
5
3
4
8
TEMP
SWING
