Haier ESA3247 User manual

0010555512
(ESA3156/ESAX3186/
ESA3247/ESA3185 Only)
HWR24VC5, ESA3156
ESAX3186, ESA3247,ESA3185

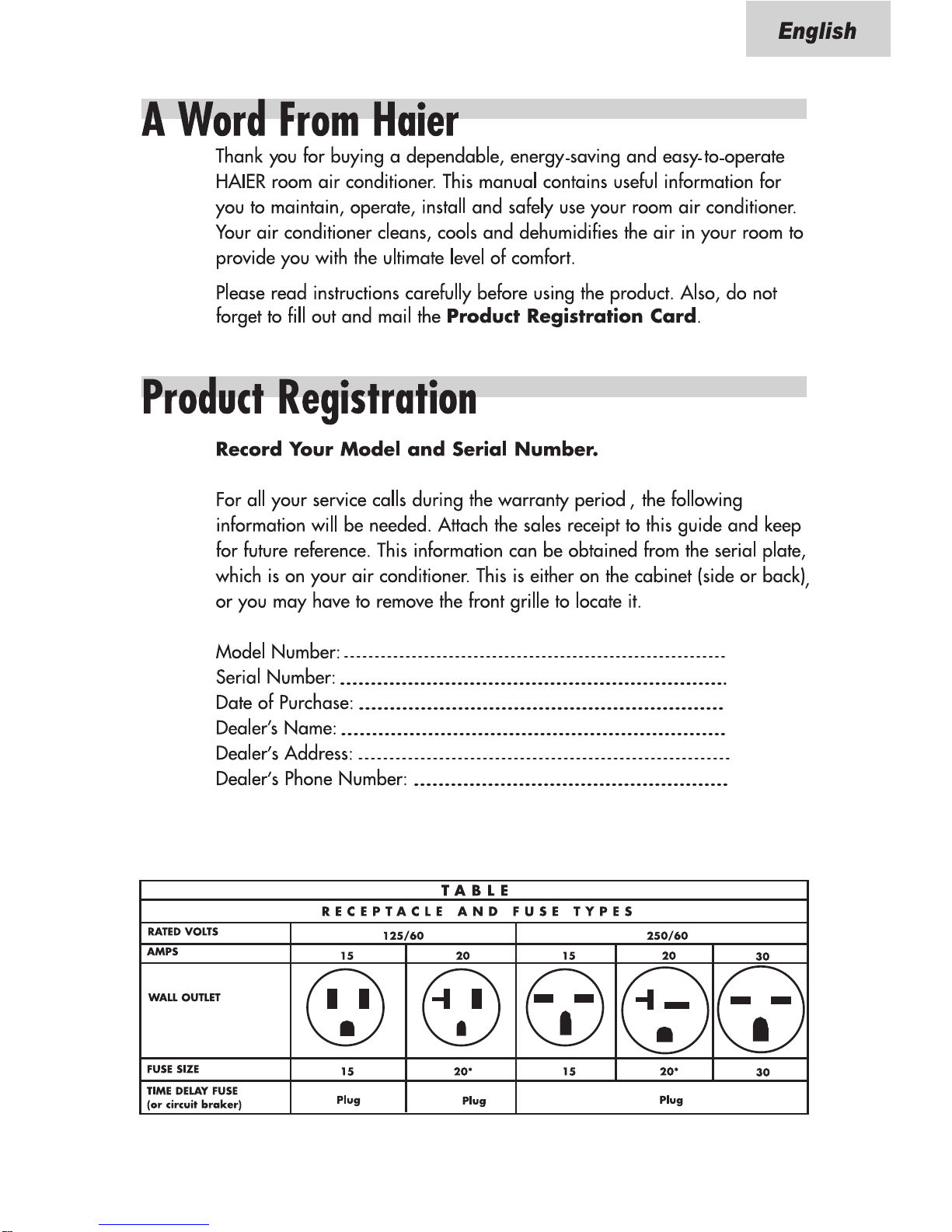

1

2

3
1
1
2
4

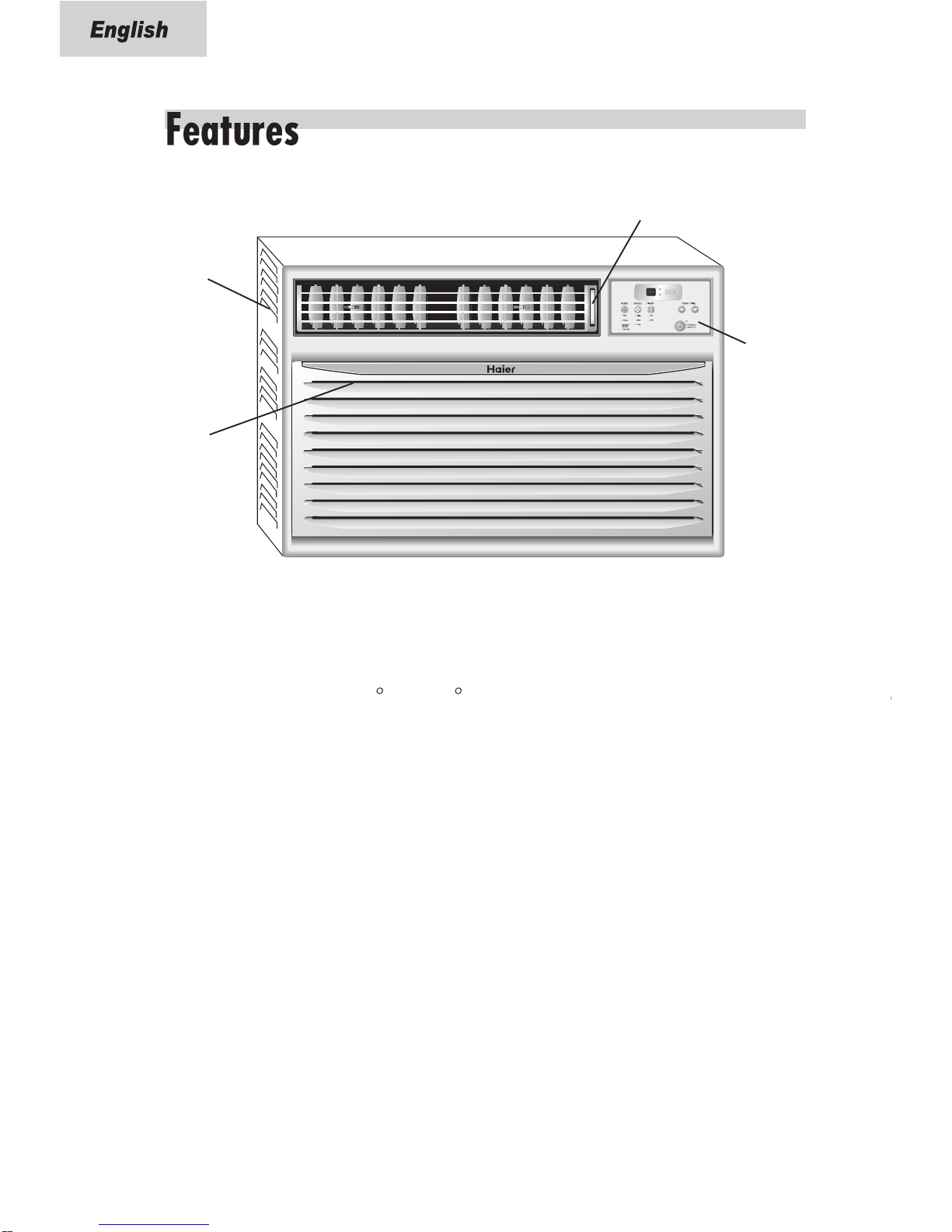

4
5
5
6-7
8-12
8
8-12
13-20
14
14
15-20
21-22
22-23
24

4

5

electronic
touch pad
easy-access
filters
side vent
louvers
vent
controller
6
1.Thermostat
This allows you to adjust the temperature of the
air--the lower the setting,the cooler the air
temperature. With this you can set the
temperature to your desired comfort level. You
can set the temperature between 61 F and 86
F.
2.Fan Speed
With this you can control the fan speed as well
as the A/C (cooling) speed.
You have 3 levels of A/C Speed to set at your
desired level. LO will circulate air at the lowest
velocity, MED at medium velocity and HIGH
will circulate at the maximum, velocity. You have
3 levels of Fan Speed to set at your desired
comfort level: HIGH, MED and LOW.
3. Function
Your air conditioner has 4 Functions.
a) COOL
Here the air conditioner will operate the
compressor and the desired fan speed set to
give you cold air for your comfort.
b) FAN
You can run the fan without the A/C function
on cooler days. The fan can be set to run at
3 speeds as desired.
c) DEHUMIDIFY
This enables your air conditioner to operate as
a dehumidifier as well. It will remove the excess
moisture from the air to keep your room at a
comfortable, dry stage. You can use this feature
alone in case you do not wish to use the air
conditioner.
d) ENERGY SAVER
When this feature is "On" , the fan will shut off
three minutes after the compressor cycles off.
This will reduce energy consumption and noise.
When the compressor turns back on, the fan
will turn on at the same time. In the "Off"
position, the fan will not shut off when the
compressor cycles off.
4.Timer
Your air conditioner can be set to go on or off
at your desire. This can be programmed up to
24 hours in advance.
5.4-Way Air Flow
The air directional louvers let you control the
direction of the airflow to the desired direction.
The airflow can be directed up-down-right side-
left side.

7
6.Vent
The Fresh Air vent allows the air conditioner
to recirculat inside air, draw fresh air into the
room and exhaust stale air to the outside.
7.Slide Out Chassis
Your air conditioner becomes more versatile
with this feature. You have the option to install
the unit in a window or the wall.
8. Window Install Kit
This kit enables you to install the air conditioner
in a double hung window. Extra brackets or
support may be needed, depending on your
window.
9.Remote Control
This fully functional wireless remote allows you
to operate your air conditioner from a distance.
You need not get up to change the settings or
the functions, or to turn the unit on or off.
10.LCD Display Electronic Control Panel
The 4-function LCD displays Room Temperature,
Temperature Setting, Timer Setting and Time
Remaining to Stop/Start the unit. Electronic
Control Panel lets you set the temperature to
the exact temperature you desire.
11.Electrostatic Filter (not all models)
Being constructed of high efficiency purifying
substance, active carbon fabric, electrostatic
fabric, electrostatic active carbon net and other
materials, this air conditioner purifies the air
effectively. Its wavy structure increases the
capability to filter dust and smoke effectively.
Due to the retention of active carbon, it has
a high purifying speed capable of strong airflow.
12. How The Unit Drains
On humid days with the air conditioner in use,
moisture may collect on the pan or the bottom
of the air conditioner. If the unit is positioned
properly, the moisture will gather towards the
back of the unit.This will not affect the operation
of the unit and the moisture will evaporate in
time. Occasionaly the moisture will flow over
the back of the pan, but this will not affect the
operation of the unit. Never drill holes in the
pan under any circumstance.

8
Cool airflow movement as dictated by the set fan speed.
Water sounds. This is normal since your air conditioner also acts as a dehumidifier.
Thus you will hear water sounds from water drops falling on the condenser.
As the refrigerant flows through the inner sealed tubing, a rushing noise may be
occur.
Rattling or vibrating noises may be heard due to poor wall or window installation.
High pitch compressor sound may be heard.

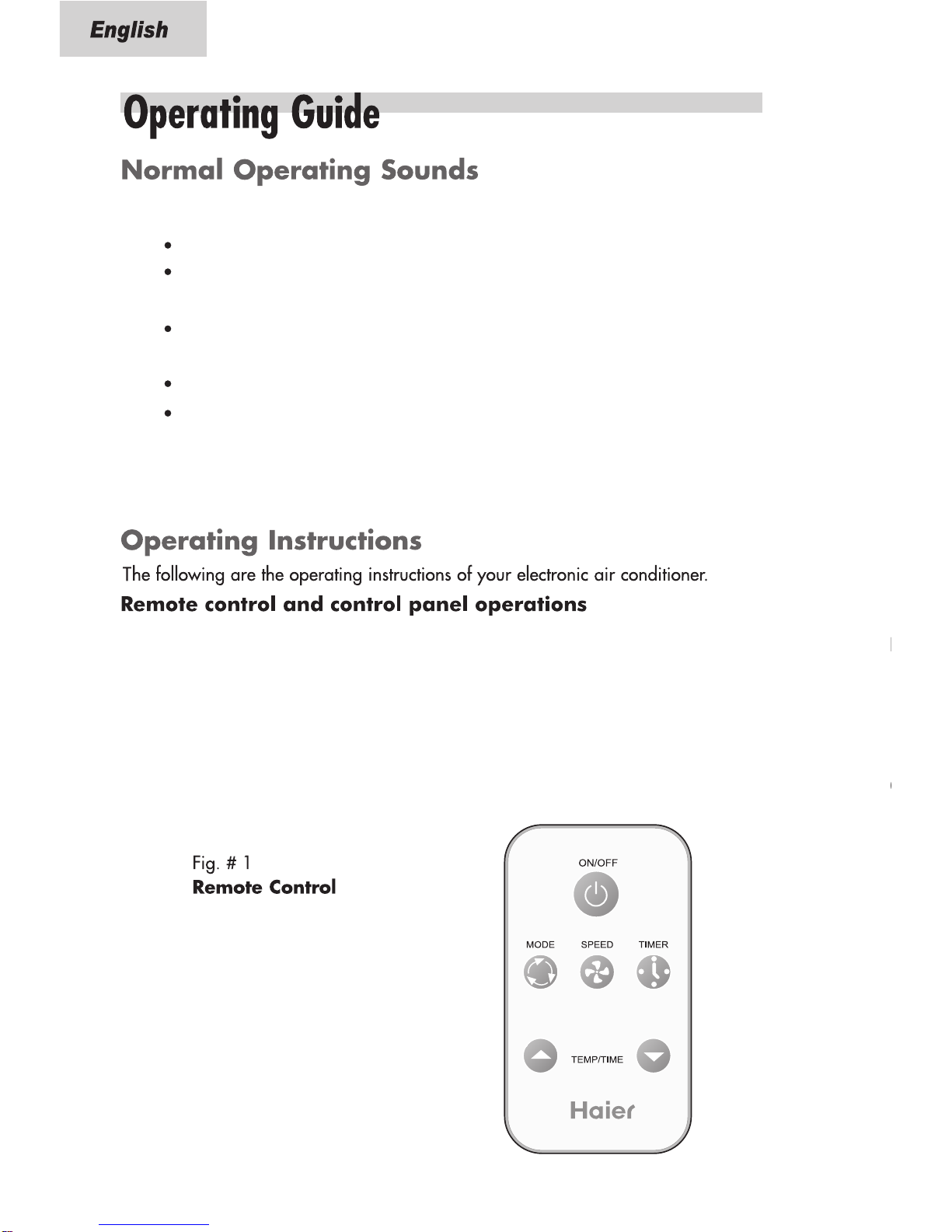

After installing your air conditioner, plug it into the proper electrical outlet in the
wall. Keep the vent in the closed position. Now set the air conditioner at your
comfort level. This fully functional wireless remote allows you to operate your air
conditioner without having to get up and go to the unit. The full function feature
allows you to change the settings and turn the unit on or off from the remote itself.
This control pad works the same as the control pad on the air conditioner. (See
Fig. #1)
The following sounds are normally heard during the operation of an air conditioner.

9
TEMP/TIME
MODE SPEED TIMER
ON/OFF

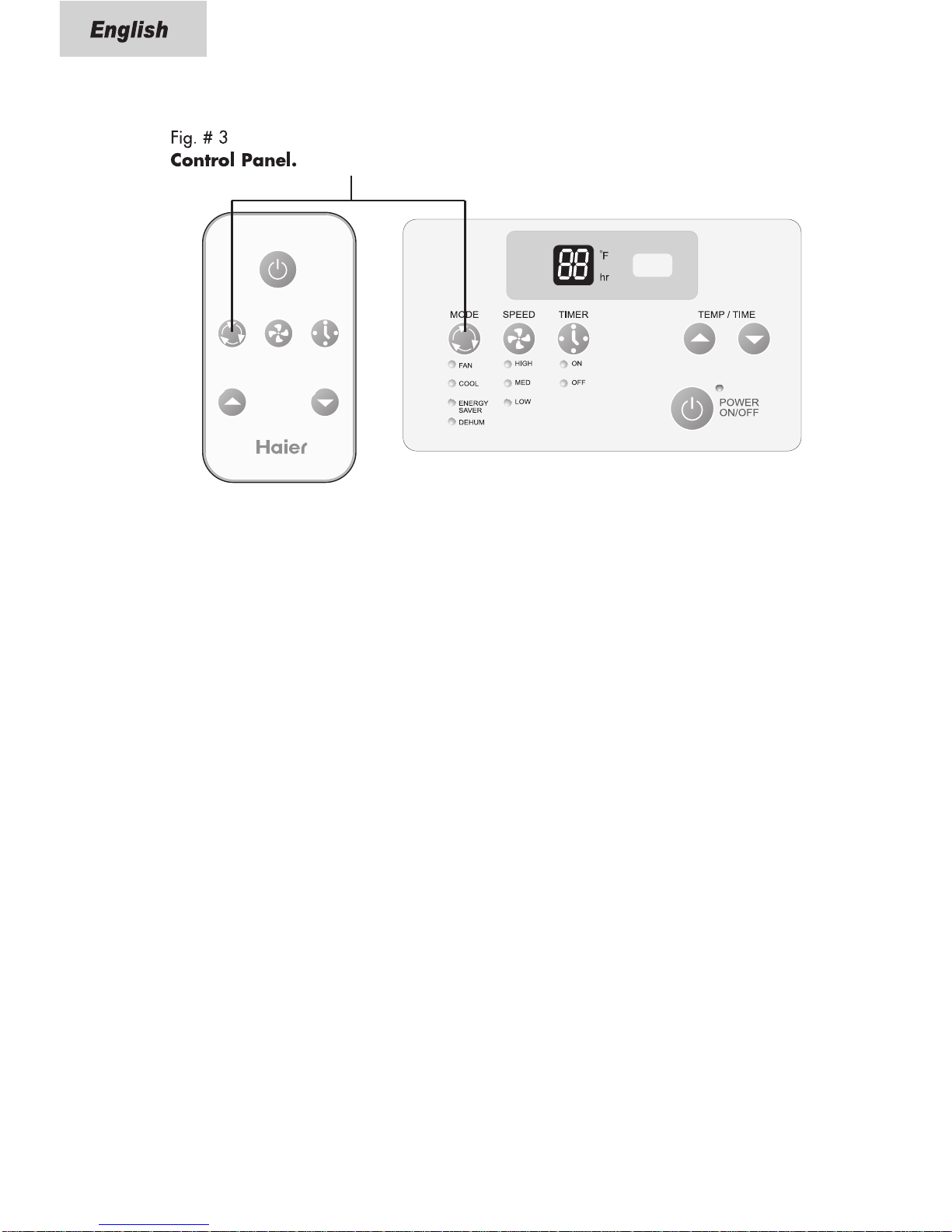

Every time you press the MODE button, it will change between FAN, COOL, ENERGY
SAVER and DEHUM. (See fig.#3)
After you plug in the unit, it will perform a self test. All the display lights will turn on
for 3 seconds. The LCD display will read"88". If any display light fails to turn on you
may need service on the unit. After 3 seconds, the unit will automatically go to the
stand by mode. Now all lights will be off and you will have to turn"ON" by pressing
the On/Off key. After pressing"On/Off", the unit starts to work and enters the status
of "Fan" with the low setting. You will have to press the ( ) or ( ) key on the Temp/Time
to set the temperature at your desired comfort. You can choose a temperature between
61oF and 86oF. Once the temperature is set you can raise or lower it by pressing the
( ) or ( ) keys.The temperature setting can only be adjusted when the unit is cooling.(See
Fig. #2) Having set the temperature you will set the function of the air conditioner.

10
TEMP/TIME
MODE SPEED TIMER
ON/OFF
Once the mode function is established, you will have to set the fan speed. (See fig. #4)
Every time you press the SPEED button, fan speed will change between LOW, HIGH and
MED.
1) If you choose the COOL mode you can run the fan in one of the 3 speeds: HIGH, MED,
or LOW.
2) For cool days you may want to run the "FAN" function. Here the fan runs at one of 3
speeds (HIGH fan, MED fan, LOW fan) as desired by you.
3) The removes dehumidify function excess moisture from the air on excessively humid days.
Tr: temperature inside the room.
Ts: the set temperature.
1) When Tr>Ts+3oF, the compressor will run the fan continuously at the selected speed.
2) When Ts-1oF*Tr*Ts+3oF, the compressor will cycle for 10 minutes on and 6 minutes off.
3) When Tr<Ts-1oF, the compressor will shut off.
The dehumidification process takes place between the set temperature-1 and 3oF above
the set temperature.
4) Energy Saver: The unit runs the same as the COOL setting in the ENERGY SAVER mode.
But the fan will be off 3 minutes after the compressor cycle off.

11
TEMP/TIME
MODE SPEED TIMER
ON/OFF
Timer off ( See Fig. #5)
The unit must be running to set time off. Use this to preset the time you would like the
unit ot shut off.
a) Press TIMER OFF. LCD display will show "XX" (time set last time).When power is connected
for the first time, LCD display will show "01".
b) Set desired number by pressing the ( ) pad of the Temp/Time buttons, once for each
hour. If you pass the desired time, use the ( ) pad key to lower the selection.
c) After you set TIMER OFF, LCD display will show the room temperature about 5 seconds
later.
When using the timer, the unit will revert to the last COOL and FAN settings when activated.
The timer must be reset every time you choose to use it.
Timer On or Timer Off mode is used to pre-start or shut off your unit in advance. You can
program this up to 24 hours in advance. You can use the Timer in 4 functions, i.e. COOL,
ENERGY SAVER, DEHUMID or FAN.
Timer on (See Fig.#5)
The unit must be on to set the timer. Unit will shut down automatically after it accepts the
settings in 5 seconds. Use this mode to pre-set the start time of the unit 24 hours in advance.
a) Press TIMER ON. LCD display will show "XX" (time set last time). When power is connected
for the first time, LCD display will show "01".
b) Set the desired number of hours by pressing the ( ) pad of the Temp/Time buttons, once
for each hour. If you passed the desired time, use the ( ) pad key to lower the selection.
c) After you set TIMER ON, LCD display will show the time. This time displayed means:
the unit will starts after X hours.

12
Fig. # 5
TEMP/TIME
MODE SPEED TIMER
ON/OFF
Adjusting the Air Flow Direction
Airflow can be adjusted by changing the direction of the air conditioner's louvers.
This can also increase the cooling efficiency of the air conditioner.
Adjusting Horizontal Air Flow
Direction
Adjusting the vertical louvers left and
right will change horizontal airflow.
Adjusting Vertical Air Flow Direction
Adjusting the horizontal vane up and down will
change vertical airflow. The vane can be adjusted
by nudging the back of the vane up and down.
Adjusting Horizontal Air Flow Adjusting Vertical Air Flow
Recommended orientation of louvers:
Adjust louvers to face upwards when cooling to maximize cooling efficiency.

13
Before you install your air conditioner, check the following:
1) The unit is free of all obstrucitons inside and outside the room, e.g. drapes, curtains,
furniture, plants, shrubs, bushes, trees, other structures like buildings, garage, etc.
The air conditioner must have a clear, unbostructed airflow through the condenser to
remove heat.
2) The window is strong enough to hold the weight of the air conditioner. Extra brackets
or supports may be needed depending on your windows. (Brackets or supports not
provided in all models)
3) The windowsill and track are strong enough to hold the weigh of the air conditioner.
4) The wall is strong enough to hold the unit. Extra brackets or supports may be needed
depending on the wall. (Brackets or supports not provided in all models).
5) There is adequate and proper power supply near the air conditioner.
6) DO NOT use adapter plugs.
7) DO NOT use extension cords.
8) DO NOT cut or remove the ground prong.
9) DO NOT modify the plug or the electrical wall outlet in any way. If plug does not
fit the electrical outlet have a certified electrician do the necessary change.
10) DO NOT connect electrical power to the unit before installation.
11) DO NOT use if power cord is worn out, frayed or otherwise damaged. Avoid using
if there are cracks or abrasion damage along the length, plug or connection.
12) Be careful of exposed sharp edges of the cabinet and sharp coils (fins) on the
back of the unit that could cut and cause serious injury.

14
Parts
Par ts Supplied
installation bracket
(left and right)
21/2"long flat
head bolt and
locknut
top rail
left and right
side curtains
19/32" long
screw and
locknut
window seal
gasket
curtain
attachment
screws 13/32"
basepan angle
wood screws 31/32"
“CR2025“battery
Remote
control
Model: HWR24VC5, ESA3156,ESAX3186, ESA3247,ESA3185

Installing Unit into A Window
Window Opening Requirements
The air conditioner is designed to fit into double or single hung sash type windows. Each of the
units comes with an installation kit that provides adjustable mounting louvers to fill the gaps
between the sides of the unit and the window frame. The chart below reflects the dimensions of
the units with and without installation kits. Measure your window opening width and compare it
to the chart below to ensure that it meets the minimum and maximum window width requirements.
HWR24VC5, ESA3156,ESAX3186, ESA3247,ESA3185
Model
A(inch)
Dimension
B(inch)
C(inch)
D(inch) Max
Case High
Case Width
D(inch) Min
Case Depth
A
B C
HWR24VC5,ESA3156,ESAX3186,ESA3247,ESA3185
15
D
11 5
2
18 5
3
20 4
1
40
30
18 32
21
26 169
24 32
13
Unpack unit on the floor next to installation
location.
Remove two front attachment screws.
Separate the outer case from the front
with a putty knife at the catch points
designated by the arrows.
Remove the two screws on top of the
outer case.
Using the basepan handle, slowly and
evenly pull chassis out from outer case.
Note: Cover putty knife blade with
masking tape to guard against damage
of the unit finish. Caution: Never expose plastic
front or grille to extreme
temperatures.

16
Install top rail with four 13/32" screws.
Slide left-hand curtain assembly into
left end of top and bottom rails. Repeat
for right-hand curtain assembly. Fasten
curtain retainer strips to the sides of
the outer case with six 13/32" screws.
Measure the width between the
window moldings to ensure the Instant
Mount will fit the window frame.
Instant Mount models are designed
for windows wide (for details see
page 15)
ASSEMBLE
CURTAINS/TOP
RAIL
2
PREPARE
WINDOW FOR
INSTALLATION
Inspectwindow track, sash, and sill
for it sability to supportthe weight of
air conditioner.
s(not
3Mobile home window installation
Add wood strip (at least 11/2"wide)
along entire width of window sill.
Thicknessof wood strip should match
height of front lip on window frame.
Fastenwood strip to sill with a
minimum of three countersunkwood
screws(not supplied with kit). This
provides a smooth surface for
mounting air conditioner.
Storm window installation
If storm window frame does not allow
adequate clearance below sill (1/2"
required), remove storm window
frame or create clearance by adding a
wood strip (at least 11/2"wide) along
entire width of sill. Fastenwood strip
to sill with at least three countersunk
wood screws(not supplied with kit).
Thisprovides a smooth surface for
mounting air conditioner.
SI LL
Wood
Str i p
1/2"
Min i mum
O
U
T
D
O
O
R
St orm Wi ndo w
Fram e
11/2"
Min imum
I
N
D
O
O
R
11/ 2"
Minimum
Wood
St rip
I
N
D
O
O
R
O
U
T
D
O
O
R
Window
Frame
Mus tbe amini mum
of 1/2" to cl ear
botto mrail on unit

17
4INSTALLOUTER CASEINWINDOW Placeoutercaseinwindow.Lower sashuntilitrestsbehindfrontflange oftoprail.Bottomrailmustrest behindwindowsill.
Expandbothcurtainstocontactthe windowframe.Installfourwood screws31/32".Twoineachupperrightand leftofthecurtains.
NOTE: Tomakescrewseasierto drive,drillapilotholeintothesash throughclearanceholeincurtains.
Installthreewoodscrews31/32"topmountingrail screws.
Usetwowoodscrews31/32"tofixthecaseto windowssash.Installleft&rightinstallationbracket andasshowninfig.Installbolt(21/2"longflathead boltandlocknut)totheinstallationbracketandadjust themtoproperlength,thenuse4(19/32")screwstofix thebracketonthecase.
Top rail
Bottom rail
Curtainassemblycut awayforclarity.
About
5°

18
Installsashbracketontopofindoorwindowsash withonewoodscrew31/32"topreventraisingof windowfromtheoutside.Screwtheanchordirectly intothesideofwindowframe.Forhardwoodor metalwindowframes,drillapilotholetostartthescrew.
Important:Becarefulnottodrillthepilotholetoodeep. Addapieceoftapetothedrillbitasadepthgauge. Alsostayclearofglass.Becarefulnottodamagethe functionofthewindow.
Cutwindowsealgaskettowidthofwindow.Stuffwindow sealstripbetweentheoutdoorwindowglassandthetopof theindoorsash.Thiswillstopairleakagewhichreduces efficiency.
INSTALLSASHBRACKET &SEALGASKET
6
5
Caution:
Find someone to help you replace
the chassis in outer case. Replace
front panel and grille.
Forsecuritypurpose,reinstall screws
at cabinet's sides, removed in step
one.
Because the window sash helps keep
the unit in window, make certain the
window sash contacts the outer case
before reinstalling the chassis.
