Please read this operation manual before using the air conditioner.
No.0010575526
A
Operation & Installation
Manual
CABINET TYPE AIR CONDITIONER
Please keep this manual carefully and safely.
MODE TEMP TEMP FAN ON/OFF
LOCK
FRESH
HIGH/SO TIMER
SET
FILTER
BA
M D
HEALTH
RESET LOCK
SLEEP
FAN
TEMP
ON
OFF
SWING
MODE
CLOCK
CODE LIGHT
OFF
A
U
T
O

Operation
Content
Cautions
Parts
Operation
Operation hints
Energy saving
Maintenance
Trouble shooting
When problems occur
Indoor & outdoor unit connection
Tools necessary
Installation procedures
Others
6-11
13
14-15
16
17-18
19
20
21-26
27
12
1-2
3-5

Cautions
1
Disposal of the old air conditioner
Before disposing an old air conditioner
that goes out of use, please make sure
it's inoperative and safe. Unplug the air
conditioner in order to avoid the risk of
child entrapment.
It must be noticed that air conditioner
system contains refrigerants, which
require specialized waste disposal. The
valuable materials contained in a air
conditioner can be recycled. Contact
your local waste disposal center for
proper disposal of an old air conditioner
and contact your local authority or your
dealer if you have any question. Please
ensure that the pipework of your air
conditioner does not get damaged prior
to being picked up by the relevant
waste disposal center, and contribute
to environmental awareness by
insisting on an appropriate, anti-
pollution method of disposal.
Disposal of the packaging of your
new air conditioner
All the packaging materials employed
in the package of your new air
conditioner may be disposed without
any danger to the environment.
The cardboard box may be broken or
cut into smaller pieces and given to a
waste paper disposal service. The
wrapping bag made of polyethylene
and the polyethylene foam pads
contain no fluorochloric hydrocarbon.
All these valuable materials may be taken
to a waste collecting center and used again
after adequate recycling.
Consult your local authorities for the name
and address of the waste materials
collecting centers and waste paper
disposal services nearest to your house.
Safety Instructions and Warnings
Before starting the air conditioner, read
the information given in the User's Guide
carefully. The User's Guide contains very
important observations relating to the
assembly, operation and maintenance of
the air conditioner.
The manufacturer does not accept
responsibility for any damages that may
arise due to non-observation of the
following instruction.
Damaged air conditioners are not to
be put into operation. In case of doubt,
consult your supplier.
Use of the air conditioner is to be
carried out in strict compliance with the
relative instructions set forth in the User's
Guide.
Installation shall be done by professional
people, don't install unit by yourself.

2
The machine is adaptive in following
situation
Applicable ambient temperature range:
Cooling
Heating
Indoor
outdoor
Rated Maximum Minimum
27 32 18
19 23 14
35 43 10
24 26 6
20 27 15
14.5 -- --
7 24 -7
6 18 --
DB C
WB C
DB C
WB C
Indoor
outdoor DB C
WB C
DB C
WB C
Cautions
For the purpose of safety, the air
conditioner must be properly grounded
in accordance with specifications.
Always remember to unplug the air
conditioner before opening inlet grill.
Never unplug your air conditioner by
pulling on the power cord. Always grip
plug firmly and pull straight out from
the outlet.
All electrical repairs must be carried
out by qualified electricians.
Inadequate repairs may result in a
major source of danger for the user of
the air conditoiner.
Do not damage any parts of the air
conditioner that carry refrigerant by
piercing or perforating the air
conditioner's tubes with sharp or
pointed items, crushing or twisting any
tubes, or scraping the coatings off the
surfaces. If the refrigerant spurts out
and gets into eyes, it may result in
serious eye injuries.
Do not obstruct or cover the
ventilation grille of the air conditioner.
Do not put fingers or any other things
into the inlet/outlet and swing louver.
Do not allow children to play with the
air conditioner. In no case should
children be allowed to sit on the
outdoor unit.
Specifications
The refrigerating circuit is leak-proof.

Parts
3
1
2
3
4

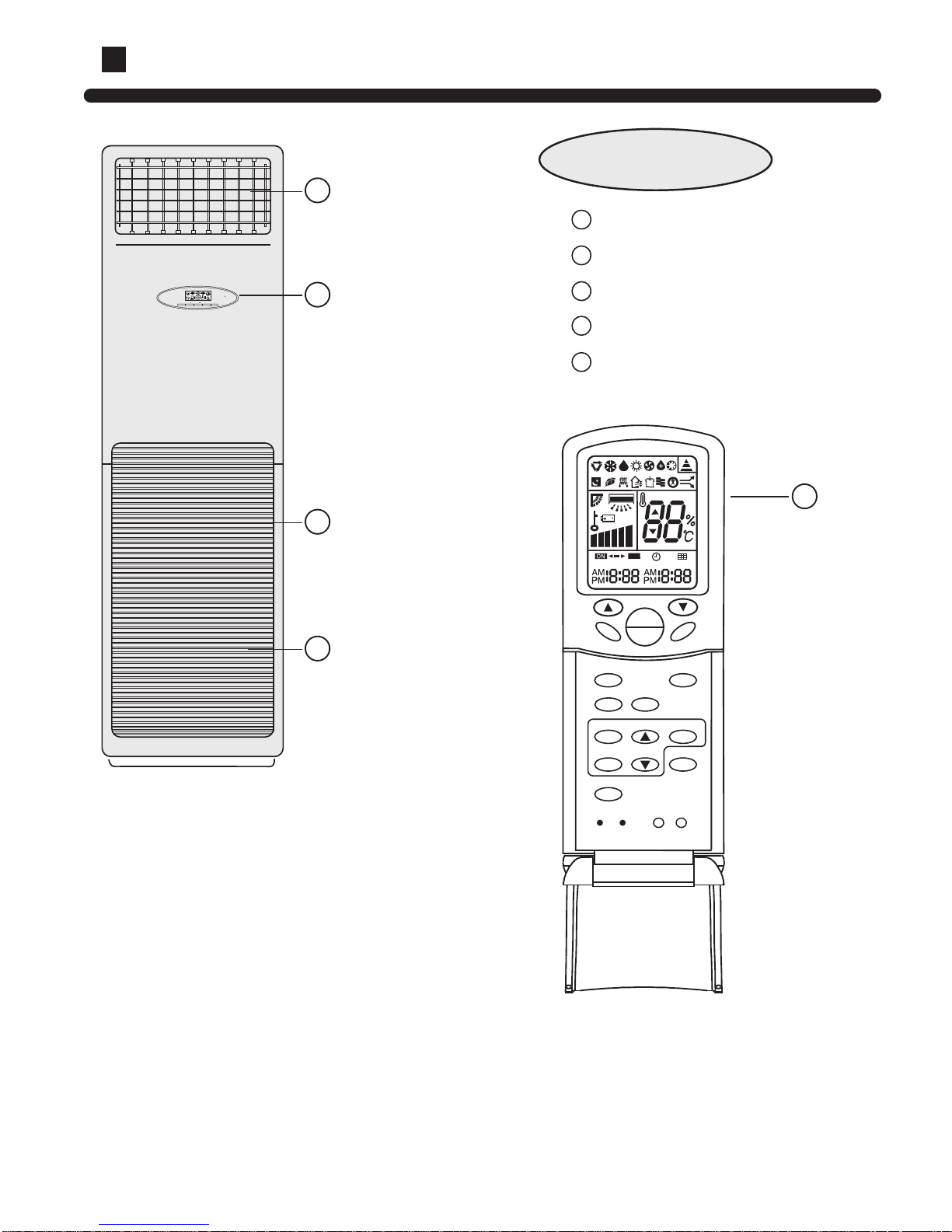

1Outlet grill
2Operation panel
3Inlet grill
4Air filter [inside the unit]
5Remote-controller
Indoor unit
5
MODE TEMP TEMP FAN ON/OFF
LOCK
FRESH
HIGH/SO TIMER
SET
FILTER
BA
M D
HEALTH
RESET LOCK
SLEEP
FAN
TEMP
ON
OFF
SWING
MODE
CLOCK
CODE LIGHT
OFF
A
U
T
O

Parts
4
Remote controller

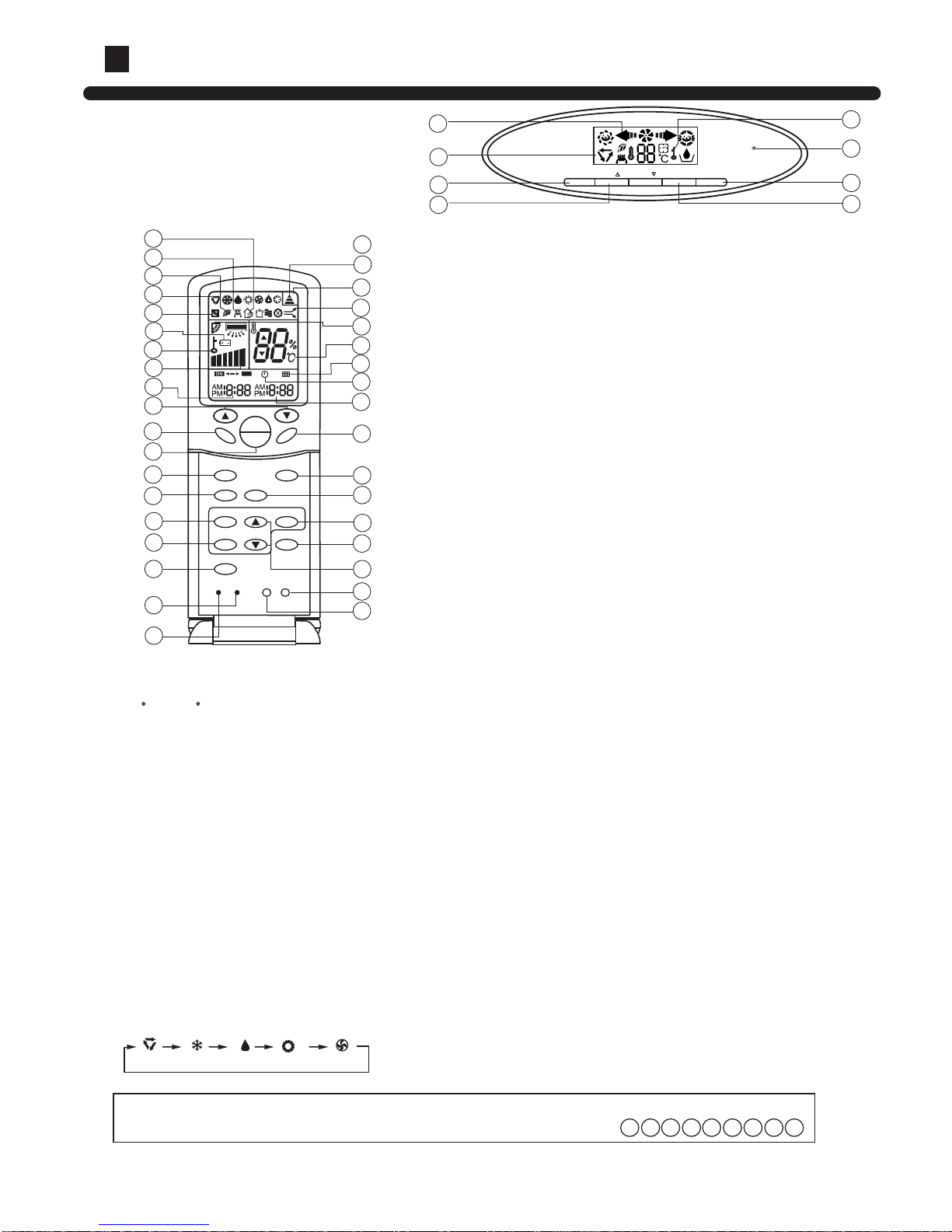

1.TEMP Setting Button
(Used to set temperature. Setting ranges:
16 C to 30 C)
2.SWING Button
If you press this button once, auto swing will
be activated.
If you press this button again, the louver will
fix in the present position.
3.Power ON/OFF Button
Used for unit start and stop
After power on, the LCD of remote controller
will display the previous operation state (except
for TIMER,SLEEP and SWING state).
4.Operation MODE
Used to select operation mode.
Every time you press MODE button, operation
mode changes according to following sequence:
6.CLOCK Button
Used to set correct time.
7.TIMER Button
Used to select TIMER mode:TIMER ON,TIMER
OFF, TIMER ON/OFF.
(Note: if time of TIMER ON is the same as TIMER
OFF,TIMER ON/OFF cannot be set)
10.RESET Button
Press this button by using a sharp article to resume
the correct operation of the remote controller in case
of need, i.e. for example in case of malfunctions due
to electromagnetic disturbance.
5.HEALTH Button
13.HOUR Adjustment
Used to set clock and timer setting
15.SET Button
Used to confirm TIMER and CLOCK settings when heating
or cooling.
8.FILTER Button
NOTE: 1.Single cooling air conditioner does not have the functions related to heating.
2.This kind of unit does not have the following related functions :
9.CODE Button
Used to select Code A or B, this manual is for Code A.
14.HIGH/SO Button
11.LIGHT Button
Used to light the control panel (only for cabinet unit)
12.LOCK Button
Used to lock operation button and LCD display contents:
by pressing this button, other buttons comes out of
function and lock state display appears; if you press it
again, lock state will be no more active and lock state
display will disappear.
16.FRESH Button
5814 16
20.TIMER Display
17.SLEEP Button
(The clock must be corrected before setting sleep function)
Used to set sleep mode.
18.FAN Button
Used to select fan speed:LOW,MID,HIGH,AUTO.
19.TIMER OFF Display
Manual Operation
AUTO FAN HEAT
COOL DRY
21 24 28 29 30
25
26
21
23
36
FRESH
HIGH/SO TIMER
SET
FILTER
BA
M D
HEALTH
RESET LOCK
SLEEP
FAN
TEMP
ON
OFF
SWING
MODE
CLOCK
CODE LIGHT
OFF
A
U
T
O
1
2
3
4
6
7
9
10
13
17
15
5
8
18
19
22
34
33
24
27
28
32
31
30
35 20
14
16
12
11
29
MODE TEMP TEMP FAN ON/OFF
LOCK
12
34
43
18
1
31
35

5
Clock Set
Displays when healthy run function is set.
22.TEMPERATURE Display
34.LOCK State Display
33.BATTERY Energy Display
24.HIGN/SO Run Display
26.SIGNAL SENDING Display
28.Fresh Display
29.Auxiliary ELECTRICAL HEATING Display
30.HEALTH Display
32.SLEEP State Display
31.Operation MODE Display
AUTO RUN COOL RUN DRY RUN HEAT RUN FAN RUN
35.FAN SPEED Display
23.AUTO SWING Display
21.FILTER Display
36.TIMER ON Display
When unit is started for the first time and after replacing batteries in remote
controller, clock should be adjusted as follows:
1.Press CLOCK button, clock indication of " AM " or " PM " flashes.
2.Press or to set correct time. Each press will increase or decrease
1 min. If the button is kept pressed, time will increase or decrease quickly.
3.After time setting is confirmed, press "SET" : AM or PM stop flashing,
while clock starts working.
Note:AM means morning and PM means afternoon.
When operating the remote controller in an area where
electronically controlled lights are installed or wireless
handsets are used, please move closer to the indoor unit
as the function of the remote controller might be affected
by signals emitted by the above mentioned equipments.
Battery loading
Confirmation indicator
If no indication is displayed after press ON/OFF button,
reload the batteries.
Remote Controller Operation
When in use, direct signal transmission
head to the receiver placed on the
indoor unit
The distance between the remote controller and the receiver
should be max 7m and there should be no obstacle between
them.
Do not throw the remote controller; prevent it from being damaged.
25.Code A display
Code A is used for this unit
27.Code B display
Parts
REMOTE
MANUAL
REMOTE
MANUAL
LOW MED HIGH AUTO(Flash)
LOW MED HIGH
FRESH
HIGH/SO TIMER
SET
FILTER
HEALTH
RESET LOCK
SLEEPMODE
CLOCK
CODE LIGHT
3
2
1
Battery loading
Batteries are fitted as follows:
Loading the battery
Ensure that batteries are correctly placed in the
compartment as required for positive and negative
terminals.
Replacing the battery compartment lid
The battery compartment lid is reinstalled in the reverse
sequence.
Display review
Press the button to see if batteries are properly fitted. If
no display appears, refit the batteries.
Remove the battery compartment lid
Slightly press and disengage the battery compartment lid
marked with ì î and then hold the remote controller by
the upper section and then remove the battery compartment
lid by pressing in the direction of the arrow as shown in
the figure above.
+ -
- +
Note:
It is recommended that the batteries be removed from
the compartment if the remote controller is not used for
an extended period.
The remote controller is programmed for automatic test
of operation mode after the batteries are replaced. When
the test is conducted, all icons will appear on the screen
and then disappear if the batteries are properly fitted.
Caution:
If the remote controller does not operate as designed after
fitting new batteries of the same
type, press the Reset button (marked ) with a pointed
article.

6
Operation

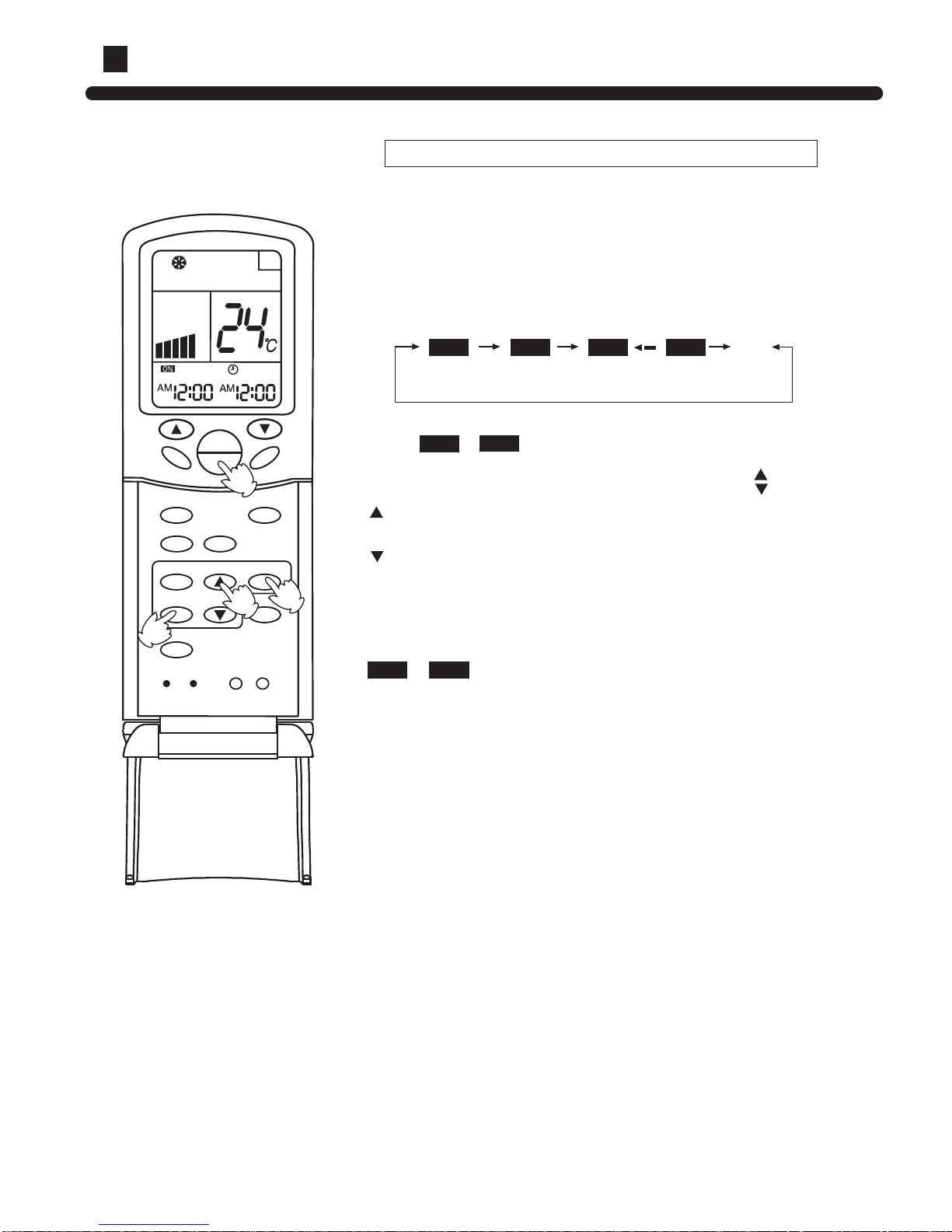

AUTO, COOL , HEAT and DRY Operation
1. Unit start
Press ON/OFF button,unit starts.
Previous operation status appears on LCD (except for
TIMER,SLEEP and SWING setting)

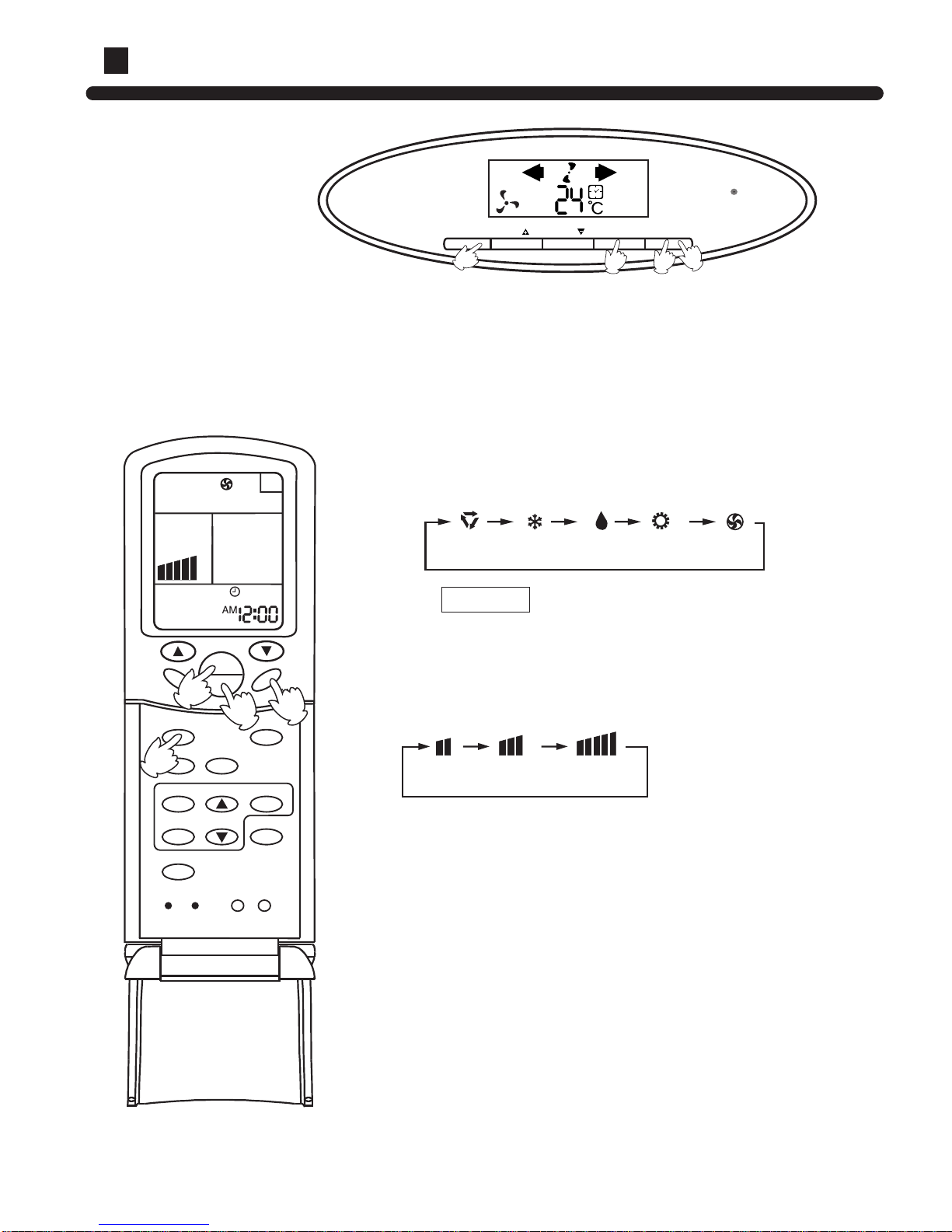

3.Temperature setting
Then select AUTO run or select COOL operation or
select DRY operation or select HEAT operation
2.Select operation mode
Press MODE button. At each press, operation mode
changes as follows:
Press TEMP button.
Every time the button is pressed, temp. setting increases
1 C; if the button is kept pressed, temp. setting will increase
quickly.
Every time the button is pressed, temp. setting decreases
1 C, if the button is kept pressed, temp. setting will decrease
quickly.
Set proper temperature
4.Adjust FAN button
Press FAN button. At each press, fan speed changes as follows:
Air conditioner will run at the selected fan speed.
5. Unit stop
Press ON/OFF button,unit stops.
InATUO mode, the temperature setting is not displayed on LCD. In this mode, during running air conditioner
will select COOL, HEAT or FAN mode automatically according to the room temperature.
In DRY mode, when room temperature becomes 2 C higher than temperature setting, unit will run intermittently
at LOW speed regardless of FAN setting. When room temperature is lower than temperature setting, unit will
only run FAN operation.
In HEAT mode,warm air will blow out after a short period of time due to cold-draft prevention function.
AUTO FANHEATCOOL DRY
AUTO LOW MED HIGH
FRESH
HIGH/SO TIMER
SET
FILTER
A
HEALTH
RESET LOCK
SLEEP
FAN
TEMP
ON
OFF
SWING
MODE
CLOCK
CODE LIGHT
A
U
T
O
Remote-control unit
Manual Operation
MODE TEMP TEMP FAN ON/OFF
LOCK
1
3
2
Temp. setting +2 C
Temp.setting
On reaching temp.setting
+2 C, unit will run in mild
DRY mode.
Ultra-low air flow
COOL operation starts
when room temp.is
higher than temp.
setting.
3
513
4
2
A
U
T
O

7
Operation
Fan Operation
1.Unit start
Press ON/OFF button to start your air conditioner.
Previous operation status appears on LCD (except for
TIMER, SLEEP, and SWING setting).
2.Select operating mode
Press MODE button. At each press, operation mode
changes as follows:
3. Adjust fan speed
Press FAN button. At each press, fan speed changes as
follows:
Air conditioner will run at the selected fan speed.
When in AUTO mode, unit will adjust fan speed
according to room temperature automatically.
4. Unit stop
Press ON/OFF button to stop unit.
Then select FAN
About FAN mode
When the air conditioner runs in FAN mode,
it is not possible to select AUTO FAN or to
set temperature.
AUTO FANHEATCOOL DRY
A
Manual Operation
Remote-control unit
MODE TEMP TEMP FAN ON/OFF
LOCK
1
4
23
FRESH
HIGH/SO TIMER
SET
FILTER
HEALTH
RESET LOCK
SLEEP
FAN
TEMP
ON
OFF
SWING
MODE
CLOCK
CODE LIGHT
413
2
LOW MED HIGH

8
Operation
Swing louvers
(Vertical louvers) Horizontal louvers
(Adjust by hand)
Up and down
Adjust the louvers by hand to proper position.
Put louvers at up position in cooling and down position in heating mode.
This will be helpful to keep an even room temp.
Note:
In cooling or dry operation, don't put horizontal louvers at downward
position for a long time, or outlet grill might get frosted. Don't expose
your skin to cool or warm air for a long time.
Notice:
Side from side
Swing
Press SWING " "
appears on the display, the vertical
louvers move from side to side.
Fixed position
Press the SWING again to fix the
vertical louvers at your desired position.
Adjusting air flow direction
FRESH
HIGH/SO TIMER
SET
FILTER
A
HEALTH
RESET LOCK
SLEEP
FAN
TEMP
ON
OFF
SWING
MODE
CLOCK
CODE LIGHT
A
U
T
O

Sleep Function
Before going to bed you can press down the SLEEP button and the air conditioner will run so as
to make you sleep more comfortably.
Before using this function, the clock must be set.
Use of SLEEP function
After the unit's start, set running mode and then press SLEEP button once to make the air conditioner
have the previous-set sleep time (first power-on is "1h"). The sleep symbol will appear. Press time
button / : you can choose the time in 1~8 hours. Each time the button is pressed, the time
increases/decreases 1 hour: "xh" and "OFF" indications appear on the display.
Operation Mode
1.In COOL, DRY mode
One hour after sleeping operation start, the
temperature
is 1 C higher than the setting one. After another
hour, temperature rises 1 C: sleep run continuously
for another 6 hours and then stops. The actual
temperature is higher than the setting one which
is to prevent from being too cold to your sleep.
2.In HEAT mode
One hour after sleeping operation start, the
temperature
is 2 C lower than the setting one. After another
hour, temperature decreases by 2 C more.
Temperature will automatically rise by 1 C after
another 3 hours' continuous operation. The actual
temperature is lower than the setting one which
is to prevent from being too hot to your sleep.
3.In AUTO mode.
The air conditioner will run in corresponding sleep
operation according to the automatically selected
operation mode.
SLEEP RUN BEGINS SLEEP RUN STOPS
SETTING T SHUT DOWN
about 6 hrs
1 hrs
In COOL,DRY mode
increase 1 C
increase 1 C
SLEEP RUN BEGINS SLEEP RUN STOPS
SETTING T SHUT DOWN
1 hrs 1 hrs
3 hrs about 6 hrs
increase 1 C
decrease 2 C
decrease 2 C
Notes:
After setting SLEEP function, it is not possible to set clock.
If set-sleep time does not reach 8 hours, unit will automatically stop
operation after set time is reached.
Set " TIMER ON " or " TIMER OFF "In COOL,DRY mode function first,
then set SLEEP. After set SLEEP function, the TIMER function cannot
be set.
In HEAT mode
FRESH
HIGH/SO TIMER
SET
FILTER
A
HEALTH
RESET LOCK
SLEEP
FAN
TEMP
ON
OFF
SWING
MODE
CLOCK
CODE LIGHT
OFF
A
U
T
O
9
Operation

Every time the button is pressed, time increases 10 minuts.
If the button is kept pressed, time changes quickly.
Timer ON/OFF Function
Set clock correctly before starting TIMER operation
1.Unit start
After unit start, select your desired operation mode (operation
mode will be displayed on LCD)
2.TIMER mode selection
Press TIMER button on the remote controller to change TIMER
mode. Every time the button is pressed, display of TIMER mode
changes as follows:
ON OFF ON OFF
AM12:00 AM12:00
PM12:00 PM12:00
TIMER ON TIMER OFF TIMER ON-OFF
blank
Then select TIMER mode as needed (TIMER ON or TIMER OFF).
Now or will flash.
3.TIMER setting (press time adjust buttons )
Every time the button is pressed, time decreases 10 minuts.
If the button is kept pressed, time changes quickly.
It can be adjusted within 24 hours at will.
4.Confirm setting
After setting correct time, press SET button to confirm time. Now
Time displayed: unit starts or stops at X hour X min (TIMER ON
or TIMER OFF)
5.Cancel TIMER mode
Just press TIMER button several times until TIMER mode
disappears.
Hints:
After replacing batteries or if a power failure occurs, TIMER setting
must be reset.
Remote controller has memory function. When you use TIMER
mode next time, just press SET button after mode selection if timer
setting is the same as the previous one.
Note:
After setting TIMER function, the remote controller displays TIMER time. If you want to see clock time,
just press CLOCK button once: clock time will be displayed (if you press the button again continuously,you
can adjust clock). 5 seconds later, the display will show TIMER time again.
ON OFF
ON OFF
or stop flashing.
10
Operation
Remote control unit
FRESH
HIGH/SO TIMER
SET
FILTER
A
HEALTH
RESET LOCK
SLEEP
FAN
TEMP
ON
OFF
SWING
MODE
CLOCK
CODE LIGHT
1
2
34

Remote controller operation
11
Operation
Timer ON-OFF Function
Set clock correctly before starting TIMER operation
1.Unit start
After unit start, select your desired operation mode (operation
mode will be displayed on LCD)
2.TIMER mode selection
Press TIMER button on the remote controller to change TIMER
mode. Every time the button is pressed, display of TIMER mode
changes as follows:
OFF
3.Time setting for TIMER ON
4.Timer confirming for TIMER ON
After setting correct time, press TIMER button to confirm time.
Now
5.Timer setting for TIMER OFF
Press time buttons and follow the same procedures in " Time setting for TIMER ON"
Press time button
ON
stops to flash, while starts flashing.
Time displayed : unit starts at X hour X min.
6.Time confirming for TIMER OFF
After time setting, press SET button to confirm time. stops to flash. Time displayed:
unit starts at X hour X min.
7.Canel TIMER mode
Just press TIMER button several times until TIMER mode disappears.
According to the time setting sequence of TIMER ON and TIMER OFF, either start-stops or
stops-start can be realized.
If the time setting of TIMER ON is the same as TIMER OFF, TIMER ON-OFF function cannot
be set.
ON
Then select TIMER ON-OFF mode. will flash.
Every time the button is pressed, time increases 10 minuts.
If the button is kept pressed, time will changes quickly.
Every time the button is pressed, time decreases 10 minuts.
If the button is kept pressed ,time will changes quickly.
It can be adjusted within 24 hours at will.
AM refers to morning and PM refers to afternoon.
OFF
FRESH
HIGH/SO TIMER
SET
FILTER
A
HEALTH
RESET LOCK
SLEEP
FAN
TEMP
ON
OFF
SWING
MODE
CLOCK
CODE LIGHT
OFF
1
36
5
4
2
ON OFF ON OFF
AM12:00 AM 12:00
PM12:00 PM 12:00
TIMER ON TIMER OFF TIMER ON-OFF
blank

Unit operation
Protection devices inside the unit will activate to stop unit operation, when ambient
temp. is extremely low or high.
When unit is running under high humidity in cooling or dehumidifying mode, condensate
might appear at outlet grill.
3-min delay protection
Fan speed changes
Cold draft prevention
Use objectively
Defrosting
Unit will not restart until 3 min have elapsed for the protection of the unit.
When Fan speed is set at Auto in cooling mode, it will be automatically reduced as
room temp. is approaching temp. setting.
In heating mode. when room temp. reaches temp. setting, compressor will stop and
fan speed LOW or stop.
In dry mode, fan speed will change automatically.
In heating mode, indoor fan will not run for the first 2-5 min. due to cold draft prevention.
When frost accumulates on heat exchanger in heating mode, unit will start defrosting
automatically.
During defrosting, both indoor and outdoor fan stop.
After defrosting, unit resumes running.
Heat pump works by means of absorbing outside heat to warm room air, so outdoor
temp. degree will affect unit's heating efficiency.
12
Operation hints

13

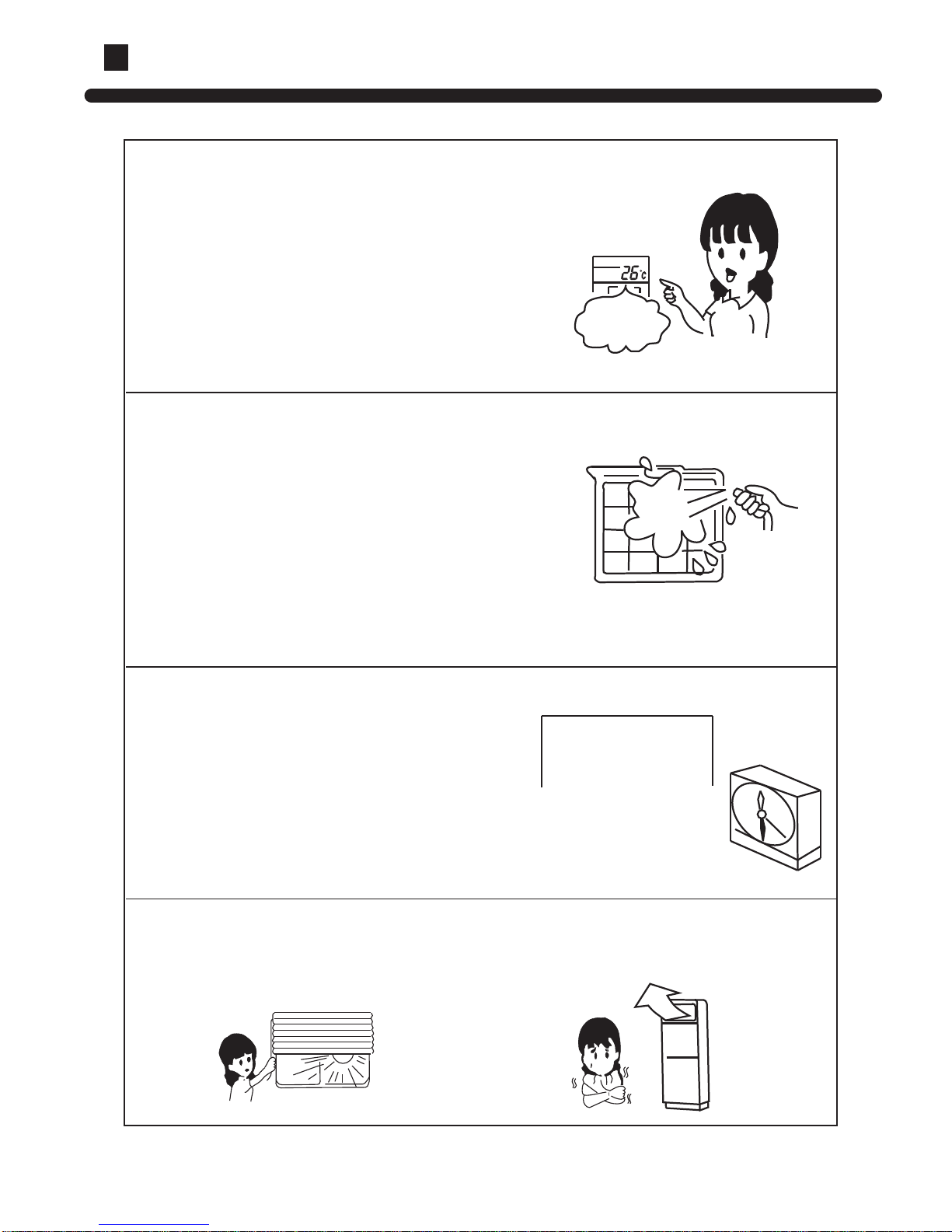

Energy saving
Keep proper room temp.
Too cold or too warm is no good
to your health, and power
consumption will be increased as
well.
Air filter should be periodically cleaned
If air filter is clogged:
It will cause poor cooling and
heating efficiency, higher power
consumption and even problem
may occur. In cooling operation,
water will flow out.
Use Timer effectively
You may use Timer mode to keep
a comfortable room temp.when
you wake up or come home from
outside.
Avoid direct sunlight
and air flow Adjust air flow properly
Proper temp.
8:00 5:00
AM PM
ON OFF

14
Don't spray any paint or insecticide
on the unit.
Don't splash water directly on indoor
unit.
This will cause damage or even fire accident.
This could be
very dangerous

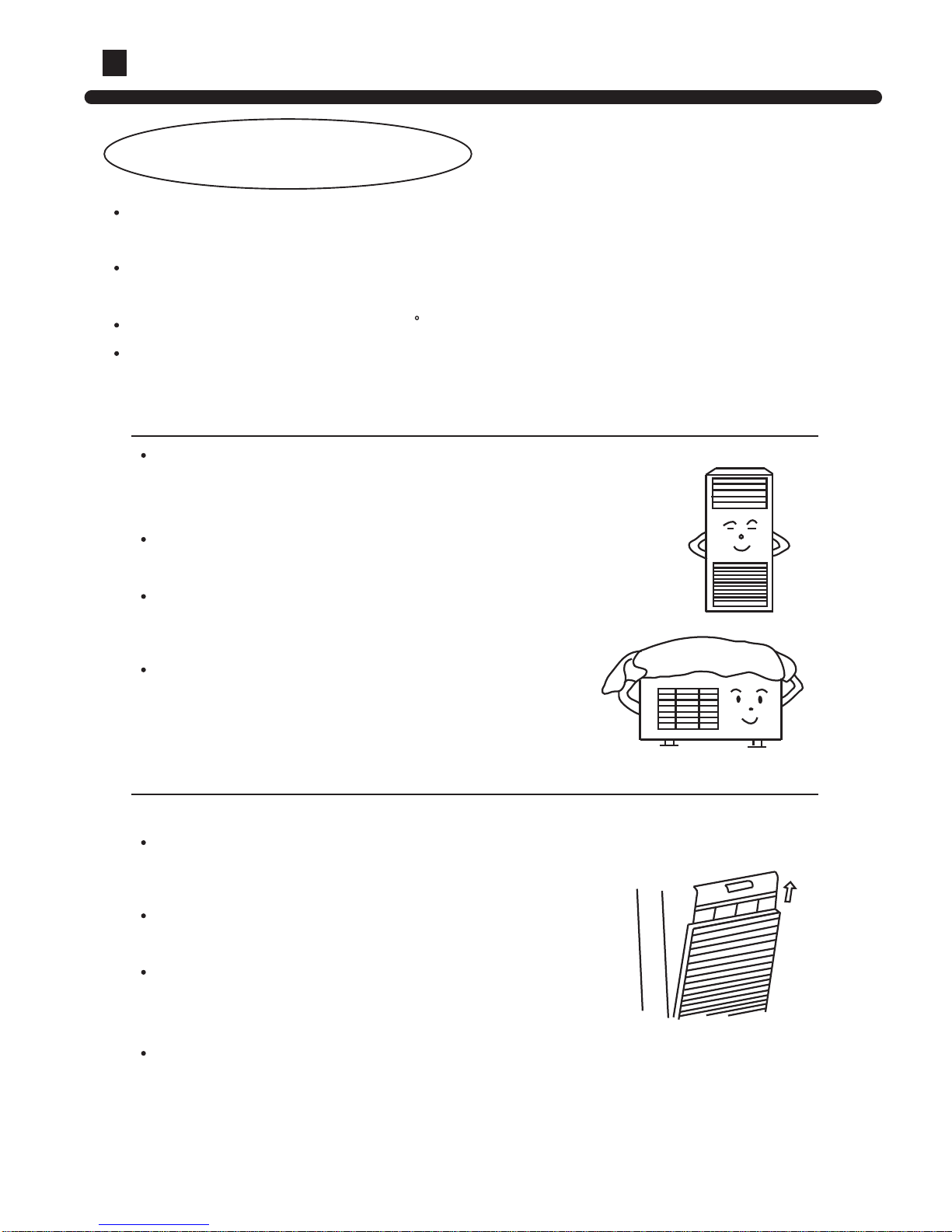

Maintenance
Disconnect power supply Don't touch it with wet
hand Don't wash with hot water or solvent to clean the unit
Don't use hot water over 40 C, as this may cause damage to air filter.
Wipe air filter carefully.
Caution:
Pull it out from top as shown in Fig.
Use water or vacuum cleaner to clean it.
If it is extremely dirty, wash it with neutral
detergent or soap water.
Wash it with clean water and install it after
complete dry.
Air filter cleaning

15
Maintenance
After season maintenance
Before season maintenance
Let the unit run in Fan mode for half a day in a
fine weather to dry completely the unit inside.
Turn off the unit and pull out power plug.
There might be certain power consumption even
if unit is stopped.
Clean air filter and indoor unit, cover outdoor
unit after cleaning.
Check if there are obstacles at inlet and outlet of indoor and outdoor unit,
whick will reduce unit efficiency.
Don't fail to attach air filter after making sure it
is cleaned.
Dust will enter into unit causing damages or
faults if it is running without air filter.
To protect compressor at start, please connect external power supply to
the unit 12 hrs prior to starting. Also please keep the power supply switch
ON during the whole season.
Clean it with warm and wet cloth or with neutral detergent, then wipe it dry with
clean and soft cloth.
If air conditioner is very dirty, clean it with cloth soaked in neutral detergent,then
wipe off the detergent with clean water.
Don't use water higher than 40 C , which will cause discoloring and deformation.
Don't use insecticide or other chemical detergents.
Indoor and outdoor cleaning

16
Trouble shooting
Followings are not problems
Sound of water flowings are not
problems.
Sound of cracking is heard.
Smells are generated.
During operation, white fog or steam
comes out of indoor unit.
In cooling operation, unit switches to fan
operation.
Unit will not restart after stop.
Won't start?
No outlet air or fan speed can't be changed in
dry mode.
In heating operation, water or
steam are blown out of indoor
unit.
In heating operation, indoor fan won't stop even
if unit is stopped.
During unit start and operation or at stop, a swishing or
gurgling noise may be heard. This noise is generated by
refrigerant flowing in the system.
During unit operation, a cracking noise may be heard.
This noise is generated by the casing expanding or
shrinking because of temperatuer changes.
This is because the system circulates smells from the
interior air such as the smell of cigarettes or the painting
on the unit.
When unit is running at places like restaurant where dense
edible oil fumeis always exist, this will happen.
To prevent frost from accumulating on indoor heat
exchanger, unit will switch to fan operation for a while
then resume cooling operation.
Though ON/OFF button is set to
ON, unit won't resume cooling,dry
or heating operation in 3 min after
it is stopped, this is because of 3-
min-delay protection circuit.
Unit will reduce fan speed repeatedly and automatically
if room temp. is too low in dry operation.
This occurs when frost
accumulated on the outdoor unit
is removed.
(during defrosting operation)
After unit stops, indoor fan will go on running until indoor
unit cools down.
Please wait 3 minutes

17
When problems occur?
Before ask for services, please first check your unit against following.
Air conditioner won't start.
Is power supply switch
turned on?
Power supply
switch is not set
at ON.
Are operation controlls
adjusted correctly
as specified?
Are horizontal louvers
at up position (in
heating mode)?
Is there any direct sunlight
in the room?
Poor cooling or heating
Poor cooling
Is city power supply normal?
Is air filter too dirty?
Any doors or windows left
open?
If there are unexpected heat
sources in the room?
Are there any obstacles at inlet
or outlet grill?
Too many people in the room?
Is leakage current breaker
activated?
This is very dangerous, please
disconnect power supply
immediately and contact your
dealer.
If your unit still can't work properly after above mentioned checks, or following problems occur,
please stop it immediately and contact your dealer.
Fuses or circuit breakers often blow out.
Water comes out in cooling/dry operation.
Operation is abnormal or sound is heard.
Proper
temp
Power
failure?
If the fuse on PC board is broken please change it with the type of T3.15A/250VAC.

18
When problems occur?
2. Power supply
Air conditioner must use an exclusive line (over 30A)
When installation air conditioner in a wet place, try to use a circuit breaker against
Current leakage.
For installation in other places, use circuit breaker as far as possible.
Such means for disconnection must be incorporation in the fixed wiring
The breaker of the air conditioner should be all-pole switch ; and the distance between
its two contacts should be no less 3 mm.
The parameter of power cord is over 4.0mm2x3(AP182AZAAA).
1. Errors display
Table of control pan and circuit board inspection displays during errors with the
indoor unit.
Inspection display
E1
E2
E8
E9
Contents of breakdown
The parameter of connect cord is 2.0mm2x3+4.0mm2x2 .
Room temp. sensor abnormal
Indoor coil temp. sensor abnormal
Communication malfunction between indoor and wired controller
Communication malfunction between indoor and outdoor abnormal
2. Power supply
Air conditioner must use an exclusive line (over 30A)
When installation air conditioner in a wet place, try to use a circuit breaker against
Current leakage.
For installation in other places, use circuit breaker as far as possible.
Such means for disconnection must be incorporation in the fixed wiring
The breaker of the air conditioner should be all-pole switch ; and the distance between
its two contacts should be no less 3 mm.
The parameter of power cord is over 2.5mm2x3 (AP242ACBEA),
2.0mm2x5 (AP42NACBEA).
The parameter of connect cord is 2.0mm2x3+0.75mm2x1 .
