ENGLISH

49- 5000533 Rev. 0 3
ENGLISH
TABLE OF CONTENTS
RECORD KEEPING
Thank you for purchasing this Haier product. This user manual
will help you get the best performance from your new air
conditioner.
For future reference, record t he model and serial number
located on the side of the air conditioner, and the date of
purchase.
Staple your proof of purchase to this manual to aid in
obt aining warranty service if needed.
____________________________________________________
Model number
____________________________________________________
Serial number
____________________________________________________
Date of purchase
HAIERWEBSITE
Have a question or need assistance with your appliance? Try the Haier Website 24 hours a day, any day of the year! You
can also shop for more great Haier products and take advantage of all our on-line support services designed for your
convenience. In the US: Haierappliances.com
SAFETY INFORMATION ............................................................................................. 4
CONTROL PANEL ................................................................................................... 6
USING THE AIR CONDITIOER........................................................................................ 7
AIRDIRECTION ..................................................................................................... 8
CARE AND CLEANING ............................................................................................... 9
GRILLE AND CASE .................................................................................................. 9
AIRFILTER.......................................................................................................... 9
OUTDOORCOILS ................................................................................................... 9
REMOTE CONTROL BATTERIES ..................................................................................... 9
INSTALLATION INSTRUCTIONS ....................................................................................10
BEFORE YOU BEGIN ................................................................................................10
ELECTRICAL REQUIREMENTS ......................................................................................10
PARTS INCLUDED..................................................................................................11
WINDOW REQUIREMENTS..........................................................................................12
PREPARE THE AIR CONDITIONER...................................................................................12
INSTALL THE AIRCONDITIONER ...................................................................................13
TROUBLESHOOTING TIPS .........................................................................................15
NORMAL OPERATING SOUNDS.....................................................................................16
LIMITED WARRANTY ...............................................................................................17

449- 5000533 Rev. 0
ENGLISH
READ AND SAVE THESE INSTRUCTIONS
IMPORTANT SAFETY INFORMATION
READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE
WARNING For your safety, the information in thismanual must be followed to minimize the risk of fire, electric
shock or personal injury.
• Use this appliance only for its intended purpose as
described in this Owner’s Manual.
• This air conditioner must be properly installed in
accordance with t he Installation Instruct ions before it is
used.
• Never unplug your air conditioner by pulling on the power
cord. Always grip plug firmly and pull straight out from the
receptacle.
• Replace immediately all electric service cords that have
become frayed or otherwise damaged. A damaged power
supply cord must be replaced with a new power supply cord
obt ained from the manufacturer and not repaired. Do not
use a cord that shows cracks or abrasion damage along its
length or at either the plug or connector end.
• Turn the unit OFF and unplug your air conditioner before
cleaning.
• For your safety…do not store or use combustible materials,
gasoline or other flammable vapors or liquids in the vicinity
of this or any other appliance.
• If the receptacle does not match the plug, the receptacle
must be changed out by a qualified electrician.
• Do not use means to accelerate the defrosting process
or to clean, ot her than those recommended by the
manufacturer.
• The appliance shall be stored in a room without
continuously operating ignition sources (for example: open
flames, an operating gas appliance or an operating electric
heater.
• Do not pierce or burn refrigerant tubing. Be aware that
refrigerants may not contain an odor.
• Keep vent ilation openings clear of obstruction.
• When handling, installing, and operating the appliance, care
should be taken to avoid damage to the refrigerant tubing.
• Do not drill holes in the unit.
• Maintenance, cleaning, and service should only be
performed by t echnicians properly trained and qualified in
the use of flammable refrigerants.
• GEAppliances does not support any servicing of the air
conditioner.
• Dispose of air condit ioner in accordance with Federal and
Local Regulations. Flammable refrigerants require special
disposal procedures. Contact your local authorities for t he
environmentally safe disposal of your air conditioner.
WARNING
Risk of Fire or Explosion. This unit contains flammable refrigerant.
Additional safety precautions must be followed.
SAFETY INFORMATION

49- 5000533 Rev. 0 5
ENGLISH
READ AND SAVE THESE INSTRUCTIONS
WARNING
Chemical Burn Hazard. Keep batteries away from children.
• This product contains a battery. If a new or used battery
is swallowed or enters the body, it can cause severe
internal burns and can lead to death in as little as 2 hours.
Always completely secure the battery compart ment. If
the battery compartment does not close securely, stop
using the product, remove the batteries, and keep it away
from children.
• If you t hink batteries might have been swallowed or placed
inside any part of the body, seek immediate medical
attention.
• The cells shall be disposed of properly, including keeping
them away from children.
• Even used cells may cause injury.
IMPORTANT SAFETY INFORMATION
READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE
WARNING USE OF EXTENSION CORDS
RISK OF FIRE. Could cause serious injury or death.
• DO NOT use an extension cord with this Window Air
Conditioner.
• DO NOT use surge protectors or multi-outlet adaptors
with this Window Air Conditioner.
HOW TO CONNECT ELECTRICITY
Do not, under any circumstances, cut or remove the third
(ground) prong from the power cord. For personal safety,
this appliance must be properly grounded.
DO NOT use an adapter plug with this appliance.
The power cord of this appliance is equipped with a 3-prong
(grounding) plug which mates with a standard 3-prong
(grounding) wall outlet to minimize the possibility of elect ric
shock hazard from this appliance.
Power cord includes a current interrupter device. A test
and reset button is provided on the plug case. The device
should be tested on a periodic basis by first pressing t he
TESTåø÷÷òñäñç÷ëèñ÷ëèRESETåø÷÷òñúëìïèóïøêêèçinto the outlet. If the TESTåø÷÷òñçòèöñò÷÷õìóòõìé÷ëèRESETåø÷÷òñúìïïñò÷ö÷äüèñêäêèççìöæòñ÷ìñøèøöèòé÷ëèäìõconditioner and contact a qualified service technician.
Have the wall outlet and circuit checked by a qualified
electrician to make sure the out let is properly grounded.
Where a 2-prong wall outlet is encountered, it is your
personal responsibility and obligation to have it replaced
with a properly grounded 3-prong wall outlet.
The air conditioner should always be plugged into its own
individual electrical outlet which has a voltage rating that
matches t he rating plate.
This provides the best performance and also prevents
overloading house wiring circuits which could cause a fire
hazard from overheated wires.
See the Installation Instructions, Electrical Requirements
section for specific electrical connection requirements.
SAFETY INFORMATION

649- 5000533 Rev. 0
ENGLISH
Controls
1. Power Pad
Turns air conditioner on and off. When turned on, the
display will show the SET temperature.
2. Display
Shows the Set temperature or time remaining on the
Delay timer. Shows t he Set temperature while setting the
temperature in Cool or ECO modes.
3. Temp and Delay Increase ^ / Decrease vPads
Use to set temperature or delay time. Temperature can be
set in Cool and ECO mode.
4. Mode Pad
Use to set the air conditioner to Fan Only, Cool, or ECO
mode.
5. Fan Speed Pad
In Cool or ECO mode:
Use to set the fan speed to Auto, High, Med or Low on the
unit .
In Fan Only mode:
Use to set the fan speed to High, Med, or Low
on the unit.
6. Delay Pad
Delay ON—When the air conditioner is off, it can be set
to automatically come on in 1 to 24 hours at its previous
mode and fan settings.
Delay OFF—When the air conditioner is on,
it can be set to automatically turn off in 1 to
24 hours.
How to set:
Press the Delay 1–24hr pad on the unit or the remote
control. Each touch of the Increase ^ / Decrease v pads on
the unit or the remot e control will set the timer in 1-hour
intervals.
To review the remaining time on the Delay 1–24hr timer,
press the Delay 1–24hr pad on the unit or the remot e
control. Use the Increase ^/ Decrease v pads on the unit
or on the remote control to set a new time if desired.
To cancel the timer, press Decrease v pad on the unit
or t he remote control until the set time is zero. After 3
seconds the light on the Delay 1-24 hour pad goes off.
7. Filter Reset Pad
This feature automatically notifies you that the air filter
must be cleaned. The indicator light will come on after 250
hours of operation. Clean the air filter (refer to page 6),
place it back in the front panel, and press the Filter Reset
pad. The light will go off.
Features and appearance will vary.
Lights below the touch pads on the air conditioner control panel indicate the selected settings.
On
Eco
Fan
Cool
Low
Mid
High
Auto
Fan
Filter
Reset
Mode Delay
Temp/Time
Air Conditioner Controls Remote Control
2
6
3
4
5
7
1
CONTROL PANEL
Power
Speed
Mode
Eco Delay
1
4
5
6
3

49- 5000533 Rev. 0 7
ENGLISH
Remote Control
• To ensure proper operation, aim the remote control at the
signal receiver on the air conditioner.
• The remote control signal has a range of up to 20 feet.
• Make sure nothing is between the air conditioner and the
remote control that could block the signal.
• Make sure batteries are fresh and installed correctly as
indicated on the remote control.
Do Not Operate in Freezing Outdoor Conditions
This cool-only air conditioner was not designed for freezing
outdoor conditions. It must not be used when the outdoor
temperature is below freezing (32°F).
Cool Mode
Use the Cool mode at Low, Med, High or Speed for cooling.
Use the Temperature Increase ^ / Decrease v pads to
set the desired t emperature bet ween 64°F and 86°F in 1°F
increments.
An electronic t hermostat is used to maintain the room
temperature. The compressor will cycle on and off to keep
the room at the set level of comfort. Set the thermostat at a
lower number and the indoor air will become cooler. Set the
thermostat at a higher number and the indoor air will become
warmer.
NOTE:Òé÷ëèäìõæòñçì÷ìòñèõìöòééäñçìö÷ëèñ÷øõñèçòñwhile set to a Cool setting or if turned from a fan setting to
aCool setting, it may take approximately 3 minutes for the
compressor to start and cooling to begin.
Cooling Descriptions
For Normal Cooling—Select the Cool mode and
High or Med fan with a middle set temperature.
For Maximum Cooling—Select the Cool mode
and High fan with a lower set temperature.
For Quieter and Nighttime Cooling—Select the
Cool mode and Low fan wit h a middle set temperature.
ECO Mode
Controls the fan.
ON—The fan will cycle on and off with the compressor. This
may result in wider variations of room temperature and
humidity. NOTE: the fan may continue to run for a short time
or may pulse intermittently after the compressor cycles off to
sample the room air.
OFF—The fan runs all the t ime, while the compressor cycles
on and off.
Fan Only Mode
Use the Fan Only Mode at Low, Med or High fan speed to
provide air circulation and filtering without cooling. Since
fan-only settings do not provide cooling, a Set temperature
cannot be entered. The room temperature will appear in the
display.
USING THEAIRCONDITIONER

849- 5000533 Rev. 0
ENGLISH
Auto Fan Mode
Set to Auto for the fan speed to automatically set to the
speed needed to provide optimum comfort sett ings with the
set temperature.
If the room needs more cooling, the fan speed will
automatically increase. If the room needs less cooling, the fan
speed will automatically decrease.

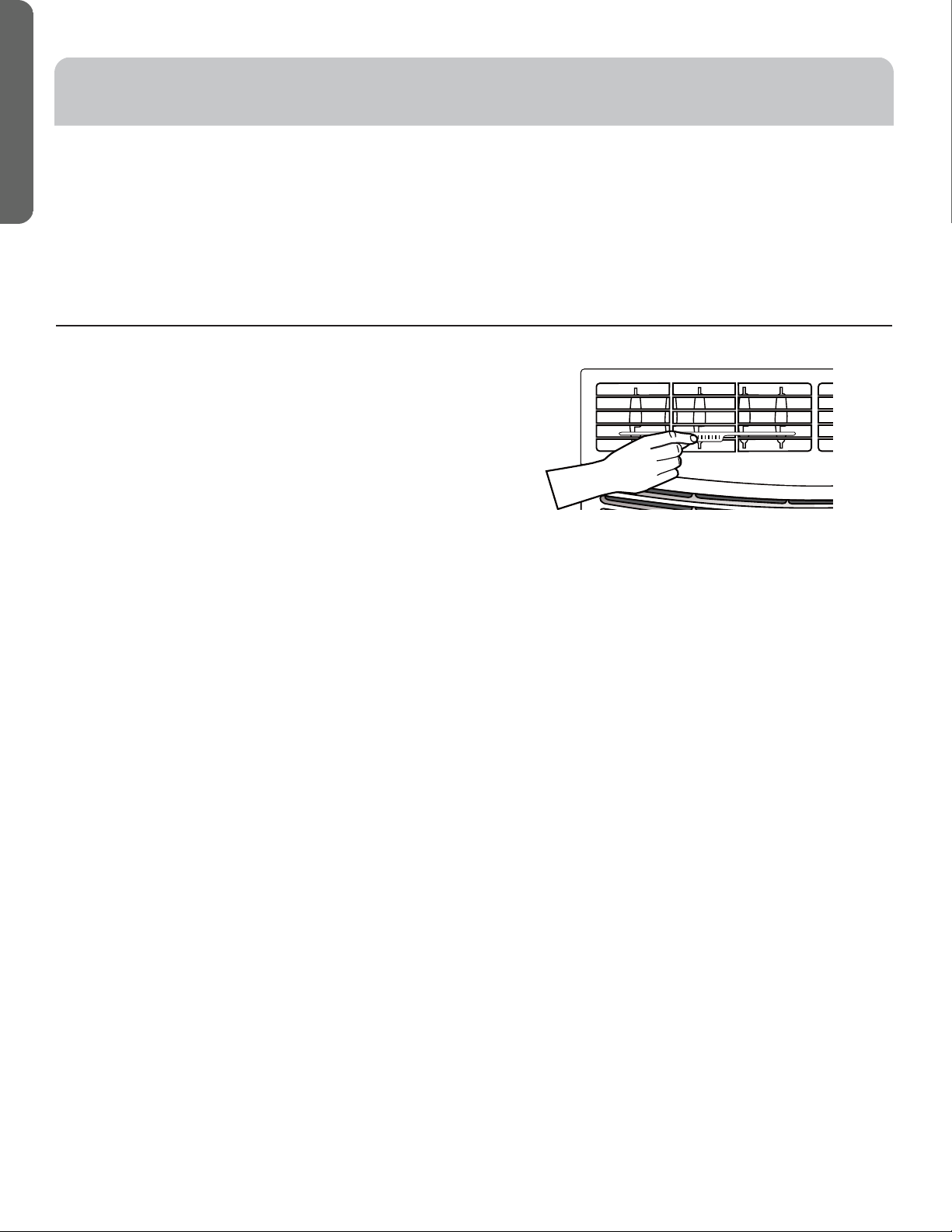

Air Direction
Use the lever to adjust the air direction left to right.
USING THEAIRCONDITIOER

49- 5000533 Rev. 0 9
ENGLISH

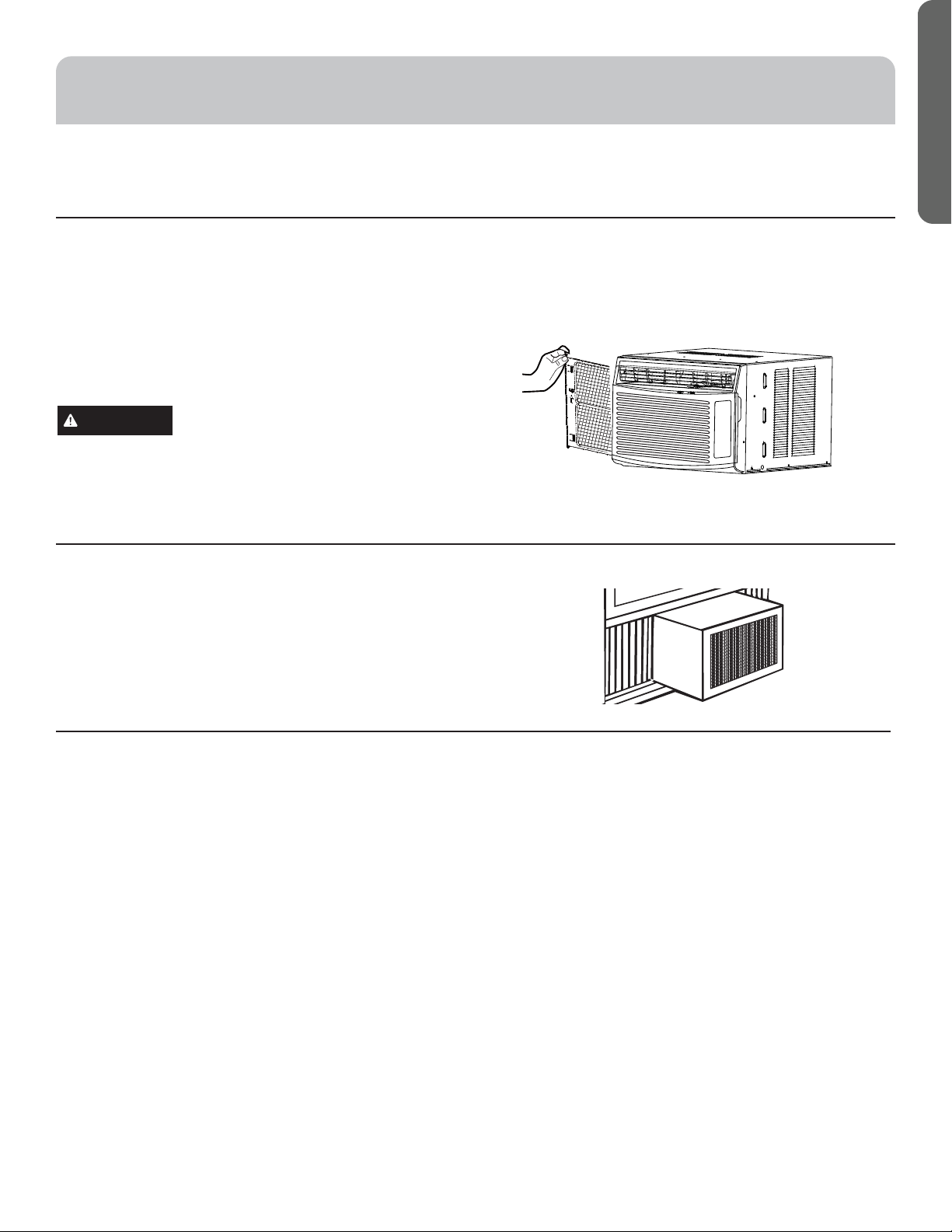

Air Filter
The air filter behind the front grille should be checked and
cleaned at least every 30 days or more often if necessary.
To remove:
Slide the filter from the left side of the unit. Remove the filter.
Clean t he filter with warm, soapy water. Rinse and let the filter
dry before replacing it. Do not clean t he filter in a dishwasher.
CAUTION
ÍØ×ØÝòóèõä÷è÷ëèäìõæòñçì÷ìòñèõwithout a filter because dirt and lint will clog it and reduce
performance.
Outdoor Coils
The coils on the outdoor side of the air conditioner should be
checked regularly. If they are clogged with dirt or soot, they
may be professionally cleaned.
CAREAND CLEANING
How to Insert the Batteries in the Remote Control
1. Remove the battery cover by sliding it according to the
arrow direction.
2. Insert new batteries, making sure that the (+) and (–) of
battery are installed correctly.
3. Reattach the cover by sliding it back into position.
NOTES:
• Use 2 “AAA” (1.5 volt) batteries. Do not use rechargeable
batteries.
• Remove the batteries from the remote control if the
system is not going to be used for a long time.
• Do not mix old and new batteries. Do not mix standard
(carbon-zinc) or rechargeable (ni-cad, ni-mh, etc) batteries.
Grille and Case
Turn the air conditioner off and remove the plug from the wall
outlet before cleaning.
To clean, use water and a mild detergent. Do not use bleach
or abrasives.

10 49- 5000533 Rev. 0
ENGLISH
BEFORE YOU BEGIN
Read these instructions completely and carefully.
•IMPORTANT –Save these instructions
for local inspector’s use.
•IMPORTANT –Observe all governing
codes and ordinances.
• Note to Installer – Be sure to leave these instructions
with the Consumer.
• Note to Consumer – Keep these instructions for
future reference.
• Skill level – Installat ion of this appliance requires
basic mechanical skills.
• Completion time – Approximately 1 hour
• We recommend that two people install
this product.
• Proper installation is the responsibility
of the installer.
• Product failure due to improper installation is not
covered under the Warranty.
• You MUST use all supplied parts and use proper
installation procedures as described in these
instruct ions when installing this air condit ioner.
Questions? Visit our Website at: haierappliances.com
ELECTRICAL REQUIREMENTS
These models require a 115/ 120-volt AC, 60-Hz
grounded outlet protected with a 15- amp
time- delay fuse or circuit breaker.
The 3-prong grounding plug minimizes the possibility of
electric shock hazard. If the wall outlet you plan to use is
only a 2-prong outlet, it is your responsibility to have it
replaced with a properly grounded 3-prong wall outlet.
CAUTION
Do not, under any circumstances, cut or remove the third
(ground) prong from the power cord.
Do not change the plug on the power cord of this air
conditioner.
Aluminum house wiring may present special problems—
consult a qualified electrician.
Power cord includes a current interrupter device. A test
and reset but ton is provided on the plug case. The device
should be tested on a periodic basis by first pressing the
TESTåø÷÷òñäñç÷ëèñ÷ëèRESETåø÷÷òñúëìïèóïøêêèçinto the outlet. If the TESTåø÷÷òñçòèöñò÷÷õìóòõìéthe RESETåø÷÷òñúìïïñò÷ö÷äüèñêäêèççìöæòñ÷ìñøèuse of the air conditioner and contact a qualified service
technician.
TOOLS YOU WILL NEED
Phillips head screwdriver
Ruler or tape measurePencil
Level Scissors or knife
Drill and 1/ 8” drill bit
INSTALLATION INSTRUCTIONS

49- 5000533 Rev. 0 11
ENGLISH
Temp / Delay Hrs
-
Side Curtain
Frame
Type B (9)
Foam top window gasket
Side Curtain
(2)
Top mounting rail
Air
condit ioner
Window locking
bracket (1)
Side Bracket s
(2)
ÙÊÛÝÜÒ×ÌÕÞÍÎÍ(Appearance may vary)
Remote
Control
Left Right
Type A (3)
INSTALLATION INSTRUCTIONS
Power
Speed
Mode
Eco Delay

12 49- 5000533 Rev. 0
ENGLISH

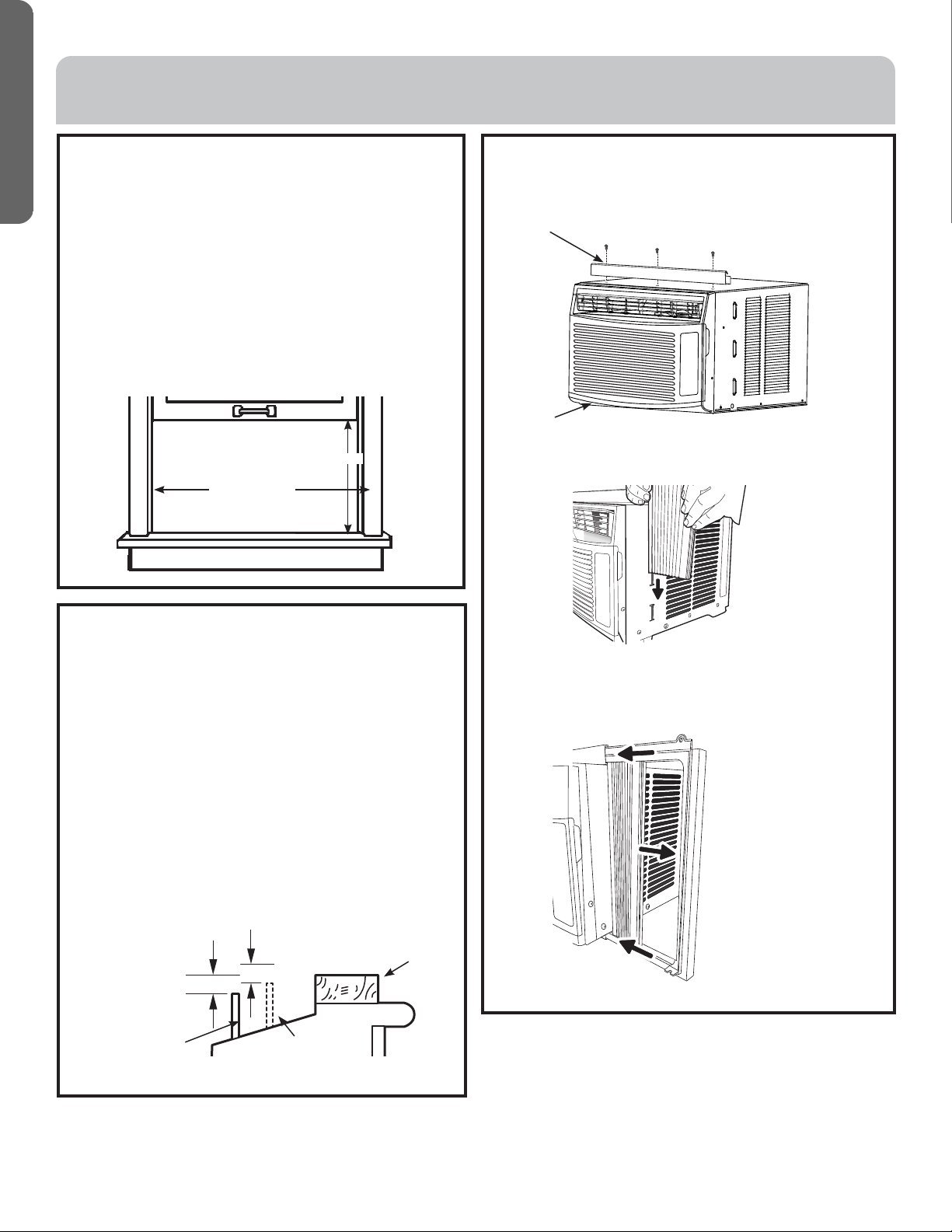

#ÙÛÎÙÊÛÎÝÑÎÊÒÛÌØ×ÍÒÝÒØ×ÎÛA. Install the top mounting rail with Type A screws from
the outside of the case.
B. Slide the side curtain panels into t he side panel rails.
C. Slide left and right side curtain frames into top and
bot tom rails. Make sure that side curtains snap into
side of the frames.
!àÒ×ÍØàÛÎÚÞÒÛÎÖÎ×ÝÜ• These inst ruct ions are for a st andard double- hung
window. You will need to modify them for other
types of windows.
• The air conditioner can be installed without the
side curtain panels if needed to fit in a narrow
window. See the window opening dimensions.
• All supporting part s must be secured to firm wood,
masonry or metal.
• The electrical outlet must be within reach of the
power cord.
• Follow the dimensions in the table and illustration
for your model.
2. ÜÝØÛÖàÒ×ÍØàÛÎÚÞÒÛÎÖÎ×ÝÜA storm window frame will not allow t he air
conditioner to tilt toward the outside, and will keep
it from draining properly. To adjust for this, attach a
piece of wood t o the sill.
àØØÍÙÒÎÌÎÜWIDTH: 2ėLENGTH: Long enough to fit inside the window
frame.
THICKNESS: To determine the thickness, place
äóìèæèòéúòòçòñ÷ëèöìïï÷òðäîèì÷!¦"ėëìêëèõthan the top of the storm window frame or the vinyl
frame.
Attach securely with nails or screws provided by the
installer.
(With side curtain panels)
21-7/ 8” - 36”
13-3/ 8”
!¦"ėëìêëèõ
than storm
window
frame
Storm window frame
Wood
Sill
!¦"ėëìêëèõ
than vinyl frame
(on some windows)
Vinyl frame
Top Mounting rail
Bottom mounting rail
CLICK
INSTALLATION INSTRUCTIONS

49- 5000533 Rev. 0 13
ENGLISH
%ÜÎÌÞÛÎÊÒÛÌØ×ÍÒÝÒØ×ÎÛA. Loosen t he screw on the right hand side of the air
conditioner near the bottom.
B. Slide a side bracket over the screw so that the
bracket is resting on the window sill. Tighten the
screw.
C. Use a 1/ 8” drill bit to drill a starter hole into t he
window sill through the holes in the side bracket.
Use 4 type B screws to attach the side bracket to the
window sill.
D. Repeat the side bracket installation on the left side.
Side curtain foam
Weather seals
$Ò×ÜÝÊÕÕÝÑÎÊÒÛÌØ×ÍÒÝÒØ×ÎÛÒ×THE WINDOW
A. Mark the center of the window. Set the air
conditioner in the window so that is it centered.
Place the air conditioner so that front edge of the
bot tom mounting rail is against the back edge of the
sill.
B. Bring the window down so that the front edge of the
top mounting is in front of the window. Make sure
that the air conditioner is level or tilting slightly to
the outside.
C. Extend the curtain panels unt il they fill the window.
Mark the location of the holes in each corner. Use
the drill and 1/ 8” drill bit to drill pilot holes. Use 4
type B screws to secure the side panels in place.
Type B screws
INSTALLATION INSTRUCTIONS

14 49- 5000533 Rev. 0
ENGLISH

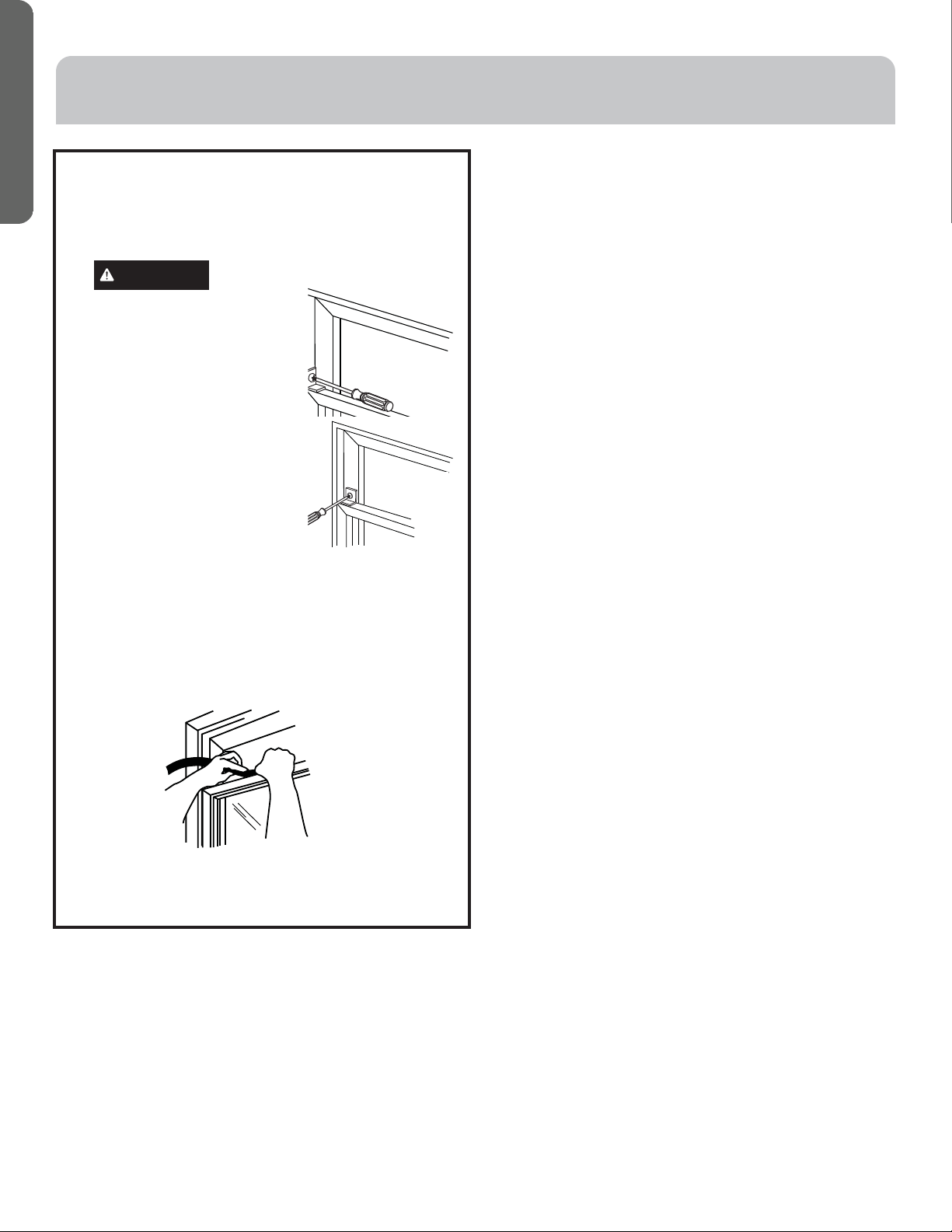

6. INSTALL WINDOW LOCK BRACKET
AND FOAM TOP WINDOW GASKET
Use Type B Screw t o install the window lock bracket
on top of the bottom window.
A. CAUTION
To prevent broken glass or
damage to windows, on vinyl
or other similarly constructed
windows, attach the window
locking bracket t o the window
side jamb with one Type B
screw.
B. Cut the foam top window gasket to the window
widt h.
C. Stuff the foam between the glass and the window to
prevent air and insects from getting into the room.
NOTE:
If the
gasket supplied does not fit your window, obtain
appropriate material locally to provide a proper
installation seal.
Wood
Vinyl
INSTALLATION INSTRUCTIONS

49- 5000533 Rev. 0 15
ENGLISH
Save time and money! Review the charts on the following pages first and you may not need t o call for service.
Problem Possible Cause What To Do
Air conditionerdoes not
start.
The unit is unplugged. Make sure the air conditioner plug is pushed completely into
the outlet.
The fuse is blown/ circuit breaker is
tripped.
Check the house fuse/ circuit breaker box and replace the fuse
or reset the breaker.
Power Failure. The unit will automatically restart in the setting last used after
the power is restored.
There is a prot ective time delay (approximately 3 minut es) to
prevent t ripping of the compressor overload. For this reason,
the unit may not start normal cooling for 3 minutes after it is
turned back on.
The current interrupter device is
tripped.
Press RESET butt on located on the power cord plug.
If the RESET butt on will not stay engaged, discontinue use of
the air conditioner and contact a qualified service technician.
Air conditioner does not
cool as it should.
Indoor airflow is restricted. Make sure there are not curtains, blinds or furniture blocking
the front of the air conditioner.
The temp control may not be set
properly.
Turn the temperature control t o a higher number.
The air filter is dirty. Clean the filter at least every 30 days. See Care and Cleaning
section.
The room may have been hot. When the air conditioner is first turned on, you need to allow
time for the room to cool down.
Cold air is escaping. Check for open furnace registers and cold air returns.
Cooling coils have iced up. See “Air conditioner freezing up” below.
Air conditioner freezing up Ice blocks the air flow and stops
the air conditioner from cooling the
room.
Set the mode cont rol to High Fan or High Cool with the
temperature setting as high as it can be set.
Water drips outside Hot, humid weather. This is normal.
Water drips inside The air conditioner is not tilted to
the outside.
For proper disposal, make sure the air conditioner slants
slightly from the case front to the rear.
Water collects in base pan Moisture removed from air and drain
into base pan.
This is normal for a short period in areas with little humidity;
normal for a longer period in very humid areas.
TROUBLESHOOTING

16 49- 5000533 Rev. 0
ENGLISH
• You may hear a pinging noise caused by water being picked up and thrown against the condenser on rainy days or when the
humidity is high. This design feature helps remove moisture and improve efficiency.
• You may hear the thermostat click when the compressor cycles on and off.
• Water will collect in the base pan duringhigh humidity or on rainy days. The water may overflow and drip from the outdoor
sideof the unit.
• The fan may run even when the compressor does not.
• Water droplets being thrown against the outside coils can make a pinging noise. This helps cool t he condenser. You can
reduce this noise by removing t he subbase water plug.
To ensure maximum efficiency it is recommended to check to ensure the rubber drain plug is properly inserted. This plug
may be removed during operation to minimize water in the back of the unit; however, removing it will lower the efficiency
of your unit.
NOTE: Do not drill hole in the base pan.
Subbase Water Plug
NORMAL OPERATING SOUNDS

49- 5000533 Rev. 0 17
ENGLISH
Staple your receipt here. Proof of the original
purchase date is needed to make awarranty claim.
EXCLUSION OF IMPLIED WARRANTIES - Your sole and exclusive remedy is product repair as provided in this
Limited Warranty. Any implied warranties, including the implied warrantiesof merchantability or fitnessfor a
particular purpose, are limited to one year or the shortest period allowed by law.
For US Customers: This limited warranty is extended to the original purchaser and any succeeding owner for
products purchased for home use within t he USA. If t he product is located in an area where service by a GEAppliances
Authorized Servicer is not available, you may be responsible for a trip charge or you may be required to bring the
product to an Authorized GEAppliances Service location for service. In Alaska, the limited warranty excludes the cost
of shipping or service calls to your home.
Some states do not allow the exclusion or limitation of incidental or consequential damages. This limited warranty
gives you specific legal rights, and you may also have other rights which vary from state to state. To know what your
legal rights are, consult your local or state consumer affairs office or your state’s Attorney General.
Warrantor US:
GEAppliances, a Haier company
Louisville, KY 40225
• Customer instruction. Thisowner’s manual provides
information regarding operating instructionsand user
controls.
• Improper installation. If you have an installation problem,
or if the air conditioner isof improper capacity, contact
your dealer or installer. You are responsible for providing
adequate electrical connecting facilities.
• Failure of the product resulting from modificationsto the
product or due to unreasonable use includingfailure to
provide reasonable and necessary maintenance.
• Replacement of house fuses or resetting of circuit breakers.
• Failure due to corrosionon modelsnot corrosion-protected.
• Damage to the product caused by improper power supply
voltage, accident, fire, floodsor actsof God.
• Incidental or consequential damage caused by possible
defectswith thisair conditioner.
• Damage caused after delivery.
What Will Not Cover:
For The Period Of: Will Replace:
One Year
From the date of the
original purchase
Replacement, repair, or refund of the original retail price for any product which fails due
to a defect in materials or workmanship. If the unit is exchanged, the replacement unit
is warranted for the remainder of your product’s original one-year warranty period. GE
will, at its sole discretion, replace the product with a product of the same or comparable
functionality and quality or refund the original retail price.
•Properly pack your unit. We recommend using the original
carton and packing materials.
• Return the product to the retail location where it was
purchased.
•Include in the package a copy of the salesreceipt or other
evidence of date of original purchase. Also print your name
and addressand a description of the defect.
In Order to Make a Warranty Claim During Your Retailer’s Allowable Return Period:
• Locate your original sales receipt and make anote of your
model and serial number.
• Visit haierappliances.com/ support/ schedule-service to
initiate the product replacement process.
• You will be asked t o provide your name, address, date of
purchase, model and serial number.
• GEAppliances will arrange for a carton to be sent to your home
to recover the product.
•Please return all requested materials (postage pre- paid) in the
carton provided. Please include a description of the defect.
• You should receive your replacement product or refund within
7 to 10 business days after your package is received.
In Order to Make a Warranty Claim During the Remainder of the One-Year Warranty:
HAIERLIMITED WARRANTY

18 49- 5000533 Rev. 0
ENGLISH
NOTES

49-5000533 Rev. 0 19
ESPAÑOL
ÍNDICE
SITIO WEB DE HAIER
¿Desea realizar una consult a o necesita ayuda con su electrodoméstico? ¡Intente a través del Sitio Web de Haier las 24 horas del día,
cualquier día del año! Usted también puede comprar más electrodomésticos maravillosos de Haier y aprovechar todos nuestros servicios
de soporte a t ravés de Internet , diseñados para su conveniencia. En EE.UU.: Haierappliances.com
INFORMACIÓN A TENEREN CUENTA
Le agradecemos la compra de este producto de marca Haier. Este
manual del propietario le ayudará alograr el mejor rendimiento de su
nuevo acondicionador de aire.
Para referencia fut ura, regist re el modelo y número de serie ubicados
al costado de su acondicionador de aire, y la fecha de compra.
Engrape la prueba de compra a este manual para asistirle cuando
necesite obtener servicio bajo lagarantía.
__________________________________________________________
Número de modelo
__________________________________________________________
Número de serie
__________________________________________________________
Fecha de compra
INFORMACIÓN DESEGURIDAD ........................................................................................20
CONTROL DE TEMPERATURA ..........................................................................................22
USO DEL ACONDICIONADORDEAIRE..................................................................................23
DIRECCIÓN DEL AIRE ..................................................................................................24
CUIDADO Y LIMPIEZA ..................................................................................................25
PARRILLA Y CAJA ......................................................................................................25
FILTRO DE AIRE ........................................................................................................25
BOBINAS EXTERNAS ...................................................................................................25
CÓMO INSERTARLA BATERÍA EN EL CONTROL REMOTO...............................................................25
INSTRUCCIONES DE INSTALACIÓN ....................................................................................26
ANTES DE COMENZAR .................................................................................................26
REQUISITOS ELÉCTRICOS .............................................................................................26
PIEZAS INCLUIDAS .....................................................................................................27
REQUISITOS DE LA VENTANA ..........................................................................................28
PREPARACIÓN DEL ACONDICIONADORDEAIRE .......................................................................28
INSTALACIÓN DEL ACONDICIONADORDE AIRE........................................................................29
CONSEJOS PARA LA SOLUCIÓN
DEPROBLEMAS ........................................................................................................31
SONIDOS DE FUNCIONAMIENTO NORMAL .............................................................................32
GARANTÍA LIMITADA...................................................................................................33

20 49-5000533 Rev. 0
ESPAÑOL
LEA Y GUARDE ESTAS INSTRUCCIONES
INFORMACIÓN IMPORTANTE DE SEGURIDAD
LEA TODAS LAS INSTRUCCIONES ANTES DE USAR
Para su seguridad, siga lasinstrucciones de este manual a fin de minimizar riesgos de incendio, descargas
eléctricas o heridas personales.
• Use este electrodoméstico sólo para su propósit o original, como
se describe en el Manual del Propietario.
• Este acondicionador de aire se debe instalar de forma apropiada de
acuerdo con las Instrucciones de Instalación antes de ser usado.
• Nunca desenchufe su acondicionador de aire empujando el cable
de corrient e. Siempre tome su enchufe de manera firme y empuje
el mismo hacia afuera del recept áculo.
• Reemplace de inmediato todos los cables del servicio de
electricidad pelados o con cualquier tipo de daño. Un cable del
servicio de corrient e que esté dañado deberá ser reemplazado por
uno nuevo provisto por el fabricante, y no deberá ser reparado. No
use un cable con cortaduras o abrasión sobre su ext ensión o en
cualquiera de sus enchufes o extremos.
• Coloque la unidad en OFF (Apagado) y desenchufe el
acondicionador de aire antes de usar el mismo.
• Para su seguridad... no acumule ni use materiales combustibles,
gasolina u otros vapores o líquidos inflamables cerca de éste u otro
electrodoméstico.
• Si el receptáculo no coincide con el enchufe, el cambio del mismo
deberá ser realizado por un electricista calificado.
ADVERTENCIA
• A fin de acelerar el proceso de descongelación o para
limpiar, no use ningún método que no sea el recomendado
por el fabricante.
• Este electrodoméstico deberá ser guardado en una sala
donde no haya fuentes de encendido continuas (por
ejemplo: llamas abiertas, un electrodoméstico que funcione
a gas o un calefactor que funcione a electricidad).
• No perfore ni queme el tubo refrigerante. Tenga presente
que los refrigerantes no deben tener olor.
• Mantenga las aberturas de la vent ilación libres de
obstrucciones.
• Al mover, instalar y operar el electrodoméstico, se deberá
tener cuidado para evit ar dañar la tubería del refrigerante.
• No realice perforaciones en la unidad.
• El mantenimiento, la limpieza y el servicio técnico sólo
deberán ser realizados por técnicos adecuadamente
entrenados y calificados en el uso de refrigerantes
inflamables.
• GEAppliances no suministra servicio técnico para el
acondicionador de aire.
• Descart e el electrodoméstico de acuerdo con las
Regulaciones Federales y Locales. Los refrigerantes
inflamables requieren procedimientos de descarte
específicos. A fin de descart ar su acondicionador de aire
de forma ambientalmente segura, comuníquese con las
autoridades locales.
Riesgo de Incendio o Explosión. Esta unidad contiene refrigerante inflamable.
Se deben seguir las precauciones adicionales de seguridad.
ADVERTENCIA
SEGURIDAD DEL ACONDICIONADORDEAIRE
