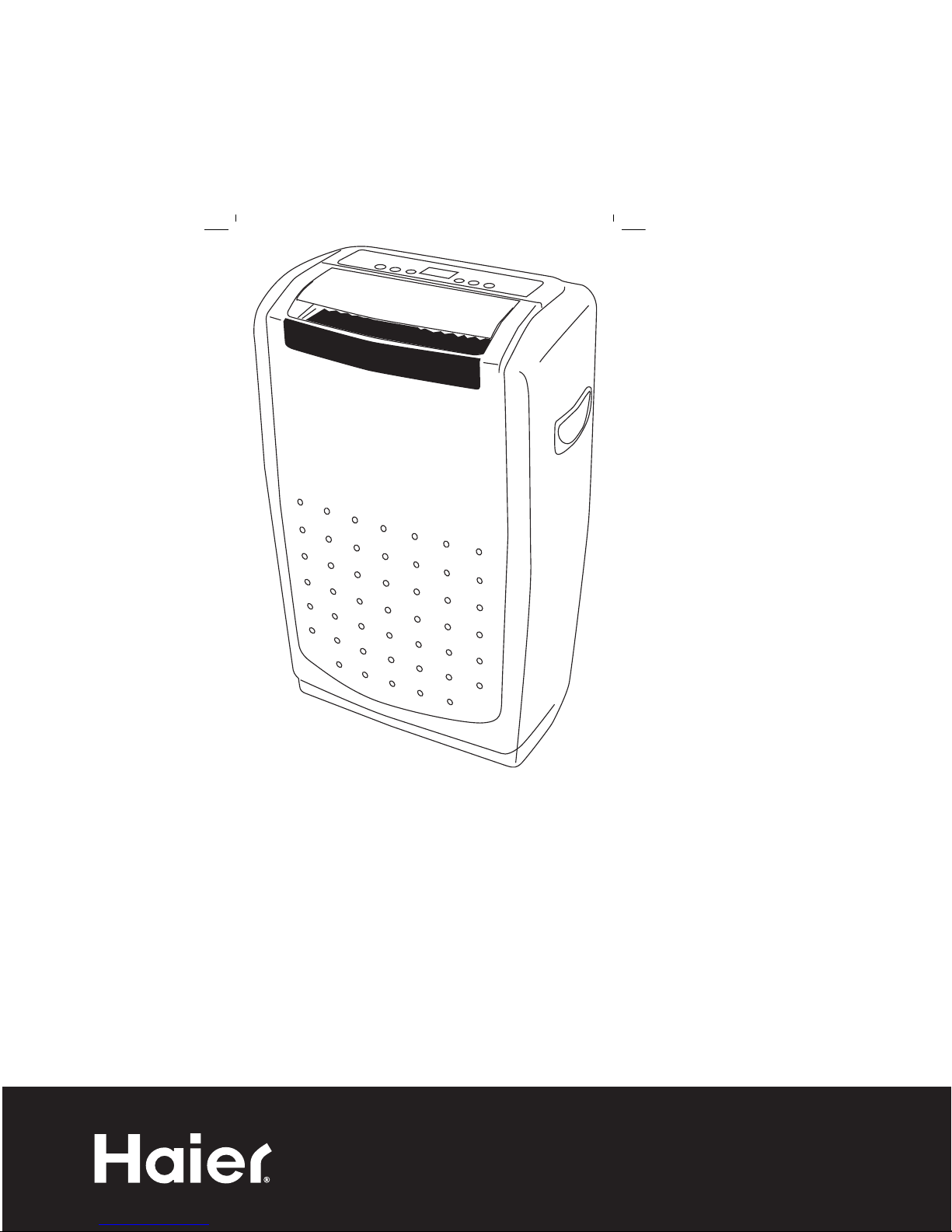

Haier HPRD12XC7 - 12000 BTU Portable AC User manual

PORTABLE AIR CONDITIONER
CLIMATISEUR PORTATIF
ACONDICIONADOR DE AIRE PORTATIL
Before operating this air conditioner, please read these instructions completely.
Quality ■Innovation ■Style
User Manual
Model # HPRD12XC7, HPRD12XH7
Guide de l’Utilisateur
Modéle # HPRD12XC7, HPRD12XH7
Manual del Usuario
Para Modelo de # HPRD12XC7, HPRD12XH7

1
English
A Word From Haier
Thank you for buying a dependable, energy-saving and easy-to-operate HAIER air conditioner.
This manual contains useful information for you to maintain, operate, install and safely use your air
conditioner. Your air conditioner cleans, cools and dehumidifies the air in your room to provide you
with the ultimate level of comfort.
Please read instructions carefully before using the product. Also, do not forget to fill out and mail the
Product Registration Card.
Product Registration
Record Your Model and Serial Number.
Attach the sales receipt to this guide and keep for future reference. Model and serial number can be
obtained from the serial label, which is on your air conditioner. For all your service calls during the
warranty period the following information will be needed:
Model Number:..............................................................................................................
Serial Number:...............................................................................................................
Date of Purchase:............................................................................................................
Dealer’s Name: ..............................................................................................................
Dealer’s Address:............................................................................................................
Dealer’s Phone Number:..................................................................................................
T A B L E

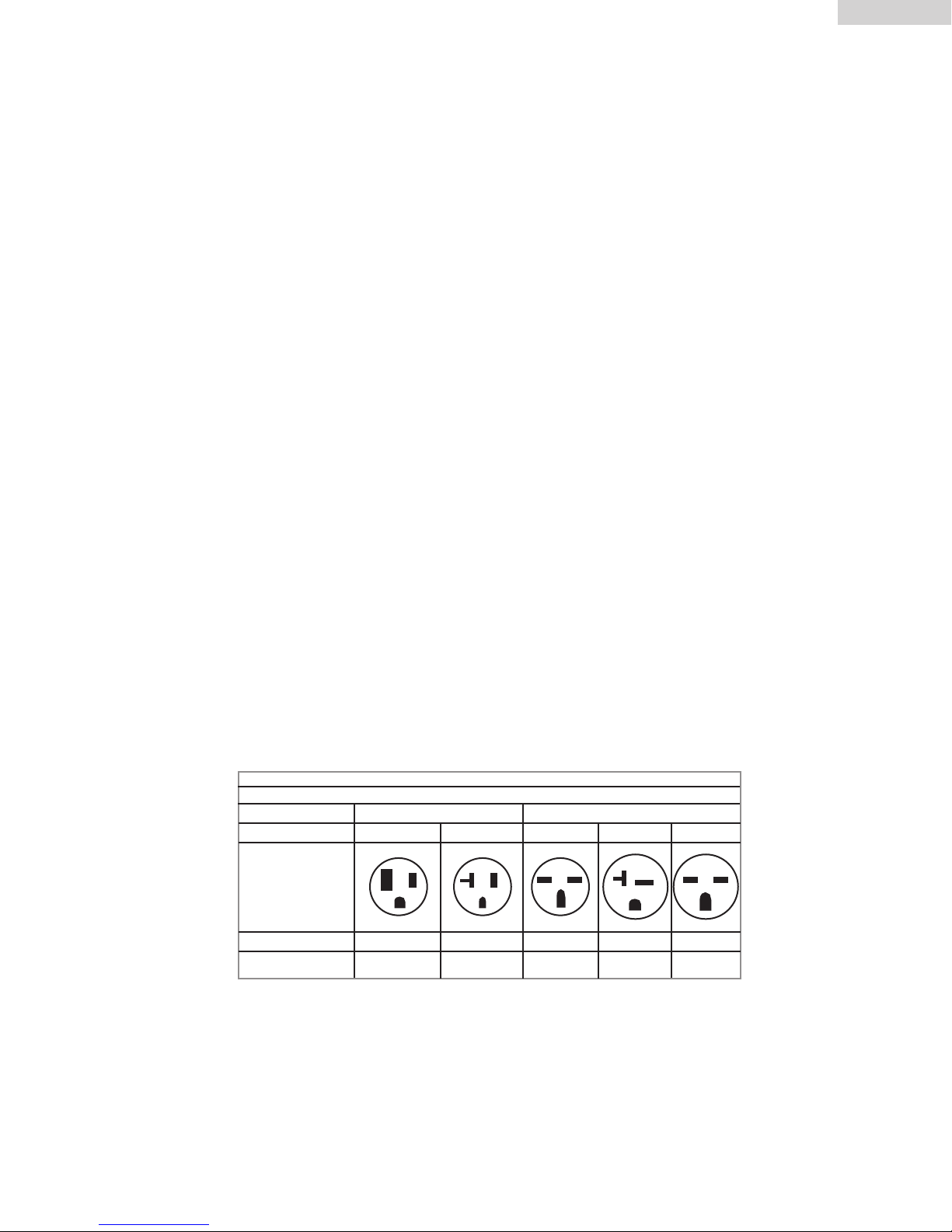

RECEPTACLE AND FUSE TYPES
RATED VOLTS 125/60 250/60
AMPS 15 20 15 20 30
WALL OUTLET
FUSE SIZE 15 20 15 20 30
TIME DELAY FUSE Plug Plug Plug Plug Plug
(or circuit braker)

2
English
SAFETY PRECAUTIONS
WARNING: Following these basic precautions will reduce the risk
of fire, electrical shock, injury or death when using
your air conditioner.
1) Air conditioner must be connected to proper electrical outlet with the correct electrical
supply. (see table previous page)
2) Proper grounding must be ensured to reduce the risk of shock and fire. DO NOT CUT
OR REMOVE THE GROUNDING PRONG. If you do not have a three-prong electric
receptacle outlet in the wall, have a certified electrician install the proper receptacle.
The wall receptacle MUST be properly grounded.
3) Do not operate air conditioner if power cord is frayed or otherwise damaged. Also
avoid using it if there are cracks or abrasion damage along the length or plug connector
or if the unit malfunctions or is damaged in any manner. Contact an authorized service
for examination, repairs or adjustments.
4) DO NOT USE AN ADAPTER OR AN EXTENSION CORD.
5) Do not block airflow around the air conditioner. The exhaust hose should be free of any
obstructions.
6) Always unplug the air conditioner before servicing it or moving it.
7) Do not install or use the air conditioner in any area where the atmosphere contains
combustible gases or where the atmosphere is oily or sulphurous. Avoid any chemicals
coming in contact with your air conditioner.
8) Do not place any object on the top of the unit.
9) Never operate the air conditioner without the filters in place.
10) Do not use the air conditioner near a bathtub, shower or wash basin.
SAVE THESE INSTRUCTIONS

English
Important Instructions
• Please keep this manual in a safe place.
• Do not use liquid or a spray to clean this product. Use a damp cloth.
• Do not place the product in an insecure or elevated place as it may fall and cause damage or
injury.
• Never spill liquid on the control panel; it may cause electrical shock to the electronic parts inside
and disable them or cause them to function improperly.
• Never try to dismantle the product by yourself. Unsupervised dismantling and incorrect reassembly
of the inside of the back cover may damage the electrical circuit and affect its performance. When
maintenance is required, please contact the local service center or local distributor.
Thank you for purchasing our Haier product. Please read this
manual carefully before operating and store for future reference
Staple your receipt to your manual. You will need it to obtain
warranty service.
Model number
Serial number
Date of purchase
3

4
English
Advantages of this Model
1. Unique dual-hose design, providing more powerful and faster cooling than the single-hose design.
2. Adjustable airflow direction for convenient and effective cooling.
3. Heat and cool functions for HPRD12XH7.
4. This model is easy to operate. The electronic control panel has a timer, thermostat, three speed
cooling speeds, three fan speeds and one speed dehumidification function (dry).
5. This portable air conditioner does not require water to be added.
6. The unit has a unique design which evaporates the water.Therefore there is no condensation tank
and no need to empty a tank overnight.
7. An easy-to-install window kit is included which consists of the exhaust hose, 2 hose nozzles, the
window panel kit, exhaust hose connector and cover for the exhaust hose connector.
8. Full directional casters are included to help move the unit as needed.
9. The filter screen is designed for easily accessibility of the filter.
10. Portable air conditioners are easy to store when not in use.
Table Of Contents
PAGE
A Word From Haier .................................................................................................................1
Product Registration..................................................................................................................1
Safety Precautions....................................................................................................................2
Advantages.............................................................................................................................4
Parts and Features....................................................................................................................5
Assembly and Installation..........................................................................................................6
Operation...............................................................................................................................9
Product Specification..............................................................................................................12
Care and Cleaning ................................................................................................................13
Storage.................................................................................................................................13
Troubleshooting .....................................................................................................................13
Warranty Information .............................................................................................................14

5
English
Parts and Features
1. Control Panel
2. Cold Air Outlet
3. Signal Receptor
4. Transport Handle
5. Air Outlet Hose
6. Evaporator Air Intake
7. Air Intake Hose
8. Drain Port
9. Power Supply
Front
Rear
RESET
TEST
TEST: WHEN THIS BUTTON IS PRESSED
OR WHEN THERE IS A CURRENT LEAK,
THE INDICATOR LIGHT WILL TURN OFF
AND THE UNIT WILL NOT RUN.
RESET: AFTER SOLVING THE PROBLEM,
PLEASE PRESS THE BUTTON AND THE
UNIT WILL START OPERATING.

English
6
Assembly and Installation

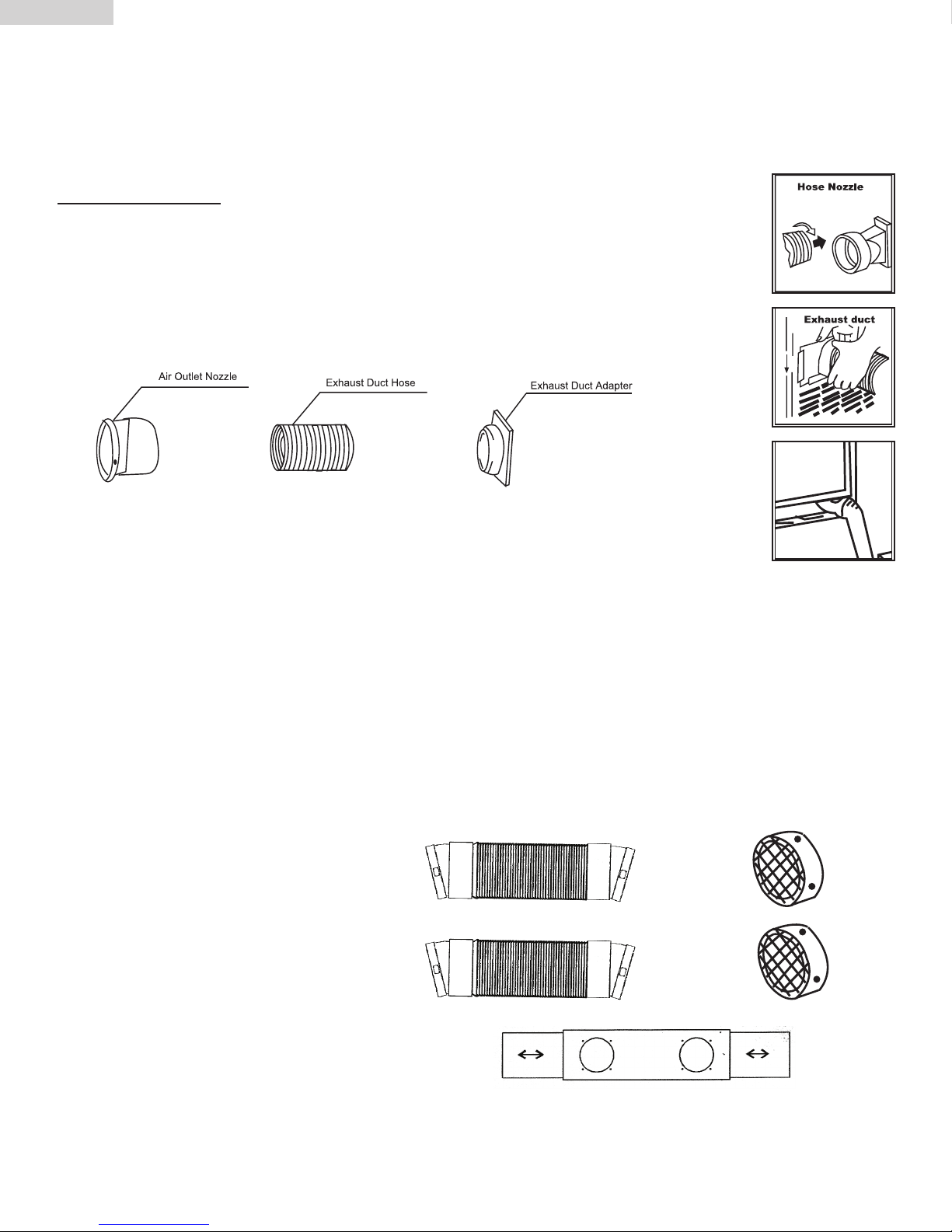

USING EXHAUST DUCT SET
1. Insert ends of Exhaust hose into air outlet nozzle and Exhaust duct “A” by
twisting until it stops.
2. Fix the Exhaust duct “A” to the exhaust outlet on the rear of the unit.
This is achieved by sliding the appropriate connector downward over the exhaust outlet ensuring
that the lugs on the outlet are engaged with the
grooves on the connector.
3. The exhaust hose is snap-fit to the unit. To take it off, turn it clockwise and remove.
Note: Air outlet hose should be mounted at right side (see fig. 1)
4. Extend the Exhaust hose and close the Window as far as possible, trapping the air outlet nozzle.
B. Repeat same steps for the air intake hose.

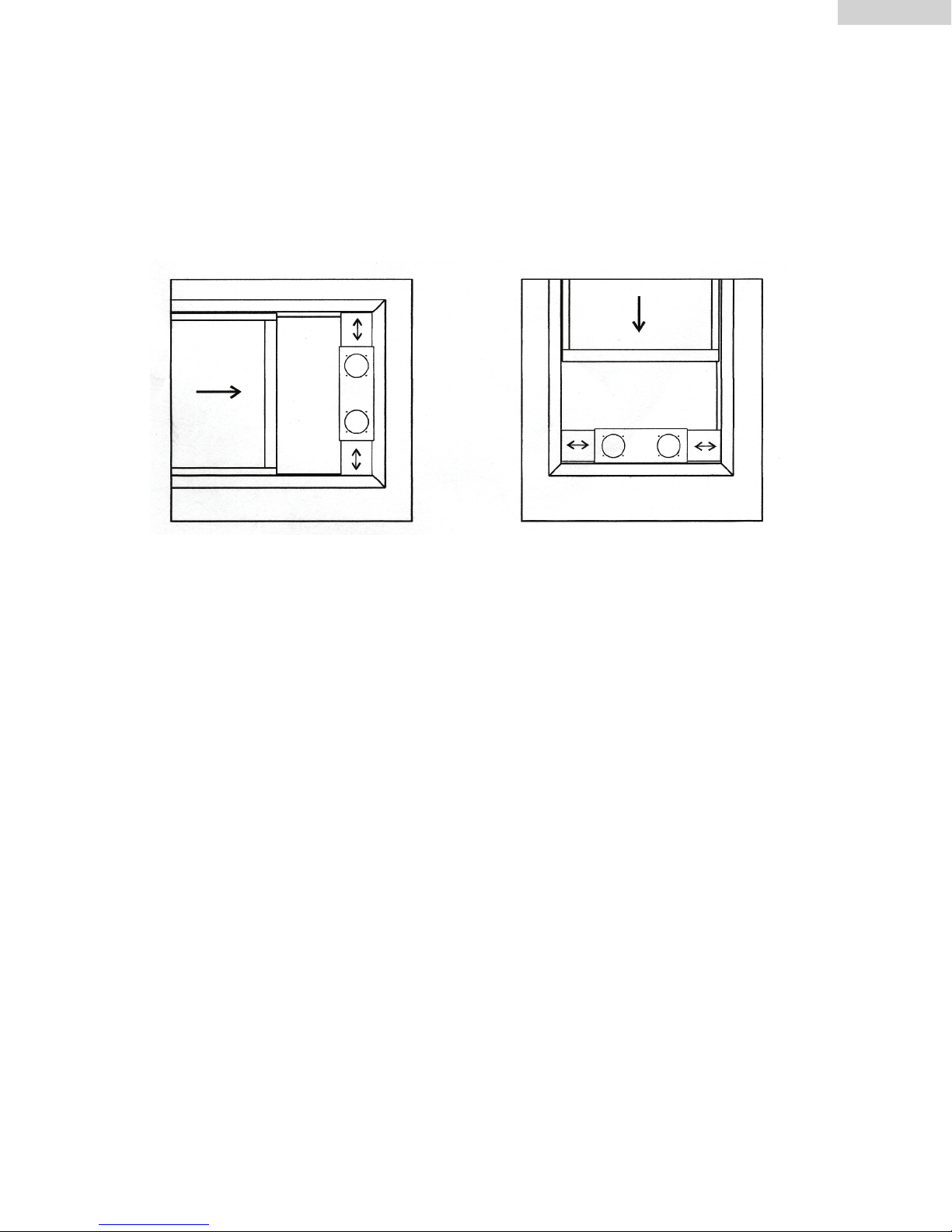

USING WINDOW PANEL KIT
1. Air Inlet Hose - 1 set
2. Air Outlet Hose - 1 set
3. Window Exhaust Adapter - 2 pieces
4. Window/Patio Door Slider Kit -
1 set Window Kit Installation
Assembly Instruction
A. Connect exhaust hose to the back of the
unit. Extend hose to desired
length and connect with window kit.
Indoor

Your window kit has been designed to fit most standard vertical and horizontal window
applications.
However, it may be necessary for you to improvise/modify some aspects of the
installation procedures for certain type windows. Please refer to for minimum and
maximum window openings
Note: Window kit is only available for some models.
Installation Instructions
• Air outlet intake indoor side can not be blocked by curtains or anything else.
• The end of air hose cannot be blocked by shutters or anything else.
• Do not bend the air hose when assembling, keep it straight.
• When appliance is in cool or dry mode, condensate will concentrate in water box of
chassis. When the box is full, water full indicator lights up (red), and the LCD window
shows the error sign E. The appliance will stop running at the same time. Now the
power supply should be shut. Pull out the rubber plug in drain port underside the
appliance, and drain the water into a prepared container, or drain the water by
moving the appliance to a suitable place.
Note: Water should be drained out when the water full light is on. Otherwise, the
appliance will not work.
• Select the best location for the air conditioner. It must be beside a window, door to
the outside, or French window.
• Keep the required distance from the return air outlet to the wall or other obstacles at
least 20”.
• Fix one end of the air hose on the air intake or outlet under the appliance.
• Extend the air hose to ensure that it is long enough to clear the window, door, French
window, or wall hole that you have chosen as a vent.
• Air outlet or intake cannot be blocked by protective grid or anything else.
• The distance between two ends of the air hose should be at least 8".
Note: The cooling capacity will decrease when using a single air hose. Fig. 3
English
7

English
8
Installation Sequence
Before Starting this Unit
1. Select a suitable location, making sure you have easy access to an electrical outlet.
2. Install the flexible exhaust hose and adjustable window slider kit as depicted in
Fig. 2 & 3.
Note: 1. Step 2 is required only while using cooling or dry mode. In cooling
mode you can select to install two hoses or air outlet hose only. In
dry mode you may install air outlet hose only.
2. While running or installing the hoses, the unit cannot be blocked by
curtains and so on.
3. Plug the appliance into a grounded electrical outlet. Please select an appropriate
power supply based on the nameplate sticker found on the unit.
Note: Do not use a regular extension cord.
4. To turn the appliance on, press ON/OFF button.

Operation
NOTE: Wait for 24 hours to turn on air conditioner if the unit has been tilted for any reason. This is
for the oils and the coolants to settle and level off.
1. Wait for 3 minutes before restarting the unit after a normal shut down to complete the compressor
cycle.
2. Use a 115v 15 amp outlet for the air conditioner. Do not use any other electrical appliances on
this line or you may trip the fuse. Use a dedicated line for this air conditioner.
3. Do not place the air conditioner in direct sunlight or close to any heating appliances. ex.
baseboard heaters, stoves, etc.
4. Operate on a flat surface only.
5. Keep the unit free of any obstructures such as drapes, curtains, blinds, etc.
6. Keep unit at least 1 foot away from the wall.
7. Check and clean the filter once every week to get the highest efficiency.
NOTE: Do not use unit without filter.
8. If the unit is not being used for a long period of time remove the plug from the water drain pipe
and drain out any condensed water. When turning on the unit first time after plugging it into an
electrical outlet the unit will start in a low fan cool mode. The temperature read out on the LED will
be the room temperature. When turning on the unit in regular usage it will remember the last shut
off setting.
Control Panel
English
9
Cooling Mode
Dehumidify Mode
Fan only Mode
Heating Mode Model HPRD12XH7 Only
High Fan Mode
Medium Fan Mode
Low Fan Mode
Display set temperature
Warning light the machine will stop
running
Display timer setting of auto switch
on/off
88˚F
88hr
88˚F
88hr
88˚F
88hr
88˚F
88hr
88˚F
88hr
88˚F
88hr
88˚F
88hr
88˚F
88hr

10
English
Power Control
The power control turns the unit on and off.
Warning Light
Condensed water may accumalate in the unit. If
the internal tank becomes full, the Warning signal
in the LCD Display will light the unit
Mode Control
The mode control has 3 settings:
• Cool • Dehumidifier • Heating (only
HPRD12XH7)/Fan
The settings are adjusted with Mode Control
button. A green light will indicate which setting
is currently being used.
Cooling Mode
When the cool mode is selected, " " will show
in the LCD Display. During the cooling mode the
air is cooled and hot air is exhausted to the ou-
tiside through the exhaust tube adjust fan speed
and air temperature to suit your desired comfort
level.
Note: The air exhaust hoses must vent outside the
room when using cool mode.
Dehumidifier Mode
When dhumidify mode is selected, " " will
show inthe LCD display. Air is dehumidified as
it passes through the unit, without being in full
cooling mode. If room temperature is higher than
77˚ C, fan speed can be adjusted: otherwise fan
speed is fixed to "Low".
Note: The warm air exchange hoses must vent
inside the room when using Dehumidify Mode,
not outside as it does when cooling. If the unit is
vented outside some cooling will occur.
Fan Mode (Led in Yellow)
When fan mode is selected " ", " ", " " will
be shown in the LCD display, air is circulated
throughout the room with no cooling.
Heating Mode (Led in Red) (only HPRD12XH7)
In heating mode " ", the air flow is selectable.
(Note: Heating is activated only when the
ambient temperature is below 77° F.)
Fan Speed Control (Led in Yellow)
The Fan Speed Control has 3 settings: High,
Medium. and low.
Timer
Auto turn off:
With machine in running mode, press timer button
for setting timer control. Press “ “ or “ “ to
select number of hours you would like the unit to
run before it automatically shuts off.
Auto turn off:
With machine in stand by mode, press timer
button for setting timer control. Press “ “ or “ “
to select number of hours before the unit
automatically starts running in air conditioning
mode.
Note: The time is adjustable between 1-24 hours.
Temperature Controls
• Used for adjusting the thermostat
• The default display is room temperature
• In cooling mode, when “ “ or “ “ button is
pressed, the set temperature is displayed and may
be adjusted. After 15 seconds the display will
revert back to room temperature. Temperature is
only adjustable in cool mode.
Note: by pressing both “ “ / “ “ buttons at
the same time for more than 3 seconds, the
display will toggle between Celsius and
Fahrenheit.
Control Panel (continued)
88˚F
88hr
88˚F
88hr
88˚F
88hr
88˚F
88hr
88˚F
88hr
88˚F
88hr

11
English
TIMER PROGRAMMING
1. Press the ( ) button on the remote or the “Timer Setting” button on the control panel to turn on the
Timer Function.
2. Press the ( ) or ( ) buttons on the remote or the ( ) or ( ) buttons on the control panel to set
the desired shut-off time.
3. The unit will shut off when the set time elapses.
DEHUMIDIFICATION OPERATION
Press the ( ) button on the remote or the “MODE” button on the control panel to sleect the
dehumidifier mode. When the dehumidifier mode is on, the temperature buttons and the fan speed
buttons do not function and the fan will operate on low speed. An image on the LCD display will
indicate that the unit is dehumidifying. Remember, the exhaust hose does not need to be used in
dehumidifier mode.
a) LCD Screen
b) Power On/Off Button
c) Timer and Thermostat Setting Buttons
d) Mode Button (Select A/C, Fan or Dehumidifier)
e) A/C Fan Speed Button (High, Medium, or Low)
f) Timer On/Off Button
g) Fahrenheit/Celsius Selector
Remote Control Operations
Timer
Auto turn off:
With machine in fan mode, press timer button to
select number of hours you would like the unit to
run in air conditioning mode until it automatically
shuts off.
Auto turn on:
With machine powered off, press timer button to
select number of hours until you would like the unit
to automatically start running in air conditioning
mode.
Timer / Temperature Buttons
• Used for adjusting the timer and thermostat.
• The default display is room temperature.
• When “ “ or “ “ button is pressed, the set
temperature is displayed and may be adjusted.
After 15 seconds the display will revert back to
room temperature.
• The temperature can be raised or lowered in
the cool and dehumidifier or dry mode. The
temperature cannot be adjusted in the fan
mode.

12
English
Product Specification
Air Conditioner Remote Control
The functions work the same as your air conditioner’s touch controls.

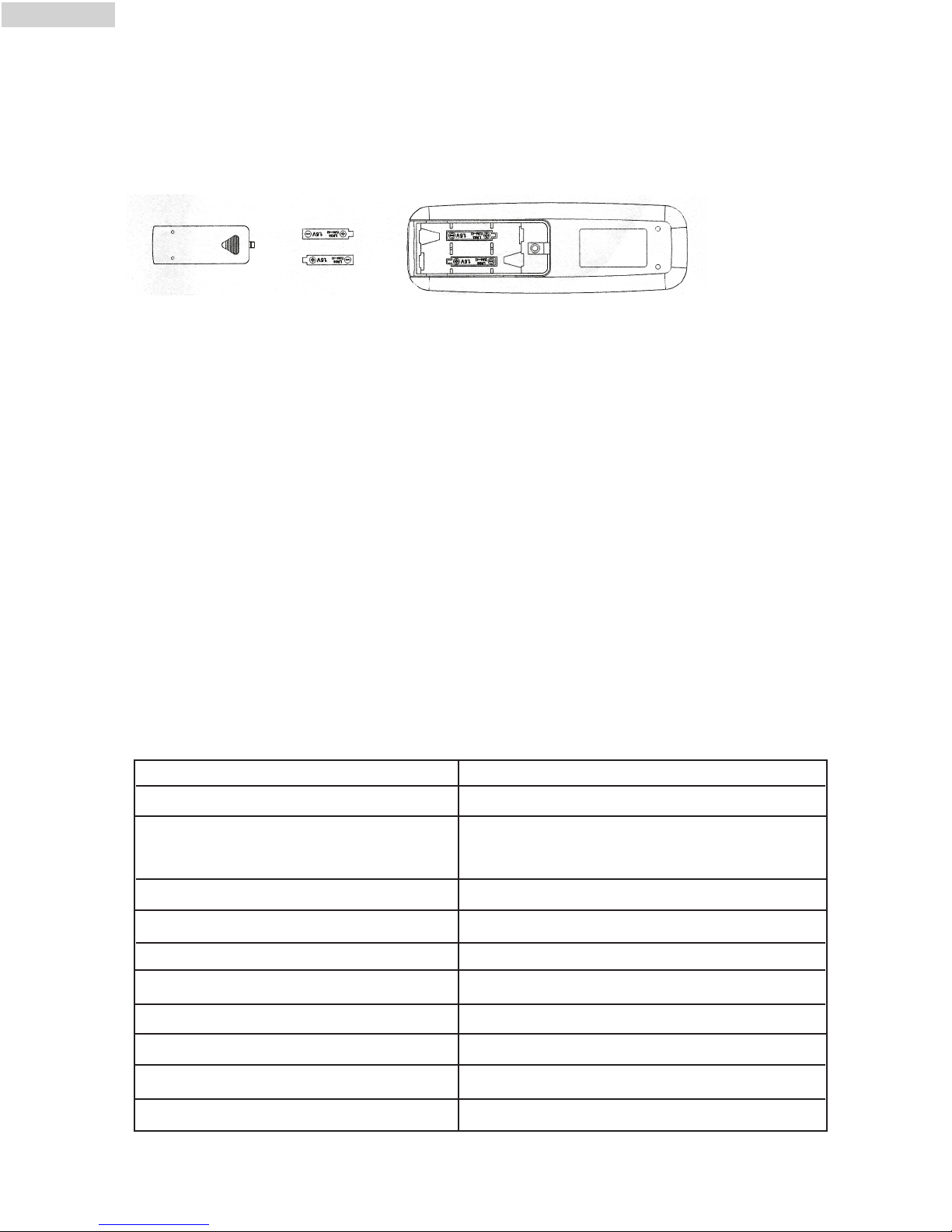

Batteries: Remove the cover on the back of the remote control and insert the batteries with the
(+) and (-) poles pointing in the proper direction.
CAUTION
Use only AAA or IEC R03 1.5V batteries.
Remove the batteries if the remote control is not used for a month or longer.
Do not attempt to recharge the supplied batteries.
All batteries should be replaced at the same time.
Do not dispose of the batteries in a fire as they may explode.
Voltage and Frequency 115V / 60Hz
Input Power 1200/1000W
Cooling Capacity 12,000 BTU Cool
6,200 BTU Heat (Modèle HPRD12XH7 Seulement)
Moisture Removal (pints/day) 100
Refrigerant R-22/19.1 OZ.
Timer 24 Hours
Operating Temperature Range 61˚F - 100˚F
Unit Dimensions (WxDxH) 19-11/16" x 15-3/4" x 33-1/4"
Net Weight approximate 80 lbs.
Power Cord 6 Feet
Exhaust Hose 5 Feet

13
English
Care and Cleaning Guide
• Always unplug your air conditioner before cleaning.
• Air filter needs to be cleaned at least once a week for your unit to operate at optimum
efficiency. Slide out the filter from the back by pulling on the tab. The filter may be washed
or vacuumed. Remove the excess water from the filter by gently shaking the filter. This will
remove dust and particles trapped in the filter. After cleaning, reinstall the filter. DO NOT
use your air conditioner without the air filter in place.
• To clean the cabinet, DO NOT use harsh chemicals, abrasives, ammonia, chlorine, bleach,
concentrated detergents, solvents or metal scouring pads. Some of these
chemicals may dissolve, damage and/or discolor your air conditioner.
• Always use a soft cloth dampened with water or a mild soap and water solution to wipe the
front of the cabinet. Wipe dry with a soft cloth.
Storage
• To store your air conditioner when not being used for a long period of time, drain
condensed water using the drain pipe. Remove exhaust hose, clean the filters, cover with plastic
bag and store away.
Troubleshooting
If air conditioner does not operate:
• Check if unit is plugged in. The plug may have come loose.
• Check if the electrical wall receptacle is of proper voltage.
• Check if the circuit breaker needs to be reset or if the fuse needs to be replaced.
• Check if the unit is in “Off” mode.
• If the tank full warning light is on, call for service.
Air conditioner working but room not cooling:
• Room may have appliances that produce heat. Use an exhaust fan to remove excess heat.
• Check exhaust hose for proper installation.
• Redirect the airflow. Remove any obstacles.
• All doors and windows need to be closed so that cool air does
not escape the room.
• Air filter may be blocked or may need cleaning.
• Unit BTU may be too low for the required cooling area.
• On extremely hot & humid days, air conditioners may take a little longer to cool.
• Drain the water drain pipe by removing the plug.
• Unit may be in fan or dry mode. Put air conditioner in cool mode.

English
14
This warranty covers all defects in
workmanship or materials for:
1. The mechanical and electrical parts (including
labor costs) contained in this Haier product, for
a period of 12 months from the date of purchase
(commercial or rental application, the warranty is
90 days).
2. The sealed system and compressor contained
in this Haier product is for a period of 5 years
from the date of purchase (excluding labor costs
after the initial 12 month period). In commercial
or rental use, the additional limited compressor
warranty is for 1 year and 9 months (excluding
labor costs after the initial 90 days period).
You must keep and be able to provide
your original sales receipt as proof of the
date of purchase.
Who is covered?
The original retail purchaser of this Haier product.
What will be done?
Haier will repair or replace, in your home, any
mechanical or electrical part or the compressor
which proves defective in normal household use
for a period of 12 months. Haier will repair or
replace (excluding labor costs) the sealed system
and compressor (parts only) for an additional 4
year period.
How can you get service?
1. Contact your nearest Haier authorized Service
Depot. For the name of the Service Depot
nearest you, contact Haier at [phone].
2. All service must be performed, by an
authorized Haier Service Depot.
THIS WARRANTY COVERS UNITS WITHIN
THE CONTINENTAL UNITED STATES,
CANADA AND PUERTO RICO AND
DOES NOT COVER:
• Damages from improper installation.
• Damages in shipping.
• Damages from misuse, abuse, accident,
alteration, lack of proper care and
maintenance.
• Damages from service, by other than an
authorized dealer or service center.
• Labor, service, transportation and shipping
charges for the removal of defective parts and
installation of a replacement part beyond the
initial 12 month period.
THIS LIMITED WARRANTY IS GIVEN IN LIEU
OF ALL OTHER WARRANTIES, EXPRESS OR
IMPLIED, INCLUDING THE WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE.
The remedy provided in this warranty is exclusive
and is granted in lieu of all other remedies.
This warranty does not cover incidental or
consequential damages. Some states do not
allow the exclusion of incidental or consequential
damages, so this limitation may not apply to you.
Some states do not allow limitations on how long
an implied warranty lasts, so this limitation may
not apply to you. This warranty gives you specific
legal rights, and you may also have other rights,
which vary from state to state.
Limited Warranty

Français
1
Un mot de Haier
Merci d’avoir achete un climatiseur “Haier”qui est dependable, facile a operer et economise de
l’energie. Ce manuel contient l’information necessaire pour maintenir, operer,installer et utiliser
proprement votre climatiseur. Votre climatiseur nettoie, refroidit et dehumidifie l’air dans votre salle
pour vous fournir avec le niveau ultime de confort..
S’il vous plait lisez soigneusement les instructions avant d’installer ce produit. N’oubliez pas de
remplir et poster la carte d’enregistrement du produit.
Registration du Produit
Registrez le model et numero de serie.
Pour tous vos appels de service pendant la periode de votre garantie, les informations suivantes vous
seront necessaries. Attachez le recu de ventes a ce guide et garder pour la reference d’avenir. Cette
information peut etre obtenue de la plaque en serie, qui est sur votre climatiseur.
Numero du model:..........................................................................................................
Numero de serie:............................................................................................................
Date d’achats:................................................................................................................
Nom du negociant:.........................................................................................................
Addressed u negociant:...................................................................................................
Numeros de telephone du negociant:................................................................................
TABLEAU
TYPES DE PRISES ET FUSIBLES
TENSION 125/60 250/60
AMPÈRES 15 20 15 20 30
PRISE DE COURANT MURALE
FUSE SIZE 15 20 20 30 30
FUSIBLEÀ FUSION Fiche Fiche Fiche Fiche Fiche
TEMPORISÉE (disjoncteur)

Français
2
CONSIGNES DE SÉCURITÉ
AVERTISSEMENT: Veuillez suivre ces précautions de base lorsque vous utilisez l'appareil
afin de réduire tout risque d'incendie, d'électrocution, de blessure, voire
de mort.
1) Le climatiseur doit être branché au niveau d'une prise électrique d'une tension adéquate.
(voir tableau)
2) L'appareil doit être mis à la terre (masse) afin de réduire tout risque d'électrocution et
d'incendie. NE PAS COUPER NI RETIRER LA BROCHE DE MASSE. Si votre prise murale ne
peut accueillir une fiche à trois broches, veuillez faire en sorte qu'un électricien qualifié en
installe une. La prise murale DOIT être mise à la masse.
3) Ne pas utiliser l'appareil si le cordon d'alimentation est effiloché ou fissuré, si la fiche et le
connecteur sont endommagés, ou si l’appareil présente une panne ou est endommagé d’une
façon quelconque.
4) NE PAS UTILISER UN ADAPTATEUR OU UNE RALLONGE.
5) Ne pas gêner ni bloquer le flux d'air autour de l'appareil et que rien ne bouche le tuyau de
sortie.
6) Débrancher toujours le climatiseur avant de le déplacer ou d'effectuer opération de
maintenance.
7) Ne pas installer le climatiseur dans un endroit où l’atmoshpère est huileuse ou présente des
gaz combustibles ou du soufre. Éviter que les produits chimiques entrent en contact avec le
climatiseur.
8) Ne placer aucun objet sur le climatiseur.
9) Ne jamais utiliser le climatiseur sans les filtres.
10) Ne pas utiliser le climatiseur à proximité d’une baignoire, d’une douche ou d’un lavabo ou
évier.
ÉCONOMISER CES INSTRUCTIONS

Français
3
Avantages de ce Model
1. Ce model est facile a operer. L’electronique a un minuteur, thermostat, trois vitesses pour refroidir,
trois ventilateurs et une vitesse de dehumidification (seche).
2. Ce climatiseur portative n’exige pas que l’eau soit ajoutee.
3. Ce produit a une conception unique qui evapore l’eau. Donc une tank de condensation n’est pas
necessaire . Ceci vous evitera de vous lever au milieu de la nuit pour vider le seau et virez le
produit.
4. Une trousse de fenetre facile a installer est incluse et est constituee d’un tuyau d’echappement, de
2 jets de tuyau, d’une trousse de panneaux de fenetre, d’un connecteur du tuyau d’echappement.
5. Roulettes directionelles sont inclus pour aider a deplacer le produit d’une maniere commode pour
etre utiliser dans presque n’importe quel domaine.
6. L’ecran du filtre est concu pour l’acces facilement.
7. Les climatiseurs portatifs sont faciles a emmagasiner quand pas utilizes.
Table de matieres
PAGE
Un mot de Haier.................................................................................................................... 1
Registration du Produit............................................................................................................ 1
Precautions de Surete ............................................................................................................. 2
Avantages............................................................................................................................. 3
Parties et caracteristiques........................................................................................................ 4
Assemblee et Installations........................................................................................................ 5
Operation............................................................................................................................. 8
Specification du Produit........................................................................................................ 11
Soins et nettoyage................................................................................................................ 12
Emmagasinage.................................................................................................................... 12
Detections d’un probleme...................................................................................................... 12
Imformations de la garantie .................................................................................................. 13

Français
4
Rear
Parties et Caracteristiques
1. Control du panneau
2. Sortie d’air froid
3. Signal du recepteur
4. Poignee de transport
5. Tuyau de sortie d’air
6. Evaporation d’entrée d’air
7. Tuyau d’entrée d’air
8. Tuyau d’ecoulement
9. Fil d’alimentation
Front
