Please read this operation manual before using the air conditioner.
No.0010578425
Operation & Installation Manual
CABINET TYPE AIR CONDITIONER
Please keep this manual carefull and safel .
HPU-36H13
HPU-36C13
HPU-44H13
HPU-44C13

Content
Operation
Cautions
Parts
Operation
Operation hints
Energy saving
Maintenance
Trouble shooting
When problems occur
Indoor & outdoor unit connection
Tools necessary
Installation procedures
5 12
13
14
17
20
1 2
3 4
15 16
18 19
21
22 27
Others 28

Cautions
1
Disposal of the old air conditioner
Before disposing an old air conditioner
that goes out of use, please make sure
it's inoperative and safe. Unplug the air
conditioner in order to avoid the risk of
child entrapment.
It must be noticed that air conditioner
system contains refrigerants, which
require specialized waste disposal. The
valuable materials contained in a air
conditioner can be recycled. Contact
your local waste disposal center for
proper disposal of an old air conditioner
and contact your local authority or your
dealer if you have any question. Please
ensure that the pipework of your air
conditioner does not get damaged prior
to being picked up by the relevant
waste disposal center, and contribute
to environmental awareness by
insisting on an appropriate, anti
pollution method of disposal.
Disposal of the packaging of your
new air conditioner
All the packaging materials employed
in the package of your new air
conditioner may be disposed without
any danger to the environment.
The cardboard box may be broken or
cut into smaller pieces and given to a
waste paper disposal service. The
wrapping bag made of polyethylene
and the polyethylene foam pads
contain no fluorochloric hydrocarbon.
All these valuable materials may be taken
to a waste collecting center and used again
after adequate recycling.
Consult your local authorities for the name
and address of the waste materials
collecting centers and waste paper
disposal services nearest to your house.
Safety Instructions and Warnings
Before starting the air conditioner, read
the information given in the User's Guide
carefully. The User's Guide contains very
important observations relating to the
assembly, operation and maintenance of
the air conditioner.
The manufacturer does not accept
responsibility for any damages that may
arise due to non observation of the
following instruction.
Damaged air conditioners are not to
be put into operation. In case of doubt,
consult your supplier.
Use of the air conditioner is to be
carried out in strict compliance with the
relative instructions set forth in the User's
Guide.
Installation shall be done by professional
people, don't install unit by yourself.

2
The machine is adaptive in following
situation
Applicable ambient temperature range:
Cautions
Cooling
Heating
Indoor
outdoor
Rated Maximum Minimum
27 32 18
19.5 23 14
35 43 10
24 26 6
20 27 15
15 15 --
7 21 -7
6 15 --
DB C
WB C
DB C
WB C
Indoor
outdoor DB C
WB C
DB C
WB C
For the purpose of safety, the air
conditioner must be properly grounded
in accordance with specifications.
Always remember to unplug the air
conditioner before opening inlet grill.
Never unplug your air conditioner by
pulling on the power cord. Always grip
plug firmly and pull straight out from
the outlet.
All electrical repairs must be carried
out by qualified electricians.
Inadequate repairs may result in a
major source of danger for the user of
the air conditoiner.
Do not damage any parts of the air
conditioner that carry refrigerant by
piercing or perforating the air
conditioner's tubes with sharp or
pointed items, crushing or twisting any
tubes, or scraping the coatings off the
surfaces. If the refrigerant spurts out
and gets into eyes, it may result in
serious eye injuries.
Do not obstruct or cover the
ventilation grille of the air conditioner.
Do not put fingers or any other things
into the inlet/outlet and swing louver.
Do not allow children to play with the
air conditioner. In no case should
children be allowed to sit on the
outdoor unit.
Specifications
The refrigerating circuit is leak proof.

˛´¶¨+ ‰¡¿ ˛´¶¨-
Parts
3
1
2
1
2
1
2
3
4
2
1
2
3
4
I n d o o r u n i t
Remote controller
Outlet grill
Operation panel
Inlet grill
Air filter [inside the unit]
Outdoor unit
Inlet grill
Outlet grill
ON
OFF
TEMP
HEALTH FAN
MODE
SLEEP SWING
CLOCK
TIMER
SET
LOCKLIGHT
RESET
HEAT
SLEEP
POWER/SOFT
HEALTH AIRFLOW
FRESH
CODE
ON/OFF MODE FAN TEMP + TEMP HEALTH
SET
HUMI
TEMP
HEALTH
TIMER
SLEEP
TEMP
HUMI
SET
SLEEP
TIMER
HEALTH
ON/OFF MODE FAN
SET
TEMP
HUMI
HEALTH
TIMER

Parts
Manual Operation
MODE
CLOCK
Used to set correct time.
ON
OFF
TEMP
HEALTH FAN
MODE
SLEEP SWING
CLOCK
TIMER
SET
LOCKLIGHT
RESET
Power ON/OFF
Used for unit start and stop.
Used to select AUTO run,
COOL, DRY,HEAT and
FAN operation.
2
Batter Capacit displa
Displa when the electric power
of the batter is insufficient.
Power/Soft operation displa
Humidif ing displa
Clock displa
Temperature displa
Used to displa the set
temperature and room
temperature.
Lock state displa
Electric Heating displa
2
HEAT
29
HEAT
Fresh Air state displa
Select Auxiliar
electric heater
1
1
3
3
4
5
TIMER
LOCK
Used to select
TIMER ON, TIMER
OFF, TIMER
ON/OFF.
Used to lock buttons
and LCD displa .
4
5
6
7
8
9
10
11
12
LIGHT
SLEEP
Used to select sleep
mode
HOUR
Used to set clock and
timer setting.
RESET
Used to reset the
controller back to
normal condition.
SET
Used to confirm
Timer and Clock
setting.
HEALTH
Control the light up and go out
of the control panel's
background light source and
control the switch of the buzzer.
Used to set Health operation
function
FAN
Used to select fan speed: AUTO,
LOW FAN, MED FAN, HIGH
FAN.
Used to set UP/DOWN air
sending and RIGHT/LEFT air
sending direction.
SWING
6
7
8
9
10
11
12
13
13
14
15
16
17
18
19
21
22
21 23
24
25
26
23
24
27
25
26
29
28
20
BA
28
27
22
4
Note: These models don't have the following related displa and function
For some air conditioners , the function is not availed.
22 28
27
11 29
32
31
HEALTH AIRFLOW
FRESH
POWER/SOFT
30
CODE
33
POWER/SOFT
Used to select HIGH or SOFT operation
30
FRESH
Used to set fresh mode, the unit will
draw in fresh air
31
HEALTH AIRFLOW
Used to set HEALTH AIRFLOW
function.The function is not available
for these units UP/DOWN swing will
not available if this button has been
pushed, please press this button some
times to cancel this mode
32
CODE
Used to select Code A or B,
this manual is for Code A
33
32
Used to set temp.,temp.
range:16 C~30 C
TEMP
Health displa
Displa when set Health
operation function.
Timer ON/OFF displa
Fan speed and air sending
direction displa
Swing direction displa
Room temperature displa
Sleep state displa
LOW MID HIGH AUTO
14
15
16
17
18
20
19

5
1
2
3
Operation
Clock set
When unit is started for the first time
and after replacing batteries in remote
controller, clock should be adjusted as follows:
Press CLOCK button, "AM"or "PM" flashes.
Press or to set correct time. Each press will increase
or decrease 1 min . If the button is kept pressed, time will
change quickly.
After time setting is confirmed, press SET, "AM" and "PM"
stop flashing, while clock starts working.
Remote controller's operation
When in use, put the signal transmission
head directly to the receiver hole on the
indoor unit
The distance between the signal transmission
head and the receiver hole should be within
7m without any obsacles as well.
Don't throw the controller, prevent it from
being damaged.
When electronic started type fluorescent
lamp or change over type fluorescent lamp
or wireless telephone is installed in the room,
the receiver is apt to be disturbed in receiving
the signal so the distance to the indoor unit
should be shorter.
MODE
SLEEP SWING
CLOCK
TIMER
SET
LOCK
LIGHT
RESET
2R 03 dry batteries
MINUTES
HEAT
12
3
Confirmation indicator:
In disorderation, reload the batteries or load the new batteries
after 5 mins.
Note:The waster batteries should be disposed properly,use two
new same type batteries when loading.
If the remote controller cant function normally or doesnt work at
all,use a sharp pointed item to press the reset key.
Hint:Remove the batteries in case unit wont be in usage for a long period.
If there are any displays after taking out just need to press reset key.
When throw away the waste batteries, please perform in accordance with the local regulation.
Loading of the battery
Slightly press " " and push down the cover.
Load the batteries as illustrated.
2 R 03 dry batteries, (cylinder)
Be sure that the loading is in line with the "+"/" " pole
request as illustrated.
Put on the cover again.
HEATH AIRFLOW
FRESH
CODE
POWER/SOFT

Remote
controller LOW MID HIGH AUTO

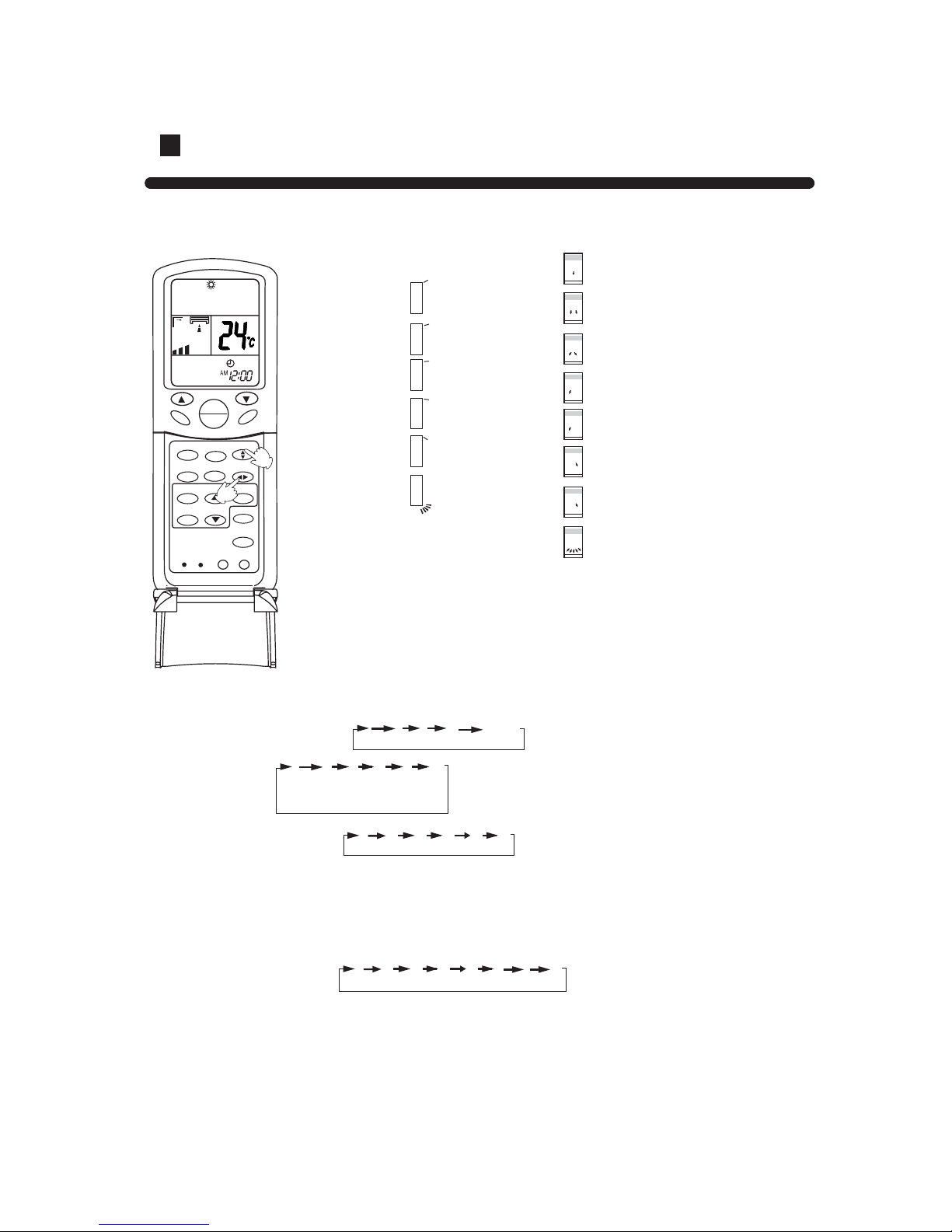

Operation
2.
1.
Press ON/OFF button
Unit starts running.
The pre ious status appears on the display
(except. TIMER, SLEEP mode)
Press MODE button.
For each press, operation mode changes as follows:
5.
Remote
controller AUTO COOL DRY FAN HEAT
Press FAN
For each press, operation mode changes as follows:
Unit runs at the speed displayed on LCD.When fan speed is AUTO,
it is changed automatically,according to the indoor temperature.
Note:
During Auto run operation, temp. setting will be shown in LCD display, unit will select heating, cooling
or fan operation according to the room temp.
6.
6

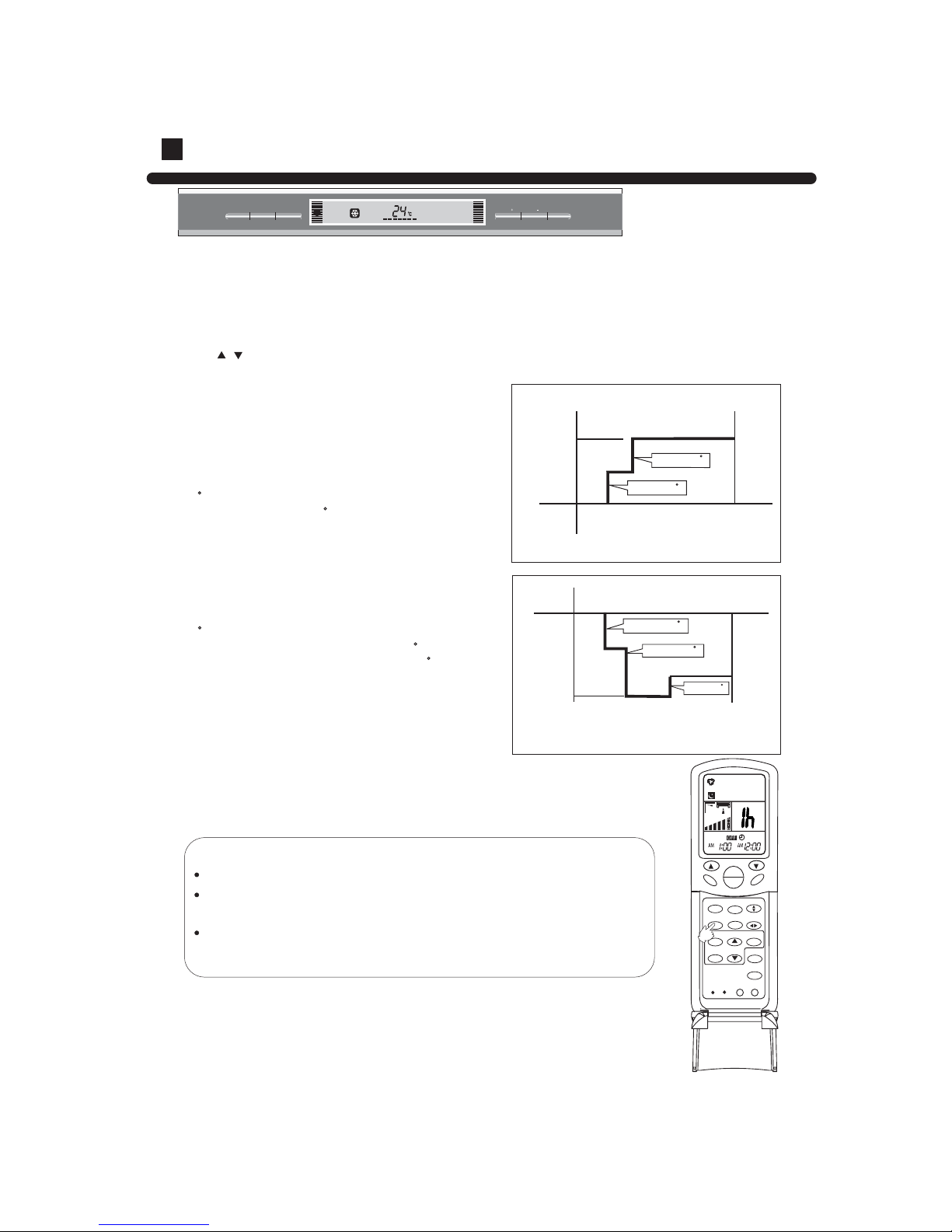

Select temp. button
Press TEMP button
E ery time the button is pressed, temp. setting increases 1¡
E ery time the button is pressed, temp. setting decreases 1¡
If the button is kept pressed, setting will increase or decrease quickly.
3.
In DRY mode, when room temp.becomes 2 C higher than temp.
setting,unit will run intermittently at LOW speed regardless of FAN
setting.
Ultra low air flow
Temp.setting+2 C
Temp.setting
COOL operation starts when room
temp. is higher than temp. setting.
On reaching 2 C higher than temp.
setting,unitwill run in mild DRY mode.
ON
OFF
TEMP
HEALTH FAN
MODE
SLEEP SWING
CLOCK
TIMER
SET
LOCKLIGHT
RESET
2
6
HEAT
Then select AUTO run or select COOL operation or
select DRY operation or select HEAT operation
AUTO COOL DRY FAN
ON
ON
13
5
3
Control panel HEAT
TEMP+
TEMP-
The fan speed change of the control panel see page 12.
Press ON/OFF button Unit stops running.
4
(During Cooling ,Fan , Dehumidification etc. Operations ,this function
cant be operated.)
Press the button of HEAT ,remote controller & LCD display  ,this
function start to runing.Press this button another time , remote controller
& LCD display   will be disappears,this function stops.The Auxillary
heating condition see the page 13 of this manual.
4.
Auxillary heating function(only Suit for the units with
Auxillary heating function models)
HEALTH AIRLOW
FRESH
POWER/SOFT
CODE
1
5
33
24
ON/OFF MODE FAN HEALTH
TEMPTEMP
TEMP

7
Operation
Fan Operation
3. Adjust fan speed
Press FAN button. At each press, fan speed changes as
follows:
Air conditioner will run at the selected fan speed.
4. Unit stop
Press ON/OFF button to stop unit.
Then select FAN
About FAN mode
When the air conditioner runs in FAN mode,
it is not possible to select AUTO FAN or to
set temperature.
Manual Operation
Remote-control unit
ON
OFF
TEMP
HEALTH FAN
MODE
SLEEP SWING
CLOCK
TIMER
SET
LOCKLIGHT
RESET
2
4
HEAT
1
3
AUTO COOL DRY FAN HEAT
Control panel
POWER/SOFT
CODE
HEATH AIRFLOW
FRESH
LOW MED HIGH
1.Unit start
Press ON/OFF button to start our air conditioner.
Previous operation status appears on LCD (except for
TIMER, SLEEP, setting).
2.Select operating mode
Press MODE button. At each press, operation mode
changes as follows:
AUTO FANHEATCOOL DRY
1
4
2
ON/OFF MODE FAN TEMP TEMP HEALTH
3
TEMP

8
Up & down air direction
Press the up & down button once, the LCD aiflow direction will display as follows:
Cooling/Dehumification/airflow:
Remote controller: Position 1 2 3 4 6
Heating: Position 5 4 3 2 1 6
Remote controller
Auto:
Remote controller:Position 1 2 3 4 5 6
The up & down flade will move according to the above conditions.
Note: Pay more attention to not cut down the power supply because the flade can't back to the
colse position at this circumstance;
Left & right air direction
Press the Left & right button once , the LCD aiflow direction will display as follows:
Remote controller: Position 1 2 3 4 5 6 7 8
The left & right flade will move according to the above conditions
Note: 1. during AUTO mode, pls. don't touch the flade to avoid damaging the inner part of the unit;
2. If the difference between real position & the chart position, press ON/OFF(control panel) button
or ON/OFF( remote controller) button to close the flade and re open the unit, then it will be normal condition.
(not availble in these nuits)
(not availble in these nuits)
ON
OFF
TEMP
HEALTH FAN
MODE
SLEEP SWING
CLOCK
TIMER
SET
LOCKLIGHT
RESET
HEAT
1
POWER/SOFT
2
Up and down Side from side
Position 1
Position 2
Position 3
Position 4
Position 5
Position 6
Position 7
Position 8
[COOL/DRY/FA
N/AUTO(COOL)
HAVE NOT]
(AUTO SWING)
Position 1
Position 2
Position 3
Position 4
Position 5
Position 6
Operation Air flow adjustment
Swing louvers
(Vertical louvers)
(Horizontal louvers)
CODE
HEATH AIRFLOW
FRESH

Sleep Function
Before going to bed you can press down the SLEEP button and the air conditioner will run so as
to make you sleep more comfortably.
Before using this function, the clock must be set.
Use of SLEEP function
After the unit's start, set running mode and then press SLEEP button once to make the air conditioner
have the previous set sleep time (first power on is "1h"). The sleep symbol will appear. Press time
button / : you can choose the time in 1~8 hours. Each time the button is pressed, the time
increases/decreases 1 hour: "xh" and "OFF" indications appear on the display.
Operation Mode
1.In COOL, DRY mode
One hour after sleeping operation start, the
temperature
is 1 C higher than the setting one. After another
hour, temperature rises 1 C: sleep run continuously
for another 6 hours and then stops. The actual
temperature is higher than the setting one which
is to prevent from being too cold to your sleep.
SLEEP RUN BEGINS SLEEP RUN STOPS
SETTING T SHUT DOWN
about 6 hrs
1 hrs
In COOL,DRY mode
increase 1 C
increase 1 C
Notes:
After setting SLEEP function, it is not possible to set clock.
If set sleep time does not reach 8 hours, unit will automatically stop
operation after set time is reached.
Set " TIMER ON " or " TIMER OFF "In COOL,DRY mode function first,
then set SLEEP. After set SLEEP function, the TIMER function cannot
be set.
9
Operation
2.In HEAT mode
One hour after sleeping operation start, the
temperature
is 2 C lower than the setting one. After another
hour, temperature decreases by 2 C more.
Temperature will automatically rise by 1 C after
another 3 hours' continuous operation. The actual
temperature is lower than the setting one which
is to prevent from being too hot to your sleep.
3.In AUTO mode.
The air conditioner will run in corresponding sleep
operation according to the automatically selected
operation mode.
SLEEP RUN BEGINS SLEEP RUN STOPS
SETTING T SHUT DOWN
1 hrs
1 hrs
3 hrs
about 6 hrs
increase 1 C
decrease 2 C
decrease 2 C
In HEAT mode
The control panel will display "SLEEP" ON LCD when
SLEEP function set.
ON
OFF
TEMP
HEALTH FAN
MODE
SLEEP SWING
CLOCK
TIMER
SET
LOCKLIGHT
RESET
HEAT
HEATH AIRFLOW
FRESH
CODE
POWER/SOFT
ON/OFF MODE FAN TEMP TEMP HEALTH
TEMP SLEEP

Every time the button is pressed, time increases 10 minuts.
If the button is kept pressed, time changes quickly.

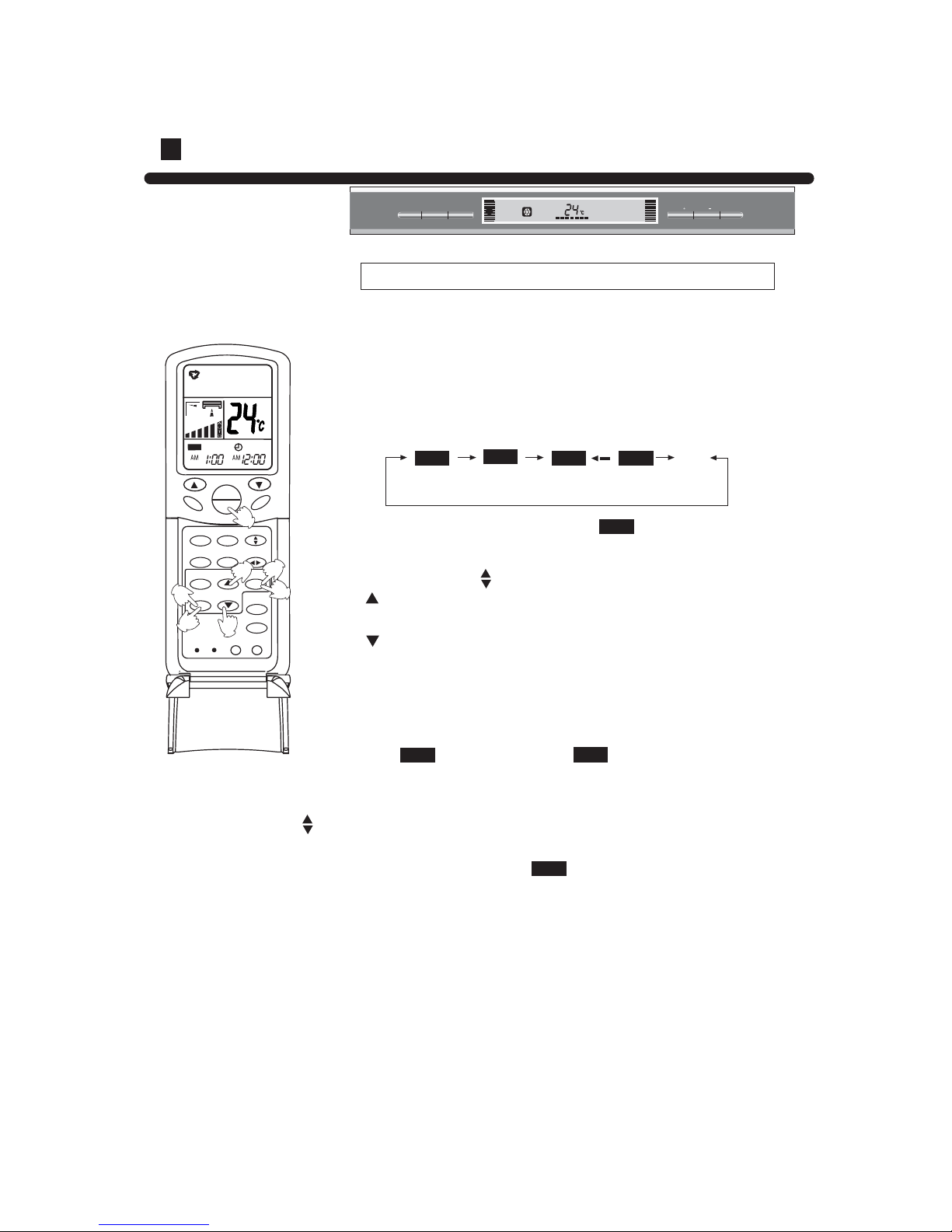

Timer ON/OFF Function
Set clock correctly before starting TIMER operation
1.Unit start
After unit start, select your desired operation mode (operation
mode will be displayed on LCD)
2.TIMER mode selection
Press TIMER button on the remote controller to change TIMER
mode. Every time the button is pressed, display of TIMER mode
changes as follows:
ON OFF ON OFF
AM
12:00
AM
12:00
PM
12:00
PM
12:00
TIMER ON TIMER OFF TIMER ON OFF
blank
Then select TIMER mode as needed (TIMER ON or TIMER OFF).
Now or will flash.
3.TIMER setting (press time adjust buttons )
Every time the button is pressed, time decreases 10 minuts.
If the button is kept pressed, time changes quickly.
It can be adjusted within 24 hours at will.
4.Confirm setting
After setting correct time, press SET button to confirm time. Now
5.Cancel TIMER mode
Just press TIMER button several times until TIMER mode
disappears.
Hints:
After replacing batteries or if a power failure occurs, TIMER setting
must be reset.
Remote controller has memory function. When you use TIMER
mode next time, just press SET button after mode selection if timer
setting is the same as the previous one.
Note:
After setting TIMER function, the remote controller displays TIMER time.
ON OFF
ON OFF
or stop flashing.
Manual Operation
10
Operation
Remote control unit
1
1
The control panel will display TIMER.
1
ON
OFF
TEMP
HEALTH FAN
MODE
SLEEP SWING
CLOCK
TIMER
SET
LOCKLIGHT
RESET
HEAT
HEATH AIRFLOW
FRESH
CODE
POWER/SOFT
2
5
4
3
3
ON/OFF MODE FAN TEMP TEMP HEALTH
TEMP TIMER
ON

Manual Operation
Remote controller operation
11
Operation

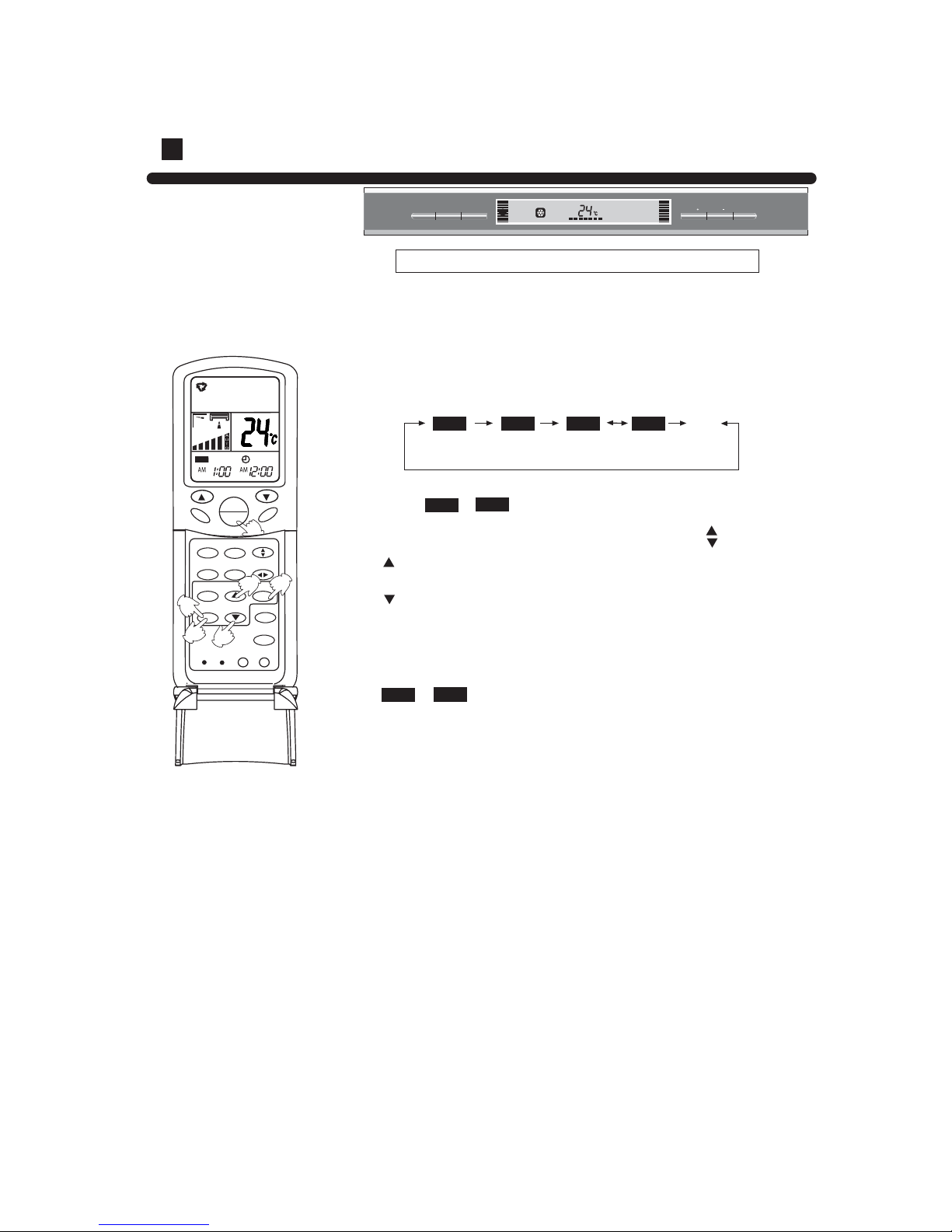

Timer ON OFF Function
Set clock correctly before starting TIMER operation
1.Unit start
After unit start, select your desired operation mode (operation
mode will be displayed on LCD)
2.TIMER mode selection
Press TIMER button on the remote controller to change TIMER
mode. Every time the button is pressed, display of TIMER mode
changes as follows:
OFF
3.Time setting for TIMER ON
4.Timer confirming for TIMER ON
After setting correct time, press SET button to confirm time. Now
5.Timer setting for TIMER OFF
Press time buttons and follow the same procedures in " Time setting for TIMER ON"
Press time button
ON
stops to flash, while starts flashing.
6.Time confirming for TIMER OFF
After time setting, press SET button to confirm time. stops to flash.
7.Canel TIMER mode
Just press TIMER button several times until TIMER mode disappears.
According to the time setting sequence of TIMER ON and TIMER OFF, either start stops or
stops start can be realized.
If the time setting of TIMER ON is the same as TIMER OFF, TIMER ON OFF function cannot
be set.
ON
Then select TIMER ON OFF mode. will flash.
Every time the button is pressed, time increases 10 minuts.
If the button is kept pressed, time will changes quickly.
Every time the button is pressed, time decreases 10 minuts.
If the button is kept pressed ,time will changes quickly.
It can be adjusted within 24 hours at will.
AM refers to morning and PM refers to afternoon.
OFF
The control panel will display TIMER.
ON
ON
OFF
TEMP
HEALTH FAN
MODE
SLEEP SWING
CLOCK
TIMER
SET
LOCKLIGHT
RESET
HEAT
HEATH AIRFLOW
FRESH
CODE
POWER/SOFT
OFF
2
5
3
3
4
6
1
ON ON OFF
AM
12:00
AM
12:00
PM
12:00
PM
12:00
TIMER ON TIMER OFF TIMER ON OFF
blank
ON/OFF MODE FAN TEMP TEMP HEALTH
TEMP TIMER
ON

k
12
Air speed display
Adjust the air speed during air con running condition, the airflow speed will change
according to the following mode when press the swing button.
of which
Remote controller
Control panel: Auto: Part 1 to 4 bright periodically;
Low: Part 1 to 2 bright, other parts not bright;
Middle:Part 1 to 3 bright, other parts not bright;
High: Part 1 to 4 bright;
Display function:
1. Control panel display control:
Press the light button, the LCD will display according to the following sequence
when press once:
LCD bright
Buzzer not act
LCD not bright
Buzzer act
LCD bright
Buzzer not act
2. LCD color control:
Function Standard color Priority Function Standard color Priority
Auto white 1 Blowing Yellow & Green 1
Cooling Blue 1 Negative ion Green 2
& Anti bacterial
Heating &
Auxillary
Red 1 Double fresh
air
Pink 3
Dehuimidy Light blue 1
When the LCD bright, the color will display according to the above standard color, when two or more than
two kinds of functions operate, the color will display according the priority class (Sequence from High to low 3 2 1)
When cut off the power and restart the power, the room temp. will be displayed after full screen display lasting 5
seconds. Press the panel button or remote control , the air conditioner will send out music sound.
Operation
ON
OFF
TEMP
HEALTH FAN
MODE
SLEEP SWING
CLOCK
TIMER
SET
LOCKLIGHT
RESET
HEAT
HEATH AIRFLOW
FRESH
CODE
POWER/SOFT
1223434
ON/OFF MODE FAN TEMP HEALTH
TEMP
AUTO LOW MED HIGH
AUTO LOW MED HIGH
TEMP
ON

Unit operation
Protection devices inside the unit will activate to stop unit operation, when ambient
temp. is extremely low or high.
When unit is running under high humidity in cooling or dehumidifying mode, condensate might appear at outlet
grill.
3-min delay protection
Fan speed changes
Unit will not restart until 3 min have elapsed for the protection of the unit.
When Fan speed is set at Auto in cooling mode, it will be automatically reduced as room temp. is approaching
temp. setting.
In dry mode, fan speed will change automatically.
13

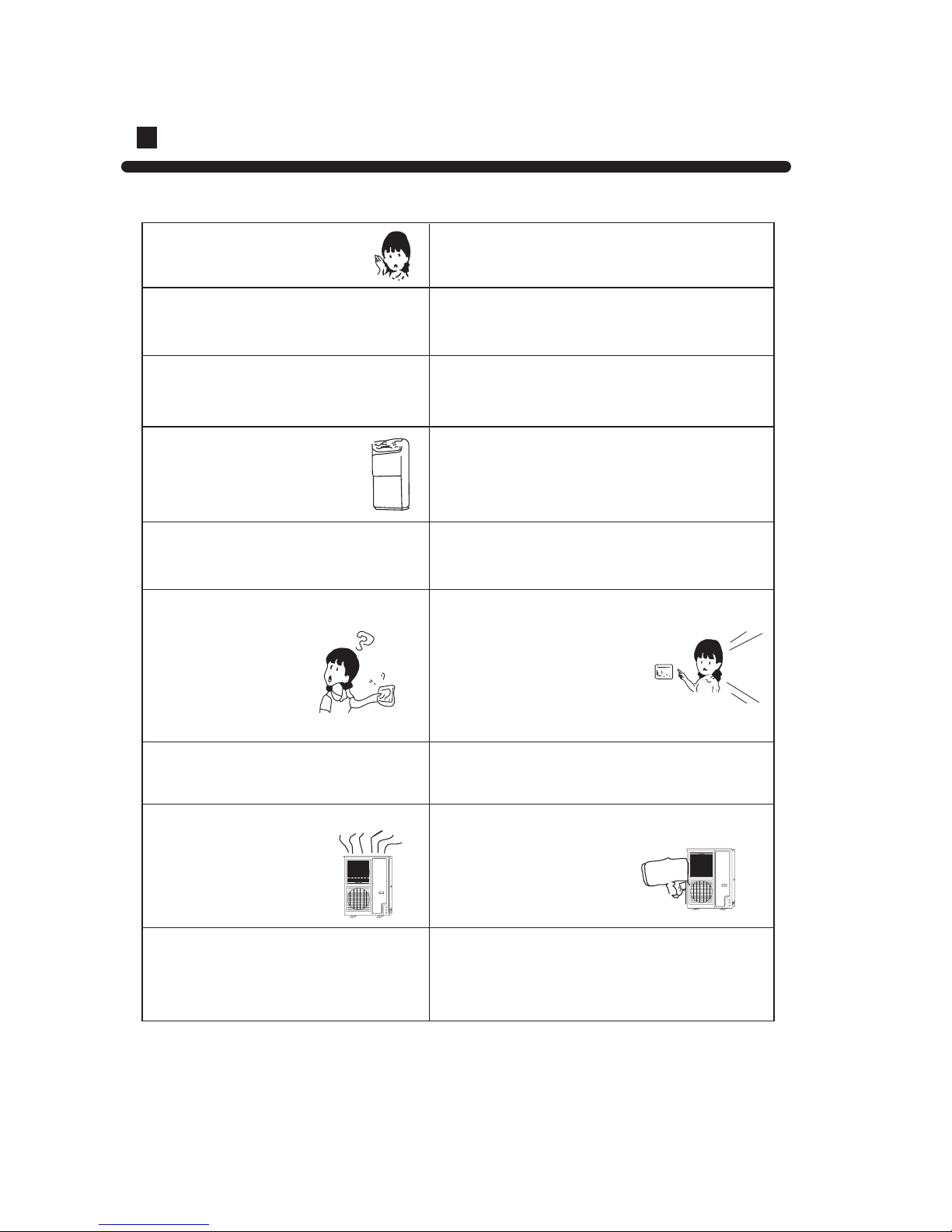

Operation hints
Cold draft pre ention
Use objecti ely
Defrosting
In heating mode, indoor fan will not run for the first 2 5 min. due to cold draft prevention.
When frost accumulates on heat exchanger in heating mode, unit will start defrosting
automatically.
During defrosting, both indoor and outdoor fan stop.
After defrosting, unit resumes running.
Heat pump works by means of absorbing outside heat to warm room air, so outdoor
temp. degree will affect unit's heating efficiency.
With setting of power failure resume, if sudden power failure occurs, the unit will resume original
operation when power is supplied again.
Power failure resume (please set and apply as necessary)
The Auxillary heating ondition (Only suit for auxillary heating fun tion model)
Indoor fan running , the indoor PCB program tests the indoor temp. lower than 23 ¡, even much lower than the setting
temp. 2 ¡,the auxillary function begins to running,otherwise ,it will stops.
Setting method:
with ON of remote controller (except TIMER and FAN),repeatedly press SLEEP button 10 times in 5
seconds,after 4 Beep from the buzzer,the unit comes into power failure resume mode.
To cancel:
press SLEEP button continuously 10times in 5 seconds,the buzzer sounds Beep twice and power
failure resume function is canceled.
Note:
When sudden power failure happens during unit operation in power failure resume mode, if the air
conditioner is not desired for use in a long period, please shut off the power supply in case that the
unit automatically resume operation when power is re supplied, or press ON/OFFto turn off the unit
when power resumes.

14
Energy sa ing
Keep proper room temp.
Too cold or too warm is no good
to your health, and power
consumption will be increased as
well.
Air filter should be periodically cleaned
If air filter is clogged:
It will cause poor cooling and
heating efficiency, higher power
consumption and even problem
may occur. In cooling operation,
water will flow out.
Use Timer effecti ely
You may use Timer mode to keep
a comfortable room temp.when
you wake up or come home from
outside.
A oid direct sunlight
and air flow
Adjust air flow
properly
Proper temp.
8:00 5:00
AM PM
ON OFF

15

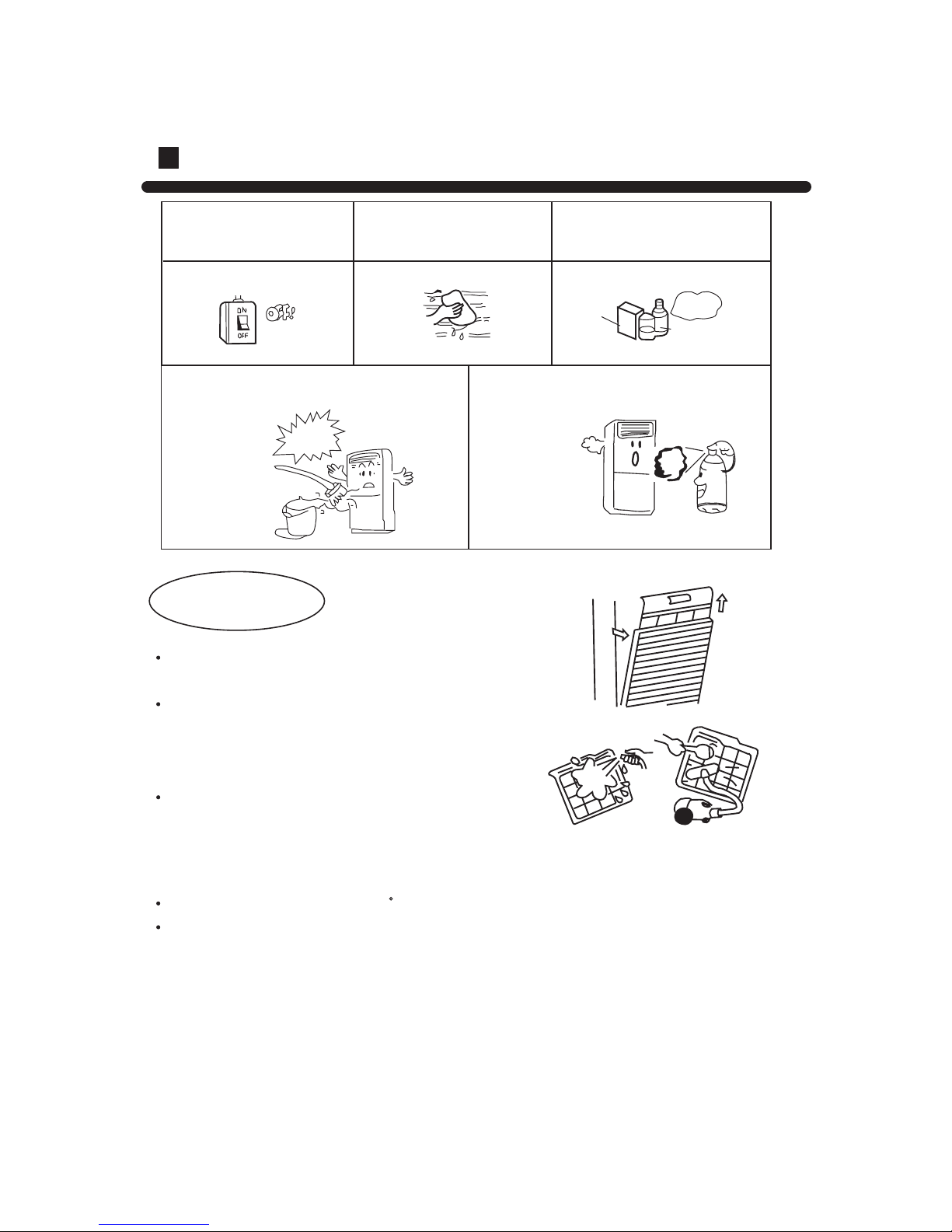

Don't spray any paint or insecticide
on the unit.
Don't splash water directly on indoor
unit.
This will cause damage or even fire accident.
This could be
very dangerous
Maintenance
Disconnect power supply Don't touch it with wet
hand
Don't wash with hot water
or solvent to clean the unit
Don't use hot water over 40 C, as this may cause damage to air filter.
Wipe air filter carefully.
Caution:
Pull it out from top as shown in Fig.
Use water or vacuum cleaner to clean it.
If it is extremely dirty, wash it with neutral
detergent or soap water.
Wash it with clean water and install it after
complete dry.
Air filter cleaning

16

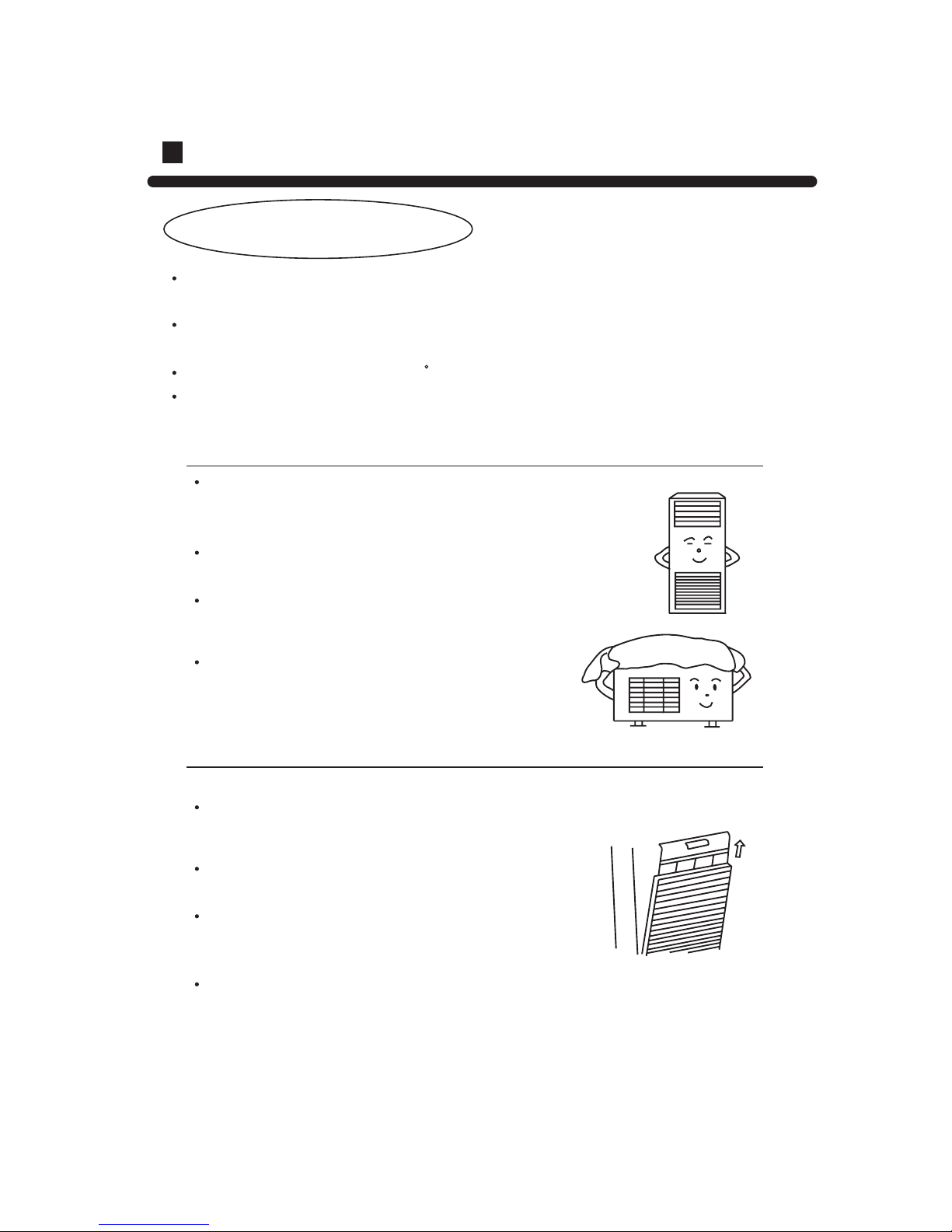

Maintenance
After season maintenance
Before season maintenance
Let the unit run in Fan mode for half a day in a
fine weather to dry completely the unit inside.
Turn off the unit and pull out power plug.
There might be certain power consumption even
if unit is stopped.
Clean air filter and indoor unit, cover outdoor
unit after cleaning.
Check if there are obstacles at inlet and outlet of indoor and outdoor unit,
whick will reduce unit efficiency.
Don't fail to attach air filter after making sure it
is cleaned.
Dust will enter into unit causing damages or
faults if it is running without air filter.
To protect compressor at start, please connect external power supply to
the unit 12 hrs prior to starting. Also please keep the power supply switch
ON during the whole season.
Clean it with warm and wet cloth or with neutral detergent, then wipe it dry with
clean and soft cloth.
If air conditioner is very dirty, clean it with cloth soaked in neutral detergent,then
wipe off the detergent with clean water.
Don't use water higher than 40 C , which will cause discoloring and deformation.
Don't use insecticide or other chemical detergents.
Indoor and outdoor cleaning

17
Trouble shooting
Followings are not problems
Sound of water flowings are not
problems.
Sound of cracking is heard.
Smells are generated.
During operation, white fog or steam
comes out of indoor unit.
In cooling operation, unit switches to fan
operation.
Unit will not restart after stop.
Won't start?
No outlet air or fan speed can't be changed in
dry mode.
In heating operation, water or
steam are blown out of indoor
unit.
In heating operation, indoor fan won't stop even
if unit is stopped.
During unit start and operation or at stop, a swishing or
gurgling noise may be heard. This noise is generated by
refrigerant flowing in the system.
During unit operation, a cracking noise may be heard.
This noise is generated by the casing expanding or
shrinking because of temperatuer changes.
This is because the system circulates smells from the
interior air such as the smell of cigarettes or the painting
on the unit.
When unit is running at places like restaurant where dense
edible oil fumeis always exist, this will happen.
To prevent frost from accumulating on indoor heat
exchanger, unit will switch to fan operation for a while
then resume cooling operation.
Though ON/OFF button is set to
ON, unit won't resume cooling,dry
or heating operation in 3 min after
it is stopped, this is because of 3
min delay protection circuit.
Unit will reduce fan speed repeatedly and automatically
if room temp. is too low in dry operation.
This occurs when frost
accumulated on the outdoor unit
is removed.
(during defrosting operation)
After unit stops, indoor fan will go on running until indoor
unit cools down.
Please wait 3 minutes

18
When problems occur
Before asking ser ices, please firstly check your unit according to following.
If your unit still can't work properly after above mentioned checks, or following problems occur,
please stop it immediately and contact your dealer.
Fuses or circuit breakers often blow out.
Water comes out in cooling/dry operation.
Operation is abnormal or sound is heard.
If the fuse on PC board is broken please change it with the type of T3.15A/250VAC.
Air conditioner won't start.
Is power supply switch
turned on?
Power supply
switch is not set
at ON.
Are operation controlls
adjusted correctly
as specified?
Are horizontal louvers
at up position (in
heating mode)?
Is there any direct sunlight
in the room?
Poor cooling or heating
Poor cooling
Is city power supply normal?
Is air filter too dirty?
Any doors or windows left
open?
If there are unexpected heat
sources in the room?
Are there any obstacles at inlet
or outlet grill?
Too many people in the room?
Is leakage current breaker
activated?
This is very dangerous, please
disconnect power supply
immediately and contact your
dealer.
Proper
temp
Power
failure?
